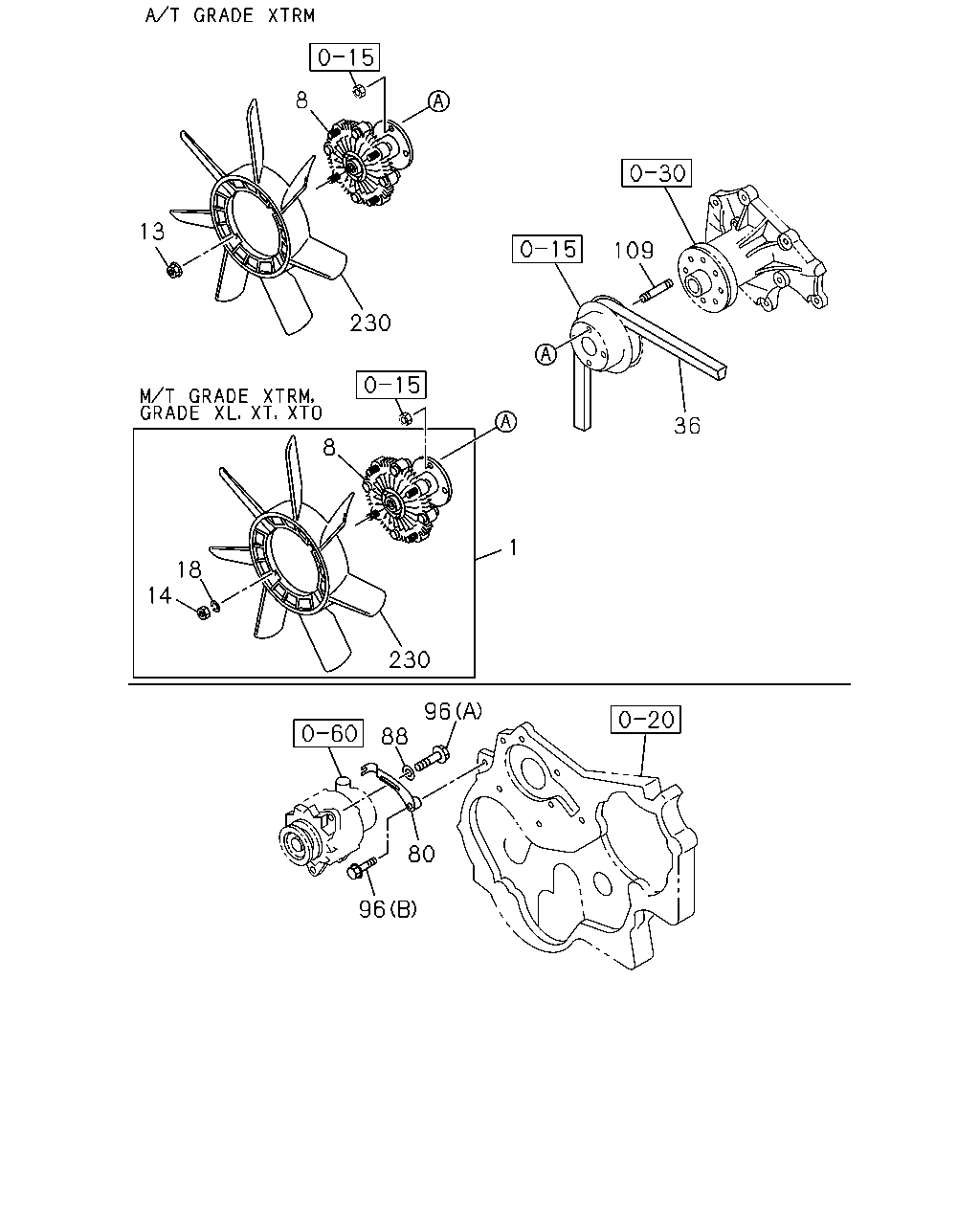

1 |
FAN; COOLING
OD=410
THA
|
8-97131-736-0 |
01 |
1 |
0103-0110 |
| |
1 |
FAN; COOLING
M/T MSG 5 SPEED(M75)
GRADE XTRM(RBG)
OD=410
THA
|
8-97131-736-0 |
01 |
1 |
0111-0406 |
| |
1 |
FAN; COOLING
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD)
OD=410
THA
|
8-97131-736-0 |
01 |
1 |
0111-0406 |
| |
1 |
FAN; COOLING
M/T MSG 5 SPEED(M75)
GRADE XTRM(RBG)
OD=410
|
8-94103-469-0 |
01 |
1 |
0407- |
| |
1 |
FAN; COOLING
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD)
OD=410
|
8-94103-469-0 |
01 |
1 |
0407- |
| |
8 |
CLUTCH; COOLING FAN
THA
|
8-97145-322-0 |
01 |
1 |
0103-0110 |
| |
8 |
CLUTCH; COOLING FAN
M/T MSG 5 SPEED(M75)
GRADE XTRM(RBG)
THA
|
8-97145-322-0 |
01 |
1 |
0111-0406 |
| |
8 |
CLUTCH; COOLING FAN
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD)
THA
|
8-97145-322-0 |
01 |
1 |
0111-0406 |
| |
8 |
CLUTCH; COOLING FAN
M/T MSG 5 SPEED(M75)
GRADE XTRM(RBG)
|
8-94244-409-0 |
01 |
1 |
0407- |
| |
8 |
CLUTCH; COOLING FAN
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD)
|
8-94244-409-0 |
01 |
1 |
0407- |
| |
8 |
CLUTCH; COOLING FAN
A/T AISIN(RMD)
GRADE XTRM(RBG)
|
8-97039-034-0 |
01 |
1 |
0111- |
| |
13 |
NUT; COOLING FAN
A/T AISIN(RMD)
GRADE XTRM(RBG)
M6 FLANGE
|
5-09440-004-0 |
04 |
1 |
0111- |
| |
14 |
NUT; FAN TO CLU
M6
|
9-09110-506-0 |
04 |
1 |
0103-0110 |
| |
14 |
NUT; FAN TO CLU
M/T MSG 5 SPEED(M75)
GRADE XTRM(RBG)
M6
|
9-09110-506-0 |
04 |
1 |
0111- |
| |
14 |
NUT; FAN TO CLU
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD)
M6
|
9-09110-506-0 |
04 |
1 |
0111- |
| |
18 |
WASHER; FAN TO CLU
ID=6.1
|
9-09150-506-0 |
04 |
1 |
0103-0110 |
| |
18 |
WASHER; FAN TO CLU
M/T MSG 5 SPEED(M75)
GRADE XTRM(RBG)
ID=6.1
|
9-09150-506-0 |
04 |
1 |
0111- |
| |
18 |
WASHER; FAN TO CLU
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD)
ID=6.1
|
9-09150-506-0 |
04 |
1 |
0111- |
| |
36 |
BELT; COOLING FAN
L=1051
THA
|
8-94161-841-0 |
01 |
1 |
0103- |
| |
80 |
PLATE; ADJ
|
8-97132-049-0 |
01 |
1 |
0103-0211 |
| |
80 |
PLATE; ADJ
THA
|
8-97921-594-0 |
01 |
1 |
0212- |
| |
88 |
WASHER; PL,ADJ PLATE
ID=8.4 OD=22
|
9-09164-708-0 |
01 |
1 |
0103-0605 |
| |
88 |
WASHER; PL,ADJ PLATE
ID=8.4 OD=22
|
0-91614-708-0 |
01 |
1 |
0606- |
| |
96 |
BOLT; ADJ PLATE
(A)
M8X25 W/LK WASHER
|
0-50040-825-0 |
01 |
1 |
0103-0211 |
| |
96 |
BOLT; ADJ PLATE
(B)
M8X45 W/LK WASHER
|
0-50040-845-0 |
01 |
1 |
0103-0201 |
| |
96 |
BOLT; ADJ PLATE
(B)
M8X45 FLANGE
|
0-28080-845-0 |
01 |
1 |
0202-0211 |
| |
96 |
BOLT; ADJ PLATE
(A),(B)
M8X25 W/LK WASHER
|
0-50540-825-0 |
02 |
1 |
0212- |
| |
109 |
STUD; FAN CLU
M6X18 L=27
|
9-04110-618-0 |
04 |
1 |
0103-0409 |
| |
109 |
STUD; FAN CLU
M6X18 L=27
|
0-41010-618-0 |
04 |
1 |
0410- |
| |
230 |
FAN; COOLING
OD=410 7-BLADE
THA
|
8-94117-866-0 |
01 |
1 |
0103-0110 |
| |
230 |
FAN; COOLING
M/T MSG 5 SPEED(M75)
GRADE XTRM(RBG)
OD=410 7-BLADE
THA
|
8-94117-866-0 |
01 |
1 |
0111- |
| |
230 |
FAN; COOLING
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD)
OD=410 7-BLADE
THA
|
8-94117-866-0 |
01 |
1 |
0111- |
| |
230 |
FAN; COOLING
A/T AISIN(RMD)
GRADE XTRM(RBG)
OD=450 8-BLADE
|
8-97049-499-1 |
01 |
1 |
0111- |
