Isuzu WW
▶
AUV
▶
TBR
▶
50909 - TBR-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#41853) — 30 parça
◀

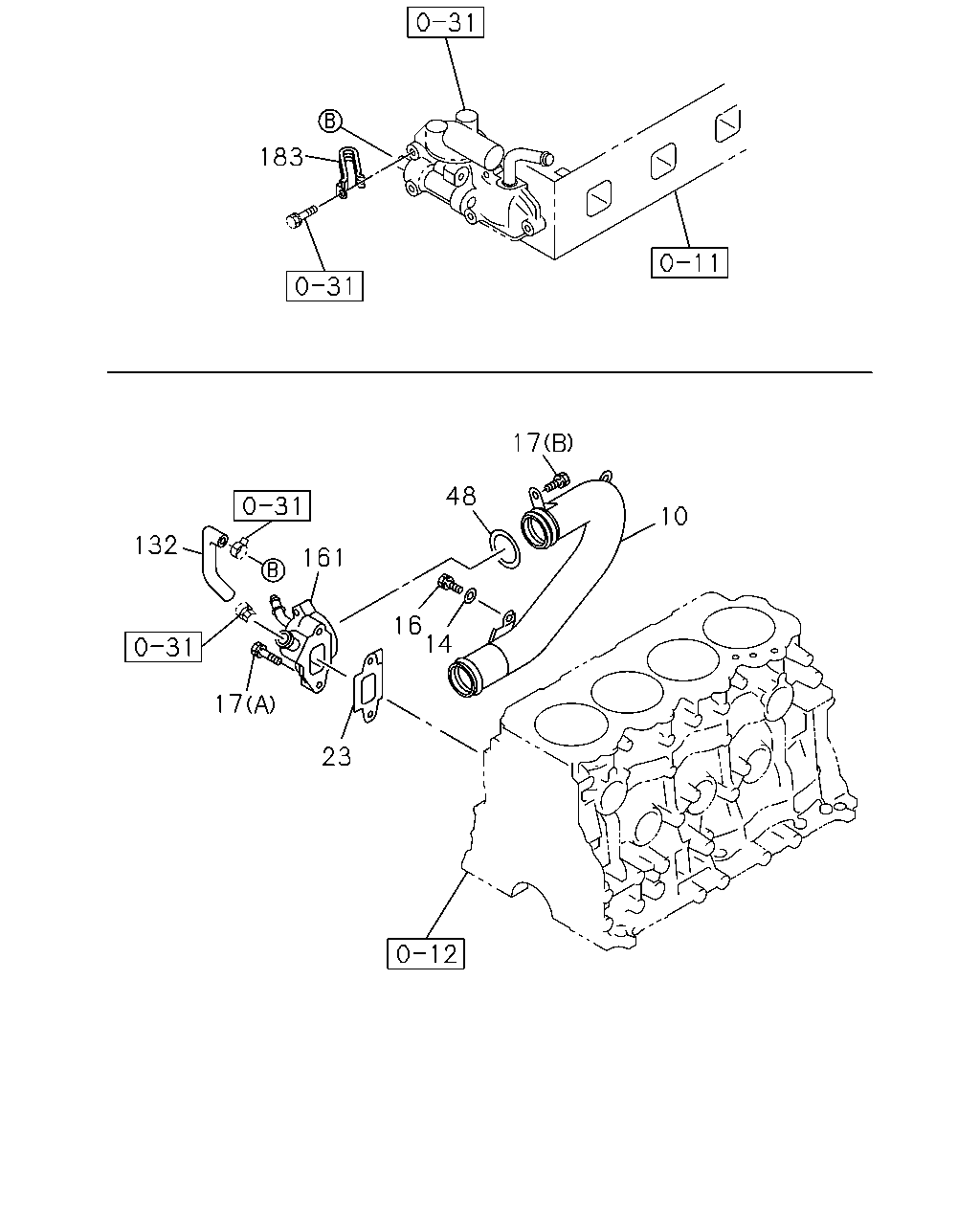

[032A] TURBOCHARGER (15 parça)

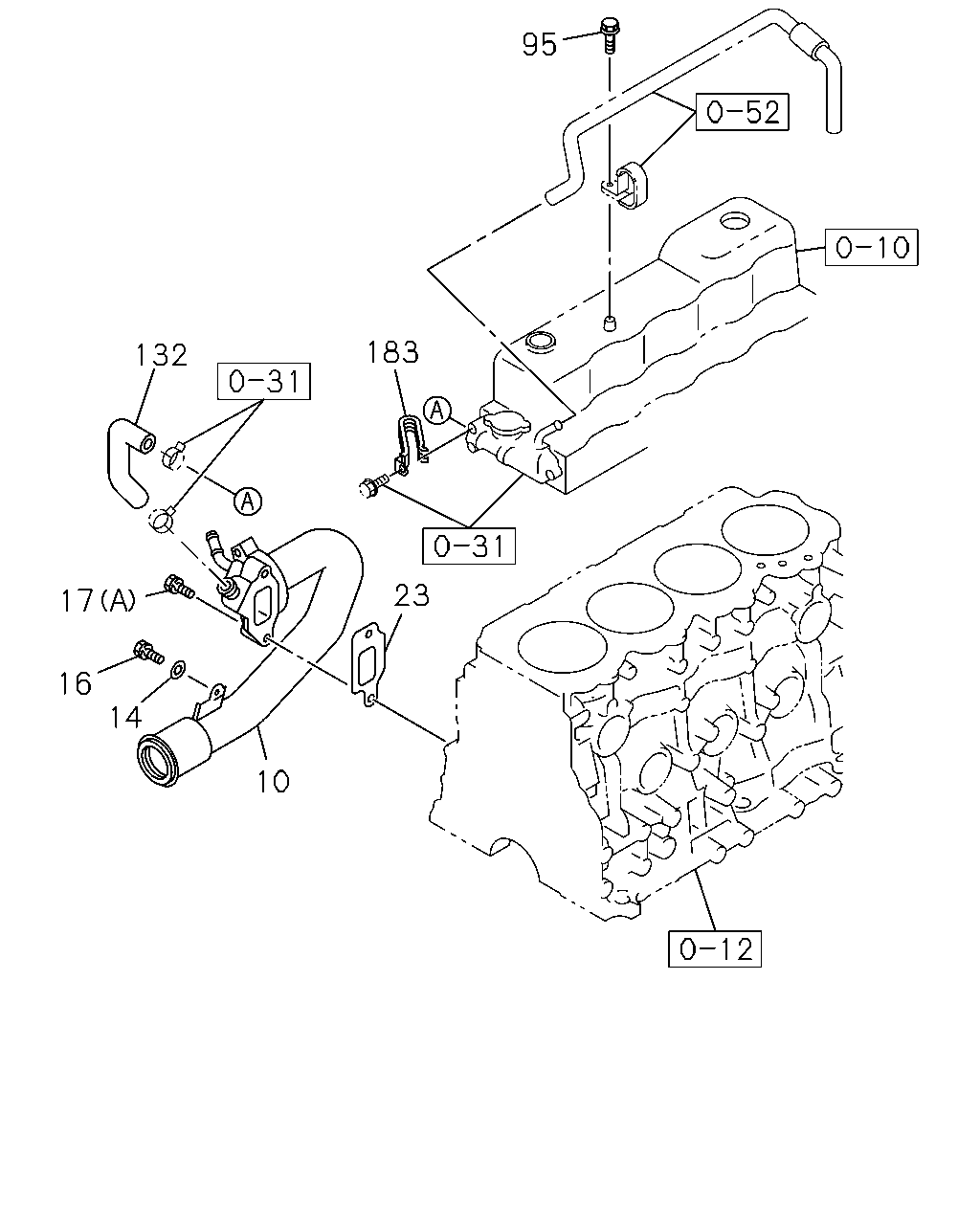

[032A] EXC.TURBOCHARGER (15 parça)
▶
183
48
10
132
161
16
14
23
17
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
PIPE; SUCTION
TURBOCHARGER<K51> THA
8-97134-257-2
01
1
0103-
10
PIPE; SUCTION
EXC. TURBOCHARGER<K51>
8-97264-246-1
01
1
0103-
14
WASHER; PL,INL PIPE TO BRKT
ID=8 OD=18 T=3
8-94174-537-0
01
1
0103-
16
BOLT; INL PIPE
M8X20 W/LK WASHER
0-50040-820-0
01
1
0103-0211
16
BOLT; INL PIPE
M8X20 FLANGE
0-28050-820-0
01
1
0212-
17
BOLT; SUCTION PIPE
(A) M8X50 W/LK WASHER
0-50040-850-0
02
1
0103-0211
17
BOLT; SUCTION PIPE
(A) M8X50 W/LK WASHER
0-50540-850-0
02
1
0212-
17
BOLT; SUCTION PIPE
TURBOCHARGER<K51> (B) M8X20 W/LK WASHER
0-50040-820-0
01
1
0103-0211
17
BOLT; SUCTION PIPE
TURBOCHARGER<K51> (B) M8X20 FLANGE
0-28050-820-0
01
1
0212-
23
GASKET; SUCTION PIPE TO BLOCK
THA
8-94365-676-3
01
1
0103-
48
GASKET; PIPE TO PUMP
TURBOCHARGER<K51> ID=35.2
9-09565-335-0
01
1
0103-
132
HOSE; WATER PIPE
THA
8-94382-246-0
01
1
0103-0402
132
HOSE; WATER PIPE
THA
8-97910-064-0
01
1
0403-
161
PIPE; SUCTION
TURBOCHARGER<K51> THA
8-97135-640-0
01
1
0103-
183
CLIP; VACUUM HOSE
ID=12 THA
5-09700-331-0
01
1
0103-
95
183
132
23
17
16
14
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
PIPE; SUCTION
TURBOCHARGER<K51> THA
8-97134-257-2
01
1
0103-
10
PIPE; SUCTION
EXC. TURBOCHARGER<K51>
8-97264-246-1
01
1
0103-
14
WASHER; PL,INL PIPE TO BRKT
ID=8 OD=18 T=3
8-94174-537-0
01
1
0103-
16
BOLT; INL PIPE
M8X20 W/LK WASHER
0-50040-820-0
01
1
0103-0211
16
BOLT; INL PIPE
M8X20 FLANGE
0-28050-820-0
01
1
0212-
17
BOLT; SUCTION PIPE
(A) M8X50 W/LK WASHER
0-50040-850-0
02
1
0103-0211
17
BOLT; SUCTION PIPE
(A) M8X50 W/LK WASHER
0-50540-850-0
02
1
0212-
17
BOLT; SUCTION PIPE
TURBOCHARGER<K51> (B) M8X20 W/LK WASHER
0-50040-820-0
01
1
0103-0211
17
BOLT; SUCTION PIPE
TURBOCHARGER<K51> (B) M8X20 FLANGE
0-28050-820-0
01
1
0212-
23
GASKET; SUCTION PIPE TO BLOCK
THA
8-94365-676-3
01
1
0103-
95
BOLT; CLIP
EXC. TURBOCHARGER<K51> M8X12 FLANGE
0-28080-812-0
01
1
0103-0211
95
BOLT; CLIP
EXC. TURBOCHARGER<K51> M8X12 FLANGE
0-28050-812-0
01
1
0212-
132
HOSE; WATER PIPE
THA
8-94382-246-0
01
1
0103-0402
132
HOSE; WATER PIPE
THA
8-97910-064-0
01
1
0403-
183
CLIP; VACUUM HOSE
ID=12 THA
5-09700-331-0
01
1
0103-
