Isuzu WW
▶
AUV
▶
TBR
▶
50909 - TBR-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶

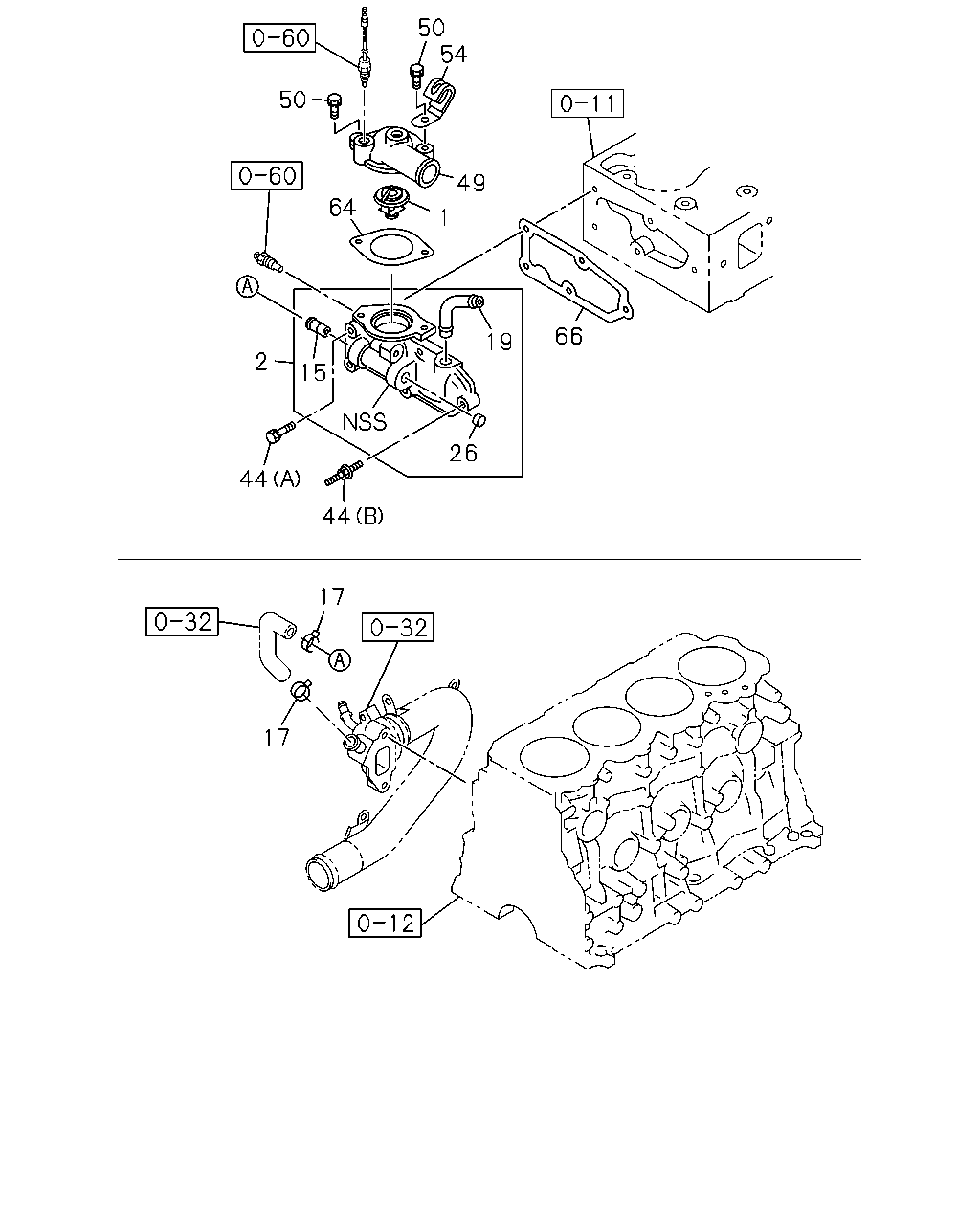

0-31 — THERMOSTAT AND HOUSING
(#41852) — 19 parça
50
54
50
49
64
1
66
19
2
15
26
44
44
17
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
THERMOSTAT
82?C
8-97089-891-0
01
1
0103-0301
1
THERMOSTAT
82?C THA
8-97361-770-0
01
1
0302-
2
HOUSING; THERMOSTAT
A/T AISIN(RMD)
8-97204-600-0
01
1
0103-0408
2
HOUSING; THERMOSTAT
A/T AISIN(RMD)
8-97379-305-0
01
1
0409-
2
HOUSING; THERMOSTAT
M/T MSG 5 SPEED(M75) THA
8-97187-700-0
01
1
0103-
15
PIPE; BYPASS
8-94343-211-1
01
1
0103-
17
CLIP; WATER HOSE
ID=20.8
8-94125-862-1
02
1
0103-
19
PIPE; HSG TO HTR
THA
8-94478-870-1
01
1
0103-
26
CUP; SEALING,VLV,VENTILATION
OD=18
5-11219-008-0
01
1
0103-
44
BOLT; HSG TO HD
(A) M8X30 W/LK WASHER
0-50040-830-0
04
1
0103-0211
44
BOLT; HSG TO HD
(A) M8X30 W/LK WASHER
0-50540-830-0
04
1
0212-
44
BOLT; HSG TO HD
(B) M8X28,M8X34 L=69
8-94479-011-1
01
1
0103-
49
PIPE; WATER OUTLET
TURBOCHARGER<K51> THA
8-97300-376-0
01
1
0103-
49
PIPE; WATER OUTLET
EXC. TURBOCHARGER<K51> THA
8-97303-605-0
01
1
0103-
50
BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER
0-50140-830-0
02
1
0103-0211
50
BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER
0-50640-830-0
02
1
0212-
54
CLIP; THERMO SWITCH,OUTLET PIPE
ID=12 THA
5-09700-331-0
01
1
0103-
64
GASKET; OUTLET PIPE TO HSG
THA
8-94365-674-2
01
1
0103-
66
GASKET; THERMOSTAT HSG
THA
8-97212-537-1
01
1
0103-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
