0-25 — INLET MANIFOLD (#41848) — 61 parça

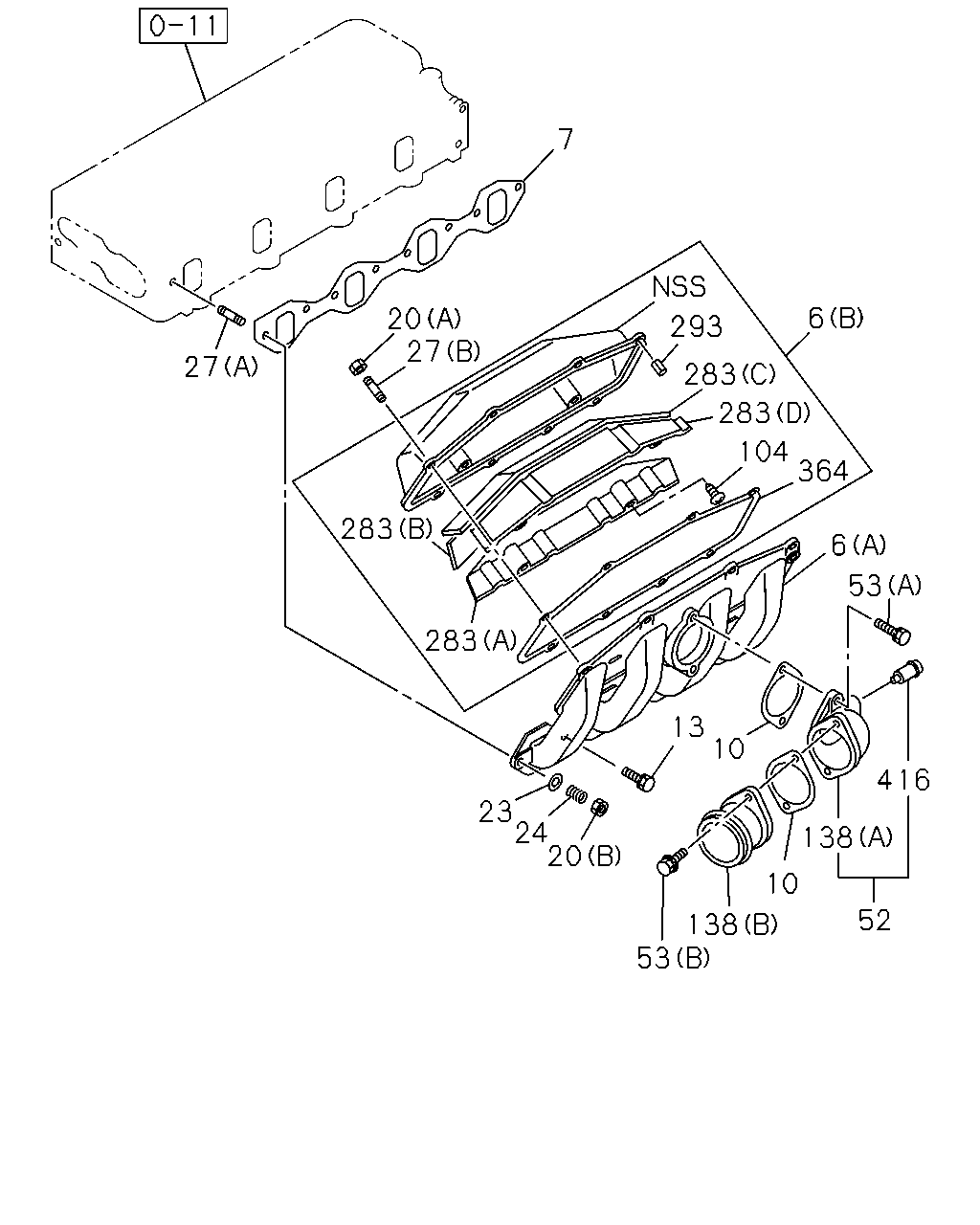

7 6 20 27 293 27 283 283 104 364 283 6 53 283 13 10 416 23 24 20 138 10 52 138 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	MANIFOLD; INL,UPR EXC. TURBOCHARGER<K51> (B) THA	8-97143-583-0	01	1	0103-
6	MANIFOLD; INL,UPR EXC. TURBOCHARGER<K51> (A) THA	8-97260-791-0	01	1	0103-
7	GASKET; INL MANIF TO HD TURBOCHARGER<K51> THA	8-97212-540-1	01	1	0103-
7	GASKET; INL MANIF TO HD EXC. TURBOCHARGER<K51>	8-94442-213-0	01	1	0103-
10	GASKET; INL PIPE TO MANIF EXC. TURBOCHARGER<K51> PHI	8-97035-883-1	02	1	0103-
13	BOLT; INL MANIF EXC. TURBOCHARGER<K51> M6X35 W/LK&PL WASHER	0-50140-635-0	06	1	0103-0512
13	BOLT; INL MANIF EXC. TURBOCHARGER<K51> M6X35 W/LK&PL WASHER	0-50640-635-0	06	1	0601-
20	NUT; INL MANIF EXC. TURBOCHARGER<K51> (A) M6 FLANGE	5-09440-004-0	02	1	0103-0409
20	NUT; INL MANIF EXC. TURBOCHARGER<K51> (A) M6 FLANGE PHI	8-97943-101-0	02	1	0410-
20	NUT; INL MANIF EXC. TURBOCHARGER<K51> (B) M8 FLANGE	5-14129-011-0	08	1	0103-
23	WASHER; PL,INL MANIF EXC. TURBOCHARGER<K51> ID=12.5	9-09164-512-0	08	1	0103-
24	SPRING; INL MANIF EXC. TURBOCHARGER<K51>	5-09580-105-1	08	1	0103-
27	STUD; INL MANIF TURBOCHARGER<K51> (C) M8X25 L=37	9-04110-825-0	02	1	0103-0409
27	STUD; INL MANIF TURBOCHARGER<K51> (C) M8X25 L=37	0-41010-825-0	02	1	0410-
27	STUD; INL MANIF EXC. TURBOCHARGER<K51> (A) M8X62	5-14129-005-2	08	1	0103-
27	STUD; INL MANIF EXC. TURBOCHARGER<K51> (B) M6X30 L=38	9-04110-630-0	02	1	0103-0604
27	STUD; INL MANIF EXC. TURBOCHARGER<K51> (B) M6X30 L=38	0-41010-630-0	02	1	0605-
52	PIPE; INL TURBOCHARGER<K51> THA	8-97188-068-1	01	1	0103-0206
52	PIPE; INL TURBOCHARGER<K51> THA	8-97942-925-0	01	1	0207-
52	PIPE; INL EXC. TURBOCHARGER<K51> THA	8-94478-179-0	01	1	0103-
53	BOLT; INL PIPE EXC. TURBOCHARGER<K51> (A) M10X25 W/LK WASHER	0-50041-025-0	02	1	0103-0512
53	BOLT; INL PIPE EXC. TURBOCHARGER<K51> (A) M10X25 W/LK WASHER	0-50541-025-0	02	1	0601-
53	BOLT; INL PIPE EXC. TURBOCHARGER<K51> (B) M10X28 W/LK WASHER	0-50041-028-0	02	1	0103-
104	SCREW EXC. TURBOCHARGER<K51> THA	8-97173-324-0	06	1	0103-
138	PIPE; INL EXC. TURBOCHARGER<K51> (A) THA	8-94315-557-0	01	1	0103-
138	PIPE; INL EXC. TURBOCHARGER<K51> (B) THA	8-94475-224-0	01	1	0103-
283	RUBBER EXC. TURBOCHARGER<K51> (D) IDN	8-97142-716-0	01	1	0103-
283	RUBBER EXC. TURBOCHARGER<K51> (C) IDN	8-97142-717-0	01	1	0103-
283	RUBBER EXC. TURBOCHARGER<K51> (B) IDN	8-97142-718-0	01	1	0103-
283	RUBBER EXC. TURBOCHARGER<K51> (A) IDN	8-97142-719-0	01	1	0103-
293	SPACER; INL MANIF EXC. TURBOCHARGER<K51> THA	8-97078-151-0	08	1	0103-
364	GASKET EXC. TURBOCHARGER<K51> THA	8-97078-152-0	01	1	0103-
416	NIPPLE; BREATHER HOSE EXC. TURBOCHARGER<K51> OD=15 L=41 THA	8-94442-052-0	01	1	0103-

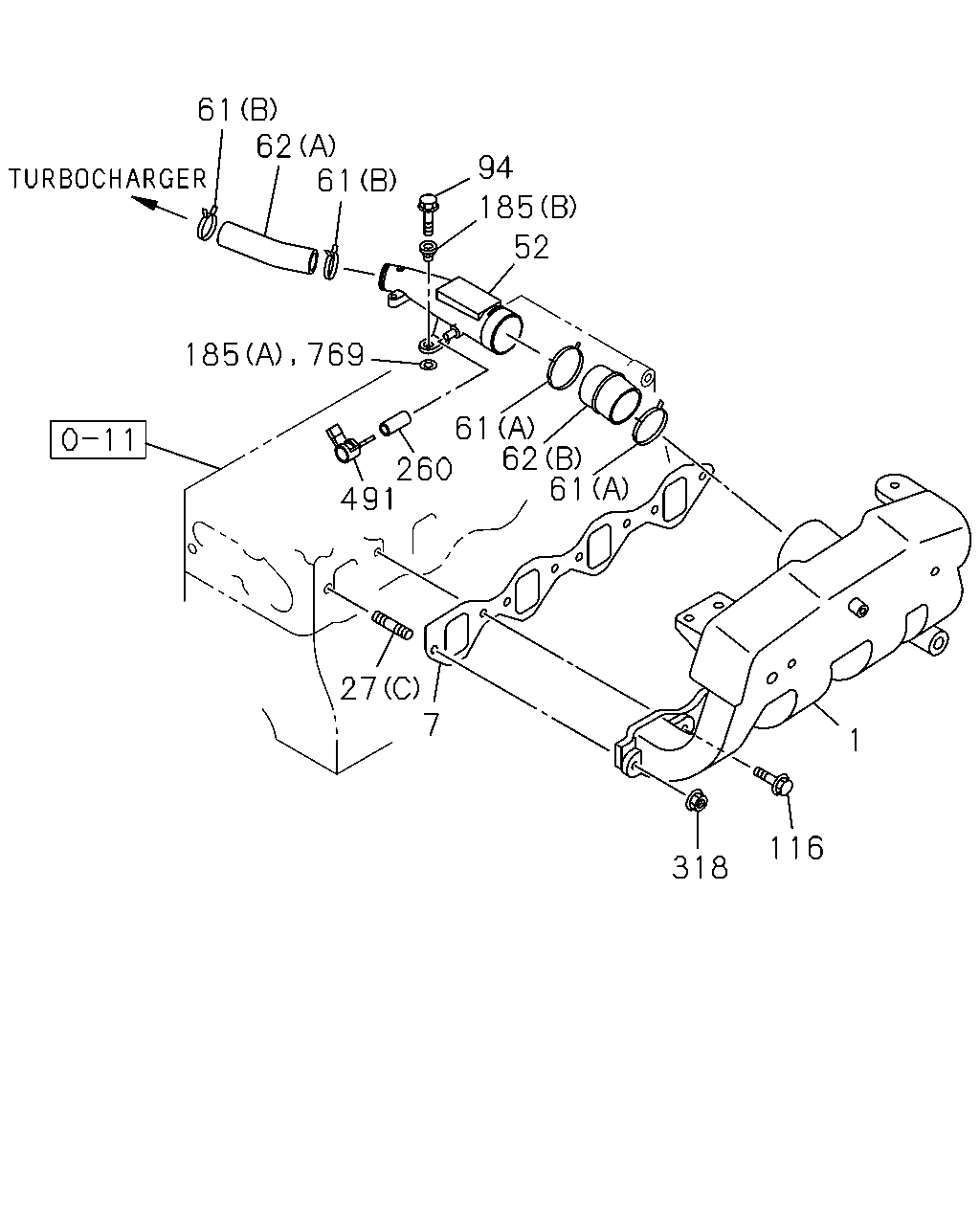

61 62 61 94 185 52 185 769 61 62 61 260 491 27 7 1 116 318

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MANIFOLD; INL TURBOCHARGER<K51>	8-97260-790-0	01	1	0103-
7	GASKET; INL MANIF TO HD TURBOCHARGER<K51> THA	8-97212-540-1	01	1	0103-
7	GASKET; INL MANIF TO HD EXC. TURBOCHARGER<K51>	8-94442-213-0	01	1	0103-
27	STUD; INL MANIF TURBOCHARGER<K51> (C) M8X25 L=37	9-04110-825-0	02	1	0103-0409
27	STUD; INL MANIF TURBOCHARGER<K51> (C) M8X25 L=37	0-41010-825-0	02	1	0410-
27	STUD; INL MANIF EXC. TURBOCHARGER<K51> (A) M8X62	5-14129-005-2	08	1	0103-
27	STUD; INL MANIF EXC. TURBOCHARGER<K51> (B) M6X30 L=38	9-04110-630-0	02	1	0103-0604
27	STUD; INL MANIF EXC. TURBOCHARGER<K51> (B) M6X30 L=38	0-41010-630-0	02	1	0605-
52	PIPE; INL TURBOCHARGER<K51> THA	8-97188-068-1	01	1	0103-0206
52	PIPE; INL TURBOCHARGER<K51> THA	8-97942-925-0	01	1	0207-
52	PIPE; INL EXC. TURBOCHARGER<K51> THA	8-94478-179-0	01	1	0103-
61	CLIP; CONNECTOR HOSE TURBOCHARGER<K51> (A) ID=65-82	8-97131-942-0	02	1	0103-
61	CLIP; CONNECTOR HOSE TURBOCHARGER<K51> (B) ID=45.5-56.5	8-97131-943-0	02	1	0103-
62	HOSE; CONNECTOR TURBOCHARGER<K51> (A) THA	8-97096-628-3	01	1	0103-
62	HOSE; CONNECTOR TURBOCHARGER<K51> (B) THA	8-97137-018-1	01	1	0103-0404
62	HOSE; CONNECTOR TURBOCHARGER<K51> (B)	8-94386-164-1	01	1	0405-
94	BOLT TURBOCHARGER<K51> M8X30 W/LK WASHER	0-50040-830-0	02	1	0103-0211
94	BOLT TURBOCHARGER<K51> M8X30 W/LK WASHER	0-50540-830-0	02	1	0212-
116	BOLT; MANIF TO INL PIPE TURBOCHARGER<K51> M8X25 FLANGE	0-28080-825-0	06	1	0103-0409
116	BOLT; MANIF TO INL PIPE TURBOCHARGER<K51> M8X25 FLANGE	0-28050-825-0	06	1	0410-
185	RUBBER; MTG,INL MANIF,UPR TURBOCHARGER<K51> (A) ID=12 OD=24 T=4.5 THA	8-94403-670-0	02	1	0103-0402
185	RUBBER; MTG,INL MANIF,UPR TURBOCHARGER<K51> (B) THA	8-97910-200-0	02	1	0403-
185	RUBBER; MTG,INL MANIF,UPR TURBOCHARGER<K51> (B) THA	8-94434-927-0	02	1	0103-0402
260	CAP; RUBBER TURBOCHARGER<K51> ID=4	8-94217-809-0	01	1	0103-0206
318	NUT; INL MANIF TURBOCHARGER<K51> M8 FLANGE	5-09440-005-0	02	1	0103-0409
318	NUT; INL MANIF TURBOCHARGER<K51> M8 FLANGE PHI	8-97943-102-0	02	1	0410-
491	CLIP; CONNECTOR TURBOCHARGER<K51>	8-97031-674-0	01	1	0103-0206
769	RUBBER; MTG,INL MANIF,LWR TURBOCHARGER<K51> ID=12 OD=24 T=4.5 THA	8-97912-693-1	02	1	0403-
