◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30B - WATER PUMP AND CORROSION RESISTOR ▶
0-30B — WATER PUMP AND CORROSION RESISTOR (#4184) — 158 parça
çizim 4961
4 64 64 19 18 17 16 29 12 11 9 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 REPAIR KIT; WATER PUMP 1-87812-008-1 01 1 0009- ● ●
4 REPAIR KIT; WATER PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-87812-008-1 01 1 0009- ●
4 REPAIR KIT; WATER PUMP 1-87810-987-0 01 1 9603-9705 ●
4 REPAIR KIT; WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-87810-987-0 01 1 9706-9901 ●
4 REPAIR KIT; WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-87812-105-0 01 1 9905-9909 ●
4 REPAIR KIT; WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-87812-106-0 01 1 9910-0008 ●
4 REPAIR KIT; WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-87812-007-2 01 1 0009- ●
4 REPAIR KIT; WATER PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-87812-095-0 01 1 9905-9909 ● ●
4 REPAIR KIT; WATER PUMP 1-87812-095-0 01 1 9905-9909 ● ●
4 REPAIR KIT; WATER PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-87812-096-0 01 1 9910-0008 ● ●
4 REPAIR KIT; WATER PUMP 1-87812-096-0 01 1 9910-0008 ● ●
4 REPAIR KIT; WATER PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-87812-096-0 01 1 0009- ●
4 REPAIR KIT; WATER PUMP 1-87810-979-0 01 1 9603-9705 ●
4 REPAIR KIT; WATER PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-87810-979-0 01 1 9706-9901 ●
4 REPAIR KIT; WATER PUMP
EXC. SAKHALIN EQUIPMENT(TLE) 		1-87810-979-0 01 1 9706-9901 ●
4 REPAIR KIT; WATER PUMP
SAKHALIN EQUIPMENT(TLE) HEATER & DEFROSTER(C41) 		1-87811-800-0 01 1 9706-9901 ●
4 REPAIR KIT; WATER PUMP
HEATER & DEFROSTER(C41) 		1-87811-800-1 01 1 9905-9909 ●
4 REPAIR KIT; WATER PUMP
HEATER & DEFROSTER(C41) 		1-87812-099-0 01 1 9910- ●
8 THROWER; DUST,WATER PUMP 1-13639-021-0 01 1 9603-9811 ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 9812-9901 ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 9905- ● ● ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9603-9901 ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9905- ● ● ● ●
11 SPACER; BRG,WATER PUMP 1-13634-009-0 01 1 9603-9901 ● ●
11 SPACER; BRG,WATER PUMP 1-13634-009-0 01 1 9905- ● ● ● ●
12 WASHER; BALL BRG 1-09503-024-0 01 1 9603-9901 ● ●
12 WASHER; BALL BRG 1-09503-024-0 01 1 9905- ● ● ● ●
16 SEAL; OIL,WATER PUMP 1-09625-437-0 01 1 9603-9901 ● ●
16 SEAL; OIL,WATER PUMP 1-09625-437-0 01 1 9905- ● ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 9901-9901 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 9905-9909 ● ● ●
17 SEAL UNIT; WATER PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94392-090-0 01 1 9905-9909 ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 9910- ● ● ●
17 SEAL UNIT; WATER PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94392-090-0 01 1 9910- ●
17 SEAL UNIT; WATER PUMP 1-13620-016-0 01 1 9603-9705 ● ●
17 SEAL UNIT; WATER PUMP 1-13620-016-0 01 1 9706-9812 ●
17 SEAL UNIT; WATER PUMP
EXC. SAKHALIN EQUIPMENT(TLE) 		1-13620-016-0 01 1 9706-9812 ●
17 SEAL UNIT; WATER PUMP
SAKHALIN EQUIPMENT(TLE) HEATER & DEFROSTER(C41) 		1-13620-021-0 01 1 9706-9901 ●
17 SEAL UNIT; WATER PUMP
HEATER & DEFROSTER(C41) 		1-13620-021-0 01 1 9905- ●
18 IMPELLER; WATER PUMP 1-13621-025-0 01 1 9603-9705 ●
18 IMPELLER; WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13621-025-0 01 1 9706-9901 ●
18 IMPELLER; WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13621-025-0 01 1 9905- ●
18 IMPELLER; WATER PUMP 1-13621-022-0 01 1 9603-9901 ●
18 IMPELLER; WATER PUMP 1-13621-022-0 01 1 9905- ● ● ●
19 GASKET; COVER TO BODY 1-13613-049-0 01 1 9603-9705 ●
19 GASKET; COVER TO BODY
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13613-049-0 01 1 9706-9901 ●
19 GASKET; COVER TO BODY
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13613-049-0 01 1 9905- ●
19 GASKET; COVER TO BODY 1-13613-048-0 01 1 9603-9901 ●
19 GASKET; COVER TO BODY 1-13613-048-0 01 1 9905- ● ● ●
29 SHAFT; WATER PUMP 1-13631-060-1 01 1 9603-9901 ● ●
29 SHAFT; WATER PUMP 1-13631-060-1 01 1 9905- ● ● ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-425-0 02 1 9603-9901 ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-425-0 02 1 9905- ● ● ● ●

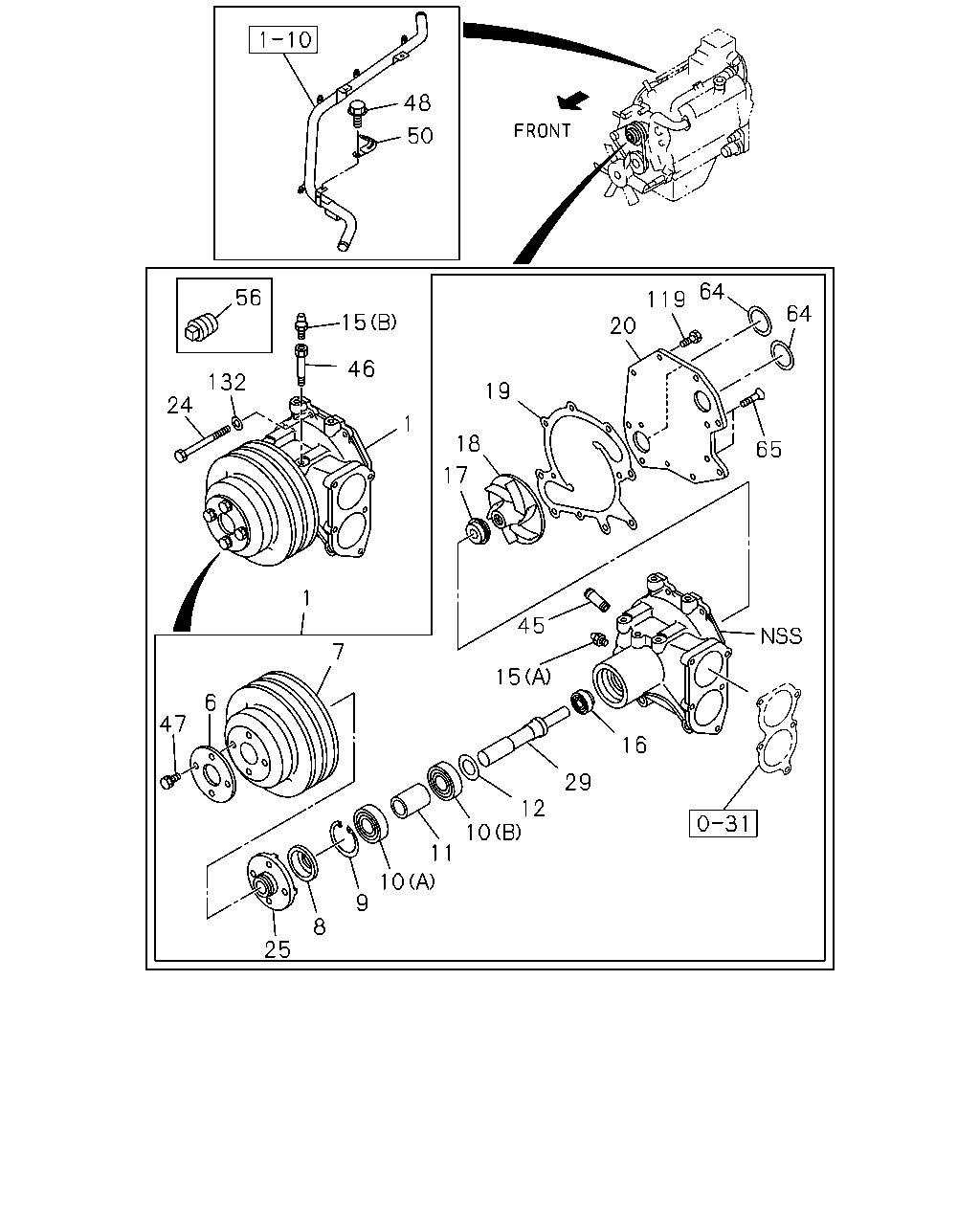

çizim 42753
48 50 64 56 119 64 15 20 46 132 19 24 1 18 65 17 1 45 7 15 6 47 16 29 12 10 11 10 9 8 25
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13650-038-1 01 1 9905-0008 ● ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13650-140-0 01 1 0009- ● ●
1 PUMP ASM; WATER,W/GASKET 1-13610-790-3 01 1 9603-9703 ●
1 PUMP ASM; WATER,W/GASKET 1-13650-039-0 01 1 9704-9705 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13650-039-0 01 1 9706-9901 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13650-039-1 01 1 9905-0008 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13650-142-2 01 1 0009- ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13610-796-1 01 1 9706-9901 ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13650-041-1 01 1 9905-0008 ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13650-144-0 01 1 0009- ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13610-789-3 01 1 9603-9703 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13650-038-0 01 1 9704-9705 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. SAKHALIN EQUIPMENT(TLE) 		1-13650-038-0 01 1 9706-9901 ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13610-774-1 01 1 9603-9703 ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13650-037-0 01 1 9704-9901 ●
1 PUMP ASM; WATER,W/GASKET
SAKHALIN EQUIPMENT(TLE) HEATER & DEFROSTER(C41) 		1-13650-062-0 01 1 9706-9901 ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13650-037-1 01 1 9905-0008 ● ● ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13650-141-0 01 1 0009- ● ● ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41) 		1-13650-062-1 01 1 9905-0008 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41) 		1-13650-145-0 01 1 0009- ●
6 WASHER; PL,PULLEY 1-13639-024-0 01 1 9603-9901 ● ●
6 WASHER; PL,PULLEY 1-13639-024-0 01 1 9905- ● ● ● ●
7 PULLEY; WATER PUMP
2-GROOVE 		1-13641-104-0 01 1 9603-9901 ● ●
7 PULLEY; WATER PUMP
2-GROOVE 		1-13641-104-0 01 1 9905- ● ● ● ●
8 THROWER; DUST,WATER PUMP 1-13639-021-0 01 1 9603-9811 ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 9812-9901 ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 9905- ● ● ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9603-9901 ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9905- ● ● ● ●
10 BEARING; WATER PUMP
(A) 		1-09800-011-0 01 1 9603-9901 ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-012-0 01 1 9603-9901 ● ●
10 BEARING; WATER PUMP
(A) 		1-09800-011-0 01 1 9905- ● ● ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-012-0 01 1 9905-0008 ● ● ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-299-0 01 1 0009- ● ● ● ●
11 SPACER; BRG,WATER PUMP 1-13634-009-0 01 1 9603-9901 ● ●
11 SPACER; BRG,WATER PUMP 1-13634-009-0 01 1 9905- ● ● ● ●
12 WASHER; BALL BRG 1-09503-024-0 01 1 9603-9901 ● ●
12 WASHER; BALL BRG 1-09503-024-0 01 1 9905- ● ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 9603-9901 ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9603-9901 ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 9905- ● ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9905- ● ● ● ●
16 SEAL; OIL,WATER PUMP 1-09625-437-0 01 1 9603-9901 ● ●
16 SEAL; OIL,WATER PUMP 1-09625-437-0 01 1 9905- ● ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 9901-9901 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 9905-9909 ● ● ●
17 SEAL UNIT; WATER PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94392-090-0 01 1 9905-9909 ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 9910- ● ● ●
17 SEAL UNIT; WATER PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94392-090-0 01 1 9910- ●
17 SEAL UNIT; WATER PUMP 1-13620-016-0 01 1 9603-9705 ● ●
17 SEAL UNIT; WATER PUMP 1-13620-016-0 01 1 9706-9812 ●
17 SEAL UNIT; WATER PUMP
EXC. SAKHALIN EQUIPMENT(TLE) 		1-13620-016-0 01 1 9706-9812 ●
17 SEAL UNIT; WATER PUMP
SAKHALIN EQUIPMENT(TLE) HEATER & DEFROSTER(C41) 		1-13620-021-0 01 1 9706-9901 ●
17 SEAL UNIT; WATER PUMP
HEATER & DEFROSTER(C41) 		1-13620-021-0 01 1 9905- ●
18 IMPELLER; WATER PUMP 1-13621-025-0 01 1 9603-9705 ●
18 IMPELLER; WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13621-025-0 01 1 9706-9901 ●
18 IMPELLER; WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13621-025-0 01 1 9905- ●
18 IMPELLER; WATER PUMP 1-13621-022-0 01 1 9603-9901 ●
18 IMPELLER; WATER PUMP 1-13621-022-0 01 1 9905- ● ● ●
19 GASKET; COVER TO BODY 1-13613-049-0 01 1 9603-9705 ●
19 GASKET; COVER TO BODY
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13613-049-0 01 1 9706-9901 ●
19 GASKET; COVER TO BODY
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13613-049-0 01 1 9905- ●
19 GASKET; COVER TO BODY 1-13613-048-0 01 1 9603-9901 ●
19 GASKET; COVER TO BODY 1-13613-048-0 01 1 9905- ● ● ●
20 COVER; WATER PUMP 1-13612-027-1 01 1 9603-9901 ● ●
20 COVER; WATER PUMP 1-13612-027-1 01 1 9905- ● ● ● ●
24 BOLT; WATER PUMP
M10X110 		1-09020-004-1 03 1 9603-9901 ● ●
24 BOLT; WATER PUMP
M10X170 		1-09020-013-0 01 1 9603-9901 ● ●
24 BOLT; WATER PUMP
M10X110 		1-09020-004-1 03 1 9905- ● ● ● ●
24 BOLT; WATER PUMP
M10X170 		1-09020-013-0 01 1 9905- ● ● ● ●
25 CENTER; WATER PUMP 1-13669-173-0 01 1 9809-9901 ●
25 CENTER; WATER PUMP
EXC. SAKHALIN EQUIPMENT(TLE) 		1-13669-173-0 01 1 9809-9901 ●
25 CENTER; WATER PUMP 1-13669-092-0 01 1 9603-9705 ● ●
25 CENTER; WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13669-092-0 01 1 9706-9803 ●
25 CENTER; WATER PUMP 1-13669-092-0 01 1 9706-9803 ●
25 CENTER; WATER PUMP 1-13669-092-0 01 1 9804-9808 ● ●
25 CENTER; WATER PUMP
SAKHALIN EQUIPMENT(TLE) HEATER & DEFROSTER(C41) 		1-13669-092-0 01 1 9809-9901 ●
25 CENTER; WATER PUMP 1-13669-173-0 01 1 9905- ● ● ●
25 CENTER; WATER PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13669-173-0 01 1 9905- ●
25 CENTER; WATER PUMP
HEATER & DEFROSTER(C41) 		1-13669-092-0 01 1 9905- ●
29 SHAFT; WATER PUMP 1-13631-060-1 01 1 9603-9901 ● ●
29 SHAFT; WATER PUMP 1-13631-060-1 01 1 9905- ● ● ● ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 9603-9901 ● ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 9905-9909 ● ● ● ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 9910- ● ● ● ●
46 CONNECTOR; GREASE PIPE 1-09660-102-0 01 1 9603-9901 ● ●
46 CONNECTOR; GREASE PIPE 1-09660-102-0 01 1 9905- ● ● ● ●
47 BOLT; PULLEY TO CENTER
M10X22 W/LK WASHER 		0-50051-022-0 04 1 9603-9901 ● ●
47 BOLT; PULLEY TO CENTER
M10X22 W/LK WASHER 		0-50051-022-0 04 1 9905- ● ● ● ●
48 BOLT; CLIP
M10X16 W/LK WASHER 		1-09033-012-0 01 1 9603-9901 ● ●
48 BOLT; CLIP
M10X16 W/LK WASHER 		1-09033-012-0 01 1 9905- ● ● ● ●
50 CLIP; ENG HARNESS
L=36 		8-94224-891-1 01 1 9603-9901 ● ●
50 CLIP; ENG HARNESS
L=36 		8-94224-891-1 01 1 9905- ● ● ● ●
56 PLUG; TAPER SCREW
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT3/4 		9-09204-526-0 01 1 9706-9901 ●
56 PLUG; TAPER SCREW
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT3/4 		9-09204-526-0 01 1 9905-0008 ●
56 PLUG; TAPER SCREW
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT3/8 		9-09204-517-0 01 1 9603-9901 ●
56 PLUG; TAPER SCREW
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT3/8 		9-09204-517-0 01 1 9905- ● ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-425-0 02 1 9603-9901 ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-425-0 02 1 9905- ● ● ● ●
65 SCREW; COVER,WATER PUMP
M8X16 CK-HEAD 		9-03090-816-0 02 1 9603-9901 ● ●
65 SCREW; COVER,WATER PUMP
M8X16 CK-HEAD 		9-03090-816-0 02 1 9905- ● ● ● ●
119 BOLT; PUMP COVER
M8X18 W/LK WASHER 		0-50040-818-0 04 1 9603-9901 ● ●
119 BOLT; PUMP COVER
M8X18 W/LK WASHER 		0-50040-818-0 04 1 9905- ● ● ● ●
132 WASHER; PL,WATER PUMP
ID=10.5 		9-09851-866-0 04 1 9603-9901 ● ●
132 WASHER; PL,WATER PUMP
ID=10.5 		9-09851-866-0 04 1 9905- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
