Isuzu WW
▶
SUV
▶
UCS
▶
50892 - UCS(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-85 - REAR WIPER AND WASHER
▶
8-85 — REAR WIPER AND WASHER
(#41837) — 42 parça
◀
[885A] NO.1 (26 parça)
[885A] NO.2 (16 parça)
▶
70
4
3
2
17
5
8
18
1
65
21
58
11
59
65
64
12
67
66
69
68
56
8
18
8
9
16

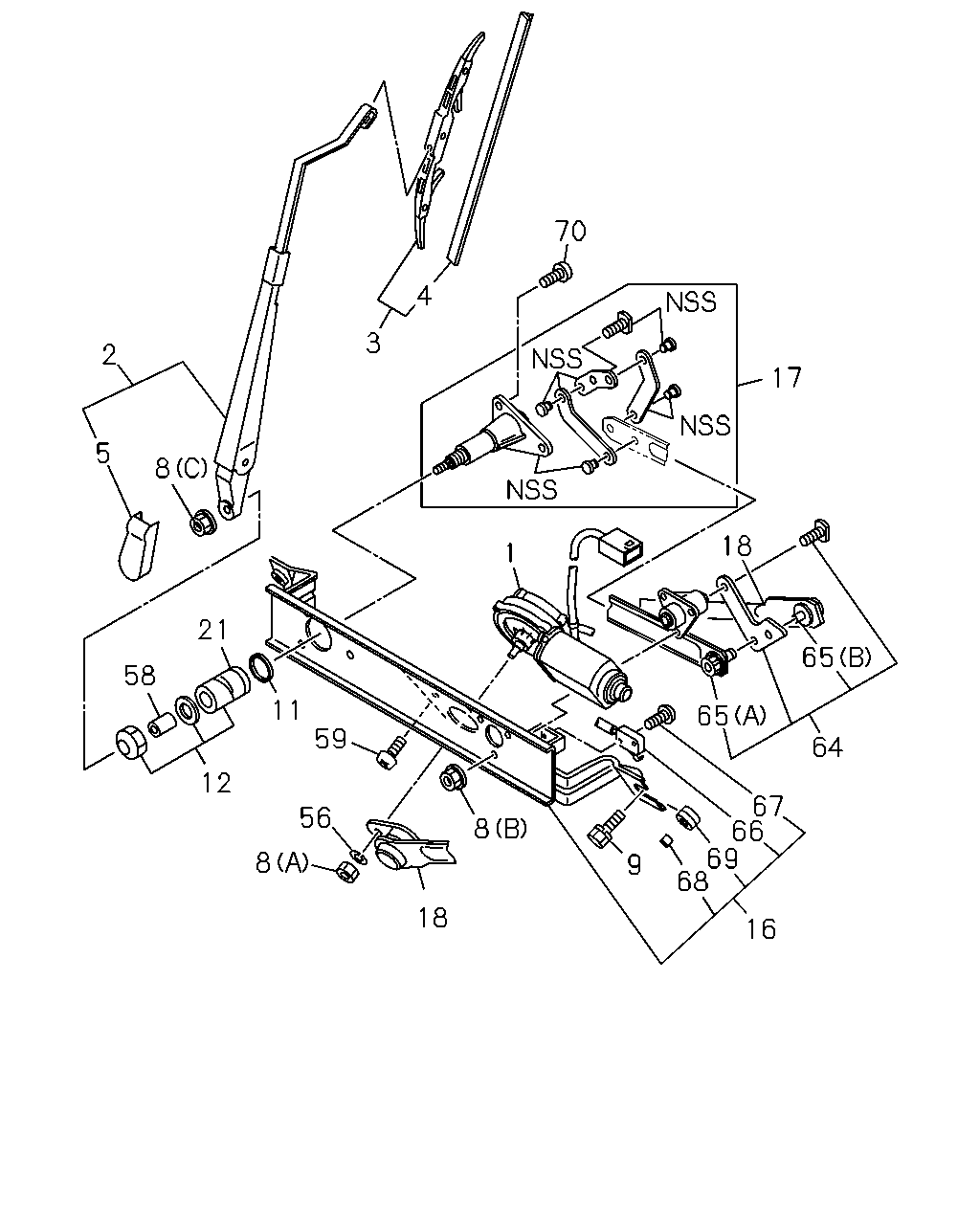

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MOTOR ASM; RR WIPER
USA
8-97024-318-1
01
1
0009-
2
ARM ASM; REAR WIPER
USA
8-94334-767-1
01
1
0009-
3
BLADE ASM; REAR WIPER
USA
8-94334-768-0
01
1
0009-
4
RUBBER; BLADE,RR WIPER
USA
8-97024-311-0
01
1
0009-
5
COVER; REAR WIPER ARM
USA
8-94466-632-0
01
1
0009-
8
NUT; RR WIPER ARM TO WIPER MOTOR
(A) USA
8-97024-321-0
01
1
0009-
8
NUT; RR WIPER ARM TO WIPER MOTOR
(B) USA
8-97024-327-0
03
1
0009-
8
NUT; RR WIPER ARM TO WIPER MOTOR
(C) M8 FLANGE
9-09844-190-0
01
1
0009-
9
BOLT; BRKT,WIPER MOTOR
M6X25 W/LK&PL WASHER THA
8-94416-136-0
04
1
0009-
11
WASHER; REAR WIPER
USA
8-97024-314-0
01
1
0009-
12
ATTACHMENT KIT; REAR WIPER MOTOR
USA
8-97024-312-0
01
1
0009-
16
BRACKET; RR WIPER MOTOR
USA
8-97092-859-0
01
1
0009-
17
PIVOT; WIPER LINK
USA
8-97024-328-0
01
1
0009-
18
LINK; RR WIPER
USA
8-97024-323-0
01
1
0009-
21
SEAL; PIVOT,RR WIPER
USA
8-97024-313-0
01
1
0009-
56
WASHER; LK,WIPER MOTOR,RR
ID=8.2 THA
9-09150-508-0
01
1
0009-
58
SEAL; SHAFT,RR WIPER
USA
8-97024-315-0
01
1
0009-
59
SCREW; REAR WIPER MOTOR
USA
8-97024-319-0
03
1
0009-
64
IDLER ASM; RR WIPER
USA
8-97024-326-0
01
1
0009-
65
RETAINER; BALL,RR WIPER
(A) USA
8-97024-322-0
01
1
0009-
65
RETAINER; BALL,RR WIPER
(B) USA
8-97024-325-0
01
1
0009-
66
SWITCH; MICRO,RR WIPER
USA
8-97024-330-0
01
1
0009-
67
SCREW; MICRO SW,RR WIPER
USA
8-97024-331-0
01
1
0009-
68
BUSHING; CUSHION,RR WIPER
USA
8-97024-317-0
04
1
0009-
69
RUBBER; CUSHION,RR,WIPER
USA
8-97024-316-0
04
1
0009-
70
SCREW; PIVOT,RR WIPER
USA
8-97024-329-0
03
1
0009-
87
39
46
57
37
40
37
24
41
41
25
41
26
31
41
22
41
29
15

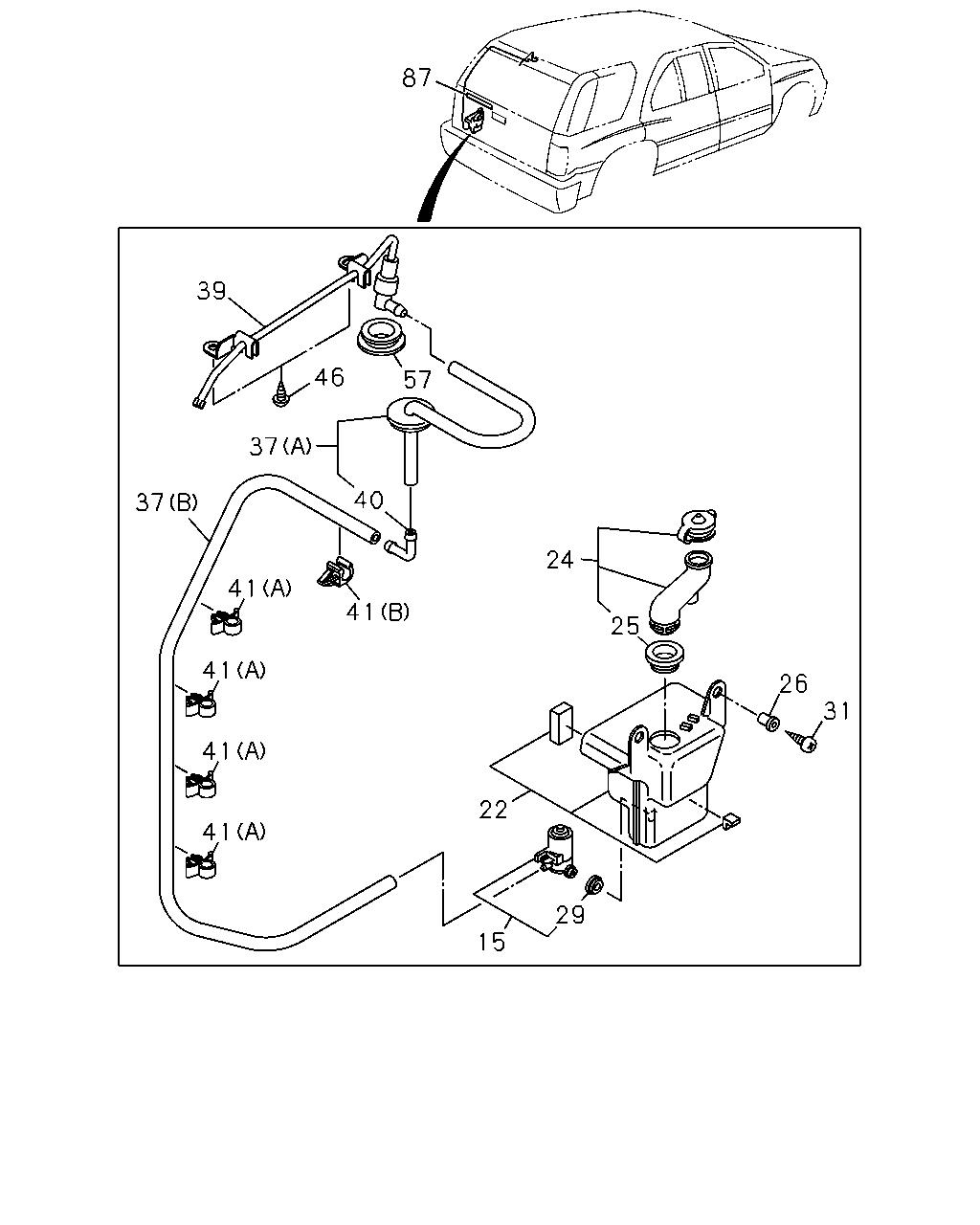

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
MOTOR ASM; RR,WASHER TANK
USA
8-94377-700-1
01
1
0009-
22
TANK ASM; RR WASHER
USA
8-97074-819-1
01
1
0009-
24
CAP; WASHER TANK,RR
USA
8-97074-440-0
01
1
0009-
25
GASKET; TANK TO HOLDER
USA
8-94380-533-0
01
1
0009-
26
RUBBER; CUSHION,RR WASHER TANK
M6 RUBBER NUT USA
8-97023-281-0
02
1
0009-
29
GASKET; TANK TO MOTOR
8-94352-050-0
01
1
0009-
31
SCREW; RR WASHER TANK TO BODY
M6X25
9-03920-625-0
02
1
0009-
37
HOSE; WASHER TANK,RR
(A) USA
8-97109-207-0
01
1
0009-
37
HOSE; WASHER TANK,RR
(B) SERVICED BY L=10000
9-09914-906-0
01
1
0009-
39
NOZZLE; RR WINDSHIELD,WASHER
USA
8-97139-106-0
01
1
0009-
40
JOINT; RR WASHER TANK HOSE
USA
8-97026-291-0
01
1
0009-
41
CLIP; RR WASHER TANK HOSE
(A) ID=6
8-94417-625-0
04
1
0009-
41
CLIP; RR WASHER TANK HOSE
(B) ID=6.8 THA
8-97134-154-0
01
1
0009-
46
SCREW; NOZZLE,RR WASHER
8-94198-480-0
02
1
0009-
57
GROMMET; NOZZLE HOLE
8-97022-573-0
01
1
0009-
87
SEAL; PROTECT,RR WIPER BLADE
8-97065-246-1
01
1
0009-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
