◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCS ▶ 50892 - UCS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#41836) — 41 parça

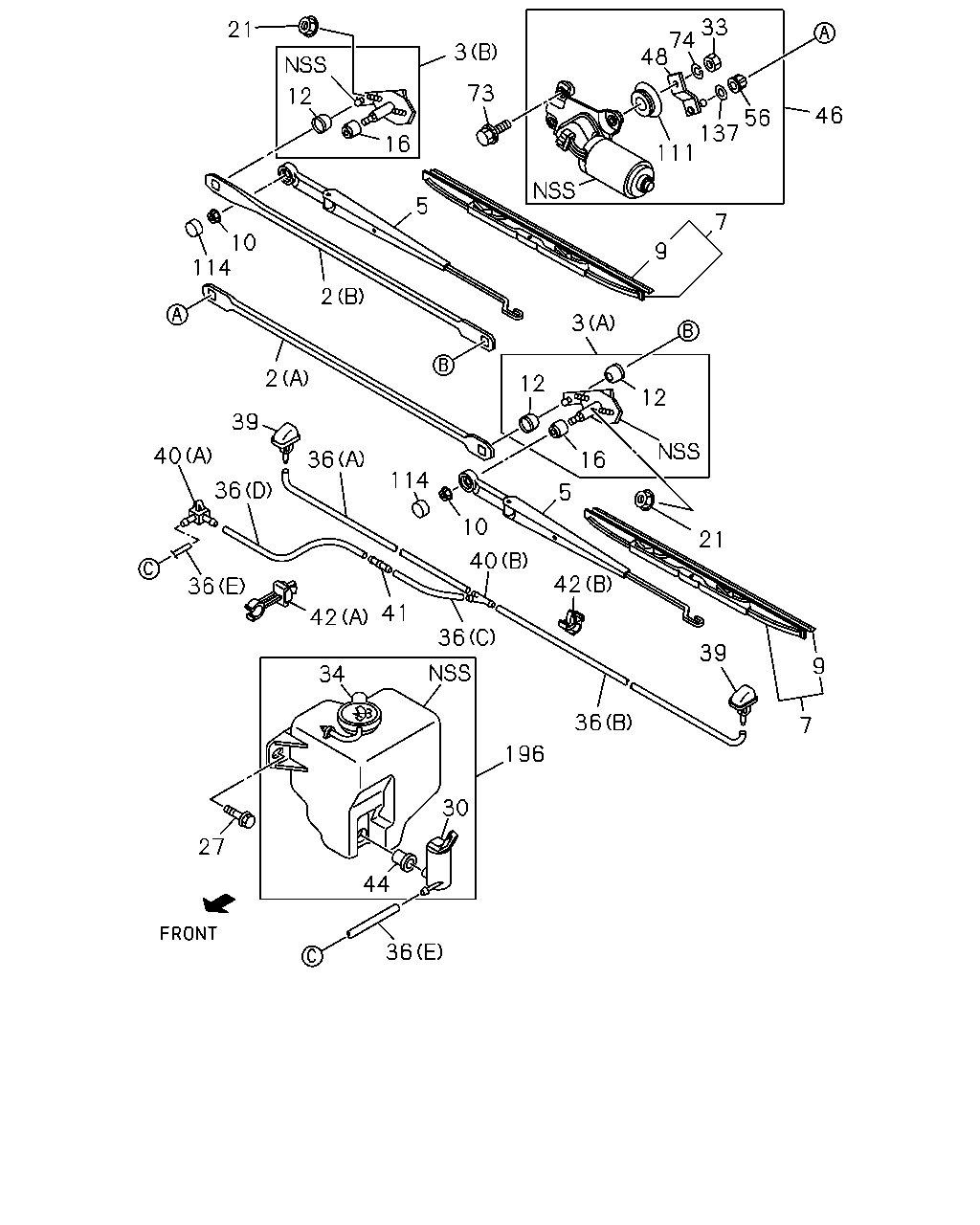

çizim 11410
33 74 48 56 137 111 21 3 12 73 46 16 5 7 10 114 9 2 3 2 12 12 39 36 40 16 5 114 36 10 40 21 42 36 42 41 36 39 9 34 36 7 196 30 27 44 36
BalonParca AdiParca NoAdetTipApplied Date
2 LINK; FRT WIPER
(A) 		8-97110-242-0 01 1 0009-0212
2 LINK; FRT WIPER
(A) 		8-97360-612-0 01 1 0301-
2 LINK; FRT WIPER
(B) 		8-97110-243-0 01 1 0009-0212
2 LINK; FRT WIPER
(B) 		8-97360-613-0 01 1 0301-
3 PIVOT ASM; FRT WIPER
(A) 		8-97110-240-0 01 1 0009-0212
3 PIVOT ASM; FRT WIPER
(A) 		8-97360-607-0 01 1 0301-
3 PIVOT ASM; FRT WIPER
(B) 		8-97110-241-0 01 1 0009-0212
3 PIVOT ASM; FRT WIPER
(B) 		8-97360-608-0 01 1 0301-
5 ARM; WIPER
THA 		8-97915-388-0 01 1 0009-
5 ARM; WIPER
THA 		8-97915-387-0 01 1 0009-
7 BLADE; WIPER
THA 		8-97915-389-0 02 1 0009-
9 RUBBER; FRT WIPER BLADE
THA 		8-97915-820-0 02 1 0009-
10 NUT; WIPER ARM TO WIPER PIVOT
M8 FLANGE 		9-09844-190-0 02 1 0009-
16 SEAL; BALL JOINT
THA 		8-97025-889-0 03 1 0009-
16 SEAL; BALL JOINT 8-94319-016-0 02 1 0009-
21 NUT; WIPER LINK PIVOT
M6 W/DISHED WASHER 		8-94423-325-0 04 1 0009-
27 BOLT; WASHER TANK
M6X20 		8-94412-422-0 02 1 0009-
30 MOTOR ASM; FRT WASHER TANK
THA 		8-97916-162-0 01 1 0009-
33 NUT; MOTOR TO ARM
THA 		8-97913-365-0 01 1 0009-
34 CAP; WASHER TANK
THA 		8-97914-487-0 01 1 0009-
36 HOSE; WASHER
L=1340 SERVICED BY L=10000 THA 		8-94153-780-0 01 1 0009-
36 HOSE; WASHER
L=40 THA 		8-97920-241-0 01 1 0009-
36 HOSE; WASHER
L=520 THA 		8-97920-242-0 01 1 0009-
36 HOSE; WASHER
L=140 THA 		8-97920-243-0 01 1 0009-
36 HOSE; WASHER
L=210 THA 		8-97920-244-1 01 1 0009-
39 NOZZLE; WINDSHIELD WASHER
THA 		8-97912-332-0 02 1 0009-
40 JOINT; WASHER HOSE
THA 		8-97916-125-0 01 1 0009-
40 JOINT; WASHER HOSE
THA 		8-97920-240-0 01 1 0009-
41 VALVE; CHECK,WASHER TANK
THA 		8-97920-239-0 01 1 0009-
42 CLIP; WASHER HOSE
(A) L=46 		8-94154-654-1 01 1 0009-
42 CLIP; WASHER HOSE
(B) ID=5.8 L=8 		8-94155-681-0 03 1 0009-
44 GASKET; MOTOR TO TANK
THA 		8-97914-485-0 01 1 0009-
46 MOTOR ASM; FRT WINDSHIELD WIPER
THA 		8-97913-886-1 01 1 0009-
48 ARM; WIPER MOTOR
THA 		8-97913-363-0 01 1 0009-
56 JOINT; OUTER,WIPER MOTOR 8-94323-719-0 01 1 0009-
73 BOLT
M6X25 W/LK&PL WASHER THA 		8-94416-136-0 04 1 0009-
74 WASHER; ARM TO MOTOR
THA 		8-97913-366-0 01 1 0009-
111 SEAL; FRT WIPER MOTOR TO BRKT
THA 		8-97913-362-0 01 1 0009-
114 COVER; FRT WIPER ARM
THA 		8-97916-248-0 02 1 0009-
137 SEAL; JOINT,WIPER MOTOR
THA 		8-97913-367-0 01 1 0009-
196 TANK; WASHER
THA 		8-97919-134-1 01 1 0009-
