◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCS ▶ 50892 - UCS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-52 - PIPING; AIR CONDITIONING ▶
8-52 — PIPING; AIR CONDITIONING (#41829) — 30 parça

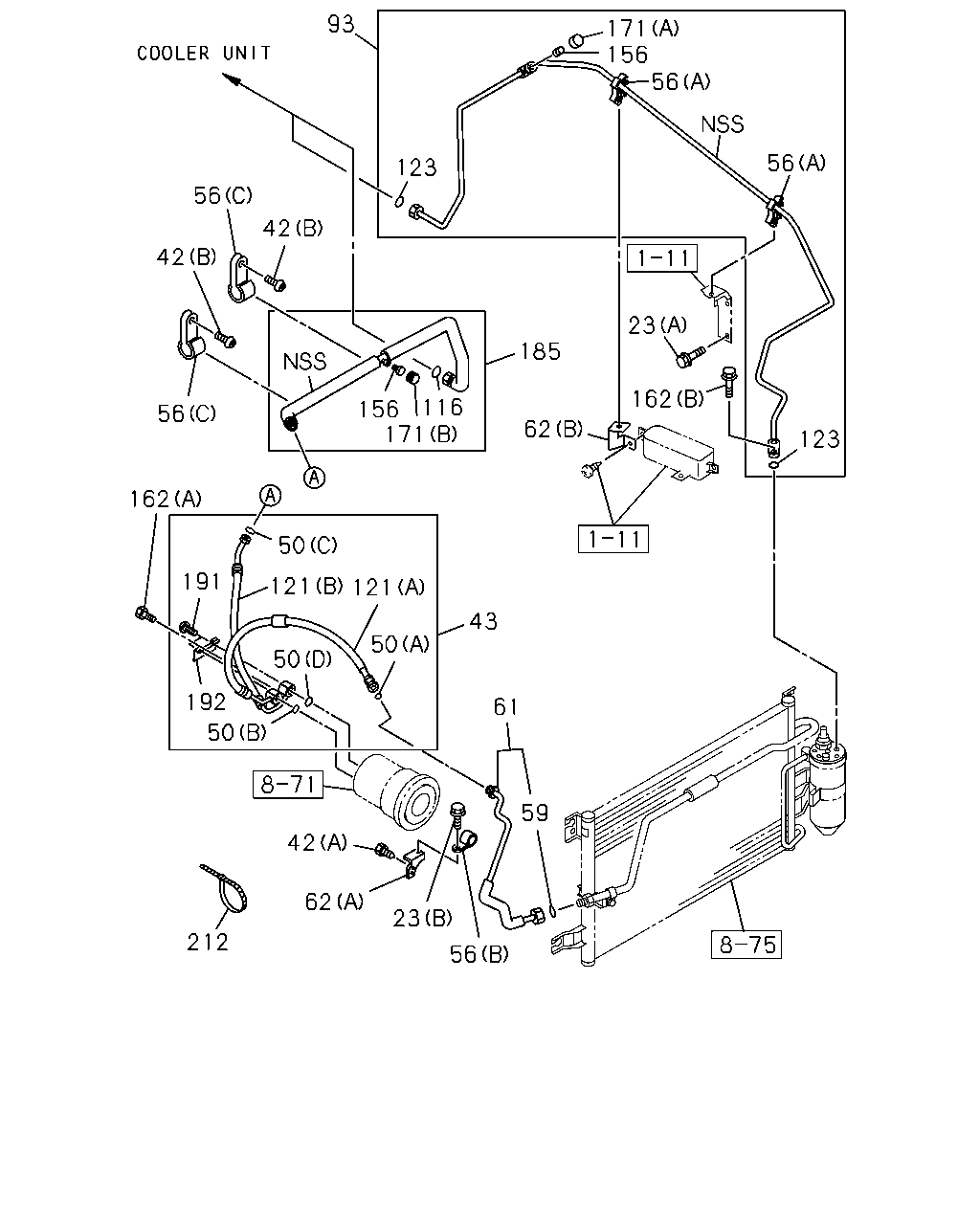

çizim 11123
93 171 156 56 56 123 56 42 42 23 185 156 116 171 162 56 62 123 162 50 191 43 50 50 192 50 61 59 42 62 23 212 56 121 121
BalonParca AdiParca NoAdetTipApplied Date
23 BOLT; BRKT
(A) M6X16 FLANGE 		0-28480-616-0 02 1 0009-
23 BOLT; BRKT
(B) THA 		8-97912-442-0 01 1 0009-
42 SCREW; CLIP
(B) M14X16 THA 		8-97910-964-0 02 1 0009-
42 SCREW; CLIP
(A) M14X16 THA 		8-97920-700-0 02 1 0009-
43 HOSE; FLEX,A/C,EVAP TO CMPR
THA 		8-97920-702-1 01 1 0009-
50 GASKET; FLEX HOSE,A/C
(A) THA 		8-97911-200-0 01 1 0009-
50 GASKET; FLEX HOSE,A/C
(B) THA 		8-97911-201-0 01 1 0009-
50 GASKET; FLEX HOSE,A/C
(C) THA 		8-97911-202-0 01 1 0009-
50 GASKET; FLEX HOSE,A/C
(D) THA 		8-97911-203-0 01 1 0009-
56 CLIP; PIPE,A/C
(B) THA 		8-97910-836-0 01 1 0009-
56 CLIP; PIPE,A/C
(A) THA 		8-97911-191-0 02 1 0009-
56 CLIP; PIPE,A/C
(C) THA 		8-97914-976-0 02 1 0009-
59 GASKET; PIPE,FLEX HOSE TO CONDENSER
THA 		8-97911-200-0 01 1 0009-
61 PIPE; FLEX HOSE TO CONDENSER
THA 		8-97920-788-1 01 1 0009-
62 BRACKET; PIPE HIGH PRESSURE
(A) THA 		8-97910-838-0 01 1 0009-
62 BRACKET; PIPE HIGH PRESSURE
(B) THA 		8-97918-421-0 01 1 0009-
93 PIPE; RECEIVER TANK TO PIPE
THA 		8-97920-787-2 01 1 0009-
116 GASKET; PIPE
THA 		8-97911-202-0 01 1 0009-
121 HOSE; COOLER
(B) THA 		8-97911-199-5 01 1 0009-
121 HOSE; COOLER
(A) THA 		8-97920-732-0 01 1 0009-
123 GASKET; RECEIVER PIPE
THA 		8-97911-189-0 02 1 0009-
156 VALVE; PIPE
THA 		8-97911-192-0 02 1 0009-
162 BOLT; FLEX HOSE
(A) M10X45 THA 		8-97910-837-0 01 1 0009-
162 BOLT; FLEX HOSE
(B) M10X25 THA 		8-97920-322-0 01 1 0009-
171 CAP; PIPE
(A) CAP MARK H THA 		8-97911-193-0 01 1 0009-
171 CAP; PIPE
(B) CAP MARK L THA 		8-97914-642-0 01 1 0009-
185 PIPE; EVAP TO FLEX HOSE,PRESS LO
THA 		8-97910-833-1 01 1 0009-
191 SCREW; CONNECTOR,COOLER HOSE
THA 		8-97911-205-0 02 1 0009-
192 PLATE; COOLER HOSE
THA 		8-97921-332-0 01 1 0009-
212 CLIP
THA 		8-97920-492-0 01 1 0009-
