◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCS ▶ 50892 - UCS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#41825) — 14 parça
çizim 9397
25 606
BalonParca AdiParca NoAdetTipApplied Date
25 RELAY; TAIL LAMP
12V 20A THA 		8-97919-335-1 01 1 0009-
606 RELAY; SPILL VLV
12V 20A THA 		8-97919-335-1 01 1 0009-

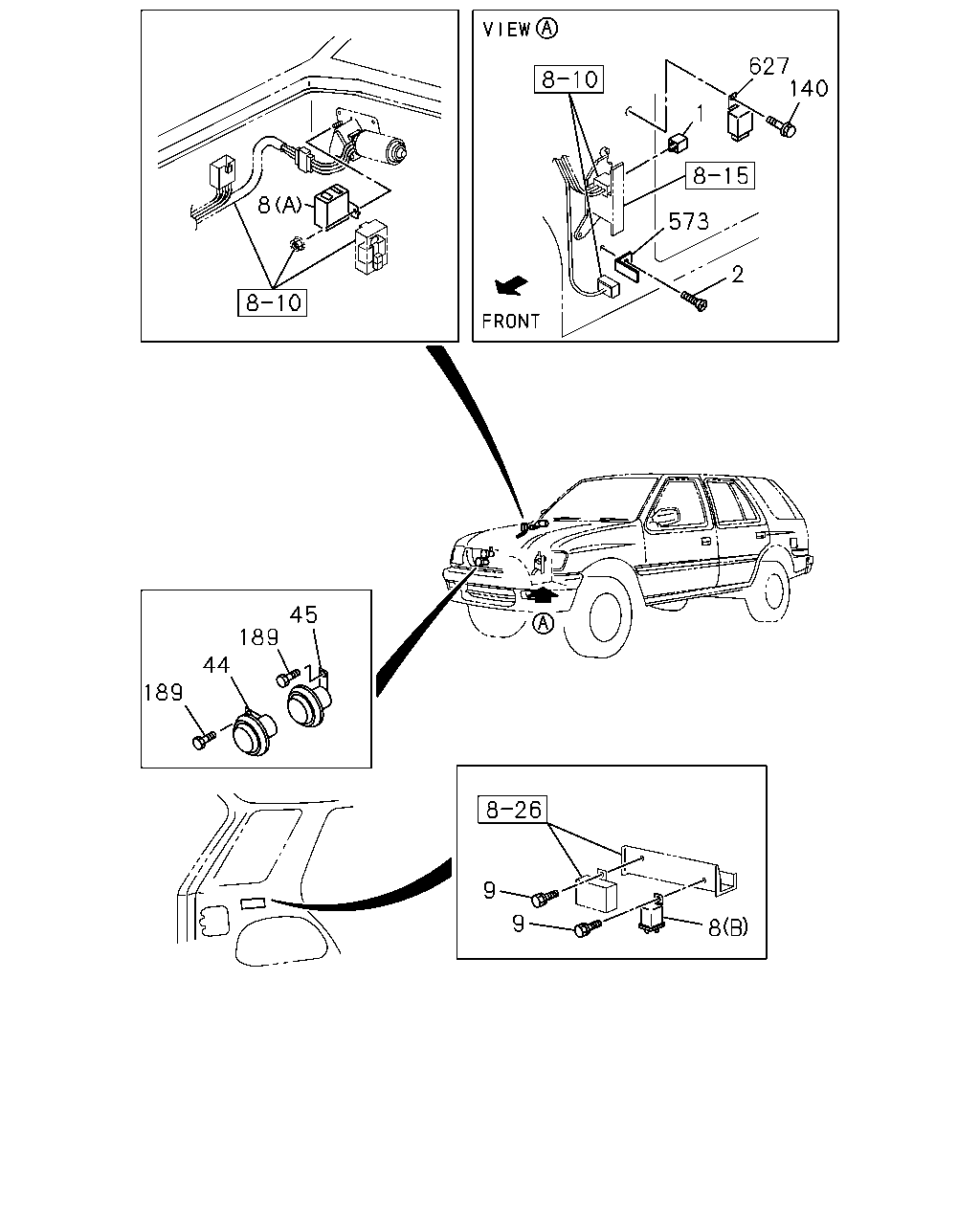

çizim 50743
627 140 1 8 573 2 45 189 44 189 9 9 8
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER
12V DENSO THA 		8-97912-779-0 01 1 0009-
2 BOLT; FLASHER UNIT
THA 		8-97912-108-0 01 1 0009-
8 RELAY; WIPER
(B) 		5-82550-035-0 01 1 0009-
8 RELAY; WIPER
(A) THA 		8-97918-461-1 01 1 0009-
9 SCREW; WIPER RELAY
M6X12 TAPPING 		9-07076-612-0 02 1 0009-
44 HORN; HIGH NOTE
THA 		8-97910-086-3 01 1 0009-
45 HORN; LOW NOTE
THA 		8-97910-087-4 01 1 0009-
140 BOLT; CONTROLLER
M6X16 FLANGE 		0-28480-616-0 01 1 0009-
189 BOLT; HORN
M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0009-
573 BRACKET; FLASHER UNIT
THA 		8-97912-780-0 01 1 0009-
627 CONTROLLER; SHIFT ON THE FLY 8-97215-990-1 01 1 0009-0301
627 CONTROLLER; SHIFT ON THE FLY 8-97364-910-0 01 1 0302-
