8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#41824) — 17 parça

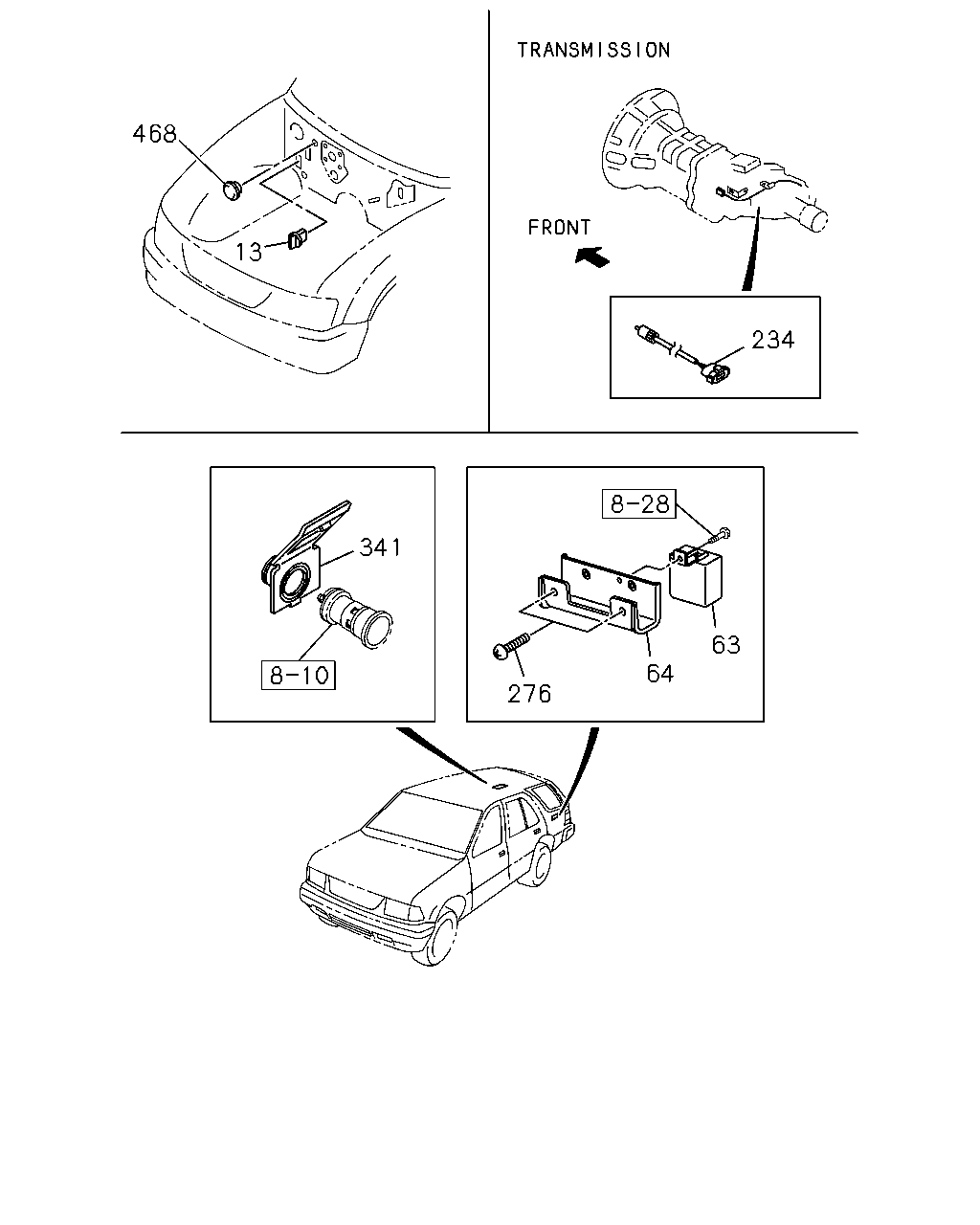

çizim 49760
468 13 234 341 63 64 276
BalonParca AdiParca NoAdetTipApplied Date
13 PLUG; CONTROLLER,CRUISE
THA 		8-94147-164-1 01 1 0009-
63 CONTROLLER; RR WIPER 8-94316-966-2 01 1 0009-
64 BRACKET; CONTROLLER 8-94369-591-0 01 1 0009-
234 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 0009-0405
234 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0406-
276 SCREW; BRKT
M5X12 		8-94120-094-0 02 1 0009-
341 COVER ASM
BLACK 		8-97293-933-0 01 1 0009-
468 GROMMET; HOLE,METER CABLE
OD=31.6 		8-94198-177-0 01 1 0009-

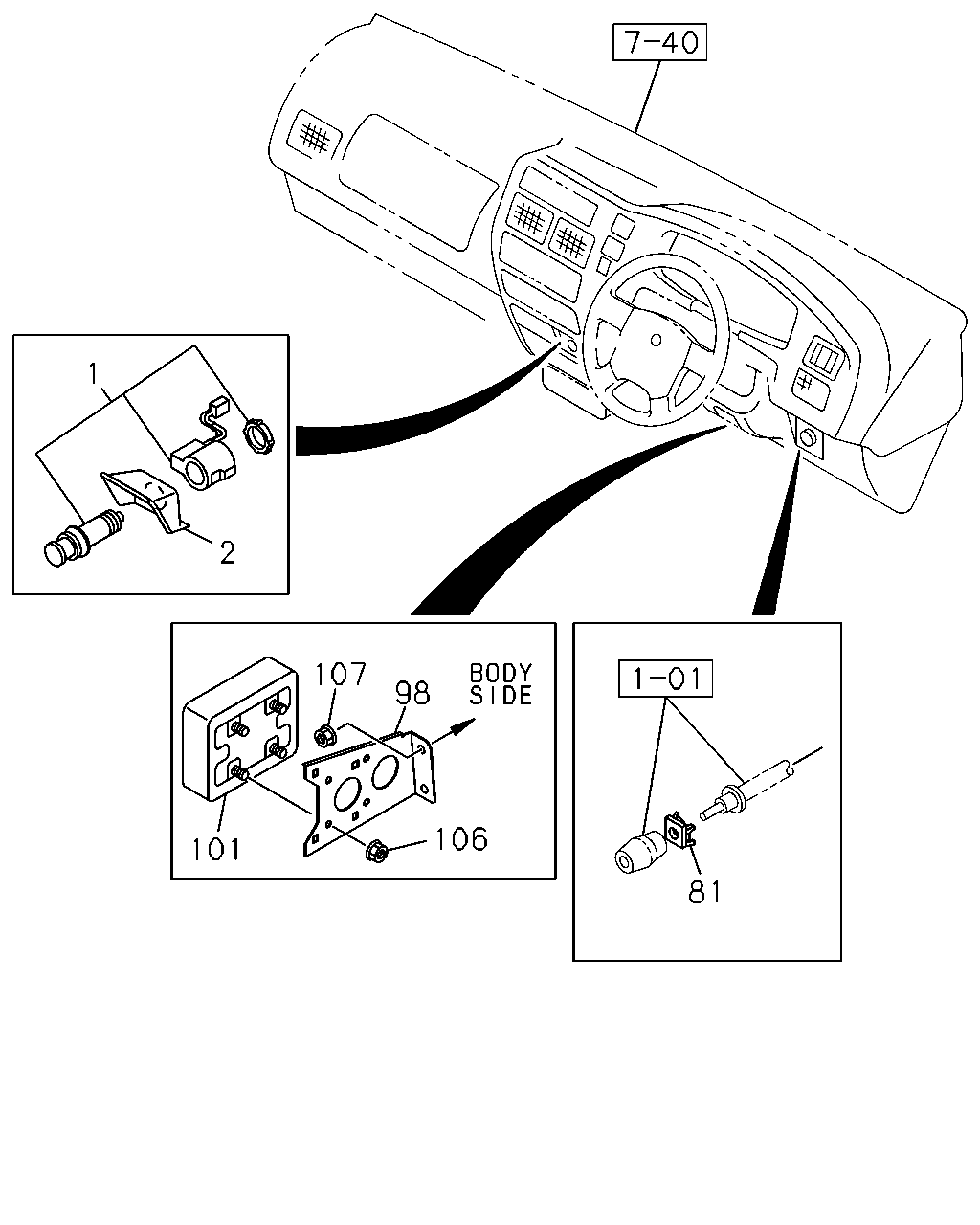

çizim 49844
1 2 107 98 106 101 81
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-97100-029-0 01 1 0009-0206
1 LIGHTER; CIGAR 8-97314-003-0 01 1 0207-
2 BEZEL; CIGAR LIGHTER
BLACK 		8-94333-793-0 01 1 0009-0206
2 BEZEL; CIGAR LIGHTER
BLACK 		8-97000-043-0 01 1 0207-
81 BEZEL; IDLE CONT 8-97165-448-0 01 1 0009-
98 BRACKET; ELEC CONT UNIT,A/T
A/T AISIN<RMD> 		8-97116-918-1 01 1 0009-
101 CONTROL UNIT; ELEC,A/T
A/T AISIN<RMD> 		8-97254-432-0 01 1 0009-
106 NUT; ELEC CONT UNIT
A/T AISIN<RMD> M6 FLANGE 		0-91150-106-0 03 1 0009-
107 NUT; BRKT,ELEC CONT UNIT
A/T AISIN<RMD> M8 FLANGE 		0-91150-108-0 02 1 0009-
