8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#41823) — 24 parça

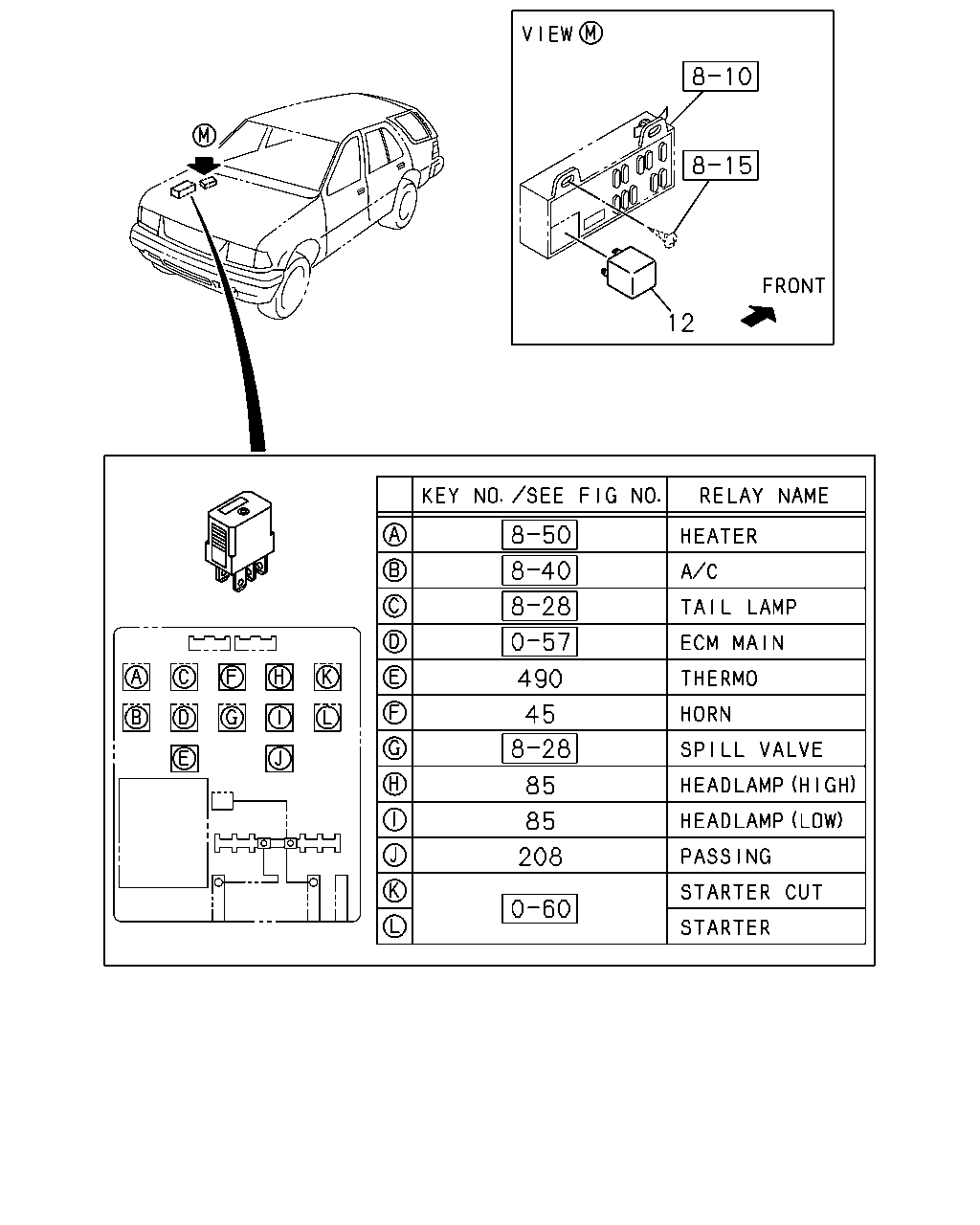

12 490 45 85 85 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	RELAY; POWER WINDOW 12V 20A THA	8-97060-926-1	01	1	0009-
45	RELAY; HORN 12V 20A THA	8-97919-335-1	01	1	0009-
85	RELAY; HEADLAMP 12V 20A THA	8-97919-335-1	02	1	0009-
208	RELAY; DIMMER & PASSING 12V 20A THA	8-97919-335-1	01	1	0009-
490	RELAY; THERMO 12V 20A THA	8-97919-335-1	01	1	0009-

8 144 31 30 28 29 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	SWITCH; POWER WINDOW BLACK	8-97152-735-1	01	1	0009-
8	SWITCH; POWER WINDOW BLACK	8-97153-642-0	01	1	0009-
28	SWITCH ASM; DOOR LOCK	8-94450-808-0	01	1	0009-
29	SWITCH; DOOR THA	8-97918-465-0	04	1	0009-
30	SCREW; DOOR SW M5X14	8-94120-095-0	04	1	0009-
31	BOLT; DOOR LK SW M6X14	8-97046-332-0	02	1	0009-
144	SWITCH; POWER WINDOW,RR BLACK	8-97098-342-3	01	1	0009-
144	SWITCH; POWER WINDOW,RR BLACK	8-97098-341-3	01	1	0009-

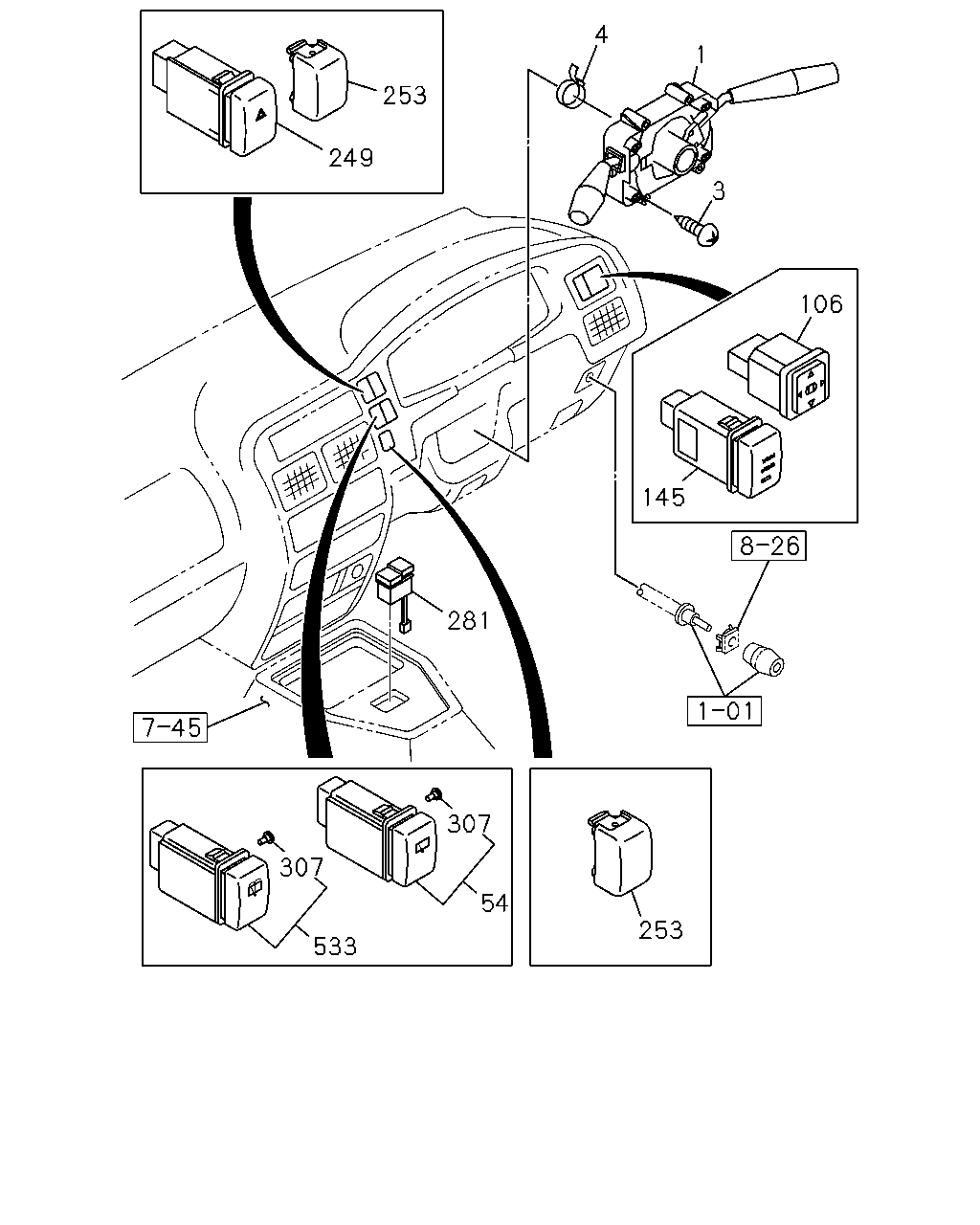

4 1 253 249 3 106 145 281 307 307 54 253 533

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SWITCH; COMB THA	8-97912-794-2	01	1	0009-
3	SCREW; COMB SW M5X14 W/LK WASHER	9-03910-514-0	04	1	0009-
4	CLIP; COMB SW L=217	8-94235-793-0	01	1	0009-
54	SWITCH; RR WIPER	8-97094-078-1	01	1	0009-
106	SWITCH; REMOTE CONT MIRROR	8-97131-293-1	01	1	0009-
145	SWITCH; TAIL GATE OPENER	8-97122-338-1	01	1	0009-
249	SWITCH; HAZARD THA	8-97916-882-0	01	1	0009-
253	COVER; SW HOLE THA	8-97913-579-0	02	1	0009-
281	SWITCH; SELECT,TRANS CONT A/T AISIN<RMD>	8-97101-782-1	01	1	0009-
307	BULB ASM; SW 14V 0.84W	8-97117-108-0	02	1	0009-
533	SWITCH; WASHER	8-97094-080-1	01	1	0009-
