Isuzu WW
▶
SUV
▶
UCS
▶
50892 - UCS(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#41820) — 38 parça
◀
[810A] NO.4 (4 parça)
[810A] NO.1 (15 parça)
[810A] NO.3 (10 parça)
[810A] NO.2 (9 parça)
▶

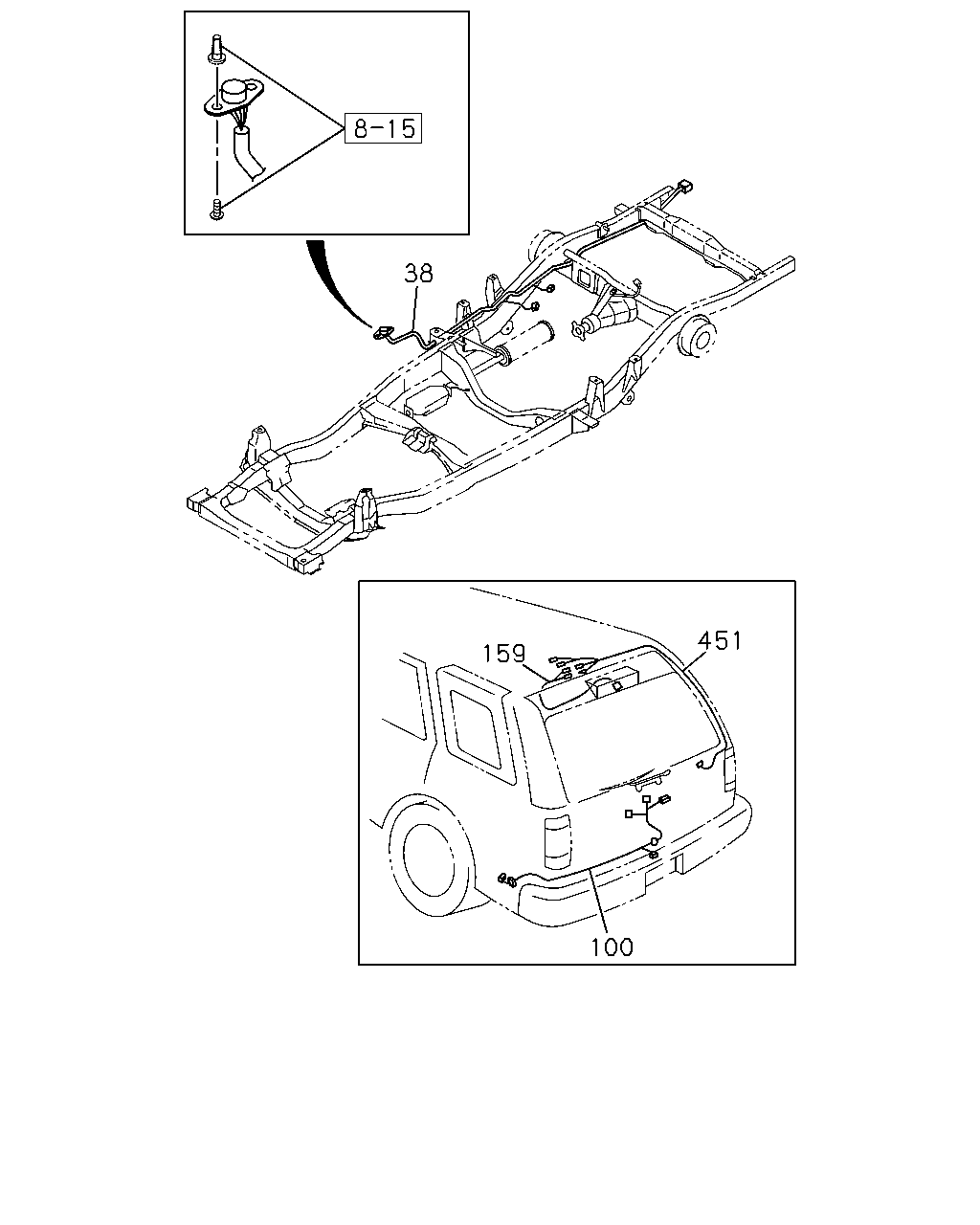

38
451
159
100
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
38
HARNESS; CHAS
THA
8-97919-069-0
01
1
0009-
100
HARNESS; RR GATE
THA
8-97913-634-2
01
1
0009-
159
HARNESS; STOP LAMP
THA
8-97913-635-0
01
1
0009-
451
HARNESS; CABLE,LUGGAGE
THA
8-97913-633-1
01
1
0009-

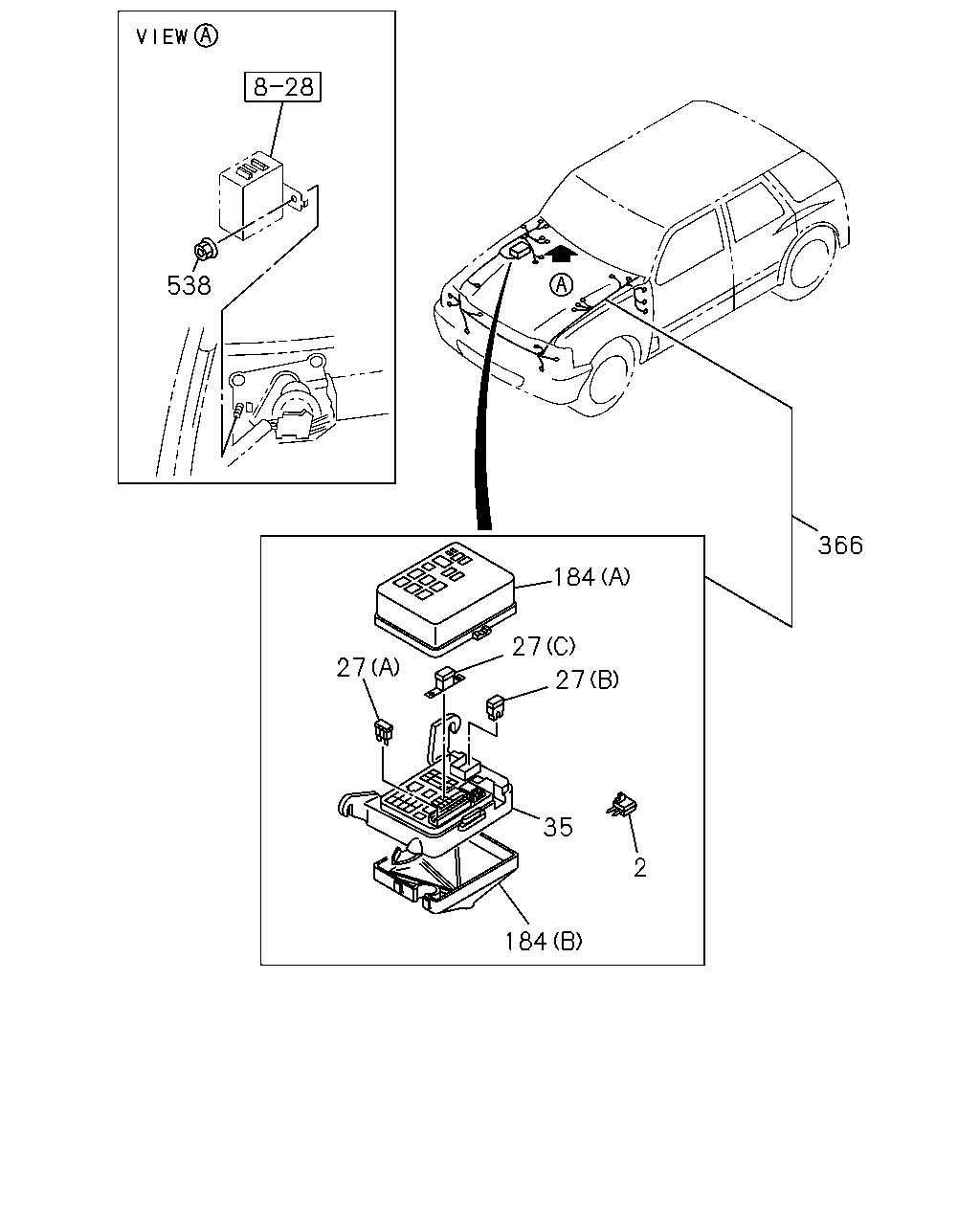

538
366
184
27
27
27
35
2
184
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
DIODE; CABLE HARNESS
BLACK 3P-1.5A THA
8-94422-640-1
AR
1
0009-
2
DIODE; CABLE HARNESS
BLACK 2P-1.5A THA
8-94422-639-1
AR
1
0009-
27
FUSE UNIT
(A) 10A MINI RED
8-97062-022-0
AR
1
0009-
27
FUSE UNIT
(A) 15A MINI BLUE
8-97062-023-0
AR
1
0009-
27
FUSE UNIT
(A) 20A MINI YELLOW
8-97062-024-0
AR
1
0009-
27
FUSE UNIT
(C) 40A GREEN THA
8-94388-301-0
AR
1
0009-
27
FUSE UNIT
(C) 80A BLACK THA
8-94388-305-0
AR
1
0009-
27
FUSE UNIT
(B) 20A THA
8-94468-660-0
AR
1
0009-
27
FUSE UNIT
(B) 40A GREEN THA
8-97183-644-0
AR
1
0009-
35
BOX; RELAY & FUSE
THA
8-97940-316-0
01
1
0009-
184
COVER; RELAY & FUSE BOX
(A) THA
8-97104-114-0
01
1
0009-
184
COVER; RELAY & FUSE BOX
(B) THA
8-97104-115-1
01
1
0009-
366
HARNESS; CABLE,ENG ROOM
A/T AISIN<RMD> THA
8-97921-164-7
01
1
0009-
366
HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED<RMN> THA
8-97921-163-6
01
1
0009-
538
NUT
M6 W/DISHED WASHER
8-94423-325-0
01
1
0009-

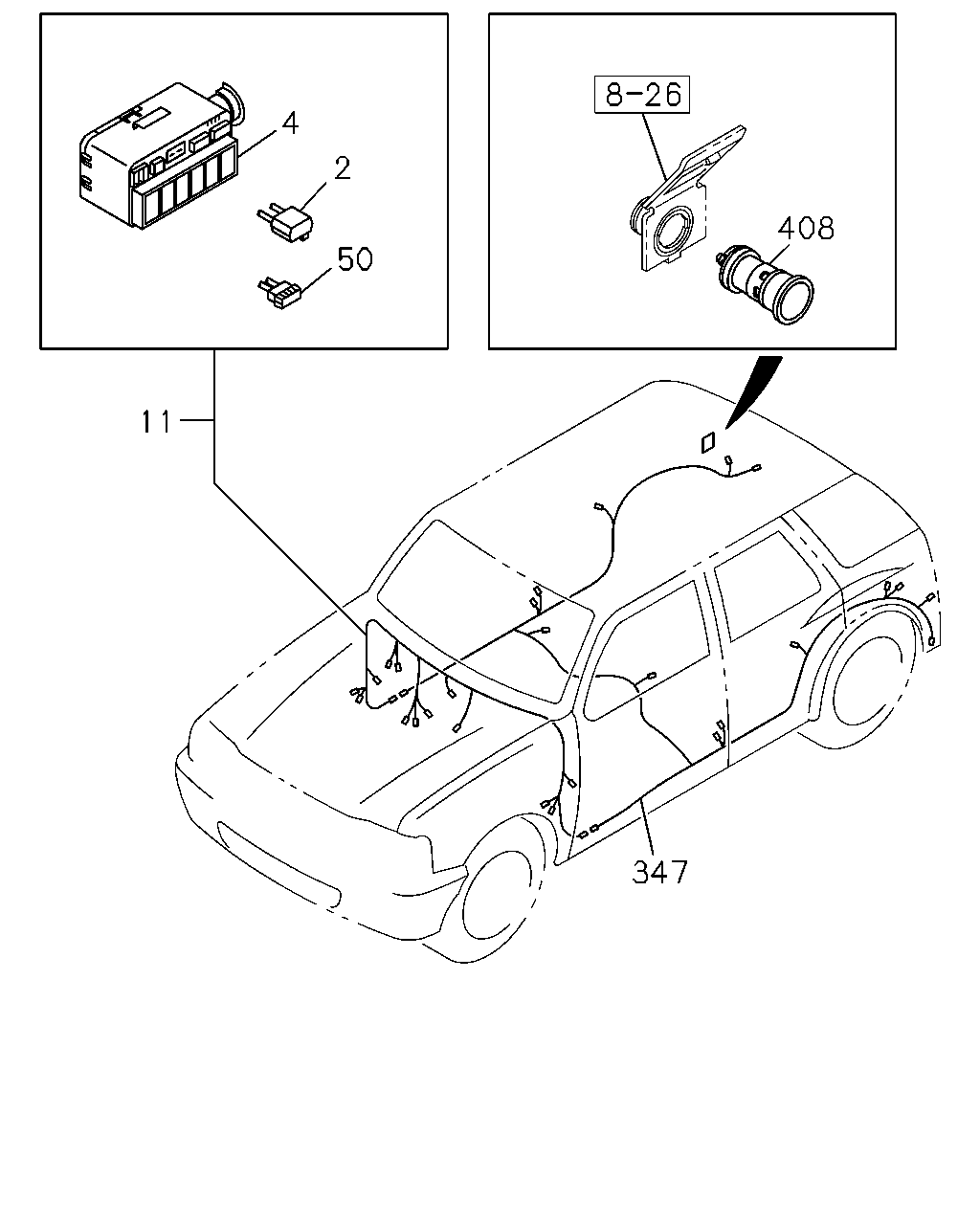

4
2
408
50
11
347
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
DIODE; CABLE HARNESS
BLACK 3P-1.5A THA
8-94422-640-1
AR
1
0009-
2
DIODE; CABLE HARNESS
BLACK 2P-1.5A THA
8-94422-639-1
AR
1
0009-
4
BOX ASM; FUSE,HARNESS
THA
8-97940-003-1
01
1
0009-
11
HARNESS; BODY
A/T AISIN<RMD> THA
8-97920-089-8
01
1
0009-
11
HARNESS; BODY
M/T MUA 5 SPEED<RMN> THA
8-97920-088-8
01
1
0009-
50
FUSE; BODY HARNESS
15A BLUE THA
8-97912-976-0
AR
1
0009-
50
FUSE; BODY HARNESS
20A YELLOW THA
8-97912-977-0
AR
1
0009-
50
FUSE; BODY HARNESS
10A RED THA
8-97912-975-0
AR
1
0009-
347
HARNESS; CABLE,RR BODY
THA
8-97921-566-1
01
1
0009-
408
SOCKET ASM; ACCESSORY
8-94382-451-1
01
1
0009-

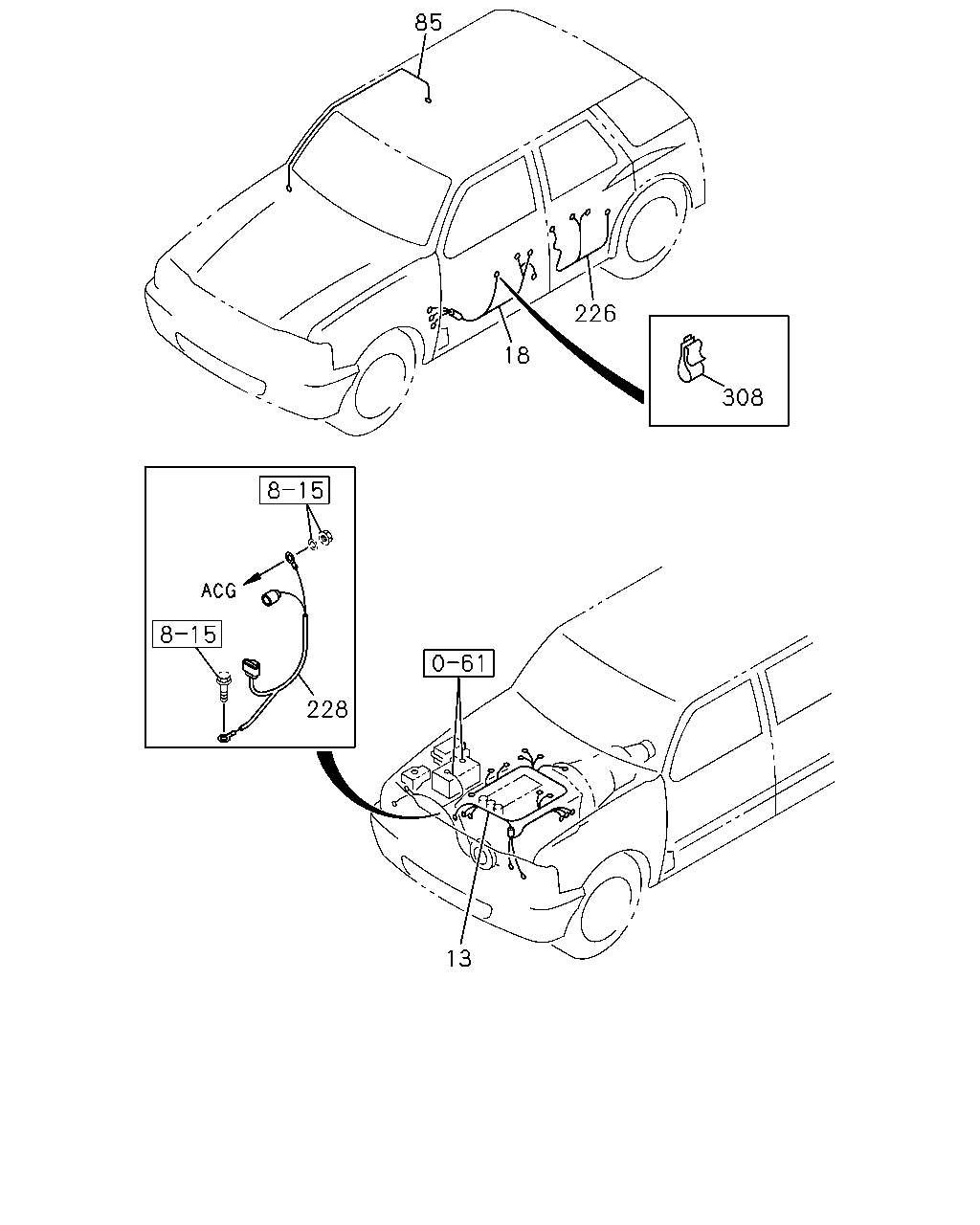

85
226
18
308
228
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
HARNESS; ENG
A/T AISIN<RMD> THA
8-97921-507-4
01
1
0009-
13
HARNESS; ENG
M/T MUA 5 SPEED<RMN> THA
8-97921-506-4
01
1
0009-
18
HARNESS; DOOR
THA
8-97913-854-3
01
1
0009-
18
HARNESS; DOOR
THA
8-97913-601-6
01
1
0009-
85
HARNESS; ROOM LAMP
THA
8-97919-360-1
01
1
0009-
226
HARNESS; RR DOOR
THA
8-97913-631-2
02
1
0009-
228
HARNESS; GEN
A/T AISIN<RMD> THA
8-97920-630-3
01
1
0009-
228
HARNESS; GEN
M/T MUA 5 SPEED<RMN> THA
8-97920-536-5
01
1
0009-
308
BRACKET; CONNECTOR
8-97102-552-0
02
1
0009-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
