0-28B — VENTILATION SYSTEM (#4182) — 73 parça

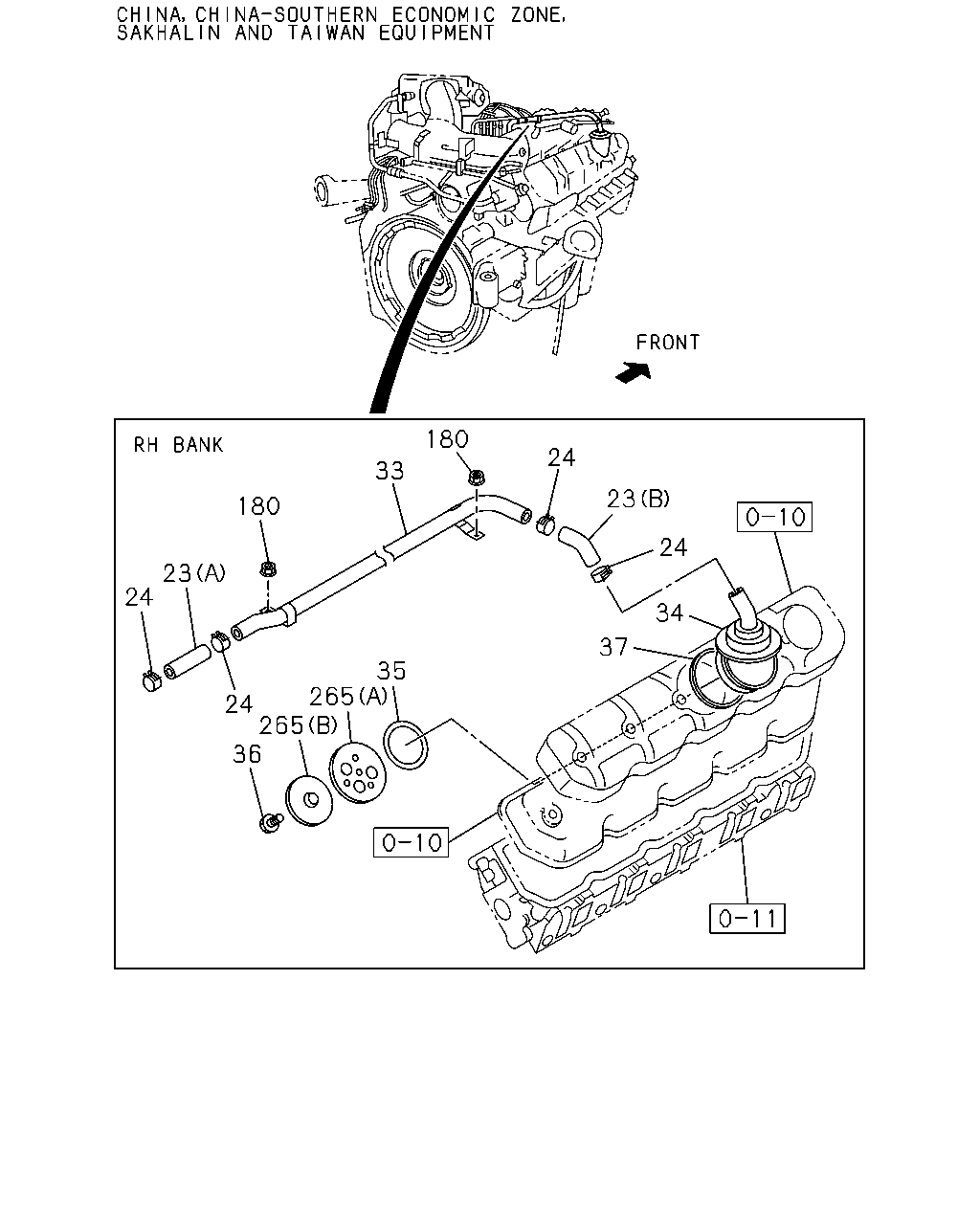

35 16 36 180 24 33 23 180 24 23 24 37 35 24 265 265 36 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	WASHER; LK,BREATHER EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,CHINA EQUIPMENT(YT2) ID=6.1	9-09150-506-0	04	1	9603-9901	●
23	HOSE; RUBBER,VENTILATOR PIPE (A) L=55	1-09360-766-0	01	1	9603-9901	●	●
23	HOSE; RUBBER,VENTILATOR PIPE (B)	1-09360-775-1	01	1	9603-9901	●	●
23	HOSE; RUBBER,VENTILATOR PIPE (A) L=55	1-09360-766-0	01	1	9905-	●	●	●	●
23	HOSE; RUBBER,VENTILATOR PIPE (B)	1-09360-775-1	01	1	9905-	●	●	●	●
24	CLIP; RUBBER HOSE,VENTILATOR ID=26	1-09707-091-0	04	1	9603-9901	●	●
24	CLIP; RUBBER HOSE,VENTILATOR ID=26	1-09707-091-0	04	1	9905-	●	●	●	●
33	PIPE; VENTILATOR	1-14236-106-1	01	1	9603-9901	●
33	PIPE; VENTILATOR	1-14236-106-1	01	1	9905-	●
33	PIPE; VENTILATOR	1-14236-105-0	01	1	9603-9901		●
33	PIPE; VENTILATOR	1-14236-105-0	01	1	9905-		●	●	●
34	VENTILATOR	1-14360-052-0	01	1	9603-9901	●	●
34	VENTILATOR	1-14360-052-0	01	1	9905-9909	●	●	●	●
34	VENTILATOR	1-14360-055-0	01	1	9910-	●	●	●	●
35	GASKET; VENTILATOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ANTI NOISE EQUIPMENT<SV9>	1-09623-418-0	02	1	0002-	●	●	●	●
35	GASKET; VENTILATOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	1-09623-418-0	02	1	9603-9901	●	●
35	GASKET; VENTILATOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5), CHINA EQUIPMENT(YT2)	1-09623-418-0	01	1	9603-9901	●	●
35	GASKET; VENTILATOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-418-0	02	1	9905-0001	●	●	●	●
35	GASKET; VENTILATOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE OIL TEMPERATURE GAUGE<UG3>	1-09623-418-0	01	1	0002-0003			●
35	GASKET; VENTILATOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) MIXER TRUCK<RA2>	1-09623-418-0	01	1	0002-0003			●
35	GASKET; VENTILATOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ANTI NOISE EQUIPMENT<SV9>	1-09623-418-0	01	1	0004-			●
36	BOLT; VENTILATOR CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) M6X12 FLANGE	0-28080-612-0	07	1	9603-9901	●	●
36	BOLT; VENTILATOR EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5), CHINA EQUIPMENT(YT2) M6X12	0-20800-612-0	04	1	9603-9901	●	●
36	BOLT; VENTILATOR M6X12 FLANGE	0-28080-612-0	07	1	9905-0001	●	●	●	●
36	BOLT; VENTILATOR ANTI NOISE EQUIPMENT<SV9> M6X12 FLANGE	0-28080-612-0	07	1	0002-	●	●	●	●
36	BOLT; VENTILATOR INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE OIL TEMPERATURE GAUGE<UG3> M6X12	0-20800-612-0	04	1	0002-0003			●
36	BOLT; VENTILATOR MIXER TRUCK<RA2> M6X12	0-20800-612-0	04	1	0002-0003			●
36	BOLT; VENTILATOR EXC. ANTI NOISE EQUIPMENT<SV9> M6X12	0-20800-612-0	04	1	0004-			●
37	GROMMET; BREATHER,HD COVER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	1-09333-132-0	01	1	9603-9901	●	●
37	GROMMET; BREATHER,HD COVER	1-09333-132-0	01	1	9905-0001	●	●	●	●
37	GROMMET; BREATHER,HD COVER ANTI NOISE EQUIPMENT<SV9>	1-09333-132-0	01	1	0002-	●	●	●	●
180	NUT; PIPE M8 FLANGE	0-91150-108-0	02	1	9603-9901	●	●
180	NUT; PIPE M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●	●
265	PLATE; BAFFLE HD COVER (B) OD=75	1-14369-051-0	01	1	9603-9901	●	●
265	PLATE; BAFFLE HD COVER (A) OD=92	1-14369-052-0	01	1	9603-9901	●	●
265	PLATE; BAFFLE HD COVER (B) OD=75	1-14369-051-0	01	1	9905-	●	●	●	●
265	PLATE; BAFFLE HD COVER (A) OD=92	1-14369-052-0	01	1	9905-	●	●	●	●

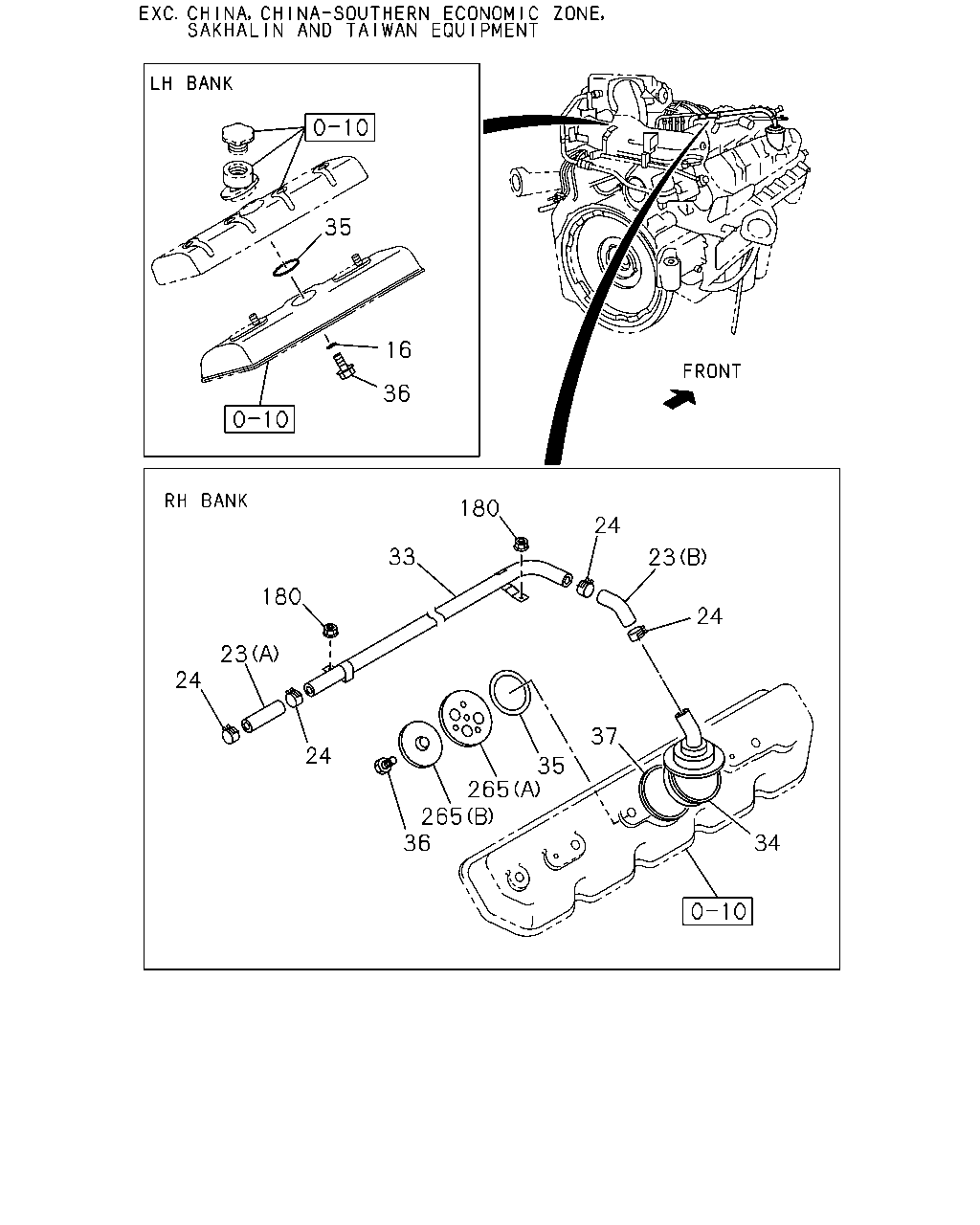

180 24 33 23 180 24 23 24 34 37 35 265 24 265 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	HOSE; RUBBER,VENTILATOR PIPE (A) L=55	1-09360-766-0	01	1	9603-9901	●	●
23	HOSE; RUBBER,VENTILATOR PIPE (B)	1-09360-775-1	01	1	9603-9901	●	●
23	HOSE; RUBBER,VENTILATOR PIPE (A) L=55	1-09360-766-0	01	1	9905-	●	●	●	●
23	HOSE; RUBBER,VENTILATOR PIPE (B)	1-09360-775-1	01	1	9905-	●	●	●	●
24	CLIP; RUBBER HOSE,VENTILATOR ID=26	1-09707-091-0	04	1	9603-9901	●	●
24	CLIP; RUBBER HOSE,VENTILATOR ID=26	1-09707-091-0	04	1	9905-	●	●	●	●
33	PIPE; VENTILATOR	1-14236-106-1	01	1	9603-9901	●
33	PIPE; VENTILATOR	1-14236-106-1	01	1	9905-	●
33	PIPE; VENTILATOR	1-14236-105-0	01	1	9603-9901		●
33	PIPE; VENTILATOR	1-14236-105-0	01	1	9905-		●	●	●
34	VENTILATOR	1-14360-052-0	01	1	9603-9901	●	●
34	VENTILATOR	1-14360-052-0	01	1	9905-9909	●	●	●	●
34	VENTILATOR	1-14360-055-0	01	1	9910-	●	●	●	●
35	GASKET; VENTILATOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ANTI NOISE EQUIPMENT<SV9>	1-09623-418-0	02	1	0002-	●	●	●	●
35	GASKET; VENTILATOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	1-09623-418-0	02	1	9603-9901	●	●
35	GASKET; VENTILATOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5), CHINA EQUIPMENT(YT2)	1-09623-418-0	01	1	9603-9901	●	●
35	GASKET; VENTILATOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-418-0	02	1	9905-0001	●	●	●	●
35	GASKET; VENTILATOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE OIL TEMPERATURE GAUGE<UG3>	1-09623-418-0	01	1	0002-0003			●
35	GASKET; VENTILATOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) MIXER TRUCK<RA2>	1-09623-418-0	01	1	0002-0003			●
35	GASKET; VENTILATOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ANTI NOISE EQUIPMENT<SV9>	1-09623-418-0	01	1	0004-			●
36	BOLT; VENTILATOR CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) M6X12 FLANGE	0-28080-612-0	07	1	9603-9901	●	●
36	BOLT; VENTILATOR EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5), CHINA EQUIPMENT(YT2) M6X12	0-20800-612-0	04	1	9603-9901	●	●
36	BOLT; VENTILATOR M6X12 FLANGE	0-28080-612-0	07	1	9905-0001	●	●	●	●
36	BOLT; VENTILATOR ANTI NOISE EQUIPMENT<SV9> M6X12 FLANGE	0-28080-612-0	07	1	0002-	●	●	●	●
36	BOLT; VENTILATOR INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE OIL TEMPERATURE GAUGE<UG3> M6X12	0-20800-612-0	04	1	0002-0003			●
36	BOLT; VENTILATOR MIXER TRUCK<RA2> M6X12	0-20800-612-0	04	1	0002-0003			●
36	BOLT; VENTILATOR EXC. ANTI NOISE EQUIPMENT<SV9> M6X12	0-20800-612-0	04	1	0004-			●
37	GROMMET; BREATHER,HD COVER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	1-09333-132-0	01	1	9603-9901	●	●
37	GROMMET; BREATHER,HD COVER	1-09333-132-0	01	1	9905-0001	●	●	●	●
37	GROMMET; BREATHER,HD COVER ANTI NOISE EQUIPMENT<SV9>	1-09333-132-0	01	1	0002-	●	●	●	●
180	NUT; PIPE M8 FLANGE	0-91150-108-0	02	1	9603-9901	●	●
180	NUT; PIPE M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●	●
265	PLATE; BAFFLE HD COVER (B) OD=75	1-14369-051-0	01	1	9603-9901	●	●
265	PLATE; BAFFLE HD COVER (A) OD=92	1-14369-052-0	01	1	9603-9901	●	●
265	PLATE; BAFFLE HD COVER (B) OD=75	1-14369-051-0	01	1	9905-	●	●	●	●
265	PLATE; BAFFLE HD COVER (A) OD=92	1-14369-052-0	01	1	9905-	●	●	●	●
