Isuzu WW
▶
SUV
▶
UCS
▶
50892 - UCS(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶

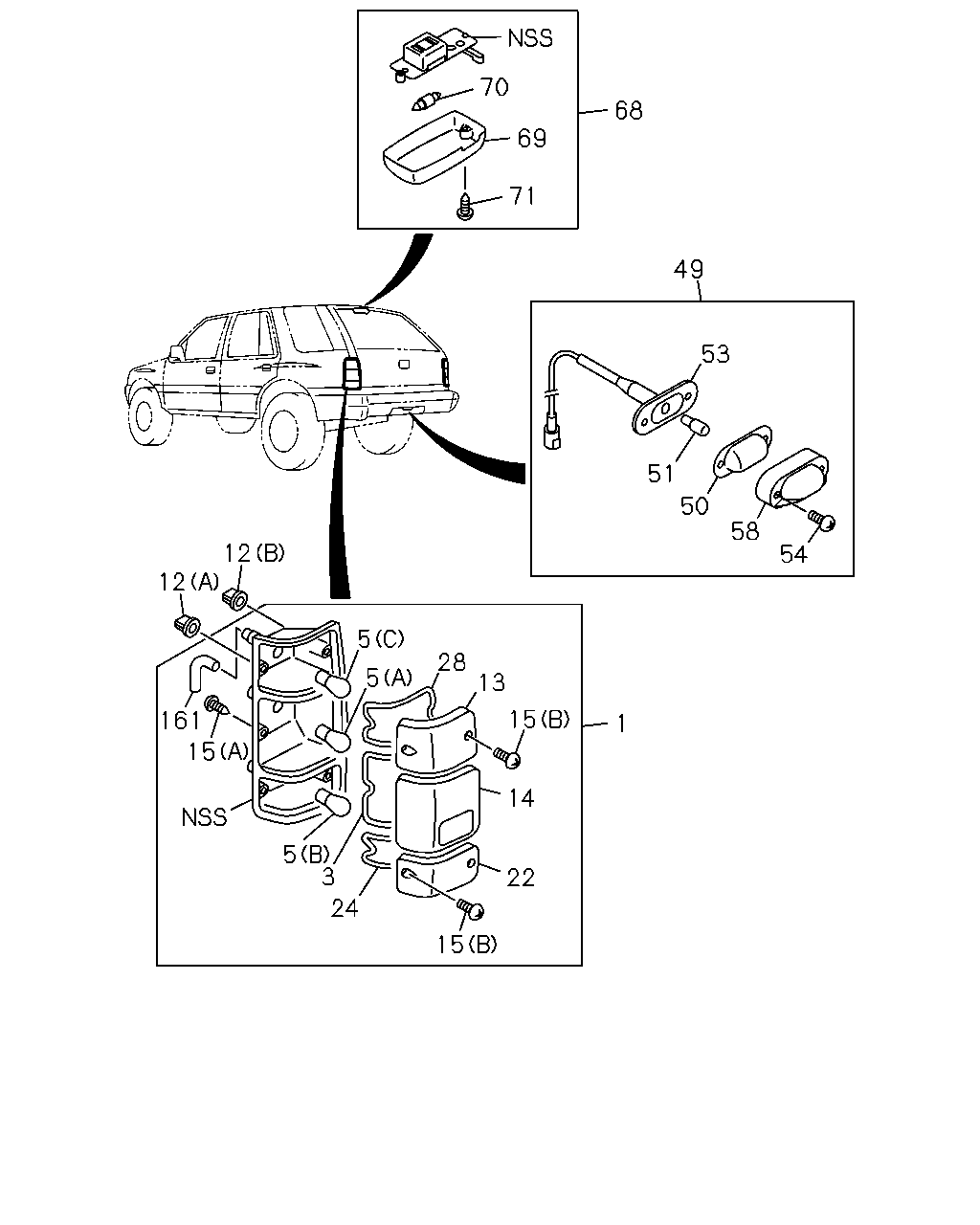

8-03 — LAMP; REAR AND REAR SIDE
(#41818) — 37 parça
◀
[803A] HIGHMOUNTED STOP LAMP (8 parça)
[803A] RR COMB LAMP AND OTHER LAMP (29 parça)
▶
75
82
87
81
83
85
80
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
75
LAMP ASM; STOP,HIGHMOUNTED
8-97047-175-3
01
1
0009-
80
UNIT; STOP LAMP
8-94383-513-0
01
1
0009-
81
GASKET; STOP LAMP
8-94387-094-0
04
1
0009-
82
SCREW; LAMP UNIT TO SOCKET
0-71090-412-0
03
1
0009-
83
BULB; STOP LAMP,HIGHMOUNTED
12V 5W THA
8-94124-595-0
04
1
0009-
85
GASKET; LENS TO HSG
8-94383-516-0
01
1
0009-
86
SCREW; LENS TO HSG
8-97087-150-0
02
1
0009-
87
SOCKET; STOP LAMP
8-97087-151-0
01
1
0009-
70
68
69
71
49
53
51
50
58
12
12
54
5
28
13
15
5
161
15
1
14
5
3
24
22
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; RR COMB
THA
8-97919-329-0
01
1
0009-
1
LAMP ASM; RR COMB
THA
8-97919-328-0
01
1
0009-
3
GASKET; RR COMB LAMP
THA
8-97915-927-0
02
1
0009-
5
BULB; RR COMB LAMP
(A) 12V 21/5W THA
8-97913-051-0
02
1
0009-
5
BULB; RR COMB LAMP
(B) 12V 21W THA
8-97913-052-0
02
1
0009-
5
BULB; RR COMB LAMP
(C) 12V 21W THA
8-97920-252-0
02
1
0009-
12
GROMMET; RR COMB LAMP
(A)
8-94430-318-1
04
1
0009-
12
GROMMET; RR COMB LAMP
(B) D=8.7X7.8 L=7.5
8-97033-807-0
04
1
0009-
13
LENS; TURN SIGNAL
THA
8-97920-349-0
01
1
0009-
13
LENS; TURN SIGNAL
THA
8-97920-348-0
01
1
0009-
14
LENS; TAIL & STOP,RR COMB LAMP
THA
8-97915-931-0
01
1
0009-
14
LENS; TAIL & STOP,RR COMB LAMP
THA
8-97915-932-0
01
1
0009-
15
SCREW; RR COMB LAMP
(A) M3X12 TAPPING
0-71090-312-0
04
1
0009-
15
SCREW; RR COMB LAMP
(B) M5X25 TAPPING
0-71190-525-0
08
1
0009-
22
LENS; BACKUP,RR COMB LAMP
THA
8-97915-933-0
01
1
0009-
22
LENS; BACKUP,RR COMB LAMP
THA
8-97915-934-0
01
1
0009-
24
GASKET; BACK,LAMP
THA
8-97915-928-0
02
1
0009-
28
GASKET; TURN,LAMP
THA
8-97915-926-0
02
1
0009-
49
LAMP; LICENSE PLATE
THA
8-97910-608-4
01
1
0009-
50
LENS; LICENSE PLATE LAMP
THA
8-97913-002-0
01
1
0009-
51
BULB; LICENSE PLATE LAMP
12V 5W THA
8-97913-001-0
01
1
0009-
53
GASKET; LICENSE LAMP
THA
8-97913-295-0
01
1
0009-
54
SCREW; LICENSE PLATE LAMP
THA
8-97913-004-0
02
1
0009-
58
COVER; LICENSE PLATE LAMP
THA
8-97913-003-0
01
1
0009-
68
LAMP; LUGGAGE ROOM
8-97128-354-0
01
1
0009-
69
LENS; LUGGAGE ROOM LAMP
THA
8-94289-167-1
01
1
0009-
70
BULB; LUGGAGE ROOM LAMP
12V 10W THA
8-97128-771-0
01
1
0009-
71
SCREW; LUGGAGE ROOM LAMP
THA
8-94334-545-0
02
1
0009-
161
TUBE; RR COMB LAMP
THA
8-97915-924-0
06
1
0009-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
