◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50801 - TFR/TFS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-52 - AUTO TRANS OVERDRIVE GEAR ▶
2-52 — AUTO TRANS OVERDRIVE GEAR (#41813) — 52 parça

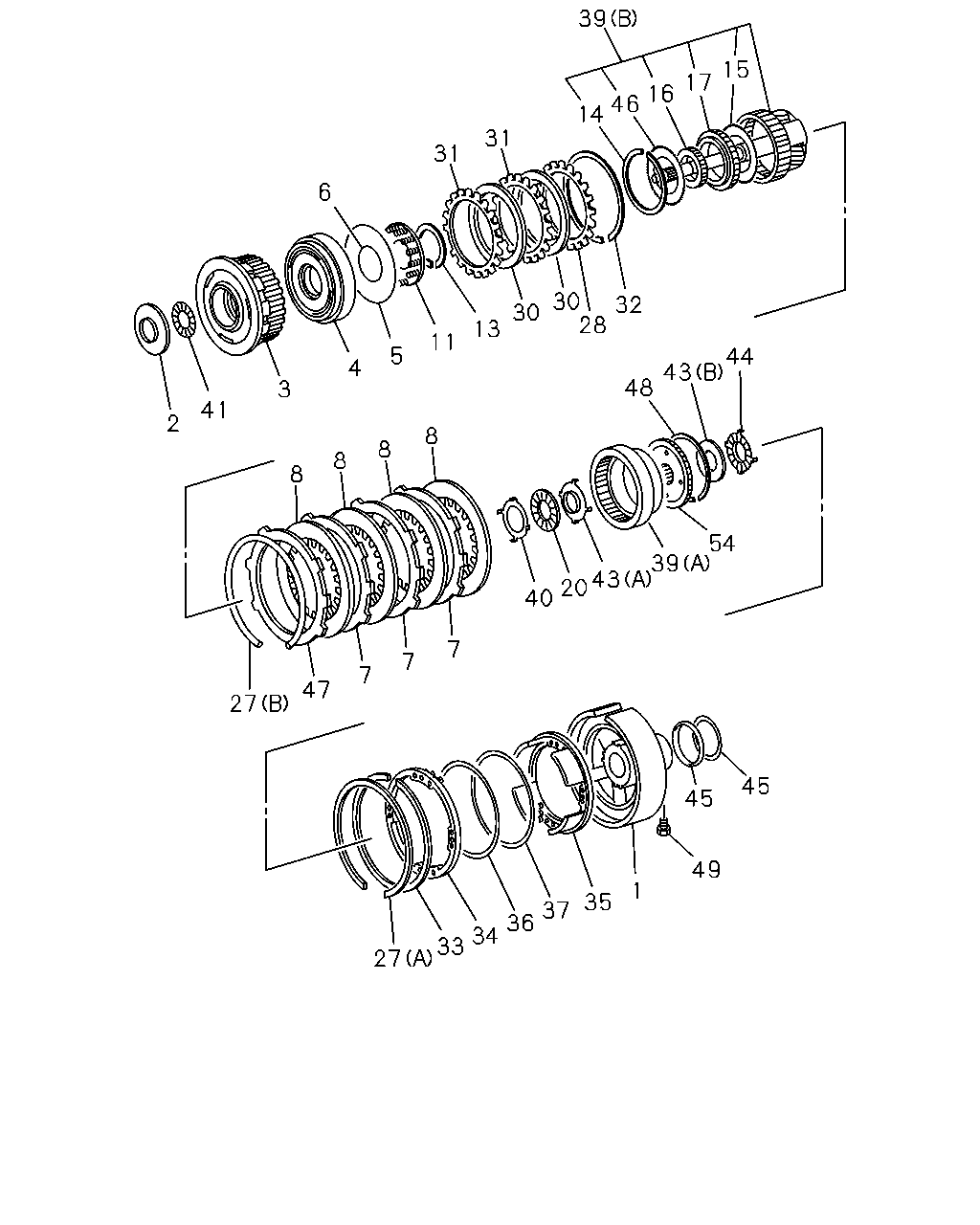

çizim 18650
39 15 17 16 46 14 31 31 6 30 32 30 13 28 11 5 44 43 48 4 3 41 2 8 8 8 8 54 39 43 20 40 7 7 7 47 27 45 45 49 1 35 37 36 34 33 27
BalonParca AdiParca NoAdetTipApplied Date
1 04.455 CASE ASM; OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97184-516-0 01 1 0010-
2 04.472 RACE; THRUST BRG,OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97249-736-0 01 1 0010-
3 04.468 DRUM; CLU,OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97025-853-0 01 1 0010-
4 04.468 PISTON ASM; CLU,OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94479-889-0 01 1 0010-
5 04.460 GASKET; CLU PISTON,OUTER,OVERDRI
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97184-528-0 01 1 0010-
6 04.460 GASKET; CLU PISTON,INNER,OVERDRI
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97184-321-0 01 1 0010-
7 04.468 PLATE; CLU CUSHION
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97143-124-0 04 1 0010-
8 04.455 DISC; CLU,OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97143-126-0 04 1 0010-
11 04.468 SPRING; CLU RETURN,OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94479-890-0 01 1 0010-
13 04.472 RING; SNAP,OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 04.166 		8-94479-783-0 01 1 0010-
14 04.472 RING; RET,OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94479-882-0 01 1 0010-
15 04.468 WASHER; THRUST,OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94479-883-0 01 1 0010-
16 04.455 CLUTCH ASM; ONEWAY,OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97019-545-0 01 1 0010-
17 04.468 RACE; ONEWAY CLU,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94489-885-0 01 1 0010-0012
17 04.468 RACE; ONEWAY CLU,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94479-885-0 01 1 0101-
20 04.472 BEARING; THRUST
CREW CAB(TF**W*) 4JB1 ENG(RLF) 04.164 		8-94479-778-0 01 1 0010-
27 04.472 RING; RET,OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) (A) 		8-94479-859-0 01 1 0010-
27 04.472 RING; RET,OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) (B) 		8-94479-874-0 01 1 0010-
28 04.472 PLATE; CLU BACKING,OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) T=3.6 		8-97288-924-0 01 1 0010-
28 04.472 PLATE; CLU BACKING,OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) T=3.5 		8-97288-925-0 01 1 0010-
28 04.472 PLATE; CLU BACKING,OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) T=3.4 		8-97288-926-0 01 1 0010-
28 04.472 PLATE; CLU BACKING,OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) T=3.1 		8-97311-564-0 01 1 0010-
28 04.472 PLATE; CLU BACKING,OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) T=3.2 		8-97311-565-0 01 1 0010-
28 04.472 PLATE; CLU BACKING,OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) T=3.3 		8-97311-566-0 01 1 0010-
30 04.455 DISC; CLU,OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97143-121-0 02 1 0010-
31 04.468 PLATE; CUSHION,OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 04.455 		8-94479-891-0 02 1 0010-
32 04.472 RING; RET,OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 04.164 		8-94250-342-0 01 1 0010-
33 04.485 RETAINER; BRK RETURN SPR,OVERDRI
CREW CAB(TF**W*) 4JB1 ENG(RLF) ID=160 		8-97184-521-0 01 1 0010-
34 04.467 SPRING; BRK RETURN,OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97184-526-0 01 1 0010-
35 04.468 PISTON; BRK,OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97288-915-0 01 1 0010-
36 04.460 GASKET; PISTON,OUTER,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97184-519-0 01 1 0010-
37 04.460 GASKET; PISTON,INNER,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97184-520-0 01 1 0010-
39 04.470 GEAR ASM; PLANETARY INTERNAL,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) (A) 		8-94479-876-0 01 1 0010-
39 04.470 GEAR ASM; PLANETARY INTERNAL,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) (B) 		8-97213-033-0 01 1 0010-
40 04.470 RACE; THRUST BRG,OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94479-877-0 01 1 0010-
41 04.472 BEARING; THRUST,OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97249-734-0 01 1 0010-
43 04.472 RACE; THRUST BRG,OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) (A) 		8-94479-878-0 01 1 0010-
43 04.472 RACE; THRUST BRG,OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) (B) 		8-97019-548-0 01 1 0010-
44 04.472 BEARING; THRUST,OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97019-547-0 01 1 0010-
45 04.472 RING; SEAL,OVERDRIVE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 04.226 		8-94479-747-0 02 1 0010-
46 04.468 PLATE; RET,OVERDRIVE CLU
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94479-886-0 01 1 0010-
47 04.467 FLANGE; OVERDRIVE BRK,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) T=3.6 		8-97288-916-0 01 1 0010-
47 04.467 FLANGE; OVERDRIVE BRK,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) T=3.7 		8-97288-917-0 01 1 0010-
47 04.467 FLANGE; OVERDRIVE BRK,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) T=3.5 		8-97289-106-0 01 1 0010-
47 04.467 FLANGE; OVERDRIVE BRK,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) T=3.9 		8-97311-561-0 01 1 0010-
47 04.467 FLANGE; OVERDRIVE BRK,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) T=4.0 		8-97311-562-0 01 1 0010-
47 04.467 FLANGE; OVERDRIVE BRK,A/T
4X2 CREW CAB(TFB*W*) 4JB1 ENG(RLF) T=3.8 		8-97311-560-0 02 1 0010-
47 04.467 FLANGE; OVERDRIVE BRK,A/T
4X4 CREW CAB(TFS*W*) 4JB1 ENG(RLF) T=3.8 		8-97311-560-0 01 1 0010-
47 04.467 FLANGE; OVERDRIVE BRK,A/T
4X4 CREW CAB(TFS*W*) 4JB1 ENG(RLF) T=3.3 		8-97311-563-0 01 1 0010-
48 04.472 RING; SNAP,PLANETARY RING GEAR,O
CREW CAB(TF**W*) 4JB1 ENG(RLF) 04.166 		8-94479-853-0 01 1 0010-
49 04.472 BOLT; OVERDRIVE SUPPORT,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97143-090-0 02 1 0010-
54 04.175 FLANGE; PLANETARY RING GEAR,OVER
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97019-546-0 01 1 0010-
