2-48 — AUTO TRANS MULTIPLE-DISC CLUTCH (#41811) — 64 parça

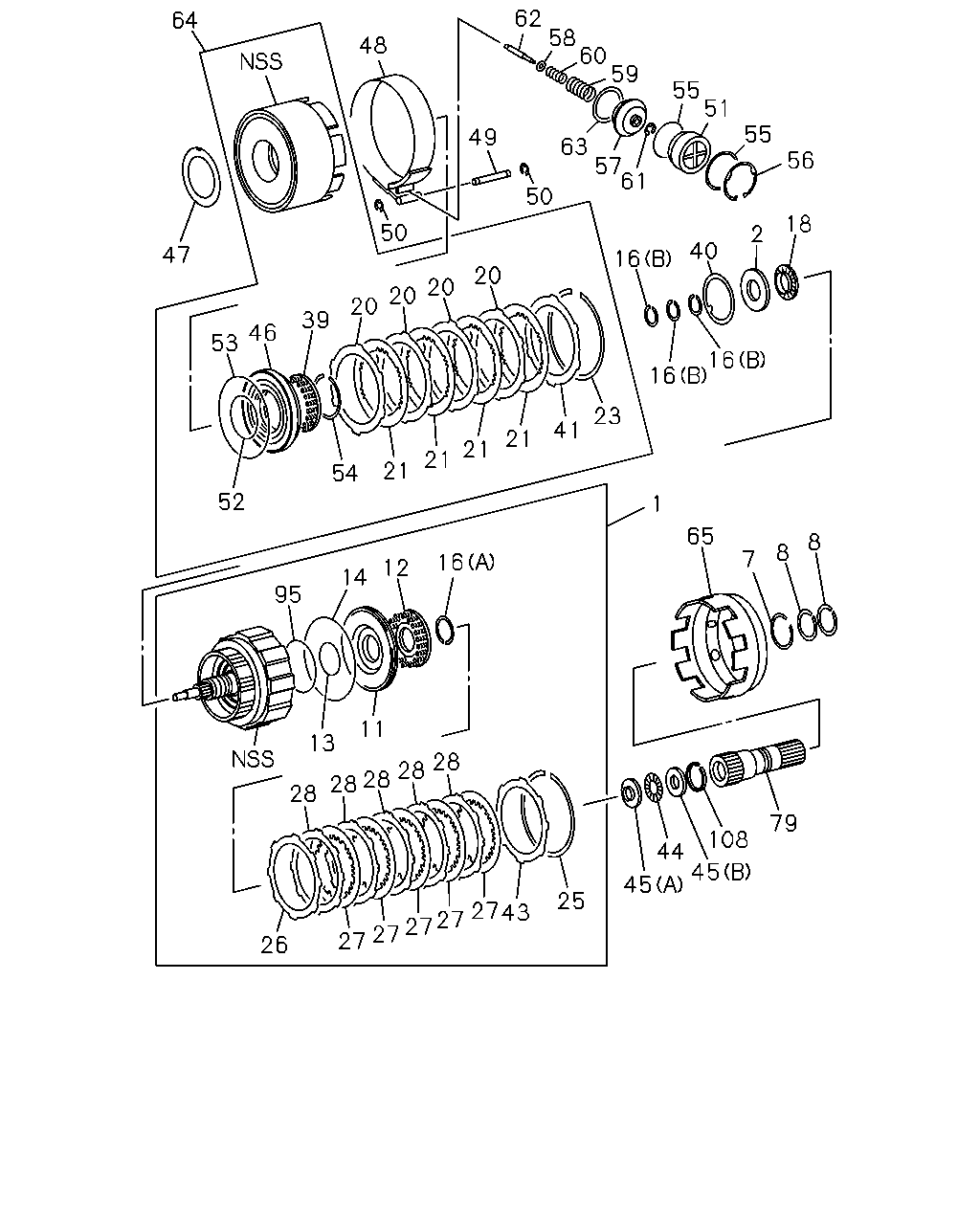

çizim 18651
62 58 60 59 64 48 55 51 55 49 63 57 61 56 50 50 18 2 40 47 16 20 20 20 20 39 46 53 16 16 23 41 21 21 21 21 54 52 1 65 8 8 7 16 12 14 95 11 13 28 28 28 28 28 79 108 44 45 45 25 27 43 27 27 27 27 26
BalonParca AdiParca NoAdetTipApplied Date
1 04.164 HUB ASM; CLU,INPUT SHAFT,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97184-340-0 01 1 0010-
2 04.164 RACE; THRUST BRG,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 04.472 		8-94479-763-0 01 1 0010-
7 04.159 RING; RET,PLANETARY GEAR,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94479-844-0 01 1 0010-
8 04.169 RING; SEAL,PLANETARY GEAR,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94166-003-0 02 1 0010-
11 04.166 PISTON ASM; CLU,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97025-836-0 01 1 0010-
12 04.164 SPRING; CLU RETURN,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94479-770-0 01 1 0010-
13 04.166 GASKET; INNER,CLU,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94364-919-0 01 1 0010-
14 04.166 GASKET; OUTER,CLU,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94364-920-0 01 1 0010-
16 04.166 RING; SNAP,CLU,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) (A) 		8-94479-769-0 01 1 0010-
16 04.166 RING; SNAP,CLU,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) (B) 		8-94479-775-0 03 1 0010-
18 04.164 BEARING; THRUST,CLU,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94479-764-0 01 1 0010-
20 04.163 DISC; CLU,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97214-543-0 04 1 0010-
21 04.163 DISC ASM; CLU & FACING,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97214-544-0 04 1 0010-
23 04.164 RING; RET,CLU,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97214-553-0 01 1 0010-
25 04.164 RING; RET,BACKING PLATE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94250-342-0 01 1 0010-
26 04.163 PLATE; CLU,BACKING,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94479-772-0 01 1 0010-
27 04.163 DISC ASM; CLU & FACING,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97143-083-0 05 1 0010-
28 04.163 DISC; CLU,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) STD 		8-97025-838-0 05 1 0010-
28 04.163 DISC; CLU,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) OPT 		8-97184-342-0 05 1 0010-
39 04.164 SPRING; DIRECT CLU RETURN
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97019-543-0 01 1 0010-
40 04.164 WASHER; THRUST,CLU DRUM,INPUT SH
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94479-796-0 01 1 0010-
41 04.164 FLANGE; DIRECT CLU
CREW CAB(TF**W*) 4JB1 ENG(RLF) T=3.9 		8-97214-551-0 01 1 0010-
41 04.164 FLANGE; DIRECT CLU
CREW CAB(TF**W*) 4JB1 ENG(RLF) T=4.0 		8-97214-552-0 01 1 0010-
41 04.164 FLANGE; DIRECT CLU
CREW CAB(TF**W*) 4JB1 ENG(RLF) T=3.3 		8-97288-908-0 01 1 0010-
41 04.164 FLANGE; DIRECT CLU
CREW CAB(TF**W*) 4JB1 ENG(RLF) T=3.4 		8-97288-909-0 01 1 0010-
41 04.164 FLANGE; DIRECT CLU
CREW CAB(TF**W*) 4JB1 ENG(RLF) T=3.5 		8-97288-910-0 01 1 0010-
41 04.164 FLANGE; DIRECT CLU
CREW CAB(TF**W*) 4JB1 ENG(RLF) T=3.6 		8-97288-911-0 01 1 0010-
41 04.164 FLANGE; DIRECT CLU
CREW CAB(TF**W*) 4JB1 ENG(RLF) T=3.7 		8-97288-912-0 01 1 0010-
41 04.164 FLANGE; DIRECT CLU
CREW CAB(TF**W*) 4JB1 ENG(RLF) T=3.8 		8-97288-913-0 01 1 0010-
43 04.164 FLANGE; FWD CLU
CREW CAB(TF**W*) 4JB1 ENG(RLF) T=3.0 		8-97025-841-0 01 1 0010-
43 04.164 FLANGE; FWD CLU
CREW CAB(TF**W*) 4JB1 ENG(RLF) T=4.2 		8-97025-843-0 01 1 0010-
43 04.164 FLANGE; FWD CLU
CREW CAB(TF**W*) 4JB1 ENG(RLF) T=4.4 		8-97025-844-0 01 1 0010-
43 04.164 FLANGE; FWD CLU
CREW CAB(TF**W*) 4JB1 ENG(RLF) T=3.6 		8-97232-043-0 01 1 0010-
43 04.164 FLANGE; FWD CLU
CREW CAB(TF**W*) 4JB1 ENG(RLF) T=3.8 		8-97232-044-0 01 1 0010-
43 04.164 FLANGE; FWD CLU
CREW CAB(TF**W*) 4JB1 ENG(RLF) T=4.0 		8-97232-045-0 01 1 0010-
43 04.164 FLANGE; FWD CLU
CREW CAB(TF**W*) 4JB1 ENG(RLF) T=3.2 		8-97232-046-0 01 1 0010-
43 04.164 FLANGE; FWD CLU
CREW CAB(TF**W*) 4JB1 ENG(RLF) T=3.4 		8-97232-047-0 01 1 0010-
44 04.164 BEARING; THRUST,INPUT SHAFT RR
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94479-778-0 01 1 0010-
45 04.164 RACE; THRUST BRG,INPUT SHAFT
CREW CAB(TF**W*) 4JB1 ENG(RLF) (A) 		8-94479-776-0 01 1 0010-
45 04.164 RACE; THRUST BRG,INPUT SHAFT
CREW CAB(TF**W*) 4JB1 ENG(RLF) 04.180 (B) 		8-94479-777-0 01 1 0010-
46 04.166 PISTON; DIRECT CLU,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94364-921-0 01 1 0010-
47 04.164 WASHER; THRUST,DIRECT CLU DRUM
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94479-779-0 01 1 0010-
48 04.251 BAND; 2ND COAST BRK
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97143-086-0 01 1 0010-
49 04.169 PIN; 2ND COAST BRK BAND
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94479-825-0 01 1 0010-
50 04.169 RING; SNAP,2ND COAST BRK BAND,A/
CREW CAB(TF**W*) 4JB1 ENG(RLF) 04.166 		8-94479-818-0 02 1 0010-
51 04.166 COVER; 2ND COAST BRK,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94479-822-0 01 1 0010-
52 04.167 GASKET; PISTON INNER,DIRECT CLU,
CREW CAB(TF**W*) 4JB1 ENG(RLF) 04.460 		8-97184-321-0 01 1 0010-
53 04.167 GASKET; PISTON OUTER,DIRECT CLU,
CREW CAB(TF**W*) 4JB1 ENG(RLF) 04.166 		8-94364-920-0 01 1 0010-
54 04.166 RING; SNAP,PISTON RETURN SPRING
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94479-783-0 01 1 0010-
55 04.167 GASKET; COVER,2ND COAST BRK,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94479-824-0 02 1 0010-
56 04.166 RING; SNAP,2ND COAST BRK COVER,A
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97069-458-0 01 1 0010-
57 04.166 PISTON; 2ND COAST BRK,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97143-132-0 01 1 0010-
58 04.164 WASHER; 2ND COAST BRK PISTON,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94479-817-0 01 1 0010-
59 04.164 SPRING; OUTER,2ND COAST BRK PIST
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94479-812-0 01 1 0010-
60 04.164 SPRING; INNER,2ND COAST BRK PIST
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94479-815-0 01 1 0010-
61 04.166 RING; SNAP,2ND COAST BRK
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94479-818-0 01 1 0010-
62 04.164 ROD; 2ND COAST BRK PISTON
CREW CAB(TF**W*) 4JB1 ENG(RLF) L=71.4 		8-94479-816-0 01 1 0010-
62 04.164 ROD; 2ND COAST BRK PISTON
CREW CAB(TF**W*) 4JB1 ENG(RLF) L=72.9 		8-94479-820-0 01 1 0010-
63 04.164 RING; SEAL,2ND COAST BRK PISTON
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94479-813-0 01 1 0010-
64 04.169 DRUM ASM; DIRECT CLU,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97214-542-0 01 1 0010-
65 04.169 DRUM; SUN GEAR INPUT
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97024-255-0 01 1 0010-
79 04.262 GEAR ASM; INPUT SUN
CREW CAB(TF**W*) 4JB1 ENG(RLF) 04.159 		8-94479-846-0 01 1 0010-
95 04.166 GASKET; CLU HUB
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97122-978-0 01 1 0010-
108 04.159 RING; SNAP,SUN GEAR
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94479-845-0 01 1 0010-
