◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50801 - TFR/TFS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-43 - AUTO TRANS CONTROL VALVE; UPPER BODY ▶
2-43 — AUTO TRANS CONTROL VALVE; UPPER BODY (#41807) — 43 parça

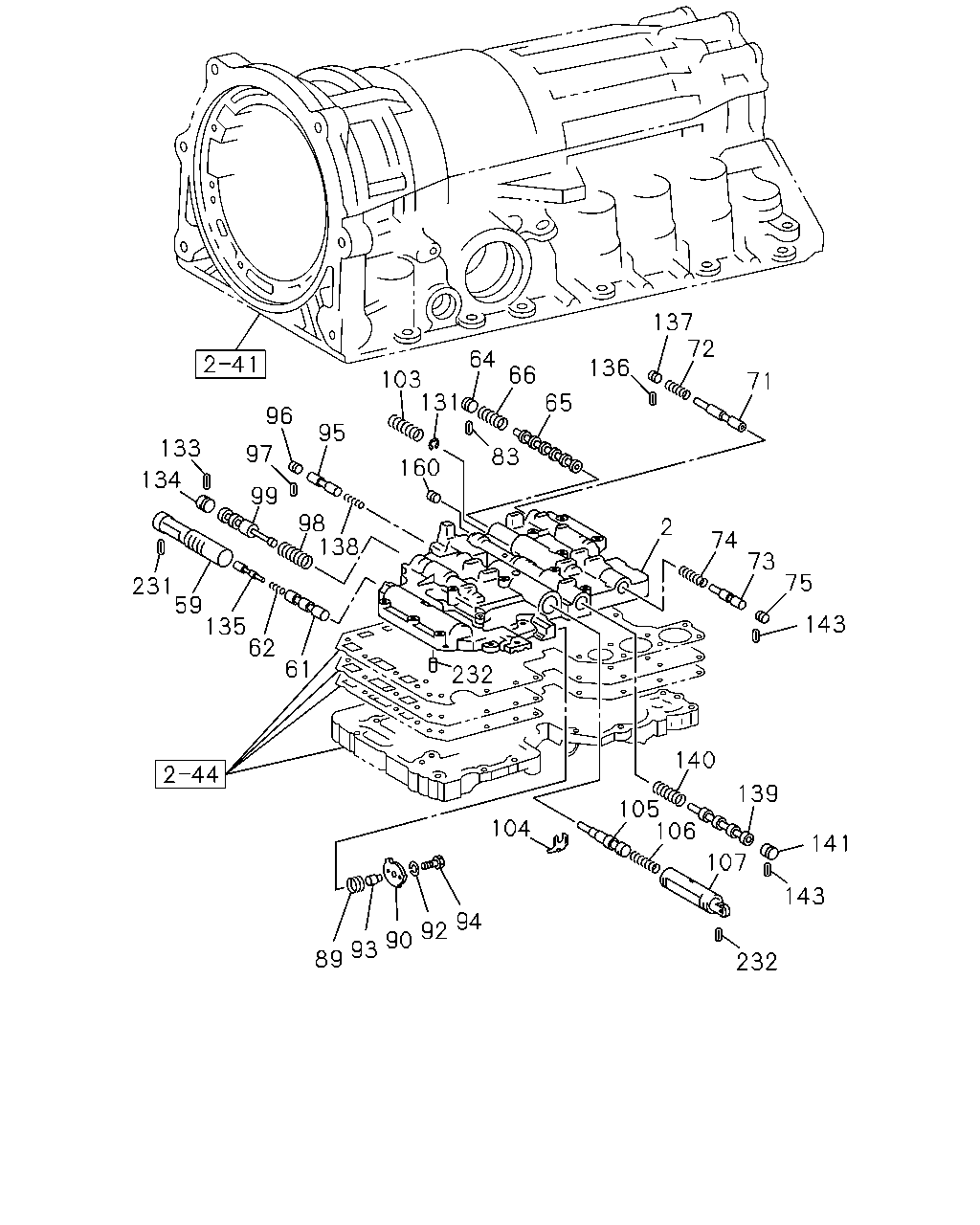

çizim 18648
137 72 64 136 66 65 103 131 71 96 95 133 97 83 160 134 99 98 138 2 74 73 75 231 59 135 62 143 61 232 140 105 106 139 104 141 107 143 94 92 90 93 89 232
BalonParca AdiParca NoAdetTipApplied Date
2 04.265 BODY ASM; VLV UPR RR,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-064-0 01 1 0010-
59 04.265 SLEEVE; LOCKUP CONT VALVE
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-066-0 01 1 0010-
61 04.265 VALVE; LOCKUP CONT,UPR BODY
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-065-0 01 1 0010-
62 04.265 SPRING; LOCKUP CONT VALVE
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-068-0 01 1 0010-
64 04.265 PLUG; VLV,2-3 SHIFT,VLV UPR RR,A
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97025-828-0 01 1 0010-
65 04.265 VALVE; 2-3 SHIFT,VLV UPR RR,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-083-0 01 1 0010-
66 04.265 SPRING; VLV,2-3 SHIFT,VLV UPR RR
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-057-0 01 1 0010-
71 04.265 VALVE; LOW,VLV UPR RR,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-084-0 01 1 0010-
72 04.265 SPRING; VLV LOW,VLV UPR RR,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94479-757-0 01 1 0010-
73 04.265 VALVE; GOV MODULATOR,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-084-0 01 1 0010-
74 04.265 SPRING; VALVE,GOV MODULATOR,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97025-826-0 01 1 0010-
75 04.265 PLUG; GOV MODULATOR
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-072-0 01 1 0010-
83 04.265 RETAINER; VLV,VLV UPR RR,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		5-34538-008-0 01 1 0010-
89 04.265 SPRING; THROTTLE CAM RETURN,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-081-0 01 1 0010-
90 04.265 CAM; VLV,KICK DOWN & THROTTLE,A/
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94479-755-0 01 1 0010-
92 04.265 WASHER; LK,CAM,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		5-34539-004-0 01 1 0010-
93 04.265 PIECE; DIST,CAM,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		5-34538-014-0 01 1 0010-
94 04.265 BOLT; CAM,KICK DOWN,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) M6X28 		8-94473-611-0 01 1 0010-
95 04.265 VALVE; CUT BACK,VLV UPR FRT,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-074-0 01 1 0010-
96 04.265 PLUG; VLV,CUT BACK,VLV UPR FRT,A
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-97143-368-0 01 1 0010-
97 04.265 RETAINER; VLV,VLV UPR FRT,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-071-0 01 1 0010-
98 04.265 SPRING; SECONDARY,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-070-0 01 1 0010-
99 04.265 VALVE; SECONDARY,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-069-0 01 1 0010-
103 04.265 SPRING; THROTTLE BODY,SECONDARY,
CREW CAB(TF**W*) 4JB1 ENG(RLF) BLUE 		8-94480-076-0 01 1 0010-
103 04.265 SPRING; THROTTLE BODY,SECONDARY,
CREW CAB(TF**W*) 4JB1 ENG(RLF) WHITE 		8-97214-541-0 01 1 0010-
104 04.265 PLATE; THROTTLE BODY,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-075-0 01 1 0010-
105 04.265 VALVE; THROTTLE,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-077-0 01 1 0010-
106 04.265 SPRING; THROTTLE BODY,PRIMARY,A/
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-079-0 01 1 0010-
107 04.265 VALVE ASM; KICK DOWN,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-080-0 01 1 0010-
131 04.265 RING; THROTTLE BODY,A/T
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		5-34538-011-0 06 1 0010-
133 04.265 KEY; SECONDARY VALVE
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		5-34538-008-0 01 1 0010-
134 04.265 PLUG; SECONDARY VALVE
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-059-0 01 1 0010-
135 04.265 PLUNGER; LOCKUP RELAY
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-067-0 01 1 0010-
136 04.265 RETAINER; LOW MODULATOR VALVE
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-062-0 01 1 0010-
137 04.265 PLUG; LOW MODULATOR VALVE
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-072-0 01 1 0010-
138 04.265 SPRING; CUT BACK VALVE
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-073-0 01 1 0010-
139 04.265 VALVE; 3-4 SHIFT UPR BODY
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-082-0 01 1 0010-
140 04.265 SPRING; 3-4 SHIFT VALVE
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-057-0 01 1 0010-
141 04.265 PLUG; 3-4 SHIFT VALVE
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-059-0 01 1 0010-
143 04.265 RETAINER; 2ND MODULATOR VLV
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-060-0 02 1 0010-
160 04.265 PLUG; VLV BODY
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-085-0 01 1 0010-
231 04.265 RETAINER; LOCKUP CONT VALVE
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		5-34538-004-0 01 1 0010-
232 04.265 PIN; LOCATING
CREW CAB(TF**W*) 4JB1 ENG(RLF) 		8-94480-078-0 01 1 0010-
