Isuzu WW
▶
PICKUP
▶
TFR
▶
50801 - TFR/TFS-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-40 - AUTO TRANS ASM AND REPAIR KIT
▶
2-40 — AUTO TRANS ASM AND REPAIR KIT
(#41804) — 10 parça
◀
[240A] REPAIR KIT(NO.2) (2 parça)
[240A] REPAIR KIT(NO.3) (2 parça)
[240A] REPAIR KIT(NO.4) (2 parça)
[240A] TRANSMISSION ASM (2 parça)
[240A] REPAIR KIT(NO.1) (2 parça)
▶
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

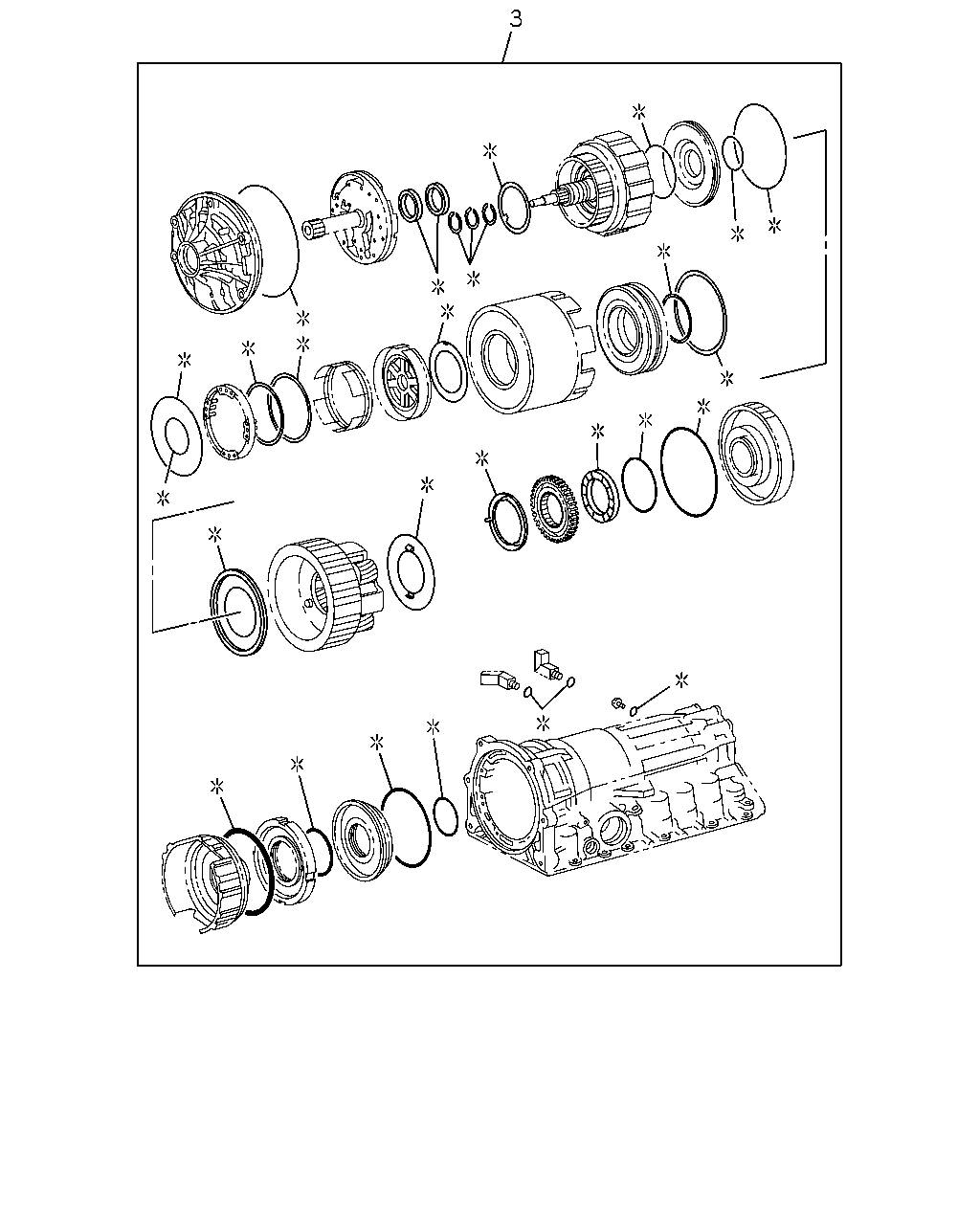

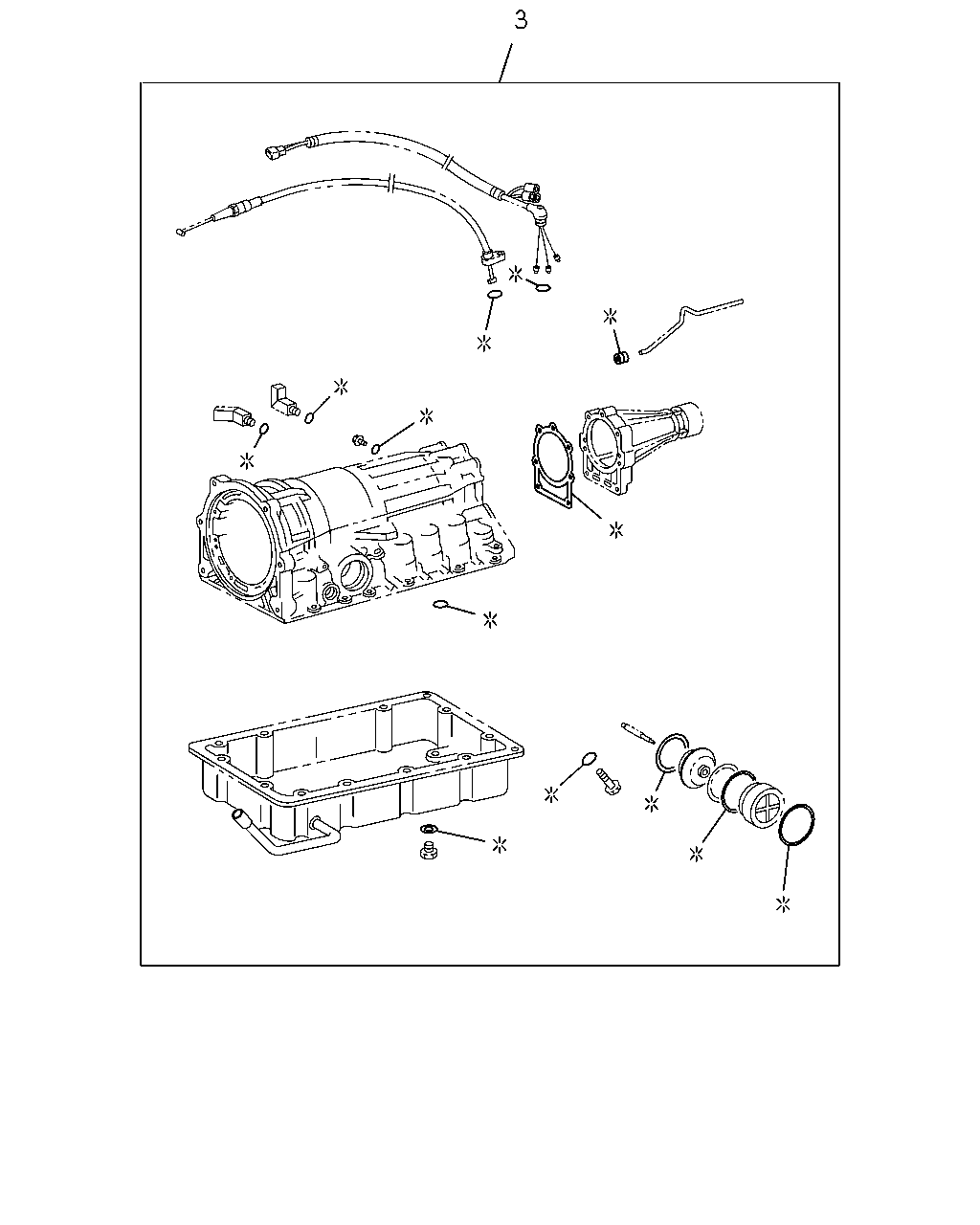

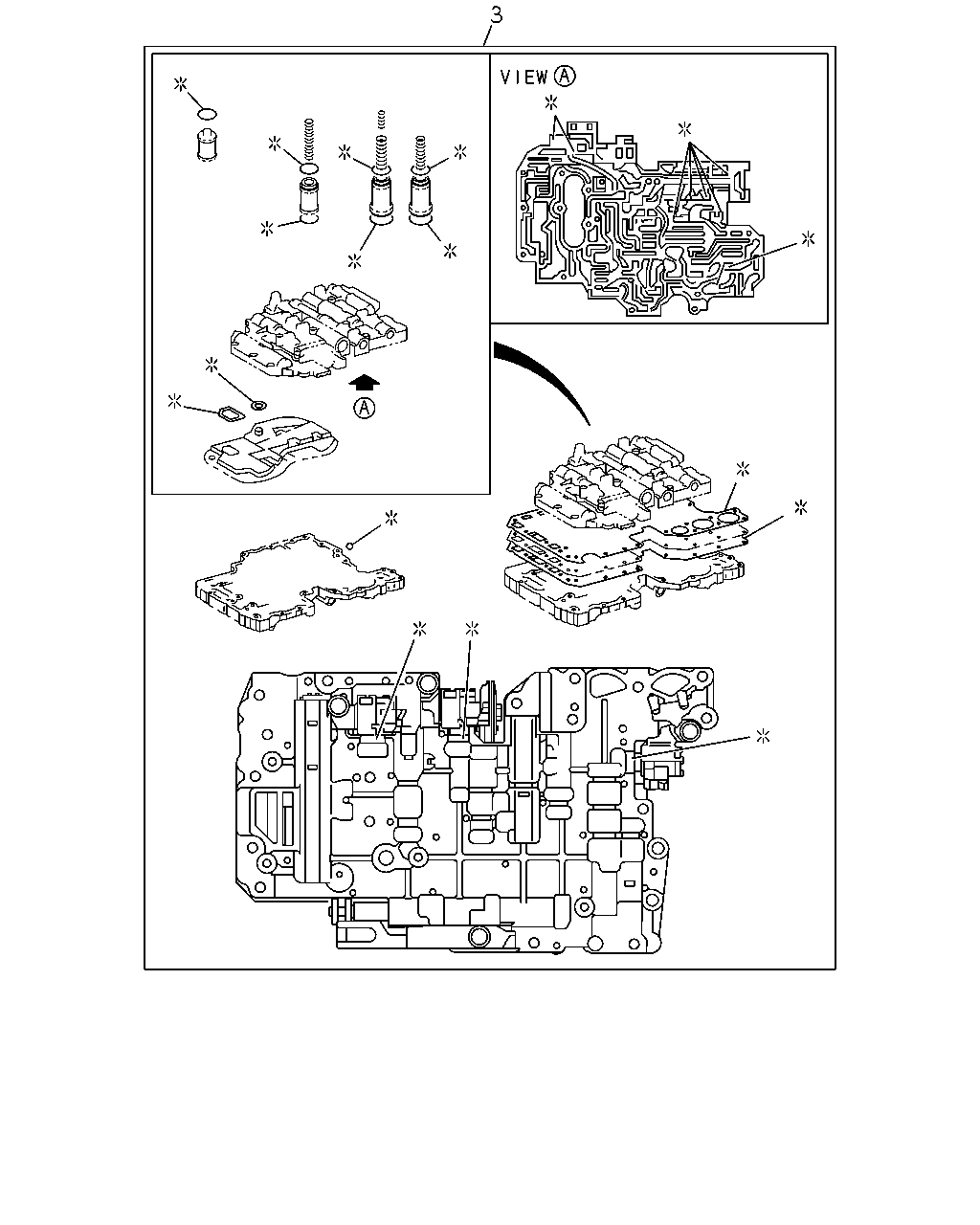

3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2 CREW CAB(TFB*W*) 4JB1 ENG(RLF)
8-97186-630-0
01
1
0010-
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4 CREW CAB(TFS*W*) 4JB1 ENG(RLF)
8-97186-631-0
01
1
0010-
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2 CREW CAB(TFB*W*) 4JB1 ENG(RLF)
8-97186-630-0
01
1
0010-
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4 CREW CAB(TFS*W*) 4JB1 ENG(RLF)
8-97186-631-0
01
1
0010-
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2 CREW CAB(TFB*W*) 4JB1 ENG(RLF)
8-97186-630-0
01
1
0010-
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4 CREW CAB(TFS*W*) 4JB1 ENG(RLF)
8-97186-631-0
01
1
0010-
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

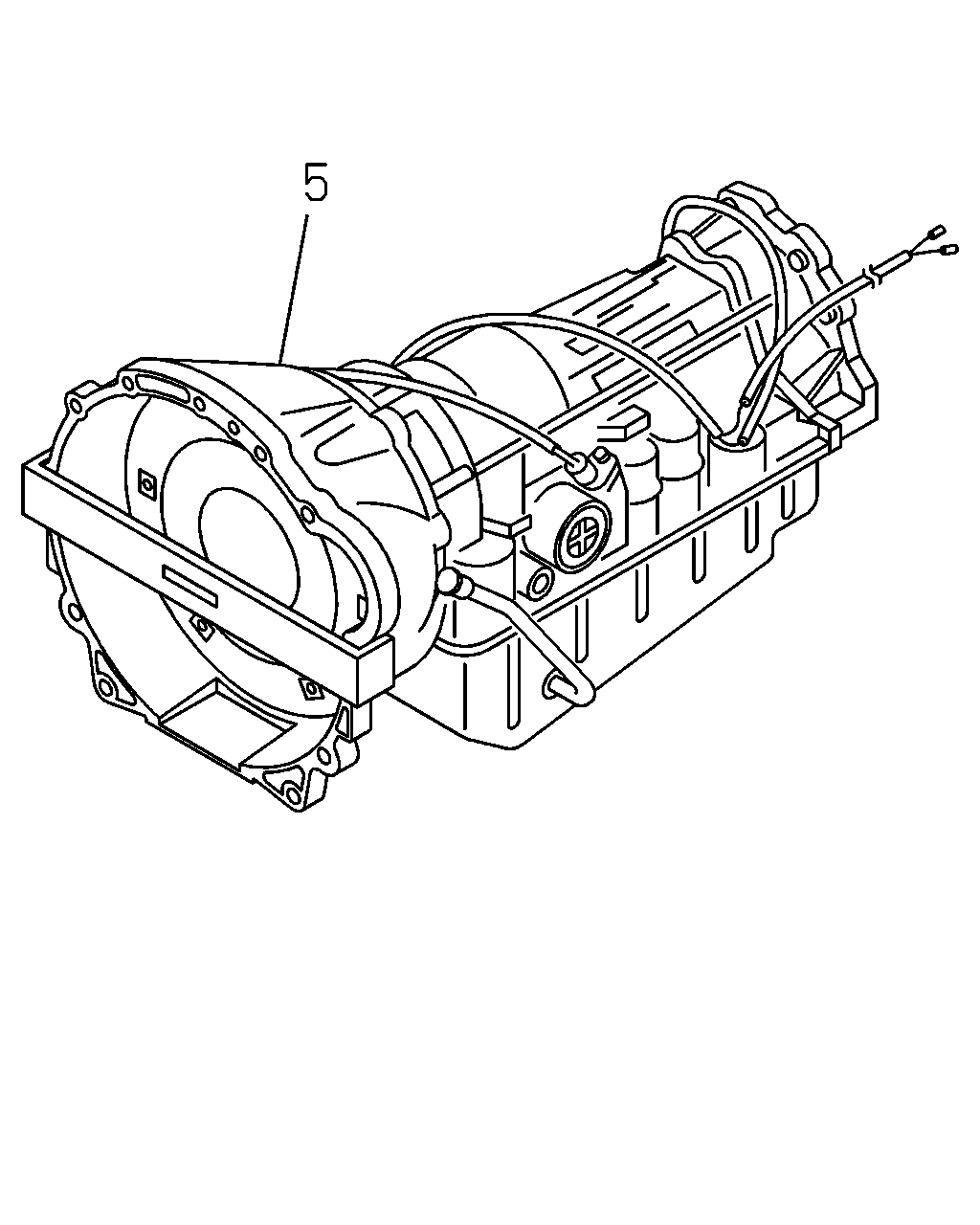

5
04.003 TRANSMISSION ASM; AUTO
4X2 CREW CAB(TFB*W*) 4JB1 ENG(RLF)
8-97287-233-1
01
1
0010-
5
04.003 TRANSMISSION ASM; AUTO
4X4 CREW CAB(TFS*W*) 4JB1 ENG(RLF)
8-97287-234-1
01
1
0010-
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

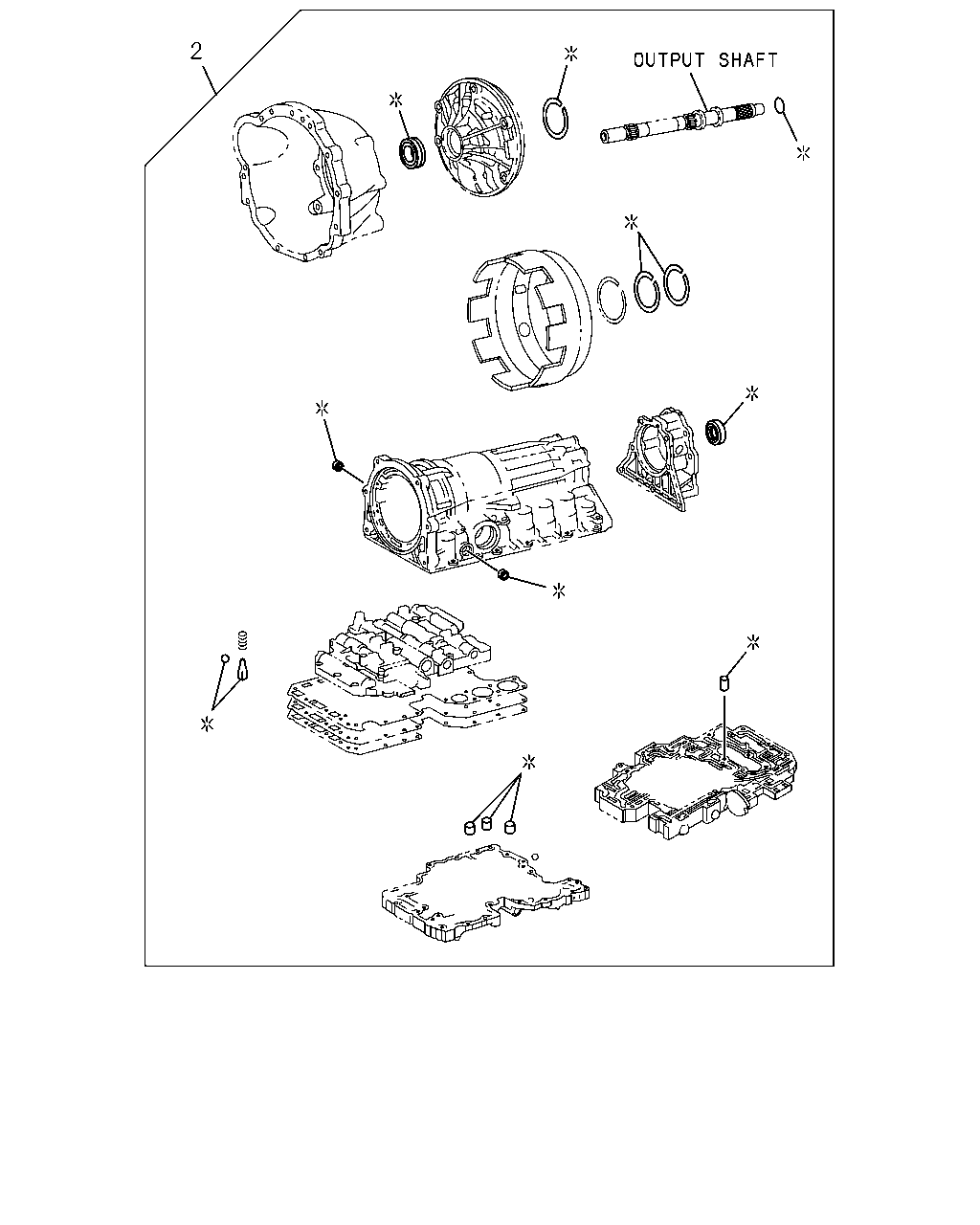

2
04.005 REPAIR KIT; A/T
4X2 CREW CAB(TFB*W*) 4JB1 ENG(RLF)
8-97186-383-0
01
1
0010-
2
04.005 REPAIR KIT; A/T
4X4 CREW CAB(TFS*W*) 4JB1 ENG(RLF)
8-97186-384-0
01
1
0010-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
