◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50801 - TFR/TFS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06 - CLUTCH SLAVE CYLINDER ▶
2-06 — CLUTCH SLAVE CYLINDER (#41796) — 88 parça

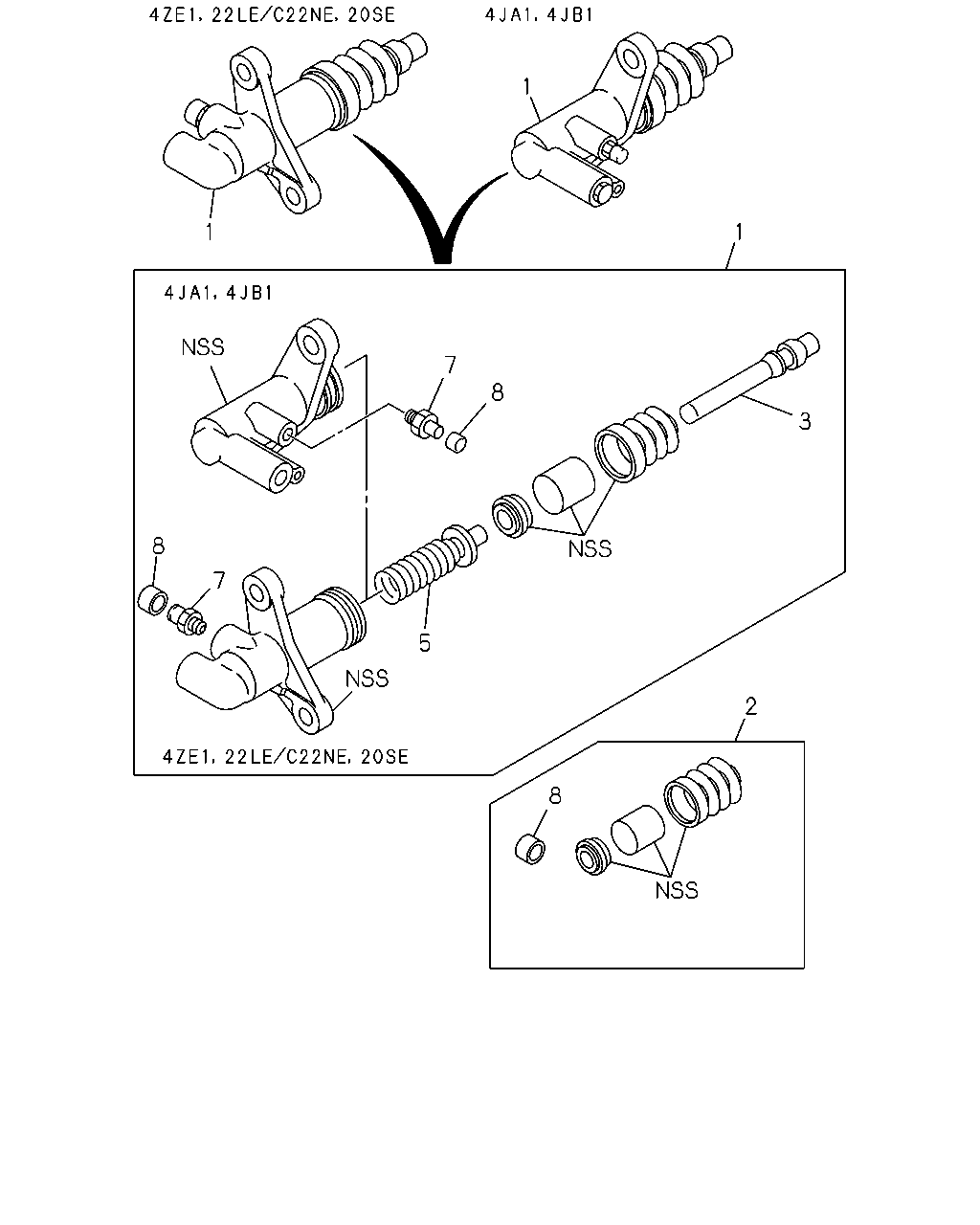

çizim 69372
1 1 1 7 8 3 8 7 5 2 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.780 CYLINDER; SLAVE,CLU 8-97039-704-0 01 1 9804- ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MUA 5 SPEED(RMN) 		8-94389-195-1 01 1 9804- ●
1 00.780 CYLINDER; SLAVE,CLU 8-94389-194-1 01 1 9804-9812 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97040-866-2 01 1 9804-9812 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97188-414-2 01 1 9901- ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MSG 5 SPEED(M75) 		8-97184-993-0 01 1 9804-0108 ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MSG 5 SPEED(M75) 		8-97184-993-0 01 1 0109- ●
1 00.780 CYLINDER; SLAVE,CLU 8-97184-993-0 01 1 0109- ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MUA 5 SPEED(RMN) 		8-97084-981-0 01 1 9804- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.030 		5-87831-081-0 01 1 9804-0108 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MSG 5 SPEED(M75) 00.030 		5-87831-081-0 01 1 9804-0108 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.030 		5-87831-081-0 01 1 0109- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MSG 5 SPEED(M75) 00.030 		5-87831-081-0 01 1 0109- ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MUA 5 SPEED(RMN) 		5-87830-813-2 01 1 9804-9812 ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MUA 5 SPEED(RMN) 		5-87830-813-2 01 1 9901- ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87831-388-0 01 1 9804-9812 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87831-762-0 01 1 9901- ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94136-252-0 01 1 9804-9812 ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MSG 5 SPEED(M75) 		8-94136-252-0 01 1 9804-9812 ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94136-252-0 01 1 9901-0108 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MSG 5 SPEED(M75) 		8-94136-252-0 01 1 9901-0108 ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94136-252-0 01 1 0109- ● ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MSG 5 SPEED(M75) 		8-94136-252-0 01 1 0109- ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97062-923-0 01 1 9804-9812 ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97188-417-0 01 1 9901- ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MUA 5 SPEED(RMN) 		8-97040-380-0 01 1 9804- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97016-025-0 01 1 9804-0108 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
M/T MSG 5 SPEED(M75) 		8-97016-025-0 01 1 9804-0108 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97016-025-0 01 1 0109- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
M/T MSG 5 SPEED(M75) 		8-97016-025-0 01 1 0109- ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
M/T MUA 5 SPEED(RMN) 		8-97016-024-0 01 1 9804-9812 ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
M/T MUA 5 SPEED(RMN) 		8-97016-024-0 01 1 9901- ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97028-736-0 01 1 9804-9812 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97188-405-0 01 1 9901- ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 9804-9812 ● ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 9901-9901 ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) M8X16.5 		8-94115-113-0 01 1 9901-0108 ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) M8X16.5 		8-94115-113-0 01 1 0109- ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M7X19.5 		8-97188-329-0 01 1 9901- ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 9804-9812 ● ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 9901-9901 ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) OD=9.5 		9-47619-005-0 01 1 9901-0108 ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) OD=9.5 		9-47619-005-0 01 1 0109- ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL 8-97188-330-0 01 1 9901- ●

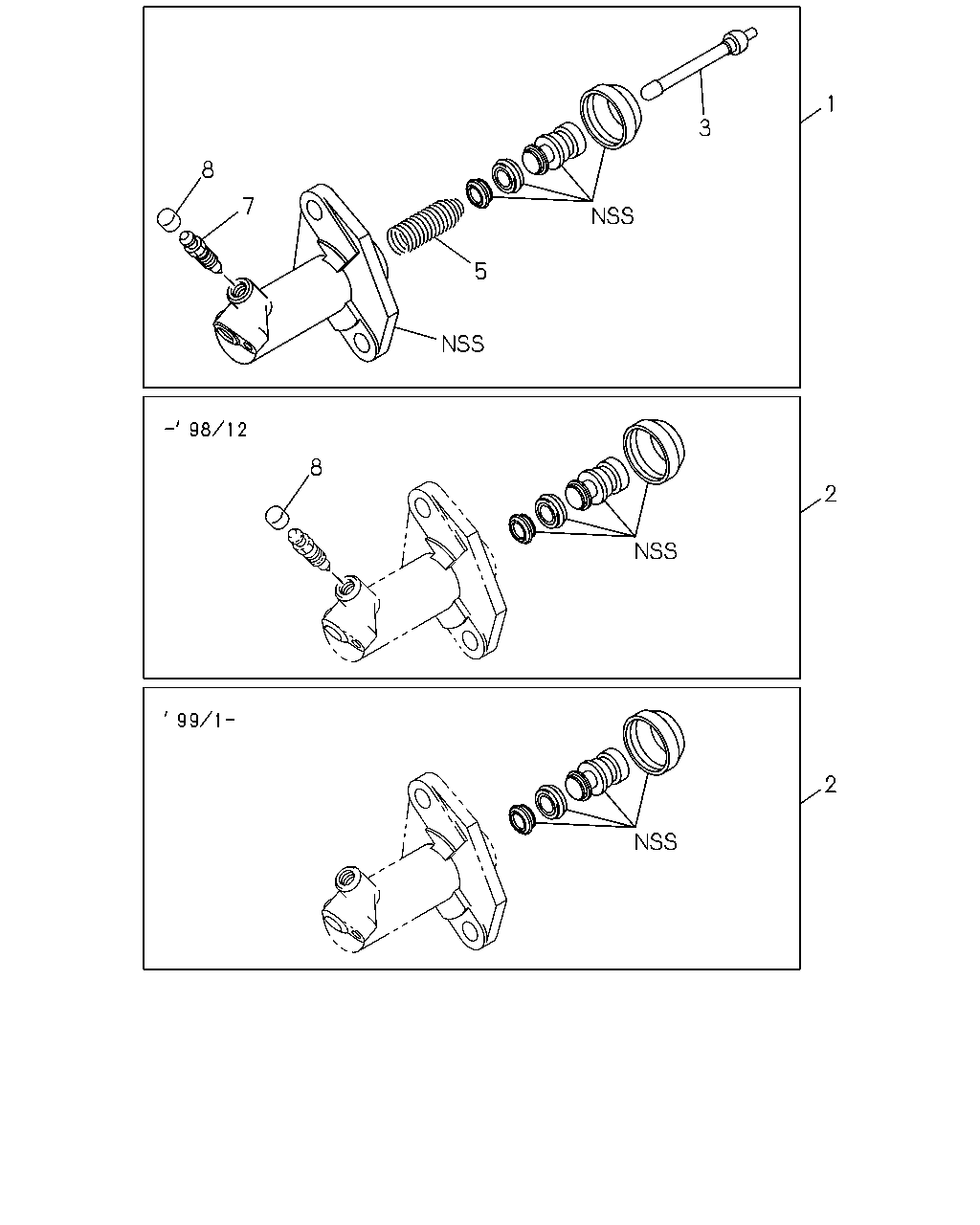

çizim 71840
1 3 8 7 5 8 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.780 CYLINDER; SLAVE,CLU 8-97039-704-0 01 1 9804- ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MUA 5 SPEED(RMN) 		8-94389-195-1 01 1 9804- ●
1 00.780 CYLINDER; SLAVE,CLU 8-94389-194-1 01 1 9804-9812 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97040-866-2 01 1 9804-9812 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97188-414-2 01 1 9901- ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MSG 5 SPEED(M75) 		8-97184-993-0 01 1 9804-0108 ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MSG 5 SPEED(M75) 		8-97184-993-0 01 1 0109- ●
1 00.780 CYLINDER; SLAVE,CLU 8-97184-993-0 01 1 0109- ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MUA 5 SPEED(RMN) 		8-97084-981-0 01 1 9804- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.030 		5-87831-081-0 01 1 9804-0108 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MSG 5 SPEED(M75) 00.030 		5-87831-081-0 01 1 9804-0108 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.030 		5-87831-081-0 01 1 0109- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MSG 5 SPEED(M75) 00.030 		5-87831-081-0 01 1 0109- ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MUA 5 SPEED(RMN) 		5-87830-813-2 01 1 9804-9812 ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MUA 5 SPEED(RMN) 		5-87830-813-2 01 1 9901- ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87831-388-0 01 1 9804-9812 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87831-762-0 01 1 9901- ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94136-252-0 01 1 9804-9812 ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MSG 5 SPEED(M75) 		8-94136-252-0 01 1 9804-9812 ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94136-252-0 01 1 9901-0108 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MSG 5 SPEED(M75) 		8-94136-252-0 01 1 9901-0108 ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94136-252-0 01 1 0109- ● ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MSG 5 SPEED(M75) 		8-94136-252-0 01 1 0109- ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97062-923-0 01 1 9804-9812 ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97188-417-0 01 1 9901- ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MUA 5 SPEED(RMN) 		8-97040-380-0 01 1 9804- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97016-025-0 01 1 9804-0108 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
M/T MSG 5 SPEED(M75) 		8-97016-025-0 01 1 9804-0108 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97016-025-0 01 1 0109- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
M/T MSG 5 SPEED(M75) 		8-97016-025-0 01 1 0109- ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
M/T MUA 5 SPEED(RMN) 		8-97016-024-0 01 1 9804-9812 ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
M/T MUA 5 SPEED(RMN) 		8-97016-024-0 01 1 9901- ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97028-736-0 01 1 9804-9812 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97188-405-0 01 1 9901- ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 9804-9812 ● ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 9901-9901 ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) M8X16.5 		8-94115-113-0 01 1 9901-0108 ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) M8X16.5 		8-94115-113-0 01 1 0109- ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M7X19.5 		8-97188-329-0 01 1 9901- ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 9804-9812 ● ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 9901-9901 ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) OD=9.5 		9-47619-005-0 01 1 9901-0108 ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) OD=9.5 		9-47619-005-0 01 1 0109- ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL 8-97188-330-0 01 1 9901- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
