◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50801 - TFR/TFS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#41793) — 133 parça

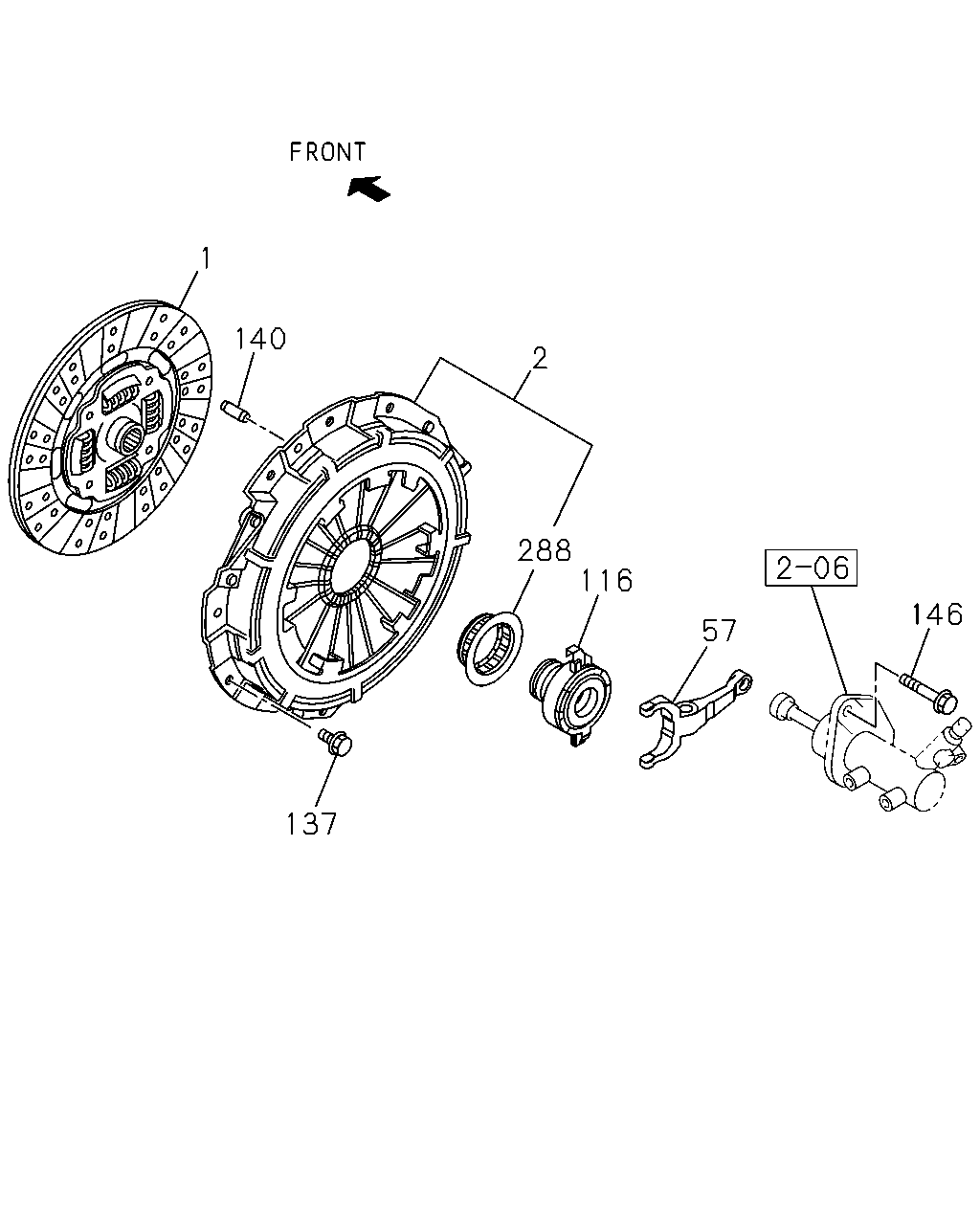

çizim 71488
1 140 2 288 116 146 57 137
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.886 DISC; CLUTCH 8-97143-203-0 01 1 9804-0308 ●
1 00.886 DISC; CLUTCH 8-97368-061-0 01 1 0309- ●
1 00.886 DISC; CLUTCH 8-97036-063-0 01 1 9804-0009 ●
1 00.886 DISC; CLUTCH
M/T MUA 5 SPEED(RMN) 		8-97036-063-0 01 1 0010-0305 ●
1 00.886 DISC; CLUTCH
M/T MUA 5 SPEED(RMN) 		8-97368-062-0 01 1 0306- ●
1 00.886 DISC; CLUTCH 8-97036-062-0 01 1 9804-9812 ●
1 00.886 DISC; CLUTCH 8-97138-135-0 01 1 9804- ●
1 00.886 DISC; CLUTCH
M/T MSG 5 SPEED(M75) 		8-97182-858-1 01 1 9804-0108 ●
1 00.886 DISC; CLUTCH
M/T MSG 5 SPEED(M75) 		8-97182-858-1 01 1 0109-0109 ●
1 00.886 DISC; CLUTCH 8-97182-858-1 01 1 0109-0109 ●
1 00.886 DISC; CLUTCH
M/T MSG 5 SPEED(M75) 		8-97321-024-0 01 1 0109- ●
1 00.886 DISC; CLUTCH 8-97321-024-0 01 1 0109- ●
1 00.886 DISC; CLUTCH
M/T MUA 5 SPEED(RMN) 		8-97182-781-1 01 1 9804- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-94435-011-1 01 1 9804- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97182-391-0 01 1 9804-0009 ●
2 00.859 PLATE ASM; PRESSURE,CLU
M/T MUA 5 SPEED(RMN) 		8-97182-391-0 01 1 0010- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-94462-030-3 01 1 9804-9812 ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-94374-897-8 01 1 9804- ●
2 00.859 PLATE ASM; PRESSURE,CLU
M/T MSG 5 SPEED(M75) 		8-97182-964-1 01 1 9804-0108 ●
2 00.859 PLATE ASM; PRESSURE,CLU
M/T MSG 5 SPEED(M75) 		8-97182-964-1 01 1 0109- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97182-964-1 01 1 0109- ●
2 00.859 PLATE ASM; PRESSURE,CLU
M/T MUA 5 SPEED(RMN) 		8-97201-011-0 01 1 9804- ●
57 00.795 FORK; SHIFT,CLU
M/T MSG 5 SPEED(M75) 		8-94167-751-0 01 1 9804- ●
57 00.795 FORK; SHIFT,CLU
M/T MUA 5 SPEED(RMN) 		8-97039-266-0 01 1 9804-9812 ● ● ●
57 00.795 FORK; SHIFT,CLU
M/T MUA 5 SPEED(RMN) 		8-97039-266-0 01 1 9901-0305 ● ●
57 00.795 FORK; SHIFT,CLU
M/T MUA 5 SPEED(RMN) 		8-97365-654-0 01 1 0306- ● ●
57 00.795 FORK; SHIFT,CLU 8-94370-379-3 01 1 9804- ●
57 00.795 FORK; SHIFT,CLU 8-94457-209-1 01 1 9804-0108 ●
57 00.795 FORK; SHIFT,CLU 8-94457-209-1 01 1 0109- ● ●
116 00.799 BLOCK; SHIFT,CLU
M/T MUA 5 SPEED(RMN) 		8-94328-238-0 01 1 9810-0302 ●
116 00.799 BLOCK; SHIFT,CLU
M/T MUA 5 SPEED(RMN) 		8-94379-441-0 01 1 9804-9809 ● ● ● ●
116 00.799 BLOCK; SHIFT,CLU
M/T MUA 5 SPEED(RMN) 		8-94379-441-0 01 1 9810-9812 ● ● ●
116 00.799 BLOCK; SHIFT,CLU
M/T MUA 5 SPEED(RMN) 		8-94379-441-0 01 1 9901-0112 ● ●
116 00.799 BLOCK; SHIFT,CLU
M/T MSG 5 SPEED(M75) 		8-94438-300-0 01 1 9804-9807 ● ●
116 00.799 BLOCK; SHIFT,CLU 8-94377-417-1 01 1 9804- ●
137 00.862 BOLT; CLU COVER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 01.062 M8X16 FLANGE 		0-28080-816-0 06 1 9804-9812 ● ● ●
137 00.862 BOLT; CLU COVER
M/T MUA 5 SPEED(RMN) 01.062 M8X16 FLANGE 		0-28080-816-0 06 1 9804-9812 ●
137 00.862 BOLT; CLU COVER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 01.062 M8X16 FLANGE 		0-28080-816-0 06 1 9901- ● ●
137 00.862 BOLT; CLU COVER
M/T MUA 5 SPEED(RMN) 01.062 M8X16 FLANGE 		0-28080-816-0 06 1 9901- ●
137 00.862 BOLT; CLU COVER
01.062 M8X16 FLANGE 		0-28080-816-0 09 1 9804- ●
137 00.862 BOLT; CLU COVER
M/T MSG 5 SPEED(M75) M7X23 FLANGE 		8-97184-594-0 06 1 9804-0108 ●
137 00.862 BOLT; CLU COVER
M/T MSG 5 SPEED(M75) M7X23 FLANGE 		8-97184-594-0 06 1 0109- ●
137 00.862 BOLT; CLU COVER
M7X23 FLANGE 		8-97184-594-0 06 1 0109- ●
140 00.862 PIN; STRAIGHT
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) OD=6 L=24 		9-09878-532-0 03 1 9804-9812 ● ● ●
140 00.862 PIN; STRAIGHT
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) OD=6 L=24 		9-09878-532-0 03 1 9901- ● ●
140 00.862 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 02 1 9804-0009 ●
140 00.862 PIN; STRAIGHT
M/T MUA 5 SPEED(RMN) OD=6 L=24 		9-09878-532-0 02 1 0010- ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M12X90 		0-28081-290-0 01 1 9804-9909 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M/T MSG 5 SPEED(M75) M12X90 		0-28081-290-0 01 1 9910- ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M/T MUA 5 SPEED(RMN) M12X85 FLANGE 		8-94480-345-1 02 1 9804- ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
08.900 M10X30 FLANGE 		0-28781-030-0 02 1 9804- ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M/T MSG 5 SPEED(M75) 09.171 M8X80 FLANGE 		0-28080-880-0 02 1 9804-0108 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M/T MSG 5 SPEED(M75) 09.171 M8X80 FLANGE 		0-28080-880-0 02 1 0109- ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
09.171 M8X80 FLANGE 		0-28080-880-0 02 1 0109- ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M/T MUA 5 SPEED(RMN) 00.669 M10X40 FLANGE 		0-28781-040-0 02 1 9804-0108 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M/T MUA 5 SPEED(RMN) 00.669 M10X40 FLANGE 		0-28781-040-0 02 1 0109- ● ●
288 00.863 COLLAR; WEDGE 8-97065-073-0 01 1 9910- ●

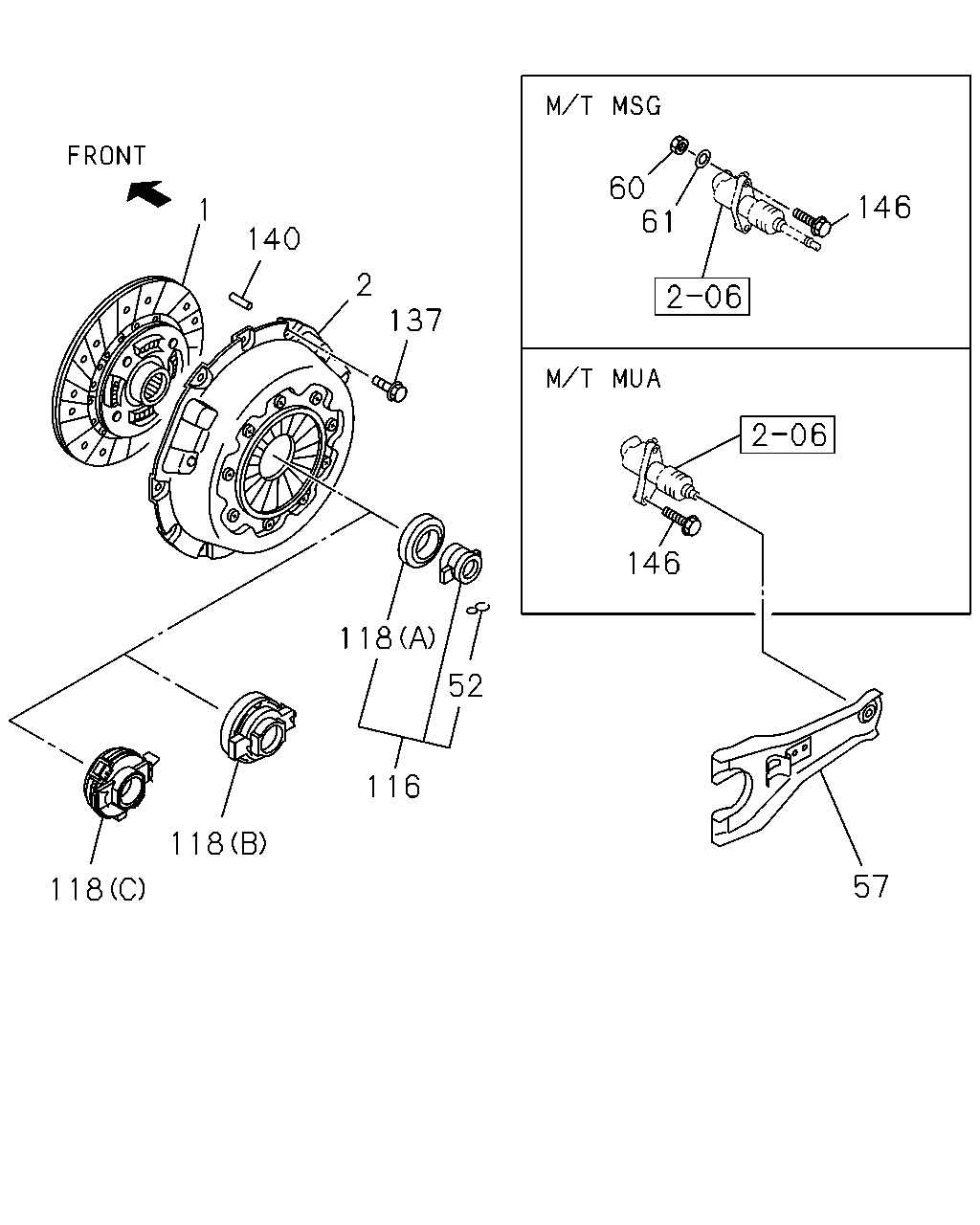

çizim 73595
60 61 146 1 140 2 137 146 118 52 116 118 57 118
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.886 DISC; CLUTCH 8-97143-203-0 01 1 9804-0308 ●
1 00.886 DISC; CLUTCH 8-97368-061-0 01 1 0309- ●
1 00.886 DISC; CLUTCH 8-97036-063-0 01 1 9804-0009 ●
1 00.886 DISC; CLUTCH
M/T MUA 5 SPEED(RMN) 		8-97036-063-0 01 1 0010-0305 ●
1 00.886 DISC; CLUTCH
M/T MUA 5 SPEED(RMN) 		8-97368-062-0 01 1 0306- ●
1 00.886 DISC; CLUTCH 8-97036-062-0 01 1 9804-9812 ●
1 00.886 DISC; CLUTCH 8-97138-135-0 01 1 9804- ●
1 00.886 DISC; CLUTCH
M/T MSG 5 SPEED(M75) 		8-97182-858-1 01 1 9804-0108 ●
1 00.886 DISC; CLUTCH
M/T MSG 5 SPEED(M75) 		8-97182-858-1 01 1 0109-0109 ●
1 00.886 DISC; CLUTCH 8-97182-858-1 01 1 0109-0109 ●
1 00.886 DISC; CLUTCH
M/T MSG 5 SPEED(M75) 		8-97321-024-0 01 1 0109- ●
1 00.886 DISC; CLUTCH 8-97321-024-0 01 1 0109- ●
1 00.886 DISC; CLUTCH
M/T MUA 5 SPEED(RMN) 		8-97182-781-1 01 1 9804- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-94435-011-1 01 1 9804- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97182-391-0 01 1 9804-0009 ●
2 00.859 PLATE ASM; PRESSURE,CLU
M/T MUA 5 SPEED(RMN) 		8-97182-391-0 01 1 0010- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-94462-030-3 01 1 9804-9812 ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-94374-897-8 01 1 9804- ●
2 00.859 PLATE ASM; PRESSURE,CLU
M/T MSG 5 SPEED(M75) 		8-97182-964-1 01 1 9804-0108 ●
2 00.859 PLATE ASM; PRESSURE,CLU
M/T MSG 5 SPEED(M75) 		8-97182-964-1 01 1 0109- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97182-964-1 01 1 0109- ●
2 00.859 PLATE ASM; PRESSURE,CLU
M/T MUA 5 SPEED(RMN) 		8-97201-011-0 01 1 9804- ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
M/T MUA 5 SPEED(RMN) 		8-94311-807-0 01 1 9804-9812 ● ● ● ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
M/T MUA 5 SPEED(RMN) 		8-94311-807-0 01 1 9901-0112 ● ● ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
M/T MUA 5 SPEED(RMN) 		8-94311-807-0 01 1 0201-0302 ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
M/T MSG 5 SPEED(M75) 00.805 		9-31329-010-0 01 1 9804-9807 ● ●
57 00.795 FORK; SHIFT,CLU
M/T MSG 5 SPEED(M75) 		8-94167-751-0 01 1 9804- ●
57 00.795 FORK; SHIFT,CLU
M/T MUA 5 SPEED(RMN) 		8-97039-266-0 01 1 9804-9812 ● ● ●
57 00.795 FORK; SHIFT,CLU
M/T MUA 5 SPEED(RMN) 		8-97039-266-0 01 1 9901-0305 ● ●
57 00.795 FORK; SHIFT,CLU
M/T MUA 5 SPEED(RMN) 		8-97365-654-0 01 1 0306- ● ●
57 00.795 FORK; SHIFT,CLU 8-94370-379-3 01 1 9804- ●
57 00.795 FORK; SHIFT,CLU 8-94457-209-1 01 1 9804-0108 ●
57 00.795 FORK; SHIFT,CLU 8-94457-209-1 01 1 0109- ● ●
60 00.780 NUT; SLAVE CYL
05.816 M12 		9-99110-412-0 01 1 9804-9909 ●
60 00.780 NUT; SLAVE CYL
M/T MSG 5 SPEED(M75) 05.816 M12 		9-99110-412-0 01 1 9910- ●
60 00.780 NUT; SLAVE CYL
M/T MSG 5 SPEED(M75) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9804-0108 ●
60 00.780 NUT; SLAVE CYL
M/T MSG 5 SPEED(M75) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0109- ●
60 00.780 NUT; SLAVE CYL
07.633 M8 FLANGE 		0-91150-108-0 02 1 0109- ●
61 00.782 WASHER; PL,SLAVE CYL,CLU
03.430 ID=12.5 		9-09160-512-0 01 1 9804-9909 ●
61 00.782 WASHER; PL,SLAVE CYL,CLU
M/T MSG 5 SPEED(M75) 03.430 ID=12.5 		9-09160-512-0 01 1 9910- ●
116 00.799 BLOCK; SHIFT,CLU
M/T MUA 5 SPEED(RMN) 		8-94328-238-0 01 1 9810-0302 ●
116 00.799 BLOCK; SHIFT,CLU
M/T MUA 5 SPEED(RMN) 		8-94379-441-0 01 1 9804-9809 ● ● ● ●
116 00.799 BLOCK; SHIFT,CLU
M/T MUA 5 SPEED(RMN) 		8-94379-441-0 01 1 9810-9812 ● ● ●
116 00.799 BLOCK; SHIFT,CLU
M/T MUA 5 SPEED(RMN) 		8-94379-441-0 01 1 9901-0112 ● ●
116 00.799 BLOCK; SHIFT,CLU
M/T MSG 5 SPEED(M75) 		8-94438-300-0 01 1 9804-9807 ● ●
116 00.799 BLOCK; SHIFT,CLU 8-94377-417-1 01 1 9804- ●
118 00.799 BEARING; CLU RELEASE
M/T MUA 5 SPEED(RMN) (A) NSK ID=35 OD=77 		8-94453-346-1 01 1 9810-0302 ●
118 00.799 BEARING; CLU RELEASE
M/T MUA 5 SPEED(RMN) (B) NSK ID=56 OD=71.7 		8-97333-487-0 01 1 0303- ●
118 00.799 BEARING; CLU RELEASE
M/T MUA 5 SPEED(RMN) (A) JTEKT 		8-94379-499-0 01 1 9804-9809 ● ● ● ●
118 00.799 BEARING; CLU RELEASE
M/T MUA 5 SPEED(RMN) (A) JTEKT 		8-94379-499-0 01 1 9810-9812 ● ● ●
118 00.799 BEARING; CLU RELEASE
M/T MUA 5 SPEED(RMN) (A) JTEKT 		8-94379-499-0 01 1 9901-0112 ● ●
118 00.799 BEARING; CLU RELEASE
M/T MUA 5 SPEED(RMN) (C) NSK 		8-97316-591-0 01 1 0201- ● ●
118 00.799 BEARING; CLU RELEASE
M/T MSG 5 SPEED(M75) (A) NSK ID=43 OD=66.6 		8-94101-243-0 01 1 9804-9807 ● ●
118 00.799 BEARING; CLU RELEASE
M/T MSG 5 SPEED(M75) (B) NSK ID=56 OD=71.7 		8-97209-197-0 01 1 9808-0108 ● ●
118 00.799 BEARING; CLU RELEASE
M/T MSG 5 SPEED(M75) (B) NSK ID=56 OD=71.7 		8-97209-197-0 01 1 0109- ● ● ●
137 00.862 BOLT; CLU COVER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 01.062 M8X16 FLANGE 		0-28080-816-0 06 1 9804-9812 ● ● ●
137 00.862 BOLT; CLU COVER
M/T MUA 5 SPEED(RMN) 01.062 M8X16 FLANGE 		0-28080-816-0 06 1 9804-9812 ●
137 00.862 BOLT; CLU COVER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 01.062 M8X16 FLANGE 		0-28080-816-0 06 1 9901- ● ●
137 00.862 BOLT; CLU COVER
M/T MUA 5 SPEED(RMN) 01.062 M8X16 FLANGE 		0-28080-816-0 06 1 9901- ●
137 00.862 BOLT; CLU COVER
01.062 M8X16 FLANGE 		0-28080-816-0 09 1 9804- ●
137 00.862 BOLT; CLU COVER
M/T MSG 5 SPEED(M75) M7X23 FLANGE 		8-97184-594-0 06 1 9804-0108 ●
137 00.862 BOLT; CLU COVER
M/T MSG 5 SPEED(M75) M7X23 FLANGE 		8-97184-594-0 06 1 0109- ●
137 00.862 BOLT; CLU COVER
M7X23 FLANGE 		8-97184-594-0 06 1 0109- ●
140 00.862 PIN; STRAIGHT
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) OD=6 L=24 		9-09878-532-0 03 1 9804-9812 ● ● ●
140 00.862 PIN; STRAIGHT
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) OD=6 L=24 		9-09878-532-0 03 1 9901- ● ●
140 00.862 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 02 1 9804-0009 ●
140 00.862 PIN; STRAIGHT
M/T MUA 5 SPEED(RMN) OD=6 L=24 		9-09878-532-0 02 1 0010- ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M12X90 		0-28081-290-0 01 1 9804-9909 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M/T MSG 5 SPEED(M75) M12X90 		0-28081-290-0 01 1 9910- ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M/T MUA 5 SPEED(RMN) M12X85 FLANGE 		8-94480-345-1 02 1 9804- ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
08.900 M10X30 FLANGE 		0-28781-030-0 02 1 9804- ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M/T MSG 5 SPEED(M75) 09.171 M8X80 FLANGE 		0-28080-880-0 02 1 9804-0108 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M/T MSG 5 SPEED(M75) 09.171 M8X80 FLANGE 		0-28080-880-0 02 1 0109- ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
09.171 M8X80 FLANGE 		0-28080-880-0 02 1 0109- ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M/T MUA 5 SPEED(RMN) 00.669 M10X40 FLANGE 		0-28781-040-0 02 1 9804-0108 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M/T MUA 5 SPEED(RMN) 00.669 M10X40 FLANGE 		0-28781-040-0 02 1 0109- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
