0-27A — EXHAUST MANIFOLD (#4179) — 120 parça

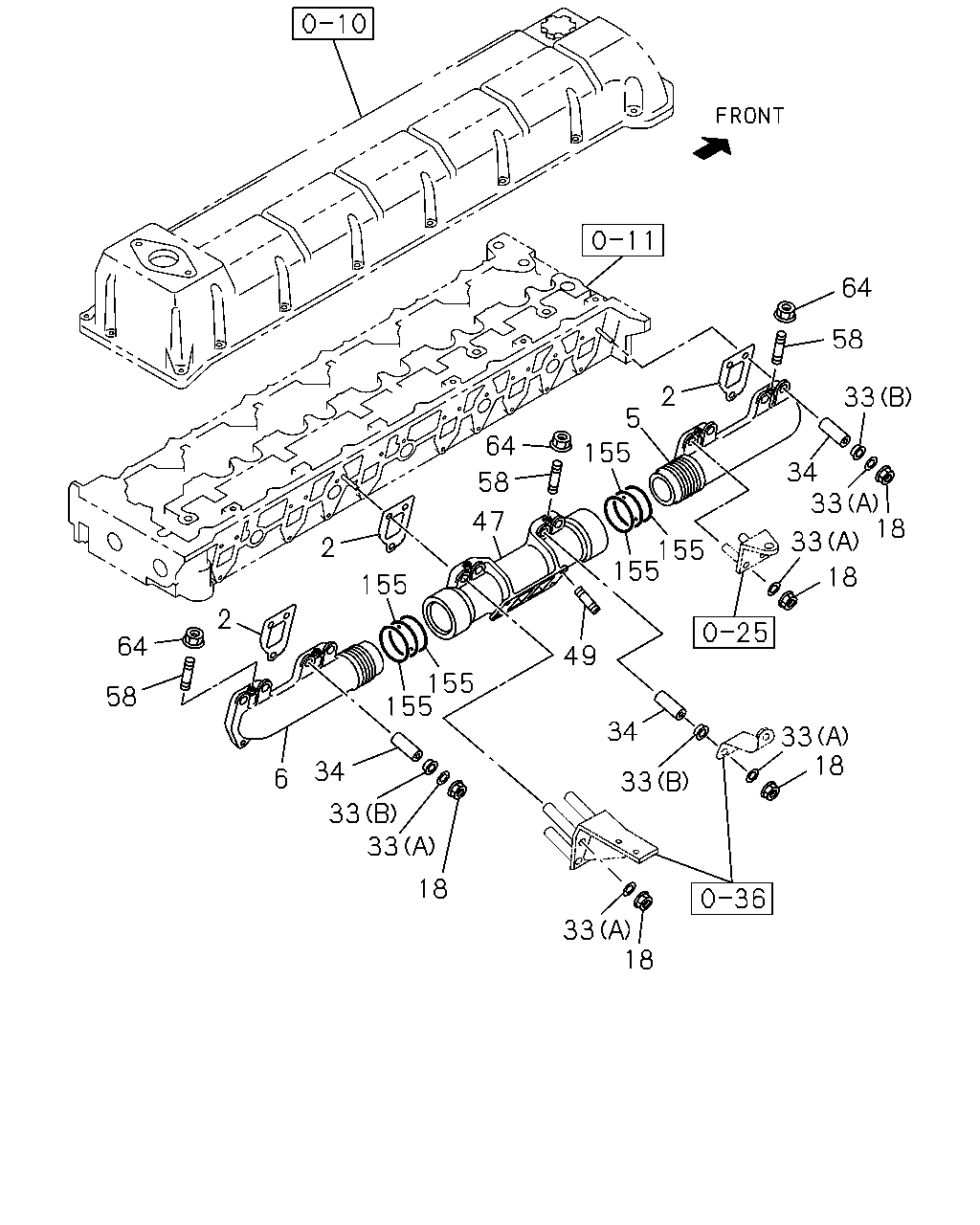

64 58 64 2 33 5 18 155 34 33 58 47 33 2 155 155 18 155 2 64 49 155 155 58 33 18 34 34 6 33 18 33 33 18 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-182-1	06	1	9603-9901	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-182-1	06	1	9902-9904		●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-182-1	06	1	9905-9909		●	●	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-182-1	06	1	9910-		●	●	●	●	●
5	MANIFOLD; EXH,FRT	1-14141-801-2	01	1	9603-9901	●
5	MANIFOLD; EXH,FRT	1-14141-801-2	01	1	9902-9904		●	●
5	MANIFOLD; EXH,FRT	1-14141-801-2	01	1	9905-		●	●	●
5	MANIFOLD; EXH,FRT	1-14141-881-0	01	1	9905-9909					●
5	MANIFOLD; EXH,FRT	1-14141-881-0	01	1	9910-0011					●	●
5	MANIFOLD; EXH,FRT	1-14141-999-0	01	1	0012-					●	●
6	MANIFOLD; EXH,RR	1-14141-803-2	01	1	9603-9901	●
6	MANIFOLD; EXH,RR	1-14141-803-2	01	1	9902-9904		●	●
6	MANIFOLD; EXH,RR	1-14141-803-2	01	1	9905-		●	●	●
6	MANIFOLD; EXH,RR	1-14141-883-0	01	1	9905-9909					●
6	MANIFOLD; EXH,RR	1-14141-883-0	01	1	9910-0011					●	●
6	MANIFOLD; EXH,RR	1-14142-001-0	01	1	0012-					●	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	18	1	9603-9901	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	18	1	9902-9904		●	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	18	1	9905-9909		●	●	●	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	18	1	9910-		●	●	●	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	18	1	9603-9901	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	18	1	9902-9904		●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	18	1	9905-9909		●	●	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	18	1	9910-		●	●	●	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	13	1	9603-9901	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	13	1	9902-9904		●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	13	1	9905-9909		●	●	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	13	1	9910-		●	●	●	●	●
34	COLLAR; DIST,EXH MANIF L=43	8-94396-406-0	13	1	9603-9901	●
34	COLLAR; DIST,EXH MANIF L=43	8-94396-406-0	13	1	9902-9904		●	●
34	COLLAR; DIST,EXH MANIF L=43	8-94396-406-0	13	1	9905-9909		●	●	●	●
34	COLLAR; DIST,EXH MANIF L=43	8-94396-406-0	13	1	9910-		●	●	●	●	●
47	MANIFOLD; EXH,CENTER	1-14141-802-3	01	1	9603-9901	●
47	MANIFOLD; EXH,CENTER	1-14141-802-3	01	1	9902-9904		●	●
47	MANIFOLD; EXH,CENTER	1-14141-802-3	01	1	9905-		●	●	●
47	MANIFOLD; EXH,CENTER	1-14141-882-0	01	1	9905-9909					●
47	MANIFOLD; EXH,CENTER	1-14141-882-0	01	1	9910-0011					●	●
47	MANIFOLD; EXH,CENTER	1-14141-938-0	01	1	0012-					●	●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	04	1	9603-9901	●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	04	1	9902-9904		●	●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	04	1	9905-		●	●	●
49	STUD; CENTER MANIF TO TURBOCHARGER	1-09302-134-0	04	1	9905-9909					●
49	STUD; CENTER MANIF TO TURBOCHARGER	1-09302-134-0	04	1	9910-0011					●	●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=47	1-09302-167-1	04	1	0012-					●	●
58	STUD; HEAT PROTECTOR M8X25 L=37	9-04110-825-0	06	1	9603-9611	●
58	STUD; HEAT PROTECTOR M8X20 L=32	9-04110-820-0	06	1	9612-9901	●
58	STUD; HEAT PROTECTOR M8X20 L=32	9-04110-820-0	06	1	9902-9904		●	●
58	STUD; HEAT PROTECTOR M8X20 L=32	9-04110-820-0	06	1	9905-9909		●	●	●	●
58	STUD; HEAT PROTECTOR M8X20 L=32	9-04110-820-0	06	1	9910-		●	●	●	●	●
64	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	05	1	9603-9901	●
64	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	05	1	9902-9904		●	●
64	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	05	1	9905-9909		●	●	●	●
64	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	05	1	9910-		●	●	●	●	●
155	RING; SEAL,EXH MANIF	1-14149-151-0	06	1	9603-9901	●
155	RING; SEAL,EXH MANIF	1-14149-151-0	06	1	9902-9904		●	●
155	RING; SEAL,EXH MANIF	1-14149-151-0	06	1	9905-		●	●	●
155	RING; SEAL,EXH MANIF (A)	1-14149-201-0	02	1	9905-9909					●
155	RING; SEAL,EXH MANIF (A)	1-14149-201-0	02	1	9910-					●	●
155	RING; SEAL,EXH MANIF (B)	9-14149-026-0	04	1	9905-9909					●
155	RING; SEAL,EXH MANIF (B)	9-14149-026-0	04	1	9910-					●	●

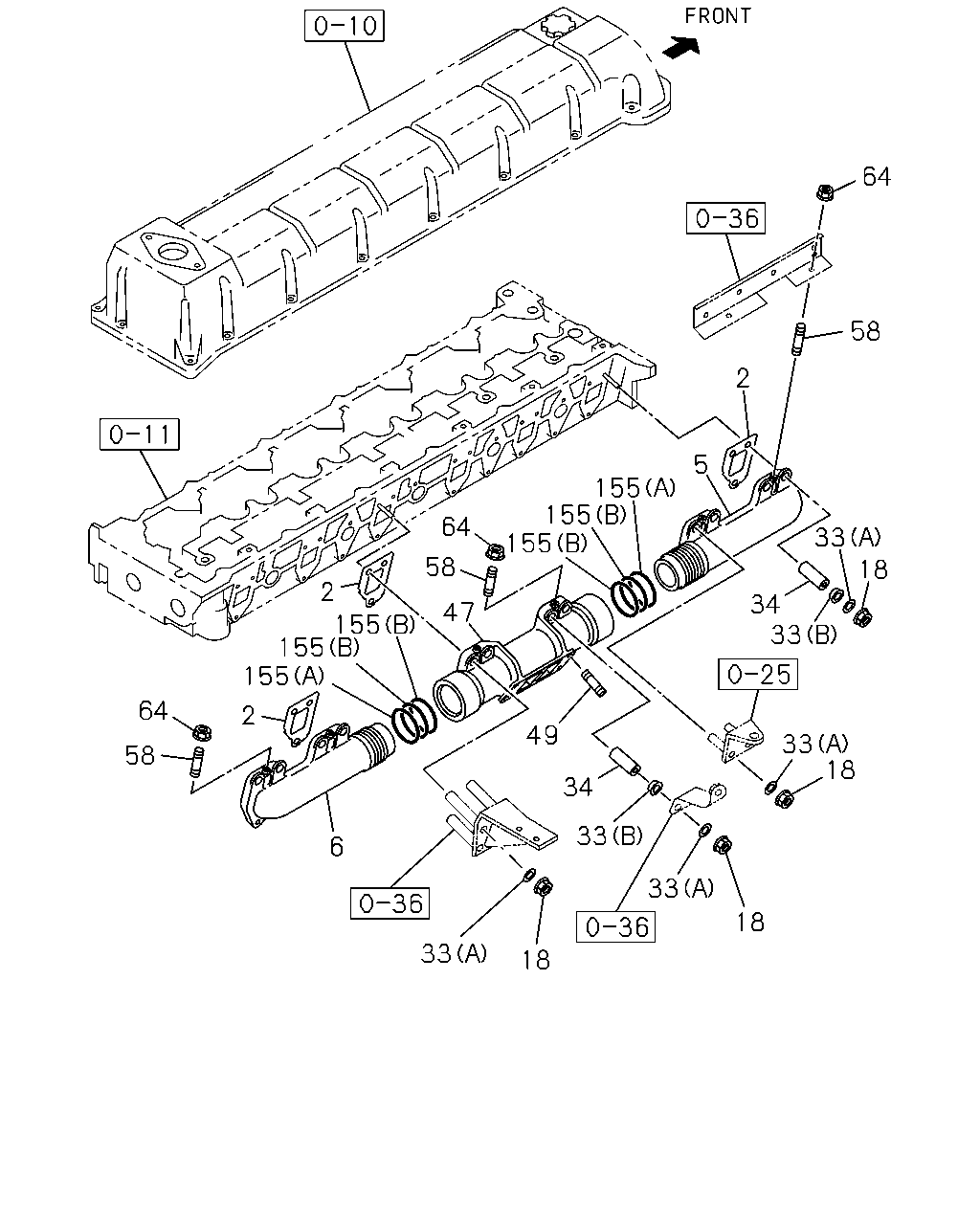

64 58 2 5 155 155 155 64 33 18 58 2 34 33 155 155 155 47 64 2 49 33 18 58 34 33 6 33 18 33 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-182-1	06	1	9603-9901	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-182-1	06	1	9902-9904		●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-182-1	06	1	9905-9909		●	●	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-182-1	06	1	9910-		●	●	●	●	●
5	MANIFOLD; EXH,FRT	1-14141-801-2	01	1	9603-9901	●
5	MANIFOLD; EXH,FRT	1-14141-801-2	01	1	9902-9904		●	●
5	MANIFOLD; EXH,FRT	1-14141-801-2	01	1	9905-		●	●	●
5	MANIFOLD; EXH,FRT	1-14141-881-0	01	1	9905-9909					●
5	MANIFOLD; EXH,FRT	1-14141-881-0	01	1	9910-0011					●	●
5	MANIFOLD; EXH,FRT	1-14141-999-0	01	1	0012-					●	●
6	MANIFOLD; EXH,RR	1-14141-803-2	01	1	9603-9901	●
6	MANIFOLD; EXH,RR	1-14141-803-2	01	1	9902-9904		●	●
6	MANIFOLD; EXH,RR	1-14141-803-2	01	1	9905-		●	●	●
6	MANIFOLD; EXH,RR	1-14141-883-0	01	1	9905-9909					●
6	MANIFOLD; EXH,RR	1-14141-883-0	01	1	9910-0011					●	●
6	MANIFOLD; EXH,RR	1-14142-001-0	01	1	0012-					●	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	18	1	9603-9901	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	18	1	9902-9904		●	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	18	1	9905-9909		●	●	●	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	18	1	9910-		●	●	●	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	18	1	9603-9901	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	18	1	9902-9904		●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	18	1	9905-9909		●	●	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	18	1	9910-		●	●	●	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	13	1	9603-9901	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	13	1	9902-9904		●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	13	1	9905-9909		●	●	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	13	1	9910-		●	●	●	●	●
34	COLLAR; DIST,EXH MANIF L=43	8-94396-406-0	13	1	9603-9901	●
34	COLLAR; DIST,EXH MANIF L=43	8-94396-406-0	13	1	9902-9904		●	●
34	COLLAR; DIST,EXH MANIF L=43	8-94396-406-0	13	1	9905-9909		●	●	●	●
34	COLLAR; DIST,EXH MANIF L=43	8-94396-406-0	13	1	9910-		●	●	●	●	●
47	MANIFOLD; EXH,CENTER	1-14141-802-3	01	1	9603-9901	●
47	MANIFOLD; EXH,CENTER	1-14141-802-3	01	1	9902-9904		●	●
47	MANIFOLD; EXH,CENTER	1-14141-802-3	01	1	9905-		●	●	●
47	MANIFOLD; EXH,CENTER	1-14141-882-0	01	1	9905-9909					●
47	MANIFOLD; EXH,CENTER	1-14141-882-0	01	1	9910-0011					●	●
47	MANIFOLD; EXH,CENTER	1-14141-938-0	01	1	0012-					●	●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	04	1	9603-9901	●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	04	1	9902-9904		●	●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	04	1	9905-		●	●	●
49	STUD; CENTER MANIF TO TURBOCHARGER	1-09302-134-0	04	1	9905-9909					●
49	STUD; CENTER MANIF TO TURBOCHARGER	1-09302-134-0	04	1	9910-0011					●	●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=47	1-09302-167-1	04	1	0012-					●	●
58	STUD; HEAT PROTECTOR M8X25 L=37	9-04110-825-0	06	1	9603-9611	●
58	STUD; HEAT PROTECTOR M8X20 L=32	9-04110-820-0	06	1	9612-9901	●
58	STUD; HEAT PROTECTOR M8X20 L=32	9-04110-820-0	06	1	9902-9904		●	●
58	STUD; HEAT PROTECTOR M8X20 L=32	9-04110-820-0	06	1	9905-9909		●	●	●	●
58	STUD; HEAT PROTECTOR M8X20 L=32	9-04110-820-0	06	1	9910-		●	●	●	●	●
64	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	05	1	9603-9901	●
64	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	05	1	9902-9904		●	●
64	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	05	1	9905-9909		●	●	●	●
64	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	05	1	9910-		●	●	●	●	●
155	RING; SEAL,EXH MANIF	1-14149-151-0	06	1	9603-9901	●
155	RING; SEAL,EXH MANIF	1-14149-151-0	06	1	9902-9904		●	●
155	RING; SEAL,EXH MANIF	1-14149-151-0	06	1	9905-		●	●	●
155	RING; SEAL,EXH MANIF (A)	1-14149-201-0	02	1	9905-9909					●
155	RING; SEAL,EXH MANIF (A)	1-14149-201-0	02	1	9910-					●	●
155	RING; SEAL,EXH MANIF (B)	9-14149-026-0	04	1	9905-9909					●
155	RING; SEAL,EXH MANIF (B)	9-14149-026-0	04	1	9910-					●	●
