1-40 — FUEL TANK (#41789) — 454 parça

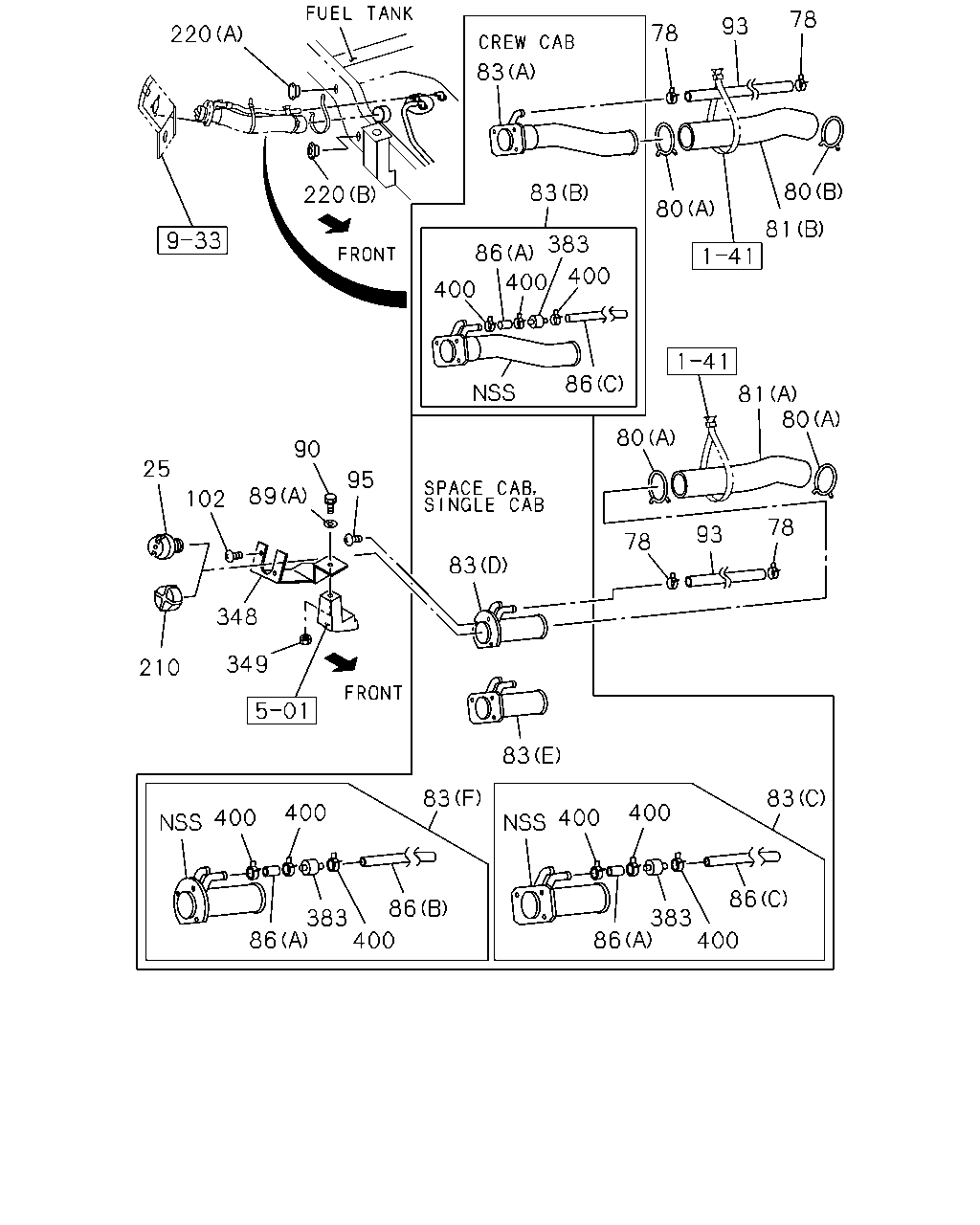

çizim 17143
78 93 78 220 83 80 83 220 80 81 383 86 400 400 400 86 81 80 80 90 25 95 89 102 78 93 78 83 348 349 210 83 83 83 400 400 400 400 86 86 383 400 383 400 86 86
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
25 03.028 CAP; FILLER,FUEL TANK
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-94310-199-4 01 1 9804- ● ● ● ● ● ●
78 03.003 CLIP; BREATHER HOSE
03.162 ID=14 		8-97173-221-0 02 1 9804- ● ● ● ● ●
80 03.008 CLIP; FILLER HOSE
CREW CAB(TF**W*) 03.003 (A) ID=59 		8-94435-876-0 01 1 9804- ● ● ● ● ● ●
80 03.008 CLIP; FILLER HOSE
CREW CAB(TF**W*) 01.166 (B) ID=54 		9-09915-412-1 01 1 9804-0110 ● ● ● ● ● ●
80 03.008 CLIP; FILLER HOSE
CREW CAB(TF**W*) 03.609 (B) ID=57 		9-09915-036-1 01 1 0111- ● ● ● ● ● ●
80 03.008 CLIP; FILLER HOSE
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 03.003 (A) ID=59 		8-94435-876-0 02 1 9804- ● ● ● ●
81 03.003 HOSE; FUEL FILLER
CREW CAB(TF**W*) (B) 		8-97132-227-2 01 1 9804- ● ● ● ● ● ●
81 03.003 HOSE; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (A) 		8-97117-704-1 01 1 9804- ● ● ● ●
81 03.003 HOSE; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (A) 		8-94468-249-2 01 1 9804- ● ● ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (B) 		8-97117-684-1 01 1 9804-9812 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT(R5B),ECUADOR EQ UIPMENT(S6E),COLOMBIA EQUIPMENT(X74), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97117-684-1 01 1 9804-9812 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (B) 		8-97117-684-1 01 1 9901-9903 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97117-684-1 01 1 9901-9903 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (B) 		8-97223-088-0 01 1 9904-9904 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97223-088-0 01 1 9904-9904 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (B) 		8-97223-088-0 01 1 9905-0009 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIP MENT(7LD) (B) 		8-97223-088-0 01 1 9905-0009 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (B) 		8-97223-088-0 01 1 0010-0012 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIP MENT(7LD) (B) 		8-97223-088-0 01 1 0010-0012 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (B) 		8-97223-088-0 01 1 0101-0108 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATE MALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97223-088-0 01 1 0101-0108 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (B) 		8-97223-088-0 01 1 0109-0109 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATE MALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97223-088-0 01 1 0109-0109 ● ●
83 03.003 NECK; FUEL FILLER
4X2 CREW CAB(TFB*W*) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATE MALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97223-088-0 01 1 0109-0109 ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (B) 		8-97223-088-0 01 1 0110- ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATE MALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97223-088-0 01 1 0110- ● ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (B) 		8-97117-685-1 01 1 9804-9812 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT(R5B),ECUADOR EQ UIPMENT(S6E),RR BODY DOUBLE WALL SIDELOCK OUTER HOOK(S7S),COLOMBIA EQUIPM ENT(X74),CHILE EQUIPMENT(6KB),RR BODYDBL WALL CTR PULL(6MW),GUATEMALA/COS TA RICA EQUIPMENT(7LD) (B) 		8-97117-685-1 01 1 9804-9812 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (B) 		8-97117-685-1 01 1 9901-9903 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),RR BODY DOUBLE WAL L SIDE LOCK OUTER HOOK(S7S),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), RR BODY DBL WALL CTR PULL(6MW),GUATEMA LA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97117-685-1 01 1 9901-9903 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INN ER & OUTER HOOK(7TN) (B) 		8-97223-089-0 01 1 9904-0012 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),RR BODY DOUBLE WAL L SIDE LOCK OUTER HOOK(S7S),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), RR BODY DBL WALL CTR PULL(6MW),GUATEMA LA/COSTA RICA EQUIPMENT(7LD),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (B) 		8-97223-089-0 01 1 9904-0012 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INN ER & OUTER HOOK(7TN) (B) 		8-97223-089-0 01 1 0101-0108 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),RR BODY DOUBLE WAL L SIDE LOCK OUTER HOOK(S7S),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2), CHILE EQUIPMENT(6KB),RR BODY DBL WALLCTR PULL(6MW),GUATEMALA/COSTA RICA EQ UIPMENT(7LD),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (B) 		8-97223-089-0 01 1 0101-0108 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INN ER & OUTER HOOK(7TN) (B) 		8-97223-089-0 01 1 0109-0109 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),RR BODY DOUBLE WAL L SIDE LOCK OUTER HOOK(S7S),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2), CHILE EQUIPMENT(6KB),RR BODY DBL WALLCTR PULL(6MW),GUATEMALA/COSTA RICA EQ UIPMENT(7LD),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (B) 		8-97223-089-0 01 1 0109-0109 ● ●
83 03.003 NECK; FUEL FILLER
4X2 CREW CAB(TFB*W*) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),RR BODY DOUBLE WAL L SIDE LOCK OUTER HOOK(S7S),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2), CHILE EQUIPMENT(6KB),RR BODY DBL WALLCTR PULL(6MW),GUATEMALA/COSTA RICA EQ UIPMENT(7LD),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (B) 		8-97223-089-0 01 1 0109-0109 ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INN ER & OUTER HOOK(7TN) (B) 		8-97223-089-0 01 1 0110- ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),RR BO DY DBL WALL CTR PULL(6MW), GUATEMALA/COSTA RICA EQUIPMENT(7LD),RR BODY DBLWALL CTR PULL INNER & OUTER HOOK(7TN) (B) 		8-97223-089-0 01 1 0110- ● ● ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (C) 		8-97122-701-1 01 1 9804-9812 ● ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT(R5B),ECUADOR EQ UIPMENT(S6E),COLOMBIA EQUIPMENT(X74), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (C) 		8-97122-701-1 01 1 9804-9812 ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (C) 		8-97122-701-2 01 1 9901-9904 ● ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (C) 		8-97122-701-2 01 1 9901-9904 ● ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (C) 		8-97122-701-2 01 1 9905-0108 ● ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIP MENT(7LD) (C) 		8-97122-701-2 01 1 9905-0108 ● ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (C) 		8-97122-701-2 01 1 0109- ● ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIP MENT(7LD) (C) 		8-97122-701-2 01 1 0109- ● ● ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (F) 		8-97081-013-1 01 1 9804-9812 ● ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT(R5B),ECUADOR EQ UIPMENT(S6E),RR BODY DOUBLE WALL SIDELOCK OUTER HOOK(S7S),COLOMBIA EQUIPM ENT(X74),CHILE EQUIPMENT(6KB),RR BODYDBL WALL CTR PULL(6MW),GUATEMALA/COS TA RICA EQUIPMENT(7LD) (F) 		8-97081-013-1 01 1 9804-9812 ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (F) 		8-97081-013-2 01 1 9901-9904 ● ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),RR BODY DOUBLE WAL L SIDE LOCK OUTER HOOK(S7S),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), RR BODY DBL WALL CTR PULL(6MW),GUATEMA LA/COSTA RICA EQUIPMENT(7LD) (F) 		8-97081-013-2 01 1 9901-9904 ● ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (F) 		8-97081-013-2 01 1 9905-0108 ● ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),RR BODY DOUBLE WAL L SIDE LOCK OUTER HOOK(S7S),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4), CHILE EQUIPMENT(6KB),RR BODY DBL WALLCTR PULL(6MW),GUATEMALA/COSTA RICA EQ UIPMENT(7LD) (F) 		8-97081-013-2 01 1 9905-0108 ● ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (F) 		8-97081-013-2 01 1 0109- ● ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),RR BODY DOUBLE WAL L SIDE LOCK OUTER HOOK(S7S),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4), CHILE EQUIPMENT(6KB),RR BODY DBL WALLCTR PULL(6MW),GUATEMALA/COSTA RICA EQ UIPMENT(7LD) (F) 		8-97081-013-2 01 1 0109- ● ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (A) 		8-97117-683-0 01 1 9804-9812 ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (A) 		8-97117-683-0 01 1 9804-9812 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (A) 		8-97117-683-0 01 1 9901-9904 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (A) 		8-97117-683-0 01 1 9905-0005 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 		8-97117-683-0 01 1 0006-0108 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 		8-97117-683-0 01 1 0109- ● ● ●
83 03.003 NECK; FUEL FILLER
4X2 SINGLE CAB LONG(TFB*SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (E) 		8-97122-699-0 01 1 9804-9812 ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB(TF**S*) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (E) 		8-97122-699-0 01 1 9804-9812 ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB(TF**S*) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (E) 		8-97122-699-0 01 1 9901-9904 ● ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB LONG(TF**SF) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (E) 		8-97122-699-0 01 1 9905-0005 ● ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB(TF**S*) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (E) 		8-97122-699-0 01 1 0006-0108 ● ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB(TF**S*) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (E) 		8-97122-699-0 01 1 0109- ● ● ●
83 03.003 NECK; FUEL FILLER
4X2 SINGLE CAB LONG(TFB*SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (D) 		8-94460-704-4 01 1 9804-9812 ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB(TF**S*) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (D) 		8-94460-704-4 01 1 9804-9812 ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB(TF**S*) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (D) 		8-94460-704-4 01 1 9901-9904 ● ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB LONG(TF**SF) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (D) 		8-94460-704-4 01 1 9905-0005 ● ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB(TF**S*) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (D) 		8-94460-704-4 01 1 0006-0108 ● ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB(TF**S*) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (D) 		8-94460-704-4 01 1 0109- ● ● ●
83 03.003 NECK; FUEL FILLER
CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (A) 		8-97117-682-0 01 1 9804-0005 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) ECUADOR EQUIPMENT(S6E),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT (7LD) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 		8-97117-682-0 01 1 0006-0012 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) ECUADOR EQUIPMENT(S6E),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA /COSTA RICA EQUIPMENT(7LD) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 		8-97117-682-0 01 1 0101-0108 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) ECUADOR EQUIPMENT(S6E),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA /COSTA RICA EQUIPMENT(7LD) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 		8-97117-682-0 01 1 0109- ● ● ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (E) 		8-97167-648-0 01 1 9804-0005 ● ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) ECUADOR EQUIPMENT(S6E),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT (7LD) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (E) 		8-97167-648-0 01 1 0006-0108 ● ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) ECUADOR EQUIPMENT(S6E),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT (7LD) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (E) 		8-97167-648-0 01 1 0109- ● ● ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (D) 		8-94460-705-5 01 1 9804-9812 ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (D) 		8-94460-705-5 01 1 9901-0005 ● ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) ECUADOR EQUIPMENT(S6E),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT (7LD) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (D) 		8-94460-705-5 01 1 0006-0108 ● ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) ECUADOR EQUIPMENT(S6E),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT (7LD) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (D) 		8-94460-705-5 01 1 0109- ● ● ●
86 03.163 HOSE; EVAP
(A) L=60 SERVICED BY L=3000 		8-94128-826-0 01 1 9804-9812 ● ●
86 03.163 HOSE; EVAP
EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT(R5B),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) L=60 SERVICED BY L=3000 		8-94128-826-0 01 1 9804-9812 ● ●
86 03.163 HOSE; EVAP
(A) L=60 SERVICED BY L=3000 		8-94128-826-0 01 1 9901-9903 ● ●
86 03.163 HOSE; EVAP
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) L=60 SERVICED BY L=3000 		8-94128-826-0 01 1 9901-9903 ● ●
86 03.163 HOSE; EVAP
(A) L=80 SERVICED BY L=3000 		8-94128-826-0 01 1 9904-9904 ● ●
86 03.163 HOSE; EVAP
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) L=80 SERVICED BY L=3000 		8-94128-826-0 01 1 9904-9904 ● ●
86 03.163 HOSE; EVAP
(A) L=80 SERVICED BY L=3000 		8-94128-826-0 01 1 9905-0012 ● ●
86 03.163 HOSE; EVAP
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIP MENT(7LD) (A) L=80 SERVICED BY L=3000 		8-94128-826-0 01 1 9905-0012 ● ●
86 03.163 HOSE; EVAP
(A) L=80 SERVICED BY L=3000 		8-94128-826-0 01 1 0101-0108 ● ●
86 03.163 HOSE; EVAP
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATE MALA/COSTA RICA EQUIPMENT(7LD) (A) L=80 SERVICED BY L=3000 		8-94128-826-0 01 1 0101-0108 ● ●
86 03.163 HOSE; EVAP
(A) L=80 SERVICED BY L=3000 		8-94128-826-0 01 1 0109- ● ●
86 03.163 HOSE; EVAP
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATE MALA/COSTA RICA EQUIPMENT(7LD) (A) L=80 SERVICED BY L=3000 		8-94128-826-0 01 1 0109- ● ● ●
86 03.163 HOSE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),NOISE INSULATION PACK 2<7MW> (C) L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 9804-9812 ● ●
86 03.163 HOSE; EVAP
CREW CAB(TF**W*) (C) L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 9804-9812 ● ●
86 03.163 HOSE; EVAP
EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT(R5B),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (C) L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 9804-9812 ● ●
86 03.163 HOSE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),NOISE INSULATION PACK 2<7MW> (C) L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 9901-9904 ● ●
86 03.163 HOSE; EVAP
CREW CAB(TF**W*) (C) L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 9901-9904 ● ●
86 03.163 HOSE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (C) L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 9901-9904 ● ●
86 03.163 HOSE; EVAP
CREW CAB(TF**W*) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (C) L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 9901-9904 ● ●
86 03.163 HOSE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),NOISE INSULATION PACK 2<7MW> (C) L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 9905-9909 ● ●
86 03.163 HOSE; EVAP
CREW CAB(TF**W*) (C) L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 9905-9909 ● ●
86 03.163 HOSE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIP MENT(7LD) (C) L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 9905-9909 ● ●
86 03.163 HOSE; EVAP
CREW CAB(TF**W*) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIP MENT(7LD) (C) L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 9905-9909 ● ●
86 03.163 HOSE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),NOISE INSULATION PACK 2<7MW> (C) L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 9910-0009 ● ●
86 03.163 HOSE; EVAP
CREW CAB(TF**W*) (C) L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 9910-0009 ● ●
86 03.163 HOSE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIP MENT(7LD) (C) L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 9910-0009 ● ●
86 03.163 HOSE; EVAP
CREW CAB(TF**W*) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),RR BODY DOUBLE WAL L SIDE LOCK OUTER HOOK(S7S),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4), CHILE EQUIPMENT(6KB),RR BODY DBL WALLCTR PULL(6MW),GUATEMALA/COSTA RICA EQ UIPMENT(7LD) (C) L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 9910-0009 ● ●
86 03.163 HOSE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),NOISE INSULATION PACK 2<7MW> (C) L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 0010-0012 ● ●
86 03.163 HOSE; EVAP
CREW CAB(TF**W*) (C) L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 0010-0012 ● ●
86 03.163 HOSE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIP MENT(7LD) (C) L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 0010-0012 ● ●
86 03.163 HOSE; EVAP
CREW CAB(TF**W*) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIP MENT(7LD) (C) L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 0010-0012 ● ●
86 03.163 HOSE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),NOISE INSULATION PACK 2<7MW> (C) L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 0101-0108 ● ●
86 03.163 HOSE; EVAP
CREW CAB(TF**W*) (C) L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 0101-0108 ● ●
86 03.163 HOSE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIP MENT(7LD) (C) L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 0101-0108 ● ●
86 03.163 HOSE; EVAP
CREW CAB(TF**W*) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATE MALA/COSTA RICA EQUIPMENT(7LD) (C) L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 0101-0108 ● ●
86 03.163 HOSE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),NOISE INSULATION PACK 2<7MW> (C) L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 0109- ● ●
86 03.163 HOSE; EVAP
CREW CAB(TF**W*) (C) L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 0109- ● ●
86 03.163 HOSE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIP MENT(7LD) (C) L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 0109- ● ● ●
86 03.163 HOSE; EVAP
CREW CAB(TF**W*) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATE MALA/COSTA RICA EQUIPMENT(7LD) (C) L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 0109- ● ● ●
86 03.163 HOSE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (B) L=300 SERVICED BY L=3000 		8-94128-826-0 01 1 9804-9812 ● ●
86 03.163 HOSE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT(R5B),ECUADOR EQ UIPMENT(S6E),RR BODY DOUBLE WALL SIDELOCK OUTER HOOK(S7S),COLOMBIA EQUIPM ENT(X74),CHILE EQUIPMENT(6KB),RR BODYDBL WALL CTR PULL(6MW),GUATEMALA/COS TA RICA EQUIPMENT(7LD) (B) L=300 SERVICED BY L=3000 		8-94128-826-0 01 1 9804-9812 ●
86 03.163 HOSE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (B) L=300 SERVICED BY L=3000 		8-94128-826-0 01 1 9901-9904 ● ●
86 03.163 HOSE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),RR BODY DOUBLE WAL L SIDE LOCK OUTER HOOK(S7S),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), RR BODY DBL WALL CTR PULL(6MW),GUATEMA LA/COSTA RICA EQUIPMENT(7LD) (B) L=300 SERVICED BY L=3000 		8-94128-826-0 01 1 9901-9904 ● ●
86 03.163 HOSE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (B) L=300 SERVICED BY L=3000 		8-94128-826-0 01 1 9905-0108 ● ●
86 03.163 HOSE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),RR BODY DOUBLE WAL L SIDE LOCK OUTER HOOK(S7S),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4), CHILE EQUIPMENT(6KB),RR BODY DBL WALLCTR PULL(6MW),GUATEMALA/COSTA RICA EQ UIPMENT(7LD) (B) L=300 SERVICED BY L=3000 		8-94128-826-0 01 1 9905-0108 ● ●
86 03.163 HOSE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (B) L=300 SERVICED BY L=3000 		8-94128-826-0 01 1 0109- ● ●
86 03.163 HOSE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),RR BODY DOUBLE WAL L SIDE LOCK OUTER HOOK(S7S),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4), CHILE EQUIPMENT(6KB),RR BODY DBL WALLCTR PULL(6MW),GUATEMALA/COSTA RICA EQ UIPMENT(7LD) (B) L=300 SERVICED BY L=3000 		8-94128-826-0 01 1 0109- ● ● ●
89 03.028 WASHER; PL,FILLER NECK
EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 06.760 (A) ID=8.4 OD=22 		9-09160-708-0 01 1 9804-9812 ●
89 03.028 WASHER; PL,FILLER NECK
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. RR BODY FLAT BED<RS6>,CHINA CHONGQING EQUIPMENT(R5B),RR BODY DOUBLE W ALL SIDE LOCK OUTER HOOK(S7S),RR BODYDBL WALL CTR PULL(6MW) 06.760 (A) ID=8.4 OD=22 		9-09160-708-0 01 1 9804-9812 ● ●
89 03.028 WASHER; PL,FILLER NECK
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),R R BODY DBL WALL CTR PULL(6MW) 06.760 (A) ID=8.4 OD=22 		9-09160-708-0 01 1 9901-9908 ● ●
89 03.028 WASHER; PL,FILLER NECK
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 06.760 (A) ID=8.4 OD=22 		9-09160-708-0 01 1 9909-0108 ● ●
89 03.028 WASHER; PL,FILLER NECK
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 06.760 (A) ID=8.4 OD=22 		9-09160-708-0 01 1 0109-0203 ● ● ●
89 03.028 WASHER; PL,FILLER NECK
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S), RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK (7TN) 06.760 (A) ID=8.4 OD=22 		9-09160-708-0 01 1 0204-0204 ● ● ● ● ●
89 03.028 WASHER; PL,FILLER NECK
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 06.760 (A) ID=8.4 OD=22 		9-09160-708-0 01 1 0205- ● ● ●
89 03.028 WASHER; PL,FILLER NECK
02.334 (B) ID=6.4 OD=22 		9-09164-806-0 01 1 9804-0108 ●
89 03.028 WASHER; PL,FILLER NECK
02.334 (B) ID=6.4 OD=22 		9-09164-806-0 01 1 0109- ● ●
90 03.008 BOLT; FILLER TO BODY
EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9804-9812 ●
90 03.008 BOLT; FILLER TO BODY
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. RR BODY FLAT BED<RS6>,CHINA CHONGQING EQUIPMENT(R5B),RR BODY DOUBLE W ALL SIDE LOCK OUTER HOOK(S7S),RR BODYDBL WALL CTR PULL(6MW) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9804-9812 ● ●
90 03.008 BOLT; FILLER TO BODY
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),R R BODY DBL WALL CTR PULL(6MW) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9901-9908 ● ●
90 03.008 BOLT; FILLER TO BODY
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9909-0108 ● ●
90 03.008 BOLT; FILLER TO BODY
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0109-0203 ● ● ●
90 03.008 BOLT; FILLER TO BODY
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S), RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK (7TN) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0204-0204 ● ● ● ● ●
90 03.008 BOLT; FILLER TO BODY
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0205- ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 08.962 L=660 SERVICED BY L=3000 		0-04790-300-0 01 1 9804-9909 ● ● ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
CREW CAB(TF**W*) 08.962 L=660 SERVICED BY L=3000 		0-04790-300-0 01 1 9804-9909 ● ● ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 08.962 L=660 SERVICED BY L=3000 		0-04790-300-0 01 1 9910-0108 ● ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
CREW CAB(TF**W*) 08.962 L=660 SERVICED BY L=3000 		0-04790-300-0 01 1 9910-0108 ● ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 08.962 L=660 SERVICED BY L=3000 		0-04790-300-0 01 1 0109-0209 ● ● ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
CREW CAB(TF**W*) 08.962 L=660 SERVICED BY L=3000 		0-04790-300-0 01 1 0109-0209 ● ● ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 08.962 L=640 SERVICED BY L=3000 		0-04790-300-0 01 1 0210- ● ● ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
CREW CAB(TF**W*) 08.962 L=640 SERVICED BY L=3000 		0-04790-300-0 01 1 0210- ● ● ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 08.962 L=560 SERVICED BY L=3000 		0-04790-300-0 01 1 9804-9909 ● ● ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 08.962 L=560 SERVICED BY L=3000 		0-04790-300-0 01 1 9910-0012 ● ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 08.962 L=560 SERVICED BY L=3000 		0-04790-300-0 01 1 0101-0209 ● ● ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 08.962 SERVICED BY L=3000 		0-04790-300-0 01 1 0210- ● ● ● ● ●
95 03.028 SCREW; FILLER NECK
12.182 M6X16 		8-94381-646-0 03 1 9804-9909 ● ● ● ● ●
95 03.028 SCREW; FILLER NECK
12.182 M6X16 		8-94381-646-0 03 1 9910-0104 ● ● ● ●
95 03.028 SCREW; FILLER NECK
12.182 M6X16 		8-94381-646-0 03 1 0105-0109 ● ● ● ● ●
95 03.028 SCREW; FILLER NECK
12.182 M6X16 		8-94381-646-0 03 1 0110- ● ● ● ● ●
102 03.008 SCREW; FUEL FILLER
EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 12.182 M6X16 		8-94381-646-0 02 1 9804-9812 ●
102 03.008 SCREW; FUEL FILLER
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. RR BODY FLAT BED<RS6>,CHINA CHONGQING EQUIPMENT(R5B),RR BODY DOUBLE W ALL SIDE LOCK OUTER HOOK(S7S),RR BODYDBL WALL CTR PULL(6MW) 12.182 M6X16 		8-94381-646-0 02 1 9804-9812 ● ●
102 03.008 SCREW; FUEL FILLER
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),R R BODY DBL WALL CTR PULL(6MW) 12.182 M6X16 		8-94381-646-0 02 1 9901-9908 ● ●
102 03.008 SCREW; FUEL FILLER
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 12.182 M6X16 		8-94381-646-0 02 1 9909-0108 ● ●
102 03.008 SCREW; FUEL FILLER
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 12.182 M6X16 		8-94381-646-0 02 1 0109-0203 ● ● ●
102 03.008 SCREW; FUEL FILLER
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S), RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK (7TN) 12.182 M6X16 		8-94381-646-0 02 1 0204-0204 ● ● ● ● ●
102 03.008 SCREW; FUEL FILLER
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 12.182 M6X16 		8-94381-646-0 02 1 0205- ● ● ●

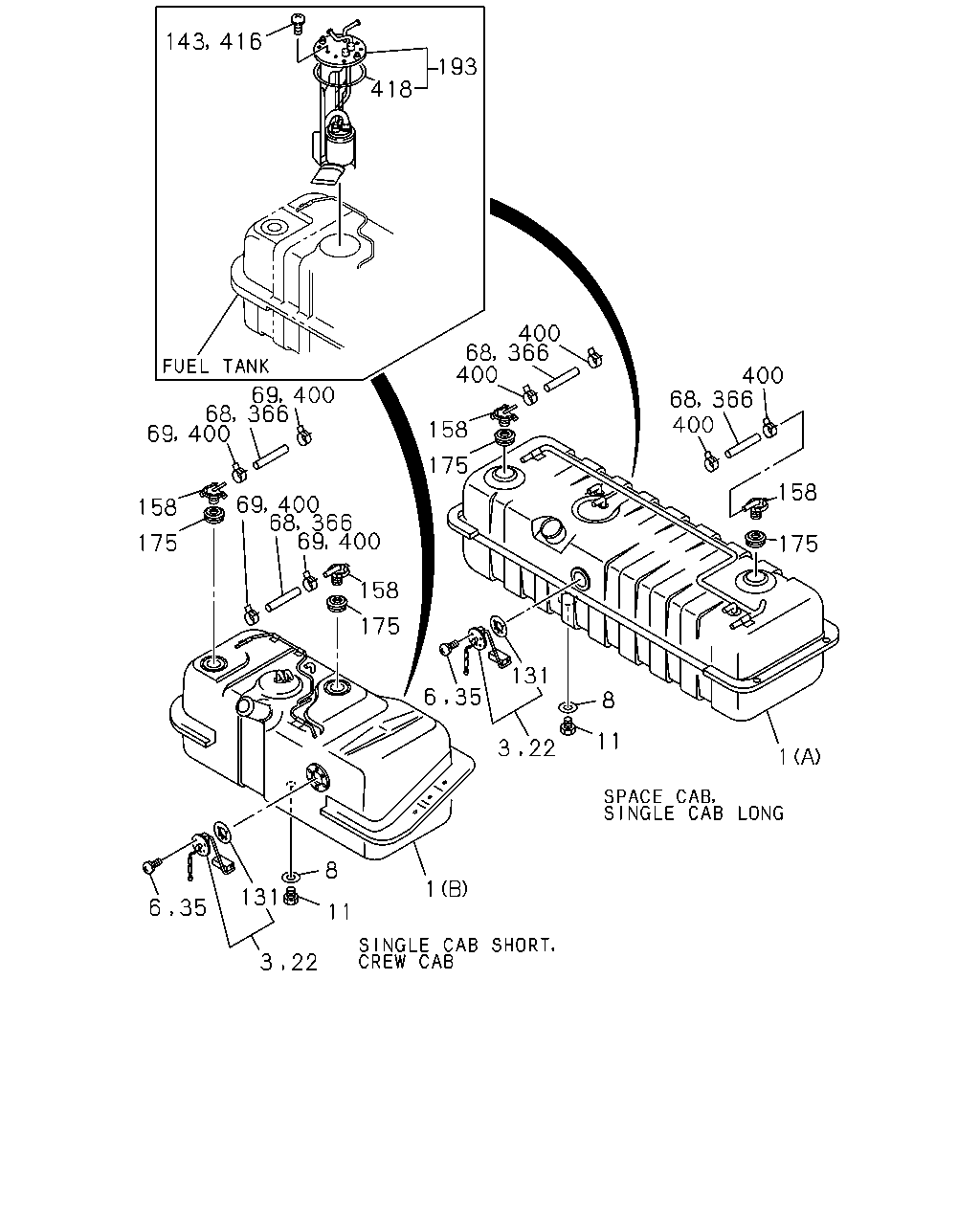

210 03.023 CAP; FUEL TANK
EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 		8-97034-131-0 01 1 9804-9812 ● ●
210 03.023 CAP; FUEL TANK
EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT(R5B),ECUADOR EQUIPMENT(S6E),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),COLOMBIA EQUIPM ENT(X74),CHILE EQUIPMENT(6KB),RR BODYDBL WALL CTR PULL(6MW),GUATEMALA/COS TA RICA EQUIPMENT(7LD) 		8-97034-131-0 01 1 9804-9812 ● ●
210 03.023 CAP; FUEL TANK
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S), RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK (7TN) 		8-97034-131-0 01 1 9901-0108 ● ●
210 03.023 CAP; FUEL TANK
EXC. SAUDI ARABIA EQUIPMENT(EU2),RR BODY FLAT BED<RS6>,ECUADOR EQUIPMENT(S6E),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),COLOMBIA EQUIPMENT(X74), CHILE EQUIPMENT(6KB),RR BODY DBL WALLCTR PULL(6MW),GUATEMALA/COSTA RICA E QUIPMENT(7LD) 		8-97034-131-0 01 1 9901-0108 ● ●
210 03.023 CAP; FUEL TANK
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S), RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK (7TN) 		8-97034-131-0 01 1 0109- ● ●
210 03.023 CAP; FUEL TANK
EXC. SAUDI ARABIA EQUIPMENT(EU2),RR BODY FLAT BED<RS6>,ECUADOR EQUIPMENT(S6E),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),COLOMBIA EQUIPMENT(X74), CHILE EQUIPMENT(6KB),RR BODY DBL WALLCTR PULL(6MW),GUATEMALA/COSTA RICA E QUIPMENT(7LD) 		8-97034-131-0 01 1 0109- ● ● ●
220 03.120 GROMMET; BREATHER HOSE,FUEL TANK
(A) 		8-94482-493-1 01 1 9804-9812 ● ●
220 03.120 GROMMET; BREATHER HOSE,FUEL TANK
EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT(R5B),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) 		8-94482-493-1 01 1 9804-9812 ● ●
220 03.120 GROMMET; BREATHER HOSE,FUEL TANK
(A) 		8-94482-493-1 01 1 9901-9904 ● ●
220 03.120 GROMMET; BREATHER HOSE,FUEL TANK
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) 		8-94482-493-1 01 1 9901-9904 ● ●
220 03.120 GROMMET; BREATHER HOSE,FUEL TANK
(A) 		8-94482-493-1 01 1 9905-0012 ● ●
220 03.120 GROMMET; BREATHER HOSE,FUEL TANK
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIP MENT(7LD) (A) 		8-94482-493-1 01 1 9905-0012 ● ●
220 03.120 GROMMET; BREATHER HOSE,FUEL TANK
(A) 		8-94482-493-1 01 1 0101-0108 ● ●
220 03.120 GROMMET; BREATHER HOSE,FUEL TANK
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATE MALA/COSTA RICA EQUIPMENT(7LD) (A) 		8-94482-493-1 01 1 0101-0108 ● ●
220 03.120 GROMMET; BREATHER HOSE,FUEL TANK
(A) 		8-94482-493-1 01 1 0109- ● ●
220 03.120 GROMMET; BREATHER HOSE,FUEL TANK
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATE MALA/COSTA RICA EQUIPMENT(7LD) (A) 		8-94482-493-1 01 1 0109- ● ● ●
220 03.120 GROMMET; BREATHER HOSE,FUEL TANK
(B) 		8-94482-494-1 01 1 9804-9812 ● ●
220 03.120 GROMMET; BREATHER HOSE,FUEL TANK
EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT(R5B),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-94482-494-1 01 1 9804-9812 ● ●
220 03.120 GROMMET; BREATHER HOSE,FUEL TANK
(B) 		8-94482-494-1 01 1 9901-9905 ● ●
220 03.120 GROMMET; BREATHER HOSE,FUEL TANK
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-94482-494-1 01 1 9901-9905 ● ●
348 03.028 BRACKET; FUEL FILLER
CREW CAB(TF**W*) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INN ER & OUTER HOOK(7TN) 		8-97224-589-0 01 1 0204-0204 ● ● ● ● ● ●
348 03.028 BRACKET; FUEL FILLER
4X2 SINGLE CAB LONG(TFB*SF) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),R R BODY DBL WALL CTR PULL(6MW) 		8-94313-471-1 01 1 9804-9812 ●
348 03.028 BRACKET; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. RR BODY FLAT BED<RS6>,CHINA CHONGQING EQUIPMENT(R5B),RR BODY DOUBLE W ALL SIDE LOCK OUTER HOOK(S7S),RR BODYDBL WALL CTR PULL(6MW) 		8-94313-471-1 01 1 9804-9812 ●
348 03.028 BRACKET; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),R R BODY DBL WALL CTR PULL(6MW) 		8-94313-471-1 01 1 9901-0108 ● ●
348 03.028 BRACKET; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),R R BODY DBL WALL CTR PULL(6MW) 		8-94313-471-1 01 1 0109-0203 ● ● ●
348 03.028 BRACKET; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),R R BODY DBL WALL CTR PULL(6MW) 		8-94313-471-1 01 1 0204-0204 ● ● ● ● ●
348 03.028 BRACKET; FUEL FILLER
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),R R BODY DBL WALL CTR PULL(6MW) 		8-94313-471-1 01 1 0205- ● ● ●
349 03.023 NUT; FUEL FILLER
EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 02.559 M8 		9-09110-408-0 01 1 9804-9812 ●
349 03.023 NUT; FUEL FILLER
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. RR BODY FLAT BED<RS6>,CHINA CHONGQING EQUIPMENT(R5B),RR BODY DOUBLE W ALL SIDE LOCK OUTER HOOK(S7S),RR BODYDBL WALL CTR PULL(6MW) 02.559 M8 		9-09110-408-0 01 1 9804-9812 ● ●
349 03.023 NUT; FUEL FILLER
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),R R BODY DBL WALL CTR PULL(6MW) 02.559 M8 		9-09110-408-0 01 1 9901-9908 ● ●
349 03.023 NUT; FUEL FILLER
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 02.559 M8 		9-09110-408-0 01 1 9909-0108 ● ●
349 03.023 NUT; FUEL FILLER
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 02.559 M8 		9-09110-408-0 01 1 0109-0203 ● ● ●
349 03.023 NUT; FUEL FILLER
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S), RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK (7TN) 02.559 M8 		9-09110-408-0 01 1 0204-0204 ● ● ● ● ●
349 03.023 NUT; FUEL FILLER
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 02.559 M8 		9-09110-408-0 01 1 0205- ● ● ●
383 03.162 VALVE; 2 WAY 8-97178-373-0 01 1 9804-9812 ● ●
383 03.162 VALVE; 2 WAY
EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT(R5B),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97178-373-0 01 1 9804-9812 ● ●
383 03.162 VALVE; 2 WAY 8-97178-373-0 01 1 9901-9904 ● ●
383 03.162 VALVE; 2 WAY
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97178-373-0 01 1 9901-9904 ● ●
383 03.162 VALVE; 2 WAY 8-97178-373-0 01 1 9905-0012 ● ●
383 03.162 VALVE; 2 WAY
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIP MENT(7LD) 		8-97178-373-0 01 1 9905-0012 ● ●
383 03.162 VALVE; 2 WAY 8-97178-373-0 01 1 0101-0108 ● ●
383 03.162 VALVE; 2 WAY
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATE MALA/COSTA RICA EQUIPMENT(7LD) 		8-97178-373-0 01 1 0101-0108 ● ●
383 03.162 VALVE; 2 WAY 8-97178-373-0 01 1 0109- ● ●
383 03.162 VALVE; 2 WAY
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATE MALA/COSTA RICA EQUIPMENT(7LD) 		8-97178-373-0 01 1 0109- ● ● ●
400 03.162 CLIP; HOSE,EVAP
ID=8.5 		8-94166-071-0 03 1 9804-9812 ● ●
400 03.162 CLIP; HOSE,EVAP
EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT(R5B),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) ID=8.5 		8-94166-071-0 03 1 9804-9812 ● ●
400 03.162 CLIP; HOSE,EVAP
ID=8.5 		8-94166-071-0 03 1 9901-9904 ● ●
400 03.162 CLIP; HOSE,EVAP
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) ID=8.5 		8-94166-071-0 03 1 9901-9904 ● ●
400 03.162 CLIP; HOSE,EVAP
ID=8.5 		8-94166-071-0 03 1 9905-0012 ● ●
400 03.162 CLIP; HOSE,EVAP
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIP MENT(7LD) ID=8.5 		8-94166-071-0 03 1 9905-0012 ● ●
400 03.162 CLIP; HOSE,EVAP
ID=8.5 		8-94166-071-0 03 1 0101-0105 ● ●
400 03.162 CLIP; HOSE,EVAP
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATE MALA/COSTA RICA EQUIPMENT(7LD) ID=8.5 		8-94166-071-0 03 1 0101-0105 ● ●
400 03.162 CLIP; HOSE,EVAP
ID=8.5 		8-94166-071-0 02 1 0106-0108 ● ●
400 03.162 CLIP; HOSE,EVAP
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATE MALA/COSTA RICA EQUIPMENT(7LD) ID=8.5 		8-94166-071-0 02 1 0106-0108 ● ●
400 03.162 CLIP; HOSE,EVAP
ID=8.5 		8-94166-071-0 02 1 0109- ● ●
400 03.162 CLIP; HOSE,EVAP
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATE MALA/COSTA RICA EQUIPMENT(7LD) ID=8.5 		8-94166-071-0 02 1 0109- ● ● ●
400 03.162 CLIP; HOSE,EVAP
ID=8.5 		8-94166-071-0 04 1 9804-9812 ● ● ●
400 03.162 CLIP; HOSE,EVAP
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) ID=8.5 		8-94166-071-0 04 1 9901-9903 ● ●
400 03.162 CLIP; HOSE,EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) ID=8.5 		8-94166-071-0 04 1 9904-9904 ● ●
400 03.162 CLIP; HOSE,EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA R ICA EQUIPMENT(7LD) ID=8.5 		8-94166-071-0 04 1 9905-9905 ● ●
400 03.162 CLIP; HOSE,EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) ELECTRIC FUEL INJECTION<6GG> ID=8.5 		8-94166-071-0 04 1 9905-0012 ● ●
400 03.162 CLIP; HOSE,EVAP
LONG(TF***F) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) ELECTRIC FUEL INJECTION<6GG> ID=8.5 		8-94166-071-0 04 1 0101-0108 ● ●
400 03.162 CLIP; HOSE,EVAP
LONG(TF***F) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) ID=8.5 		8-94166-071-0 04 1 0109-0205 ● ● ●
çizim 17145
143 416 193 418 158 175 158 158 175 175 158 175 131 8 11 1 8 131 1 11 400 68 366 400 400 69 68 69 400 366 69 400 68 366 69 400 6 35 3 22 6 35 3 22 68 400 366 400
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.001 TANK; FUEL
SHORT(TF***C) (B) 		8-94460-722-8 01 1 9804- ●
1 03.001 TANK; FUEL
CREW CAB(TF**W*) (B) 		8-97112-496-2 01 1 9804-0105 ● ●
1 03.001 TANK; FUEL
CREW CAB(TF**W*) (B) 		8-97314-331-2 01 1 0106- ● ●
1 03.001 TANK; FUEL
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) (A) 		8-94328-157-9 01 1 9804- ● ●
1 03.001 TANK; FUEL
CREW CAB(TF**W*) (B) 		8-97112-498-1 01 1 9804-9812 ●
1 03.001 TANK; FUEL
4X2 SINGLE CAB LONG(TFB*SF) (A) 		8-94328-158-7 01 1 9804-9812 ●
1 03.001 TANK; FUEL
CREW CAB(TF**W*) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) (B) 		8-97112-520-1 01 1 9804-9904 ● ●
1 03.001 TANK; FUEL
CREW CAB(TF**W*) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97112-520-2 01 1 9905-0012 ● ●
1 03.001 TANK; FUEL
CREW CAB(TF**W*) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97112-520-4 01 1 0101-0108 ● ●
1 03.001 TANK; FUEL
CREW CAB(TF**W*) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97112-520-6 01 1 0109- ● ● ●
1 03.001 TANK; FUEL
CREW CAB(TF**W*) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97179-917-0 01 1 9804-9904 ● ●
1 03.001 TANK; FUEL
CREW CAB(TF**W*) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIP MENT(7LD) (B) 		8-97179-917-1 01 1 9905-0012 ● ●
1 03.001 TANK; FUEL
CREW CAB(TF**W*) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATE MALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97179-917-3 01 1 0101-0108 ● ●
1 03.001 TANK; FUEL
CREW CAB(TF**W*) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATE MALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97179-917-5 01 1 0109- ● ● ●
1 03.001 TANK; FUEL
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) 		8-97179-915-1 01 1 9804-9904 ● ●
1 03.001 TANK; FUEL
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/CO STA RICA EQUIPMENT(7LD) (A) 		8-97179-915-1 01 1 9905-9908 ● ●
1 03.001 TANK; FUEL
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIP MENT(7LD) (A) 		8-97179-915-3 01 1 9909-0108 ● ●
1 03.001 TANK; FUEL
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT (X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIP MENT(7LD) (A) 		8-97179-915-5 01 1 0109- ● ● ●
1 03.001 TANK; FUEL
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) 		8-94334-505-6 01 1 9804-9904 ● ●
1 03.001 TANK; FUEL
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA R ICA EQUIPMENT(7LD) (A) 		8-94334-505-6 01 1 9905-9908 ● ●
1 03.001 TANK; FUEL
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) ELECTRIC FUEL INJECTION<6GG> SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) 		8-94334-505-7 01 1 9909-0105 ● ●
1 03.001 TANK; FUEL
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) ELECTRIC FUEL INJECTION<6GG> SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) 		8-97314-330-0 01 1 0106-0108 ● ●
1 03.001 TANK; FUEL
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) 		8-97314-330-0 01 1 0109-0202 ● ● ●
1 03.001 TANK; FUEL
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) 		8-97326-669-1 01 1 0203- ● ● ●
1 03.001 TANK; FUEL
SHORT(TF***C) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),GUATEMALA/COSTA RICA EQUIPM ENT(7LD) (B) 		8-94334-506-6 01 1 9804-9901 ●
1 03.001 TANK; FUEL
SHORT(TF***C) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) (B) 		8-94334-506-9 01 1 9902- ●
1 03.001 TANK; FUEL
SHORT(TF***C) EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97179-916-1 01 1 9804-9901 ●
1 03.001 TANK; FUEL
SHORT(TF***C) EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) (B) 		8-97179-916-5 01 1 9902- ●
3 03.107 UNIT; FUEL TANK,SUB
SHORT(TF***C) 03.001 		8-94318-396-0 01 1 9804-9903 ●
3 03.107 UNIT; FUEL TANK,SUB
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 CREW CAB(TFS6WF) 03.001 		8-94318-396-0 01 1 9804-9903 ● ●
3 03.107 UNIT; FUEL TANK,SUB
SHORT(TF***C) 03.001 		8-94318-396-0 01 1 9904- ●
3 03.107 UNIT; FUEL TANK,SUB
SHORT(TF***C) EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) 03.001 		8-94318-396-0 01 1 9904- ●
3 03.107 UNIT; FUEL TANK,SUB
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 03.001 		8-94318-398-0 01 1 9804-9812 ● ● ● ●
3 03.107 UNIT; FUEL TANK,SUB
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 03.001 		8-94318-398-0 01 1 9901-9903 ● ● ● ●
3 03.107 UNIT; FUEL TANK,SUB
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 03.001 		8-94318-398-0 01 1 9904- ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 9804-9812 ● ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
CREW CAB(TF**W*) CHINA CHONGQING EQUIPMENT(R5B) 03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 9804-9812 ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 9804-9812 ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 9901-9903 ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 9901-9903 ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 9904- ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
SHORT(TF***C) EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) 03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 9904- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 9804-9812 ● ● ● ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 9901-0105 ● ● ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9804-9812 ● ● ● ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9901-0105 ● ● ● ●
22 03.107 UNIT; FUEL TANK
CREW CAB(TF**W*) 03.001 		8-94318-396-0 01 1 9804-9812 ● ● ●
22 03.107 UNIT; FUEL TANK
CREW CAB(TF**W*) 03.001 		8-94318-396-0 01 1 9901-9903 ● ●
22 03.107 UNIT; FUEL TANK
CREW CAB(TF**W*) 03.001 		8-94318-396-0 01 1 9904-0108 ● ● ● ●
22 03.107 UNIT; FUEL TANK
SHORT(TF***C) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) 03.001 		8-94318-396-0 01 1 9904-0108 ●
22 03.107 UNIT; FUEL TANK
CREW CAB(TF**W*) 03.001 		8-94318-396-0 01 1 0109- ● ● ● ● ●
22 03.107 UNIT; FUEL TANK
SHORT(TF***C) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) 03.001 		8-94318-396-0 01 1 0109- ●
22 03.107 UNIT; FUEL TANK
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 03.001 		8-94318-398-0 01 1 9904-0108 ● ●
22 03.107 UNIT; FUEL TANK
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 03.001 		8-94318-398-0 01 1 0109- ● ● ●
35 03.107 SCREW; FUEL TANK UNIT
CREW CAB(TF**W*) 03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 9804-9812 ● ● ●
35 03.107 SCREW; FUEL TANK UNIT
CREW CAB(TF**W*) 03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 9901-9903 ● ●
35 03.107 SCREW; FUEL TANK UNIT
CREW CAB(TF**W*) 03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 9904-0108 ● ●
35 03.107 SCREW; FUEL TANK UNIT
03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 9904-0108 ●
35 03.107 SCREW; FUEL TANK UNIT
LONG(TF***F) 03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 9904-0108 ●
35 03.107 SCREW; FUEL TANK UNIT
SHORT(TF***C) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) 03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 9904-0108 ●
35 03.107 SCREW; FUEL TANK UNIT
CREW CAB(TF**W*) 03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 0109- ● ●
35 03.107 SCREW; FUEL TANK UNIT
03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 0109- ● ●
35 03.107 SCREW; FUEL TANK UNIT
LONG(TF***F) 03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 0109- ●
35 03.107 SCREW; FUEL TANK UNIT
SHORT(TF***C) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) 03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 0109- ●
68 03.145 HOSE; RUBBER,FUEL TANK TO EVAP P
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 03.163 L=90 SERVICED BY L=3000 		8-94128-826-0 02 1 9904-9904 ● ●
68 03.145 HOSE; RUBBER,FUEL TANK TO EVAP P
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 L=90 SERVICED BY L=3000 		8-94128-826-0 02 1 9905-0012 ● ●
68 03.145 HOSE; RUBBER,FUEL TANK TO EVAP P
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 L=90 SERVICED BY L=3000 		8-94128-826-0 02 1 0101-0108 ● ●
68 03.145 HOSE; RUBBER,FUEL TANK TO EVAP P
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 L=90 SERVICED BY L=3000 		8-94128-826-0 02 1 0109- ● ● ●
69 03.145 CLIP; FUEL TANK TO EVAP PIPE
SHORT(TF***C) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) 03.162 ID=8.5 		8-94166-071-0 04 1 9904-0205 ●
131 03.164 GASKET; SAFETY VENT
03.112 ID=42 OD=71 		5-83148-001-0 01 1 9804-9812 ● ● ● ● ●
131 03.164 GASKET; SAFETY VENT
03.112 ID=42 OD=71 		5-83148-001-0 01 1 9901-0109 ● ● ● ●
131 03.164 GASKET; SAFETY VENT
03.112 ID=42 OD=71 		5-83148-001-0 01 1 0110- ● ● ● ● ●
143 03.107 SCREW; FUEL PUMP
03.485 M5X10 W/LK WASHER 		9-03910-510-0 08 1 9804-9903 ● ●
143 03.107 SCREW; FUEL PUMP
SHORT(TF***C) EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) 03.485 M5X10 W/LK WASHER 		9-03910-510-0 08 1 9904- ●
158 03.164 VALVE; ROLL OVER & FLOAT
03.130 		8-94173-276-0 02 1 9804-9812 ● ● ●
158 03.164 VALVE; ROLL OVER & FLOAT
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 03.130 		8-94173-276-0 02 1 9901-9904 ● ●
158 03.164 VALVE; ROLL OVER & FLOAT
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.130 		8-94173-276-0 02 1 9905-0012 ● ●
158 03.164 VALVE; ROLL OVER & FLOAT
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.130 		8-94173-276-0 02 1 0101-0108 ● ●
158 03.164 VALVE; ROLL OVER & FLOAT
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.130 		8-94173-276-0 02 1 0109- ● ● ●
175 03.675 SEAL; VALVE
03.163 		8-94246-338-2 02 1 9804-9812 ● ● ●
175 03.675 SEAL; VALVE
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 03.163 		8-94246-338-2 02 1 9901-9904 ● ●
175 03.675 SEAL; VALVE
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 		8-94246-338-2 02 1 9905-0012 ● ●
175 03.675 SEAL; VALVE
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 		8-94246-338-2 02 1 0101-0108 ● ●
175 03.675 SEAL; VALVE
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 		8-94246-338-2 02 1 0109- ● ● ●
193 03.107 PUMP; FUEL 8-97131-843-0 01 1 9804-9903 ● ●
193 03.107 PUMP; FUEL 8-97220-798-0 01 1 9904-0012 ● ●
193 03.107 PUMP; FUEL
EXC. CHINA EQUIPMENT(YT2) 		8-97220-798-0 01 1 0101-0108 ● ●
193 03.107 PUMP; FUEL
EXC. CHINA EQUIPMENT(YT2) 		8-97220-798-0 01 1 0109- ● ● ●
193 03.107 PUMP; FUEL
CHINA EQUIPMENT(YT2) 		8-97209-385-0 01 1 0101-0108 ● ●
193 03.107 PUMP; FUEL
CHINA EQUIPMENT(YT2) 		8-97209-385-0 01 1 0109- ● ● ●
366 03.145 HOSE; EVAP
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 CREW CAB(TFS6WF) 03.163 L=90 SERVICED BY L=3000 		8-94128-826-0 02 1 9804-9812 ●
366 03.145 HOSE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 L=90 SERVICED BY L=3000 		8-94128-826-0 02 1 9804-9812 ●
366 03.145 HOSE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 L=90 SERVICED BY L=3000 		8-94128-826-0 02 1 9901-9903 ● ●
366 03.145 HOSE; EVAP
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 CREW CAB(TFS6WF) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 03.163 L=60 SERVICED BY L=3000 		8-94128-826-0 02 1 9804-9903 ● ●
400 03.162 CLIP; HOSE,EVAP
ID=8.5 		8-94166-071-0 03 1 9804-9812 ● ●
400 03.162 CLIP; HOSE,EVAP
EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT(R5B),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) ID=8.5 		8-94166-071-0 03 1 9804-9812 ● ●
400 03.162 CLIP; HOSE,EVAP
ID=8.5 		8-94166-071-0 03 1 9901-9904 ● ●
400 03.162 CLIP; HOSE,EVAP
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) ID=8.5 		8-94166-071-0 03 1 9901-9904 ● ●
400 03.162 CLIP; HOSE,EVAP
ID=8.5 		8-94166-071-0 03 1 9905-0012 ● ●
400 03.162 CLIP; HOSE,EVAP
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIP MENT(7LD) ID=8.5 		8-94166-071-0 03 1 9905-0012 ● ●
400 03.162 CLIP; HOSE,EVAP
ID=8.5 		8-94166-071-0 03 1 0101-0105 ● ●
400 03.162 CLIP; HOSE,EVAP
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATE MALA/COSTA RICA EQUIPMENT(7LD) ID=8.5 		8-94166-071-0 03 1 0101-0105 ● ●
400 03.162 CLIP; HOSE,EVAP
ID=8.5 		8-94166-071-0 02 1 0106-0108 ● ●
400 03.162 CLIP; HOSE,EVAP
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATE MALA/COSTA RICA EQUIPMENT(7LD) ID=8.5 		8-94166-071-0 02 1 0106-0108 ● ●
400 03.162 CLIP; HOSE,EVAP
ID=8.5 		8-94166-071-0 02 1 0109- ● ●
400 03.162 CLIP; HOSE,EVAP
EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATE MALA/COSTA RICA EQUIPMENT(7LD) ID=8.5 		8-94166-071-0 02 1 0109- ● ● ●
400 03.162 CLIP; HOSE,EVAP
ID=8.5 		8-94166-071-0 04 1 9804-9812 ● ● ●
400 03.162 CLIP; HOSE,EVAP
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) ID=8.5 		8-94166-071-0 04 1 9901-9903 ● ●
400 03.162 CLIP; HOSE,EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) ID=8.5 		8-94166-071-0 04 1 9904-9904 ● ●
400 03.162 CLIP; HOSE,EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA R ICA EQUIPMENT(7LD) ID=8.5 		8-94166-071-0 04 1 9905-9905 ● ●
400 03.162 CLIP; HOSE,EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) ELECTRIC FUEL INJECTION<6GG> ID=8.5 		8-94166-071-0 04 1 9905-0012 ● ●
400 03.162 CLIP; HOSE,EVAP
LONG(TF***F) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) ELECTRIC FUEL INJECTION<6GG> ID=8.5 		8-94166-071-0 04 1 0101-0108 ● ●
400 03.162 CLIP; HOSE,EVAP
LONG(TF***F) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) ID=8.5 		8-94166-071-0 04 1 0109-0205 ● ● ●
416 03.208 SCREW; PUMP FIX,ELEC FUEL PUMP
03.485 M5X10 W/LK WASHER 		9-03910-510-0 08 1 9904-0108 ●
416 03.208 SCREW; PUMP FIX,ELEC FUEL PUMP
LONG(TF***F) 03.485 M5X10 W/LK WASHER 		9-03910-510-0 08 1 9904-0108 ●
416 03.208 SCREW; PUMP FIX,ELEC FUEL PUMP
SHORT(TF***C) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) 03.485 M5X10 W/LK WASHER 		9-03910-510-0 08 1 9904-0108 ●
416 03.208 SCREW; PUMP FIX,ELEC FUEL PUMP
03.485 M5X10 W/LK WASHER 		9-03910-510-0 08 1 0109- ● ●
416 03.208 SCREW; PUMP FIX,ELEC FUEL PUMP
LONG(TF***F) 03.485 M5X10 W/LK WASHER 		9-03910-510-0 08 1 0109- ●
416 03.208 SCREW; PUMP FIX,ELEC FUEL PUMP
SHORT(TF***C) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) 03.485 M5X10 W/LK WASHER 		9-03910-510-0 08 1 0109- ●
418 03.107 GASKET; FUEL PUMP 8-94386-449-0 01 1 9804-0108 ● ●
418 03.107 GASKET; FUEL PUMP 8-94386-449-0 01 1 0109- ● ● ●
çizim 19390
319 318 313 319 489
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
313 03.890 CLIP; FUEL FILTER
ID=40 NYLON 		8-94223-523-0 01 1 9804-9812 ●
318 03.163 HOSE ASM; FUEL,DELIVERY,RETURN 8-97139-312-1 01 1 9804-9812 ●
319 03.163 CLIP; RUBBER HOSE
ID=11 		8-97173-219-0 02 1 9804-9812 ●
319 03.163 CLIP; RUBBER HOSE
03.162 ID=13 		8-97173-220-0 02 1 9804-0108 ●
319 03.163 CLIP; RUBBER HOSE
03.162 ID=13 		8-97173-220-0 02 1 0109- ● ●
489 03.164 VALVE; CONT
03.162 		8-97076-391-0 01 1 9804-9812 ●
489 03.164 VALVE; CONT
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 03.162 		8-97076-391-0 01 1 9804-9812 ● ●
489 03.164 VALVE; CONT
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 03.162 		8-97076-391-0 01 1 9901-9904 ● ●
489 03.164 VALVE; CONT
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.162 		8-97076-391-0 01 1 9905-0012 ● ●
489 03.164 VALVE; CONT
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.162 		8-97076-391-0 01 1 0101-0108 ● ●
489 03.164 VALVE; CONT
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.162 		8-97076-391-0 01 1 0109-0211 ● ● ●
489 03.164 VALVE; CONT
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.162 		8-97076-391-0 01 1 0212- ● ●
çizim 19734
314 314
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
314 03.163 HOSE; RUBBER,FUEL RETURN
SHORT(TF***C) 08.962 (A) L=440 SERVICED BY L=3000 		0-01254-300-0 01 1 9804-9909 ●
314 03.163 HOSE; RUBBER,FUEL RETURN
CREW CAB(TF**W*) EXC. TURBOCHARGER<K51> 08.962 (A) L=440 SERVICED BY L=3000 		0-01254-300-0 01 1 9804-9909 ●
314 03.163 HOSE; RUBBER,FUEL RETURN
CREW CAB(TF**W*) TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 08.962 (A) L=440 SERVICED BY L=3000 		0-01254-300-0 01 1 9804-9909 ●
314 03.163 HOSE; RUBBER,FUEL RETURN
CREW CAB(TF**W*) 08.962 (A) L=440 SERVICED BY L=3000 		0-01254-300-0 01 1 9804-9909 ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 CREW CAB(TFS6WF) 08.962 (A) L=440 SERVICED BY L=3000 		0-01254-300-0 01 1 9910-0209 ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 CREW CAB(TFS6WF) (A) L=440 		8-97351-532-0 01 1 0210- ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 08.962 (B) L=1060 SERVICED BY L=3000 		0-01254-300-0 01 1 9804-0209 ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) (B) L=1060 		8-97351-534-0 01 1 0210- ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
CREW CAB(TF**W*) 08.962 (C) L=500 SERVICED BY L=3000 		0-01254-300-0 01 1 9804-9812 ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SINGLE CAB LONG(TFB*SF) 08.962 (C) L=230 SERVICED BY L=3000 		0-01254-300-0 01 1 9804-9812 ●
314 03.163 HOSE; RUBBER,FUEL RETURN
SPACE CAB(TF**C*) (C) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9804- ●
314 03.163 HOSE; RUBBER,FUEL RETURN
SINGLE CAB(TF**S*) (C) L=400 SERVICED BY L=3000 		0-01256-300-0 01 1 9804-0108 ●
314 03.163 HOSE; RUBBER,FUEL RETURN
SINGLE CAB(TF**S*) (C) L=400 SERVICED BY L=3000 		0-01256-300-0 01 1 0109- ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
CREW CAB(TF**W*) (C) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 9804-0108 ●
314 03.163 HOSE; RUBBER,FUEL RETURN
CREW CAB(TF**W*) (C) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 0109- ● ●
çizim 71463
301 301 299 300 299 300 301
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
299 03.162 BRACKET; FUEL FILTER
ARGENTINA EQUIPMENT(7SZ) 		8-97142-691-0 01 1 9804-9901 ● ●
299 03.162 BRACKET; FUEL FILTER
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-97142-691-0 01 1 9902- ● ●
299 03.162 BRACKET; FUEL FILTER
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-94320-730-0 01 1 9804-9901 ● ●
299 03.162 BRACKET; FUEL FILTER
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94320-730-0 01 1 9902-9909 ● ●
299 03.162 BRACKET; FUEL FILTER
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97232-323-0 01 1 9910- ● ●
300 03.162 BOLT; BRKT TO BODY
01.062 M8X16 FLANGE 		0-28080-816-0 03 1 9804- ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
ARGENTINA EQUIPMENT(7SZ) 02.664 (A) M8X20 FLANGE 		0-28680-820-0 02 1 9804-9901 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 02.664 (A) M8X20 FLANGE 		0-28680-820-0 02 1 9902- ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
EXC. ARGENTINA EQUIPMENT(7SZ) 02.664 (A) M8X20 FLANGE 		0-28680-820-0 03 1 9804-9901 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 02.664 (A) M8X20 FLANGE 		0-28680-820-0 03 1 9902- ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
EXC. ARGENTINA EQUIPMENT(7SZ) (B) M10X35 FLANGE 		0-28681-035-0 02 1 9804-9901 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (B) M10X35 FLANGE 		0-28681-035-0 02 1 9902- ● ●

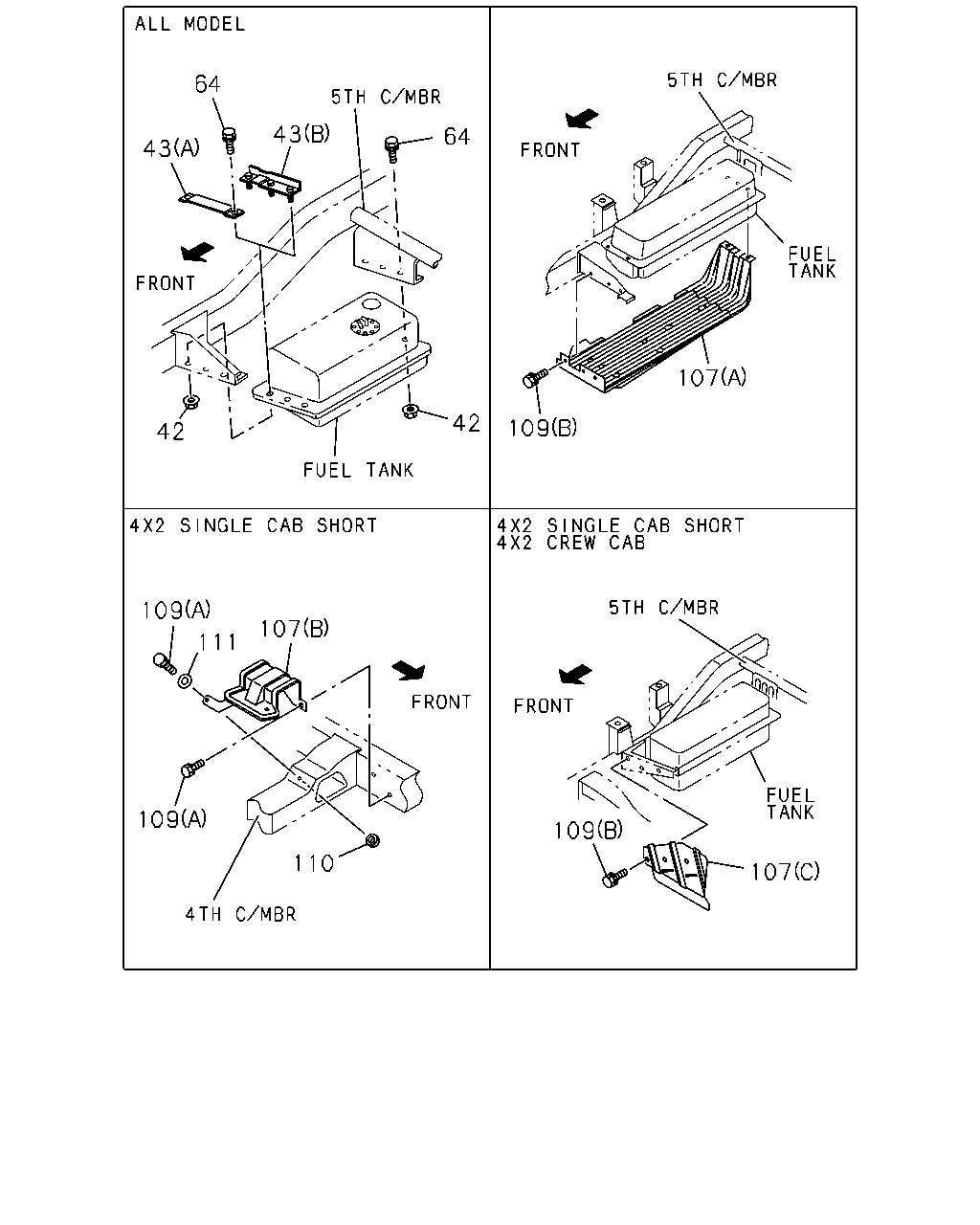

çizim 73861
64 43 64 43 107 42 109 42 109 107 111 109 109 110 107
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
42 03.023 NUT; SUPPORT BELT
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) M8 FLANGE 		8-94328-243-1 05 1 9804- ● ● ● ●
42 03.023 NUT; SUPPORT BELT
SINGLE CAB(TF**S*) M8 FLANGE 		8-94328-243-1 06 1 9804- ● ●
42 03.023 NUT; SUPPORT BELT
CREW CAB(TF**W*) M8 FLANGE 		8-94328-243-1 06 1 9804- ● ●
42 03.023 NUT; SUPPORT BELT
M8 FLANGE 		8-94328-243-1 06 1 9804- ●
43 03.015 BRACKET; FUEL TANK
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) (A) 		8-94328-269-0 01 1 9804- ● ● ● ●
43 03.015 BRACKET; FUEL TANK
SINGLE CAB(TF**S*) (B) 		8-94318-376-1 01 1 9804- ● ●
43 03.015 BRACKET; FUEL TANK
CREW CAB(TF**W*) (B) 		8-94318-376-1 01 1 9804- ● ●
43 03.015 BRACKET; FUEL TANK
(B) 		8-94318-376-1 01 1 9804- ●
64 03.023 BOLT; FUEL TANK
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 01.276 M8X24 		8-97034-130-1 05 1 9804- ● ● ● ●
64 03.023 BOLT; FUEL TANK
SINGLE CAB(TF**S*) 01.276 M8X24 		8-97034-130-1 03 1 9804- ● ●
64 03.023 BOLT; FUEL TANK
CREW CAB(TF**W*) 01.276 M8X24 		8-97034-130-1 03 1 9804- ● ●
64 03.023 BOLT; FUEL TANK
01.276 M8X24 		8-97034-130-1 03 1 9804- ●
107 03.602 PROTECTOR; HEAT,FUEL TANK
4X2 SHORT(TFB**C) (B) 		8-94331-703-0 01 1 9804- ●
107 03.602 PROTECTOR; HEAT,FUEL TANK
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 CREW CAB(TFB6WF) (C) 		8-94313-765-0 01 1 9804- ● ● ● ● ● ●
107 03.602 PROTECTOR; HEAT,FUEL TANK
4X4 SHORT(TFS**C) UNDER GUARD<ES7> (A) 		8-94434-724-1 01 1 9804-9909 ● ● ● ● ● ●
107 03.602 PROTECTOR; HEAT,FUEL TANK
4X4 SHORT(TFS**C) FUEL TANK GUARD<6LM> (A) 		8-94434-724-1 01 1 9910- ● ● ● ● ● ●
107 03.602 PROTECTOR; HEAT,FUEL TANK
4X4 CREW CAB(TFS*W*) UNDER GUARD<ES7> (A) 		8-97160-116-0 01 1 9804-9805 ● ● ● ● ● ●
107 03.602 PROTECTOR; HEAT,FUEL TANK
4X4 CREW CAB(TFS*W*) UNDER GUARD<ES7> (A) 		8-97211-786-0 01 1 9806-9909 ● ● ● ● ● ●
107 03.602 PROTECTOR; HEAT,FUEL TANK
4X4 CREW CAB(TFS*W*) FUEL TANK GUARD<6LM> (A) 		8-97211-786-0 01 1 9910- ● ● ● ● ● ●
107 03.602 PROTECTOR; HEAT,FUEL TANK
UNDER GUARD<ES7>,FUEL TANK GUARD<6LM> (A) 		8-94434-723-1 01 1 9804-9909 ● ● ●
107 03.602 PROTECTOR; HEAT,FUEL TANK
FUEL TANK GUARD<6LM> (A) 		8-94434-723-1 01 1 9804-9909 ●
107 03.602 PROTECTOR; HEAT,FUEL TANK
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) FUEL TANK GUARD<6LM> (A) 		8-94434-723-1 01 1 9910- ● ● ● ● ● ●
109 03.015 BOLT; HEAT PROTECTOR
4X2 SHORT(TFB**C) 04.686 (A) M6X16 W/LK WASHER 		0-50040-616-0 03 1 9804-0012 ●
109 03.015 BOLT; HEAT PROTECTOR
4X2 SHORT(TFB**C) 04.439 (A) M6X16 FLANGE 		0-28680-616-0 03 1 0101- ●
109 03.015 BOLT; HEAT PROTECTOR
UNDER GUARD<ES7>,FUEL TANK GUARD<6LM> 04.595 (B) M8X20 FLANGE 		0-28480-820-0 03 1 9804-9909 ● ● ● ● ●
109 03.015 BOLT; HEAT PROTECTOR
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) FUEL TANK GUARD<6LM> 04.595 (B) M8X20 FLANGE 		0-28480-820-0 03 1 9910- ● ● ● ● ● ●
109 03.015 BOLT; HEAT PROTECTOR
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 CREW CAB(TFB6WF) 04.595 (B) M8X20 FLANGE 		0-28480-820-0 03 1 9910- ● ● ● ● ● ●
110 03.602 NUT; PROTECTOR
4X2 SHORT(TFB**C) 16.176 M6 		9-09110-406-0 01 1 9804- ●
111 03.015 WASHER; PL,HEAT PROTECTOR
4X2 SHORT(TFB**C) 02.587 ID=6.4 OD=18 		9-09160-706-0 01 1 9804- ●

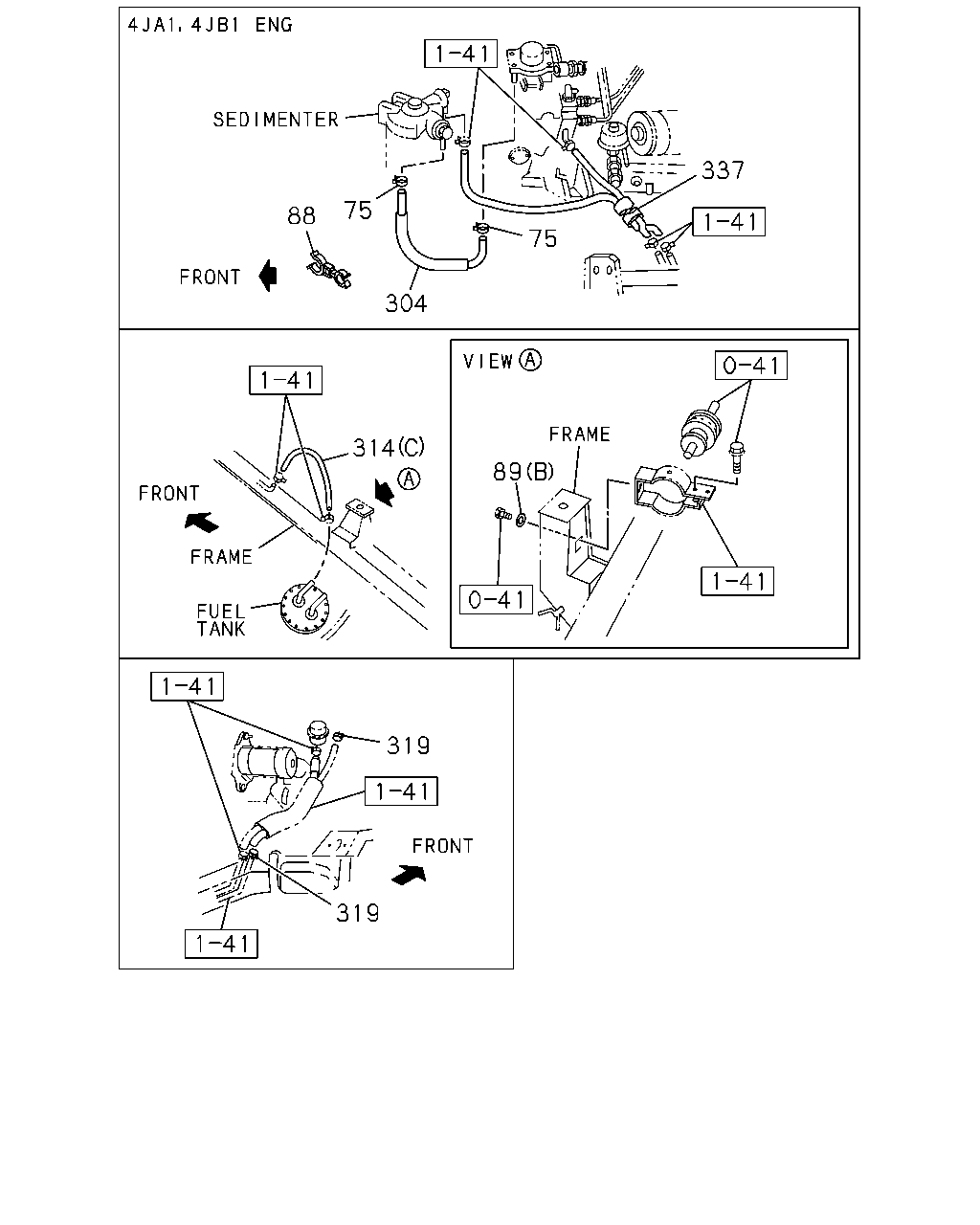

çizim 73862
337 75 88 75 304 314 89 319 319
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
75 03.162 CLIP; RUB HOSE
ARGENTINA EQUIPMENT(7SZ) 01.166 ID=14 		8-94238-572-0 02 1 9804-9901 ● ●
75 03.162 CLIP; RUB HOSE
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 01.166 ID=14 		8-94238-572-0 02 1 9902-0109 ● ●
88 03.162 CLIP; FUEL HOSE
04.661 ID=14.5 & 6 		8-94312-791-0 01 1 9804- ● ●
89 03.028 WASHER; PL,FILLER NECK
EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 06.760 (A) ID=8.4 OD=22 		9-09160-708-0 01 1 9804-9812 ●
89 03.028 WASHER; PL,FILLER NECK
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. RR BODY FLAT BED<RS6>,CHINA CHONGQING EQUIPMENT(R5B),RR BODY DOUBLE W ALL SIDE LOCK OUTER HOOK(S7S),RR BODYDBL WALL CTR PULL(6MW) 06.760 (A) ID=8.4 OD=22 		9-09160-708-0 01 1 9804-9812 ● ●
89 03.028 WASHER; PL,FILLER NECK
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),R R BODY DBL WALL CTR PULL(6MW) 06.760 (A) ID=8.4 OD=22 		9-09160-708-0 01 1 9901-9908 ● ●
89 03.028 WASHER; PL,FILLER NECK
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 06.760 (A) ID=8.4 OD=22 		9-09160-708-0 01 1 9909-0108 ● ●
89 03.028 WASHER; PL,FILLER NECK
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 06.760 (A) ID=8.4 OD=22 		9-09160-708-0 01 1 0109-0203 ● ● ●
89 03.028 WASHER; PL,FILLER NECK
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S), RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK (7TN) 06.760 (A) ID=8.4 OD=22 		9-09160-708-0 01 1 0204-0204 ● ● ● ● ●
89 03.028 WASHER; PL,FILLER NECK
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 06.760 (A) ID=8.4 OD=22 		9-09160-708-0 01 1 0205- ● ● ●
89 03.028 WASHER; PL,FILLER NECK
02.334 (B) ID=6.4 OD=22 		9-09164-806-0 01 1 9804-0108 ●
89 03.028 WASHER; PL,FILLER NECK
02.334 (B) ID=6.4 OD=22 		9-09164-806-0 01 1 0109- ● ●
304 03.163 HOSE; RUBBER,FUEL FILTER TO INJ
L=440 		8-94133-604-2 01 1 9804- ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
SHORT(TF***C) 08.962 (A) L=440 SERVICED BY L=3000 		0-01254-300-0 01 1 9804-9909 ●
314 03.163 HOSE; RUBBER,FUEL RETURN
CREW CAB(TF**W*) EXC. TURBOCHARGER<K51> 08.962 (A) L=440 SERVICED BY L=3000 		0-01254-300-0 01 1 9804-9909 ●
314 03.163 HOSE; RUBBER,FUEL RETURN
CREW CAB(TF**W*) TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 08.962 (A) L=440 SERVICED BY L=3000 		0-01254-300-0 01 1 9804-9909 ●
314 03.163 HOSE; RUBBER,FUEL RETURN
CREW CAB(TF**W*) 08.962 (A) L=440 SERVICED BY L=3000 		0-01254-300-0 01 1 9804-9909 ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 CREW CAB(TFS6WF) 08.962 (A) L=440 SERVICED BY L=3000 		0-01254-300-0 01 1 9910-0209 ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 CREW CAB(TFS6WF) (A) L=440 		8-97351-532-0 01 1 0210- ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 08.962 (B) L=1060 SERVICED BY L=3000 		0-01254-300-0 01 1 9804-0209 ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) (B) L=1060 		8-97351-534-0 01 1 0210- ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
CREW CAB(TF**W*) 08.962 (C) L=500 SERVICED BY L=3000 		0-01254-300-0 01 1 9804-9812 ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SINGLE CAB LONG(TFB*SF) 08.962 (C) L=230 SERVICED BY L=3000 		0-01254-300-0 01 1 9804-9812 ●
314 03.163 HOSE; RUBBER,FUEL RETURN
SPACE CAB(TF**C*) (C) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9804- ●
314 03.163 HOSE; RUBBER,FUEL RETURN
SINGLE CAB(TF**S*) (C) L=400 SERVICED BY L=3000 		0-01256-300-0 01 1 9804-0108 ●
314 03.163 HOSE; RUBBER,FUEL RETURN
SINGLE CAB(TF**S*) (C) L=400 SERVICED BY L=3000 		0-01256-300-0 01 1 0109- ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
CREW CAB(TF**W*) (C) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 9804-0108 ●
314 03.163 HOSE; RUBBER,FUEL RETURN
CREW CAB(TF**W*) (C) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 0109- ● ●
319 03.163 CLIP; RUBBER HOSE
ID=11 		8-97173-219-0 02 1 9804-9812 ●
319 03.163 CLIP; RUBBER HOSE
03.162 ID=13 		8-97173-220-0 02 1 9804-0108 ●
319 03.163 CLIP; RUBBER HOSE
03.162 ID=13 		8-97173-220-0 02 1 0109- ● ●
337 03.163 HOSE ASM; FUEL,DELIVERY & RETURN 8-94389-333-3 01 1 9804- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
