◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50801 - TFR/TFS-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#41788) — 406 parça

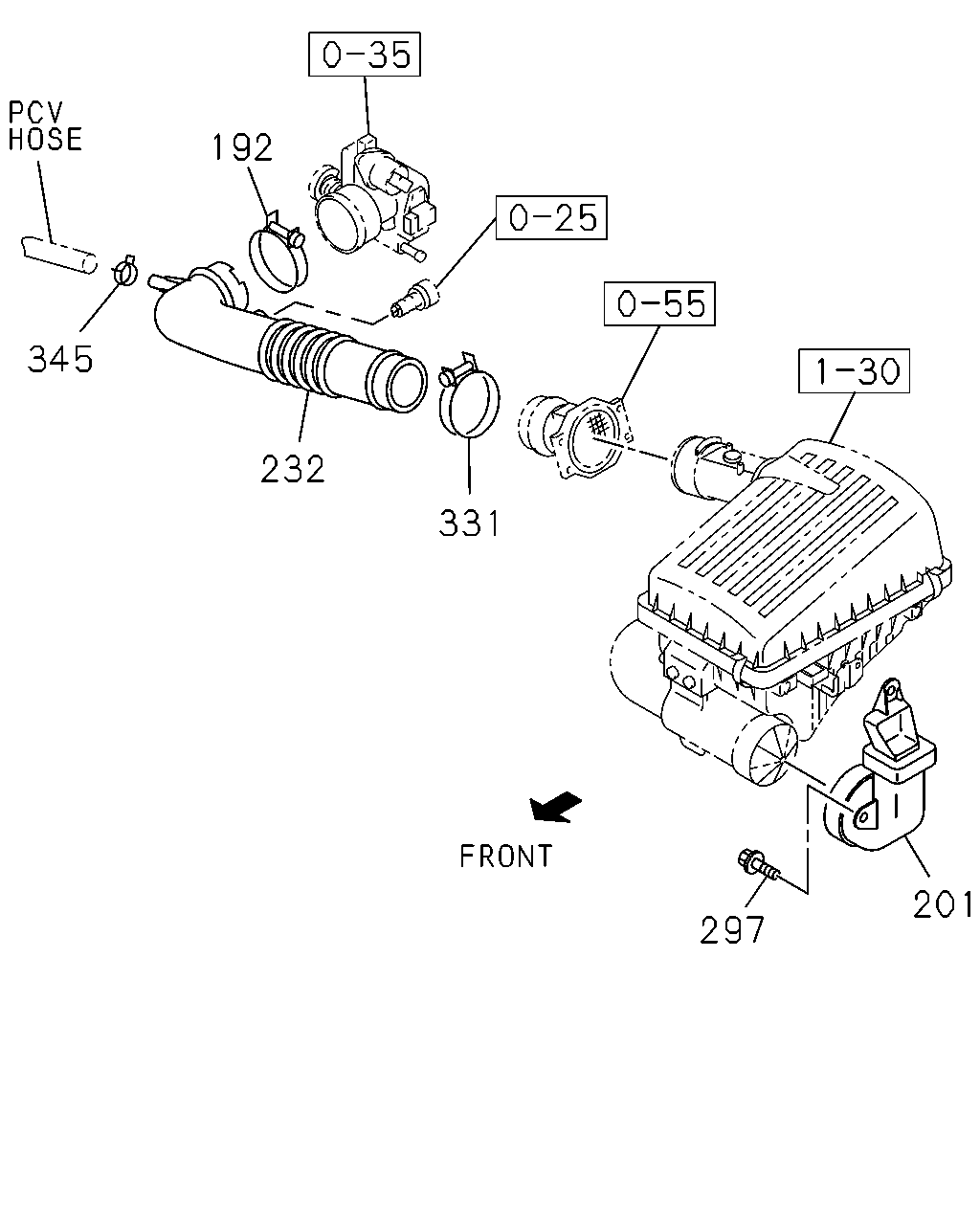

çizim 17142
192 345 232 331 201 297
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
192 03.407 CLIP; HOSE
03.374 ID=80 		8-94111-621-0 01 1 9804- ●
201 03.407 DUCT; SUB ACL 8-97181-844-1 01 1 9804- ●
232 03.417 HOSE; CONN 8-97130-563-3 01 1 9804- ●
232 03.417 HOSE; CONN 8-97130-900-3 01 1 9804-0108 ●
232 03.417 HOSE; CONN 8-97130-900-3 01 1 0109- ● ●
297 03.417 BOLT; DUCT
00.738 M6X16 FLANGE 		0-28080-616-0 02 1 9804-0108 ●
297 03.417 BOLT; DUCT
HEAVY DUTY AIR CLEANER<K46> 00.738 M6X16 FLANGE 		0-28080-616-0 02 1 9804-0108 ●
297 03.417 BOLT; DUCT
00.738 M6X16 FLANGE 		0-28080-616-0 02 1 0109- ●
297 03.417 BOLT; DUCT
HEAVY DUTY AIR CLEANER<K46> 00.738 M6X16 FLANGE 		0-28080-616-0 02 1 0109- ● ●
331 03.417 CLIP; CONN HOSE,AIR FLOW SENSOR
03.330 ID=90 		8-94156-938-0 01 1 9804-0305 ●
331 03.417 CLIP; CONN HOSE,AIR FLOW SENSOR
ID=90 		8-97367-377-0 01 1 0306- ●
345 03.417 CLIP; PCV HOSE
01.762 ID=19 		8-94238-569-0 01 1 9804- ●

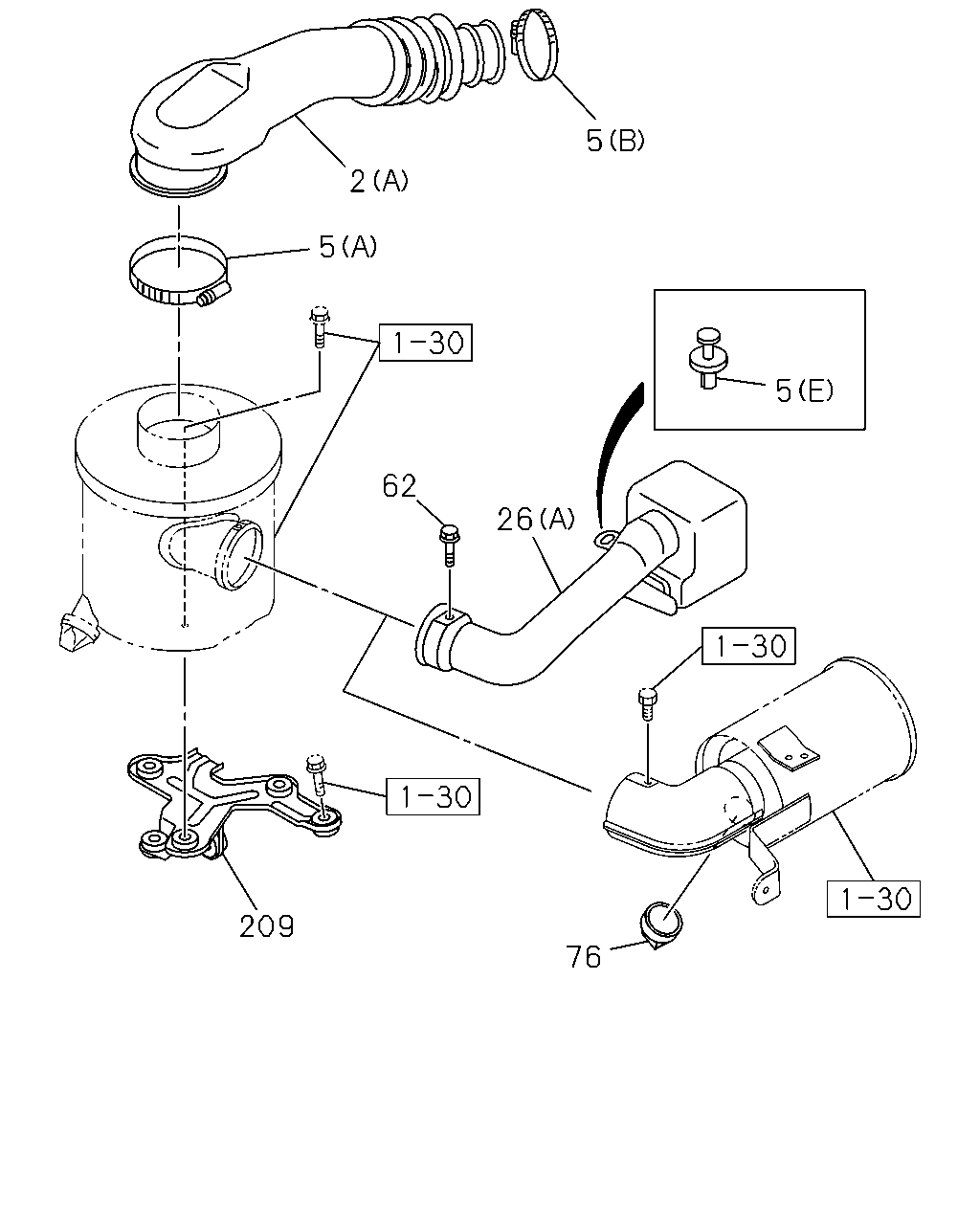

çizim 19530
5 2 5 5 62 26 209 76
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.417 HOSE; ACL
ARGENTINA EQUIPMENT(7SZ) (D) 		8-97131-727-0 01 1 9804-9901 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (D) 		8-97131-727-0 01 1 9804-9901 ●
2 03.417 HOSE; ACL
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (D) 		8-97131-727-0 01 1 9902-0009 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (D) 		8-97131-727-0 01 1 9902-0009 ●
2 03.417 HOSE; ACL
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (D) 		8-97131-727-0 01 1 0010-0109 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (D) 		8-97131-727-0 01 1 0010-0109 ●
2 03.417 HOSE; ACL
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (D) 		8-97131-727-0 01 1 0110- ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (D) 		8-97131-727-0 01 1 0110- ●
2 03.417 HOSE; ACL
ARGENTINA EQUIPMENT(7SZ) (C) 		8-97161-460-4 01 1 9804-9901 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (C) 		8-97161-460-4 01 1 9902-0009 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (C) 		8-97161-460-4 01 1 0010-0109 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (C) 		8-97161-460-4 01 1 0110- ●
2 03.417 HOSE; ACL
EXC. ARGENTINA EQUIPMENT(7SZ) 03.407 (A) 		8-94320-727-1 01 1 9804-9901 ●
2 03.417 HOSE; ACL
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 03.407 (A) 		8-94320-727-1 01 1 9902-0009 ●
2 03.417 HOSE; ACL
EXC. PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 03.407 (A) 		8-94320-727-1 01 1 0010-0106 ●
2 03.417 HOSE; ACL
EXC. PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 03.407 (A) 		8-94320-727-1 01 1 0107-0109 ●
2 03.417 HOSE; ACL
PHILIPPINE EQUIPMENT(S2U) EXC. TURBOCHARGER<K51> 03.407 (A) 		8-94320-727-1 01 1 0107-0109 ●
2 03.417 HOSE; ACL
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 03.407 (A) 		8-94320-727-1 01 1 0110- ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (B) 		8-97129-707-0 01 1 9804- ●
2 03.417 HOSE; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94321-187-2 01 1 9804-9812 ●
5 03.407 CLIP; AIR DUCT
ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9804-9901 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9804-9901 ●
5 03.407 CLIP; AIR DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9902-0009 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9902-0009 ●
5 03.407 CLIP; AIR DUCT
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 0010-0109 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 0010-0109 ●
5 03.407 CLIP; AIR DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 0110- ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 0110- ●
5 03.407 CLIP; AIR DUCT
ARGENTINA EQUIPMENT(7SZ) (C) ID=50-69 		8-94316-991-0 01 1 9804-9901 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 9804-9901 ●
5 03.407 CLIP; AIR DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 9902-0009 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 9902-0009 ●
5 03.407 CLIP; AIR DUCT
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 0010-0109 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 0010-0109 ●
5 03.407 CLIP; AIR DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
ARGENTINA EQUIPMENT(7SZ) (D) ID=68-85 		8-94320-428-0 01 1 9804-9901 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 9804-9901 ●
5 03.407 CLIP; AIR DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 9902-0009 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 9902-0009 ●
5 03.407 CLIP; AIR DUCT
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 0010-0109 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 0010-0109 ●
5 03.407 CLIP; AIR DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
EXC. ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 9804-9812 ●
5 03.407 CLIP; AIR DUCT
CHINA CHONGQING EQUIPMENT(R5B) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 9804-9812 ●
5 03.407 CLIP; AIR DUCT
EXC. ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 9901-9901 ●
5 03.407 CLIP; AIR DUCT
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 9902-0009 ●
5 03.407 CLIP; AIR DUCT
EXC. PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 0010-0106 ●
5 03.407 CLIP; AIR DUCT
EXC. PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 0107-0109 ●
5 03.407 CLIP; AIR DUCT
PHILIPPINE EQUIPMENT(S2U) EXC. TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 01 1 0107-0109 ●
5 03.407 CLIP; AIR DUCT
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 9804- ● ●
5 03.407 CLIP; AIR DUCT
03.003 (E) D6X11 POP RIVET 		8-94298-119-0 01 1 9804- ● ●
5 03.407 CLIP; AIR DUCT
03.417 		8-94216-977-0 01 1 9804-9812 ●
26 03.417 DUCT; AIR INT
ARGENTINA EQUIPMENT(7SZ) (C) 		8-94382-047-2 01 1 9804-9901 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9804-9901 ●
26 03.417 DUCT; AIR INT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9902-0009 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9902-0009 ●
26 03.417 DUCT; AIR INT
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 0010-0109 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 0010-0109 ●
26 03.417 DUCT; AIR INT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 0110- ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 0110- ●
26 03.417 DUCT; AIR INT
ARGENTINA EQUIPMENT(7SZ) (B) 		8-97128-956-2 01 1 9804-9901 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 9804-9901 ●
26 03.417 DUCT; AIR INT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 9902-0009 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 9902-0009 ●
26 03.417 DUCT; AIR INT
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 0010-0109 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 0010-0109 ●
26 03.417 DUCT; AIR INT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 0110- ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 0110- ●
26 03.417 DUCT; AIR INT
(A) 		8-97161-656-0 01 1 9804-0012 ● ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-97161-656-0 01 1 0101- ● ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46>, ELECTRIC FUEL INJECTION<6GG> 		8-94321-842-0 01 1 9804-9812 ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (D) 		8-97174-583-1 01 1 9804-0108 ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (D) 		8-97174-583-1 01 1 0109- ● ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (E) 		8-97184-692-0 01 1 9804-0108 ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (E) 		8-97184-692-0 01 1 0109- ● ●
62 03.417 BOLT; AIR INT DUCT
ARGENTINA EQUIPMENT(7SZ) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9901 ●
62 03.417 BOLT; AIR INT DUCT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9901 ●
62 03.417 BOLT; AIR INT DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9902-0009 ●
62 03.417 BOLT; AIR INT DUCT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9902-0009 ●
62 03.417 BOLT; AIR INT DUCT
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0010-0109 ●
62 03.417 BOLT; AIR INT DUCT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0010-0109 ●
62 03.417 BOLT; AIR INT DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ●
62 03.417 BOLT; AIR INT DUCT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9804- ● ●
62 03.417 BOLT; AIR INT DUCT
EXC. HEAVY DUTY AIR CLEANER<K46> 07.832 M6X16 		8-97020-619-0 02 1 9804-0108 ●
62 03.417 BOLT; AIR INT DUCT
EXC. HEAVY DUTY AIR CLEANER<K46> 07.832 M6X16 		8-97020-619-0 02 1 0109- ● ●
76 03.403 VALVE; PRE ACL
HEAVY DUTY AIR CLEANER<K46> 03.415 		8-94447-157-0 01 1 0101- ● ●
209 03.405 BRACKET; ACL 8-97131-733-0 01 1 9804- ● ●
209 03.405 BRACKET; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. ELECTRIC FUEL INJECTION<6GG> ID=14 		8-94370-320-0 01 1 9804-9812 ●

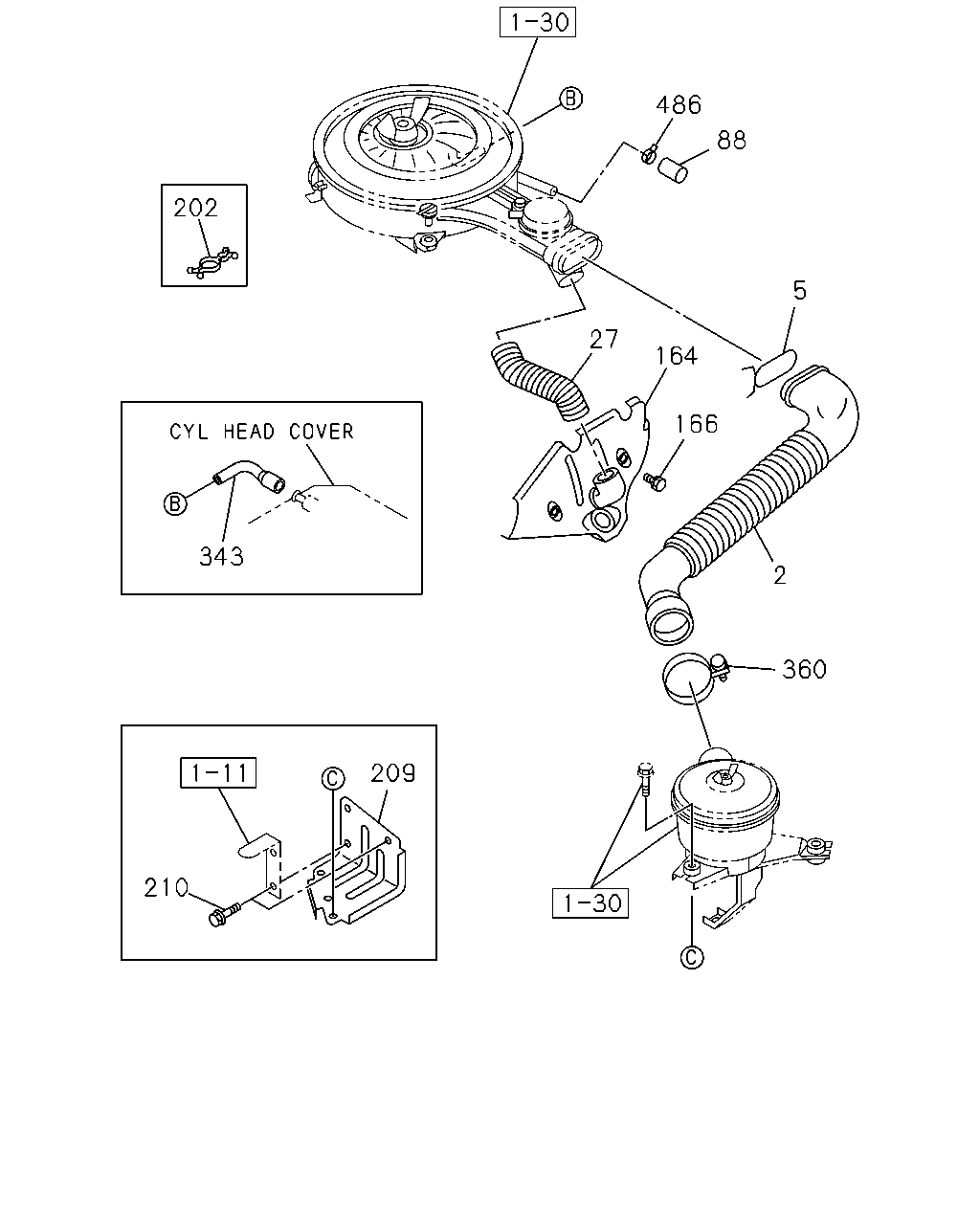

çizim 69315
486 88 202 5 27 164 166 343 2 360 209 210
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.417 HOSE; ACL
ARGENTINA EQUIPMENT(7SZ) (D) 		8-97131-727-0 01 1 9804-9901 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (D) 		8-97131-727-0 01 1 9804-9901 ●
2 03.417 HOSE; ACL
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (D) 		8-97131-727-0 01 1 9902-0009 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (D) 		8-97131-727-0 01 1 9902-0009 ●
2 03.417 HOSE; ACL
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (D) 		8-97131-727-0 01 1 0010-0109 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (D) 		8-97131-727-0 01 1 0010-0109 ●
2 03.417 HOSE; ACL
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (D) 		8-97131-727-0 01 1 0110- ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (D) 		8-97131-727-0 01 1 0110- ●
2 03.417 HOSE; ACL
ARGENTINA EQUIPMENT(7SZ) (C) 		8-97161-460-4 01 1 9804-9901 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (C) 		8-97161-460-4 01 1 9902-0009 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (C) 		8-97161-460-4 01 1 0010-0109 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (C) 		8-97161-460-4 01 1 0110- ●
2 03.417 HOSE; ACL
EXC. ARGENTINA EQUIPMENT(7SZ) 03.407 (A) 		8-94320-727-1 01 1 9804-9901 ●
2 03.417 HOSE; ACL
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 03.407 (A) 		8-94320-727-1 01 1 9902-0009 ●
2 03.417 HOSE; ACL
EXC. PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 03.407 (A) 		8-94320-727-1 01 1 0010-0106 ●
2 03.417 HOSE; ACL
EXC. PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 03.407 (A) 		8-94320-727-1 01 1 0107-0109 ●
2 03.417 HOSE; ACL
PHILIPPINE EQUIPMENT(S2U) EXC. TURBOCHARGER<K51> 03.407 (A) 		8-94320-727-1 01 1 0107-0109 ●
2 03.417 HOSE; ACL
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 03.407 (A) 		8-94320-727-1 01 1 0110- ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (B) 		8-97129-707-0 01 1 9804- ●
2 03.417 HOSE; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94321-187-2 01 1 9804-9812 ●
5 03.407 CLIP; AIR DUCT
ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9804-9901 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9804-9901 ●
5 03.407 CLIP; AIR DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9902-0009 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9902-0009 ●
5 03.407 CLIP; AIR DUCT
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 0010-0109 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 0010-0109 ●
5 03.407 CLIP; AIR DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 0110- ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 0110- ●
5 03.407 CLIP; AIR DUCT
ARGENTINA EQUIPMENT(7SZ) (C) ID=50-69 		8-94316-991-0 01 1 9804-9901 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 9804-9901 ●
5 03.407 CLIP; AIR DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 9902-0009 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 9902-0009 ●
5 03.407 CLIP; AIR DUCT
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 0010-0109 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 0010-0109 ●
5 03.407 CLIP; AIR DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
ARGENTINA EQUIPMENT(7SZ) (D) ID=68-85 		8-94320-428-0 01 1 9804-9901 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 9804-9901 ●
5 03.407 CLIP; AIR DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 9902-0009 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 9902-0009 ●
5 03.407 CLIP; AIR DUCT
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 0010-0109 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 0010-0109 ●
5 03.407 CLIP; AIR DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
EXC. ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 9804-9812 ●
5 03.407 CLIP; AIR DUCT
CHINA CHONGQING EQUIPMENT(R5B) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 9804-9812 ●
5 03.407 CLIP; AIR DUCT
EXC. ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 9901-9901 ●
5 03.407 CLIP; AIR DUCT
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 9902-0009 ●
5 03.407 CLIP; AIR DUCT
EXC. PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 0010-0106 ●
5 03.407 CLIP; AIR DUCT
EXC. PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 0107-0109 ●
5 03.407 CLIP; AIR DUCT
PHILIPPINE EQUIPMENT(S2U) EXC. TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 01 1 0107-0109 ●
5 03.407 CLIP; AIR DUCT
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 9804- ● ●
5 03.407 CLIP; AIR DUCT
03.003 (E) D6X11 POP RIVET 		8-94298-119-0 01 1 9804- ● ●
5 03.407 CLIP; AIR DUCT
03.417 		8-94216-977-0 01 1 9804-9812 ●
27 03.417 HOSE; HOT AIR,ACL 8-94324-193-1 01 1 9804-9812 ●
88 03.407 CAP; RUBBER,AIR DUCT
03.672 ID=5.4 		8-94156-209-0 01 1 9804-9812 ●
164 03.602 COVER; HEAT PROTECTOR 8-97083-580-1 01 1 9804-9812 ●
166 03.405 BOLT; HEAT PROTECTOR TO C/BL
M8X14 W/LK WASHERT 		8-94370-634-0 03 1 9804-9812 ●
202 03.417 CLIP; HIGH TENSION CABLE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. ELECTRIC FUEL INJECTION<6GG> 09.276 ID=30 & 8 		8-94167-439-0 01 1 9804-9812 ●
209 03.405 BRACKET; ACL 8-97131-733-0 01 1 9804- ● ●
209 03.405 BRACKET; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. ELECTRIC FUEL INJECTION<6GG> ID=14 		8-94370-320-0 01 1 9804-9812 ●
210 03.405 BOLT; ACL BRKT
HEAVY DUTY AIR CLEANER<K46> EXC. ELECTRIC FUEL INJECTION<6GG> 08.077 M6X18 		8-94408-386-1 03 1 9804-9812 ●
343 03.417 HOSE; ACL TO CYL HD COVER 8-94175-084-2 01 1 9804-9812 ●
360 03.403 CLIP; DUCT TO SUB ACL
HEAVY DUTY AIR CLEANER<K46> EXC. ELECTRIC FUEL INJECTION<6GG> 03.417 ID=58-79 		8-94126-771-0 01 1 9804-9812 ●
486 02.559 CLIP; CAP
03.163 ID=11 		8-94238-570-0 01 1 9804-9812 ●

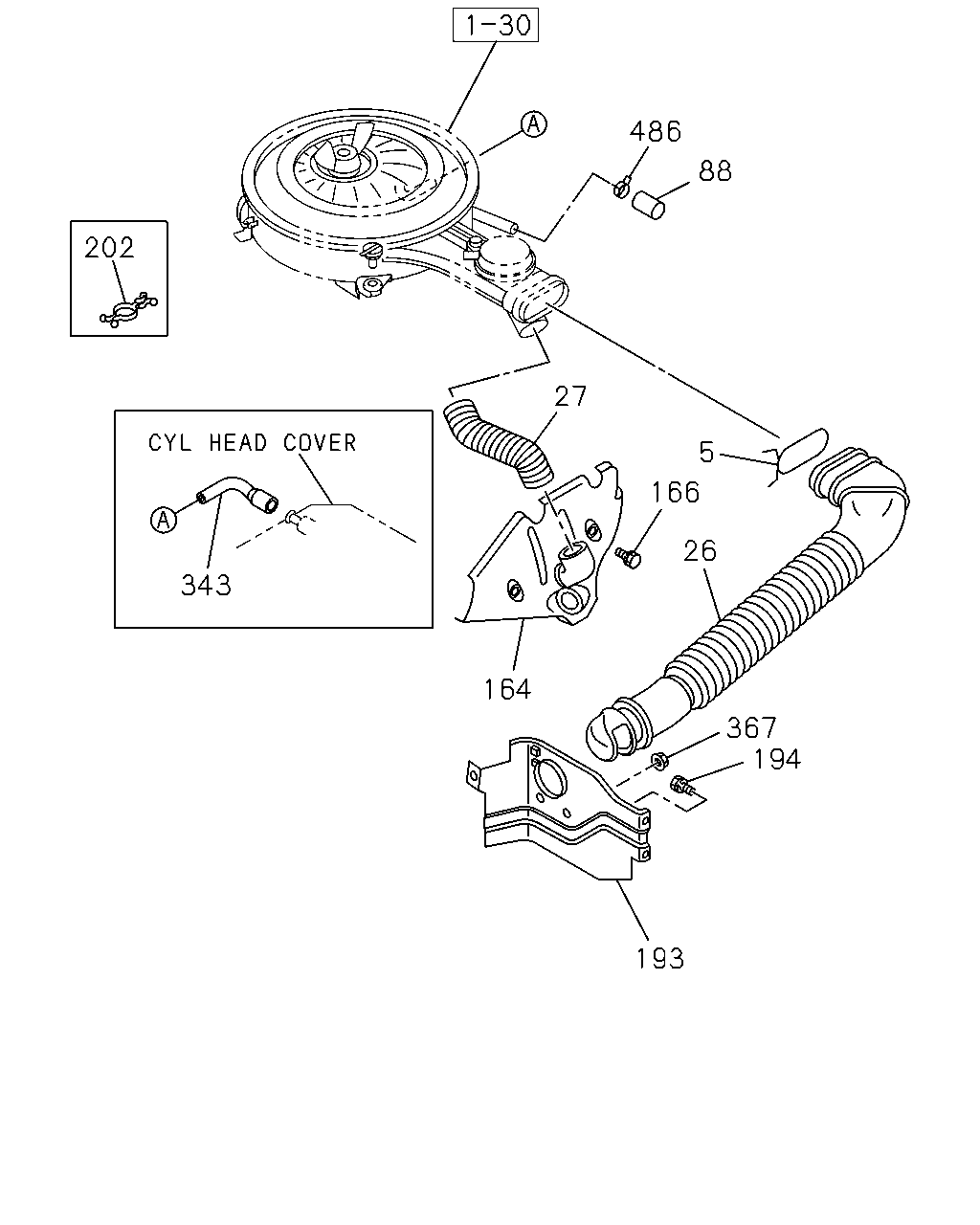

çizim 69719
486 88 202 27 5 166 26 343 164 367 194 193
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9804-9901 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9804-9901 ●
5 03.407 CLIP; AIR DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9902-0009 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9902-0009 ●
5 03.407 CLIP; AIR DUCT
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 0010-0109 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 0010-0109 ●
5 03.407 CLIP; AIR DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 0110- ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 0110- ●
5 03.407 CLIP; AIR DUCT
ARGENTINA EQUIPMENT(7SZ) (C) ID=50-69 		8-94316-991-0 01 1 9804-9901 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 9804-9901 ●
5 03.407 CLIP; AIR DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 9902-0009 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 9902-0009 ●
5 03.407 CLIP; AIR DUCT
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 0010-0109 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 0010-0109 ●
5 03.407 CLIP; AIR DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
ARGENTINA EQUIPMENT(7SZ) (D) ID=68-85 		8-94320-428-0 01 1 9804-9901 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 9804-9901 ●
5 03.407 CLIP; AIR DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 9902-0009 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 9902-0009 ●
5 03.407 CLIP; AIR DUCT
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 0010-0109 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 0010-0109 ●
5 03.407 CLIP; AIR DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
EXC. ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 9804-9812 ●
5 03.407 CLIP; AIR DUCT
CHINA CHONGQING EQUIPMENT(R5B) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 9804-9812 ●
5 03.407 CLIP; AIR DUCT
EXC. ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 9901-9901 ●
5 03.407 CLIP; AIR DUCT
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 9902-0009 ●
5 03.407 CLIP; AIR DUCT
EXC. PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 0010-0106 ●
5 03.407 CLIP; AIR DUCT
EXC. PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 0107-0109 ●
5 03.407 CLIP; AIR DUCT
PHILIPPINE EQUIPMENT(S2U) EXC. TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 01 1 0107-0109 ●
5 03.407 CLIP; AIR DUCT
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 9804- ● ●
5 03.407 CLIP; AIR DUCT
03.003 (E) D6X11 POP RIVET 		8-94298-119-0 01 1 9804- ● ●
5 03.407 CLIP; AIR DUCT
03.417 		8-94216-977-0 01 1 9804-9812 ●
26 03.417 DUCT; AIR INT
ARGENTINA EQUIPMENT(7SZ) (C) 		8-94382-047-2 01 1 9804-9901 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9804-9901 ●
26 03.417 DUCT; AIR INT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9902-0009 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9902-0009 ●
26 03.417 DUCT; AIR INT
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 0010-0109 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 0010-0109 ●
26 03.417 DUCT; AIR INT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 0110- ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 0110- ●
26 03.417 DUCT; AIR INT
ARGENTINA EQUIPMENT(7SZ) (B) 		8-97128-956-2 01 1 9804-9901 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 9804-9901 ●
26 03.417 DUCT; AIR INT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 9902-0009 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 9902-0009 ●
26 03.417 DUCT; AIR INT
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 0010-0109 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 0010-0109 ●
26 03.417 DUCT; AIR INT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 0110- ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 0110- ●
26 03.417 DUCT; AIR INT
(A) 		8-97161-656-0 01 1 9804-0012 ● ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-97161-656-0 01 1 0101- ● ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46>, ELECTRIC FUEL INJECTION<6GG> 		8-94321-842-0 01 1 9804-9812 ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (D) 		8-97174-583-1 01 1 9804-0108 ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (D) 		8-97174-583-1 01 1 0109- ● ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (E) 		8-97184-692-0 01 1 9804-0108 ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (E) 		8-97184-692-0 01 1 0109- ● ●
27 03.417 HOSE; HOT AIR,ACL 8-94324-193-1 01 1 9804-9812 ●
88 03.407 CAP; RUBBER,AIR DUCT
03.672 ID=5.4 		8-94156-209-0 01 1 9804-9812 ●
164 03.602 COVER; HEAT PROTECTOR 8-97083-580-1 01 1 9804-9812 ●
166 03.405 BOLT; HEAT PROTECTOR TO C/BL
M8X14 W/LK WASHERT 		8-94370-634-0 03 1 9804-9812 ●
193 03.417 COVER; DUCT,AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46>, ELECTRIC FUEL INJECTION<6GG> 		8-94435-046-3 01 1 9804-9812 ●
194 03.417 BOLT; DUCT COVER
EXC. HEAVY DUTY AIR CLEANER<K46>, ELECTRIC FUEL INJECTION<6GG> 08.077 M6X18 		8-94408-386-1 03 1 9804-9812 ●
202 03.417 CLIP; HIGH TENSION CABLE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. ELECTRIC FUEL INJECTION<6GG> 09.276 ID=30 & 8 		8-94167-439-0 01 1 9804-9812 ●
343 03.417 HOSE; ACL TO CYL HD COVER 8-94175-084-2 01 1 9804-9812 ●
367 03.417 NUT; DUCT COVER
EXC. HEAVY DUTY AIR CLEANER<K46>, ELECTRIC FUEL INJECTION<6GG> 07.829 M6 FLANGE 		5-09440-004-0 01 1 9804-9812 ●
486 02.559 CLIP; CAP
03.163 ID=11 		8-94238-570-0 01 1 9804-9812 ●

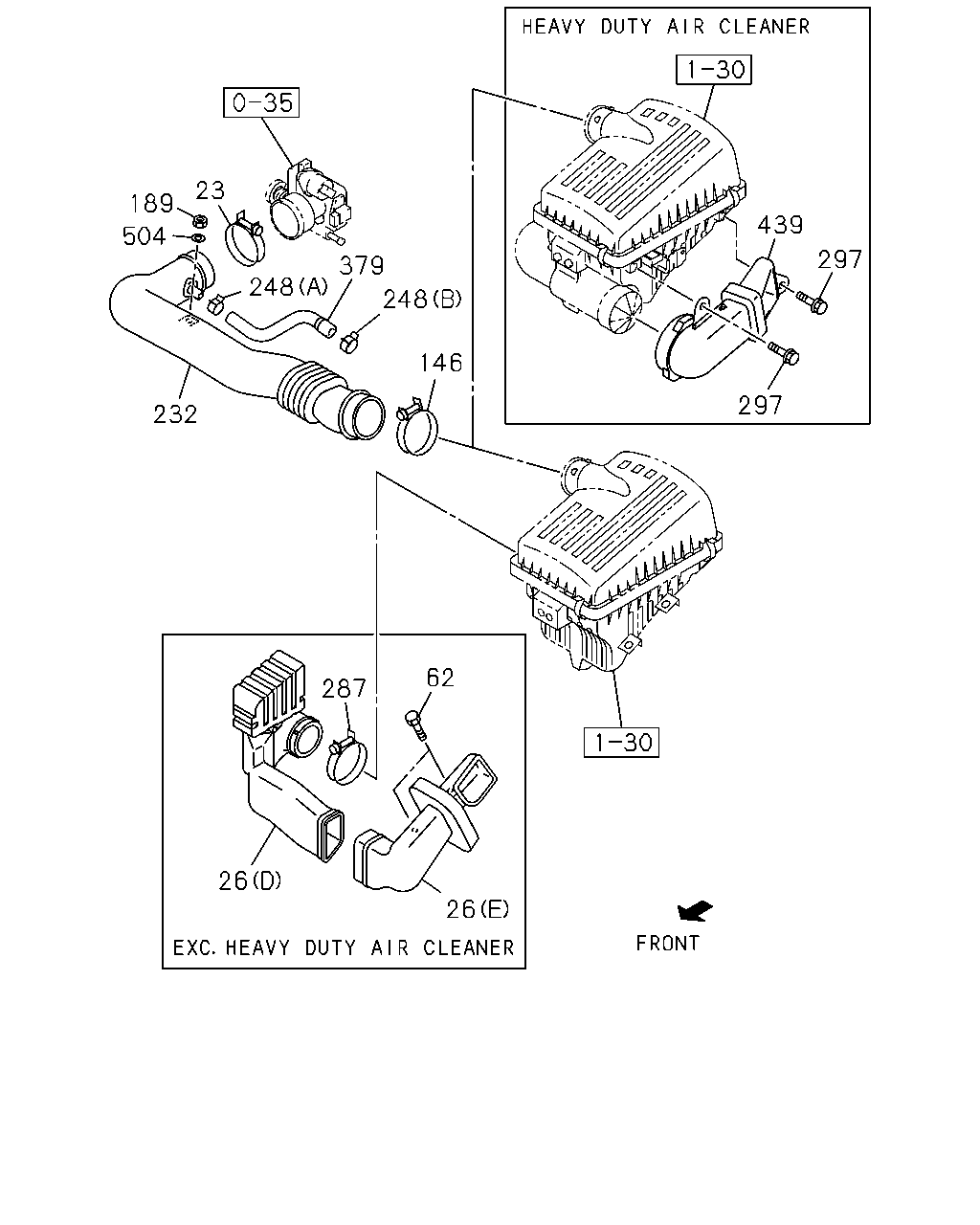

çizim 69793
23 189 439 504 297 379 248 248 146 297 232 62 287 26 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
23 03.417 CLIP; HOSE
03.407 ID=75 		8-94101-706-0 01 1 9804-0108 ●
23 03.417 CLIP; HOSE
03.407 ID=75 		8-94101-706-0 01 1 0109- ● ●
26 03.417 DUCT; AIR INT
ARGENTINA EQUIPMENT(7SZ) (C) 		8-94382-047-2 01 1 9804-9901 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9804-9901 ●
26 03.417 DUCT; AIR INT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9902-0009 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9902-0009 ●
26 03.417 DUCT; AIR INT
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 0010-0109 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 0010-0109 ●
26 03.417 DUCT; AIR INT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 0110- ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 0110- ●
26 03.417 DUCT; AIR INT
ARGENTINA EQUIPMENT(7SZ) (B) 		8-97128-956-2 01 1 9804-9901 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 9804-9901 ●
26 03.417 DUCT; AIR INT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 9902-0009 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 9902-0009 ●
26 03.417 DUCT; AIR INT
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 0010-0109 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 0010-0109 ●
26 03.417 DUCT; AIR INT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 0110- ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 0110- ●
26 03.417 DUCT; AIR INT
(A) 		8-97161-656-0 01 1 9804-0012 ● ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-97161-656-0 01 1 0101- ● ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46>, ELECTRIC FUEL INJECTION<6GG> 		8-94321-842-0 01 1 9804-9812 ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (D) 		8-97174-583-1 01 1 9804-0108 ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (D) 		8-97174-583-1 01 1 0109- ● ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (E) 		8-97184-692-0 01 1 9804-0108 ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (E) 		8-97184-692-0 01 1 0109- ● ●
62 03.417 BOLT; AIR INT DUCT
ARGENTINA EQUIPMENT(7SZ) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9901 ●
62 03.417 BOLT; AIR INT DUCT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9901 ●
62 03.417 BOLT; AIR INT DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9902-0009 ●
62 03.417 BOLT; AIR INT DUCT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9902-0009 ●
62 03.417 BOLT; AIR INT DUCT
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0010-0109 ●
62 03.417 BOLT; AIR INT DUCT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0010-0109 ●
62 03.417 BOLT; AIR INT DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ●
62 03.417 BOLT; AIR INT DUCT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9804- ● ●
62 03.417 BOLT; AIR INT DUCT
EXC. HEAVY DUTY AIR CLEANER<K46> 07.832 M6X16 		8-97020-619-0 02 1 9804-0108 ●
62 03.417 BOLT; AIR INT DUCT
EXC. HEAVY DUTY AIR CLEANER<K46> 07.832 M6X16 		8-97020-619-0 02 1 0109- ● ●
146 03.417 CLIP; HOSE,ACL
03.330 ID=90 		8-94156-938-0 01 1 9804-0108 ●
146 03.417 CLIP; HOSE,ACL
03.330 ID=90 		8-94156-938-0 01 1 0109-0305 ● ●
146 03.417 CLIP; HOSE,ACL
ID=90 		8-97367-377-0 01 1 0306- ● ●
189 03.403 NUT; BRKT,INL HOSE
16.682 M8 FLANGE 		8-94279-518-0 01 1 9804-0108 ●
189 03.403 NUT; BRKT,INL HOSE
16.682 M8 FLANGE 		8-94279-518-0 01 1 0109- ● ●
232 03.417 HOSE; CONN 8-97130-563-3 01 1 9804- ●
232 03.417 HOSE; CONN 8-97130-900-3 01 1 9804-0108 ●
232 03.417 HOSE; CONN 8-97130-900-3 01 1 0109- ● ●
248 03.417 CLIP; RUBBER HOSE
08.846 (A) ID=22 		8-94382-401-0 01 1 9804-0108 ●
248 03.417 CLIP; RUBBER HOSE
08.846 (A) ID=22 		8-94382-401-0 01 1 0109- ● ●
248 03.417 CLIP; RUBBER HOSE
01.150 (B) ID=24 		8-97010-605-0 01 1 9804-0108 ●
248 03.417 CLIP; RUBBER HOSE
01.150 (B) ID=24 		8-97010-605-0 01 1 0109- ● ●
287 03.417 CLIP; AIR DUCT
EXC. HEAVY DUTY AIR CLEANER<K46> 03.407 ID=75 		8-94101-706-0 01 1 9804-0108 ●
287 03.417 CLIP; AIR DUCT
EXC. HEAVY DUTY AIR CLEANER<K46> 03.407 ID=75 		8-94101-706-0 01 1 0109- ● ●
297 03.417 BOLT; DUCT
00.738 M6X16 FLANGE 		0-28080-616-0 02 1 9804-0108 ●
297 03.417 BOLT; DUCT
HEAVY DUTY AIR CLEANER<K46> 00.738 M6X16 FLANGE 		0-28080-616-0 02 1 9804-0108 ●
297 03.417 BOLT; DUCT
00.738 M6X16 FLANGE 		0-28080-616-0 02 1 0109- ●
297 03.417 BOLT; DUCT
HEAVY DUTY AIR CLEANER<K46> 00.738 M6X16 FLANGE 		0-28080-616-0 02 1 0109- ● ●
379 03.675 HOSE; RUBBER 8-97168-152-0 01 1 9804-0108 ●
379 03.675 HOSE; RUBBER 8-97168-152-0 01 1 0109- ● ●
439 03.417 DUCT; AIR,ACL
HEAVY DUTY AIR CLEANER<K46> 03.407 		8-97181-844-1 01 1 9804-0108 ●
439 03.417 DUCT; AIR,ACL
HEAVY DUTY AIR CLEANER<K46> 03.407 		8-97181-844-1 01 1 0109- ● ●
504 03.417 WASHER; PL,HOSE
06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 9804-0108 ●
504 03.417 WASHER; PL,HOSE
06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 0109- ● ●

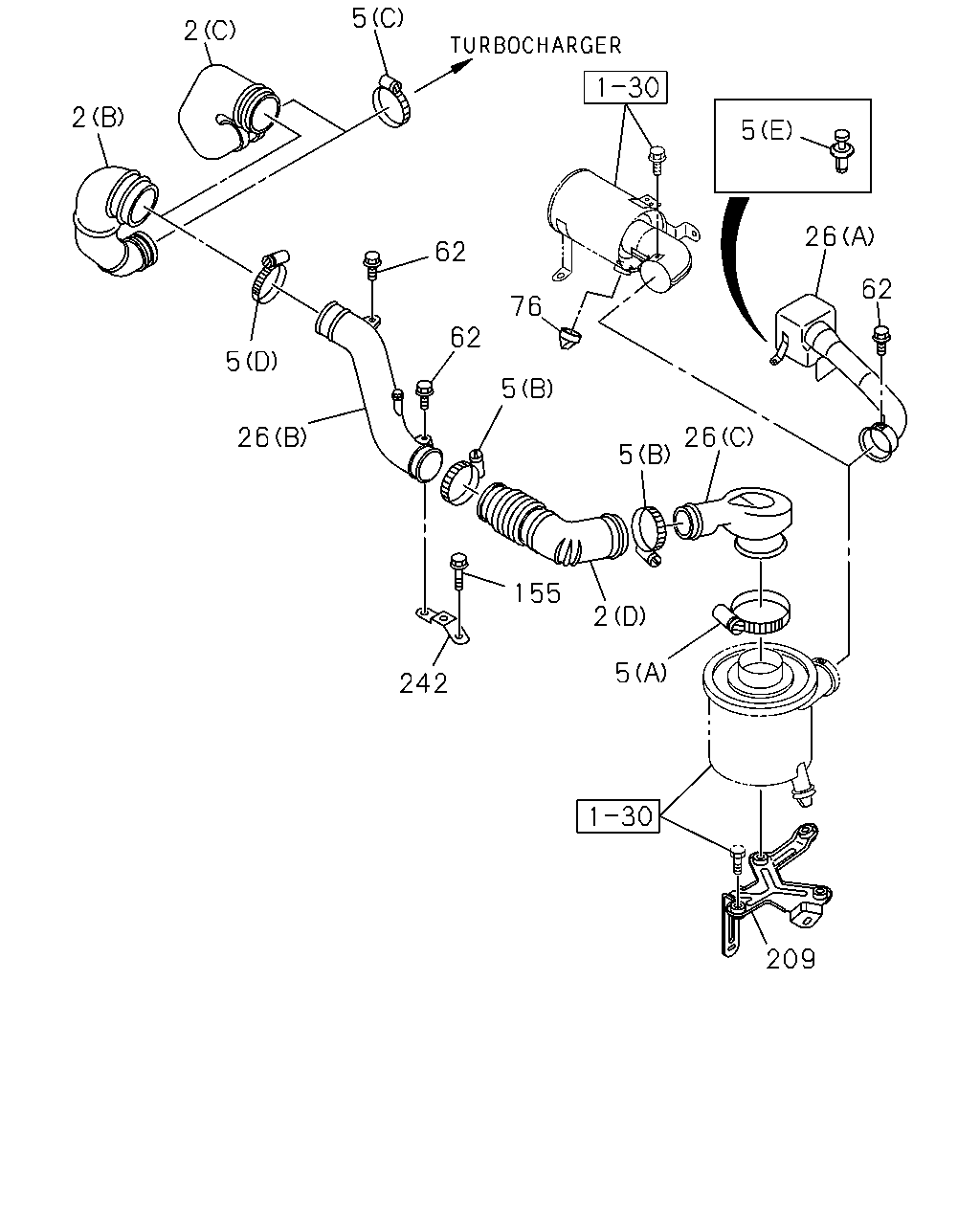

çizim 70341
5 2 2 5 26 62 62 76 62 5 5 26 26 5 155 2 5 242 209
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.417 HOSE; ACL
ARGENTINA EQUIPMENT(7SZ) (D) 		8-97131-727-0 01 1 9804-9901 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (D) 		8-97131-727-0 01 1 9804-9901 ●
2 03.417 HOSE; ACL
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (D) 		8-97131-727-0 01 1 9902-0009 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (D) 		8-97131-727-0 01 1 9902-0009 ●
2 03.417 HOSE; ACL
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (D) 		8-97131-727-0 01 1 0010-0109 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (D) 		8-97131-727-0 01 1 0010-0109 ●
2 03.417 HOSE; ACL
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (D) 		8-97131-727-0 01 1 0110- ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (D) 		8-97131-727-0 01 1 0110- ●
2 03.417 HOSE; ACL
ARGENTINA EQUIPMENT(7SZ) (C) 		8-97161-460-4 01 1 9804-9901 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (C) 		8-97161-460-4 01 1 9902-0009 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (C) 		8-97161-460-4 01 1 0010-0109 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (C) 		8-97161-460-4 01 1 0110- ●
2 03.417 HOSE; ACL
EXC. ARGENTINA EQUIPMENT(7SZ) 03.407 (A) 		8-94320-727-1 01 1 9804-9901 ●
2 03.417 HOSE; ACL
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 03.407 (A) 		8-94320-727-1 01 1 9902-0009 ●
2 03.417 HOSE; ACL
EXC. PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 03.407 (A) 		8-94320-727-1 01 1 0010-0106 ●
2 03.417 HOSE; ACL
EXC. PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 03.407 (A) 		8-94320-727-1 01 1 0107-0109 ●
2 03.417 HOSE; ACL
PHILIPPINE EQUIPMENT(S2U) EXC. TURBOCHARGER<K51> 03.407 (A) 		8-94320-727-1 01 1 0107-0109 ●
2 03.417 HOSE; ACL
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 03.407 (A) 		8-94320-727-1 01 1 0110- ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (B) 		8-97129-707-0 01 1 9804- ●
2 03.417 HOSE; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94321-187-2 01 1 9804-9812 ●
5 03.407 CLIP; AIR DUCT
ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9804-9901 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9804-9901 ●
5 03.407 CLIP; AIR DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9902-0009 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9902-0009 ●
5 03.407 CLIP; AIR DUCT
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 0010-0109 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 0010-0109 ●
5 03.407 CLIP; AIR DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 0110- ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 0110- ●
5 03.407 CLIP; AIR DUCT
ARGENTINA EQUIPMENT(7SZ) (C) ID=50-69 		8-94316-991-0 01 1 9804-9901 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 9804-9901 ●
5 03.407 CLIP; AIR DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 9902-0009 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 9902-0009 ●
5 03.407 CLIP; AIR DUCT
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 0010-0109 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 0010-0109 ●
5 03.407 CLIP; AIR DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
ARGENTINA EQUIPMENT(7SZ) (D) ID=68-85 		8-94320-428-0 01 1 9804-9901 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 9804-9901 ●
5 03.407 CLIP; AIR DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 9902-0009 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 9902-0009 ●
5 03.407 CLIP; AIR DUCT
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 0010-0109 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 0010-0109 ●
5 03.407 CLIP; AIR DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
EXC. ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 9804-9812 ●
5 03.407 CLIP; AIR DUCT
CHINA CHONGQING EQUIPMENT(R5B) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 9804-9812 ●
5 03.407 CLIP; AIR DUCT
EXC. ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 9901-9901 ●
5 03.407 CLIP; AIR DUCT
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 9902-0009 ●
5 03.407 CLIP; AIR DUCT
EXC. PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 0010-0106 ●
5 03.407 CLIP; AIR DUCT
EXC. PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 0107-0109 ●
5 03.407 CLIP; AIR DUCT
PHILIPPINE EQUIPMENT(S2U) EXC. TURBOCHARGER<K51> 03.417 (B) ID=58-79 		8-94126-771-0 01 1 0107-0109 ●
5 03.407 CLIP; AIR DUCT
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 03.417 (B) ID=58-79 		8-94126-771-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 9804- ● ●
5 03.407 CLIP; AIR DUCT
03.003 (E) D6X11 POP RIVET 		8-94298-119-0 01 1 9804- ● ●
5 03.407 CLIP; AIR DUCT
03.417 		8-94216-977-0 01 1 9804-9812 ●
26 03.417 DUCT; AIR INT
ARGENTINA EQUIPMENT(7SZ) (C) 		8-94382-047-2 01 1 9804-9901 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9804-9901 ●
26 03.417 DUCT; AIR INT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9902-0009 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9902-0009 ●
26 03.417 DUCT; AIR INT
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 0010-0109 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 0010-0109 ●
26 03.417 DUCT; AIR INT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 0110- ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 0110- ●
26 03.417 DUCT; AIR INT
ARGENTINA EQUIPMENT(7SZ) (B) 		8-97128-956-2 01 1 9804-9901 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 9804-9901 ●
26 03.417 DUCT; AIR INT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 9902-0009 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 9902-0009 ●
26 03.417 DUCT; AIR INT
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 0010-0109 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 0010-0109 ●
26 03.417 DUCT; AIR INT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 0110- ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 0110- ●
26 03.417 DUCT; AIR INT
(A) 		8-97161-656-0 01 1 9804-0012 ● ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-97161-656-0 01 1 0101- ● ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46>, ELECTRIC FUEL INJECTION<6GG> 		8-94321-842-0 01 1 9804-9812 ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (D) 		8-97174-583-1 01 1 9804-0108 ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (D) 		8-97174-583-1 01 1 0109- ● ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (E) 		8-97184-692-0 01 1 9804-0108 ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (E) 		8-97184-692-0 01 1 0109- ● ●
62 03.417 BOLT; AIR INT DUCT
ARGENTINA EQUIPMENT(7SZ) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9901 ●
62 03.417 BOLT; AIR INT DUCT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9901 ●
62 03.417 BOLT; AIR INT DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9902-0009 ●
62 03.417 BOLT; AIR INT DUCT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9902-0009 ●
62 03.417 BOLT; AIR INT DUCT
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0010-0109 ●
62 03.417 BOLT; AIR INT DUCT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0010-0109 ●
62 03.417 BOLT; AIR INT DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ●
62 03.417 BOLT; AIR INT DUCT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9804- ● ●
62 03.417 BOLT; AIR INT DUCT
EXC. HEAVY DUTY AIR CLEANER<K46> 07.832 M6X16 		8-97020-619-0 02 1 9804-0108 ●
62 03.417 BOLT; AIR INT DUCT
EXC. HEAVY DUTY AIR CLEANER<K46> 07.832 M6X16 		8-97020-619-0 02 1 0109- ● ●
76 03.403 VALVE; PRE ACL
HEAVY DUTY AIR CLEANER<K46> 03.415 		8-94447-157-0 01 1 0101- ● ●
155 03.417 BOLT; BRKT
ARGENTINA EQUIPMENT(7SZ) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9901 ●
155 03.417 BOLT; BRKT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9901 ●
155 03.417 BOLT; BRKT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9902-0009 ●
155 03.417 BOLT; BRKT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9902-0009 ●
155 03.417 BOLT; BRKT
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0010-0109 ●
155 03.417 BOLT; BRKT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0010-0109 ●
155 03.417 BOLT; BRKT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ●
155 03.417 BOLT; BRKT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ●
209 03.405 BRACKET; ACL 8-97131-733-0 01 1 9804- ● ●
209 03.405 BRACKET; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. ELECTRIC FUEL INJECTION<6GG> ID=14 		8-94370-320-0 01 1 9804-9812 ●
242 03.417 BRACKET; AIR DUCT
ARGENTINA EQUIPMENT(7SZ) 		8-94387-686-1 01 1 9804-9901 ●
242 03.417 BRACKET; AIR DUCT
TURBOCHARGER<K51> 		8-94387-686-1 01 1 9804-9901 ●
242 03.417 BRACKET; AIR DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 		8-94387-686-1 01 1 9902-0009 ●
242 03.417 BRACKET; AIR DUCT
TURBOCHARGER<K51> 		8-94387-686-1 01 1 9902-0009 ●
242 03.417 BRACKET; AIR DUCT
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 		8-94387-686-1 01 1 0010-0109 ●
242 03.417 BRACKET; AIR DUCT
TURBOCHARGER<K51> 		8-94387-686-1 01 1 0010-0109 ●
242 03.417 BRACKET; AIR DUCT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> 		8-94387-686-1 01 1 0110- ●
242 03.417 BRACKET; AIR DUCT
TURBOCHARGER<K51> 		8-94387-686-1 01 1 0110- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
