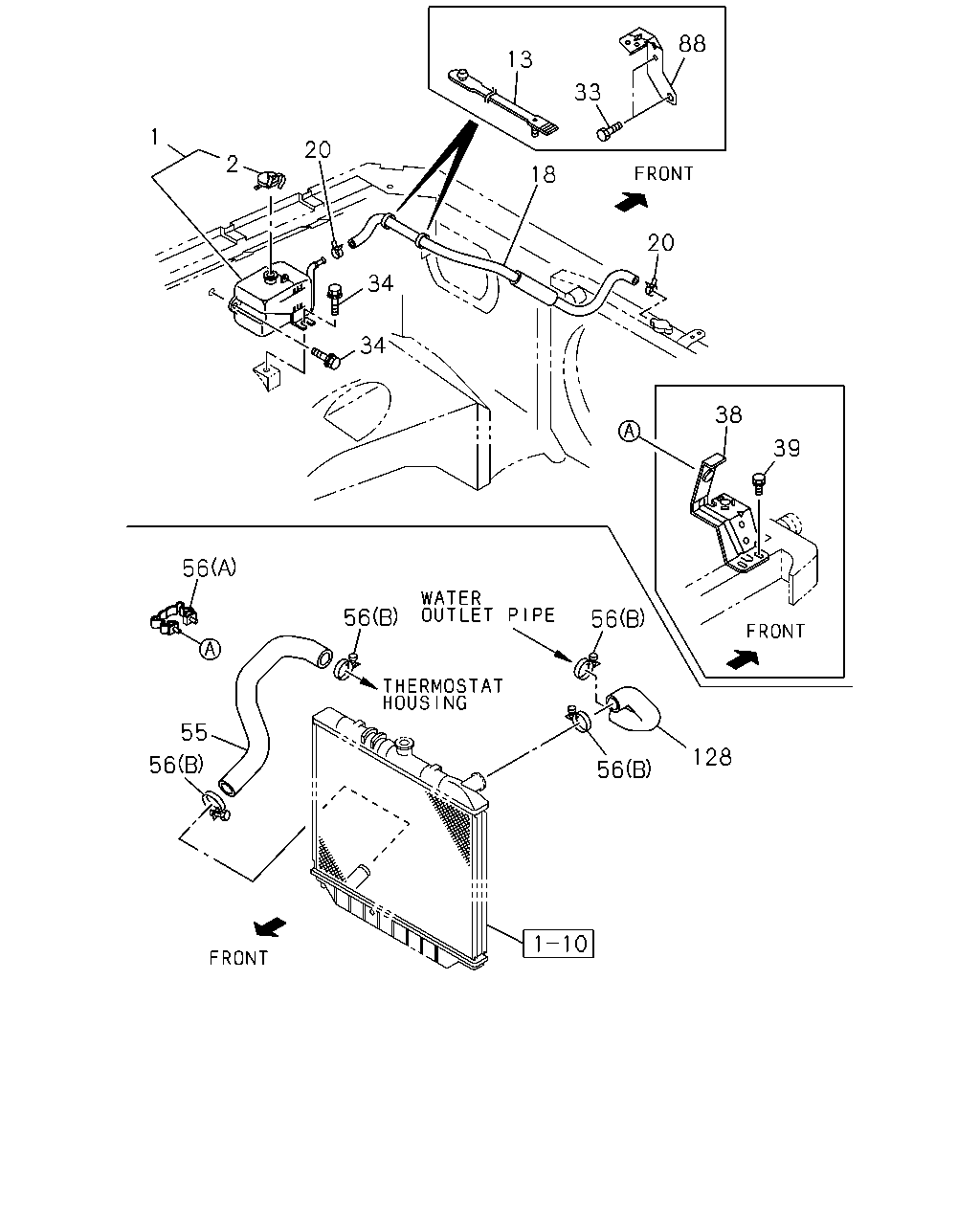

1-11 — RADIATOR HOSE AND SUB TANK (#41786) — 166 parça

56 128 56 56 55 56 88 33 56 18 20 128 13 1 2 20 56 34 56 34 55 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD	8-97101-191-1	01	1	9804-9812	●	●	●	●	●
1	01.219 TANK; SURGE,RAD	8-97101-191-1	01	1	9901-0108	●	●	●		●
1	01.219 TANK; SURGE,RAD	8-97101-191-1	01	1	0109-	●	●	●		●	●
2	01.203 CAP; SURGE TANK	8-97130-964-0	01	1	9804-9812	●	●	●	●	●
2	01.203 CAP; SURGE TANK	8-97130-964-0	01	1	9901-0108	●	●	●		●
2	01.203 CAP; SURGE TANK	8-97130-964-0	01	1	0109-	●	●	●		●	●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 L=103	8-94239-339-0	02	1	9804-0108	●	●	●		●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 L=103	8-94239-339-0	02	1	0109-	●	●	●		●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97016-104-1	01	1	9804-9812		●	●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97016-104-1	01	1	9901-0009		●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97016-104-1	01	1	0010-0010		●
18	01.240 HOSE; RAD TO SURGE TANK EXC. HEAVY DUTY AIR CLEANER<K46>	8-97016-104-1	01	1	0010-0010			●
18	01.240 HOSE; RAD TO SURGE TANK EXC. HEAVY DUTY AIR CLEANER<K46>	8-97016-104-1	01	1	0011-		●	●
18	01.240 HOSE; RAD TO SURGE TANK HEAVY DUTY AIR CLEANER<K46>	8-97287-457-0	01	1	0010-0010			●
18	01.240 HOSE; RAD TO SURGE TANK HEAVY DUTY AIR CLEANER<K46>	8-97287-457-1	01	1	0011-		●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97064-333-1	01	1	9804-					●
18	01.240 HOSE; RAD TO SURGE TANK	8-97182-226-1	01	1	9804-0108	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97182-226-1	01	1	0109-	●					●
20	01.166 CLIP; HOSE,RAD 01.219 ID=12	8-94238-610-0	02	1	9804-9909	●	●	●	●	●
20	01.166 CLIP; HOSE,RAD 01.219 ID=12	8-94238-610-0	02	1	9910-0103	●	●	●		●
33	01.277 BOLT; BRKT 08.077 M6X18	8-97071-681-0	02	1	9804-0009	●	●	●		●
33	01.277 BOLT; BRKT 08.077 M6X18	8-97071-681-0	02	1	0010-0010	●	●			●
33	01.277 BOLT; BRKT EXC. HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18	8-97071-681-0	02	1	0010-0010			●
33	01.277 BOLT; BRKT EXC. HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18	8-97071-681-0	02	1	0011-0108		●	●
33	01.277 BOLT; BRKT 08.077 M6X18	8-97071-681-0	02	1	0011-0108	●				●
33	01.277 BOLT; BRKT EXC. HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18	8-97071-681-0	02	1	0109-		●	●
33	01.277 BOLT; BRKT 08.077 M6X18	8-97071-681-0	02	1	0109-	●				●	●
34	01.203 BOLT; RESERVE TANK M8X25	8-97091-076-0	02	1	9804-9812	●	●	●	●	●
34	01.203 BOLT; RESERVE TANK M8X25	8-97091-076-0	02	1	9901-0108	●	●	●		●
34	01.203 BOLT; RESERVE TANK M8X25	8-97091-076-0	02	1	0109-0203	●	●	●		●	●
34	01.203 BOLT; RESERVE TANK 03.162 M8X25	8-97327-634-0	02	1	0204-	●	●	●		●	●
55	01.173 HOSE; WATER,RAD OUTLET	8-94388-165-2	01	1	9804-9812		●	●
55	01.173 HOSE; WATER,RAD OUTLET	8-94388-165-3	01	1	9901-		●
55	01.173 HOSE; WATER,RAD OUTLET EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94388-165-3	01	1	9901-			●
55	01.173 HOSE; WATER,RAD OUTLET SAUDI ARABIA EQUIPMENT(EU2)	8-94375-170-2	01	1	9901-			●
55	01.173 HOSE; WATER,RAD OUTLET	8-94337-300-0	01	1	9804-9812				●
55	01.173 HOSE; WATER,RAD OUTLET	8-97177-703-0	01	1	9804-					●
55	01.173 HOSE; WATER,RAD OUTLET	8-97181-391-1	01	1	9804-9804	●
55	01.173 HOSE; WATER,RAD OUTLET	8-97210-592-0	01	1	9805-0108	●
55	01.173 HOSE; WATER,RAD OUTLET	8-97210-592-0	01	1	0109-	●					●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=42	8-97209-203-0	03	1	9804-9804		●	●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=42	9-09915-042-1	03	1	9805-9806		●	●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	9-09915-512-1	01	1	9804-9811		●	●		●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	01	1	9812-9812		●	●		●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	01	1	9901-		●			●
56	01.166 CLIP; WATER HOSE,RAD EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) ID=48	8-97213-216-0	01	1	9901-			●
56	01.166 CLIP; WATER HOSE,RAD SAUDI ARABIA EQUIPMENT(EU2) (B) ID=42	8-97209-203-0	01	1	9901-			●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=45	9-09915-281-1	01	1	9804-9812	●			●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=45	9-09915-281-1	01	1	9901-0108	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=45	9-09915-281-1	01	1	0109-	●					●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=46	8-97023-235-1	01	1	9804-					●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	9-09915-512-1	03	1	9804-9811					●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	03	1	9812-9812					●
56	01.166 CLIP; WATER HOSE,RAD SAUDI ARABIA EQUIPMENT(EU2) (B) ID=48	8-97213-216-0	03	1	9901-			●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	03	1	9901-					●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=42	9-09915-042-1	03	1	9804-9804	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=42	9-09915-042-1	02	1	9805-9806	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=42	8-97209-203-0	01	1	9805-9806	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=42	8-97209-203-0	03	1	9807-9812	●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=42	8-97209-203-0	03	1	9901-9901	●	●		●
56	01.166 CLIP; WATER HOSE,RAD EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) ID=42	8-97209-203-0	03	1	9901-9901			●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=42	8-97209-203-0	03	1	9901-0108	●	●
56	01.166 CLIP; WATER HOSE,RAD EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) ID=42	8-97209-203-0	03	1	9901-0108			●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=42	8-97209-203-0	03	1	0109-	●	●				●
56	01.166 CLIP; WATER HOSE,RAD EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) ID=42	8-97209-203-0	03	1	0109-			●
88	01.219 BRACKET; SUB TANK HOSE	8-97186-619-0	01	1	9804-9812	●	●	●	●	●
88	01.219 BRACKET; SUB TANK HOSE	8-97186-619-0	01	1	9901-0009	●	●	●		●
88	01.219 BRACKET; SUB TANK HOSE	8-97186-619-0	01	1	0010-0010	●	●			●
88	01.219 BRACKET; SUB TANK HOSE EXC. HEAVY DUTY AIR CLEANER<K46>	8-97186-619-0	01	1	0010-0010			●
88	01.219 BRACKET; SUB TANK HOSE EXC. HEAVY DUTY AIR CLEANER<K46>	8-97186-619-0	01	1	0011-0108		●	●
88	01.219 BRACKET; SUB TANK HOSE	8-97186-619-0	01	1	0011-0108	●				●
88	01.219 BRACKET; SUB TANK HOSE EXC. HEAVY DUTY AIR CLEANER<K46>	8-97186-619-0	01	1	0109-		●	●
88	01.219 BRACKET; SUB TANK HOSE	8-97186-619-0	01	1	0109-	●				●	●
128	01.159 HOSE; WATER,RAD INL	8-97023-019-0	01	1	9804-9812		●	●
128	01.159 HOSE; WATER,RAD INL	8-97023-019-0	01	1	9901-		●
128	01.159 HOSE; WATER,RAD INL EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97023-019-0	01	1	9901-			●
128	01.159 HOSE; WATER,RAD INL SAUDI ARABIA EQUIPMENT(EU2)	8-97070-938-1	01	1	9901-			●
128	01.159 HOSE; WATER,RAD INL	8-94389-481-0	01	1	9804-9812				●
128	01.159 HOSE; WATER,RAD INL	8-97177-702-1	01	1	9804-0103					●
128	01.159 HOSE; WATER,RAD INL	8-97305-008-0	01	1	0104-					●
128	01.159 HOSE; WATER,RAD INL	8-97181-390-0	01	1	9804-0108	●
128	01.159 HOSE; WATER,RAD INL	8-97181-390-0	01	1	0109-	●					●

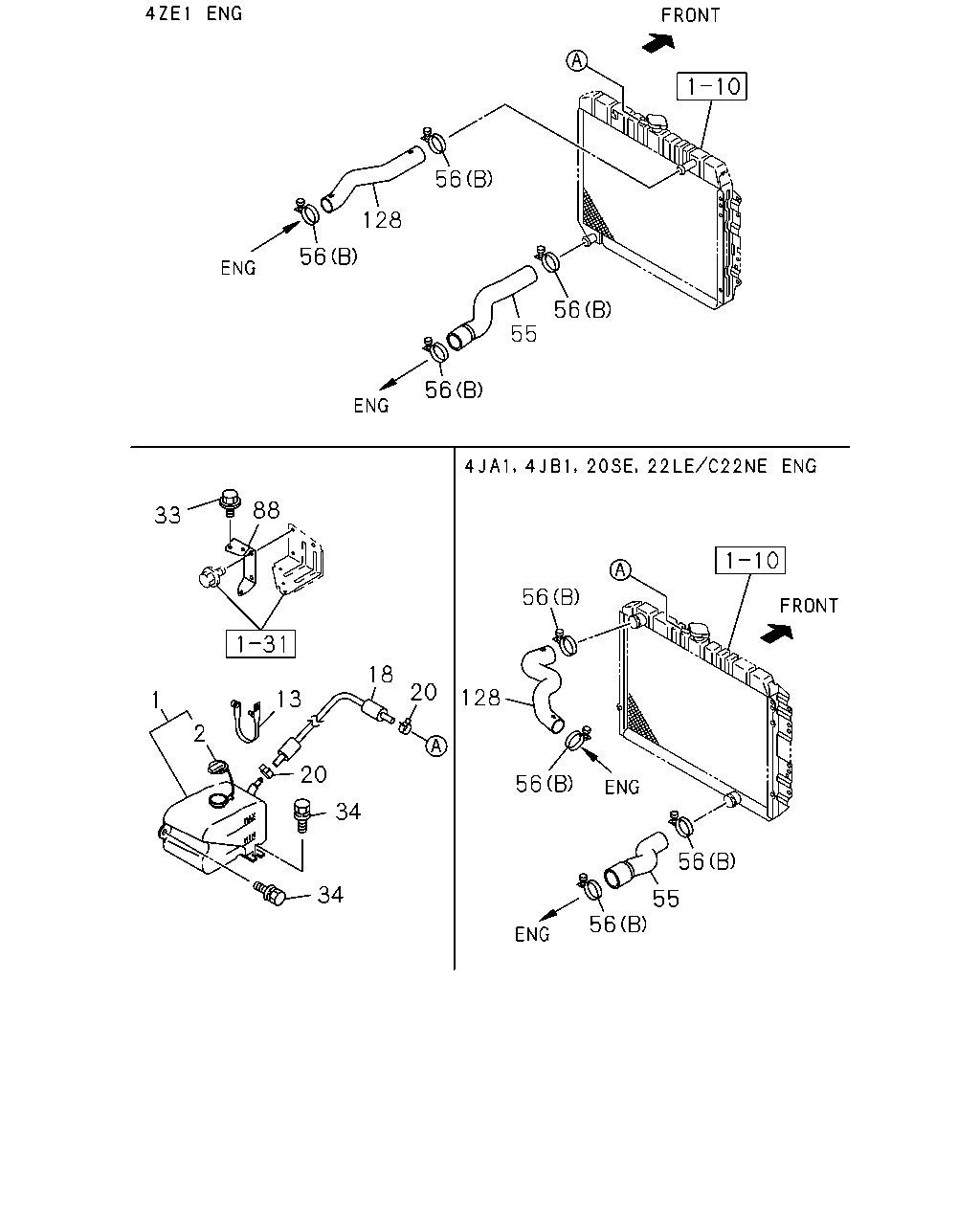

88 13 33 1 20 2 18 20 34 34 38 39 56 56 56 55 128 56 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD	8-97101-191-1	01	1	9804-9812	●	●	●	●	●
1	01.219 TANK; SURGE,RAD	8-97101-191-1	01	1	9901-0108	●	●	●		●
1	01.219 TANK; SURGE,RAD	8-97101-191-1	01	1	0109-	●	●	●		●	●
2	01.203 CAP; SURGE TANK	8-97130-964-0	01	1	9804-9812	●	●	●	●	●
2	01.203 CAP; SURGE TANK	8-97130-964-0	01	1	9901-0108	●	●	●		●
2	01.203 CAP; SURGE TANK	8-97130-964-0	01	1	0109-	●	●	●		●	●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 L=103	8-94239-339-0	02	1	9804-0108	●	●	●		●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 L=103	8-94239-339-0	02	1	0109-	●	●	●		●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97016-104-1	01	1	9804-9812		●	●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97016-104-1	01	1	9901-0009		●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97016-104-1	01	1	0010-0010		●
18	01.240 HOSE; RAD TO SURGE TANK EXC. HEAVY DUTY AIR CLEANER<K46>	8-97016-104-1	01	1	0010-0010			●
18	01.240 HOSE; RAD TO SURGE TANK EXC. HEAVY DUTY AIR CLEANER<K46>	8-97016-104-1	01	1	0011-		●	●
18	01.240 HOSE; RAD TO SURGE TANK HEAVY DUTY AIR CLEANER<K46>	8-97287-457-0	01	1	0010-0010			●
18	01.240 HOSE; RAD TO SURGE TANK HEAVY DUTY AIR CLEANER<K46>	8-97287-457-1	01	1	0011-		●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97064-333-1	01	1	9804-					●
18	01.240 HOSE; RAD TO SURGE TANK	8-97182-226-1	01	1	9804-0108	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97182-226-1	01	1	0109-	●					●
20	01.166 CLIP; HOSE,RAD 01.219 ID=12	8-94238-610-0	02	1	9804-9909	●	●	●	●	●
20	01.166 CLIP; HOSE,RAD 01.219 ID=12	8-94238-610-0	02	1	9910-0103	●	●	●		●
33	01.277 BOLT; BRKT 08.077 M6X18	8-97071-681-0	02	1	9804-0009	●	●	●		●
33	01.277 BOLT; BRKT 08.077 M6X18	8-97071-681-0	02	1	0010-0010	●	●			●
33	01.277 BOLT; BRKT EXC. HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18	8-97071-681-0	02	1	0010-0010			●
33	01.277 BOLT; BRKT EXC. HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18	8-97071-681-0	02	1	0011-0108		●	●
33	01.277 BOLT; BRKT 08.077 M6X18	8-97071-681-0	02	1	0011-0108	●				●
33	01.277 BOLT; BRKT EXC. HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18	8-97071-681-0	02	1	0109-		●	●
33	01.277 BOLT; BRKT 08.077 M6X18	8-97071-681-0	02	1	0109-	●				●	●
34	01.203 BOLT; RESERVE TANK M8X25	8-97091-076-0	02	1	9804-9812	●	●	●	●	●
34	01.203 BOLT; RESERVE TANK M8X25	8-97091-076-0	02	1	9901-0108	●	●	●		●
34	01.203 BOLT; RESERVE TANK M8X25	8-97091-076-0	02	1	0109-0203	●	●	●		●	●
34	01.203 BOLT; RESERVE TANK 03.162 M8X25	8-97327-634-0	02	1	0204-	●	●	●		●	●
38	01.219 BRACKET; RUBBER HOSE	8-97164-191-2	01	1	9804-					●
39	01.219 BOLT; BRKT FIX 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9804-					●
55	01.173 HOSE; WATER,RAD OUTLET	8-94388-165-2	01	1	9804-9812		●	●
55	01.173 HOSE; WATER,RAD OUTLET	8-94388-165-3	01	1	9901-		●
55	01.173 HOSE; WATER,RAD OUTLET EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94388-165-3	01	1	9901-			●
55	01.173 HOSE; WATER,RAD OUTLET SAUDI ARABIA EQUIPMENT(EU2)	8-94375-170-2	01	1	9901-			●
55	01.173 HOSE; WATER,RAD OUTLET	8-94337-300-0	01	1	9804-9812				●
55	01.173 HOSE; WATER,RAD OUTLET	8-97177-703-0	01	1	9804-					●
55	01.173 HOSE; WATER,RAD OUTLET	8-97181-391-1	01	1	9804-9804	●
55	01.173 HOSE; WATER,RAD OUTLET	8-97210-592-0	01	1	9805-0108	●
55	01.173 HOSE; WATER,RAD OUTLET	8-97210-592-0	01	1	0109-	●					●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=42	8-97209-203-0	03	1	9804-9804		●	●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=42	9-09915-042-1	03	1	9805-9806		●	●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	9-09915-512-1	01	1	9804-9811		●	●		●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	01	1	9812-9812		●	●		●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	01	1	9901-		●			●
56	01.166 CLIP; WATER HOSE,RAD EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) ID=48	8-97213-216-0	01	1	9901-			●
56	01.166 CLIP; WATER HOSE,RAD SAUDI ARABIA EQUIPMENT(EU2) (B) ID=42	8-97209-203-0	01	1	9901-			●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=45	9-09915-281-1	01	1	9804-9812	●			●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=45	9-09915-281-1	01	1	9901-0108	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=45	9-09915-281-1	01	1	0109-	●					●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=46	8-97023-235-1	01	1	9804-					●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	9-09915-512-1	03	1	9804-9811					●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	03	1	9812-9812					●
56	01.166 CLIP; WATER HOSE,RAD SAUDI ARABIA EQUIPMENT(EU2) (B) ID=48	8-97213-216-0	03	1	9901-			●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	03	1	9901-					●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=42	9-09915-042-1	03	1	9804-9804	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=42	9-09915-042-1	02	1	9805-9806	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=42	8-97209-203-0	01	1	9805-9806	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=42	8-97209-203-0	03	1	9807-9812	●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=42	8-97209-203-0	03	1	9901-9901	●	●		●
56	01.166 CLIP; WATER HOSE,RAD EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) ID=42	8-97209-203-0	03	1	9901-9901			●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=42	8-97209-203-0	03	1	9901-0108	●	●
56	01.166 CLIP; WATER HOSE,RAD EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) ID=42	8-97209-203-0	03	1	9901-0108			●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=42	8-97209-203-0	03	1	0109-	●	●				●
56	01.166 CLIP; WATER HOSE,RAD EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) ID=42	8-97209-203-0	03	1	0109-			●
88	01.219 BRACKET; SUB TANK HOSE	8-97186-619-0	01	1	9804-9812	●	●	●	●	●
88	01.219 BRACKET; SUB TANK HOSE	8-97186-619-0	01	1	9901-0009	●	●	●		●
88	01.219 BRACKET; SUB TANK HOSE	8-97186-619-0	01	1	0010-0010	●	●			●
88	01.219 BRACKET; SUB TANK HOSE EXC. HEAVY DUTY AIR CLEANER<K46>	8-97186-619-0	01	1	0010-0010			●
88	01.219 BRACKET; SUB TANK HOSE EXC. HEAVY DUTY AIR CLEANER<K46>	8-97186-619-0	01	1	0011-0108		●	●
88	01.219 BRACKET; SUB TANK HOSE	8-97186-619-0	01	1	0011-0108	●				●
88	01.219 BRACKET; SUB TANK HOSE EXC. HEAVY DUTY AIR CLEANER<K46>	8-97186-619-0	01	1	0109-		●	●
88	01.219 BRACKET; SUB TANK HOSE	8-97186-619-0	01	1	0109-	●				●	●
128	01.159 HOSE; WATER,RAD INL	8-97023-019-0	01	1	9804-9812		●	●
128	01.159 HOSE; WATER,RAD INL	8-97023-019-0	01	1	9901-		●
128	01.159 HOSE; WATER,RAD INL EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97023-019-0	01	1	9901-			●
128	01.159 HOSE; WATER,RAD INL SAUDI ARABIA EQUIPMENT(EU2)	8-97070-938-1	01	1	9901-			●
128	01.159 HOSE; WATER,RAD INL	8-94389-481-0	01	1	9804-9812				●
128	01.159 HOSE; WATER,RAD INL	8-97177-702-1	01	1	9804-0103					●
128	01.159 HOSE; WATER,RAD INL	8-97305-008-0	01	1	0104-					●
128	01.159 HOSE; WATER,RAD INL	8-97181-390-0	01	1	9804-0108	●
128	01.159 HOSE; WATER,RAD INL	8-97181-390-0	01	1	0109-	●					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
