◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50801 - TFR/TFS-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#41785) — 868 parça

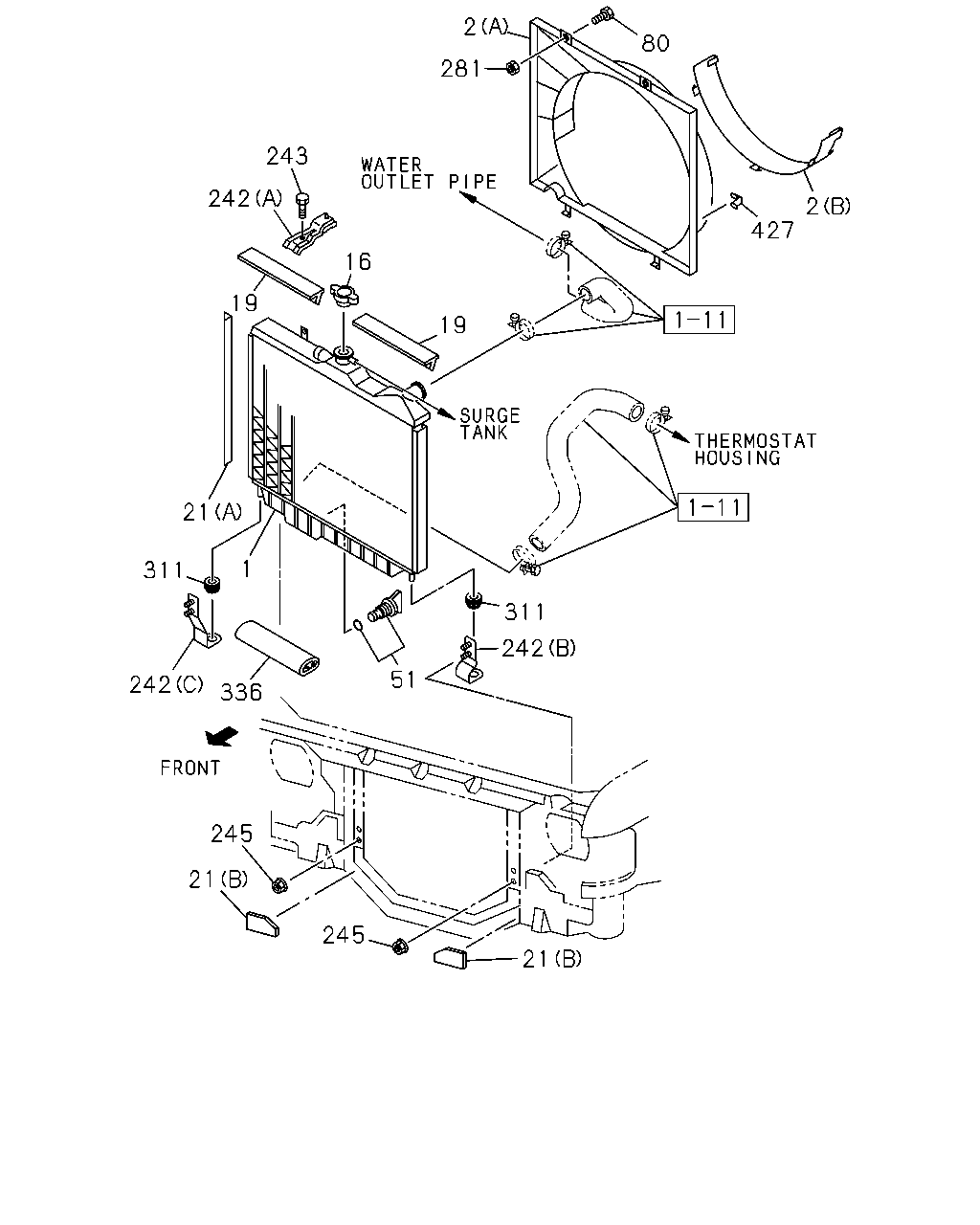

çizim 69263
2 80 281 243 242 2 427 16 19 19 21 1 311 311 242 51 242 336 245 21 245 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 RADIATOR ASM 8-97116-005-0 01 1 9804- ●
1 01.219 RADIATOR ASM 8-94383-646-1 01 1 9804-9812 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94383-646-1 01 1 9901- ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) 		8-97041-690-0 01 1 0010- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 		8-97084-924-0 01 1 9901- ●
1 01.219 RADIATOR ASM 8-97091-298-1 01 1 9804-9812 ●
1 01.219 RADIATOR ASM 8-52475-960-0 01 1 9804-0103 ●
1 01.219 RADIATOR ASM 8-97304-702-0 01 1 0104- ●
1 01.219 RADIATOR ASM
RADIATOR COOLANT LEVELING WARNING<7DL> 		8-97181-320-0 01 1 9804-0108 ●
1 01.219 RADIATOR ASM
RADIATOR COOLANT LEVELING WARNING<7DL> 		8-97181-320-0 01 1 0109- ● ●
1 01.219 RADIATOR ASM
EXC. RADIATOR COOLANT LEVELING WARNIN G<7DL> 		8-97186-459-0 01 1 9804-0108 ●
1 01.219 RADIATOR ASM
EXC. RADIATOR COOLANT LEVELING WARNIN G<7DL> 		8-97186-459-0 01 1 0109- ● ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 9804-9812 ● ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 9901-0009 ●
2 01.277 GUIDE; FAN
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97164-550-1 01 1 9901-0009 ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 0010- ●
2 01.277 GUIDE; FAN
A/T AISIN(RMD) 		8-97164-550-1 01 1 0010- ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97164-550-1 01 1 0010- ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 		8-97087-725-2 01 1 9901- ●
2 01.277 GUIDE; FAN 8-97161-424-0 01 1 9804-9812 ●
2 01.277 GUIDE; FAN
(A) 		8-52468-078-0 01 1 9804-0103 ●
2 01.277 GUIDE; FAN
(A) 		8-97074-073-2 01 1 0104- ●
2 01.277 GUIDE; FAN
(B) 		8-52468-079-1 01 1 9804-0103 ●
2 01.277 GUIDE; FAN
(B) 		8-97033-101-2 01 1 0104- ●
2 01.277 GUIDE; FAN 8-97205-974-0 01 1 9804-0108 ●
2 01.277 GUIDE; FAN 8-97205-974-0 01 1 0109- ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 9804-9812 ● ● ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 9901-0010 ● ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 0010-0108 ● ●
16 01.203 CAP; RAD
M/T MUA 5 SPEED(RMN) 		8-97104-194-0 01 1 0010-0108 ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 0109- ● ● ●
16 01.203 CAP; RAD
M/T MUA 5 SPEED(RMN) 		8-97104-194-0 01 1 0109- ●
16 01.203 CAP; RAD
A/T AISIN(RMD) 		8-94116-916-1 01 1 0010- ●
16 01.203 CAP; RAD 8-52477-552-0 01 1 9804-0103 ●
16 01.203 CAP; RAD 8-97239-187-0 01 1 0104- ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 9804-9812 ● ● ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 9901-0009 ● ●
19 01.270 SEAL; RAD UPR
EXC. SAUDI ARABIA EQUIPMENT(EU2) L=540 		8-94468-115-1 01 1 9901-0009 ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 0010-0108 ● ●
19 01.270 SEAL; RAD UPR
A/T AISIN(RMD) L=540 		8-94468-115-1 01 1 0010-0108 ●
19 01.270 SEAL; RAD UPR
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) L=540 		8-94468-115-1 01 1 0010-0108 ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 0109- ● ● ●
19 01.270 SEAL; RAD UPR
A/T AISIN(RMD) L=540 		8-94468-115-1 01 1 0109- ●
19 01.270 SEAL; RAD UPR
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) L=540 		8-94468-115-1 01 1 0109- ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 9804-9812 ●
19 01.270 SEAL; RAD UPR
SAUDI ARABIA EQUIPMENT(EU2) L=200 		8-97081-956-2 01 1 9901-0009 ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 9901-0009 ●
19 01.270 SEAL; RAD UPR
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) L=200 		8-97081-956-2 01 1 0010-0103 ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 0010-0103 ●
19 01.270 SEAL; RAD UPR
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) L=200 		8-97081-956-2 01 1 0104- ●
19 01.270 SEAL; RAD UPR
L=380 		8-97081-957-2 01 1 9804-9812 ●
19 01.270 SEAL; RAD UPR
SAUDI ARABIA EQUIPMENT(EU2) L=380 		8-97081-957-2 01 1 9901-0002 ●
19 01.270 SEAL; RAD UPR
L=380 		8-97081-957-2 01 1 9901-0002 ●
19 01.270 SEAL; RAD UPR
SAUDI ARABIA EQUIPMENT(EU2) L=365 		8-97254-404-0 01 1 0003-0009 ●
19 01.270 SEAL; RAD UPR
L=365 		8-97254-404-0 01 1 0003-0009 ●
19 01.270 SEAL; RAD UPR
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) L=365 		8-97254-404-0 01 1 0010-0103 ●
19 01.270 SEAL; RAD UPR
L=365 		8-97254-404-0 01 1 0010-0103 ●
19 01.270 SEAL; RAD UPR
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) L=365 		8-97254-404-0 01 1 0104- ●
19 01.270 SEAL; RAD UPR
L=360 		8-97164-208-1 01 1 0104- ●
19 01.270 SEAL; RAD UPR
L=200 		8-97304-967-0 01 1 0104- ●
21 01.276 SEAL; RAD
(A) 		8-52468-212-0 02 1 9804-0103 ●
21 01.276 SEAL; RAD
(B) 		8-97033-102-3 01 1 9804- ●
21 01.276 SEAL; RAD
(B) 		8-97047-002-3 01 1 9804- ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 9804-9812 ● ● ● ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 9901-0009 ● ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 08.915 W/GASKET 		8-94321-236-0 01 1 9901-0009 ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0010-0108 ● ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 08.915 W/GASKET 		8-94321-236-0 01 1 0010-0108 ●
51 08.951 PLUG; DRAIN
A/T AISIN(RMD) 08.915 W/GASKET 		8-94321-236-0 01 1 0010-0108 ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0109- ● ● ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 08.915 W/GASKET 		8-94321-236-0 01 1 0109- ●
51 08.951 PLUG; DRAIN
A/T AISIN(RMD) 08.915 W/GASKET 		8-94321-236-0 01 1 0109- ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 		8-97036-939-0 01 1 9901- ●
51 08.951 PLUG; DRAIN 8-52461-346-0 01 1 9804-0103 ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0104- ●
80 01.277 BOLT; FAN GUIDE 8-52468-044-0 02 1 9804-0103 ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 9804-9812 ● ● ● ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 9901-9901 ● ● ●
242 01.219 BRACKET; RAD
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-226-2 01 1 9901-9901 ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 9901-0009 ● ●
242 01.219 BRACKET; RAD
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-226-2 01 1 9901-0009 ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 0010-0108 ● ●
242 01.219 BRACKET; RAD
A/T AISIN(RMD) 		8-97041-226-2 01 1 0010-0108 ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-226-2 01 1 0010-0108 ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 0109- ● ● ●
242 01.219 BRACKET; RAD
A/T AISIN(RMD) 		8-97041-226-2 01 1 0109- ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-226-2 01 1 0109- ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 9804-9812 ● ● ● ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 9901-9901 ● ● ●
242 01.219 BRACKET; RAD
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-225-2 01 1 9901-9901 ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 9901-0009 ● ●
242 01.219 BRACKET; RAD
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-225-2 01 1 9901-0009 ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 0010-0108 ● ●
242 01.219 BRACKET; RAD
A/T AISIN(RMD) 		8-97041-225-2 01 1 0010-0108 ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-225-2 01 1 0010-0108 ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 0109- ● ● ●
242 01.219 BRACKET; RAD
A/T AISIN(RMD) 		8-97041-225-2 01 1 0109- ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-225-2 01 1 0109- ●
242 01.219 BRACKET; RAD
(A) 		8-97064-431-2 01 1 9804-9812 ●
242 01.219 BRACKET; RAD
SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97064-431-2 01 1 9901-9904 ●
242 01.219 BRACKET; RAD
(A) 		8-97064-431-2 01 1 9901-9904 ●
242 01.219 BRACKET; RAD
SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97225-348-0 01 1 9905-0009 ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-0 01 1 9905-0009 ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97225-348-1 01 1 0010- ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-1 01 1 0010- ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 9804-9812 ●
242 01.219 BRACKET; RAD
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97084-635-1 01 1 9901-0009 ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 9901-0009 ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97084-635-1 01 1 0010- ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 0010- ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 9804-9812 ●
242 01.219 BRACKET; RAD
SAUDI ARABIA EQUIPMENT(EU2) (C) 		8-97084-636-1 01 1 9901-0009 ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 9901-0009 ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) (C) 		8-97084-636-1 01 1 0010- ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 0010- ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9804-9812 ●
243 01.219 BOLT; BRKT
SAUDI ARABIA EQUIPMENT(EU2) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9901-0009 ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9901-0009 ●
243 01.219 BOLT; BRKT
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 0010- ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 0010- ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 9804-9812 ● ● ● ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 9901-9901 ● ● ●
245 01.219 NUT; BRKT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.633 M8 FLANGE 		0-91150-108-0 04 1 9901-9901 ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 9901-0009 ● ●
245 01.219 NUT; BRKT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.633 M8 FLANGE 		0-91150-108-0 04 1 9901-0009 ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 0010-0108 ● ●
245 01.219 NUT; BRKT
A/T AISIN(RMD) 07.633 M8 FLANGE 		0-91150-108-0 04 1 0010-0108 ●
245 01.219 NUT; BRKT
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.633 M8 FLANGE 		0-91150-108-0 04 1 0010-0108 ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 0109- ● ● ●
245 01.219 NUT; BRKT
A/T AISIN(RMD) 07.633 M8 FLANGE 		0-91150-108-0 04 1 0109- ●
245 01.219 NUT; BRKT
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.633 M8 FLANGE 		0-91150-108-0 04 1 0109- ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 9804-9812 ●
245 01.219 NUT; BRKT
SAUDI ARABIA EQUIPMENT(EU2) 04.010 M8 FLANGE 		8-97046-127-0 04 1 9901-0009 ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 9901-0009 ●
245 01.219 NUT; BRKT
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 04.010 M8 FLANGE 		8-97046-127-0 04 1 0010- ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 0010- ●
281 01.277 NUT; FAN GUIDE 8-52460-824-0 02 1 9804-0103 ●
311 01.270 RUBBER; MTG,RAD 8-94375-183-1 02 1 9804-9812 ●
311 01.270 RUBBER; MTG,RAD
SAUDI ARABIA EQUIPMENT(EU2) 		8-94375-183-1 02 1 9901-9910 ●
311 01.270 RUBBER; MTG,RAD 8-94375-183-1 02 1 9901-9910 ●
311 01.270 RUBBER; MTG,RAD
SAUDI ARABIA EQUIPMENT(EU2) 		8-97231-024-0 02 1 9911-0009 ●
311 01.270 RUBBER; MTG,RAD 8-97231-024-0 02 1 9911-0009 ●
311 01.270 RUBBER; MTG,RAD
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 		8-97231-024-0 02 1 0010- ●
311 01.270 RUBBER; MTG,RAD 8-97231-024-0 02 1 0010- ●
336 01.270 SEAL; LWR,RAD 8-97124-393-0 02 1 9804-9812 ●
336 01.270 SEAL; LWR,RAD
SAUDI ARABIA EQUIPMENT(EU2) 		8-97124-393-0 02 1 9901-0009 ●
336 01.270 SEAL; LWR,RAD 8-97124-393-0 02 1 9901-0009 ●
336 01.270 SEAL; LWR,RAD
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 		8-97124-393-0 02 1 0010-0206 ●
336 01.270 SEAL; LWR,RAD 8-97124-393-0 02 1 0010-0206 ●
336 01.270 SEAL; LWR,RAD
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 		8-97257-011-0 02 1 0207- ●
336 01.270 SEAL; LWR,RAD 8-97257-011-0 02 1 0207- ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 9804-9812 ● ● ● ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 9901-9901 ● ● ●
427 01.240 CLIP; FAN GUIDE
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97143-177-0 04 1 9901-9901 ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 9901-0009 ● ●
427 01.240 CLIP; FAN GUIDE
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97143-177-0 04 1 9901-0009 ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 0010-0108 ● ●
427 01.240 CLIP; FAN GUIDE
A/T AISIN(RMD) 		8-97143-177-0 04 1 0010-0108 ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97143-177-0 04 1 0010-0108 ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 0109- ● ● ●
427 01.240 CLIP; FAN GUIDE
A/T AISIN(RMD) 		8-97143-177-0 04 1 0109- ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97143-177-0 04 1 0109- ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 01.277 (A) 		8-97043-862-0 02 1 9901-0103 ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 01.277 (A) 		8-97043-862-0 02 1 0104- ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 0104- ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97066-962-0 04 1 9901-0103 ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97066-962-0 04 1 0104- ●
427 01.240 CLIP; FAN GUIDE
(B) 		8-97066-962-0 04 1 0104- ●
427 01.240 CLIP; FAN GUIDE
01.277 		8-52469-065-0 04 1 9804-0103 ●
427 01.240 CLIP; FAN GUIDE
(C) 		8-97043-199-0 02 1 0104- ●

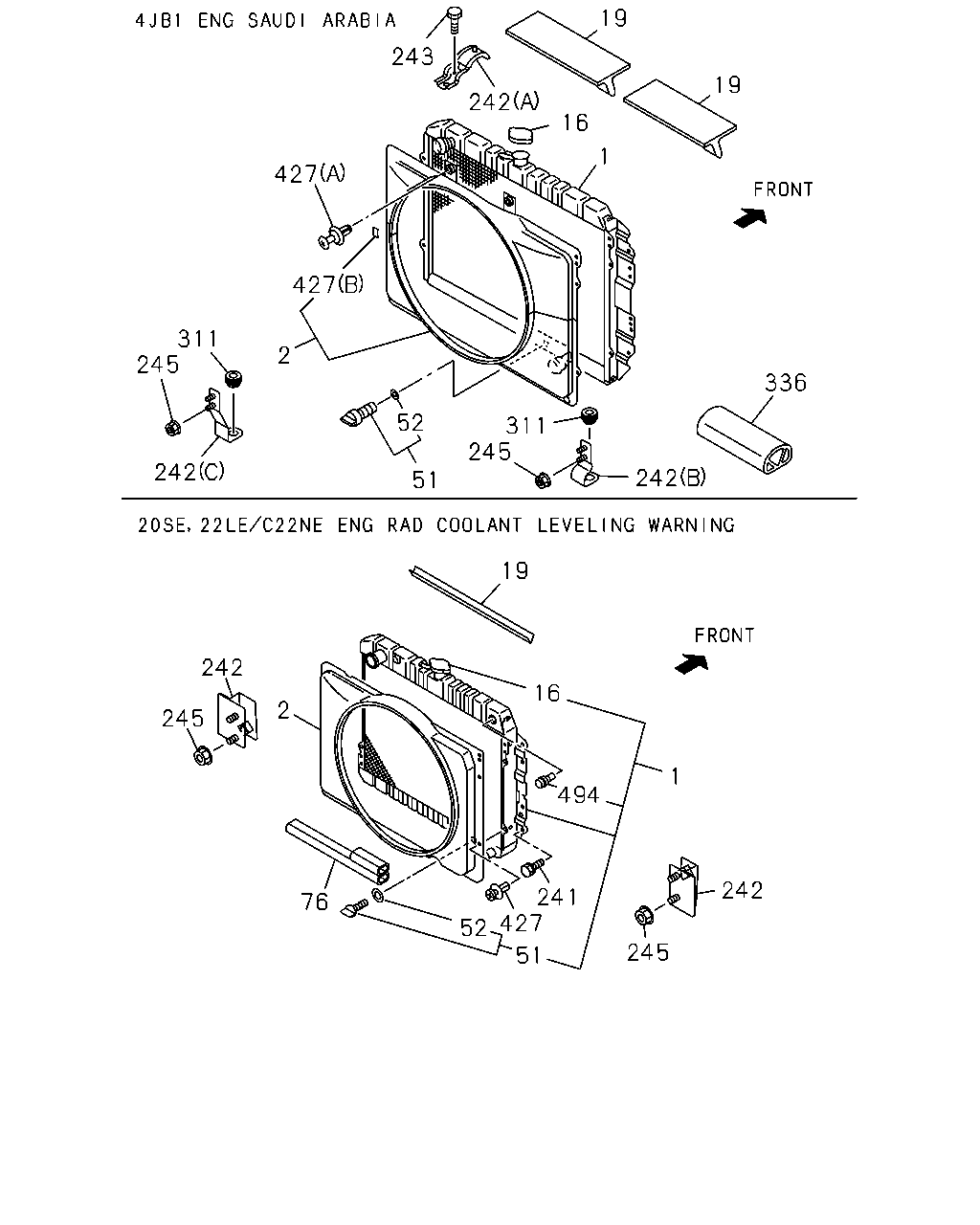

çizim 69264
19 243 19 242 16 1 427 427 311 245 2 336 52 311 245 242 242 51 19 242 16 2 245 1 494 242 241 427 76 52 245 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 RADIATOR ASM 8-97116-005-0 01 1 9804- ●
1 01.219 RADIATOR ASM 8-94383-646-1 01 1 9804-9812 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94383-646-1 01 1 9901- ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) 		8-97041-690-0 01 1 0010- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 		8-97084-924-0 01 1 9901- ●
1 01.219 RADIATOR ASM 8-97091-298-1 01 1 9804-9812 ●
1 01.219 RADIATOR ASM 8-52475-960-0 01 1 9804-0103 ●
1 01.219 RADIATOR ASM 8-97304-702-0 01 1 0104- ●
1 01.219 RADIATOR ASM
RADIATOR COOLANT LEVELING WARNING<7DL> 		8-97181-320-0 01 1 9804-0108 ●
1 01.219 RADIATOR ASM
RADIATOR COOLANT LEVELING WARNING<7DL> 		8-97181-320-0 01 1 0109- ● ●
1 01.219 RADIATOR ASM
EXC. RADIATOR COOLANT LEVELING WARNIN G<7DL> 		8-97186-459-0 01 1 9804-0108 ●
1 01.219 RADIATOR ASM
EXC. RADIATOR COOLANT LEVELING WARNIN G<7DL> 		8-97186-459-0 01 1 0109- ● ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 9804-9812 ● ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 9901-0009 ●
2 01.277 GUIDE; FAN
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97164-550-1 01 1 9901-0009 ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 0010- ●
2 01.277 GUIDE; FAN
A/T AISIN(RMD) 		8-97164-550-1 01 1 0010- ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97164-550-1 01 1 0010- ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 		8-97087-725-2 01 1 9901- ●
2 01.277 GUIDE; FAN 8-97161-424-0 01 1 9804-9812 ●
2 01.277 GUIDE; FAN
(A) 		8-52468-078-0 01 1 9804-0103 ●
2 01.277 GUIDE; FAN
(A) 		8-97074-073-2 01 1 0104- ●
2 01.277 GUIDE; FAN
(B) 		8-52468-079-1 01 1 9804-0103 ●
2 01.277 GUIDE; FAN
(B) 		8-97033-101-2 01 1 0104- ●
2 01.277 GUIDE; FAN 8-97205-974-0 01 1 9804-0108 ●
2 01.277 GUIDE; FAN 8-97205-974-0 01 1 0109- ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 9804-9812 ● ● ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 9901-0010 ● ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 0010-0108 ● ●
16 01.203 CAP; RAD
M/T MUA 5 SPEED(RMN) 		8-97104-194-0 01 1 0010-0108 ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 0109- ● ● ●
16 01.203 CAP; RAD
M/T MUA 5 SPEED(RMN) 		8-97104-194-0 01 1 0109- ●
16 01.203 CAP; RAD
A/T AISIN(RMD) 		8-94116-916-1 01 1 0010- ●
16 01.203 CAP; RAD 8-52477-552-0 01 1 9804-0103 ●
16 01.203 CAP; RAD 8-97239-187-0 01 1 0104- ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 9804-9812 ● ● ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 9901-0009 ● ●
19 01.270 SEAL; RAD UPR
EXC. SAUDI ARABIA EQUIPMENT(EU2) L=540 		8-94468-115-1 01 1 9901-0009 ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 0010-0108 ● ●
19 01.270 SEAL; RAD UPR
A/T AISIN(RMD) L=540 		8-94468-115-1 01 1 0010-0108 ●
19 01.270 SEAL; RAD UPR
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) L=540 		8-94468-115-1 01 1 0010-0108 ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 0109- ● ● ●
19 01.270 SEAL; RAD UPR
A/T AISIN(RMD) L=540 		8-94468-115-1 01 1 0109- ●
19 01.270 SEAL; RAD UPR
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) L=540 		8-94468-115-1 01 1 0109- ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 9804-9812 ●
19 01.270 SEAL; RAD UPR
SAUDI ARABIA EQUIPMENT(EU2) L=200 		8-97081-956-2 01 1 9901-0009 ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 9901-0009 ●
19 01.270 SEAL; RAD UPR
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) L=200 		8-97081-956-2 01 1 0010-0103 ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 0010-0103 ●
19 01.270 SEAL; RAD UPR
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) L=200 		8-97081-956-2 01 1 0104- ●
19 01.270 SEAL; RAD UPR
L=380 		8-97081-957-2 01 1 9804-9812 ●
19 01.270 SEAL; RAD UPR
SAUDI ARABIA EQUIPMENT(EU2) L=380 		8-97081-957-2 01 1 9901-0002 ●
19 01.270 SEAL; RAD UPR
L=380 		8-97081-957-2 01 1 9901-0002 ●
19 01.270 SEAL; RAD UPR
SAUDI ARABIA EQUIPMENT(EU2) L=365 		8-97254-404-0 01 1 0003-0009 ●
19 01.270 SEAL; RAD UPR
L=365 		8-97254-404-0 01 1 0003-0009 ●
19 01.270 SEAL; RAD UPR
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) L=365 		8-97254-404-0 01 1 0010-0103 ●
19 01.270 SEAL; RAD UPR
L=365 		8-97254-404-0 01 1 0010-0103 ●
19 01.270 SEAL; RAD UPR
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) L=365 		8-97254-404-0 01 1 0104- ●
19 01.270 SEAL; RAD UPR
L=360 		8-97164-208-1 01 1 0104- ●
19 01.270 SEAL; RAD UPR
L=200 		8-97304-967-0 01 1 0104- ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 9804-9812 ● ● ● ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 9901-0009 ● ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 08.915 W/GASKET 		8-94321-236-0 01 1 9901-0009 ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0010-0108 ● ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 08.915 W/GASKET 		8-94321-236-0 01 1 0010-0108 ●
51 08.951 PLUG; DRAIN
A/T AISIN(RMD) 08.915 W/GASKET 		8-94321-236-0 01 1 0010-0108 ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0109- ● ● ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 08.915 W/GASKET 		8-94321-236-0 01 1 0109- ●
51 08.951 PLUG; DRAIN
A/T AISIN(RMD) 08.915 W/GASKET 		8-94321-236-0 01 1 0109- ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 		8-97036-939-0 01 1 9901- ●
51 08.951 PLUG; DRAIN 8-52461-346-0 01 1 9804-0103 ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0104- ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 9804-9812 ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 9901-9901 ● ● ●
52 08.951 GASKET; DRAIN PLUG
EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.203 ID=10 		9-09720-557-0 01 1 9901-9901 ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 9901-0009 ● ●
52 08.951 GASKET; DRAIN PLUG
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.203 ID=10 		9-09720-557-0 01 1 9901-0009 ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 0010-0108 ● ●
52 08.951 GASKET; DRAIN PLUG
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.203 ID=10 		9-09720-557-0 01 1 0010-0108 ●
52 08.951 GASKET; DRAIN PLUG
A/T AISIN(RMD) 01.203 ID=10 		9-09720-557-0 01 1 0010-0108 ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 0109- ● ● ●
52 08.951 GASKET; DRAIN PLUG
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.203 ID=10 		9-09720-557-0 01 1 0109- ●
52 08.951 GASKET; DRAIN PLUG
A/T AISIN(RMD) 01.203 ID=10 		9-09720-557-0 01 1 0109- ●
52 08.951 GASKET; DRAIN PLUG
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 04.133 ID=9.8 		9-09561-110-0 01 1 9901- ●
76 01.174 SEAL; RAD,LWR
01.276 		8-94316-413-0 02 1 9804-9812 ● ● ● ●
76 01.174 SEAL; RAD,LWR
01.276 		8-94316-413-0 02 1 9901-0009 ● ●
76 01.174 SEAL; RAD,LWR
EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.276 		8-94316-413-0 02 1 9901-0009 ●
76 01.174 SEAL; RAD,LWR
01.276 		8-94316-413-0 02 1 0010-0108 ● ●
76 01.174 SEAL; RAD,LWR
A/T AISIN(RMD) 01.276 		8-94316-413-0 02 1 0010-0108 ●
76 01.174 SEAL; RAD,LWR
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.276 		8-94316-413-0 02 1 0010-0108 ●
76 01.174 SEAL; RAD,LWR
01.276 		8-94316-413-0 02 1 0109- ● ● ●
76 01.174 SEAL; RAD,LWR
A/T AISIN(RMD) 01.276 		8-94316-413-0 02 1 0109- ●
76 01.174 SEAL; RAD,LWR
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.276 		8-94316-413-0 02 1 0109- ●
241 01.274 BOLT; RAD TO BODY
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9804-9812 ● ● ● ●
241 01.274 BOLT; RAD TO BODY
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9901-9901 ● ● ●
241 01.274 BOLT; RAD TO BODY
EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9901-9901 ●
241 01.274 BOLT; RAD TO BODY
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9901-0009 ● ●
241 01.274 BOLT; RAD TO BODY
EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9901-0009 ●
241 01.274 BOLT; RAD TO BODY
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0010-0108 ● ●
241 01.274 BOLT; RAD TO BODY
A/T AISIN(RMD) 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0010-0108 ●
241 01.274 BOLT; RAD TO BODY
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0010-0108 ●
241 01.274 BOLT; RAD TO BODY
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0109- ● ● ●
241 01.274 BOLT; RAD TO BODY
A/T AISIN(RMD) 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0109- ●
241 01.274 BOLT; RAD TO BODY
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0109- ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 9804-9812 ● ● ● ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 9901-9901 ● ● ●
242 01.219 BRACKET; RAD
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-226-2 01 1 9901-9901 ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 9901-0009 ● ●
242 01.219 BRACKET; RAD
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-226-2 01 1 9901-0009 ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 0010-0108 ● ●
242 01.219 BRACKET; RAD
A/T AISIN(RMD) 		8-97041-226-2 01 1 0010-0108 ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-226-2 01 1 0010-0108 ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 0109- ● ● ●
242 01.219 BRACKET; RAD
A/T AISIN(RMD) 		8-97041-226-2 01 1 0109- ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-226-2 01 1 0109- ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 9804-9812 ● ● ● ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 9901-9901 ● ● ●
242 01.219 BRACKET; RAD
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-225-2 01 1 9901-9901 ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 9901-0009 ● ●
242 01.219 BRACKET; RAD
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-225-2 01 1 9901-0009 ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 0010-0108 ● ●
242 01.219 BRACKET; RAD
A/T AISIN(RMD) 		8-97041-225-2 01 1 0010-0108 ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-225-2 01 1 0010-0108 ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 0109- ● ● ●
242 01.219 BRACKET; RAD
A/T AISIN(RMD) 		8-97041-225-2 01 1 0109- ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-225-2 01 1 0109- ●
242 01.219 BRACKET; RAD
(A) 		8-97064-431-2 01 1 9804-9812 ●
242 01.219 BRACKET; RAD
SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97064-431-2 01 1 9901-9904 ●
242 01.219 BRACKET; RAD
(A) 		8-97064-431-2 01 1 9901-9904 ●
242 01.219 BRACKET; RAD
SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97225-348-0 01 1 9905-0009 ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-0 01 1 9905-0009 ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97225-348-1 01 1 0010- ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-1 01 1 0010- ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 9804-9812 ●
242 01.219 BRACKET; RAD
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97084-635-1 01 1 9901-0009 ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 9901-0009 ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97084-635-1 01 1 0010- ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 0010- ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 9804-9812 ●
242 01.219 BRACKET; RAD
SAUDI ARABIA EQUIPMENT(EU2) (C) 		8-97084-636-1 01 1 9901-0009 ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 9901-0009 ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) (C) 		8-97084-636-1 01 1 0010- ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 0010- ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9804-9812 ●
243 01.219 BOLT; BRKT
SAUDI ARABIA EQUIPMENT(EU2) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9901-0009 ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9901-0009 ●
243 01.219 BOLT; BRKT
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 0010- ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 0010- ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 9804-9812 ● ● ● ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 9901-9901 ● ● ●
245 01.219 NUT; BRKT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.633 M8 FLANGE 		0-91150-108-0 04 1 9901-9901 ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 9901-0009 ● ●
245 01.219 NUT; BRKT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.633 M8 FLANGE 		0-91150-108-0 04 1 9901-0009 ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 0010-0108 ● ●
245 01.219 NUT; BRKT
A/T AISIN(RMD) 07.633 M8 FLANGE 		0-91150-108-0 04 1 0010-0108 ●
245 01.219 NUT; BRKT
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.633 M8 FLANGE 		0-91150-108-0 04 1 0010-0108 ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 0109- ● ● ●
245 01.219 NUT; BRKT
A/T AISIN(RMD) 07.633 M8 FLANGE 		0-91150-108-0 04 1 0109- ●
245 01.219 NUT; BRKT
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.633 M8 FLANGE 		0-91150-108-0 04 1 0109- ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 9804-9812 ●
245 01.219 NUT; BRKT
SAUDI ARABIA EQUIPMENT(EU2) 04.010 M8 FLANGE 		8-97046-127-0 04 1 9901-0009 ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 9901-0009 ●
245 01.219 NUT; BRKT
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 04.010 M8 FLANGE 		8-97046-127-0 04 1 0010- ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 0010- ●
311 01.270 RUBBER; MTG,RAD 8-94375-183-1 02 1 9804-9812 ●
311 01.270 RUBBER; MTG,RAD
SAUDI ARABIA EQUIPMENT(EU2) 		8-94375-183-1 02 1 9901-9910 ●
311 01.270 RUBBER; MTG,RAD 8-94375-183-1 02 1 9901-9910 ●
311 01.270 RUBBER; MTG,RAD
SAUDI ARABIA EQUIPMENT(EU2) 		8-97231-024-0 02 1 9911-0009 ●
311 01.270 RUBBER; MTG,RAD 8-97231-024-0 02 1 9911-0009 ●
311 01.270 RUBBER; MTG,RAD
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 		8-97231-024-0 02 1 0010- ●
311 01.270 RUBBER; MTG,RAD 8-97231-024-0 02 1 0010- ●
336 01.270 SEAL; LWR,RAD 8-97124-393-0 02 1 9804-9812 ●
336 01.270 SEAL; LWR,RAD
SAUDI ARABIA EQUIPMENT(EU2) 		8-97124-393-0 02 1 9901-0009 ●
336 01.270 SEAL; LWR,RAD 8-97124-393-0 02 1 9901-0009 ●
336 01.270 SEAL; LWR,RAD
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 		8-97124-393-0 02 1 0010-0206 ●
336 01.270 SEAL; LWR,RAD 8-97124-393-0 02 1 0010-0206 ●
336 01.270 SEAL; LWR,RAD
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 		8-97257-011-0 02 1 0207- ●
336 01.270 SEAL; LWR,RAD 8-97257-011-0 02 1 0207- ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 9804-9812 ● ● ● ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 9901-9901 ● ● ●
427 01.240 CLIP; FAN GUIDE
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97143-177-0 04 1 9901-9901 ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 9901-0009 ● ●
427 01.240 CLIP; FAN GUIDE
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97143-177-0 04 1 9901-0009 ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 0010-0108 ● ●
427 01.240 CLIP; FAN GUIDE
A/T AISIN(RMD) 		8-97143-177-0 04 1 0010-0108 ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97143-177-0 04 1 0010-0108 ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 0109- ● ● ●
427 01.240 CLIP; FAN GUIDE
A/T AISIN(RMD) 		8-97143-177-0 04 1 0109- ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97143-177-0 04 1 0109- ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 01.277 (A) 		8-97043-862-0 02 1 9901-0103 ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 01.277 (A) 		8-97043-862-0 02 1 0104- ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 0104- ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97066-962-0 04 1 9901-0103 ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97066-962-0 04 1 0104- ●
427 01.240 CLIP; FAN GUIDE
(B) 		8-97066-962-0 04 1 0104- ●
427 01.240 CLIP; FAN GUIDE
01.277 		8-52469-065-0 04 1 9804-0103 ●
427 01.240 CLIP; FAN GUIDE
(C) 		8-97043-199-0 02 1 0104- ●
494 01.219 SENSOR; LEVEL
RADIATOR COOLANT LEVELING WARNING<7DL> 01.240 		8-97061-492-0 01 1 9804-0108 ●
494 01.219 SENSOR; LEVEL
RADIATOR COOLANT LEVELING WARNING<7DL> 01.240 		8-97061-492-0 01 1 0109- ● ●

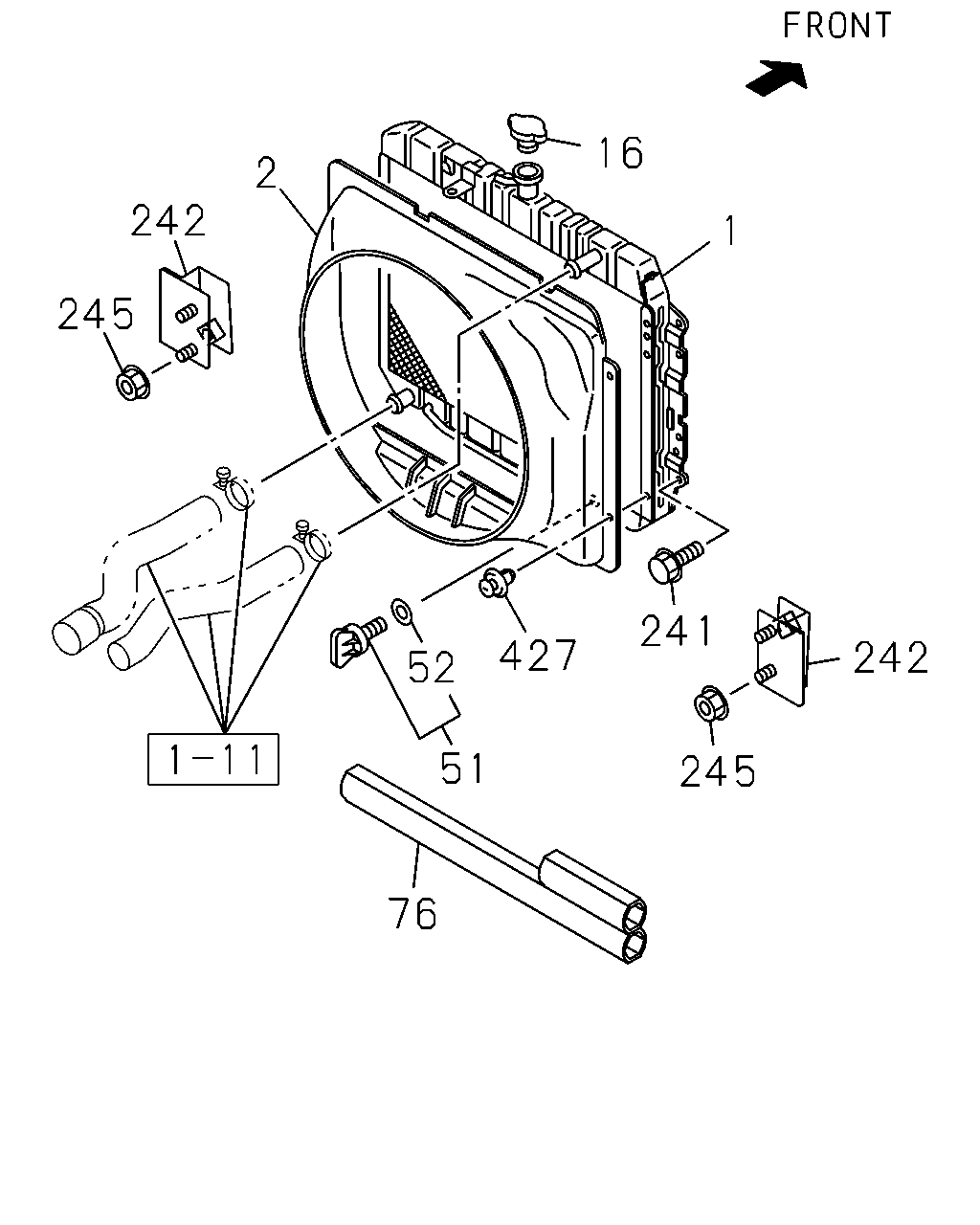

çizim 70304
16 2 242 1 245 241 427 242 52 51 245 76
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 RADIATOR ASM 8-97116-005-0 01 1 9804- ●
1 01.219 RADIATOR ASM 8-94383-646-1 01 1 9804-9812 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94383-646-1 01 1 9901- ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) 		8-97041-690-0 01 1 0010- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 		8-97084-924-0 01 1 9901- ●
1 01.219 RADIATOR ASM 8-97091-298-1 01 1 9804-9812 ●
1 01.219 RADIATOR ASM 8-52475-960-0 01 1 9804-0103 ●
1 01.219 RADIATOR ASM 8-97304-702-0 01 1 0104- ●
1 01.219 RADIATOR ASM
RADIATOR COOLANT LEVELING WARNING<7DL> 		8-97181-320-0 01 1 9804-0108 ●
1 01.219 RADIATOR ASM
RADIATOR COOLANT LEVELING WARNING<7DL> 		8-97181-320-0 01 1 0109- ● ●
1 01.219 RADIATOR ASM
EXC. RADIATOR COOLANT LEVELING WARNIN G<7DL> 		8-97186-459-0 01 1 9804-0108 ●
1 01.219 RADIATOR ASM
EXC. RADIATOR COOLANT LEVELING WARNIN G<7DL> 		8-97186-459-0 01 1 0109- ● ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 9804-9812 ● ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 9901-0009 ●
2 01.277 GUIDE; FAN
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97164-550-1 01 1 9901-0009 ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 0010- ●
2 01.277 GUIDE; FAN
A/T AISIN(RMD) 		8-97164-550-1 01 1 0010- ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97164-550-1 01 1 0010- ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 		8-97087-725-2 01 1 9901- ●
2 01.277 GUIDE; FAN 8-97161-424-0 01 1 9804-9812 ●
2 01.277 GUIDE; FAN
(A) 		8-52468-078-0 01 1 9804-0103 ●
2 01.277 GUIDE; FAN
(A) 		8-97074-073-2 01 1 0104- ●
2 01.277 GUIDE; FAN
(B) 		8-52468-079-1 01 1 9804-0103 ●
2 01.277 GUIDE; FAN
(B) 		8-97033-101-2 01 1 0104- ●
2 01.277 GUIDE; FAN 8-97205-974-0 01 1 9804-0108 ●
2 01.277 GUIDE; FAN 8-97205-974-0 01 1 0109- ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 9804-9812 ● ● ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 9901-0010 ● ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 0010-0108 ● ●
16 01.203 CAP; RAD
M/T MUA 5 SPEED(RMN) 		8-97104-194-0 01 1 0010-0108 ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 0109- ● ● ●
16 01.203 CAP; RAD
M/T MUA 5 SPEED(RMN) 		8-97104-194-0 01 1 0109- ●
16 01.203 CAP; RAD
A/T AISIN(RMD) 		8-94116-916-1 01 1 0010- ●
16 01.203 CAP; RAD 8-52477-552-0 01 1 9804-0103 ●
16 01.203 CAP; RAD 8-97239-187-0 01 1 0104- ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 9804-9812 ● ● ● ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 9901-0009 ● ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 08.915 W/GASKET 		8-94321-236-0 01 1 9901-0009 ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0010-0108 ● ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 08.915 W/GASKET 		8-94321-236-0 01 1 0010-0108 ●
51 08.951 PLUG; DRAIN
A/T AISIN(RMD) 08.915 W/GASKET 		8-94321-236-0 01 1 0010-0108 ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0109- ● ● ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 08.915 W/GASKET 		8-94321-236-0 01 1 0109- ●
51 08.951 PLUG; DRAIN
A/T AISIN(RMD) 08.915 W/GASKET 		8-94321-236-0 01 1 0109- ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 		8-97036-939-0 01 1 9901- ●
51 08.951 PLUG; DRAIN 8-52461-346-0 01 1 9804-0103 ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0104- ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 9804-9812 ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 9901-9901 ● ● ●
52 08.951 GASKET; DRAIN PLUG
EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.203 ID=10 		9-09720-557-0 01 1 9901-9901 ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 9901-0009 ● ●
52 08.951 GASKET; DRAIN PLUG
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.203 ID=10 		9-09720-557-0 01 1 9901-0009 ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 0010-0108 ● ●
52 08.951 GASKET; DRAIN PLUG
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.203 ID=10 		9-09720-557-0 01 1 0010-0108 ●
52 08.951 GASKET; DRAIN PLUG
A/T AISIN(RMD) 01.203 ID=10 		9-09720-557-0 01 1 0010-0108 ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 0109- ● ● ●
52 08.951 GASKET; DRAIN PLUG
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.203 ID=10 		9-09720-557-0 01 1 0109- ●
52 08.951 GASKET; DRAIN PLUG
A/T AISIN(RMD) 01.203 ID=10 		9-09720-557-0 01 1 0109- ●
52 08.951 GASKET; DRAIN PLUG
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 04.133 ID=9.8 		9-09561-110-0 01 1 9901- ●
76 01.174 SEAL; RAD,LWR
01.276 		8-94316-413-0 02 1 9804-9812 ● ● ● ●
76 01.174 SEAL; RAD,LWR
01.276 		8-94316-413-0 02 1 9901-0009 ● ●
76 01.174 SEAL; RAD,LWR
EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.276 		8-94316-413-0 02 1 9901-0009 ●
76 01.174 SEAL; RAD,LWR
01.276 		8-94316-413-0 02 1 0010-0108 ● ●
76 01.174 SEAL; RAD,LWR
A/T AISIN(RMD) 01.276 		8-94316-413-0 02 1 0010-0108 ●
76 01.174 SEAL; RAD,LWR
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.276 		8-94316-413-0 02 1 0010-0108 ●
76 01.174 SEAL; RAD,LWR
01.276 		8-94316-413-0 02 1 0109- ● ● ●
76 01.174 SEAL; RAD,LWR
A/T AISIN(RMD) 01.276 		8-94316-413-0 02 1 0109- ●
76 01.174 SEAL; RAD,LWR
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.276 		8-94316-413-0 02 1 0109- ●
241 01.274 BOLT; RAD TO BODY
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9804-9812 ● ● ● ●
241 01.274 BOLT; RAD TO BODY
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9901-9901 ● ● ●
241 01.274 BOLT; RAD TO BODY
EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9901-9901 ●
241 01.274 BOLT; RAD TO BODY
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9901-0009 ● ●
241 01.274 BOLT; RAD TO BODY
EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9901-0009 ●
241 01.274 BOLT; RAD TO BODY
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0010-0108 ● ●
241 01.274 BOLT; RAD TO BODY
A/T AISIN(RMD) 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0010-0108 ●
241 01.274 BOLT; RAD TO BODY
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0010-0108 ●
241 01.274 BOLT; RAD TO BODY
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0109- ● ● ●
241 01.274 BOLT; RAD TO BODY
A/T AISIN(RMD) 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0109- ●
241 01.274 BOLT; RAD TO BODY
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0109- ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 9804-9812 ● ● ● ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 9901-9901 ● ● ●
242 01.219 BRACKET; RAD
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-226-2 01 1 9901-9901 ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 9901-0009 ● ●
242 01.219 BRACKET; RAD
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-226-2 01 1 9901-0009 ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 0010-0108 ● ●
242 01.219 BRACKET; RAD
A/T AISIN(RMD) 		8-97041-226-2 01 1 0010-0108 ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-226-2 01 1 0010-0108 ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 0109- ● ● ●
242 01.219 BRACKET; RAD
A/T AISIN(RMD) 		8-97041-226-2 01 1 0109- ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-226-2 01 1 0109- ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 9804-9812 ● ● ● ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 9901-9901 ● ● ●
242 01.219 BRACKET; RAD
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-225-2 01 1 9901-9901 ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 9901-0009 ● ●
242 01.219 BRACKET; RAD
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-225-2 01 1 9901-0009 ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 0010-0108 ● ●
242 01.219 BRACKET; RAD
A/T AISIN(RMD) 		8-97041-225-2 01 1 0010-0108 ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-225-2 01 1 0010-0108 ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 0109- ● ● ●
242 01.219 BRACKET; RAD
A/T AISIN(RMD) 		8-97041-225-2 01 1 0109- ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-225-2 01 1 0109- ●
242 01.219 BRACKET; RAD
(A) 		8-97064-431-2 01 1 9804-9812 ●
242 01.219 BRACKET; RAD
SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97064-431-2 01 1 9901-9904 ●
242 01.219 BRACKET; RAD
(A) 		8-97064-431-2 01 1 9901-9904 ●
242 01.219 BRACKET; RAD
SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97225-348-0 01 1 9905-0009 ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-0 01 1 9905-0009 ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97225-348-1 01 1 0010- ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-1 01 1 0010- ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 9804-9812 ●
242 01.219 BRACKET; RAD
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97084-635-1 01 1 9901-0009 ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 9901-0009 ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97084-635-1 01 1 0010- ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 0010- ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 9804-9812 ●
242 01.219 BRACKET; RAD
SAUDI ARABIA EQUIPMENT(EU2) (C) 		8-97084-636-1 01 1 9901-0009 ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 9901-0009 ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) (C) 		8-97084-636-1 01 1 0010- ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 0010- ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 9804-9812 ● ● ● ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 9901-9901 ● ● ●
245 01.219 NUT; BRKT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.633 M8 FLANGE 		0-91150-108-0 04 1 9901-9901 ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 9901-0009 ● ●
245 01.219 NUT; BRKT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.633 M8 FLANGE 		0-91150-108-0 04 1 9901-0009 ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 0010-0108 ● ●
245 01.219 NUT; BRKT
A/T AISIN(RMD) 07.633 M8 FLANGE 		0-91150-108-0 04 1 0010-0108 ●
245 01.219 NUT; BRKT
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.633 M8 FLANGE 		0-91150-108-0 04 1 0010-0108 ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 0109- ● ● ●
245 01.219 NUT; BRKT
A/T AISIN(RMD) 07.633 M8 FLANGE 		0-91150-108-0 04 1 0109- ●
245 01.219 NUT; BRKT
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.633 M8 FLANGE 		0-91150-108-0 04 1 0109- ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 9804-9812 ●
245 01.219 NUT; BRKT
SAUDI ARABIA EQUIPMENT(EU2) 04.010 M8 FLANGE 		8-97046-127-0 04 1 9901-0009 ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 9901-0009 ●
245 01.219 NUT; BRKT
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 04.010 M8 FLANGE 		8-97046-127-0 04 1 0010- ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 0010- ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 9804-9812 ● ● ● ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 9901-9901 ● ● ●
427 01.240 CLIP; FAN GUIDE
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97143-177-0 04 1 9901-9901 ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 9901-0009 ● ●
427 01.240 CLIP; FAN GUIDE
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97143-177-0 04 1 9901-0009 ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 0010-0108 ● ●
427 01.240 CLIP; FAN GUIDE
A/T AISIN(RMD) 		8-97143-177-0 04 1 0010-0108 ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97143-177-0 04 1 0010-0108 ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 0109- ● ● ●
427 01.240 CLIP; FAN GUIDE
A/T AISIN(RMD) 		8-97143-177-0 04 1 0109- ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97143-177-0 04 1 0109- ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 01.277 (A) 		8-97043-862-0 02 1 9901-0103 ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 01.277 (A) 		8-97043-862-0 02 1 0104- ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 0104- ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97066-962-0 04 1 9901-0103 ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97066-962-0 04 1 0104- ●
427 01.240 CLIP; FAN GUIDE
(B) 		8-97066-962-0 04 1 0104- ●
427 01.240 CLIP; FAN GUIDE
01.277 		8-52469-065-0 04 1 9804-0103 ●
427 01.240 CLIP; FAN GUIDE
(C) 		8-97043-199-0 02 1 0104- ●

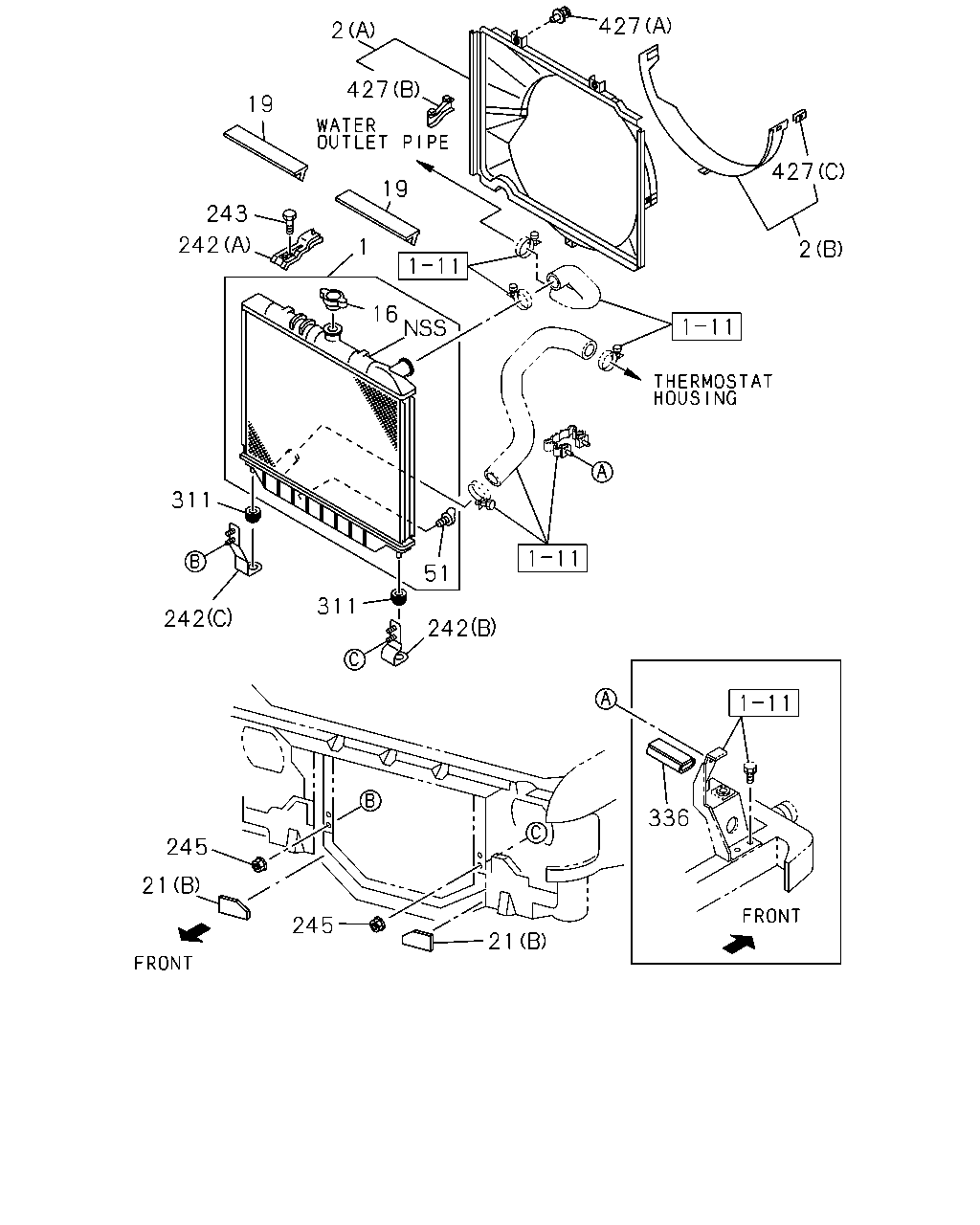

çizim 71542
427 2 427 19 427 19 243 242 1 2 16 311 51 311 242 242 336 245 21 245 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 RADIATOR ASM 8-97116-005-0 01 1 9804- ●
1 01.219 RADIATOR ASM 8-94383-646-1 01 1 9804-9812 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94383-646-1 01 1 9901- ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) 		8-97041-690-0 01 1 0010- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 		8-97084-924-0 01 1 9901- ●
1 01.219 RADIATOR ASM 8-97091-298-1 01 1 9804-9812 ●
1 01.219 RADIATOR ASM 8-52475-960-0 01 1 9804-0103 ●
1 01.219 RADIATOR ASM 8-97304-702-0 01 1 0104- ●
1 01.219 RADIATOR ASM
RADIATOR COOLANT LEVELING WARNING<7DL> 		8-97181-320-0 01 1 9804-0108 ●
1 01.219 RADIATOR ASM
RADIATOR COOLANT LEVELING WARNING<7DL> 		8-97181-320-0 01 1 0109- ● ●
1 01.219 RADIATOR ASM
EXC. RADIATOR COOLANT LEVELING WARNIN G<7DL> 		8-97186-459-0 01 1 9804-0108 ●
1 01.219 RADIATOR ASM
EXC. RADIATOR COOLANT LEVELING WARNIN G<7DL> 		8-97186-459-0 01 1 0109- ● ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 9804-9812 ● ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 9901-0009 ●
2 01.277 GUIDE; FAN
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97164-550-1 01 1 9901-0009 ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 0010- ●
2 01.277 GUIDE; FAN
A/T AISIN(RMD) 		8-97164-550-1 01 1 0010- ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97164-550-1 01 1 0010- ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 		8-97087-725-2 01 1 9901- ●
2 01.277 GUIDE; FAN 8-97161-424-0 01 1 9804-9812 ●
2 01.277 GUIDE; FAN
(A) 		8-52468-078-0 01 1 9804-0103 ●
2 01.277 GUIDE; FAN
(A) 		8-97074-073-2 01 1 0104- ●
2 01.277 GUIDE; FAN
(B) 		8-52468-079-1 01 1 9804-0103 ●
2 01.277 GUIDE; FAN
(B) 		8-97033-101-2 01 1 0104- ●
2 01.277 GUIDE; FAN 8-97205-974-0 01 1 9804-0108 ●
2 01.277 GUIDE; FAN 8-97205-974-0 01 1 0109- ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 9804-9812 ● ● ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 9901-0010 ● ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 0010-0108 ● ●
16 01.203 CAP; RAD
M/T MUA 5 SPEED(RMN) 		8-97104-194-0 01 1 0010-0108 ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 0109- ● ● ●
16 01.203 CAP; RAD
M/T MUA 5 SPEED(RMN) 		8-97104-194-0 01 1 0109- ●
16 01.203 CAP; RAD
A/T AISIN(RMD) 		8-94116-916-1 01 1 0010- ●
16 01.203 CAP; RAD 8-52477-552-0 01 1 9804-0103 ●
16 01.203 CAP; RAD 8-97239-187-0 01 1 0104- ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 9804-9812 ● ● ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 9901-0009 ● ●
19 01.270 SEAL; RAD UPR
EXC. SAUDI ARABIA EQUIPMENT(EU2) L=540 		8-94468-115-1 01 1 9901-0009 ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 0010-0108 ● ●
19 01.270 SEAL; RAD UPR
A/T AISIN(RMD) L=540 		8-94468-115-1 01 1 0010-0108 ●
19 01.270 SEAL; RAD UPR
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) L=540 		8-94468-115-1 01 1 0010-0108 ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 0109- ● ● ●
19 01.270 SEAL; RAD UPR
A/T AISIN(RMD) L=540 		8-94468-115-1 01 1 0109- ●
19 01.270 SEAL; RAD UPR
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) L=540 		8-94468-115-1 01 1 0109- ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 9804-9812 ●
19 01.270 SEAL; RAD UPR
SAUDI ARABIA EQUIPMENT(EU2) L=200 		8-97081-956-2 01 1 9901-0009 ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 9901-0009 ●
19 01.270 SEAL; RAD UPR
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) L=200 		8-97081-956-2 01 1 0010-0103 ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 0010-0103 ●
19 01.270 SEAL; RAD UPR
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) L=200 		8-97081-956-2 01 1 0104- ●
19 01.270 SEAL; RAD UPR
L=380 		8-97081-957-2 01 1 9804-9812 ●
19 01.270 SEAL; RAD UPR
SAUDI ARABIA EQUIPMENT(EU2) L=380 		8-97081-957-2 01 1 9901-0002 ●
19 01.270 SEAL; RAD UPR
L=380 		8-97081-957-2 01 1 9901-0002 ●
19 01.270 SEAL; RAD UPR
SAUDI ARABIA EQUIPMENT(EU2) L=365 		8-97254-404-0 01 1 0003-0009 ●
19 01.270 SEAL; RAD UPR
L=365 		8-97254-404-0 01 1 0003-0009 ●
19 01.270 SEAL; RAD UPR
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) L=365 		8-97254-404-0 01 1 0010-0103 ●
19 01.270 SEAL; RAD UPR
L=365 		8-97254-404-0 01 1 0010-0103 ●
19 01.270 SEAL; RAD UPR
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) L=365 		8-97254-404-0 01 1 0104- ●
19 01.270 SEAL; RAD UPR
L=360 		8-97164-208-1 01 1 0104- ●
19 01.270 SEAL; RAD UPR
L=200 		8-97304-967-0 01 1 0104- ●
21 01.276 SEAL; RAD
(A) 		8-52468-212-0 02 1 9804-0103 ●
21 01.276 SEAL; RAD
(B) 		8-97033-102-3 01 1 9804- ●
21 01.276 SEAL; RAD
(B) 		8-97047-002-3 01 1 9804- ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 9804-9812 ● ● ● ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 9901-0009 ● ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 08.915 W/GASKET 		8-94321-236-0 01 1 9901-0009 ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0010-0108 ● ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 08.915 W/GASKET 		8-94321-236-0 01 1 0010-0108 ●
51 08.951 PLUG; DRAIN
A/T AISIN(RMD) 08.915 W/GASKET 		8-94321-236-0 01 1 0010-0108 ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0109- ● ● ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 08.915 W/GASKET 		8-94321-236-0 01 1 0109- ●
51 08.951 PLUG; DRAIN
A/T AISIN(RMD) 08.915 W/GASKET 		8-94321-236-0 01 1 0109- ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 		8-97036-939-0 01 1 9901- ●
51 08.951 PLUG; DRAIN 8-52461-346-0 01 1 9804-0103 ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0104- ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 9804-9812 ● ● ● ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 9901-9901 ● ● ●
242 01.219 BRACKET; RAD
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-226-2 01 1 9901-9901 ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 9901-0009 ● ●
242 01.219 BRACKET; RAD
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-226-2 01 1 9901-0009 ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 0010-0108 ● ●
242 01.219 BRACKET; RAD
A/T AISIN(RMD) 		8-97041-226-2 01 1 0010-0108 ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-226-2 01 1 0010-0108 ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 0109- ● ● ●
242 01.219 BRACKET; RAD
A/T AISIN(RMD) 		8-97041-226-2 01 1 0109- ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-226-2 01 1 0109- ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 9804-9812 ● ● ● ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 9901-9901 ● ● ●
242 01.219 BRACKET; RAD
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-225-2 01 1 9901-9901 ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 9901-0009 ● ●
242 01.219 BRACKET; RAD
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-225-2 01 1 9901-0009 ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 0010-0108 ● ●
242 01.219 BRACKET; RAD
A/T AISIN(RMD) 		8-97041-225-2 01 1 0010-0108 ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-225-2 01 1 0010-0108 ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 0109- ● ● ●
242 01.219 BRACKET; RAD
A/T AISIN(RMD) 		8-97041-225-2 01 1 0109- ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-225-2 01 1 0109- ●
242 01.219 BRACKET; RAD
(A) 		8-97064-431-2 01 1 9804-9812 ●
242 01.219 BRACKET; RAD
SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97064-431-2 01 1 9901-9904 ●
242 01.219 BRACKET; RAD
(A) 		8-97064-431-2 01 1 9901-9904 ●
242 01.219 BRACKET; RAD
SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97225-348-0 01 1 9905-0009 ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-0 01 1 9905-0009 ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97225-348-1 01 1 0010- ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-1 01 1 0010- ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 9804-9812 ●
242 01.219 BRACKET; RAD
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97084-635-1 01 1 9901-0009 ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 9901-0009 ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97084-635-1 01 1 0010- ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 0010- ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 9804-9812 ●
242 01.219 BRACKET; RAD
SAUDI ARABIA EQUIPMENT(EU2) (C) 		8-97084-636-1 01 1 9901-0009 ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 9901-0009 ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) (C) 		8-97084-636-1 01 1 0010- ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 0010- ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9804-9812 ●
243 01.219 BOLT; BRKT
SAUDI ARABIA EQUIPMENT(EU2) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9901-0009 ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9901-0009 ●
243 01.219 BOLT; BRKT
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 0010- ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 0010- ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 9804-9812 ● ● ● ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 9901-9901 ● ● ●
245 01.219 NUT; BRKT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.633 M8 FLANGE 		0-91150-108-0 04 1 9901-9901 ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 9901-0009 ● ●
245 01.219 NUT; BRKT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.633 M8 FLANGE 		0-91150-108-0 04 1 9901-0009 ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 0010-0108 ● ●
245 01.219 NUT; BRKT
A/T AISIN(RMD) 07.633 M8 FLANGE 		0-91150-108-0 04 1 0010-0108 ●
245 01.219 NUT; BRKT
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.633 M8 FLANGE 		0-91150-108-0 04 1 0010-0108 ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 0109- ● ● ●
245 01.219 NUT; BRKT
A/T AISIN(RMD) 07.633 M8 FLANGE 		0-91150-108-0 04 1 0109- ●
245 01.219 NUT; BRKT
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.633 M8 FLANGE 		0-91150-108-0 04 1 0109- ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 9804-9812 ●
245 01.219 NUT; BRKT
SAUDI ARABIA EQUIPMENT(EU2) 04.010 M8 FLANGE 		8-97046-127-0 04 1 9901-0009 ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 9901-0009 ●
245 01.219 NUT; BRKT
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 04.010 M8 FLANGE 		8-97046-127-0 04 1 0010- ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 0010- ●
311 01.270 RUBBER; MTG,RAD 8-94375-183-1 02 1 9804-9812 ●
311 01.270 RUBBER; MTG,RAD
SAUDI ARABIA EQUIPMENT(EU2) 		8-94375-183-1 02 1 9901-9910 ●
311 01.270 RUBBER; MTG,RAD 8-94375-183-1 02 1 9901-9910 ●
311 01.270 RUBBER; MTG,RAD
SAUDI ARABIA EQUIPMENT(EU2) 		8-97231-024-0 02 1 9911-0009 ●
311 01.270 RUBBER; MTG,RAD 8-97231-024-0 02 1 9911-0009 ●
311 01.270 RUBBER; MTG,RAD
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 		8-97231-024-0 02 1 0010- ●
311 01.270 RUBBER; MTG,RAD 8-97231-024-0 02 1 0010- ●
336 01.270 SEAL; LWR,RAD 8-97124-393-0 02 1 9804-9812 ●
336 01.270 SEAL; LWR,RAD
SAUDI ARABIA EQUIPMENT(EU2) 		8-97124-393-0 02 1 9901-0009 ●
336 01.270 SEAL; LWR,RAD 8-97124-393-0 02 1 9901-0009 ●
336 01.270 SEAL; LWR,RAD
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 		8-97124-393-0 02 1 0010-0206 ●
336 01.270 SEAL; LWR,RAD 8-97124-393-0 02 1 0010-0206 ●
336 01.270 SEAL; LWR,RAD
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 		8-97257-011-0 02 1 0207- ●
336 01.270 SEAL; LWR,RAD 8-97257-011-0 02 1 0207- ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 9804-9812 ● ● ● ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 9901-9901 ● ● ●
427 01.240 CLIP; FAN GUIDE
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97143-177-0 04 1 9901-9901 ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 9901-0009 ● ●
427 01.240 CLIP; FAN GUIDE
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97143-177-0 04 1 9901-0009 ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 0010-0108 ● ●
427 01.240 CLIP; FAN GUIDE
A/T AISIN(RMD) 		8-97143-177-0 04 1 0010-0108 ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97143-177-0 04 1 0010-0108 ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 0109- ● ● ●
427 01.240 CLIP; FAN GUIDE
A/T AISIN(RMD) 		8-97143-177-0 04 1 0109- ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97143-177-0 04 1 0109- ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 01.277 (A) 		8-97043-862-0 02 1 9901-0103 ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 01.277 (A) 		8-97043-862-0 02 1 0104- ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 0104- ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97066-962-0 04 1 9901-0103 ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97066-962-0 04 1 0104- ●
427 01.240 CLIP; FAN GUIDE
(B) 		8-97066-962-0 04 1 0104- ●
427 01.240 CLIP; FAN GUIDE
01.277 		8-52469-065-0 04 1 9804-0103 ●
427 01.240 CLIP; FAN GUIDE
(C) 		8-97043-199-0 02 1 0104- ●
çizim 72837
19 242 245 16 2 1 242 241 427 76 52 245 51 242 16 245 19 2 1 76 242 241 427 245 52 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 RADIATOR ASM 8-97116-005-0 01 1 9804- ●
1 01.219 RADIATOR ASM 8-94383-646-1 01 1 9804-9812 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94383-646-1 01 1 9901- ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) 		8-97041-690-0 01 1 0010- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 		8-97084-924-0 01 1 9901- ●
1 01.219 RADIATOR ASM 8-97091-298-1 01 1 9804-9812 ●
1 01.219 RADIATOR ASM 8-52475-960-0 01 1 9804-0103 ●
1 01.219 RADIATOR ASM 8-97304-702-0 01 1 0104- ●
1 01.219 RADIATOR ASM
RADIATOR COOLANT LEVELING WARNING<7DL> 		8-97181-320-0 01 1 9804-0108 ●
1 01.219 RADIATOR ASM
RADIATOR COOLANT LEVELING WARNING<7DL> 		8-97181-320-0 01 1 0109- ● ●
1 01.219 RADIATOR ASM
EXC. RADIATOR COOLANT LEVELING WARNIN G<7DL> 		8-97186-459-0 01 1 9804-0108 ●
1 01.219 RADIATOR ASM
EXC. RADIATOR COOLANT LEVELING WARNIN G<7DL> 		8-97186-459-0 01 1 0109- ● ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 9804-9812 ● ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 9901-0009 ●
2 01.277 GUIDE; FAN
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97164-550-1 01 1 9901-0009 ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 0010- ●
2 01.277 GUIDE; FAN
A/T AISIN(RMD) 		8-97164-550-1 01 1 0010- ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97164-550-1 01 1 0010- ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 		8-97087-725-2 01 1 9901- ●
2 01.277 GUIDE; FAN 8-97161-424-0 01 1 9804-9812 ●
2 01.277 GUIDE; FAN
(A) 		8-52468-078-0 01 1 9804-0103 ●
2 01.277 GUIDE; FAN
(A) 		8-97074-073-2 01 1 0104- ●
2 01.277 GUIDE; FAN
(B) 		8-52468-079-1 01 1 9804-0103 ●
2 01.277 GUIDE; FAN
(B) 		8-97033-101-2 01 1 0104- ●
2 01.277 GUIDE; FAN 8-97205-974-0 01 1 9804-0108 ●
2 01.277 GUIDE; FAN 8-97205-974-0 01 1 0109- ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 9804-9812 ● ● ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 9901-0010 ● ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 0010-0108 ● ●
16 01.203 CAP; RAD
M/T MUA 5 SPEED(RMN) 		8-97104-194-0 01 1 0010-0108 ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 0109- ● ● ●
16 01.203 CAP; RAD
M/T MUA 5 SPEED(RMN) 		8-97104-194-0 01 1 0109- ●
16 01.203 CAP; RAD
A/T AISIN(RMD) 		8-94116-916-1 01 1 0010- ●
16 01.203 CAP; RAD 8-52477-552-0 01 1 9804-0103 ●
16 01.203 CAP; RAD 8-97239-187-0 01 1 0104- ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 9804-9812 ● ● ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 9901-0009 ● ●
19 01.270 SEAL; RAD UPR
EXC. SAUDI ARABIA EQUIPMENT(EU2) L=540 		8-94468-115-1 01 1 9901-0009 ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 0010-0108 ● ●
19 01.270 SEAL; RAD UPR
A/T AISIN(RMD) L=540 		8-94468-115-1 01 1 0010-0108 ●
19 01.270 SEAL; RAD UPR
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) L=540 		8-94468-115-1 01 1 0010-0108 ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 0109- ● ● ●
19 01.270 SEAL; RAD UPR
A/T AISIN(RMD) L=540 		8-94468-115-1 01 1 0109- ●
19 01.270 SEAL; RAD UPR
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) L=540 		8-94468-115-1 01 1 0109- ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 9804-9812 ●
19 01.270 SEAL; RAD UPR
SAUDI ARABIA EQUIPMENT(EU2) L=200 		8-97081-956-2 01 1 9901-0009 ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 9901-0009 ●
19 01.270 SEAL; RAD UPR
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) L=200 		8-97081-956-2 01 1 0010-0103 ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 0010-0103 ●
19 01.270 SEAL; RAD UPR
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) L=200 		8-97081-956-2 01 1 0104- ●
19 01.270 SEAL; RAD UPR
L=380 		8-97081-957-2 01 1 9804-9812 ●
19 01.270 SEAL; RAD UPR
SAUDI ARABIA EQUIPMENT(EU2) L=380 		8-97081-957-2 01 1 9901-0002 ●
19 01.270 SEAL; RAD UPR
L=380 		8-97081-957-2 01 1 9901-0002 ●
19 01.270 SEAL; RAD UPR
SAUDI ARABIA EQUIPMENT(EU2) L=365 		8-97254-404-0 01 1 0003-0009 ●
19 01.270 SEAL; RAD UPR
L=365 		8-97254-404-0 01 1 0003-0009 ●
19 01.270 SEAL; RAD UPR
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) L=365 		8-97254-404-0 01 1 0010-0103 ●
19 01.270 SEAL; RAD UPR
L=365 		8-97254-404-0 01 1 0010-0103 ●
19 01.270 SEAL; RAD UPR
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) L=365 		8-97254-404-0 01 1 0104- ●
19 01.270 SEAL; RAD UPR
L=360 		8-97164-208-1 01 1 0104- ●
19 01.270 SEAL; RAD UPR
L=200 		8-97304-967-0 01 1 0104- ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 9804-9812 ● ● ● ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 9901-0009 ● ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 08.915 W/GASKET 		8-94321-236-0 01 1 9901-0009 ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0010-0108 ● ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 08.915 W/GASKET 		8-94321-236-0 01 1 0010-0108 ●
51 08.951 PLUG; DRAIN
A/T AISIN(RMD) 08.915 W/GASKET 		8-94321-236-0 01 1 0010-0108 ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0109- ● ● ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 08.915 W/GASKET 		8-94321-236-0 01 1 0109- ●
51 08.951 PLUG; DRAIN
A/T AISIN(RMD) 08.915 W/GASKET 		8-94321-236-0 01 1 0109- ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 		8-97036-939-0 01 1 9901- ●
51 08.951 PLUG; DRAIN 8-52461-346-0 01 1 9804-0103 ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0104- ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 9804-9812 ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 9901-9901 ● ● ●
52 08.951 GASKET; DRAIN PLUG
EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.203 ID=10 		9-09720-557-0 01 1 9901-9901 ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 9901-0009 ● ●
52 08.951 GASKET; DRAIN PLUG
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.203 ID=10 		9-09720-557-0 01 1 9901-0009 ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 0010-0108 ● ●
52 08.951 GASKET; DRAIN PLUG
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.203 ID=10 		9-09720-557-0 01 1 0010-0108 ●
52 08.951 GASKET; DRAIN PLUG
A/T AISIN(RMD) 01.203 ID=10 		9-09720-557-0 01 1 0010-0108 ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 0109- ● ● ●
52 08.951 GASKET; DRAIN PLUG
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.203 ID=10 		9-09720-557-0 01 1 0109- ●
52 08.951 GASKET; DRAIN PLUG
A/T AISIN(RMD) 01.203 ID=10 		9-09720-557-0 01 1 0109- ●
52 08.951 GASKET; DRAIN PLUG
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 04.133 ID=9.8 		9-09561-110-0 01 1 9901- ●
76 01.174 SEAL; RAD,LWR
01.276 		8-94316-413-0 02 1 9804-9812 ● ● ● ●
76 01.174 SEAL; RAD,LWR
01.276 		8-94316-413-0 02 1 9901-0009 ● ●
76 01.174 SEAL; RAD,LWR
EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.276 		8-94316-413-0 02 1 9901-0009 ●
76 01.174 SEAL; RAD,LWR
01.276 		8-94316-413-0 02 1 0010-0108 ● ●
76 01.174 SEAL; RAD,LWR
A/T AISIN(RMD) 01.276 		8-94316-413-0 02 1 0010-0108 ●
76 01.174 SEAL; RAD,LWR
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.276 		8-94316-413-0 02 1 0010-0108 ●
76 01.174 SEAL; RAD,LWR
01.276 		8-94316-413-0 02 1 0109- ● ● ●
76 01.174 SEAL; RAD,LWR
A/T AISIN(RMD) 01.276 		8-94316-413-0 02 1 0109- ●
76 01.174 SEAL; RAD,LWR
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.276 		8-94316-413-0 02 1 0109- ●
241 01.274 BOLT; RAD TO BODY
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9804-9812 ● ● ● ●
241 01.274 BOLT; RAD TO BODY
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9901-9901 ● ● ●
241 01.274 BOLT; RAD TO BODY
EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9901-9901 ●
241 01.274 BOLT; RAD TO BODY
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9901-0009 ● ●
241 01.274 BOLT; RAD TO BODY
EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9901-0009 ●
241 01.274 BOLT; RAD TO BODY
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0010-0108 ● ●
241 01.274 BOLT; RAD TO BODY
A/T AISIN(RMD) 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0010-0108 ●
241 01.274 BOLT; RAD TO BODY
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0010-0108 ●
241 01.274 BOLT; RAD TO BODY
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0109- ● ● ●
241 01.274 BOLT; RAD TO BODY
A/T AISIN(RMD) 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0109- ●
241 01.274 BOLT; RAD TO BODY
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0109- ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 9804-9812 ● ● ● ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 9901-9901 ● ● ●
242 01.219 BRACKET; RAD
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-226-2 01 1 9901-9901 ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 9901-0009 ● ●
242 01.219 BRACKET; RAD
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-226-2 01 1 9901-0009 ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 0010-0108 ● ●
242 01.219 BRACKET; RAD
A/T AISIN(RMD) 		8-97041-226-2 01 1 0010-0108 ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-226-2 01 1 0010-0108 ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 0109- ● ● ●
242 01.219 BRACKET; RAD
A/T AISIN(RMD) 		8-97041-226-2 01 1 0109- ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-226-2 01 1 0109- ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 9804-9812 ● ● ● ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 9901-9901 ● ● ●
242 01.219 BRACKET; RAD
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-225-2 01 1 9901-9901 ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 9901-0009 ● ●
242 01.219 BRACKET; RAD
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-225-2 01 1 9901-0009 ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 0010-0108 ● ●
242 01.219 BRACKET; RAD
A/T AISIN(RMD) 		8-97041-225-2 01 1 0010-0108 ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-225-2 01 1 0010-0108 ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 0109- ● ● ●
242 01.219 BRACKET; RAD
A/T AISIN(RMD) 		8-97041-225-2 01 1 0109- ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97041-225-2 01 1 0109- ●
242 01.219 BRACKET; RAD
(A) 		8-97064-431-2 01 1 9804-9812 ●
242 01.219 BRACKET; RAD
SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97064-431-2 01 1 9901-9904 ●
242 01.219 BRACKET; RAD
(A) 		8-97064-431-2 01 1 9901-9904 ●
242 01.219 BRACKET; RAD
SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97225-348-0 01 1 9905-0009 ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-0 01 1 9905-0009 ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97225-348-1 01 1 0010- ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-1 01 1 0010- ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 9804-9812 ●
242 01.219 BRACKET; RAD
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97084-635-1 01 1 9901-0009 ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 9901-0009 ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97084-635-1 01 1 0010- ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 0010- ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 9804-9812 ●
242 01.219 BRACKET; RAD
SAUDI ARABIA EQUIPMENT(EU2) (C) 		8-97084-636-1 01 1 9901-0009 ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 9901-0009 ●
242 01.219 BRACKET; RAD
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) (C) 		8-97084-636-1 01 1 0010- ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 0010- ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 9804-9812 ● ● ● ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 9901-9901 ● ● ●
245 01.219 NUT; BRKT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.633 M8 FLANGE 		0-91150-108-0 04 1 9901-9901 ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 9901-0009 ● ●
245 01.219 NUT; BRKT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.633 M8 FLANGE 		0-91150-108-0 04 1 9901-0009 ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 0010-0108 ● ●
245 01.219 NUT; BRKT
A/T AISIN(RMD) 07.633 M8 FLANGE 		0-91150-108-0 04 1 0010-0108 ●
245 01.219 NUT; BRKT
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.633 M8 FLANGE 		0-91150-108-0 04 1 0010-0108 ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 0109- ● ● ●
245 01.219 NUT; BRKT
A/T AISIN(RMD) 07.633 M8 FLANGE 		0-91150-108-0 04 1 0109- ●
245 01.219 NUT; BRKT
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.633 M8 FLANGE 		0-91150-108-0 04 1 0109- ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 9804-9812 ●
245 01.219 NUT; BRKT
SAUDI ARABIA EQUIPMENT(EU2) 04.010 M8 FLANGE 		8-97046-127-0 04 1 9901-0009 ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 9901-0009 ●
245 01.219 NUT; BRKT
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 04.010 M8 FLANGE 		8-97046-127-0 04 1 0010- ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 0010- ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 9804-9812 ● ● ● ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 9901-9901 ● ● ●
427 01.240 CLIP; FAN GUIDE
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97143-177-0 04 1 9901-9901 ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 9901-0009 ● ●
427 01.240 CLIP; FAN GUIDE
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97143-177-0 04 1 9901-0009 ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 0010-0108 ● ●
427 01.240 CLIP; FAN GUIDE
A/T AISIN(RMD) 		8-97143-177-0 04 1 0010-0108 ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97143-177-0 04 1 0010-0108 ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 0109- ● ● ●
427 01.240 CLIP; FAN GUIDE
A/T AISIN(RMD) 		8-97143-177-0 04 1 0109- ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97143-177-0 04 1 0109- ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 01.277 (A) 		8-97043-862-0 02 1 9901-0103 ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) 01.277 (A) 		8-97043-862-0 02 1 0104- ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 0104- ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97066-962-0 04 1 9901-0103 ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97066-962-0 04 1 0104- ●
427 01.240 CLIP; FAN GUIDE
(B) 		8-97066-962-0 04 1 0104- ●
427 01.240 CLIP; FAN GUIDE
01.277 		8-52469-065-0 04 1 9804-0103 ●
427 01.240 CLIP; FAN GUIDE
(C) 		8-97043-199-0 02 1 0104- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
