◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50801 - TFR/TFS-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-01 - ACCELERATOR PEDAL AND CONTROL ▶
1-01 — ACCELERATOR PEDAL AND CONTROL (#41784) — 119 parça

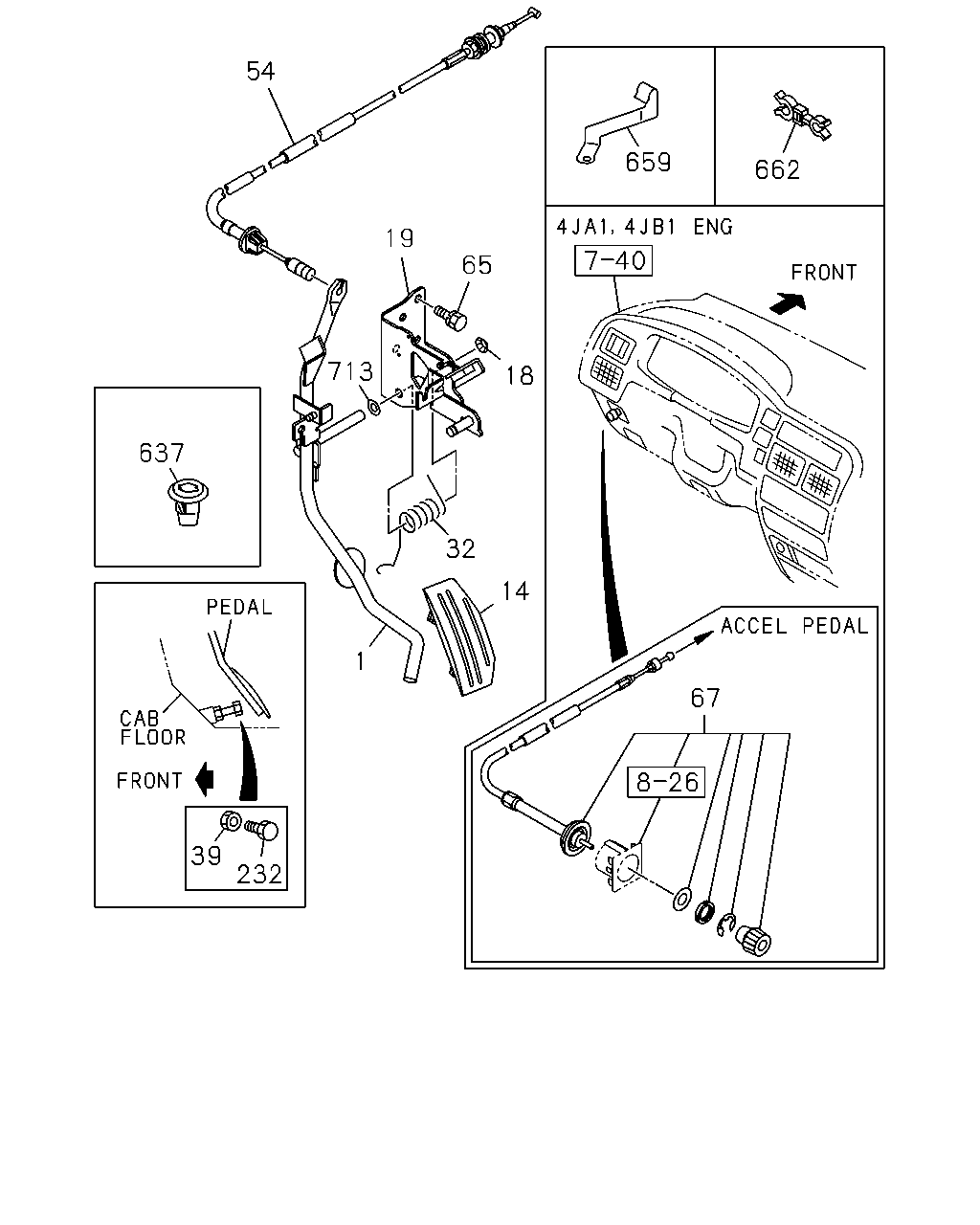

çizim 70187
54 659 662 19 65 713 18 637 32 14 1 67 39 232
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.451 LEVER; PEDAL SIDE 8-97022-896-0 01 1 9804-0108 ● ● ●
1 03.451 LEVER; PEDAL SIDE 8-97022-896-0 01 1 0109- ● ● ● ●
1 03.451 LEVER; PEDAL SIDE 8-97131-722-0 01 1 9804-9812 ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9804-9812 ● ● ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9901-0108 ● ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 0109- ● ● ● ● ●
18 03.459 NUT; JOINT LK
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9804-9812 ● ● ● ●
18 03.459 NUT; JOINT LK
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9901-0108 ● ● ●
18 03.459 NUT; JOINT LK
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0109- ● ● ● ●
19 03.452 BRACKET; ACCEL PEDAL 8-97117-119-0 01 1 9804-9903 ● ● ●
19 03.452 BRACKET; ACCEL PEDAL 8-97117-119-0 01 1 9904- ● ●
19 03.452 BRACKET; ACCEL PEDAL 8-97117-117-0 01 1 9804-9812 ●
19 03.452 BRACKET; ACCEL PEDAL 8-97222-076-0 01 1 9904-0108 ●
19 03.452 BRACKET; ACCEL PEDAL 8-97222-076-0 01 1 0109- ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-97019-283-0 01 1 9804-9812 ● ● ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-97019-283-0 01 1 9901-0108 ● ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-97019-283-0 01 1 0109- ● ● ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.559 M8 		9-09110-408-0 01 1 9804-9810 ● ● ● ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.559 M8 		9-09110-408-0 01 1 9811-9812 ● ● ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.559 M8 		9-09110-408-0 01 1 9901-0108 ● ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.559 M8 		9-09110-408-0 01 1 0109- ● ● ● ●
54 03.430 CABLE; ENG CONT 8-97132-218-3 01 1 9804- ● ●
54 03.430 CABLE; ENG CONT
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94473-377-4 01 1 9804-9812 ●
54 03.430 CABLE; ENG CONT 8-97179-874-0 01 1 9804-9810 ●
54 03.430 CABLE; ENG CONT 8-97135-815-4 01 1 9811- ●
54 03.430 CABLE; ENG CONT 8-97181-419-1 01 1 9804-0108 ●
54 03.430 CABLE; ENG CONT 8-97181-419-3 01 1 0109- ● ●
65 03.483 BOLT
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9804-9907 ● ● ● ● ●
65 03.483 BOLT
16.505 M6X12 FLANGE 		0-28480-612-0 02 1 9908-0109 ● ● ● ●
65 03.483 BOLT
16.505 M6X12 FLANGE 		0-28480-612-0 02 1 0110-0110 ● ● ● ● ●
65 03.483 BOLT
06.635 M6X16 FLANGE 		0-28480-616-0 02 1 0111- ● ● ● ●
67 03.480 CABLE ASM; IDLE CONT 8-97112-106-3 01 1 9804- ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
07.395 M8X28 		0-20800-828-0 01 1 9804-9810 ● ● ● ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
07.395 M8X28 		0-20800-828-0 01 1 9811-9812 ● ● ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
07.395 M8X28 		0-20800-828-0 01 1 9901-0108 ● ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
07.395 M8X28 		0-20800-828-0 01 1 0109- ● ● ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
08.155 M8X25 FLANGE 		0-28480-825-0 01 1 9811- ●
637 03.469 GROMMET; ACCEL CABLE
16.346 		8-97801-635-1 01 1 9804-0109 ● ● ● ●
637 03.469 GROMMET; ACCEL CABLE
16.346 		8-97801-635-1 01 1 0110- ● ● ● ● ●
659 03.483 CLIP; ACCEL CONT CABLE 8-97181-498-0 01 1 9804-9804 ●
659 03.483 CLIP; ACCEL CONT CABLE 8-97209-625-0 01 1 9805-0108 ●
659 03.483 CLIP; ACCEL CONT CABLE 8-97209-625-0 01 1 0109- ● ●
662 03.430 CLIP; ACCEL CONT CABLE 8-97182-221-0 01 1 9804- ●
662 03.430 CLIP; ACCEL CONT CABLE
ID=6 & 16.5 		8-94165-402-0 01 1 9804-0108 ●
662 03.430 CLIP; ACCEL CONT CABLE
ID=6 & 16.5 		8-94165-402-0 01 1 0109- ● ●
713 03.463 WASHER; PL
16.674 ID=8.4 		9-09160-508-0 01 1 9804-9812 ● ● ● ●
713 03.463 WASHER; PL
16.674 ID=8.4 		9-09160-508-0 01 1 9901-0108 ● ● ●
713 03.463 WASHER; PL
16.674 ID=8.4 		9-09160-508-0 01 1 0109- ● ● ● ●

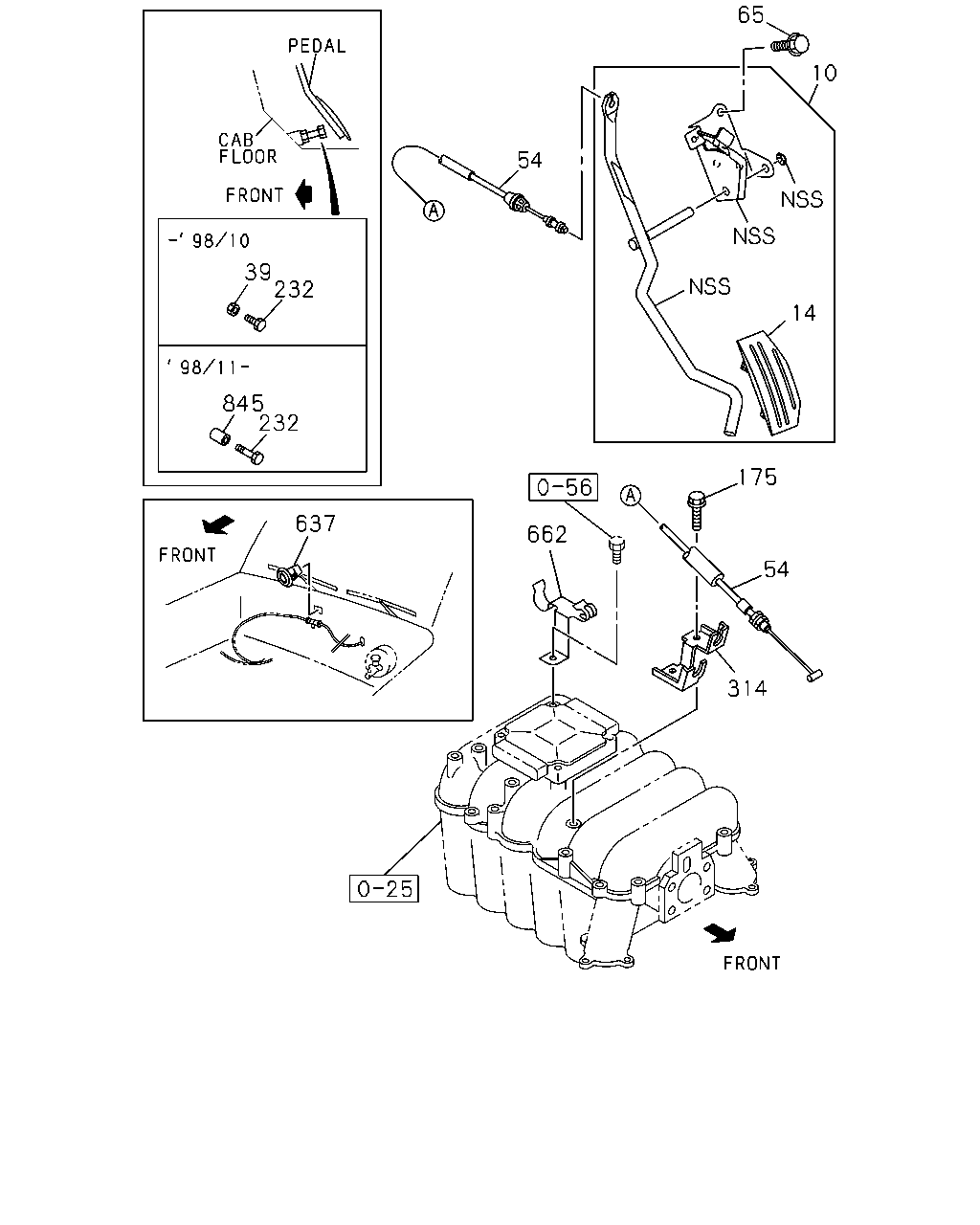

çizim 71388
65 10 54 39 232 14 845 232 175 637 662 54 314
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 03.451 PEDAL ASM; ACCEL 8-97181-388-0 01 1 9804- ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9804-9812 ● ● ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9901-0108 ● ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 0109- ● ● ● ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.559 M8 		9-09110-408-0 01 1 9804-9810 ● ● ● ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.559 M8 		9-09110-408-0 01 1 9811-9812 ● ● ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.559 M8 		9-09110-408-0 01 1 9901-0108 ● ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.559 M8 		9-09110-408-0 01 1 0109- ● ● ● ●
54 03.430 CABLE; ENG CONT 8-97132-218-3 01 1 9804- ● ●
54 03.430 CABLE; ENG CONT
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94473-377-4 01 1 9804-9812 ●
54 03.430 CABLE; ENG CONT 8-97179-874-0 01 1 9804-9810 ●
54 03.430 CABLE; ENG CONT 8-97135-815-4 01 1 9811- ●
54 03.430 CABLE; ENG CONT 8-97181-419-1 01 1 9804-0108 ●
54 03.430 CABLE; ENG CONT 8-97181-419-3 01 1 0109- ● ●
65 03.483 BOLT
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9804-9907 ● ● ● ● ●
65 03.483 BOLT
16.505 M6X12 FLANGE 		0-28480-612-0 02 1 9908-0109 ● ● ● ●
65 03.483 BOLT
16.505 M6X12 FLANGE 		0-28480-612-0 02 1 0110-0110 ● ● ● ● ●
65 03.483 BOLT
06.635 M6X16 FLANGE 		0-28480-616-0 02 1 0111- ● ● ● ●
175 03.483 BOLT; BRKT,ACCEL CABLE
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9804- ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
07.395 M8X28 		0-20800-828-0 01 1 9804-9810 ● ● ● ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
07.395 M8X28 		0-20800-828-0 01 1 9811-9812 ● ● ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
07.395 M8X28 		0-20800-828-0 01 1 9901-0108 ● ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
07.395 M8X28 		0-20800-828-0 01 1 0109- ● ● ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
08.155 M8X25 FLANGE 		0-28480-825-0 01 1 9811- ●
314 03.481 BRACKET; ACCEL CABLE 8-97136-145-3 01 1 9804- ●
637 03.469 GROMMET; ACCEL CABLE
16.346 		8-97801-635-1 01 1 9804-0109 ● ● ● ●
637 03.469 GROMMET; ACCEL CABLE
16.346 		8-97801-635-1 01 1 0110- ● ● ● ● ●
662 03.430 CLIP; ACCEL CONT CABLE 8-97182-221-0 01 1 9804- ●
662 03.430 CLIP; ACCEL CONT CABLE
ID=6 & 16.5 		8-94165-402-0 01 1 9804-0108 ●
662 03.430 CLIP; ACCEL CONT CABLE
ID=6 & 16.5 		8-94165-402-0 01 1 0109- ● ●
845 03.452 PIECE; DISTANCE,PEDAL 8-97135-732-0 01 1 9811- ●
çizim 71581
70 54 65 19 18 713 1 32 14 39 232
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.451 LEVER; PEDAL SIDE 8-97022-896-0 01 1 9804-0108 ● ● ●
1 03.451 LEVER; PEDAL SIDE 8-97022-896-0 01 1 0109- ● ● ● ●
1 03.451 LEVER; PEDAL SIDE 8-97131-722-0 01 1 9804-9812 ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9804-9812 ● ● ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9901-0108 ● ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 0109- ● ● ● ● ●
18 03.459 NUT; JOINT LK
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9804-9812 ● ● ● ●
18 03.459 NUT; JOINT LK
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9901-0108 ● ● ●
18 03.459 NUT; JOINT LK
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0109- ● ● ● ●
19 03.452 BRACKET; ACCEL PEDAL 8-97117-119-0 01 1 9804-9903 ● ● ●
19 03.452 BRACKET; ACCEL PEDAL 8-97117-119-0 01 1 9904- ● ●
19 03.452 BRACKET; ACCEL PEDAL 8-97117-117-0 01 1 9804-9812 ●
19 03.452 BRACKET; ACCEL PEDAL 8-97222-076-0 01 1 9904-0108 ●
19 03.452 BRACKET; ACCEL PEDAL 8-97222-076-0 01 1 0109- ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-97019-283-0 01 1 9804-9812 ● ● ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-97019-283-0 01 1 9901-0108 ● ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-97019-283-0 01 1 0109- ● ● ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.559 M8 		9-09110-408-0 01 1 9804-9810 ● ● ● ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.559 M8 		9-09110-408-0 01 1 9811-9812 ● ● ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.559 M8 		9-09110-408-0 01 1 9901-0108 ● ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.559 M8 		9-09110-408-0 01 1 0109- ● ● ● ●
54 03.430 CABLE; ENG CONT 8-97132-218-3 01 1 9804- ● ●
54 03.430 CABLE; ENG CONT
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94473-377-4 01 1 9804-9812 ●
54 03.430 CABLE; ENG CONT 8-97179-874-0 01 1 9804-9810 ●
54 03.430 CABLE; ENG CONT 8-97135-815-4 01 1 9811- ●
54 03.430 CABLE; ENG CONT 8-97181-419-1 01 1 9804-0108 ●
54 03.430 CABLE; ENG CONT 8-97181-419-3 01 1 0109- ● ●
65 03.483 BOLT
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9804-9907 ● ● ● ● ●
65 03.483 BOLT
16.505 M6X12 FLANGE 		0-28480-612-0 02 1 9908-0109 ● ● ● ●
65 03.483 BOLT
16.505 M6X12 FLANGE 		0-28480-612-0 02 1 0110-0110 ● ● ● ● ●
65 03.483 BOLT
06.635 M6X16 FLANGE 		0-28480-616-0 02 1 0111- ● ● ● ●
70 03.483 NUT; CONT CABLE
04.594 M6 FLANGE 		0-91150-106-0 01 1 9804-9812 ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
07.395 M8X28 		0-20800-828-0 01 1 9804-9810 ● ● ● ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
07.395 M8X28 		0-20800-828-0 01 1 9811-9812 ● ● ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
07.395 M8X28 		0-20800-828-0 01 1 9901-0108 ● ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
07.395 M8X28 		0-20800-828-0 01 1 0109- ● ● ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
08.155 M8X25 FLANGE 		0-28480-825-0 01 1 9811- ●
713 03.463 WASHER; PL
16.674 ID=8.4 		9-09160-508-0 01 1 9804-9812 ● ● ● ●
713 03.463 WASHER; PL
16.674 ID=8.4 		9-09160-508-0 01 1 9901-0108 ● ● ●
713 03.463 WASHER; PL
16.674 ID=8.4 		9-09160-508-0 01 1 0109- ● ● ● ●
