0-85E — AUTO TIMER; INJECTION PUMP (#41782) — 18 parça

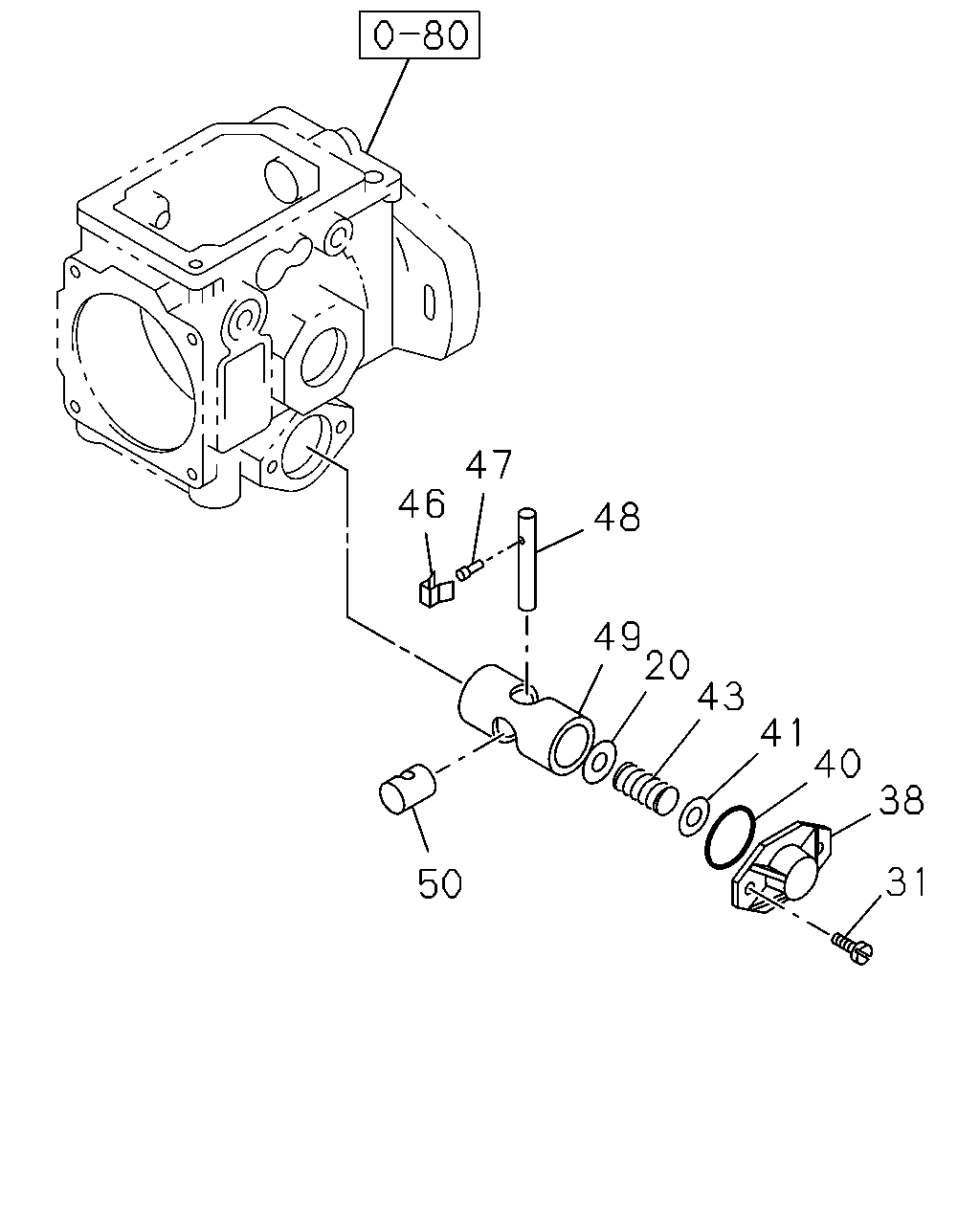

çizim 73955
47 46 48 49 20 43 41 40 38 31 50
BalonParca AdiParca NoAdetTipApplied Date
20 03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.60 ASM PART: A = 8-97147-965-0, 97147965, B = 8-97147-966-0, 97147966, C = 8-97160-417-0, 97160417, D = 8-97160-419-0, 97160419 		8-94227-495-0 01 1 -
31 03.330 SCREW; TIMER COVER,INJ PUMP
ASM PART: A = 8-97147-965-0, 97147965, B = 8-97147-966-0, 97147966, C = 8-97160-417-0, 97160417, D = 8-97160-419-0, 97160419 		8-94313-276-0 02 1 -
38 03.318 COVER; TIMER,INJ PUMP
ASM PART: A = 8-97147-965-0, 97147965, B = 8-97147-966-0, 97147966, C = 8-97160-417-0, 97160417, D = 8-97160-419-0, 97160419 		8-94473-120-0 01 1 -
40 03.330 GASKET; TIMER COVER,INJ PUMP
ASM PART: A = 8-97147-965-0, 97147965, B = 8-97147-966-0, 97147966, C = 8-97160-417-0, 97160417, D = 8-97160-419-0, 97160419 		8-94433-763-0 01 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
03.320, T=2.40 ASM PART: A = 8-97147-965-0, 97147965, B = 8-97147-966-0, 97147966, C = 8-97160-417-0, 97160417, D = 8-97160-419-0, 97160419 		8-94121-620-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=0.60 ASM PART: A = 8-97147-965-0, 97147965, B = 8-97147-966-0, 97147966, C = 8-97160-417-0, 97160417, D = 8-97160-419-0, 97160419 		8-94227-495-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=0.70 ASM PART: A = 8-97147-965-0, 97147965, B = 8-97147-966-0, 97147966, C = 8-97160-417-0, 97160417, D = 8-97160-419-0, 97160419 		8-94227-496-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=0.90 ASM PART: A = 8-97147-965-0, 97147965, B = 8-97147-966-0, 97147966, C = 8-97160-417-0, 97160417, D = 8-97160-419-0, 97160419 		8-94227-497-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=1.00 ASM PART: A = 8-97147-965-0, 97147965, B = 8-97147-966-0, 97147966, C = 8-97160-417-0, 97160417, D = 8-97160-419-0, 97160419 		8-94227-498-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=1.20 ASM PART: A = 8-97147-965-0, 97147965, B = 8-97147-966-0, 97147966, C = 8-97160-417-0, 97160417, D = 8-97160-419-0, 97160419 		8-94227-499-0 AR 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
K=1.75KG/MM ASM PART: A = 8-97147-965-0, 97147965, B = 8-97147-966-0, 97147966, C = 8-97160-417-0, 97160417, D = 8-97160-419-0, 97160419 		8-97045-508-0 01 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
K=2.05KG/MM ASM PART: A = 8-97147-965-0, 97147965, B = 8-97147-966-0, 97147966, C = 8-97160-417-0, 97160417, D = 8-97160-419-0, 97160419 		8-97047-719-0 01 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
L=40.6 ASM PART: A = 8-97147-965-0, 97147965, B = 8-97147-966-0, 97147966, C = 8-97160-417-0, 97160417, D = 8-97160-419-0, 97160419 		8-97125-524-0 01 1 -
46 03.330 CLIP; HOLDER PIN,TIMER,INJ PUMP
ASM PART: A = 8-97147-965-0, 97147965, B = 8-97147-966-0, 97147966, C = 8-97160-417-0, 97160417, D = 8-97160-419-0, 97160419 		8-94227-488-0 01 1 -
47 03.340 PIN; HOLDER PIN,TIMER,INJ PUMP
ASM PART: A = 8-97147-965-0, 97147965, B = 8-97147-966-0, 97147966, C = 8-97160-417-0, 97160417, D = 8-97160-419-0, 97160419 		8-94227-487-0 01 1 -
48 03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM
ASM PART: A = 8-97147-965-0, 97147965, B = 8-97147-966-0, 97147966, C = 8-97160-417-0, 97160417, D = 8-97160-419-0, 97160419 		8-94227-486-0 01 1 -
49 03.330 PISTON; TIMER,INJ PUMP
03.340 ASM PART: A = 8-97147-965-0, 97147965, B = 8-97147-966-0, 97147966, C = 8-97160-417-0, 97160417, D = 8-97160-419-0, 97160419 		8-94111-677-0 01 1 -
50 03.340 SLIDER; TIMER PISTON,INJ PUMP
ASM PART: A = 8-97147-965-0, 97147965, B = 8-97147-966-0, 97147966, C = 8-97160-417-0, 97160417, D = 8-97160-419-0, 97160419 		8-94227-493-0 01 1 -
