1 |

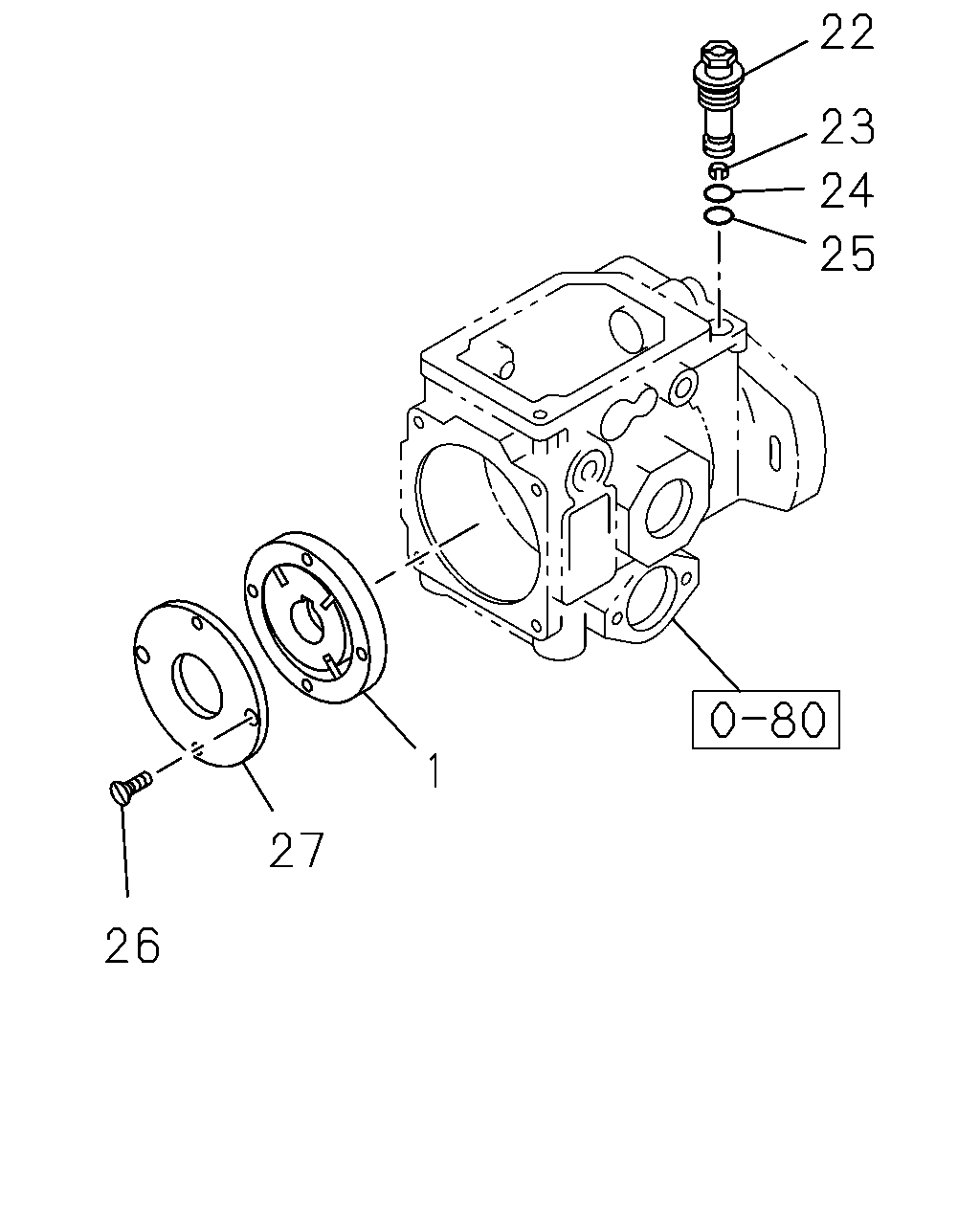

03.900 PUMP ASM; FUEL FEED,INJ PUMP
03.340
ASM PART: A = 8-97289-529-0, 97289529, B = 8-97289-530-0, 97289530,
C = 8-97289-531-0, 97289531, D = 8-97289-532-0, 97289532
|
8-94227-477-0 |
01 |
1 |
- |
| |
22 |
03.901 VALVE; REGULATING,INJ PUMP
STAMP 07
ASM PART: A = 8-97289-529-0, 97289529, B = 8-97289-530-0, 97289530,
C = 8-97289-531-0, 97289531, D = 8-97289-532-0, 97289532
|
8-94454-253-0 |
01 |
1 |
- |
| |
23 |
03.901 RING; SPRING,REGULATING VLV,INJ
03.320
ASM PART: A = 8-97289-529-0, 97289529, B = 8-97289-530-0, 97289530,
C = 8-97289-531-0, 97289531, D = 8-97289-532-0, 97289532
|
8-94227-643-0 |
01 |
1 |
- |
| |
24 |
03.904 GASKET; REGULATING VLV,INJ PUMP
03.330
ASM PART: A = 8-97289-529-0, 97289529, B = 8-97289-530-0, 97289530,
C = 8-97289-531-0, 97289531, D = 8-97289-532-0, 97289532
|
8-94227-641-0 |
01 |
1 |
- |
| |
25 |
03.904 GASKET; REGULATING VLV,INJ PUMP
03.330
ASM PART: A = 8-97289-529-0, 97289529, B = 8-97289-530-0, 97289530,
C = 8-97289-531-0, 97289531, D = 8-97289-532-0, 97289532
|
8-94227-640-0 |
01 |
1 |
- |
| |
26 |
03.901 SCREW; COVER FIX,FUEL FEED PUMP
03.330
ASM PART: A = 8-97289-529-0, 97289529, B = 8-97289-530-0, 97289530,
C = 8-97289-531-0, 97289531, D = 8-97289-532-0, 97289532
|
8-94227-479-0 |
02 |
1 |
- |
| |
27 |
03.910 COVER; FUEL FEED PUMP
03.322
ASM PART: A = 8-97289-529-0, 97289529, B = 8-97289-530-0, 97289530,
C = 8-97289-531-0, 97289531, D = 8-97289-532-0, 97289532
|
8-94227-478-0 |
01 |
1 |
- |
