0-25A — INLET MANIFOLD (#4177) — 341 parça

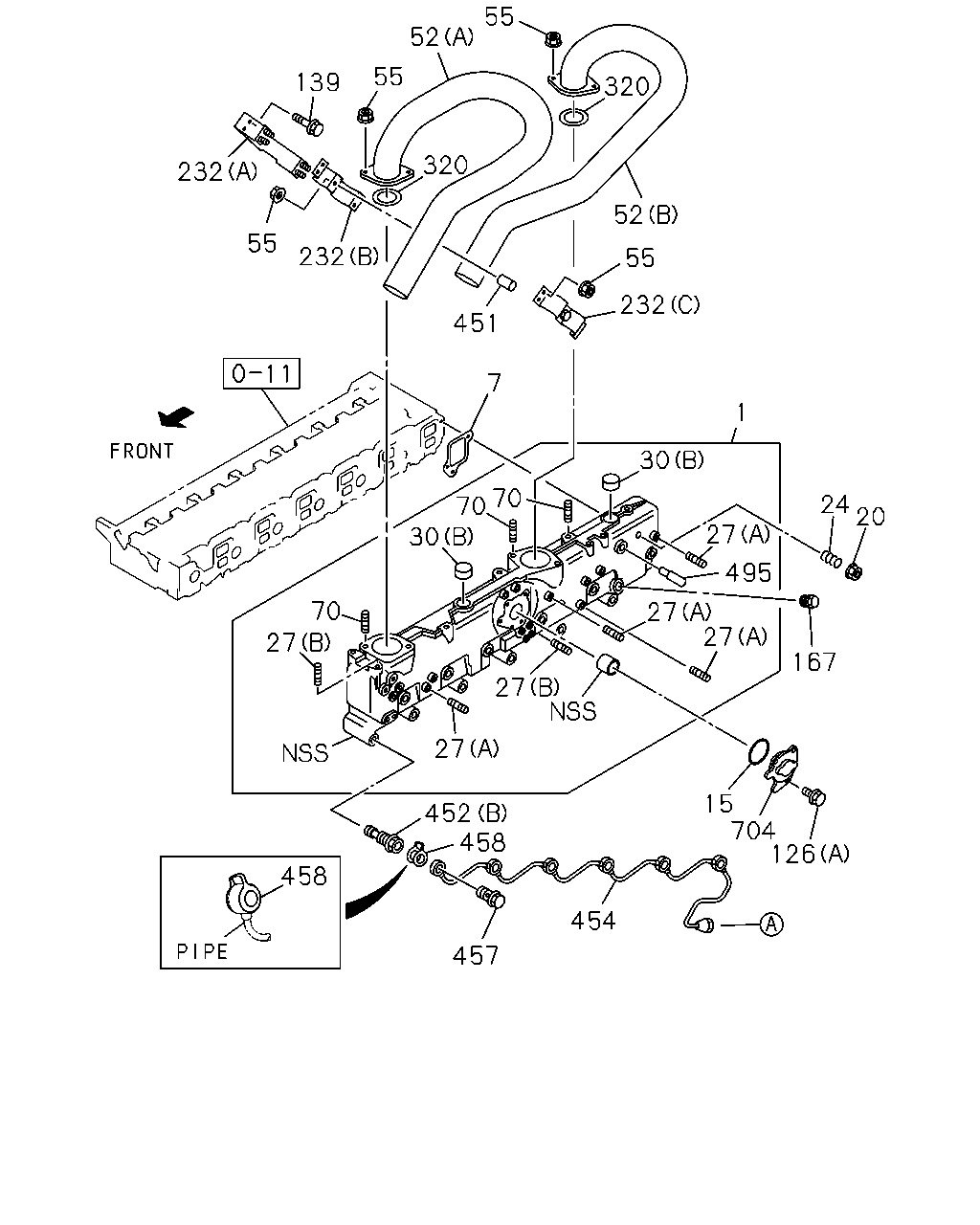

55 52 55 139 320 320 232 52 55 232 55 232 451 7 1 30 70 70 30 24 20 27 495 27 70 27 27 167 27 27 15 704 126 452 458 458 454 457

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	MANIFOLD; INL	1-14110-547-3	01	1	9603-9901	●
1	MANIFOLD; INL	1-14110-547-3	01	1	9902-9904		●
1	MANIFOLD; INL	1-14110-547-3	01	1	9905-		●	●
1	MANIFOLD; INL	1-14110-581-0	01	1	9905-				●
1	MANIFOLD; INL EXC. ELECTRONIC GOV RED3(KG5)	1-14110-579-1	01	1	9902-					●
1	MANIFOLD; INL	1-14110-551-3	01	1	9902-9909					●
1	MANIFOLD; INL ELECTRONIC GOV RED3(KG5)	1-14110-551-3	01	1	9910-					●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-063-1	06	1	9603-9901	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-063-1	06	1	9902-9904		●			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-063-1	06	1	9905-9909		●	●	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-063-1	06	1	9910-		●	●	●	●	●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9603-9901	●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9902-9904		●			●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9905-9909		●	●	●	●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9910-		●	●	●	●	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	9603-9901	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	9902-9904		●			●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	9905-9909		●	●	●	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	9910-		●	●	●	●	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	9603-9901	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	9902-9904		●			●
24	SPRING; INL MANIF	1-09580-156-0	12	1	9905-9909		●	●	●	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	9910-		●	●	●	●	●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	08	1	9603-9901	●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	08	1	9902-9904		●			●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	09	1	9905-				●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	06	1	9603-9901	●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	06	1	9902-9904		●			●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	04	1	9905-				●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	08	1	9905-9909		●	●		●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	08	1	9910-		●	●		●	●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	06	1	9905-9909		●	●		●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	06	1	9910-		●	●		●	●
27	STUD; INL MANIF (B) M8X20 L=32	9-04110-820-0	02	1	9905-				●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9603-9901	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9902-9904		●			●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9905-9909		●	●	●	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9910-		●	●	●	●	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9603-9901	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9902-9904		●			●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9905-9909		●	●	●	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9910-		●	●	●	●	●
52	PIPE; INL (B)	1-14112-522-1	01	1	9603-9901	●
52	PIPE; INL (B)	1-14112-522-1	01	1	9902-9904		●			●
52	PIPE; INL (B)	1-14112-522-1	01	1	9905-9909		●	●	●	●
52	PIPE; INL (B)	1-14112-522-1	01	1	9910-		●	●	●	●	●
52	PIPE; INL (A)	1-14112-635-0	01	1	9603-9901	●
52	PIPE; INL (A)	1-14112-635-0	01	1	9902-9904		●			●
52	PIPE; INL (A)	1-14112-635-0	01	1	9905-9909		●	●	●	●
52	PIPE; INL (A)	1-14112-635-0	01	1	9910-		●	●	●	●	●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	09	1	9603-9901	●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	09	1	9902-9904		●			●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	09	1	9905-9909		●	●	●	●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	09	1	9910-		●	●	●	●	●
70	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	07	1	9603-9901	●
70	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	07	1	9902-9904		●			●
70	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	07	1	9905-9909		●	●	●	●
70	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	07	1	9910-		●	●	●	●	●
126	BOLT; COVER (A) M10X20 FLANGE	0-28181-020-0	03	1	9603-9901	●
126	BOLT; COVER (A) M10X20 FLANGE	0-28181-020-0	03	1	9902-9904		●			●
126	BOLT; COVER (A) M10X20 FLANGE	0-28181-020-0	03	1	9905-9909		●	●	●	●
126	BOLT; COVER (A) M10X20 FLANGE	0-28181-020-0	03	1	9910-		●	●	●	●	●
126	BOLT; COVER (B) M8X16 FLANGE	0-28080-816-0	02	1	9905-9909				●
126	BOLT; COVER (B) M8X16 FLANGE	0-28080-816-0	02	1	9910-				●		●
139	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	05	1	9603-9901	●
139	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	05	1	9902-9904		●			●
139	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	05	1	9905-9909		●	●	●	●
139	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	05	1	9910-		●	●	●	●	●
167	PLUG; INL MANIF	1-14129-025-0	01	1	9603-9901	●
167	PLUG; INL MANIF	1-14129-025-0	01	1	9902-9904		●
167	PLUG; INL MANIF	1-14129-025-0	01	1	9905-		●	●
232	BRACKET; INJ PIPE (A)	1-14119-377-0	01	1	9603-9901	●
232	BRACKET; INJ PIPE (A)	1-14119-377-0	01	1	9902-9904		●			●
232	BRACKET; INJ PIPE (A)	1-14119-377-0	01	1	9905-9909		●	●	●	●
232	BRACKET; INJ PIPE (A)	1-14119-377-0	01	1	9910-		●	●	●	●	●
232	BRACKET; INJ PIPE (B)	1-14119-378-1	01	1	9603-9901	●
232	BRACKET; INJ PIPE (B)	1-14119-378-1	01	1	9902-9904		●			●
232	BRACKET; INJ PIPE (B)	1-14119-378-1	01	1	9905-9909		●	●	●	●
232	BRACKET; INJ PIPE (B)	1-14119-378-1	01	1	9910-		●	●	●	●	●
232	BRACKET; INJ PIPE (C)	1-14119-379-1	01	1	9603-9901	●
232	BRACKET; INJ PIPE (C)	1-14119-379-1	01	1	9902-9904		●			●
232	BRACKET; INJ PIPE (C)	1-14119-379-1	01	1	9905-9909		●	●	●	●
232	BRACKET; INJ PIPE (C)	1-14119-379-1	01	1	9910-		●	●	●	●	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6	1-09623-421-0	02	1	9603-9901	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6	1-09623-421-0	02	1	9902-9904		●			●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6	1-09623-421-0	02	1	9905-9909		●	●	●	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6	1-09623-421-0	02	1	9910-		●	●	●	●	●
451	TUBE; DIST,BRKT	1-21529-002-0	01	1	9603-9901	●
451	TUBE; DIST,BRKT	1-21529-002-0	01	1	9902-9904		●			●
451	TUBE; DIST,BRKT	1-21529-002-0	01	1	9905-9909		●	●	●	●
451	TUBE; DIST,BRKT	1-21529-002-0	01	1	9910-		●	●	●	●	●
452	CYLINDER ASM; AIR (B)	1-14370-013-0	06	1	9902-9904					●
452	CYLINDER ASM; AIR (B)	1-14370-013-0	06	1	9905-9909				●	●
452	CYLINDER ASM; AIR (B)	1-14370-013-0	06	1	9910-				●	●	●
452	CYLINDER ASM; AIR (A)	1-22190-579-0	01	1	9905-9909				●
452	CYLINDER ASM; AIR (A)	1-22190-579-1	01	1	9910-				●		●
454	PIPE; AIR,IVES	1-19192-590-1	01	1	9902-9904					●
454	PIPE; AIR,IVES	1-19192-590-1	01	1	9905-9909				●	●
454	PIPE; AIR,IVES	1-19192-590-1	01	1	9910-				●	●	●
457	BOLT; EYE,AIR PIPE,IVES M8X18 EYE-BOLT	1-09675-037-1	06	1	9902-9904					●
457	BOLT; EYE,AIR PIPE,IVES M8X18 EYE-BOLT	1-09675-037-1	06	1	9905-9909				●	●
457	BOLT; EYE,AIR PIPE,IVES M8X18 EYE-BOLT	1-09675-037-1	06	1	9910-				●	●	●
458	GASKET; AIR PIPE,VSS ID=8.6	8-94395-214-0	06	1	9902-9904					●
458	GASKET; AIR PIPE,VSS ID=8.6	8-94395-214-0	06	1	9905-9909				●	●
458	GASKET; AIR PIPE,VSS ID=8.6	8-94395-214-0	06	1	9910-				●	●	●
495	PIPE; BOOST SENSOR	1-09669-073-0	01	1	9902-9904					●
495	PIPE; BOOST SENSOR	1-09669-073-0	01	1	9905-9909				●	●
495	PIPE; BOOST SENSOR	1-09669-073-0	01	1	9910-				●	●	●
704	COVER	1-14134-193-0	01	1	9902-9904		●			●
704	COVER	1-14134-193-0	01	1	9905-		●	●		●

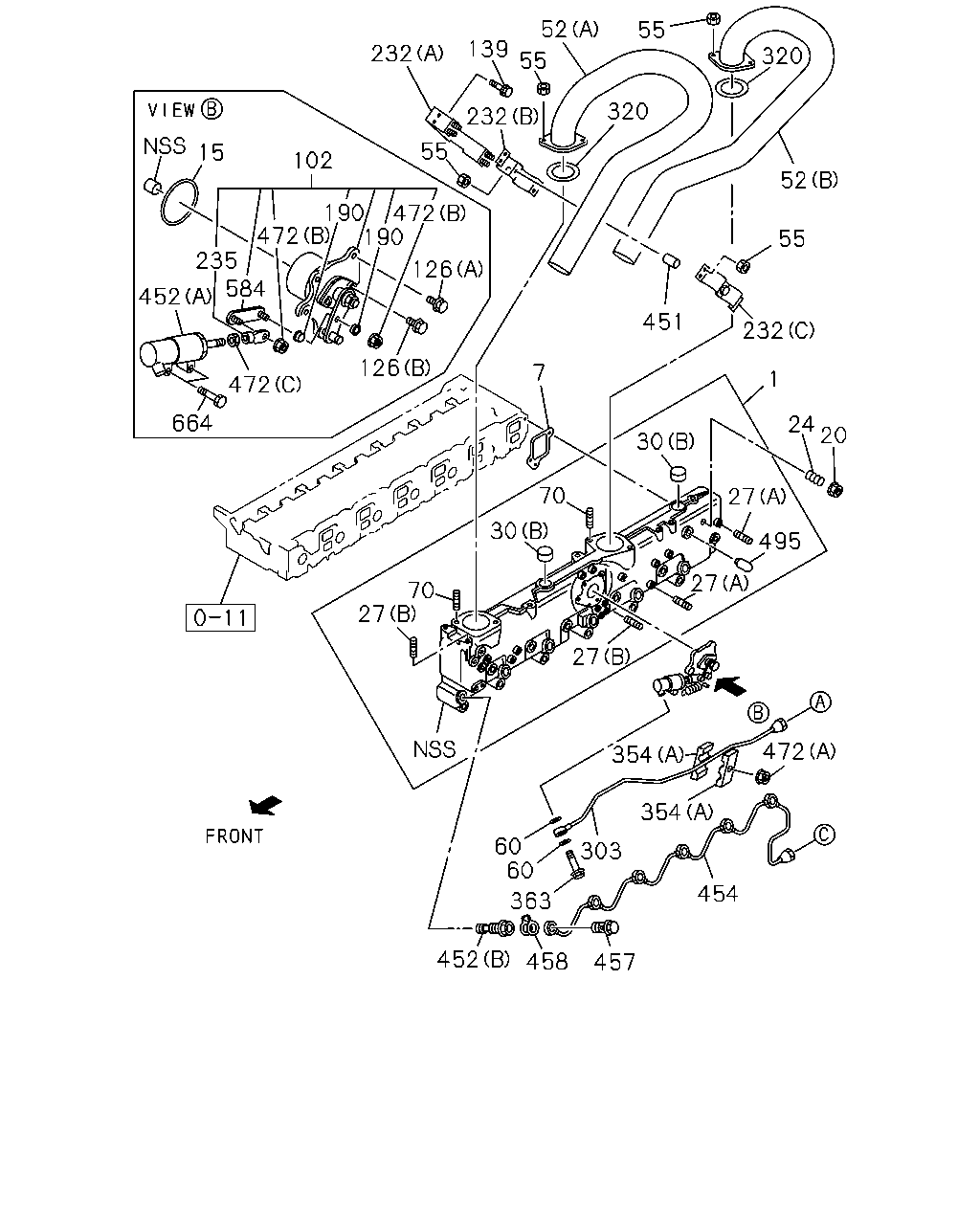

52 55 139 232 320 55 320 232 55 15 102 52 472 190 55 235 584 126 452 451 232 126 7 1 472 664 24 20 30 70 27 27 30 495 27 70 27 472 354 354 60 60 303 454 363 452 458 457 190 472

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	MANIFOLD; INL	1-14110-547-3	01	1	9603-9901	●
1	MANIFOLD; INL	1-14110-547-3	01	1	9902-9904		●
1	MANIFOLD; INL	1-14110-547-3	01	1	9905-		●	●
1	MANIFOLD; INL	1-14110-581-0	01	1	9905-				●
1	MANIFOLD; INL EXC. ELECTRONIC GOV RED3(KG5)	1-14110-579-1	01	1	9902-					●
1	MANIFOLD; INL	1-14110-551-3	01	1	9902-9909					●
1	MANIFOLD; INL ELECTRONIC GOV RED3(KG5)	1-14110-551-3	01	1	9910-					●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-063-1	06	1	9603-9901	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-063-1	06	1	9902-9904		●			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-063-1	06	1	9905-9909		●	●	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-063-1	06	1	9910-		●	●	●	●	●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9603-9901	●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9902-9904		●			●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9905-9909		●	●	●	●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9910-		●	●	●	●	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	9603-9901	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	9902-9904		●			●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	9905-9909		●	●	●	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	9910-		●	●	●	●	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	9603-9901	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	9902-9904		●			●
24	SPRING; INL MANIF	1-09580-156-0	12	1	9905-9909		●	●	●	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	9910-		●	●	●	●	●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	08	1	9603-9901	●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	08	1	9902-9904		●			●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	09	1	9905-				●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	06	1	9603-9901	●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	06	1	9902-9904		●			●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	04	1	9905-				●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	08	1	9905-9909		●	●		●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	08	1	9910-		●	●		●	●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	06	1	9905-9909		●	●		●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	06	1	9910-		●	●		●	●
27	STUD; INL MANIF (B) M8X20 L=32	9-04110-820-0	02	1	9905-				●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9603-9901	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9902-9904		●			●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9905-9909		●	●	●	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9910-		●	●	●	●	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9603-9901	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9902-9904		●			●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9905-9909		●	●	●	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9910-		●	●	●	●	●
52	PIPE; INL (B)	1-14112-522-1	01	1	9603-9901	●
52	PIPE; INL (B)	1-14112-522-1	01	1	9902-9904		●			●
52	PIPE; INL (B)	1-14112-522-1	01	1	9905-9909		●	●	●	●
52	PIPE; INL (B)	1-14112-522-1	01	1	9910-		●	●	●	●	●
52	PIPE; INL (A)	1-14112-635-0	01	1	9603-9901	●
52	PIPE; INL (A)	1-14112-635-0	01	1	9902-9904		●			●
52	PIPE; INL (A)	1-14112-635-0	01	1	9905-9909		●	●	●	●
52	PIPE; INL (A)	1-14112-635-0	01	1	9910-		●	●	●	●	●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	09	1	9603-9901	●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	09	1	9902-9904		●			●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	09	1	9905-9909		●	●	●	●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	09	1	9910-		●	●	●	●	●
60	GASKET; INL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	02	1	9905-9909				●
60	GASKET; INL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	02	1	9910-				●		●
70	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	07	1	9603-9901	●
70	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	07	1	9902-9904		●			●
70	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	07	1	9905-9909		●	●	●	●
70	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	07	1	9910-		●	●	●	●	●
102	VALVE ASM; INDUCTION CONT	1-14310-221-1	01	1	9905-9909				●
102	VALVE ASM; INDUCTION CONT	1-14310-221-1	01	1	9910-				●		●
126	BOLT; COVER (A) M10X20 FLANGE	0-28181-020-0	03	1	9603-9901	●
126	BOLT; COVER (A) M10X20 FLANGE	0-28181-020-0	03	1	9902-9904		●			●
126	BOLT; COVER (A) M10X20 FLANGE	0-28181-020-0	03	1	9905-9909		●	●	●	●
126	BOLT; COVER (A) M10X20 FLANGE	0-28181-020-0	03	1	9910-		●	●	●	●	●
126	BOLT; COVER (B) M8X16 FLANGE	0-28080-816-0	02	1	9905-9909				●
126	BOLT; COVER (B) M8X16 FLANGE	0-28080-816-0	02	1	9910-				●		●
139	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	05	1	9603-9901	●
139	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	05	1	9902-9904		●			●
139	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	05	1	9905-9909		●	●	●	●
139	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	05	1	9910-		●	●	●	●	●
190	COLLAR; INLET MANIFOLD	1-22199-138-0	02	1	9905-9909				●
190	COLLAR; INLET MANIFOLD	1-22199-138-0	02	1	9910-				●		●
232	BRACKET; INJ PIPE (A)	1-14119-377-0	01	1	9603-9901	●
232	BRACKET; INJ PIPE (A)	1-14119-377-0	01	1	9902-9904		●			●
232	BRACKET; INJ PIPE (A)	1-14119-377-0	01	1	9905-9909		●	●	●	●
232	BRACKET; INJ PIPE (A)	1-14119-377-0	01	1	9910-		●	●	●	●	●
232	BRACKET; INJ PIPE (B)	1-14119-378-1	01	1	9603-9901	●
232	BRACKET; INJ PIPE (B)	1-14119-378-1	01	1	9902-9904		●			●
232	BRACKET; INJ PIPE (B)	1-14119-378-1	01	1	9905-9909		●	●	●	●
232	BRACKET; INJ PIPE (B)	1-14119-378-1	01	1	9910-		●	●	●	●	●
232	BRACKET; INJ PIPE (C)	1-14119-379-1	01	1	9603-9901	●
232	BRACKET; INJ PIPE (C)	1-14119-379-1	01	1	9902-9904		●			●
232	BRACKET; INJ PIPE (C)	1-14119-379-1	01	1	9905-9909		●	●	●	●
232	BRACKET; INJ PIPE (C)	1-14119-379-1	01	1	9910-		●	●	●	●	●
235	JOINT; INL MANIF	1-22199-137-0	01	1	9905-9909				●
235	JOINT; INL MANIF	1-22199-137-0	01	1	9910-				●		●
303	PIPE; AIR	1-19192-803-0	01	1	9905-9909				●
303	PIPE; AIR	1-19192-803-1	01	1	9910-				●		●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6	1-09623-421-0	02	1	9603-9901	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6	1-09623-421-0	02	1	9902-9904		●			●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6	1-09623-421-0	02	1	9905-9909		●	●	●	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6	1-09623-421-0	02	1	9910-		●	●	●	●	●
354	CLIP; AIR PIPE (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9902-9904					●
354	CLIP; AIR PIPE (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9905-9909				●	●
354	CLIP; AIR PIPE (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9910-				●	●	●
354	CLIP; AIR PIPE (C) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-9909				●	●
354	CLIP; AIR PIPE (C) ID=6 H=20 L=20	1-09700-603-0	01	1	9910-				●	●	●
354	CLIP; AIR PIPE (A)	1-09701-132-0	02	1	9905-9909				●
354	CLIP; AIR PIPE (A)	1-09701-132-1	02	1	9910-				●		●
363	BOLT; EYE M10X21 FLANGE	8-94396-711-0	01	1	9905-9909				●
363	BOLT; EYE M10X21 FLANGE	8-94396-711-0	01	1	9910-				●		●
451	TUBE; DIST,BRKT	1-21529-002-0	01	1	9603-9901	●
451	TUBE; DIST,BRKT	1-21529-002-0	01	1	9902-9904		●			●
451	TUBE; DIST,BRKT	1-21529-002-0	01	1	9905-9909		●	●	●	●
451	TUBE; DIST,BRKT	1-21529-002-0	01	1	9910-		●	●	●	●	●
452	CYLINDER ASM; AIR (B)	1-14370-013-0	06	1	9902-9904					●
452	CYLINDER ASM; AIR (B)	1-14370-013-0	06	1	9905-9909				●	●
452	CYLINDER ASM; AIR (B)	1-14370-013-0	06	1	9910-				●	●	●
452	CYLINDER ASM; AIR (A)	1-22190-579-0	01	1	9905-9909				●
452	CYLINDER ASM; AIR (A)	1-22190-579-1	01	1	9910-				●		●
454	PIPE; AIR,IVES	1-19192-590-1	01	1	9902-9904					●
454	PIPE; AIR,IVES	1-19192-590-1	01	1	9905-9909				●	●
454	PIPE; AIR,IVES	1-19192-590-1	01	1	9910-				●	●	●
457	BOLT; EYE,AIR PIPE,IVES M8X18 EYE-BOLT	1-09675-037-1	06	1	9902-9904					●
457	BOLT; EYE,AIR PIPE,IVES M8X18 EYE-BOLT	1-09675-037-1	06	1	9905-9909				●	●
457	BOLT; EYE,AIR PIPE,IVES M8X18 EYE-BOLT	1-09675-037-1	06	1	9910-				●	●	●
458	GASKET; AIR PIPE,VSS ID=8.6	8-94395-214-0	06	1	9902-9904					●
458	GASKET; AIR PIPE,VSS ID=8.6	8-94395-214-0	06	1	9905-9909				●	●
458	GASKET; AIR PIPE,VSS ID=8.6	8-94395-214-0	06	1	9910-				●	●	●
472	NUT (B) M8 FLANGE	0-91150-108-0	01	1	9902-9904					●
472	NUT (B) M8 FLANGE	0-91150-108-0	01	1	9905-9909				●	●
472	NUT (B) M8 FLANGE	0-91150-108-0	01	1	9910-				●	●	●
472	NUT (A) M6 FLANGE	0-91150-106-0	01	1	9905-9909				●
472	NUT (A) M6 FLANGE	0-91150-106-0	01	1	9910-				●		●
472	NUT (B) M8 FLANGE	0-91150-108-0	02	1	9905-9909				●
472	NUT (B) M8 FLANGE	0-91150-108-0	02	1	9910-				●		●
472	NUT (C) M8	9-09110-408-0	01	1	9905-9909				●
472	NUT (C) M8	9-09110-408-0	01	1	9910-				●		●
495	PIPE; BOOST SENSOR	1-09669-073-0	01	1	9902-9904					●
495	PIPE; BOOST SENSOR	1-09669-073-0	01	1	9905-9909				●	●
495	PIPE; BOOST SENSOR	1-09669-073-0	01	1	9910-				●	●	●
584	LINK	1-22199-153-0	01	1	9905-9909				●
584	LINK	1-22199-153-0	01	1	9910-				●		●
664	BOLT; AIR CYL M8X35 FLANGE	0-28080-835-0	02	1	9905-9909				●
664	BOLT; AIR CYL M8X35 FLANGE	0-28080-835-0	02	1	9910-				●		●

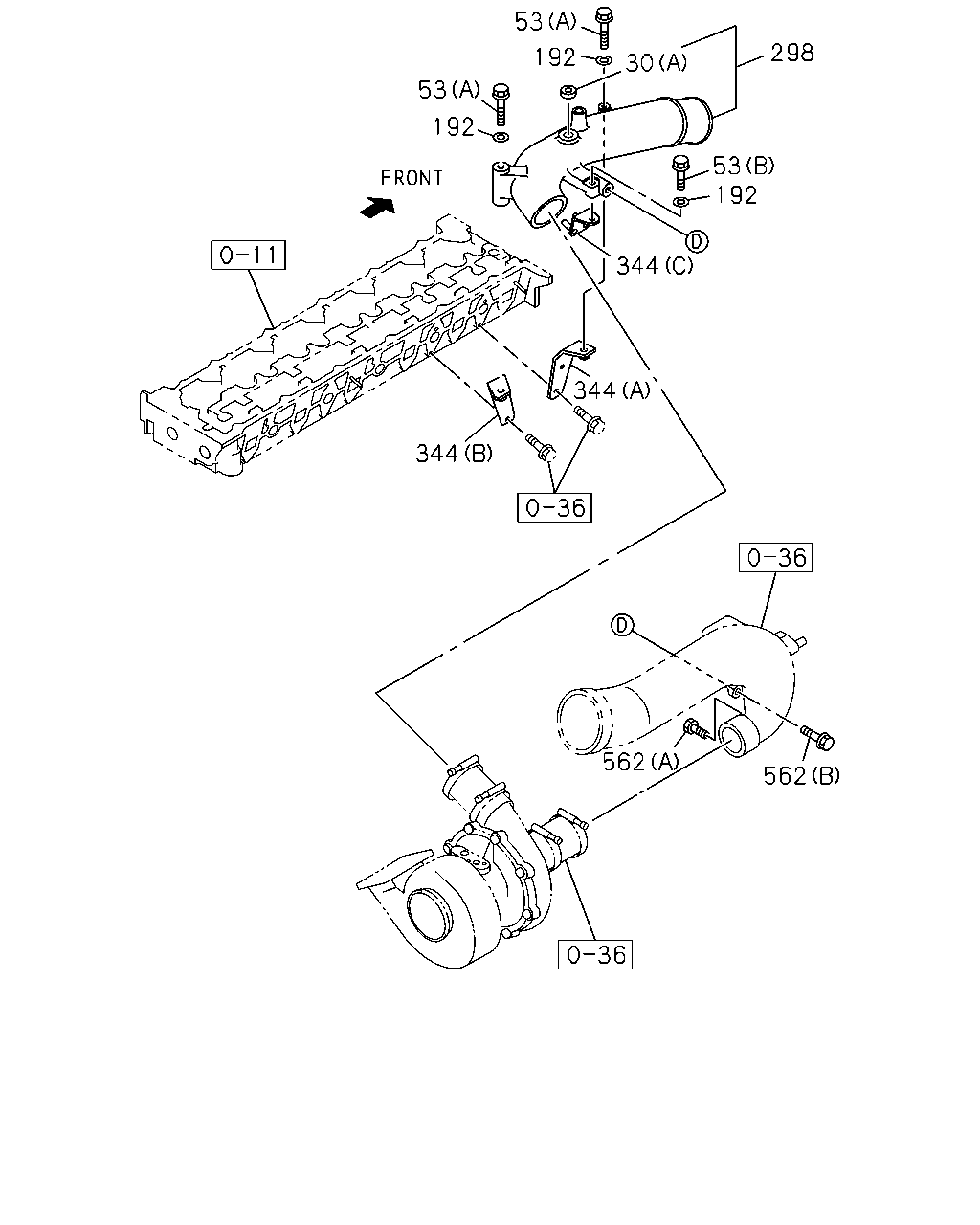

53 298 192 30 53 192 53 192 344 344 344 562 562

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9603-9901	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9902-9904		●			●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9905-9909		●	●	●	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9910-		●	●	●	●	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9603-9901	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9902-9904		●			●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9905-9909		●	●	●	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9910-		●	●	●	●	●
53	BOLT; INL PIPE (A) M10X100 FLANGE	0-28181-000-0	02	1	9603-9901	●
53	BOLT; INL PIPE (A) M10X100 FLANGE	0-28181-000-0	02	1	9902-9904		●			●
53	BOLT; INL PIPE (A) M10X100 FLANGE	0-28181-000-0	02	1	9905-9909		●	●	●	●
53	BOLT; INL PIPE (A) M10X100 FLANGE	0-28181-000-0	02	1	9910-		●	●	●	●	●
53	BOLT; INL PIPE (B) M10X40 FLANGE	0-28181-040-0	01	1	9603-9901	●
53	BOLT; INL PIPE (B) M10X40 FLANGE	0-28181-040-0	01	1	9902-9904		●			●
53	BOLT; INL PIPE (B) M10X40 FLANGE	0-28181-040-0	01	1	9905-9909		●	●	●	●
53	BOLT; INL PIPE (B) M10X40 FLANGE	0-28181-040-0	01	1	9910-		●	●	●	●	●
192	WASHER; PL,INL PIPE ID=10.5 OD=22	9-09160-610-0	03	1	9902-9904		●			●
192	WASHER; PL,INL PIPE ID=10.5 OD=22	9-09160-610-0	03	1	9905-9909		●	●	●	●
192	WASHER; PL,INL PIPE ID=10.5 OD=22	9-09160-610-0	03	1	9910-		●	●	●	●	●
298	PIPE; INL,TURBOCHARGER TO INL COVER	1-14112-485-1	01	1	9603-9901	●
298	PIPE; INL,TURBOCHARGER TO INL COVER	1-14112-485-2	01	1	9902-9904		●			●
298	PIPE; INL,TURBOCHARGER TO INL COVER	1-14112-485-2	01	1	9905-9909		●	●	●	●
298	PIPE; INL,TURBOCHARGER TO INL COVER	1-14112-485-2	01	1	9910-		●	●	●	●	●
344	BRACKET; INL PIPE (A)	1-14119-314-0	01	1	9603-9901	●
344	BRACKET; INL PIPE (A)	1-14119-314-0	01	1	9902-9904		●			●
344	BRACKET; INL PIPE (A)	1-14119-314-0	01	1	9905-9909		●	●	●	●
344	BRACKET; INL PIPE (A)	1-14119-314-0	01	1	9910-		●	●	●	●	●
344	BRACKET; INL PIPE (B)	1-14119-324-0	01	1	9603-9901	●
344	BRACKET; INL PIPE (B)	1-14119-324-0	01	1	9902-9904		●			●
344	BRACKET; INL PIPE (B)	1-14119-324-0	01	1	9905-9909		●	●	●	●
344	BRACKET; INL PIPE (B)	1-14119-324-0	01	1	9910-		●	●	●	●	●
344	BRACKET; INL PIPE (C)	1-14119-393-0	01	1	9603-9901	●
344	BRACKET; INL PIPE (C)	1-14119-393-0	01	1	9902-9904		●			●
344	BRACKET; INL PIPE (C)	1-14119-393-0	01	1	9905-9909		●	●	●	●
344	BRACKET; INL PIPE (C)	1-14119-393-0	01	1	9910-		●	●	●	●	●
562	BOLT; INL DUCT (A) M10X20 FLANGE	0-28181-020-0	01	1	9603-9901	●
562	BOLT; INL DUCT (A) M10X20 FLANGE	0-28181-020-0	01	1	9902-9904		●			●
562	BOLT; INL DUCT (A) M10X20 FLANGE	0-28181-020-0	01	1	9905-9909		●	●	●	●
562	BOLT; INL DUCT (A) M10X20 FLANGE	0-28181-020-0	01	1	9910-		●	●	●	●	●
562	BOLT; INL DUCT (B) M10X35 FLANGE	0-28181-035-0	02	1	9603-9901	●
562	BOLT; INL DUCT (B) M10X35 FLANGE	0-28181-035-0	02	1	9902-9904		●			●
562	BOLT; INL DUCT (B) M10X35 FLANGE	0-28181-035-0	02	1	9905-9909		●	●	●	●
562	BOLT; INL DUCT (B) M10X35 FLANGE	0-28181-035-0	02	1	9910-		●	●	●	●	●

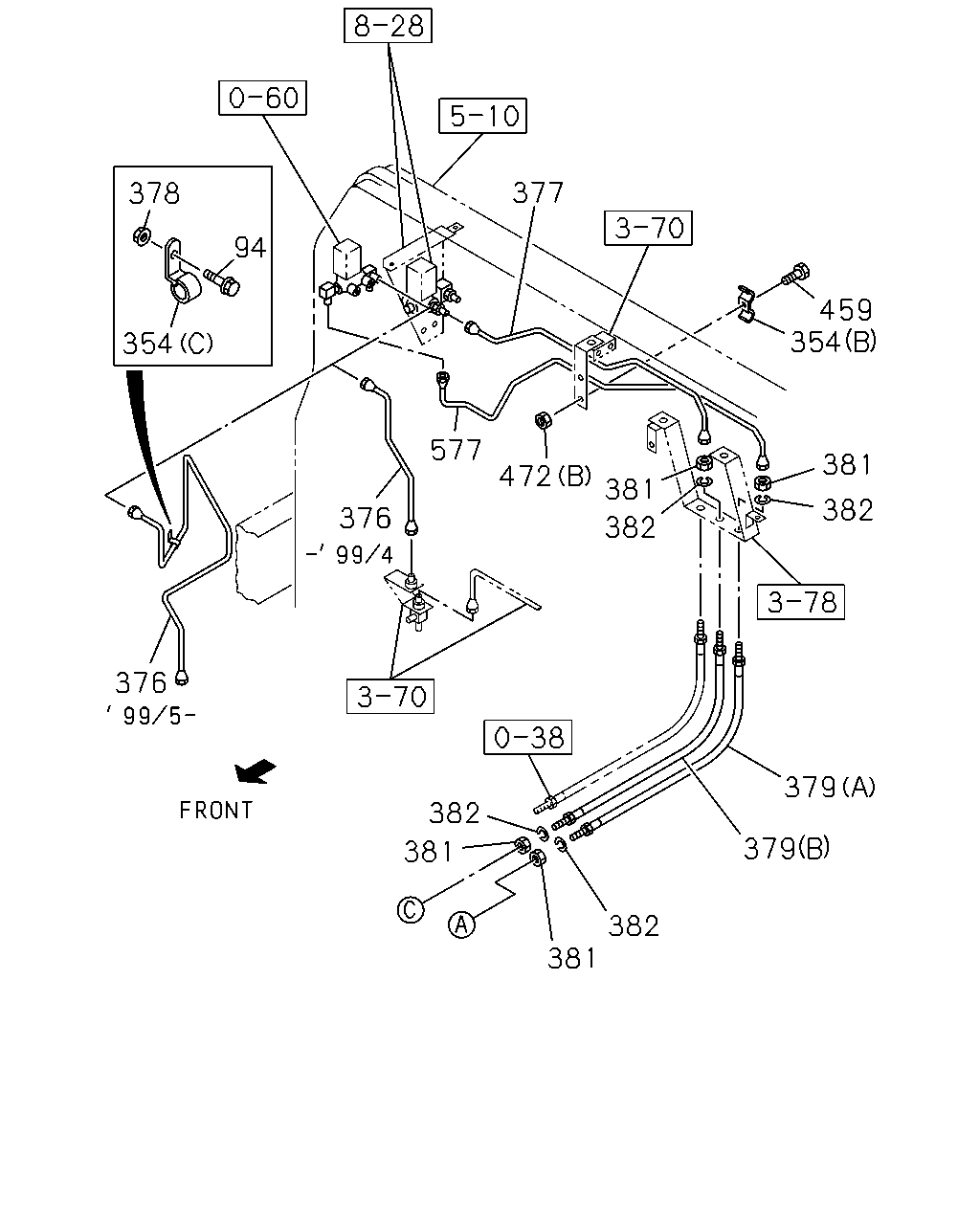

377 378 94 459 354 354 577 381 472 381 382 376 382 376 379 382 379 381 382 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D	E	F
94	BOLT M8X20 FLANGE	0-28680-820-0	01	1	9905-9909	●	●
94	BOLT M8X20 FLANGE	0-28680-820-0	01	1	9910-	●	●	●
354	CLIP; AIR PIPE (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9902-9904		●
354	CLIP; AIR PIPE (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9905-9909	●	●
354	CLIP; AIR PIPE (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9910-	●	●	●
354	CLIP; AIR PIPE (C) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-9909	●	●
354	CLIP; AIR PIPE (C) ID=6 H=20 L=20	1-09700-603-0	01	1	9910-	●	●	●
354	CLIP; AIR PIPE (A)	1-09701-132-0	02	1	9905-9909	●
354	CLIP; AIR PIPE (A)	1-09701-132-1	02	1	9910-	●		●
376	PIPE ASM; AIR UNION TO MAG VLV CAB UP +110MM<TGG> L=357 SERVICED BY L=460	1-47428-806-0	01	1	9902-9904		●
376	PIPE ASM; AIR UNION TO MAG VLV CAB UP +110MM<TGG>	1-49121-779-0	01	1	9905-9909	●	●
376	PIPE ASM; AIR UNION TO MAG VLV CAB UP +110MM<TGG>	1-49121-779-0	01	1	9910-	●	●	●
376	PIPE ASM; AIR UNION TO MAG VLV EXC. CAB UP +110MM<TGG> L=247	1-49119-648-0	01	1	9902-9904		●
376	PIPE ASM; AIR UNION TO MAG VLV EXC. CAB UP +110MM<TGG> L=620	1-49121-778-0	01	1	9905-		●
377	PIPE ASM; AIR MAG VLV L=612 SERVICED BY L=650	1-47428-810-0	01	1	9905-9909	●
377	PIPE ASM; AIR MAG VLV L=612 SERVICED BY L=650	1-47428-810-0	01	1	9910-	●		●
378	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9905-9909	●	●
378	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9910-	●	●	●
379	HOSE; FLEX (A) L=520	1-09363-657-0	01	1	9902-9904		●
379	HOSE; FLEX (A) L=520	1-09363-657-0	01	1	9905-9909	●	●
379	HOSE; FLEX (A) L=520	1-09363-657-0	01	1	9910-	●	●	●
379	HOSE; FLEX (B) L=360	1-09363-658-0	01	1	9905-9909	●
379	HOSE; FLEX (B) L=360	1-09363-658-0	01	1	9910-	●		●
381	NUT; FLEX TUBE M12	9-09840-280-0	02	1	9902-9904		●
381	NUT; FLEX TUBE M12	9-09840-280-0	02	1	9905-9909	●	●
381	NUT; FLEX TUBE M12	9-09840-280-0	02	1	9905-9909	●
381	NUT; FLEX TUBE M12	9-09840-280-0	02	1	9910-	●	●	●
381	NUT; FLEX TUBE M12	9-09840-280-0	02	1	9910-	●
382	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	9902-9904		●
382	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	9905-9909	●	●
382	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	9905-9909	●
382	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	9910-	●	●	●
382	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	9910-	●
459	BOLT; CLIP FIX M8X25 FLANGE	0-28680-825-0	01	1	9902-9903		●
459	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	01	1	9904-9904		●
459	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	01	1	9905-9909	●	●
459	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	01	1	9910-	●	●	●
472	NUT (B) M8 FLANGE	0-91150-108-0	01	1	9902-9904		●
472	NUT (B) M8 FLANGE	0-91150-108-0	01	1	9905-9909	●	●
472	NUT (B) M8 FLANGE	0-91150-108-0	01	1	9910-	●	●	●
472	NUT (A) M6 FLANGE	0-91150-106-0	01	1	9905-9909	●
472	NUT (A) M6 FLANGE	0-91150-106-0	01	1	9910-	●		●
472	NUT (B) M8 FLANGE	0-91150-108-0	02	1	9905-9909	●
472	NUT (B) M8 FLANGE	0-91150-108-0	02	1	9910-	●		●
472	NUT (C) M8	9-09110-408-0	01	1	9905-9909	●
472	NUT (C) M8	9-09110-408-0	01	1	9910-	●		●
577	PIPE; AIR,UNION TO FLEX HOSE CAB UP +110MM<TGG> L=766 SERVICED BY L=800	1-47428-812-0	01	1	9902-9904		●
577	PIPE; AIR,UNION TO FLEX HOSE CAB UP +110MM<TGG> L=766 SERVICED BY L=800	1-47428-812-0	01	1	9905-9909	●	●
577	PIPE; AIR,UNION TO FLEX HOSE CAB UP +110MM<TGG> L=766 SERVICED BY L=800	1-47428-812-0	01	1	9910-	●	●	●
577	PIPE; AIR,UNION TO FLEX HOSE EXC. CAB UP +110MM<TGG> SERVICED BY L=800	1-47428-812-0	01	1	9902-9904		●
577	PIPE; AIR,UNION TO FLEX HOSE EXC. CAB UP +110MM<TGG>	1-49121-789-0	01	1	9905-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
