◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50801 - TFR/TFS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-82E - BOOST COMPENSATOR; INJECTION GOVERNOR ▶
0-82E — BOOST COMPENSATOR; INJECTION GOVERNOR (#41769) — 7 parça

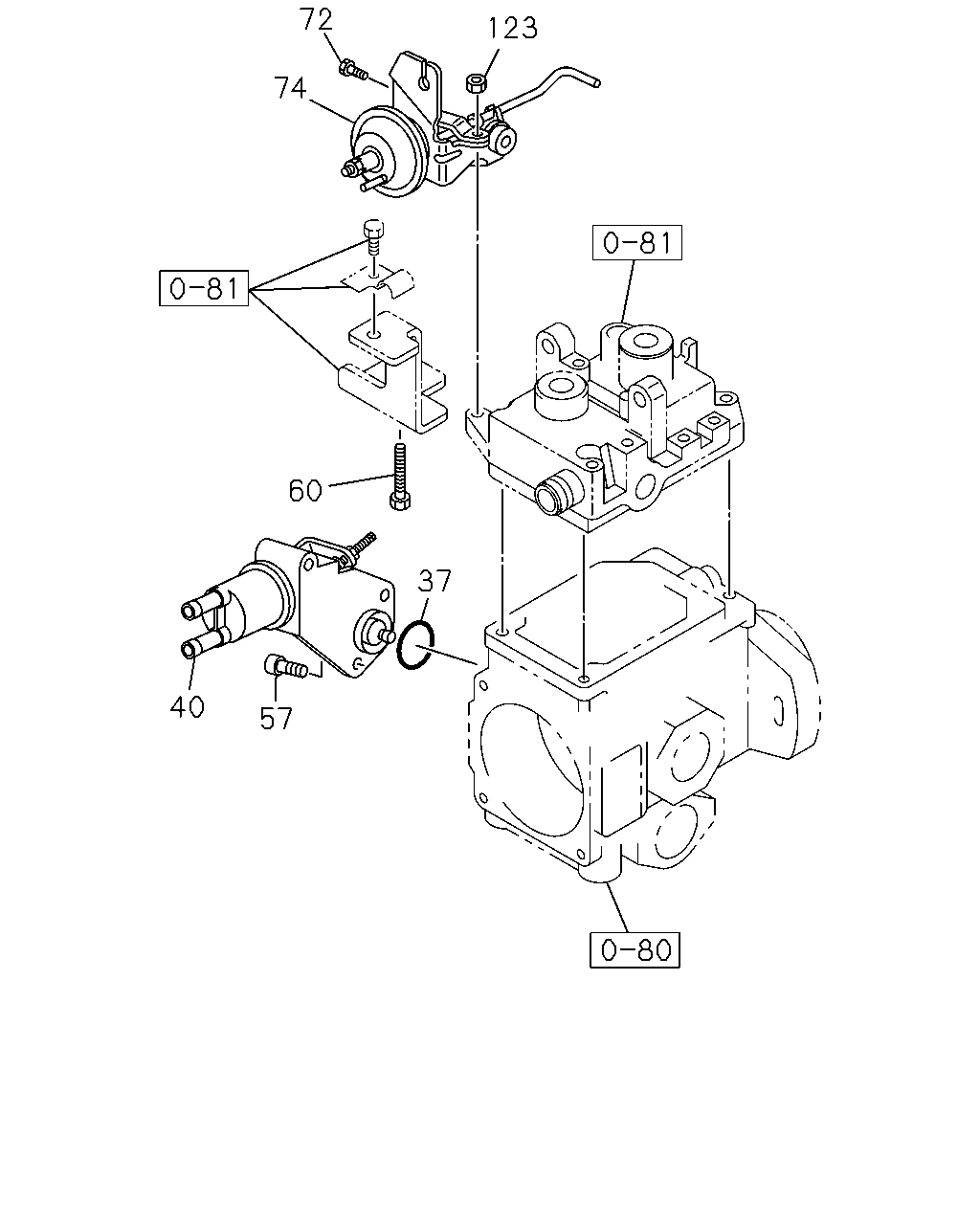

çizim 74132
72 123 74 60 37 40 57
BalonParca AdiParca NoAdetTipApplied Date
37 03.306 GASKET; STARTING ADVANCER,INJ PU
ASM PART: B = 8-97160-417-0, 97160417, C = 8-97160-419-0, 97160419 		8-94227-491-0 01 1 -
40 03.308 ADVANCER ASM; STARTING,GOV
ASM PART: B = 8-97160-417-0, 97160417, C = 8-97160-419-0, 97160419 		8-97065-836-3 01 1 -
57 03.308 BOLT; START ADVANCE
ASM PART: B = 8-97160-417-0, 97160417, C = 8-97160-419-0, 97160419 		1-15619-276-0 02 1 -
60 03.330 BOLT; BRKT
03.308 ASM PART: A = 8-97147-965-0, 97147965, B = 8-97160-417-0, 97160417 		8-94313-264-0 01 1 -
72 03.330 BOLT; BRKT FIX,INJ PUMP
03.308, (A) ASM PART: A = 8-97147-965-0, 97147965, B = 8-97160-417-0, 97160417 		8-94313-254-0 01 1 -
74 03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ
(A) ASM PART: A = 8-97147-965-0, 97147965, B = 8-97160-417-0, 97160417 		8-97126-378-1 01 1 -
123 03.330 NUT; ACTUATOR
03.318 ASM PART: A = 8-97147-965-0, 97147965, B = 8-97160-417-0, 97160417 		1-15729-006-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
