0-71 — DISTRIBUTOR (#41751) — 34 parça

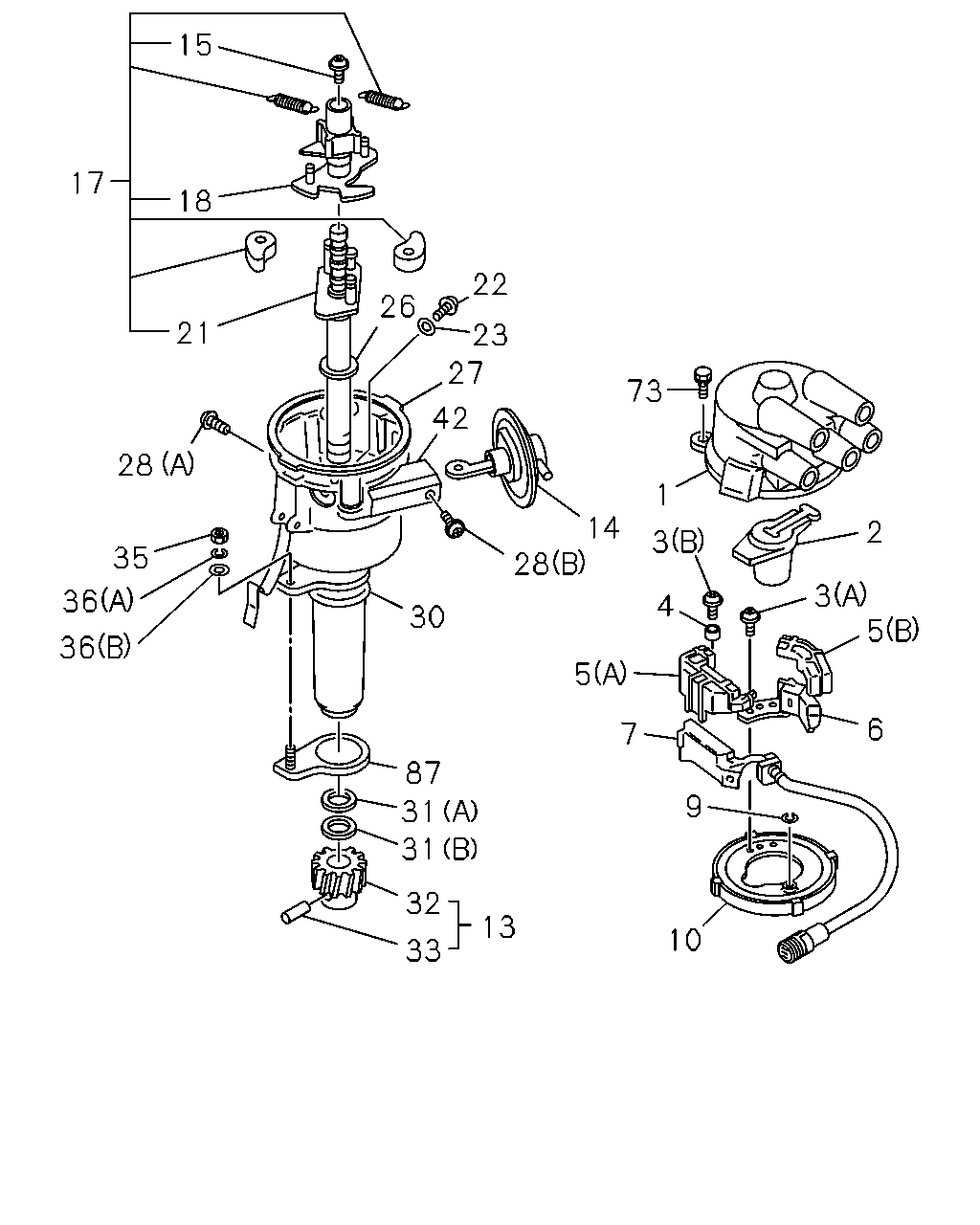

çizim 19774
15 17 18 22 26 21 23 27 42 73 28 1 3 14 28 2 35 36 36 3 5 4 30 5 6 7 87 31 31 9 32 13 10 33
BalonParca AdiParca NoAdetTipApplied Date
1 02.367 CAP; DISTR
ASM PART: A = 8-97129-748-0, 97129748 		8-94321-537-0 01 1 -
2 02.382 ROTOR; DISTR
ASM PART: A = 8-97129-748-0, 97129748 		8-94338-910-0 01 1 -
3 02.385 SCREW; BREAKER,DISTR
02.387, (A) ASM PART: A = 8-97129-748-0, 97129748 		8-94206-155-0 02 1 -
3 02.385 SCREW; BREAKER,DISTR
(B) ASM PART: A = 8-97129-748-0, 97129748 		8-94212-645-0 02 1 -
4 02.387 NUT; SPACER
ASM PART: A = 8-97129-748-0, 97129748 		8-94147-857-0 01 1 -
5 02.385 COVER; DUST,BREAKER,DISTR
(A) ASM PART: A = 8-97129-748-0, 97129748 		8-94129-193-0 01 1 -
5 02.385 COVER; DUST,BREAKER,DISTR
(B) ASM PART: A = 8-97129-748-0, 97129748 		8-94129-194-0 01 1 -
6 02.383 GENERATOR; DISTR
ASM PART: A = 8-97129-748-0, 97129748 		8-97080-226-0 01 1 -
7 02.170 IGNITER; DISTR
ASM PART: A = 8-97129-748-0, 97129748 		8-94321-528-0 01 1 -
9 02.385 WASHER; SNAP,BREAKER,DISTR
ASM PART: A = 8-97129-748-0, 97129748 		8-94207-822-0 01 1 -
10 02.381 PLATE; BREAKER,DIST
ASM PART: A = 8-97129-748-0, 97129748 		8-94129-198-0 01 1 -
13 02.379 COUPLING; DISTR
02.374 ASM PART: A = 8-97129-748-0, 97129748 		8-94237-156-0 01 1 -
14 02.410 CONTROL; VAC,DISTR
ASM PART: A = 8-97129-748-0, 97129748 		8-94321-532-0 01 1 -
15 02.387 SCREW; CAM,DISTR
ASM PART: A = 8-97129-748-0, 97129748 		8-94206-155-0 01 1 -
17 02.381 GOVERNOR; DISTR
ASM PART: A = 8-97129-748-0, 97129748 		8-97131-345-0 01 1 -
18 02.382 CAM; DISTR
ASM PART: A = 8-97129-748-0, 97129748 		8-97131-344-0 01 1 -
21 02.372 SHAFT; DISTR
ASM PART: A = 8-97129-748-0, 97129748 		8-94480-330-0 01 1 -
22 02.368 SCREW; CLAMP,DISTR
ASM PART: A = 8-97129-748-0, 97129748 		8-94480-331-0 02 1 -
23 02.385 WASHER; CLAMP SCREW,DISTR
02.368 ASM PART: A = 8-97129-748-0, 97129748 		8-94216-700-0 02 1 -
26 02.379 WASHER; SHAFT,DISTR
ASM PART: A = 8-97129-748-0, 97129748 		8-94480-332-0 01 1 -
27 02.367 GASKET; HSG,DISTR
ASM PART: A = 8-97129-748-0, 97129748 		8-94321-530-0 01 1 -
28 02.368 SCREW; VAC CONT
02.393, (A) ASM PART: A = 8-97129-748-0, 97129748 		8-94108-473-0 02 1 -
28 02.368 SCREW; VAC CONT
02.414, (B) ASM PART: A = 8-97129-748-0, 97129748 		8-94237-241-0 01 1 -
30 02.363 GASKET; HSG,DISTR
ASM PART: A = 8-97129-748-0, 97129748 		8-94206-165-0 01 1 -
31 02.379 WASHER; THRUST,DISTR
02.385, (A) ASM PART: A = 8-97129-748-0, 97129748 		8-94206-157-0 01 1 -
31 02.379 WASHER; THRUST,DISTR
02.385, (B) ASM PART: A = 8-97129-748-0, 97129748 		8-94207-823-0 01 1 -
32 02.374 GEAR; DRIVE,DISTR
ASM PART: A = 8-97129-748-0, 97129748 		8-94237-176-0 01 1 -
33 02.379 PIN; STRAIGHT,DISTR
ASM PART: A = 8-97129-748-0, 97129748 		8-94237-157-0 01 1 -
35 02.379 NUT; PLATE,DISTR
00.002, M8 ASM PART: A = 8-97129-748-0, 97129748 		9-09110-508-0 01 1 -
36 02.379 WASHER; PLATE,DISTR
00.002, (A) LK WASHER ASM PART: A = 8-97129-748-0, 97129748 		9-09150-508-0 01 1 -
36 02.379 WASHER; PLATE,DISTR
16.716, (B) PL WASHER ASM PART: A = 8-97129-748-0, 97129748 		9-09160-608-0 01 1 -
42 02.362 HOUSING; DISTR
ASM PART: A = 8-97129-748-0, 97129748 		8-94321-531-0 01 1 -
73 02.381 BOLT; PLATE,DISTR
02.393 ASM PART: A = 8-97129-748-0, 97129748 		8-94405-199-0 03 1 -
87 02.362 PLATE; DISTR
ASM PART: A = 8-97129-748-0, 97129748 		8-94321-527-0 01 1 -
