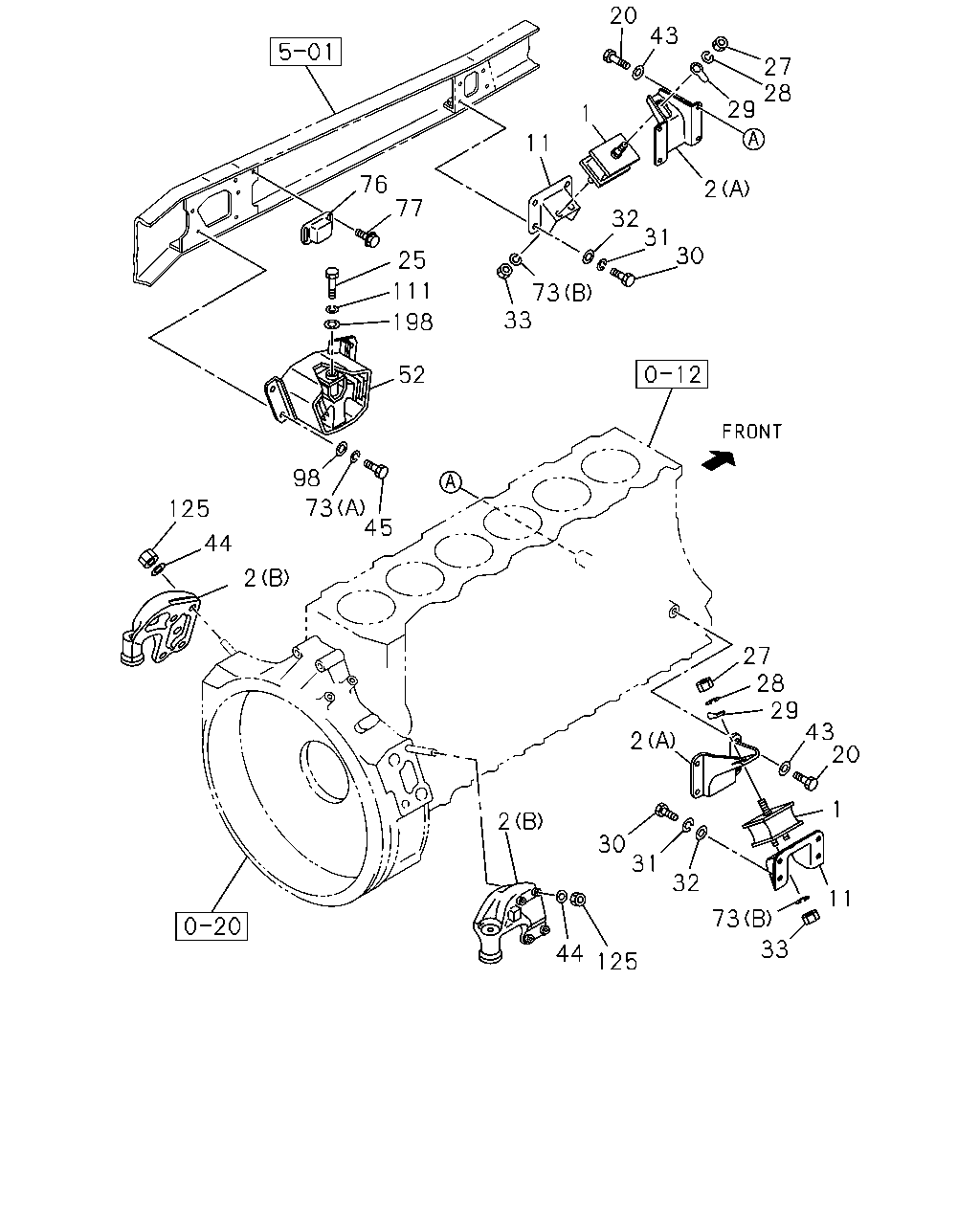

0-22A — ENGINE MOUNTING (#4175) — 133 parça
çizim 4680
20 43 27 28 29 1 11 76 77 2 32 31 30 25 111 73 33 198 52 98 73 45 125 44 2 27 28 29 43 20 2 1 2 30 31 32 11 73 33 44 125
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 RUBBER; ENG FOOT,FRT 1-53215-147-1 02 1 9603-9901 ●
1 RUBBER; ENG FOOT,FRT 1-53215-147-1 02 1 9902-9904 ● ●
1 RUBBER; ENG FOOT,FRT 1-53215-147-1 02 1 9905-9909 ● ● ● ●
1 RUBBER; ENG FOOT,FRT 1-53215-147-1 02 1 9910- ● ● ● ● ●
2 FOOT; ENG
(A) FRONT 		1-11771-220-0 02 1 9603-9901 ●
2 FOOT; ENG
(A) FRONT 		1-11771-220-0 02 1 9902-9904 ● ●
2 FOOT; ENG
(A) FRONT 		1-11771-220-0 02 1 9905-9909 ● ● ● ●
2 FOOT; ENG
(A) FRONT 		1-11771-220-0 02 1 9910- ● ● ● ● ●
2 FOOT; ENG
(B) REAR 		1-11777-197-1 01 1 9603-9901 ●
2 FOOT; ENG
(B) REAR 		1-11777-197-1 01 1 9902-9904 ● ●
2 FOOT; ENG
(B) REAR 		1-11777-197-1 01 1 9905-9909 ● ● ● ●
2 FOOT; ENG
(B) REAR 		1-11777-197-1 01 1 9910- ● ● ● ● ●
2 FOOT; ENG
(B) REAR 		1-11777-189-1 01 1 9603-9901 ●
2 FOOT; ENG
(B) REAR 		1-11777-189-1 01 1 9902-9904 ● ●
2 FOOT; ENG
(B) REAR 		1-11777-189-1 01 1 9905-9909 ● ● ● ●
2 FOOT; ENG
(B) REAR 		1-11777-189-1 01 1 9910- ● ● ● ● ●
11 BRACKET; CUSHION RUBBER,FRT 1-53211-222-0 02 1 9603-9901 ●
11 BRACKET; CUSHION RUBBER,FRT
CAB UP +110MM<TGG> 		1-53211-219-1 02 1 9902-9904 ●
11 BRACKET; CUSHION RUBBER,FRT
CAB UP +110MM<TGG> 		1-53211-219-1 02 1 9905-9909 ● ●
11 BRACKET; CUSHION RUBBER,FRT
CAB UP +110MM<TGG> 		1-53211-219-1 02 1 9910- ● ● ●
11 BRACKET; CUSHION RUBBER,FRT
EXC. CAB UP +110MM<TGG> 		1-53211-222-0 02 1 9902-9904 ●
11 BRACKET; CUSHION RUBBER,FRT 1-53211-222-0 02 1 9902-9904 ●
11 BRACKET; CUSHION RUBBER,FRT 1-53211-222-0 02 1 9905- ● ● ●
11 BRACKET; CUSHION RUBBER,FRT
EXC. CAB UP +110MM<TGG> 		1-53211-222-0 02 1 9905- ●
20 BOLT; ENG FOOT
M14X32 		9-92361-432-0 08 1 9603-9901 ●
20 BOLT; ENG FOOT
M14X32 		9-92361-432-0 08 1 9902-9904 ● ●
20 BOLT; ENG FOOT
M14X32 		9-92361-432-0 08 1 9905-9909 ● ● ● ●
20 BOLT; ENG FOOT
M14X32 		9-92361-432-0 08 1 9910- ● ● ● ● ●
25 BOLT; CUSHION RUBBER TO BRKT
SHORT CHASSIS(CX***C) M22X105 		9-09804-230-1 02 1 9603-9603 ●
25 BOLT; CUSHION RUBBER TO BRKT
M22X105 		9-09804-230-1 02 1 9604-9901 ●
25 BOLT; CUSHION RUBBER TO BRKT
M22X105 		9-09804-230-1 02 1 9902-9904 ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M22X105 		9-09804-230-1 02 1 9905- ● ● ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M18 		9-99110-418-0 02 1 9603-9802 ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M18 		9-99110-518-0 02 1 9803-9901 ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M18 		9-99110-518-0 02 1 9902-9904 ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M18 		9-99110-518-0 02 1 9905- ● ● ● ● ●
28 WASHER; LK,SUPPORT BRKT
ID=18.2 		9-09150-518-0 02 1 9603-9901 ●
28 WASHER; LK,SUPPORT BRKT
ID=18.2 		9-09150-518-0 02 1 9902-9904 ● ●
28 WASHER; LK,SUPPORT BRKT
ID=18.2 		9-09150-518-0 02 1 9905- ● ● ● ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-040-0 02 1 9603-9901 ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-040-0 02 1 9902-9904 ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-040-0 02 1 9905- ● ● ● ● ●
30 BOLT; BRKT TO FRAME
M14X35 		9-92061-435-0 08 1 9603-9901 ●
30 BOLT; BRKT TO FRAME
M14X35 		9-92061-435-0 08 1 9902-9904 ● ●
30 BOLT; BRKT TO FRAME
M14X35 		9-92061-435-0 08 1 9905- ● ● ● ● ●
31 WASHER; LK,BRKT TO FRAME
ID=14.2 		9-09150-814-0 08 1 9603-9901 ●
31 WASHER; LK,BRKT TO FRAME
ID=14.2 		9-09150-814-0 08 1 9902-9904 ● ●
31 WASHER; LK,BRKT TO FRAME
ID=14.2 		9-09150-814-0 08 1 9905- ● ● ● ● ●
32 WASHER; PL,BRKT TO FRAME
ID=15 		9-09651-069-0 08 1 9603-9901 ●
32 WASHER; PL,BRKT TO FRAME
ID=15 		9-09651-069-0 08 1 9902-9904 ● ●
32 WASHER; PL,BRKT TO FRAME
ID=15 		9-09651-069-0 08 1 9905- ● ● ● ● ●
33 NUT; CUSHION RUBBER TO BRKT
M14 		9-99110-414-0 04 1 9603-9901 ●
33 NUT; CUSHION RUBBER TO BRKT
M14 		9-99110-514-0 04 1 9902-9904 ● ●
33 NUT; CUSHION RUBBER TO BRKT
M14 		9-99110-514-0 04 1 9905-0006 ● ● ● ●
33 NUT; CUSHION RUBBER TO BRKT
M14 		9-99110-414-0 04 1 0007- ● ● ● ●
43 WASHER; ENG FOOT
ID=14.2 		1-09503-050-0 08 1 9603-9901 ●
43 WASHER; ENG FOOT
ID=14.2 		1-09503-050-0 08 1 9902-9904 ● ●
43 WASHER; ENG FOOT
ID=14.2 		1-09503-050-0 08 1 9905-9909 ● ● ● ●
43 WASHER; ENG FOOT
ID=14.2 		1-09503-050-0 08 1 9910- ● ● ● ● ●
44 WASHER; LK,ENG FOOT
ID=18.2 OD=29 		1-09503-032-0 08 1 9603-9901 ●
44 WASHER; LK,ENG FOOT
ID=18.2 OD=29 		1-09503-032-0 08 1 9902-9904 ● ●
44 WASHER; LK,ENG FOOT
ID=18.2 OD=29 		1-09503-032-0 08 1 9905-9909 ● ● ● ●
44 WASHER; LK,ENG FOOT
ID=18.2 OD=29 		1-09503-032-0 08 1 9910- ● ● ● ● ●
45 BOLT; CUSHION RUBBER TO FRAME
M14X40 		9-92061-440-0 10 1 9603-9901 ●
45 BOLT; CUSHION RUBBER TO FRAME
CAB UP +110MM<TGG> M14X40 		9-92061-440-0 12 1 9902-9904 ●
45 BOLT; CUSHION RUBBER TO FRAME
MIXER TRUCK<RA2> M14X40 		9-92061-440-0 12 1 9902-9904 ●
45 BOLT; CUSHION RUBBER TO FRAME
MIXER TRUCK<RA2> M14X40 		9-92061-440-0 12 1 9905- ● ●
45 BOLT; CUSHION RUBBER TO FRAME
CAB UP +110MM<TGG> M14X40 		9-92061-440-0 12 1 9905- ●
45 BOLT; CUSHION RUBBER TO FRAME
CXZ(CXZ***) CAB UP +110MM<TGG> M14X40 		9-92061-440-0 12 1 9905- ●
45 BOLT; CUSHION RUBBER TO FRAME
EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> M14X40 		9-92061-440-0 10 1 9902-9904 ●
45 BOLT; CUSHION RUBBER TO FRAME
EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> M14X40 		9-92061-440-0 10 1 9905- ● ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-261-3 01 1 9603-9901 ●
52 RUBBER; CUSHION,ENG MTG,RR
EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> 		1-53225-261-3 01 1 9902-9904 ●
52 RUBBER; CUSHION,ENG MTG,RR
EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> 		1-53225-261-3 01 1 9905- ● ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-262-3 01 1 9603-9901 ●
52 RUBBER; CUSHION,ENG MTG,RR
EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> 		1-53225-262-3 01 1 9902-9904 ●
52 RUBBER; CUSHION,ENG MTG,RR
EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> 		1-53225-262-3 01 1 9905- ● ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
MIXER TRUCK<RA2> EXC. CAB UP +110MM<TGG> 		1-53225-333-0 01 1 9902-9904 ●
52 RUBBER; CUSHION,ENG MTG,RR
MIXER TRUCK<RA2> EXC. CAB UP +110MM<TGG> 		1-53225-333-0 01 1 9905- ● ●
52 RUBBER; CUSHION,ENG MTG,RR
MIXER TRUCK<RA2> EXC. CAB UP +110MM<TGG> 		1-53225-334-0 01 1 9902-9904 ●
52 RUBBER; CUSHION,ENG MTG,RR
MIXER TRUCK<RA2> EXC. CAB UP +110MM<TGG> 		1-53225-334-0 01 1 9905- ● ●
52 RUBBER; CUSHION,ENG MTG,RR
SHORT CHASSIS(CX***C) MIXER TRUCK<RA2> CAB UP +110MM<TGG> 		1-53225-393-0 01 1 9909-9910 ● ●
52 RUBBER; CUSHION,ENG MTG,RR
SHORT CHASSIS(CX***C) MIXER TRUCK<RA2> CAB UP +110MM<TGG> 		1-53225-395-0 01 1 9911- ● ●
52 RUBBER; CUSHION,ENG MTG,RR
SHORT CHASSIS(CX***C) MIXER TRUCK<RA2> CAB UP +110MM<TGG> 		1-53225-392-0 01 1 9909-9910 ● ●
52 RUBBER; CUSHION,ENG MTG,RR
SHORT CHASSIS(CX***C) MIXER TRUCK<RA2> CAB UP +110MM<TGG> 		1-53225-394-0 01 1 9911- ● ●
52 RUBBER; CUSHION,ENG MTG,RR
CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2> 		1-53225-327-0 02 1 9902-9904 ●
52 RUBBER; CUSHION,ENG MTG,RR
CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2> 		1-53225-327-0 02 1 9905- ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
(B) ID=14.2 		9-09150-514-0 04 1 9603-9901 ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
(B) ID=14.2 		9-09150-514-0 04 1 9902-9904 ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
(B) ID=14.2 		9-09150-514-0 04 1 9905- ● ● ● ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
(A) ID=14.2 		9-09150-814-0 10 1 9603-9901 ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
CAB UP +110MM<TGG> (A) ID=14.2 		9-09150-814-0 12 1 9902-9904 ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
MIXER TRUCK<RA2> (A) ID=14.2 		9-09150-814-0 12 1 9902-9904 ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
MIXER TRUCK<RA2> (A) ID=14.2 		9-09150-814-0 12 1 9905- ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
CAB UP +110MM<TGG> (A) ID=14.2 		9-09150-814-0 12 1 9905- ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
CXZ(CXZ***) CAB UP +110MM<TGG> (A) ID=14.2 		9-09150-814-0 12 1 9905- ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> (A) ID=14.2 		9-09150-814-0 10 1 9902-9904 ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> (A) ID=14.2 		9-09150-814-0 10 1 9905- ● ● ● ●
76 STOPPER; ENG MTG RUBBER 1-53229-056-1 02 1 9603-9901 ●
76 STOPPER; ENG MTG RUBBER
EXC. CAB UP +110MM<TGG> 		1-53229-056-1 02 1 9902-9904 ●
76 STOPPER; ENG MTG RUBBER 1-53229-056-1 02 1 9902-9904 ●
76 STOPPER; ENG MTG RUBBER 1-53229-056-1 02 1 9905- ● ● ●
76 STOPPER; ENG MTG RUBBER
EXC. CAB UP +110MM<TGG> 		1-53229-056-1 02 1 9905- ●
77 BOLT; STOPPER
M8X20 FLANGE 		0-28080-820-0 04 1 9603-9606 ●
77 BOLT; STOPPER
M8X20 FLANGE 		0-28680-820-0 04 1 9607-9711 ●
77 BOLT; STOPPER
M8X16 FLANGE 		0-28080-816-0 04 1 9712-9901 ●
77 BOLT; STOPPER
EXC. CAB UP +110MM<TGG> M8X16 FLANGE 		0-28080-816-0 04 1 9902-9904 ●
77 BOLT; STOPPER
M8X16 FLANGE 		0-28080-816-0 04 1 9902-9904 ●
77 BOLT; STOPPER
M8X16 FLANGE 		0-28080-816-0 04 1 9905-9908 ● ● ●
77 BOLT; STOPPER
EXC. CAB UP +110MM<TGG> M8X16 FLANGE 		0-28080-816-0 04 1 9905-9908 ●
77 BOLT; STOPPER
M8X16 FLANGE 		0-28080-816-0 04 1 9909- ● ● ●
77 BOLT; STOPPER
EXC. CAB UP +110MM<TGG> M8X16 FLANGE 		0-28080-816-0 04 1 9909- ●
98 WASHER; PL,CUSHION RUBBER TO FRAME,RR
ID=15 		9-09651-069-0 10 1 9603-9901 ●
98 WASHER; PL,CUSHION RUBBER TO FRAME,RR
CAB UP +110MM<TGG> ID=15 		9-09651-069-0 12 1 9902-9904 ●
98 WASHER; PL,CUSHION RUBBER TO FRAME,RR
MIXER TRUCK<RA2> ID=15 		9-09651-069-0 12 1 9902-9904 ●
98 WASHER; PL,CUSHION RUBBER TO FRAME,RR
MIXER TRUCK<RA2> ID=15 		9-09651-069-0 12 1 9905- ● ●
98 WASHER; PL,CUSHION RUBBER TO FRAME,RR
CAB UP +110MM<TGG> ID=15 		9-09651-069-0 12 1 9905- ●
98 WASHER; PL,CUSHION RUBBER TO FRAME,RR
CXZ(CXZ***) CAB UP +110MM<TGG> ID=15 		9-09651-069-0 12 1 9905- ●
98 WASHER; PL,CUSHION RUBBER TO FRAME,RR
EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> ID=15 		9-09651-069-0 10 1 9902-9904 ●
98 WASHER; PL,CUSHION RUBBER TO FRAME,RR
EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> ID=15 		9-09651-069-0 10 1 9905- ● ● ● ●
111 WASHER; LK,CUSHION RUBBER TO BRKT
SHORT CHASSIS(CX***C) ID=22.5 		9-09150-622-0 02 1 9603-9603 ●
111 WASHER; LK,CUSHION RUBBER TO BRKT
ID=22.5 		9-09150-622-0 02 1 9604-9901 ●
111 WASHER; LK,CUSHION RUBBER TO BRKT
ID=22.5 		9-09150-622-0 02 1 9902-9904 ● ●
111 WASHER; LK,CUSHION RUBBER TO BRKT
ID=22.5 		9-09150-622-0 02 1 9905- ● ● ● ● ●
125 NUT; ENG FOOT
M18 		9-99110-518-0 08 1 0010- ● ● ● ● ●
125 NUT; ENG FOOT
M18 		9-99110-518-0 08 1 9603-9901 ●
125 NUT; ENG FOOT
M18 		9-99110-518-0 08 1 9902-9904 ● ●
125 NUT; ENG FOOT
M18 		9-99110-518-0 08 1 9905-9909 ● ● ● ●
125 NUT; ENG FOOT
M18 		9-99110-518-0 08 1 9910-0009 ● ● ● ● ●
198 WASHER; PL,CUSHION TO BRKT,RR
SHORT CHASSIS(CX***C) 		9-09164-622-0 02 1 9603-9603 ●
198 WASHER; PL,CUSHION TO BRKT,RR 9-09164-622-0 02 1 9604-9901 ●
198 WASHER; PL,CUSHION TO BRKT,RR 9-09164-622-0 02 1 9902-9904 ● ●
198 WASHER; PL,CUSHION TO BRKT,RR 9-09164-622-0 02 1 9905- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
