0-60 — ENGINE ELECTRICAL CONTROL PARTS (#41746) — 426 parça

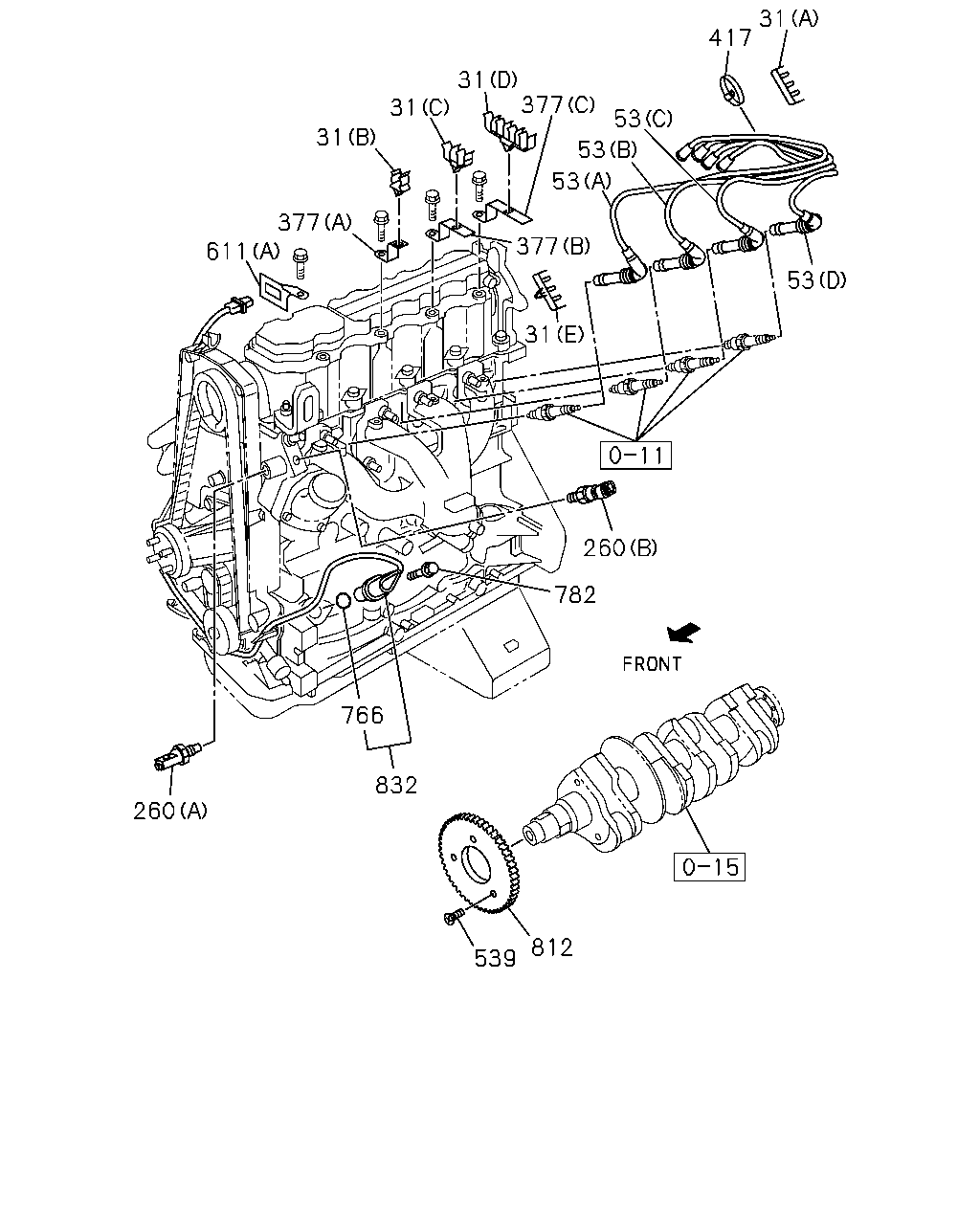

çizim 69266
31 417 31 31 377 31 53 53 53 377 611 377 53 31 260 782 766 832 260 812 539
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
31 02.251 CLIP; HIGH TENSION CABLE
(A) 		8-02965-736-0 01 1 9804-0108 ●
31 02.251 CLIP; HIGH TENSION CABLE
(A) 		8-02965-736-0 01 1 0109- ● ●
31 02.251 CLIP; HIGH TENSION CABLE
(B) 		8-90320-343-0 01 1 9804-0109 ●
31 02.251 CLIP; HIGH TENSION CABLE
(B) 		8-90320-343-0 01 1 0110- ● ●
31 02.251 CLIP; HIGH TENSION CABLE
(C) 		8-90320-344-0 01 1 9804-9808 ●
31 02.251 CLIP; HIGH TENSION CABLE
(D) 		8-90320-345-0 01 1 9804-9808 ●
31 02.251 CLIP; HIGH TENSION CABLE
(D) 		8-90320-345-0 02 1 9809-0108 ●
31 02.251 CLIP; HIGH TENSION CABLE
(D) 		8-90320-345-0 02 1 0109- ● ●
31 02.251 CLIP; HIGH TENSION CABLE
(E) 		8-90341-384-0 01 1 9804-0108 ●
31 02.251 CLIP; HIGH TENSION CABLE
(E) 		8-90341-384-0 01 1 0109- ● ●
53 02.240 CABLE; IGN PLUG
(A) 		8-92063-672-0 01 1 9804-0108 ●
53 02.240 CABLE; IGN PLUG
(A) 		8-92063-672-0 01 1 0109- ● ●
53 02.240 CABLE; IGN PLUG
(B) 		8-92063-673-0 01 1 9804-0108 ●
53 02.240 CABLE; IGN PLUG
(B) 		8-92063-673-0 01 1 0109- ● ●
53 02.240 CABLE; IGN PLUG
(C) 		8-92063-674-0 01 1 9804-0108 ●
53 02.240 CABLE; IGN PLUG
(C) 		8-92063-674-0 01 1 0109- ● ●
53 02.240 CABLE; IGN PLUG
(D) 		8-92063-675-0 01 1 9804-0108 ●
53 02.240 CABLE; IGN PLUG
(D) 		8-92063-675-0 01 1 0109- ● ●
260 01.150 SENSOR; WATER TEMP
(B) 		8-15326-386-0 01 1 0107- ●
260 01.150 SENSOR; WATER TEMP
(B) 		8-12146-312-0 01 1 9804-0106 ● ●
260 01.150 SENSOR; WATER TEMP
(B) 		8-12146-312-0 01 1 0107-0108 ●
260 01.150 SENSOR; WATER TEMP
(B) 		8-12146-312-0 01 1 0109- ● ●
260 01.150 SENSOR; WATER TEMP
(A) 		8-92063-893-0 01 1 9804-0108 ●
260 01.150 SENSOR; WATER TEMP
(A) 		8-92063-893-0 01 1 0109- ● ●
377 02.183 BRACKET; HIGH TENSION CABLE
(A) 		8-90460-630-0 01 1 9804-0108 ●
377 02.183 BRACKET; HIGH TENSION CABLE
(A) 		8-90460-630-0 01 1 0109- ● ●
377 02.183 BRACKET; HIGH TENSION CABLE
(B) 		8-90460-631-0 01 1 9804-0108 ●
377 02.183 BRACKET; HIGH TENSION CABLE
(B) 		8-90460-631-0 01 1 0109- ● ●
377 02.183 BRACKET; HIGH TENSION CABLE
(C) 		8-90493-625-0 01 1 9804-0108 ●
377 02.183 BRACKET; HIGH TENSION CABLE
(C) 		8-90493-625-0 01 1 0109- ● ●
417 02.420 CLIP 8-09279-238-0 01 1 9804-0108 ●
417 02.420 CLIP 8-09279-238-0 01 1 0109- ● ●
539 02.510 SCREW; SENSOR 8-90280-051-0 03 1 9804-0108 ●
539 02.510 SCREW; SENSOR 8-90280-051-0 03 1 0109- ● ●
611 01.150 BRACKET; SENSOR
03.671 		8-94475-021-2 01 1 9804- ●
611 01.150 BRACKET; SENSOR
(A) 		8-90414-756-0 01 1 9804-0108 ●
611 01.150 BRACKET; SENSOR
(A) 		8-90414-756-0 01 1 0109- ● ●
611 01.150 BRACKET; SENSOR
M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMEN T(7LD) (B) 		8-97181-086-0 01 1 9804-9904 ●
611 01.150 BRACKET; SENSOR
M/T MSG 5 SPEED(M75) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97181-086-0 01 1 9905-0012 ●
611 01.150 BRACKET; SENSOR
M/T MSG 5 SPEED(M75) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97181-086-0 01 1 0101-0108 ●
611 01.150 BRACKET; SENSOR
M/T MSG 5 SPEED(M75) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97181-086-0 01 1 0109- ● ●
611 01.150 BRACKET; SENSOR
M/T MUA 5 SPEED(RMN) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMEN T(7LD) (C) 		8-97185-430-0 01 1 9804-9904 ●
611 01.150 BRACKET; SENSOR
M/T MUA 5 SPEED(RMN) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (C) 		8-97185-430-0 01 1 9905-0012 ●
611 01.150 BRACKET; SENSOR
M/T MUA 5 SPEED(RMN) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (C) 		8-97185-430-0 01 1 0101- ●
766 02.363 GASKET; SENSOR 8-10473-965-0 01 1 9804-0108 ●
766 02.363 GASKET; SENSOR 8-10473-965-0 01 1 0109- ● ●
782 02.510 BOLT; SENSOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9804- ●
782 02.510 BOLT; SENSOR 8-11093-971-0 01 1 9804- ●
782 02.510 BOLT; SENSOR 8-11093-881-0 01 1 0109- ●
812 02.510 ROTOR; SENSOR 8-90265-094-0 01 1 9804-0108 ●
812 02.510 ROTOR; SENSOR 8-90265-094-0 01 1 0109- ● ●
832 02.510 SENSOR; CRANK ANGLE & ENG SPD 8-10456-515-0 01 1 9804- ●
832 02.510 SENSOR; CRANK ANGLE & ENG SPD 8-10456-597-0 01 1 0109- ●

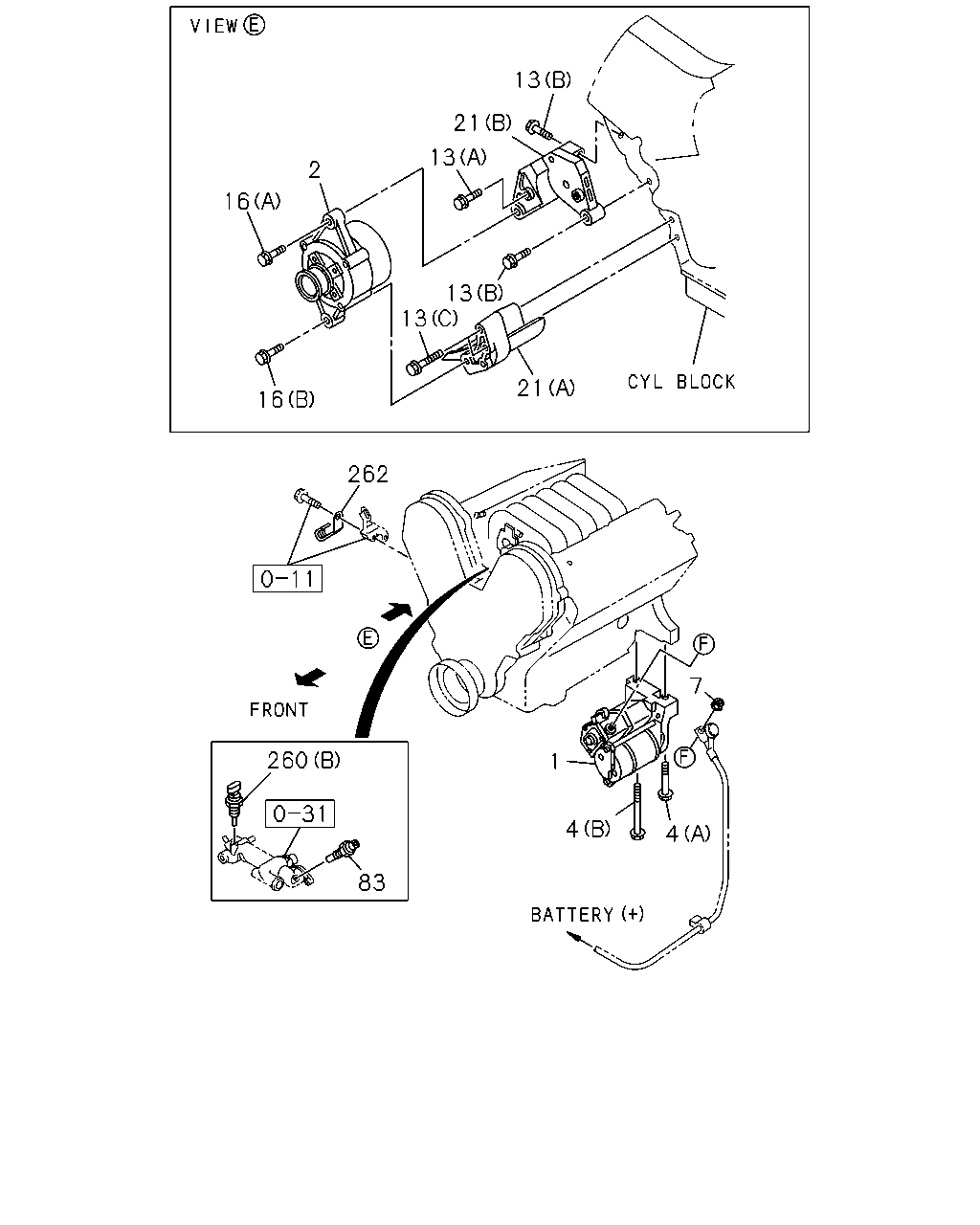

çizim 69335
13 21 13 2 16 13 13 21 16 262 7 260 1 4 4 83
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-97136-688-0 01 1 9804-9812 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. CHINA CHONGQING EQUIPMENT(R5B) 12V 2.3KW 		8-97136-688-0 01 1 9804-9812 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-97136-688-0 01 1 9901-0201 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-97255-390-1 01 1 0202- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. CHINA CHONGQING EQUIPMENT(R5B) 12V 2.0KW 		8-97136-687-0 01 1 9804-9812 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.2KW 		8-94371-833-1 01 1 9804-9812 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 9804- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.6KW 		8-92064-181-0 01 1 9804- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.6KW 		8-92087-059-0 01 1 0109- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 40A 		8-97187-652-0 01 1 9804-0009 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. PHILIPPINE EQUIPMENT(S2U) 12V 40A 		8-97187-652-0 01 1 0010-0205 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 40A 		8-97187-652-1 01 1 0206- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-654-0 01 1 9804-9901 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U) 12V 50A 		8-97187-653-0 01 1 0010-0204 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-654-1 01 1 9902- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 55A 		8-94472-817-4 01 1 9804-9812 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 75A 		8-97187-304-0 01 1 9804- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A 		8-92063-678-0 01 1 9804-0108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A 		8-92063-678-0 01 1 0109- ● ●
4 02.042 BOLT; STARTER
M/T MSG 5 SPEED(M75) 00.724 M12X50 FLANGE 		0-28081-250-0 02 1 9804- ● ●
4 02.042 BOLT; STARTER
08.900 (A) M10X50 FLANGE 		0-28181-050-0 01 1 9804- ●
4 02.042 BOLT; STARTER
04.085 (B) M10X80 FLANGE 		0-28181-080-0 01 1 9804- ●
4 02.042 BOLT; STARTER
04.525 (A) M10X25 FLANGE 		0-28181-025-0 01 1 9804-0108 ●
4 02.042 BOLT; STARTER
04.525 (A) M10X25 FLANGE 		0-28181-025-0 01 1 0109- ● ●
4 02.042 BOLT; STARTER
(B) 		8-11073-352-0 01 1 9804-0108 ●
4 02.042 BOLT; STARTER
(B) 		8-11073-352-0 01 1 0109- ● ●
7 02.042 NUT; STARTER
M/T MSG 5 SPEED(M75) 05.586 M12 FLANGE 		0-91150-112-0 02 1 9804-0009 ● ●
7 02.042 NUT; STARTER
M/T MSG 5 SPEED(M75),A/T AISIN(RMD) 05.586 M12 FLANGE 		0-91150-112-0 02 1 0010- ● ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9804-9812 ● ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9901- ●
13 02.100 BOLT; BRKT
09.171 (C) M8X90 FLANGE 		0-28080-890-0 02 1 9804- ●
13 02.100 BOLT; BRKT
04.686 (A) M8X30 FLANGE 		0-28680-830-0 01 1 9804- ●
13 02.100 BOLT; BRKT
03.704 (B) M8X40 FLANGE 		0-28680-840-0 02 1 9804-0108 ●
13 02.100 BOLT; BRKT
16.545 (B) M8X40 FLANGE 		0-28690-840-0 02 1 0109- ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9804- ● ●
16 02.277 BOLT; GEN
(A) M10X90 FLANGE 		0-28081-090-0 01 1 9804- ●
16 02.277 BOLT; GEN
04.686 (B) M8X30 FLANGE 		0-28680-830-0 01 1 9804- ●
16 02.277 BOLT; GEN
M10X110 FLANGE 		0-28086-011-0 01 1 9804-0108 ●
16 02.277 BOLT; GEN
M10X110 FLANGE 		0-28086-011-0 01 1 0109- ● ●
21 02.277 BRACKET; GEN 8-94437-276-2 01 1 9804- ● ●
21 02.277 BRACKET; GEN 8-97071-652-1 01 1 9804-9812 ●
21 02.277 BRACKET; GEN
(B) 		8-97160-604-1 01 1 9804-0012 ●
21 02.277 BRACKET; GEN
(A) 		8-97160-605-1 01 1 9804-0111 ●
21 02.277 BRACKET; GEN
(A) 		8-97941-401-0 01 1 0112- ●
21 02.277 BRACKET; GEN
(B) 		8-97289-024-0 01 1 0101-0201 ●
21 02.277 BRACKET; GEN
(B) 		8-97328-364-0 01 1 0202- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9804- ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9804- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9804-9812 ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9901- ●
260 01.150 SENSOR; WATER TEMP
(B) 		8-15326-386-0 01 1 0107- ●
260 01.150 SENSOR; WATER TEMP
(B) 		8-12146-312-0 01 1 9804-0106 ● ●
260 01.150 SENSOR; WATER TEMP
(B) 		8-12146-312-0 01 1 0107-0108 ●
260 01.150 SENSOR; WATER TEMP
(B) 		8-12146-312-0 01 1 0109- ● ●
260 01.150 SENSOR; WATER TEMP
(A) 		8-92063-893-0 01 1 9804-0108 ●
260 01.150 SENSOR; WATER TEMP
(A) 		8-92063-893-0 01 1 0109- ● ●
262 02.559 CLIP; HARNESS
ID=12 		5-09700-331-0 02 1 9804- ●

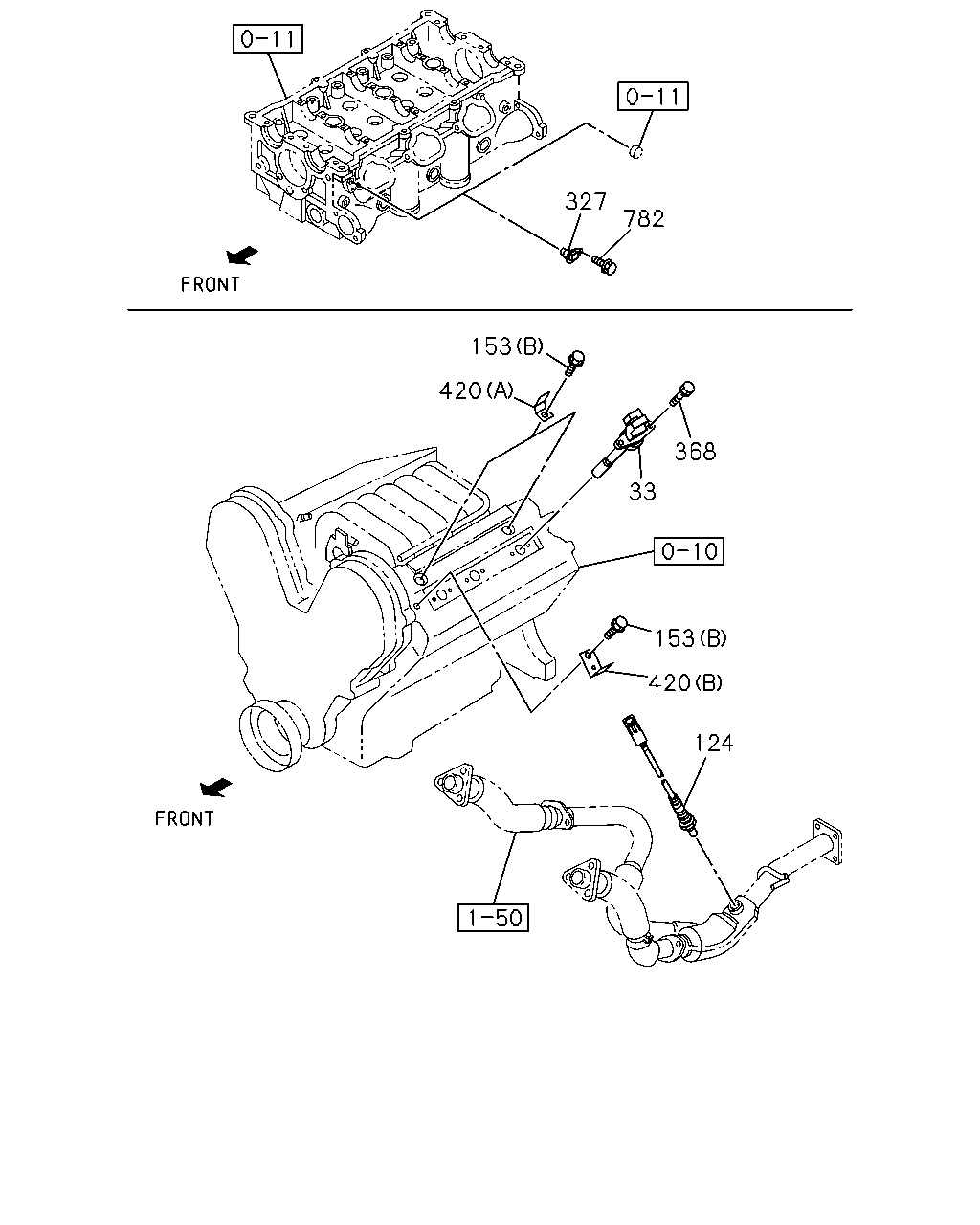

çizim 69921
327 782 153 420 368 33 153 420 124
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
33 02.170 COIL ASM; IGN 8-94136-766-0 01 1 9804-9812 ●
33 02.170 COIL ASM; IGN 8-97180-222-0 06 1 9804-9908 ●
33 02.170 COIL ASM; IGN 8-97136-325-0 06 1 9909- ●
33 02.170 COIL ASM; IGN 8-01104-039-0 01 1 9804-0108 ●
33 02.170 COIL ASM; IGN 8-01104-039-0 01 1 0109- ● ●
124 01.150 SENSOR; OXYGEN
CHILE EQUIPMENT(6KB) 		8-97172-293-0 01 1 9804-9908 ●
124 01.150 SENSOR; OXYGEN
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-97172-293-0 01 1 9909- ●
124 01.150 SENSOR; OXYGEN
ECUADOR EQUIPMENT(S6E) 		8-97187-607-0 01 1 9804-9812 ●
124 01.150 SENSOR; OXYGEN
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E) 		8-97187-607-0 01 1 9901-9902 ●
124 01.150 SENSOR; OXYGEN
SAUDI ARABIA EQUIPMENT(EU2) 		8-97187-607-0 01 1 9903- ●
124 01.150 SENSOR; OXYGEN
COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-25312-200-0 01 1 9804-9904 ●
124 01.150 SENSOR; OXYGEN
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-25312-200-0 01 1 9905-0012 ●
124 01.150 SENSOR; OXYGEN
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-25312-200-0 01 1 0101- ●
153 02.510 BOLT; BRKT FIX
02.500 (B) M6X10 FLANGE 		0-28080-610-0 05 1 9804- ●
153 02.510 BOLT; BRKT FIX
01.428 (A) M6X12 FLANGE 		0-28080-612-0 04 1 9804- ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-10456-541-0 01 1 9804- ●
368 02.240 BOLT; COIL HARNESS CLIP
03.162 M5X20 W/LK WASHER 		8-94428-007-0 12 1 9804- ●
420 02.183 BRACKET; HARNESS
(A) 		8-97168-851-0 03 1 9804- ●
420 02.183 BRACKET; HARNESS
(B) 		8-97168-852-0 01 1 9804- ●
782 02.510 BOLT; SENSOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9804- ●
782 02.510 BOLT; SENSOR 8-11093-971-0 01 1 9804- ●
782 02.510 BOLT; SENSOR 8-11093-881-0 01 1 0109- ●

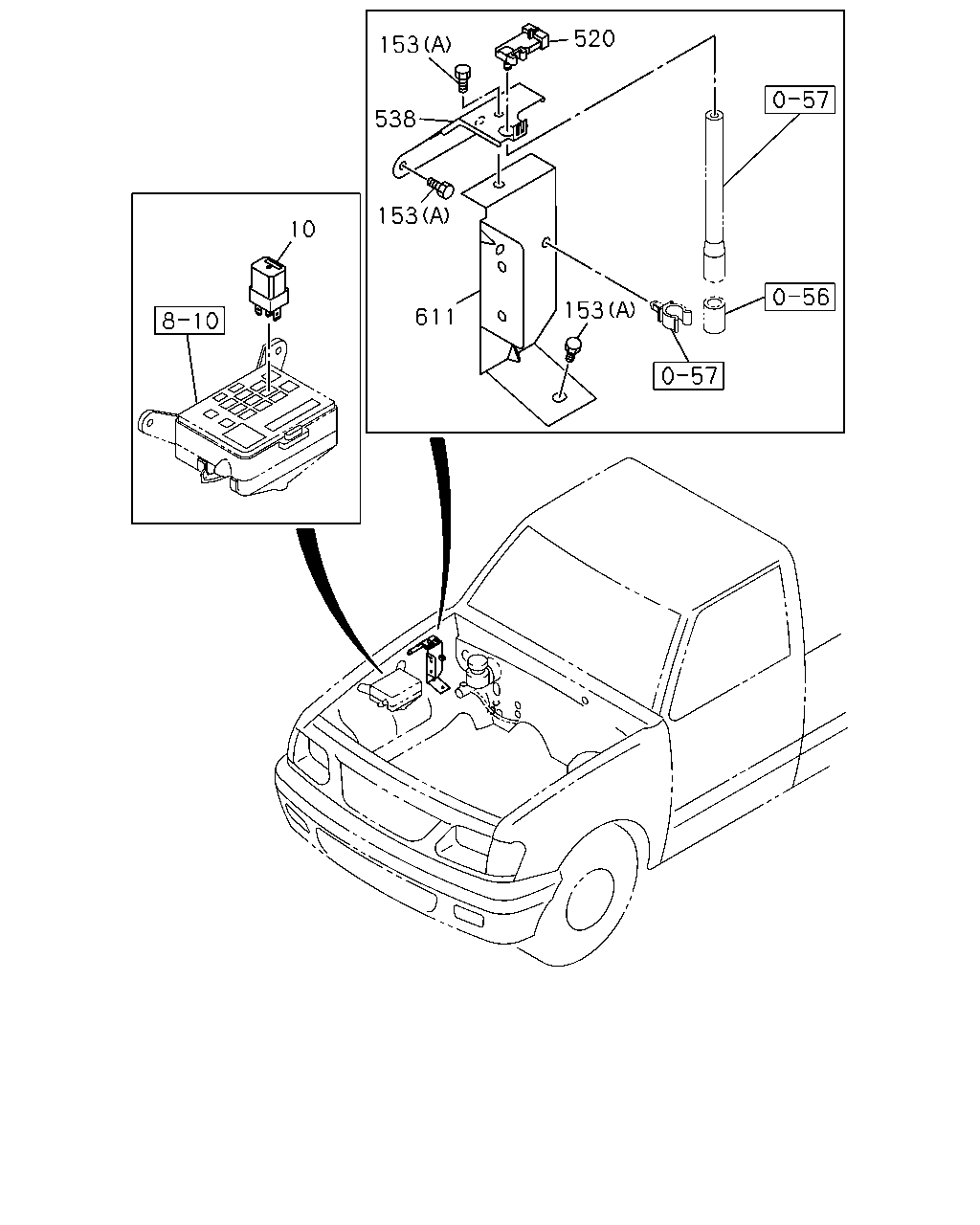

çizim 70222
520 153 538 153 10 153 611
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 02.100 RELAY; STARTER
02.510 12V 35A 		8-97180-794-1 01 1 9910- ● ●
10 02.100 RELAY; STARTER
08.852 12V 20A 		8-97060-926-1 01 1 9804-9812 ●
10 02.100 RELAY; STARTER
08.852 12V 20A 		8-97060-926-1 01 1 9804-9812 ●
10 02.100 RELAY; STARTER
12V 20A 		8-97173-039-1 01 1 9804-0108 ● ●
10 02.100 RELAY; STARTER
12V 20A 		8-97173-039-1 01 1 0109- ● ● ●
153 02.510 BOLT; BRKT FIX
02.500 (B) M6X10 FLANGE 		0-28080-610-0 05 1 9804- ●
153 02.510 BOLT; BRKT FIX
01.428 (A) M6X12 FLANGE 		0-28080-612-0 04 1 9804- ●
520 01.800 SENSOR; PRESSURE 8-16258-659-0 01 1 9804- ●
538 03.670 BRACKET; PRESSURE SENSOR 8-97180-218-0 01 1 9804- ●
611 01.150 BRACKET; SENSOR
03.671 		8-94475-021-2 01 1 9804- ●
611 01.150 BRACKET; SENSOR
(A) 		8-90414-756-0 01 1 9804-0108 ●
611 01.150 BRACKET; SENSOR
(A) 		8-90414-756-0 01 1 0109- ● ●
611 01.150 BRACKET; SENSOR
M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMEN T(7LD) (B) 		8-97181-086-0 01 1 9804-9904 ●
611 01.150 BRACKET; SENSOR
M/T MSG 5 SPEED(M75) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97181-086-0 01 1 9905-0012 ●
611 01.150 BRACKET; SENSOR
M/T MSG 5 SPEED(M75) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97181-086-0 01 1 0101-0108 ●
611 01.150 BRACKET; SENSOR
M/T MSG 5 SPEED(M75) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97181-086-0 01 1 0109- ● ●
611 01.150 BRACKET; SENSOR
M/T MUA 5 SPEED(RMN) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMEN T(7LD) (C) 		8-97185-430-0 01 1 9804-9904 ●
611 01.150 BRACKET; SENSOR
M/T MUA 5 SPEED(RMN) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (C) 		8-97185-430-0 01 1 9905-0012 ●
611 01.150 BRACKET; SENSOR
M/T MUA 5 SPEED(RMN) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (C) 		8-97185-430-0 01 1 0101- ●

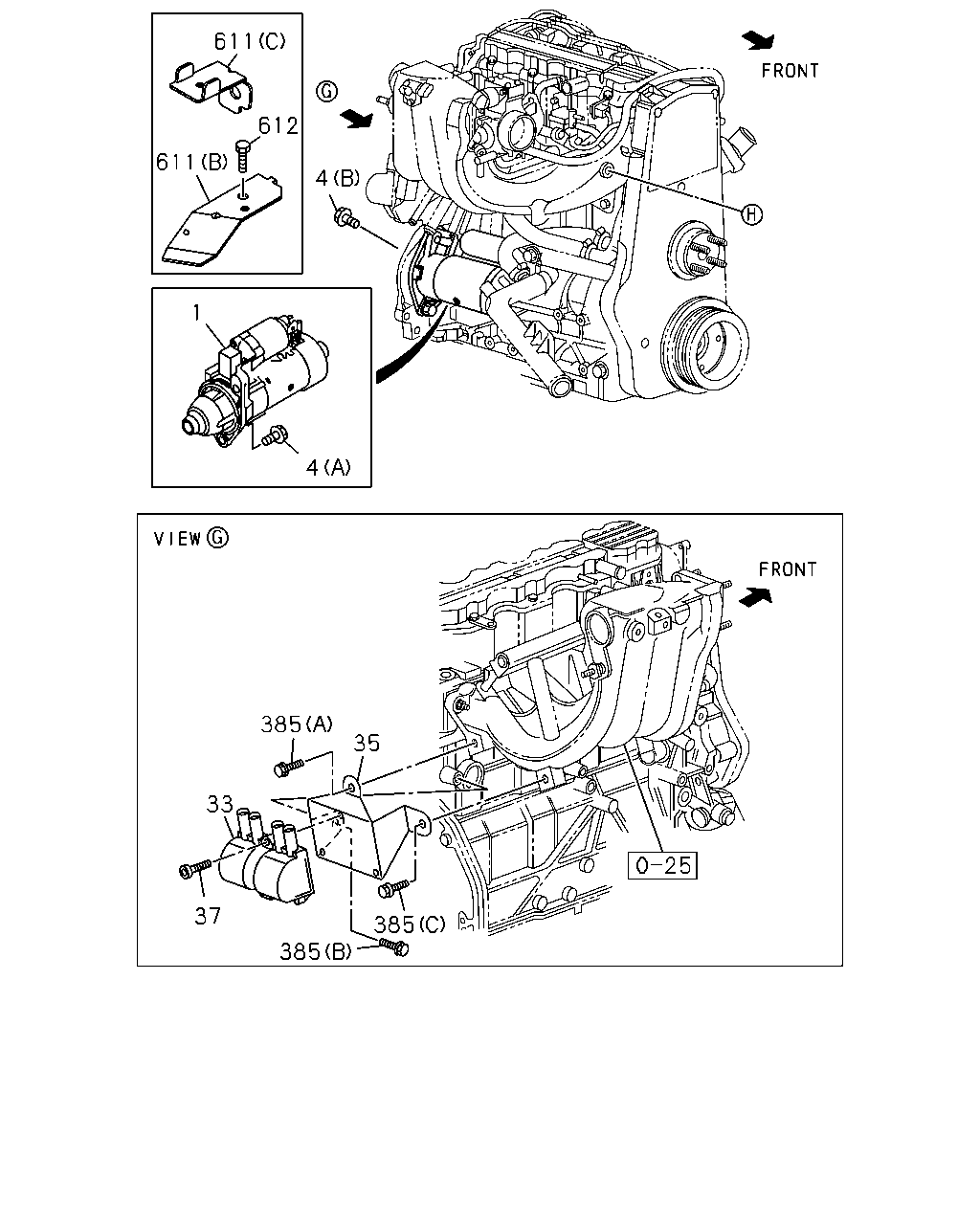

çizim 71485
611 612 611 4 1 4 385 35 33 37 385 385
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-97136-688-0 01 1 9804-9812 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. CHINA CHONGQING EQUIPMENT(R5B) 12V 2.3KW 		8-97136-688-0 01 1 9804-9812 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-97136-688-0 01 1 9901-0201 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-97255-390-1 01 1 0202- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. CHINA CHONGQING EQUIPMENT(R5B) 12V 2.0KW 		8-97136-687-0 01 1 9804-9812 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.2KW 		8-94371-833-1 01 1 9804-9812 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 9804- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.6KW 		8-92064-181-0 01 1 9804- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.6KW 		8-92087-059-0 01 1 0109- ●
4 02.042 BOLT; STARTER
M/T MSG 5 SPEED(M75) 00.724 M12X50 FLANGE 		0-28081-250-0 02 1 9804- ● ●
4 02.042 BOLT; STARTER
08.900 (A) M10X50 FLANGE 		0-28181-050-0 01 1 9804- ●
4 02.042 BOLT; STARTER
04.085 (B) M10X80 FLANGE 		0-28181-080-0 01 1 9804- ●
4 02.042 BOLT; STARTER
04.525 (A) M10X25 FLANGE 		0-28181-025-0 01 1 9804-0108 ●
4 02.042 BOLT; STARTER
04.525 (A) M10X25 FLANGE 		0-28181-025-0 01 1 0109- ● ●
4 02.042 BOLT; STARTER
(B) 		8-11073-352-0 01 1 9804-0108 ●
4 02.042 BOLT; STARTER
(B) 		8-11073-352-0 01 1 0109- ● ●
33 02.170 COIL ASM; IGN 8-94136-766-0 01 1 9804-9812 ●
33 02.170 COIL ASM; IGN 8-97180-222-0 06 1 9804-9908 ●
33 02.170 COIL ASM; IGN 8-97136-325-0 06 1 9909- ●
33 02.170 COIL ASM; IGN 8-01104-039-0 01 1 9804-0108 ●
33 02.170 COIL ASM; IGN 8-01104-039-0 01 1 0109- ● ●
35 02.183 BRACKET; IGN COIL 8-92063-223-0 01 1 9804-0108 ●
35 02.183 BRACKET; IGN COIL 8-92063-223-0 01 1 0109- ● ●
37 02.559 BOLT; IGN COIL
M6X35 W/LK WASHER 		0-50040-635-0 02 1 9804-9812 ●
37 02.559 BOLT; IGN COIL 8-92063-426-0 03 1 9804-0108 ●
37 02.559 BOLT; IGN COIL 8-92063-426-0 03 1 0109- ● ●
385 02.183 BOLT; BRKT,IGN COIL
(B) 		8-11094-881-0 01 1 9804-0108 ●
385 02.183 BOLT; BRKT,IGN COIL
(B) 		8-11094-881-0 01 1 0109- ● ●
385 02.183 BOLT; BRKT,IGN COIL
(A) 		8-11095-071-0 01 1 9804-0108 ●
385 02.183 BOLT; BRKT,IGN COIL
(A) 		8-11095-071-0 01 1 0109- ● ●
385 02.183 BOLT; BRKT,IGN COIL
(C) 		8-11097-631-0 01 1 9804-0108 ●
385 02.183 BOLT; BRKT,IGN COIL
(C) 		8-11097-631-0 01 1 0109- ● ●
611 01.150 BRACKET; SENSOR
03.671 		8-94475-021-2 01 1 9804- ●
611 01.150 BRACKET; SENSOR
(A) 		8-90414-756-0 01 1 9804-0108 ●
611 01.150 BRACKET; SENSOR
(A) 		8-90414-756-0 01 1 0109- ● ●
611 01.150 BRACKET; SENSOR
M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMEN T(7LD) (B) 		8-97181-086-0 01 1 9804-9904 ●
611 01.150 BRACKET; SENSOR
M/T MSG 5 SPEED(M75) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97181-086-0 01 1 9905-0012 ●
611 01.150 BRACKET; SENSOR
M/T MSG 5 SPEED(M75) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97181-086-0 01 1 0101-0108 ●
611 01.150 BRACKET; SENSOR
M/T MSG 5 SPEED(M75) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97181-086-0 01 1 0109- ● ●
611 01.150 BRACKET; SENSOR
M/T MUA 5 SPEED(RMN) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMEN T(7LD) (C) 		8-97185-430-0 01 1 9804-9904 ●
611 01.150 BRACKET; SENSOR
M/T MUA 5 SPEED(RMN) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (C) 		8-97185-430-0 01 1 9905-0012 ●
611 01.150 BRACKET; SENSOR
M/T MUA 5 SPEED(RMN) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (C) 		8-97185-430-0 01 1 0101- ●
612 02.510 BOLT; BRKT
M/T MSG 5 SPEED(M75) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMEN T(7LD) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9804-9904 ●
612 02.510 BOLT; BRKT
M/T MSG 5 SPEED(M75) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9905-0012 ●
612 02.510 BOLT; BRKT
M/T MSG 5 SPEED(M75) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0101-0108 ●
612 02.510 BOLT; BRKT
M/T MSG 5 SPEED(M75) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0109- ● ●

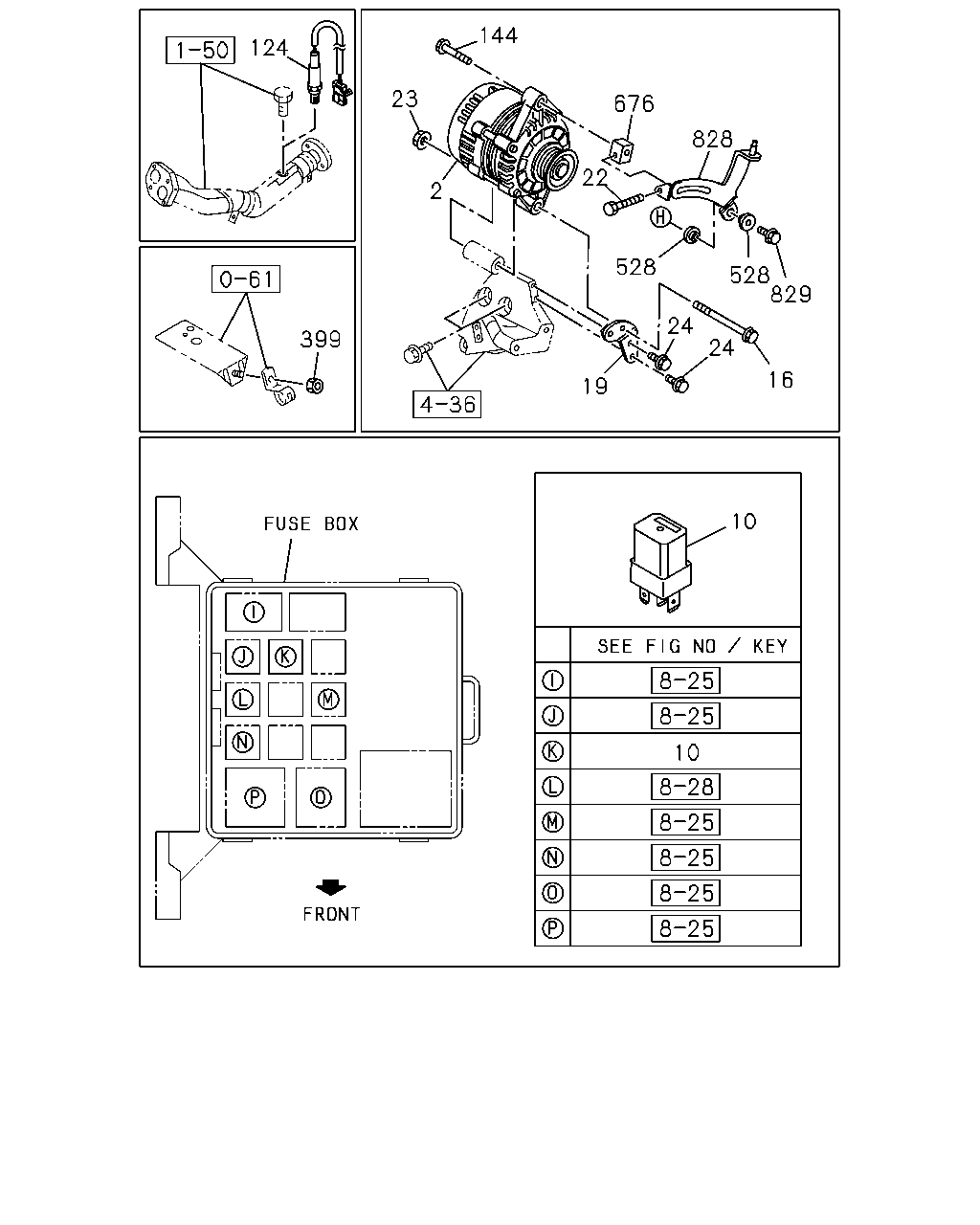

çizim 71572
144 124 23 676 828 22 2 528 528 829 24 24 399 16 19 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 40A 		8-97187-652-0 01 1 9804-0009 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. PHILIPPINE EQUIPMENT(S2U) 12V 40A 		8-97187-652-0 01 1 0010-0205 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 40A 		8-97187-652-1 01 1 0206- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-654-0 01 1 9804-9901 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U) 12V 50A 		8-97187-653-0 01 1 0010-0204 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-654-1 01 1 9902- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 55A 		8-94472-817-4 01 1 9804-9812 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 75A 		8-97187-304-0 01 1 9804- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A 		8-92063-678-0 01 1 9804-0108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A 		8-92063-678-0 01 1 0109- ● ●
10 02.100 RELAY; STARTER
02.510 12V 35A 		8-97180-794-1 01 1 9910- ● ●
10 02.100 RELAY; STARTER
08.852 12V 20A 		8-97060-926-1 01 1 9804-9812 ●
10 02.100 RELAY; STARTER
08.852 12V 20A 		8-97060-926-1 01 1 9804-9812 ●
10 02.100 RELAY; STARTER
12V 20A 		8-97173-039-1 01 1 9804-0108 ● ●
10 02.100 RELAY; STARTER
12V 20A 		8-97173-039-1 01 1 0109- ● ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9804- ● ●
16 02.277 BOLT; GEN
(A) M10X90 FLANGE 		0-28081-090-0 01 1 9804- ●
16 02.277 BOLT; GEN
04.686 (B) M8X30 FLANGE 		0-28680-830-0 01 1 9804- ●
16 02.277 BOLT; GEN
M10X110 FLANGE 		0-28086-011-0 01 1 9804-0108 ●
16 02.277 BOLT; GEN
M10X110 FLANGE 		0-28086-011-0 01 1 0109- ● ●
19 02.277 BRACKET; GEN 8-92063-352-0 01 1 9804-0108 ●
19 02.277 BRACKET; GEN 8-92063-352-0 01 1 0109- ● ●
22 09.008 BOLT; GEN
02.317 M6X75 FLANGE 		8-97028-681-0 01 1 9804-0108 ●
22 09.008 BOLT; GEN
02.317 M6X75 FLANGE 		8-97028-681-0 01 1 0109- ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9804-9812 ● ● ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9901-0108 ● ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 0109- ● ● ● ●
24 02.277 BOLT; GEN BRKT
09.171 M10X35 W/LK WASHER 		0-50041-035-0 01 1 9804- ● ●
24 02.277 BOLT; GEN BRKT
M10X70 W/LK WASHER 		0-50041-070-0 02 1 9804- ● ●
24 02.277 BOLT; GEN BRKT
03.417 (A) M10X100 		0-10806-000-0 01 1 9804-9812 ●
24 02.277 BOLT; GEN BRKT
01.652 (B) M10X25 W/LK WASHER 		0-50041-025-0 02 1 9804-9812 ●
24 02.277 BOLT; GEN BRKT 8-11090-683-0 02 1 9804-0108 ●
24 02.277 BOLT; GEN BRKT 8-11090-683-0 02 1 0109- ● ●
124 01.150 SENSOR; OXYGEN
CHILE EQUIPMENT(6KB) 		8-97172-293-0 01 1 9804-9908 ●
124 01.150 SENSOR; OXYGEN
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-97172-293-0 01 1 9909- ●
124 01.150 SENSOR; OXYGEN
ECUADOR EQUIPMENT(S6E) 		8-97187-607-0 01 1 9804-9812 ●
124 01.150 SENSOR; OXYGEN
SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E) 		8-97187-607-0 01 1 9901-9902 ●
124 01.150 SENSOR; OXYGEN
SAUDI ARABIA EQUIPMENT(EU2) 		8-97187-607-0 01 1 9903- ●
124 01.150 SENSOR; OXYGEN
COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-25312-200-0 01 1 9804-9904 ●
124 01.150 SENSOR; OXYGEN
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-25312-200-0 01 1 9905-0012 ●
124 01.150 SENSOR; OXYGEN
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-25312-200-0 01 1 0101- ●
144 02.277 BOLT; BRACE
03.704 M8X40 FLANGE 		0-28680-840-0 01 1 9804-0108 ●
144 02.277 BOLT; BRACE
03.704 M8X40 FLANGE 		0-28680-840-0 01 1 0109- ● ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 02 1 9804- ● ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 01 1 9804-9812 ● ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 01 1 9901-0108 ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 01 1 0109- ● ●
528 02.270 BUSHING 8-90280-842-0 02 1 9804-0108 ●
528 02.270 BUSHING 8-90280-842-0 02 1 0109- ● ●
676 02.275 PIECE; DIST,GEN
02.317 		8-97031-664-0 01 1 9804-0108 ●
676 02.275 PIECE; DIST,GEN
02.317 		8-97031-664-0 01 1 0109- ● ●
828 02.277 SHACKLE; GEN 8-92064-286-0 01 1 9804- ●
828 02.277 SHACKLE; GEN 8-92064-285-0 01 1 0109- ●
829 02.510 BOLT; SHACKLE 8-11043-185-0 01 1 9804-0108 ●
829 02.510 BOLT; SHACKLE 8-11043-185-0 01 1 0109- ● ●

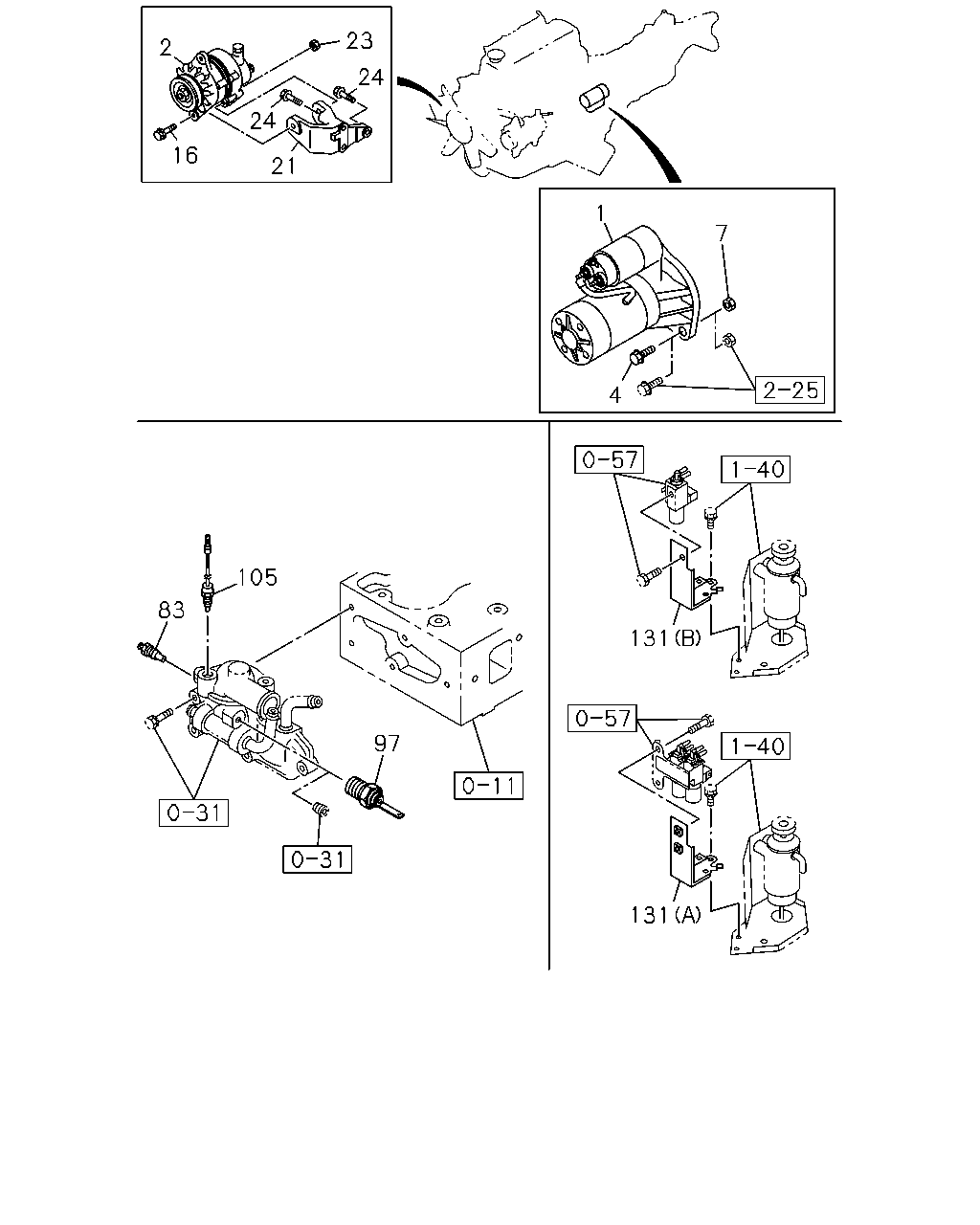

çizim 73664
23 2 24 24 16 21 1 7 4 105 83 131 97 131
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-97136-688-0 01 1 9804-9812 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. CHINA CHONGQING EQUIPMENT(R5B) 12V 2.3KW 		8-97136-688-0 01 1 9804-9812 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-97136-688-0 01 1 9901-0201 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-97255-390-1 01 1 0202- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. CHINA CHONGQING EQUIPMENT(R5B) 12V 2.0KW 		8-97136-687-0 01 1 9804-9812 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.2KW 		8-94371-833-1 01 1 9804-9812 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 9804- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.6KW 		8-92064-181-0 01 1 9804- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.6KW 		8-92087-059-0 01 1 0109- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 40A 		8-97187-652-0 01 1 9804-0009 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. PHILIPPINE EQUIPMENT(S2U) 12V 40A 		8-97187-652-0 01 1 0010-0205 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 40A 		8-97187-652-1 01 1 0206- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-654-0 01 1 9804-9901 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U) 12V 50A 		8-97187-653-0 01 1 0010-0204 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-654-1 01 1 9902- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 55A 		8-94472-817-4 01 1 9804-9812 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 75A 		8-97187-304-0 01 1 9804- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A 		8-92063-678-0 01 1 9804-0108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A 		8-92063-678-0 01 1 0109- ● ●
4 02.042 BOLT; STARTER
M/T MSG 5 SPEED(M75) 00.724 M12X50 FLANGE 		0-28081-250-0 02 1 9804- ● ●
4 02.042 BOLT; STARTER
08.900 (A) M10X50 FLANGE 		0-28181-050-0 01 1 9804- ●
4 02.042 BOLT; STARTER
04.085 (B) M10X80 FLANGE 		0-28181-080-0 01 1 9804- ●
4 02.042 BOLT; STARTER
04.525 (A) M10X25 FLANGE 		0-28181-025-0 01 1 9804-0108 ●
4 02.042 BOLT; STARTER
04.525 (A) M10X25 FLANGE 		0-28181-025-0 01 1 0109- ● ●
4 02.042 BOLT; STARTER
(B) 		8-11073-352-0 01 1 9804-0108 ●
4 02.042 BOLT; STARTER
(B) 		8-11073-352-0 01 1 0109- ● ●
7 02.042 NUT; STARTER
M/T MSG 5 SPEED(M75) 05.586 M12 FLANGE 		0-91150-112-0 02 1 9804-0009 ● ●
7 02.042 NUT; STARTER
M/T MSG 5 SPEED(M75),A/T AISIN(RMD) 05.586 M12 FLANGE 		0-91150-112-0 02 1 0010- ● ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9804-9812 ● ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9901- ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9804- ● ●
16 02.277 BOLT; GEN
(A) M10X90 FLANGE 		0-28081-090-0 01 1 9804- ●
16 02.277 BOLT; GEN
04.686 (B) M8X30 FLANGE 		0-28680-830-0 01 1 9804- ●
16 02.277 BOLT; GEN
M10X110 FLANGE 		0-28086-011-0 01 1 9804-0108 ●
16 02.277 BOLT; GEN
M10X110 FLANGE 		0-28086-011-0 01 1 0109- ● ●
21 02.277 BRACKET; GEN 8-94437-276-2 01 1 9804- ● ●
21 02.277 BRACKET; GEN 8-97071-652-1 01 1 9804-9812 ●
21 02.277 BRACKET; GEN
(B) 		8-97160-604-1 01 1 9804-0012 ●
21 02.277 BRACKET; GEN
(A) 		8-97160-605-1 01 1 9804-0111 ●
21 02.277 BRACKET; GEN
(A) 		8-97941-401-0 01 1 0112- ●
21 02.277 BRACKET; GEN
(B) 		8-97289-024-0 01 1 0101-0201 ●
21 02.277 BRACKET; GEN
(B) 		8-97328-364-0 01 1 0202- ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9804-9812 ● ● ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9901-0108 ● ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 0109- ● ● ● ●
24 02.277 BOLT; GEN BRKT
09.171 M10X35 W/LK WASHER 		0-50041-035-0 01 1 9804- ● ●
24 02.277 BOLT; GEN BRKT
M10X70 W/LK WASHER 		0-50041-070-0 02 1 9804- ● ●
24 02.277 BOLT; GEN BRKT
03.417 (A) M10X100 		0-10806-000-0 01 1 9804-9812 ●
24 02.277 BOLT; GEN BRKT
01.652 (B) M10X25 W/LK WASHER 		0-50041-025-0 02 1 9804-9812 ●
24 02.277 BOLT; GEN BRKT 8-11090-683-0 02 1 9804-0108 ●
24 02.277 BOLT; GEN BRKT 8-11090-683-0 02 1 0109- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9804- ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9804- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9804-9812 ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9901- ●
97 01.150 SWITCH; THERMO,EGR CONT
ARGENTINA EQUIPMENT(7SZ) 		8-94368-591-0 01 1 9804-9904 ● ●
97 01.150 SWITCH; THERMO,EGR CONT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-94368-591-0 01 1 9905- ● ●
105 01.150 SWITCH; THERMO,QOS 8-94457-511-0 01 1 9804-9812 ● ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9901-0205 ● ●
105 01.150 SWITCH; THERMO,QOS
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94121-152-1 01 1 0206- ● ●
131 03.670 BRACKET; EGR
ARGENTINA EQUIPMENT(7SZ) (B) 		8-97143-001-0 01 1 9804-9901 ●
131 03.670 BRACKET; EGR
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (B) 		8-97143-001-0 01 1 9902- ●
131 03.670 BRACKET; EGR
ARGENTINA EQUIPMENT(7SZ) (A) 		8-97106-698-0 01 1 9804-9901 ●
131 03.670 BRACKET; EGR
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97106-698-0 01 1 9902- ●

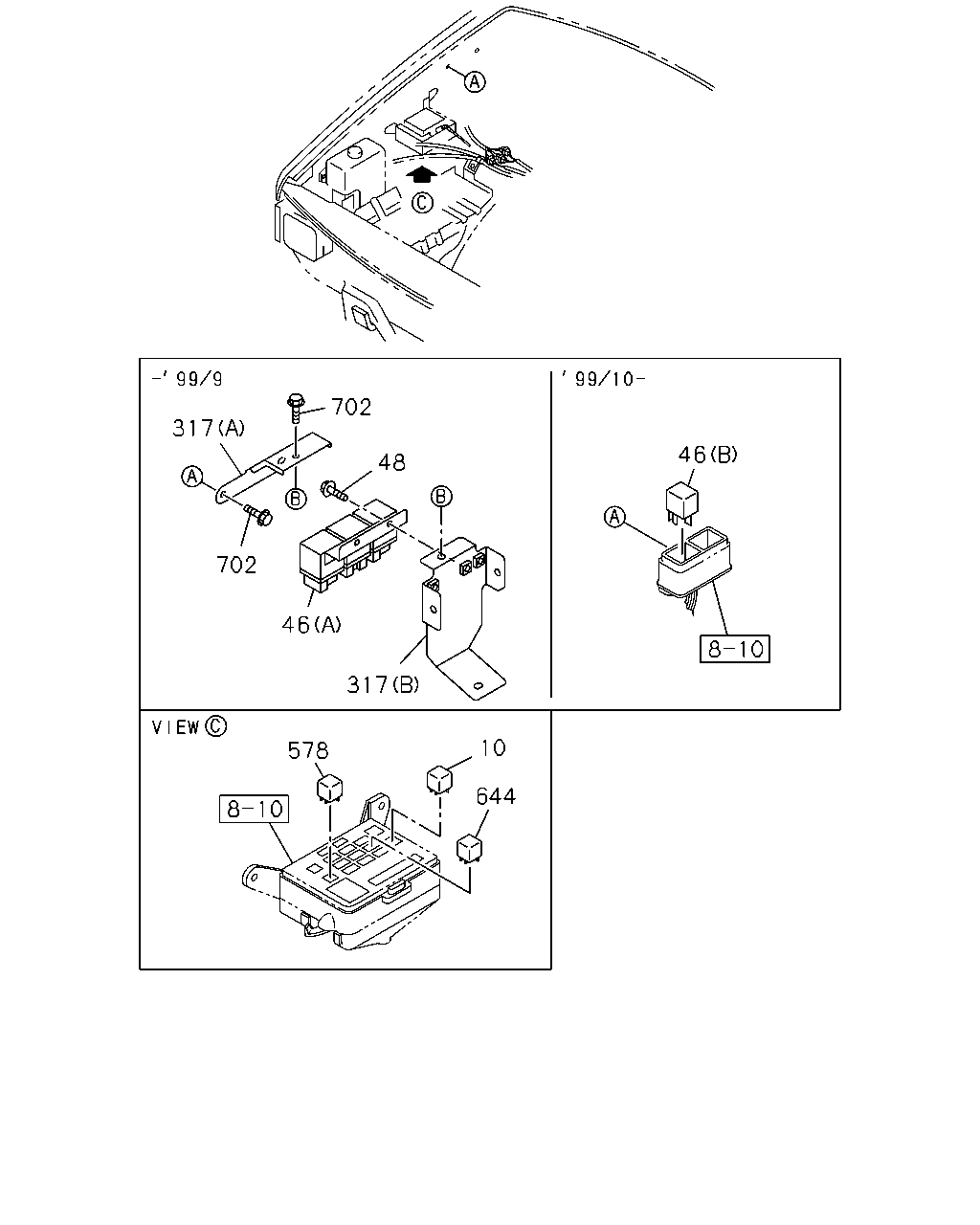

çizim 73690
702 317 46 48 702 46 317 10 578 644
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 02.100 RELAY; STARTER
02.510 12V 35A 		8-97180-794-1 01 1 9910- ● ●
10 02.100 RELAY; STARTER
08.852 12V 20A 		8-97060-926-1 01 1 9804-9812 ●
10 02.100 RELAY; STARTER
08.852 12V 20A 		8-97060-926-1 01 1 9804-9812 ●
10 02.100 RELAY; STARTER
12V 20A 		8-97173-039-1 01 1 9804-0108 ● ●
10 02.100 RELAY; STARTER
12V 20A 		8-97173-039-1 01 1 0109- ● ● ●
46 02.510 RELAY; GLOW PLUG
(A) 		8-94459-495-0 01 1 9804-9909 ● ●
46 02.510 RELAY; GLOW PLUG
(B) 12V 35A 		8-97180-794-1 01 1 9910- ● ●
48 02.183 BOLT; GLOW PLUG RELAY
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9804-9909 ● ●
317 02.510 BRACKET; GLOW PLUG RELAY
(A) 		8-94479-552-2 01 1 9804-9909 ● ●
317 02.510 BRACKET; GLOW PLUG RELAY
(B) 		8-97074-308-1 01 1 9804-9909 ● ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-2 01 1 9804- ● ●
644 02.510 RELAY; COLD START DEVICE
EXC. COLD START DEVICE<7LY> 08.852 12V 20A 		8-97060-926-1 01 1 9804-9909 ● ●
644 02.510 RELAY; COLD START DEVICE
EXC. COLD START DEVICE<7LY> 12V 20A 		8-97173-037-1 01 1 9910- ● ●
702 02.500 BOLT; RELAY
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9804-9810 ● ●
702 02.500 BOLT; RELAY
01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9811-9909 ● ●

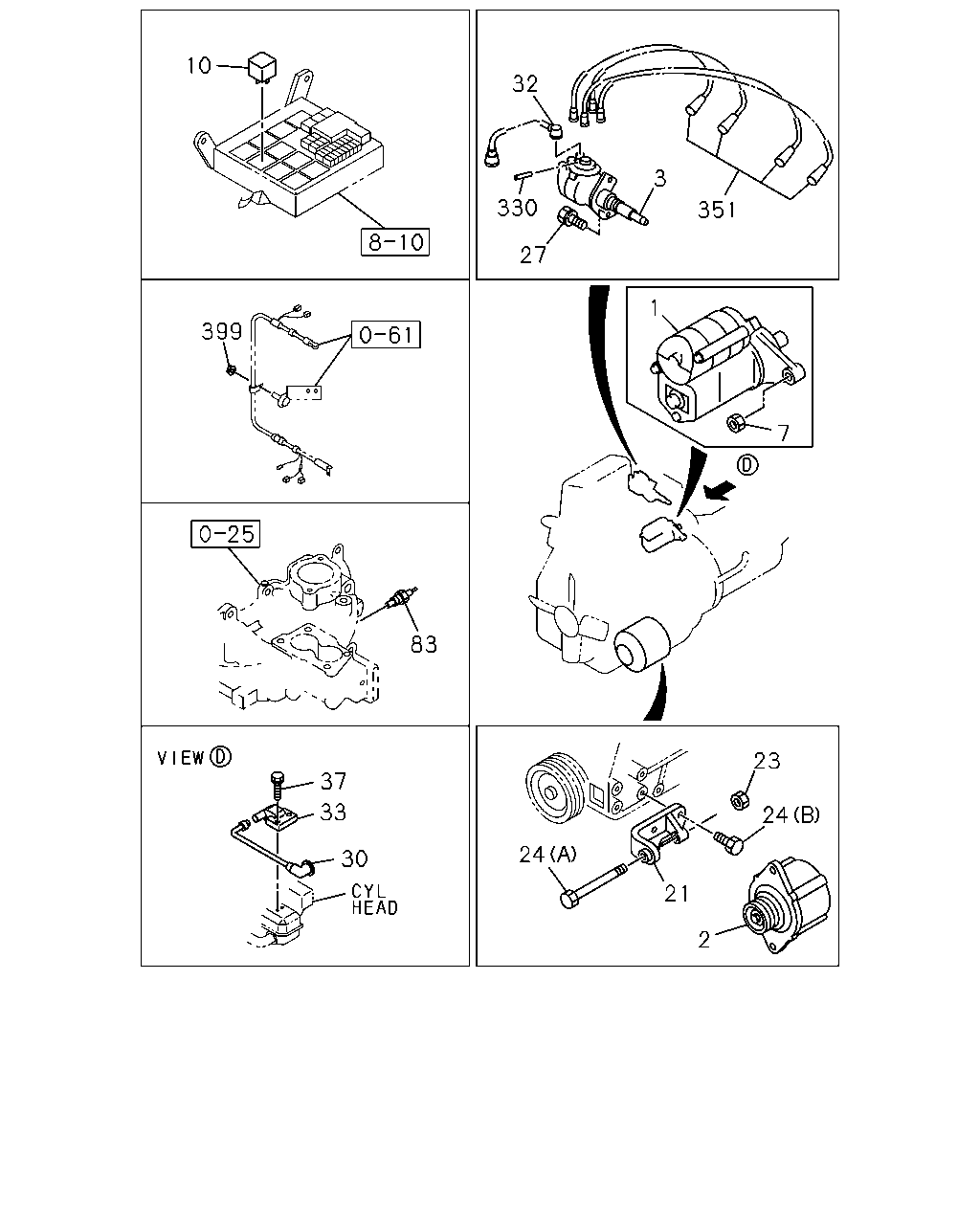

çizim 74072
10 32 3 330 351 27 1 399 7 83 23 37 33 24 24 30 21 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-97136-688-0 01 1 9804-9812 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. CHINA CHONGQING EQUIPMENT(R5B) 12V 2.3KW 		8-97136-688-0 01 1 9804-9812 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-97136-688-0 01 1 9901-0201 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-97255-390-1 01 1 0202- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. CHINA CHONGQING EQUIPMENT(R5B) 12V 2.0KW 		8-97136-687-0 01 1 9804-9812 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.2KW 		8-94371-833-1 01 1 9804-9812 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 9804- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.6KW 		8-92064-181-0 01 1 9804- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.6KW 		8-92087-059-0 01 1 0109- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 40A 		8-97187-652-0 01 1 9804-0009 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. PHILIPPINE EQUIPMENT(S2U) 12V 40A 		8-97187-652-0 01 1 0010-0205 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 40A 		8-97187-652-1 01 1 0206- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-654-0 01 1 9804-9901 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U) 12V 50A 		8-97187-653-0 01 1 0010-0204 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-654-1 01 1 9902- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 55A 		8-94472-817-4 01 1 9804-9812 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 75A 		8-97187-304-0 01 1 9804- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A 		8-92063-678-0 01 1 9804-0108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A 		8-92063-678-0 01 1 0109- ● ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. 		8-97129-748-0 01 1 9804-9812 ●
7 02.042 NUT; STARTER
M/T MSG 5 SPEED(M75) 05.586 M12 FLANGE 		0-91150-112-0 02 1 9804-0009 ● ●
7 02.042 NUT; STARTER
M/T MSG 5 SPEED(M75),A/T AISIN(RMD) 05.586 M12 FLANGE 		0-91150-112-0 02 1 0010- ● ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9804-9812 ● ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9901- ●
10 02.100 RELAY; STARTER
02.510 12V 35A 		8-97180-794-1 01 1 9910- ● ●
10 02.100 RELAY; STARTER
08.852 12V 20A 		8-97060-926-1 01 1 9804-9812 ●
10 02.100 RELAY; STARTER
08.852 12V 20A 		8-97060-926-1 01 1 9804-9812 ●
10 02.100 RELAY; STARTER
12V 20A 		8-97173-039-1 01 1 9804-0108 ● ●
10 02.100 RELAY; STARTER
12V 20A 		8-97173-039-1 01 1 0109- ● ● ●
21 02.277 BRACKET; GEN 8-94437-276-2 01 1 9804- ● ●
21 02.277 BRACKET; GEN 8-97071-652-1 01 1 9804-9812 ●
21 02.277 BRACKET; GEN
(B) 		8-97160-604-1 01 1 9804-0012 ●
21 02.277 BRACKET; GEN
(A) 		8-97160-605-1 01 1 9804-0111 ●
21 02.277 BRACKET; GEN
(A) 		8-97941-401-0 01 1 0112- ●
21 02.277 BRACKET; GEN
(B) 		8-97289-024-0 01 1 0101-0201 ●
21 02.277 BRACKET; GEN
(B) 		8-97328-364-0 01 1 0202- ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9804-9812 ● ● ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9901-0108 ● ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 0109- ● ● ● ●
24 02.277 BOLT; GEN BRKT
09.171 M10X35 W/LK WASHER 		0-50041-035-0 01 1 9804- ● ●
24 02.277 BOLT; GEN BRKT
M10X70 W/LK WASHER 		0-50041-070-0 02 1 9804- ● ●
24 02.277 BOLT; GEN BRKT
03.417 (A) M10X100 		0-10806-000-0 01 1 9804-9812 ●
24 02.277 BOLT; GEN BRKT
01.652 (B) M10X25 W/LK WASHER 		0-50041-025-0 02 1 9804-9812 ●
24 02.277 BOLT; GEN BRKT 8-11090-683-0 02 1 9804-0108 ●
24 02.277 BOLT; GEN BRKT 8-11090-683-0 02 1 0109- ● ●
27 02.363 BOLT; DISTR
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9804-9812 ●
30 02.240 CABLE; DISTR TO IGN COIL 8-94329-908-0 01 1 9804-9812 ●
32 02.525 CABLE; DISTR TO IGN COIL
02.240 		8-94136-794-0 01 1 9804-9812 ●
33 02.170 COIL ASM; IGN 8-94136-766-0 01 1 9804-9812 ●
33 02.170 COIL ASM; IGN 8-97180-222-0 06 1 9804-9908 ●
33 02.170 COIL ASM; IGN 8-97136-325-0 06 1 9909- ●
33 02.170 COIL ASM; IGN 8-01104-039-0 01 1 9804-0108 ●
33 02.170 COIL ASM; IGN 8-01104-039-0 01 1 0109- ● ●
37 02.559 BOLT; IGN COIL
M6X35 W/LK WASHER 		0-50040-635-0 02 1 9804-9812 ●
37 02.559 BOLT; IGN COIL 8-92063-426-0 03 1 9804-0108 ●
37 02.559 BOLT; IGN COIL 8-92063-426-0 03 1 0109- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9804- ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9804- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9804-9812 ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9901- ●
330 03.726 HOSE; CARBURETOR TO DISTR
08.962 L=70 SERVICED BY L=3000 		0-04742-300-0 01 1 9804-9812 ●
351 02.239 CABLE KIT; HIGH TENSION 8-94433-364-1 01 1 9804-9812 ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 02 1 9804- ● ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 01 1 9804-9812 ● ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 01 1 9901-0108 ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 01 1 0109- ● ●
çizim 74115
309 133 133 133 130 657 399 399 393
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
130 02.510 CONTROLLER; EGR
CREW CAB(TF**W*) A/T AISIN(RMD) PHILIPPINE EQUIPMENT(S2U) 		8-97136-175-2 01 1 0302- ●
130 02.510 CONTROLLER; EGR
ARGENTINA EQUIPMENT(7SZ) 		8-97188-109-1 01 1 9804-9901 ●
130 02.510 CONTROLLER; EGR
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-97188-109-1 01 1 9902- ●
130 02.510 CONTROLLER; EGR
ARGENTINA EQUIPMENT(7SZ) 		8-97188-110-1 01 1 9804-9901 ●
130 02.510 CONTROLLER; EGR
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-97188-110-1 01 1 9902- ●
130 02.510 CONTROLLER; EGR
CREW CAB(TF**W*) A/T AISIN(RMD) PHILIPPINE EQUIPMENT(S2U) 		8-97136-175-2 01 1 0010-0109 ●
133 02.500 BOLT; EGR CONTROLLER
06.635 (B) M6X16 FLANGE 		0-28480-616-0 02 1 9804-9901 ● ●
133 02.500 BOLT; EGR CONTROLLER
ARGENTINA EQUIPMENT(7SZ) 06.635 (B) M6X16 FLANGE 		0-28480-616-0 02 1 9804-9901 ● ●
133 02.500 BOLT; EGR CONTROLLER
06.635 (B) M6X16 FLANGE 		0-28480-616-0 02 1 9902-0009 ● ●
133 02.500 BOLT; EGR CONTROLLER
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 06.635 (B) M6X16 FLANGE 		0-28480-616-0 02 1 9902-0009 ● ●
133 02.500 BOLT; EGR CONTROLLER
06.635 (B) M6X16 FLANGE 		0-28480-616-0 02 1 0010-0109 ● ●
133 02.500 BOLT; EGR CONTROLLER
PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 06.635 (B) M6X16 FLANGE 		0-28480-616-0 02 1 0010-0109 ● ●
133 02.500 BOLT; EGR CONTROLLER
06.635 (B) M6X16 FLANGE 		0-28480-616-0 02 1 0110-0301 ● ●
133 02.500 BOLT; EGR CONTROLLER
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 06.635 (B) M6X16 FLANGE 		0-28480-616-0 02 1 0110-0301 ● ●
133 02.500 BOLT; EGR CONTROLLER
06.635 M6X16 FLANGE 		0-28480-616-0 02 1 0302- ● ●
133 02.500 BOLT; EGR CONTROLLER
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 06.635 M6X16 FLANGE 		0-28480-616-0 02 1 0302- ● ●
133 02.500 BOLT; EGR CONTROLLER
A/T AISIN(RMD) PHILIPPINE EQUIPMENT(S2U) 06.635 M6X16 FLANGE 		0-28480-616-0 02 1 0302- ●
133 02.500 BOLT; EGR CONTROLLER
03.342 (A) M6X16 		8-97012-496-0 02 1 9804- ● ●
309 02.510 TIMER; AFTER GLOW,QOS
COLD START DEVICE<7LY> 		8-97068-785-0 01 1 9804-9809 ● ●
309 02.510 TIMER; AFTER GLOW,QOS
COLD START DEVICE<7LY> 		8-97215-829-0 01 1 9810-0109 ● ●
309 02.510 TIMER; AFTER GLOW,QOS 8-97215-829-0 01 1 0110-0301 ● ●
309 02.510 TIMER; AFTER GLOW,QOS 8-97361-319-0 01 1 0302- ● ●
393 02.343 BRACKET; HARNESS TO BODY 8-94329-854-0 01 1 9804- ● ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 02 1 9804- ● ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 01 1 9804-9812 ● ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 01 1 9901-0108 ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 01 1 0109- ● ●
657 02.510 TIMER; GLOW PLUG
EXC. COLD START DEVICE<7LY> 		8-97068-786-0 01 1 9804-9809 ● ●
657 02.510 TIMER; GLOW PLUG
EXC. COLD START DEVICE<7LY> 		8-97215-650-0 01 1 9810-0109 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
