Sayfa 0-56 - Isuzu EPC

0-56 — EMISSION SYSTEM (#41744) — 156 parça

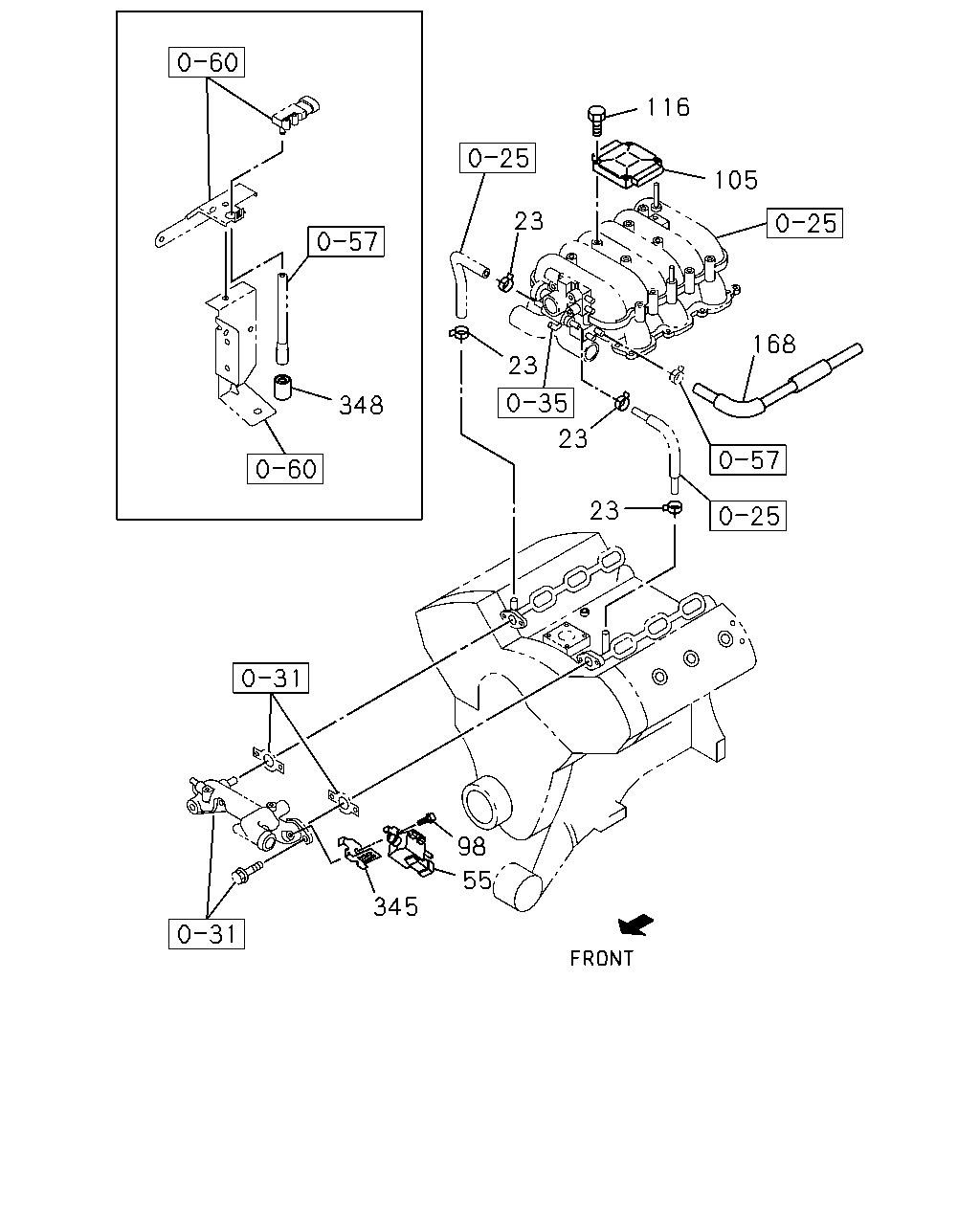

12 142 143 141 135 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	03.670 VALVE; MIXTURE CONT	8-94145-956-0	01	1	9804-9812	●
116	03.415 BOLT; ENG CONT MODULE 03.342 M6X16	8-97012-496-0	02	1	9804-9812	●
116	03.415 BOLT; ENG CONT MODULE 02.334 M6X25 FLANGE	0-28680-625-0	04	1	9804-		●
116	03.415 BOLT; ENG CONT MODULE 03.342 M6X16	8-97012-496-0	02	1	9904-0108		●	●
116	03.415 BOLT; ENG CONT MODULE 03.342 M6X16	8-97012-496-0	02	1	0109-		●	●	●
135	03.670 SENSOR; ENG SPD	8-94337-779-0	01	1	9804-9812	●
141	03.670 BRACKET; MCV	8-94318-451-3	01	1	9804-9812	●
142	03.417 BOLT; MCV BRKT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9804-9812	●
143	03.675 HOSE; RUBBER,MCV 03.676	8-94337-137-0	01	1	9804-9812	●

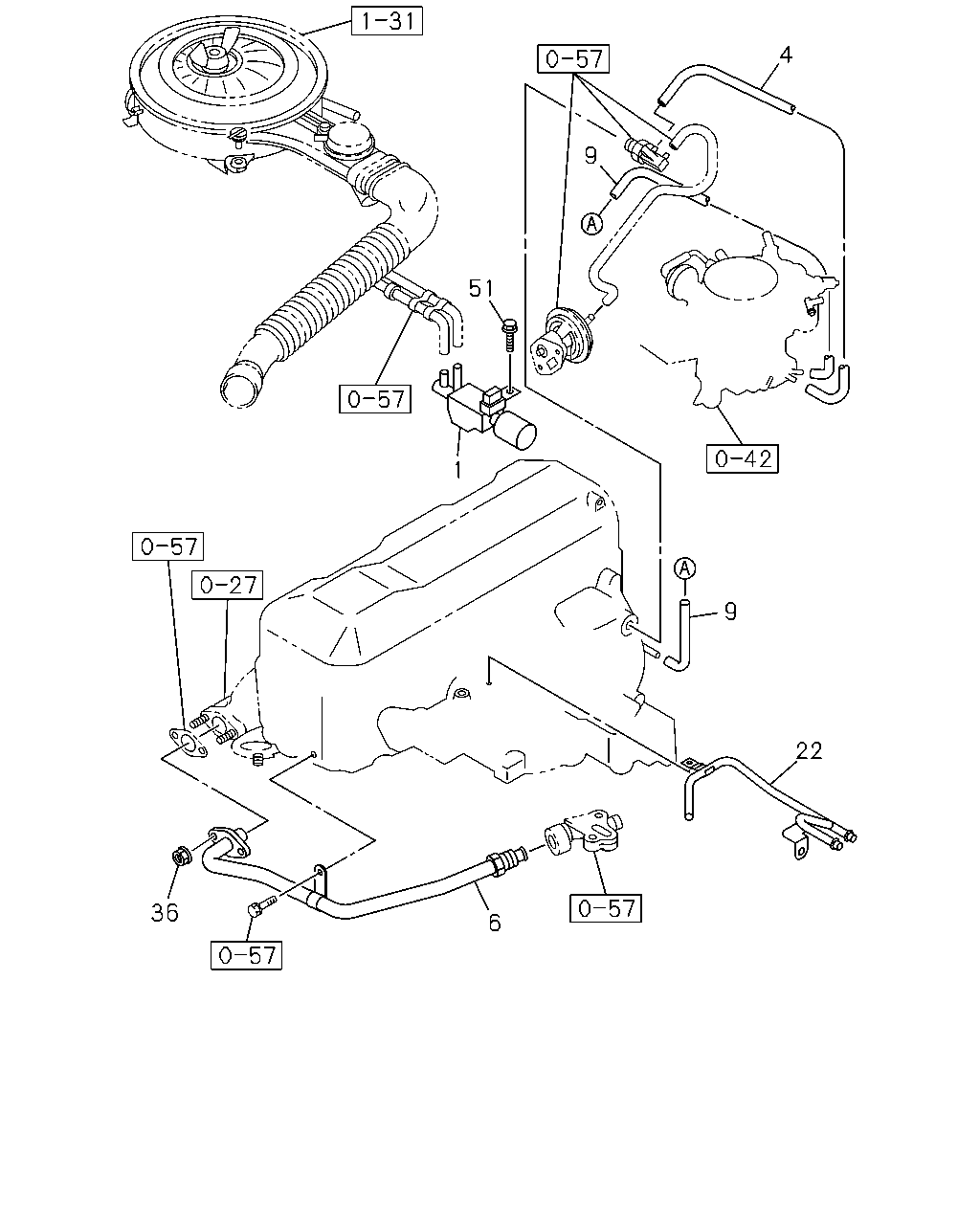

4 9 51 1 9 22 36 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	E	F
1	03.670 VALVE; VAC SW,EGR	8-94459-951-0	01	1	9804-9812	●
4	03.675 HOSE; CARB TO TVV 08.962 L=240 SERVICED BY L=3000	0-04741-300-0	01	1	9804-9812	●
6	03.675 PIPE; EGR ARGENTINA EQUIPMENT(7SZ)	8-97118-378-1	01	1	9804-9904		●	●
6	03.675 PIPE; EGR GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ)	8-97118-378-1	01	1	9905-0009		●	●
6	03.675 PIPE; EGR M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ)	8-97118-378-1	01	1	0010-0103		●
6	03.675 PIPE; EGR M/T MUA 5 SPEED(RMN) GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ)	8-97118-378-1	01	1	0010-0103			●
6	03.675 PIPE; EGR M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ)	8-97118-378-1	01	1	0104-		●	●
6	03.675 PIPE; EGR	8-97135-380-0	01	1	9804-9812	●
9	03.675 HOSE; RUBBER,MCV,VAC 08.962 L=250 SERVICED BY L=3000	0-04740-300-0	01	1	9804-9812	●
22	03.675 PIPE; VAC,AIR SWITCHING VLV 03.140	8-94159-231-1	01	1	9804-9812	●
36	03.680 NUT; EGR PIPE ARGENTINA EQUIPMENT(7SZ) 01.540 M8 FLANGE	0-91150-208-0	02	1	9804-9904		●	●
36	03.680 NUT; EGR PIPE GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 01.540 M8 FLANGE	0-91150-208-0	02	1	9905-0009		●	●
36	03.680 NUT; EGR PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 01.540 M8 FLANGE	0-91150-208-0	02	1	0010-0103		●
36	03.680 NUT; EGR PIPE M/T MUA 5 SPEED(RMN) GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 01.540 M8 FLANGE	0-91150-208-0	02	1	0010-0103			●
36	03.680 NUT; EGR PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 01.540 M8 FLANGE	0-91150-208-0	02	1	0104-		●	●
36	03.680 NUT; EGR PIPE 03.613 M8 FLANGE	8-97061-401-1	02	1	9804-9812	●
51	03.671 BOLT; VAC SW 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9804-9812	●

174 112 172 350 112 172 47 354 172 105 116 174 43 112 46 46 112 354 50 43 105 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
43	03.671 SCREW; BRKT,ECM EXC. FLOOR REMOTE SHIFT<M11> 16.115 M5X16	8-94279-312-0	04	1	9804-0108			●
43	03.671 SCREW; BRKT,ECM EXC. FLOOR REMOTE SHIFT<M11> 16.115 M5X16	8-94279-312-0	04	1	0109-0212			●	●
43	03.671 SCREW; BRKT,ECM EXC. FLOOR REMOTE SHIFT<M11> 16.085 M5X16 TAPPING	9-09829-323-1	04	1	0301-			●	●
46	03.671 GROMMET EXC. FLOOR REMOTE SHIFT<M11> 04.342	8-97110-216-1	04	1	9804-0108			●
46	03.671 GROMMET EXC. FLOOR REMOTE SHIFT<M11> 04.342	8-97110-216-1	04	1	0109-			●	●
47	03.671 NUT; ECM BRKT FLOOR REMOTE SHIFT<M11> 09.744 M5 FLANGE	5-09440-003-0	04	1	9804-0108			●
47	03.671 NUT; ECM BRKT FLOOR REMOTE SHIFT<M11> 09.744 M5 FLANGE	5-09440-003-0	04	1	0109-			●	●
50	03.671 SCREW; ECM EXC. FLOOR REMOTE SHIFT<M11> 06.514 M4X10 TAPPING W/PL WASHER	0-74100-410-0	04	1	9804-0108			●
50	03.671 SCREW; ECM EXC. FLOOR REMOTE SHIFT<M11> 06.514 M4X10 TAPPING W/PL WASHER	0-74100-410-0	04	1	0109-			●	●
105	03.415 CONTROLLER; MODULE,ENGINE CHILE EQUIPMENT(6KB)	8-97177-152-1	01	1	9804-9908		●
105	03.415 CONTROLLER; MODULE,ENGINE ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB)	8-97177-152-2	01	1	9909-0006		●
105	03.415 CONTROLLER; MODULE,ENGINE ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB)	8-97258-726-0	01	1	0007-0109		●
105	03.415 CONTROLLER; MODULE,ENGINE ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB)	8-97323-687-1	01	1	0110-0207		●
105	03.415 CONTROLLER; MODULE,ENGINE ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB)	8-97258-726-1	01	1	0208-0211		●
105	03.415 CONTROLLER; MODULE,ENGINE ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB)	8-97358-516-0	01	1	0212-		●
105	03.415 CONTROLLER; MODULE,ENGINE ECUADOR EQUIPMENT(S6E)	8-97177-151-1	01	1	9804-9902		●
105	03.415 CONTROLLER; MODULE,ENGINE SAUDI ARABIA EQUIPMENT(EU2)	8-97222-085-1	01	1	9901-9911		●
105	03.415 CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) SAUDI ARABIA EQUIPMENT(EU2)	8-97222-085-2	01	1	9912-		●
105	03.415 CONTROLLER; MODULE,ENGINE SHORT(TF***C) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMEN T(7LD)	8-16241-529-0	01	1	9804-9901			●
105	03.415 CONTROLLER; MODULE,ENGINE SHORT(TF***C) COLOMBIA EQUIPMENT(X74)	8-16241-529-0	01	1	9902-9904			●
105	03.415 CONTROLLER; MODULE,ENGINE SHORT(TF***C) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74)	8-16241-529-0	01	1	9905-			●
105	03.415 CONTROLLER; MODULE,ENGINE SHORT(TF***C) EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQU IPMENT(7LD)	8-09351-299-0	01	1	9804-9901			●
105	03.415 CONTROLLER; MODULE,ENGINE SHORT(TF***C) EXC. COLOMBIA EQUIPMENT(X74)	8-09351-299-0	01	1	9902-9904			●
105	03.415 CONTROLLER; MODULE,ENGINE SHORT(TF***C) EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74)	8-09351-299-1	01	1	9905-			●
105	03.415 CONTROLLER; MODULE,ENGINE LONG(TF***F) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMEN T(7LD)	8-16241-349-0	01	1	9804-9812			●
105	03.415 CONTROLLER; MODULE,ENGINE LONG(TF***F) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMEN T(7LD) EXC. MEXICO EQUIPMENT(7YG)	8-16241-349-0	01	1	9901-9904			●
105	03.415 CONTROLLER; MODULE,ENGINE LONG(TF***F) COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMAL A/COSTA RICA EQUIPMENT(7LD) EXC. MEXICO EQUIPMENT(7YG)	8-16241-349-0	01	1	9905-9908			●
105	03.415 CONTROLLER; MODULE,ENGINE LONG(TF***F) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. MEXICO EQUIPMENT(7YG)	8-16241-349-0	01	1	9909-			●
105	03.415 CONTROLLER; MODULE,ENGINE LONG(TF***F) EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQU IPMENT(7LD)	8-09363-429-0	01	1	9804-9904			●
105	03.415 CONTROLLER; MODULE,ENGINE LONG(TF***F) EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA R ICA EQUIPMENT(7LD)	8-09363-429-0	01	1	9905-0012			●
105	03.415 CONTROLLER; MODULE,ENGINE LONG(TF***F) EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-09363-429-1	01	1	0101-			●
105	03.415 CONTROLLER; MODULE,ENGINE 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) MEXICO EQUIPMENT(7YG)	8-09377-519-0	01	1	9901-0012			●
105	03.415 CONTROLLER; MODULE,ENGINE LONG(TF***F) CHINA EQUIPMENT(YT2) EXC. MEXICO EQUIPMENT(7YG)	8-09377-519-0	01	1	0101-			●
105	03.415 CONTROLLER; MODULE,ENGINE LONG(TF***F) MEXICO EQUIPMENT(7YG)	8-09377-519-0	01	1	0101-			●
105	03.415 CONTROLLER; MODULE,ENGINE	8-09363-439-0	01	1	0109-				●
112	03.671 BRACKET; ECM FLOOR REMOTE SHIFT<M11>	8-97100-275-1	01	1	9804-0108			●
112	03.671 BRACKET; ECM FLOOR REMOTE SHIFT<M11>	8-97100-275-1	01	1	0109-			●	●
112	03.671 BRACKET; ECM FLOOR REMOTE SHIFT<M11>	8-97100-300-1	01	1	9804-0108			●
112	03.671 BRACKET; ECM FLOOR REMOTE SHIFT<M11>	8-97100-300-1	01	1	0109-			●	●
112	03.671 BRACKET; ECM EXC. FLOOR REMOTE SHIFT<M11>	8-97181-196-0	01	1	9804-0108			●
112	03.671 BRACKET; ECM EXC. FLOOR REMOTE SHIFT<M11>	8-97181-196-0	01	1	0109-			●	●
112	03.671 BRACKET; ECM EXC. FLOOR REMOTE SHIFT<M11>	8-97181-195-0	01	1	9804-0108			●
112	03.671 BRACKET; ECM EXC. FLOOR REMOTE SHIFT<M11>	8-97181-195-0	01	1	0109-			●	●
116	03.415 BOLT; ENG CONT MODULE 03.342 M6X16	8-97012-496-0	02	1	9804-9812	●
116	03.415 BOLT; ENG CONT MODULE 02.334 M6X25 FLANGE	0-28680-625-0	04	1	9804-		●
116	03.415 BOLT; ENG CONT MODULE 03.342 M6X16	8-97012-496-0	02	1	9904-0108		●	●
116	03.415 BOLT; ENG CONT MODULE 03.342 M6X16	8-97012-496-0	02	1	0109-		●	●	●
172	03.470 BOLT; BRKT FLOOR REMOTE SHIFT<M11> 16.585 M6X14 W/PL WASHER	9-03900-614-0	03	1	9804-0108			●
172	03.470 BOLT; BRKT FLOOR REMOTE SHIFT<M11> 16.585 M6X14 W/PL WASHER	9-03900-614-0	03	1	0109-			●	●
174	03.444 NUT; BRKT FLOOR REMOTE SHIFT<M11> 09.190 D=9.7X9.7 L=8	8-94222-314-0	03	1	9804-0108			●
174	03.444 NUT; BRKT FLOOR REMOTE SHIFT<M11> 09.190 D=9.7X9.7 L=8	8-94222-314-0	03	1	0109-			●	●
350	03.671 STUD; ECM FLOOR REMOTE SHIFT<M11> M5X12 W/CLIP	8-94443-197-0	04	1	9804-0108			●
350	03.671 STUD; ECM FLOOR REMOTE SHIFT<M11> M5X12 W/CLIP	8-94443-197-0	04	1	0109-			●	●
354	03.415 CALIBURATION; ENGINE CONTROLLER SHORT(TF***C) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMEN T(7LD)	8-09351-095-0	01	1	9804-9901			●
354	03.415 CALIBURATION; ENGINE CONTROLLER SHORT(TF***C) COLOMBIA EQUIPMENT(X74)	8-09351-095-0	01	1	9902-9904			●
354	03.415 CALIBURATION; ENGINE CONTROLLER SHORT(TF***C) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74)	8-09351-095-0	01	1	9905-			●
354	03.415 CALIBURATION; ENGINE CONTROLLER SHORT(TF***C) EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQU IPMENT(7LD)	8-09351-114-0	01	1	9804-9901			●
354	03.415 CALIBURATION; ENGINE CONTROLLER SHORT(TF***C) EXC. COLOMBIA EQUIPMENT(X74)	8-09351-114-0	01	1	9902-9904			●
354	03.415 CALIBURATION; ENGINE CONTROLLER SHORT(TF***C) EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74)	8-09351-114-0	01	1	9905-0201			●
354	03.415 CALIBURATION; ENGINE CONTROLLER SHORT(TF***C) EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74)	8-12203-914-0	01	1	0202-			●
354	03.415 CALIBURATION; ENGINE CONTROLLER LONG(TF***F) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMEN T(7LD)	8-09351-097-0	01	1	9804-9812			●
354	03.415 CALIBURATION; ENGINE CONTROLLER LONG(TF***F) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMEN T(7LD) EXC. MEXICO EQUIPMENT(7YG)	8-09351-097-0	01	1	9901-9904			●
354	03.415 CALIBURATION; ENGINE CONTROLLER LONG(TF***F) COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMAL A/COSTA RICA EQUIPMENT(7LD) EXC. MEXICO EQUIPMENT(7YG)	8-09351-097-0	01	1	9905-9908			●
354	03.415 CALIBURATION; ENGINE CONTROLLER LONG(TF***F) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. MEXICO EQUIPMENT(7YG)	8-09351-097-0	01	1	9909-			●
354	03.415 CALIBURATION; ENGINE CONTROLLER LONG(TF***F) EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQU IPMENT(7LD)	8-09363-420-0	01	1	9804-9904			●
354	03.415 CALIBURATION; ENGINE CONTROLLER LONG(TF***F) EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA R ICA EQUIPMENT(7LD)	8-09363-420-0	01	1	9905-0012			●
354	03.415 CALIBURATION; ENGINE CONTROLLER LONG(TF***F) EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-09363-420-0	01	1	0101-0110			●
354	03.415 CALIBURATION; ENGINE CONTROLLER LONG(TF***F) EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-12203-915-0	01	1	0111-			●
354	03.415 CALIBURATION; ENGINE CONTROLLER 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) MEXICO EQUIPMENT(7YG)	8-16262-726-0	01	1	9901-0012			●
354	03.415 CALIBURATION; ENGINE CONTROLLER LONG(TF***F) CHINA EQUIPMENT(YT2) EXC. MEXICO EQUIPMENT(7YG)	8-16262-726-0	01	1	0101-			●
354	03.415 CALIBURATION; ENGINE CONTROLLER LONG(TF***F) MEXICO EQUIPMENT(7YG)	8-16262-726-0	01	1	0101-			●
354	03.415 CALIBURATION; ENGINE CONTROLLER	8-09363-415-0	01	1	0109-				●

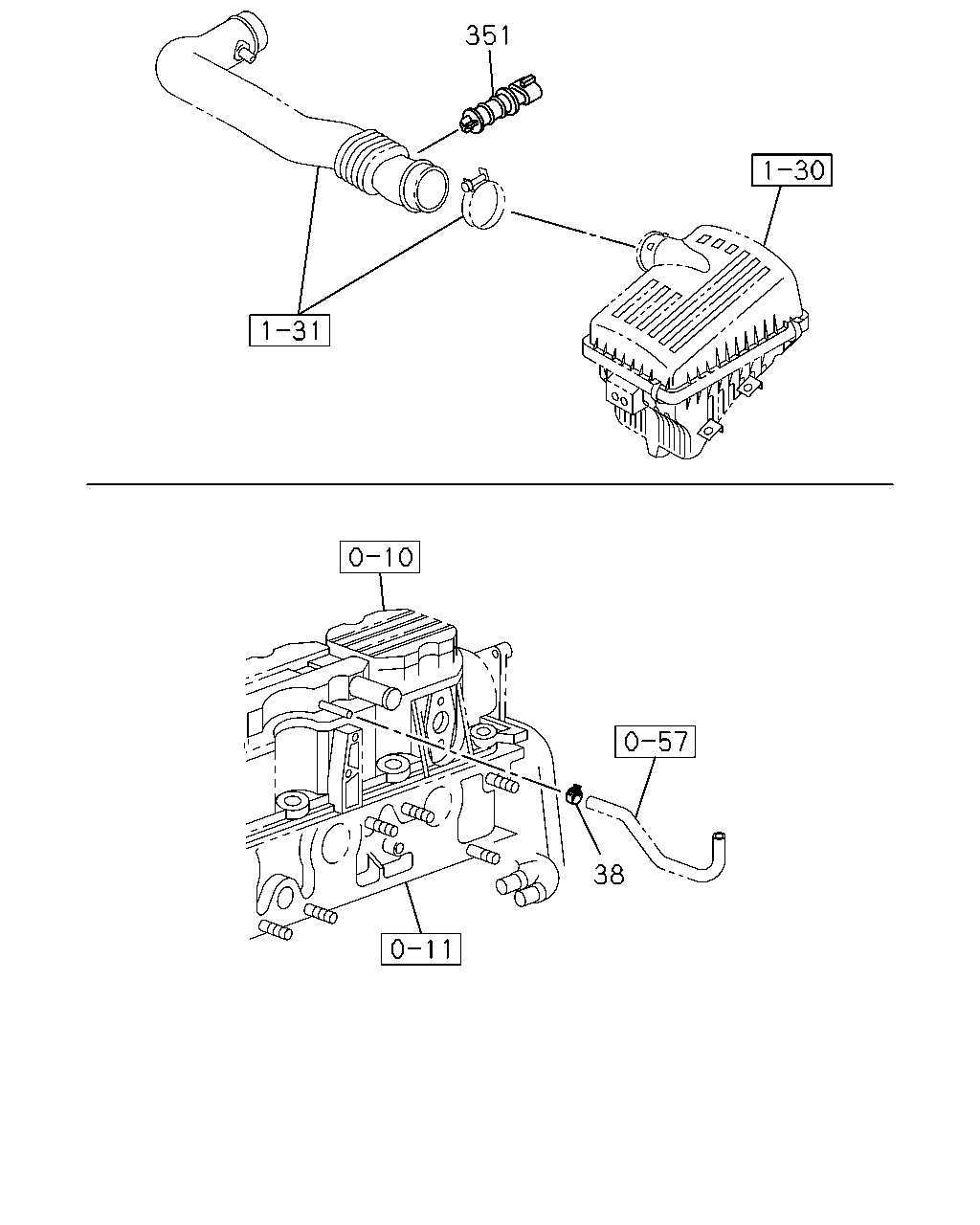

351 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D
38	03.417 CLIP; VAC HOSE	8-90469-888-0	01	1	9804-	●
38	03.417 CLIP; VAC HOSE	8-90467-904-0	01	1	0109-		●
351	03.670 SENSOR; IAT 03.682	8-12160-244-0	01	1	9804-0108	●
351	03.670 SENSOR; IAT 03.682	8-12160-244-0	01	1	0109-	●	●

25 7 6 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	E	F
6	03.675 PIPE; EGR ARGENTINA EQUIPMENT(7SZ)	8-97118-378-1	01	1	9804-9904		●	●
6	03.675 PIPE; EGR GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ)	8-97118-378-1	01	1	9905-0009		●	●
6	03.675 PIPE; EGR M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ)	8-97118-378-1	01	1	0010-0103		●
6	03.675 PIPE; EGR M/T MUA 5 SPEED(RMN) GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ)	8-97118-378-1	01	1	0010-0103			●
6	03.675 PIPE; EGR M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ)	8-97118-378-1	01	1	0104-		●	●
6	03.675 PIPE; EGR	8-97135-380-0	01	1	9804-9812	●
7	03.670 BOLT; BRKT,EGR PIPE ARGENTINA EQUIPMENT(7SZ) M8X23 FLANGE	8-94103-629-2	02	1	9804-9904		●	●
7	03.670 BOLT; BRKT,EGR PIPE GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) M8X23 FLANGE	8-94103-629-2	02	1	9905-0009		●	●
7	03.670 BOLT; BRKT,EGR PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) M8X23 FLANGE	8-94103-629-2	02	1	0010-0103		●
7	03.670 BOLT; BRKT,EGR PIPE M/T MUA 5 SPEED(RMN) GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) M8X23 FLANGE	8-94103-629-2	02	1	0010-0103			●
7	03.670 BOLT; BRKT,EGR PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) M8X23 FLANGE	8-94103-629-2	02	1	0104-		●	●
25	03.670 SWITCH; VAC,FUEL CONT AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94144-597-1	01	1	9804-		●	●
36	03.680 NUT; EGR PIPE ARGENTINA EQUIPMENT(7SZ) 01.540 M8 FLANGE	0-91150-208-0	02	1	9804-9904		●	●
36	03.680 NUT; EGR PIPE GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 01.540 M8 FLANGE	0-91150-208-0	02	1	9905-0009		●	●
36	03.680 NUT; EGR PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 01.540 M8 FLANGE	0-91150-208-0	02	1	0010-0103		●
36	03.680 NUT; EGR PIPE M/T MUA 5 SPEED(RMN) GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 01.540 M8 FLANGE	0-91150-208-0	02	1	0010-0103			●
36	03.680 NUT; EGR PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 01.540 M8 FLANGE	0-91150-208-0	02	1	0104-		●	●
36	03.680 NUT; EGR PIPE 03.613 M8 FLANGE	8-97061-401-1	02	1	9804-9812	●

116 105 23 23 23 168 348 23 98 55 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	03.162 CLIP; RUBBER HOSE,THROTTLE 01.153 ID=12.8	8-94367-943-0	04	1	9804-		●
55	03.670 SOLENOID; VAC CONT	8-01997-201-0	01	1	9804-		●
98	03.671 BOLT; SOLENOID 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9804-		●
105	03.415 CONTROLLER; MODULE,ENGINE CHILE EQUIPMENT(6KB)	8-97177-152-1	01	1	9804-9908		●
105	03.415 CONTROLLER; MODULE,ENGINE ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB)	8-97177-152-2	01	1	9909-0006		●
105	03.415 CONTROLLER; MODULE,ENGINE ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB)	8-97258-726-0	01	1	0007-0109		●
105	03.415 CONTROLLER; MODULE,ENGINE ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB)	8-97323-687-1	01	1	0110-0207		●
105	03.415 CONTROLLER; MODULE,ENGINE ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB)	8-97258-726-1	01	1	0208-0211		●
105	03.415 CONTROLLER; MODULE,ENGINE ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB)	8-97358-516-0	01	1	0212-		●
105	03.415 CONTROLLER; MODULE,ENGINE ECUADOR EQUIPMENT(S6E)	8-97177-151-1	01	1	9804-9902		●
105	03.415 CONTROLLER; MODULE,ENGINE SAUDI ARABIA EQUIPMENT(EU2)	8-97222-085-1	01	1	9901-9911		●
105	03.415 CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) SAUDI ARABIA EQUIPMENT(EU2)	8-97222-085-2	01	1	9912-		●
105	03.415 CONTROLLER; MODULE,ENGINE SHORT(TF***C) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMEN T(7LD)	8-16241-529-0	01	1	9804-9901			●
105	03.415 CONTROLLER; MODULE,ENGINE SHORT(TF***C) COLOMBIA EQUIPMENT(X74)	8-16241-529-0	01	1	9902-9904			●
105	03.415 CONTROLLER; MODULE,ENGINE SHORT(TF***C) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74)	8-16241-529-0	01	1	9905-			●
105	03.415 CONTROLLER; MODULE,ENGINE SHORT(TF***C) EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQU IPMENT(7LD)	8-09351-299-0	01	1	9804-9901			●
105	03.415 CONTROLLER; MODULE,ENGINE SHORT(TF***C) EXC. COLOMBIA EQUIPMENT(X74)	8-09351-299-0	01	1	9902-9904			●
105	03.415 CONTROLLER; MODULE,ENGINE SHORT(TF***C) EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74)	8-09351-299-1	01	1	9905-			●
105	03.415 CONTROLLER; MODULE,ENGINE LONG(TF***F) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMEN T(7LD)	8-16241-349-0	01	1	9804-9812			●
105	03.415 CONTROLLER; MODULE,ENGINE LONG(TF***F) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMEN T(7LD) EXC. MEXICO EQUIPMENT(7YG)	8-16241-349-0	01	1	9901-9904			●
105	03.415 CONTROLLER; MODULE,ENGINE LONG(TF***F) COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMAL A/COSTA RICA EQUIPMENT(7LD) EXC. MEXICO EQUIPMENT(7YG)	8-16241-349-0	01	1	9905-9908			●
105	03.415 CONTROLLER; MODULE,ENGINE LONG(TF***F) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. MEXICO EQUIPMENT(7YG)	8-16241-349-0	01	1	9909-			●
105	03.415 CONTROLLER; MODULE,ENGINE LONG(TF***F) EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQU IPMENT(7LD)	8-09363-429-0	01	1	9804-9904			●
105	03.415 CONTROLLER; MODULE,ENGINE LONG(TF***F) EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA R ICA EQUIPMENT(7LD)	8-09363-429-0	01	1	9905-0012			●
105	03.415 CONTROLLER; MODULE,ENGINE LONG(TF***F) EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-09363-429-1	01	1	0101-			●
105	03.415 CONTROLLER; MODULE,ENGINE 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) MEXICO EQUIPMENT(7YG)	8-09377-519-0	01	1	9901-0012			●
105	03.415 CONTROLLER; MODULE,ENGINE LONG(TF***F) CHINA EQUIPMENT(YT2) EXC. MEXICO EQUIPMENT(7YG)	8-09377-519-0	01	1	0101-			●
105	03.415 CONTROLLER; MODULE,ENGINE LONG(TF***F) MEXICO EQUIPMENT(7YG)	8-09377-519-0	01	1	0101-			●
105	03.415 CONTROLLER; MODULE,ENGINE	8-09363-439-0	01	1	0109-				●
116	03.415 BOLT; ENG CONT MODULE 03.342 M6X16	8-97012-496-0	02	1	9804-9812	●
116	03.415 BOLT; ENG CONT MODULE 02.334 M6X25 FLANGE	0-28680-625-0	04	1	9804-		●
116	03.415 BOLT; ENG CONT MODULE 03.342 M6X16	8-97012-496-0	02	1	9904-0108		●	●
116	03.415 BOLT; ENG CONT MODULE 03.342 M6X16	8-97012-496-0	02	1	0109-		●	●	●
168	03.675 HOSE; RUBBER	8-97145-369-3	01	1	9804-		●
345	03.675 BRACKET; SOLENOID	8-10475-356-0	01	1	9804-		●
348	03.675 FILTER; SENSOR 06.061	8-97101-779-0	01	1	9804-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
