Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#41742) — 302 parça

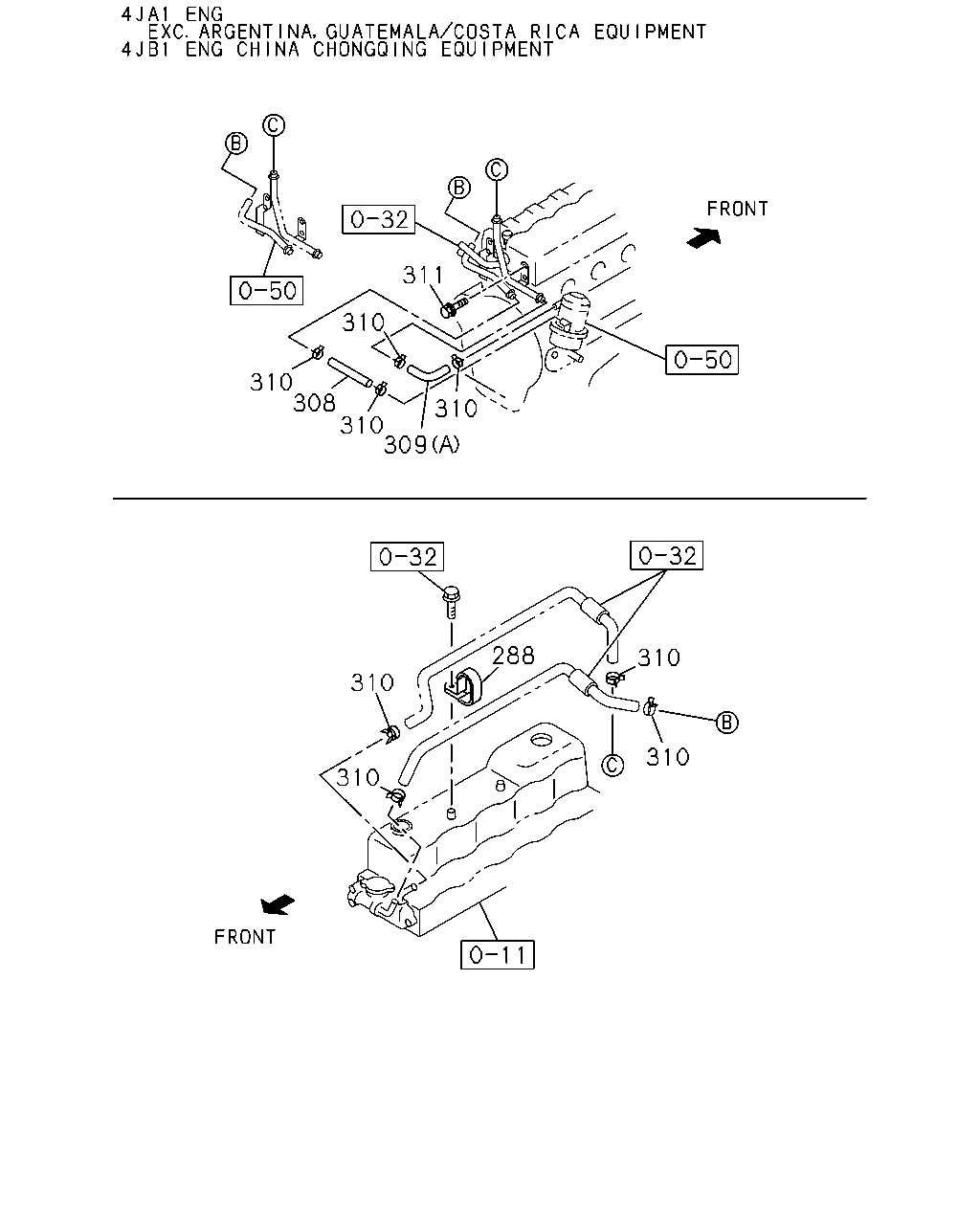

311 310 310 308 310 309 310 288 310 310 310 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
288	01.540 CLIP; HOSE,OIL COOLER EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 08.846	5-83574-006-0	01	1	9804-9812	●
288	01.540 CLIP; HOSE,OIL COOLER CHINA CHONGQING EQUIPMENT(R5B) 08.846	5-83574-006-0	01	1	9804-9812		●
288	01.540 CLIP; HOSE,OIL COOLER EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 08.846	5-83574-006-0	01	1	9901-9901	●
288	01.540 CLIP; HOSE,OIL COOLER EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 08.846	5-83574-006-0	01	1	9902-0205	●
288	01.540 CLIP; HOSE,OIL COOLER EXC. TURBOCHARGER<K51> 08.846	5-83574-006-0	01	1	0206-	●
308	01.540 HOSE; OIL COOLER FEED TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-97039-414-0	01	1	9804-9812	●
308	01.540 HOSE; OIL COOLER FEED EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97039-414-0	01	1	9804-9812		●
308	01.540 HOSE; OIL COOLER FEED TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-97039-414-0	01	1	9901-9901	●
308	01.540 HOSE; OIL COOLER FEED	8-97039-414-0	01	1	9901-9901		●
308	01.540 HOSE; OIL COOLER FEED TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ)	8-97039-414-0	01	1	9902-0009	●
308	01.540 HOSE; OIL COOLER FEED	8-97039-414-0	01	1	9902-0009		●
308	01.540 HOSE; OIL COOLER FEED TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ)	8-97039-414-0	01	1	0010-0204	●
308	01.540 HOSE; OIL COOLER FEED	8-97039-414-0	01	1	0010-0204		●
308	01.540 HOSE; OIL COOLER FEED TURBOCHARGER<K51>	8-97039-414-0	01	1	0205-	●
308	01.540 HOSE; OIL COOLER FEED	8-97039-414-0	01	1	0205-		●
308	01.540 HOSE; OIL COOLER FEED EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) L=220	8-97119-575-0	01	1	9804-9812	●
308	01.540 HOSE; OIL COOLER FEED CHINA CHONGQING EQUIPMENT(R5B) L=220	8-97119-575-0	01	1	9804-9812		●
308	01.540 HOSE; OIL COOLER FEED EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) L=220	8-97119-575-0	01	1	9901-9901	●
308	01.540 HOSE; OIL COOLER FEED EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) L=220	8-97119-575-1	01	1	9902-0205	●
308	01.540 HOSE; OIL COOLER FEED EXC. TURBOCHARGER<K51> L=220	8-97119-575-1	01	1	0206-0209	●
308	01.540 HOSE; OIL COOLER FEED EXC. TURBOCHARGER<K51> L=220 SERVICED BY L=3000	0-03566-300-0	01	1	0210-	●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) (B)	8-97049-285-0	01	1	9804-9812	●
309	01.540 HOSE; OIL COOLER RETURN EXC. CHINA CHONGQING EQUIPMENT(R5B) (B)	8-97049-285-0	01	1	9804-9812		●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) (B)	8-97049-285-0	01	1	9901-9901	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97049-285-0	01	1	9901-9901		●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (B)	8-97049-285-0	01	1	9902-0009	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97049-285-0	01	1	9902-0009		●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (B)	8-97049-285-0	01	1	0010-0204	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97049-285-0	01	1	0010-0204		●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51>	8-97049-285-0	01	1	0205-	●
309	01.540 HOSE; OIL COOLER RETURN	8-97049-285-0	01	1	0205-		●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) (C)	8-97168-220-0	01	1	9804-9812	●
309	01.540 HOSE; OIL COOLER RETURN EXC. CHINA CHONGQING EQUIPMENT(R5B) (C)	8-97168-220-0	01	1	9804-9812		●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) (C)	8-97168-220-0	01	1	9901-9901	●
309	01.540 HOSE; OIL COOLER RETURN (C)	8-97168-220-0	01	1	9901-9901		●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (C)	8-97168-220-0	01	1	9902-0009	●
309	01.540 HOSE; OIL COOLER RETURN (C)	8-97168-220-0	01	1	9902-0009		●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (C)	8-97168-220-0	01	1	0010-0204	●
309	01.540 HOSE; OIL COOLER RETURN (C)	8-97168-220-0	01	1	0010-0204		●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51>	8-97168-220-0	01	1	0205-	●
309	01.540 HOSE; OIL COOLER RETURN	8-97168-220-0	01	1	0205-		●
309	01.540 HOSE; OIL COOLER RETURN EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (A)	8-94442-162-1	01	1	9804-9812	●
309	01.540 HOSE; OIL COOLER RETURN CHINA CHONGQING EQUIPMENT(R5B) (A)	8-94442-162-1	01	1	9804-9812		●
309	01.540 HOSE; OIL COOLER RETURN EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (A)	8-94442-162-1	01	1	9901-9901	●
309	01.540 HOSE; OIL COOLER RETURN EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (A)	8-94442-162-1	01	1	9902-0205	●
309	01.540 HOSE; OIL COOLER RETURN EXC. TURBOCHARGER<K51>	8-94442-162-1	01	1	0206-	●
310	01.540 CLIP; WATER HOSE FIX ARGENTINA EQUIPMENT(7SZ) 01.150 ID=24	8-97010-605-0	02	1	9804-9812	●
310	01.540 CLIP; WATER HOSE FIX 01.150 ID=24	8-97010-605-0	02	1	9804-9812		●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 01.150 ID=24	8-97010-605-0	02	1	9901-9901	●
310	01.540 CLIP; WATER HOSE FIX 01.150 ID=24	8-97010-605-0	02	1	9901-9901		●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 01.150 ID=24	8-97010-605-0	02	1	9902-0009	●
310	01.540 CLIP; WATER HOSE FIX 01.150 ID=24	8-97010-605-0	02	1	9902-0009		●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 01.150 ID=24	8-97010-605-0	02	1	0010-0204	●
310	01.540 CLIP; WATER HOSE FIX 01.150 ID=24	8-97010-605-0	02	1	0010-0204		●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER<K51> 01.150 ID=24	8-97010-605-0	02	1	0205-	●
310	01.540 CLIP; WATER HOSE FIX 01.150 ID=24	8-97010-605-0	02	1	0205-		●
310	01.540 CLIP; WATER HOSE FIX ARGENTINA EQUIPMENT(7SZ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COLD START D EVICE<7LY> 08.846 ID=22	8-94382-401-0	02	1	9804-9901	●
310	01.540 CLIP; WATER HOSE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COLD START DEVICE<7LY> 08.846 ID=22	8-94382-401-0	02	1	9804-9901		●
310	01.540 CLIP; WATER HOSE FIX GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COLD START D EVICE<7LY> 08.846 ID=22	8-94382-401-0	02	1	9902-0009	●
310	01.540 CLIP; WATER HOSE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COLD START DEVICE<7LY> 08.846 ID=22	8-94382-401-0	02	1	9902-0009		●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COLD START D EVICE<7LY> 08.846 ID=22	8-94382-401-0	02	1	0010-0204	●
310	01.540 CLIP; WATER HOSE FIX A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COLD START D EVICE<7LY> 08.846 ID=22	8-94382-401-0	02	1	0010-0204		●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER<K51> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	0205-	●
310	01.540 CLIP; WATER HOSE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	0205-		●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 01.166 ID=20.8	8-94125-862-0	06	1	9804-9812	●
310	01.540 CLIP; WATER HOSE FIX EXC. CHINA CHONGQING EQUIPMENT(R5B) 01.166 ID=20.8	8-94125-862-0	06	1	9804-9812		●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 01.166 ID=20.8	8-94125-862-0	06	1	9901-9901	●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-0	06	1	9901-9901		●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 01.166 ID=20.8	8-94125-862-0	06	1	9902-0009	●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-0	06	1	9902-0009		●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 01.166 ID=20.8	8-94125-862-1	06	1	0010-0204	●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-1	06	1	0010-0204		●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER<K51> 01.166 ID=20.8	8-94125-862-1	06	1	0205-	●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-1	06	1	0205-		●
310	01.540 CLIP; WATER HOSE FIX EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 01.166 ID=20.8	8-94125-862-0	08	1	9804-9812	●
310	01.540 CLIP; WATER HOSE FIX CHINA CHONGQING EQUIPMENT(R5B) 01.166 ID=20.8	8-94125-862-0	08	1	9804-9812		●
310	01.540 CLIP; WATER HOSE FIX EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 01.166 ID=20.8	8-94125-862-0	08	1	9901-9901	●
310	01.540 CLIP; WATER HOSE FIX EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 01.166 ID=20.8	8-94125-862-1	08	1	9902-0205	●
310	01.540 CLIP; WATER HOSE FIX EXC. TURBOCHARGER<K51> 01.166 ID=20.8	8-94125-862-1	08	1	0206-	●
311	01.531 BOLT; PIPE FIX 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9804-0201	●	●
311	01.531 BOLT; PIPE FIX 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0202-	●	●

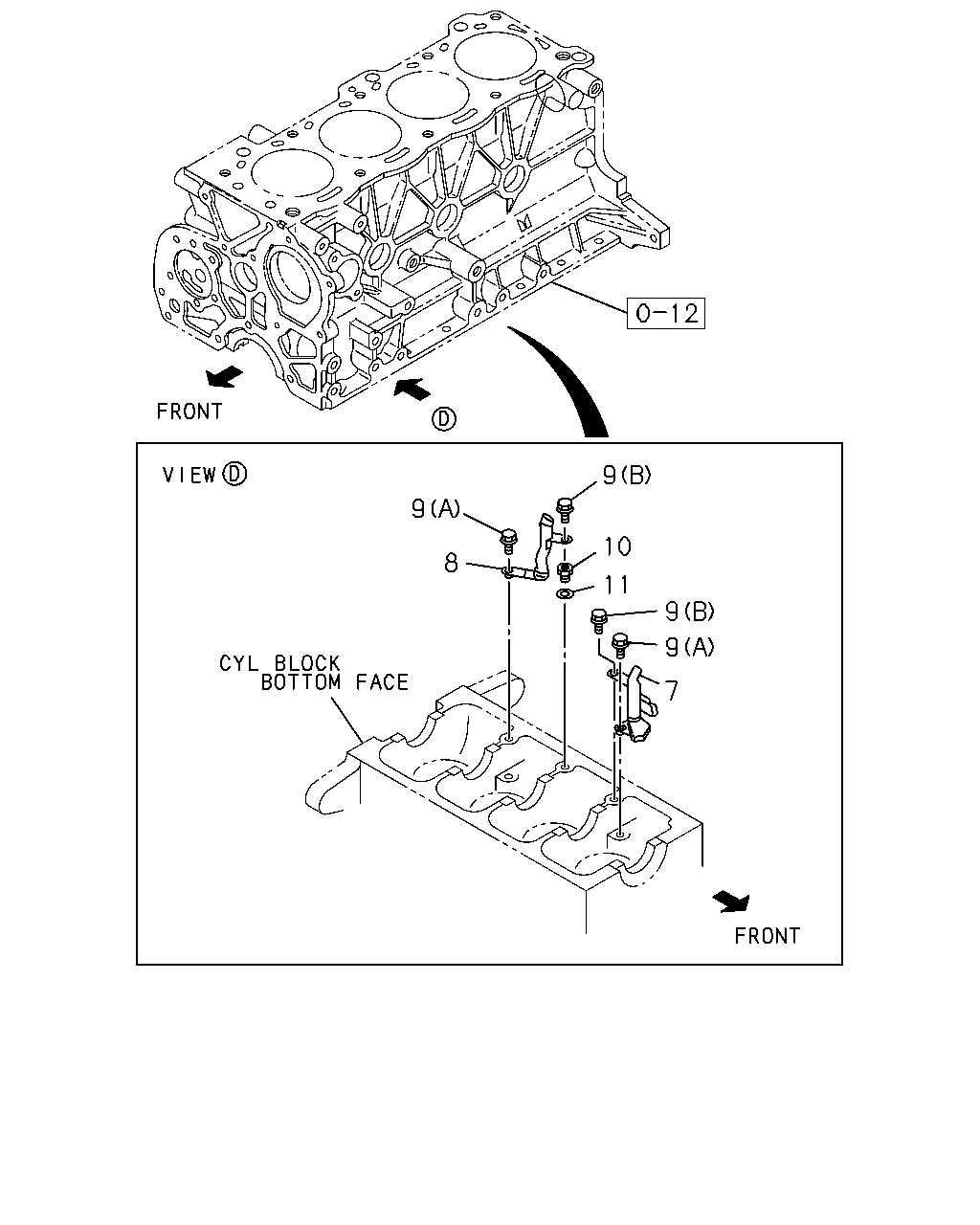

9 9 10 11 8 9 9 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C
7	01.656 PIPE; OIL PASSAGE,FRT	8-94475-324-2	01	1	9804-9812	●
8	01.656 PIPE; OIL PASSAGE,CTR	8-94475-325-2	01	1	9804-9812	●
9	01.656 BOLT; OIL PASSAGE (A) M6X14	8-94479-695-1	02	1	9804-9812	●
9	01.656 BOLT; OIL PASSAGE (B) M8X12 FLANGE	8-94479-696-1	02	1	9804-9812	●
10	01.656 PLUG; OIL PASSAGE PIPE	8-94474-942-0	01	1	9804-9812	●
11	01.657 GASKET; PLUG,OIL PIPE 08.955 ID=20.5 OD=28.0	9-09571-420-0	01	1	9804-9812	●

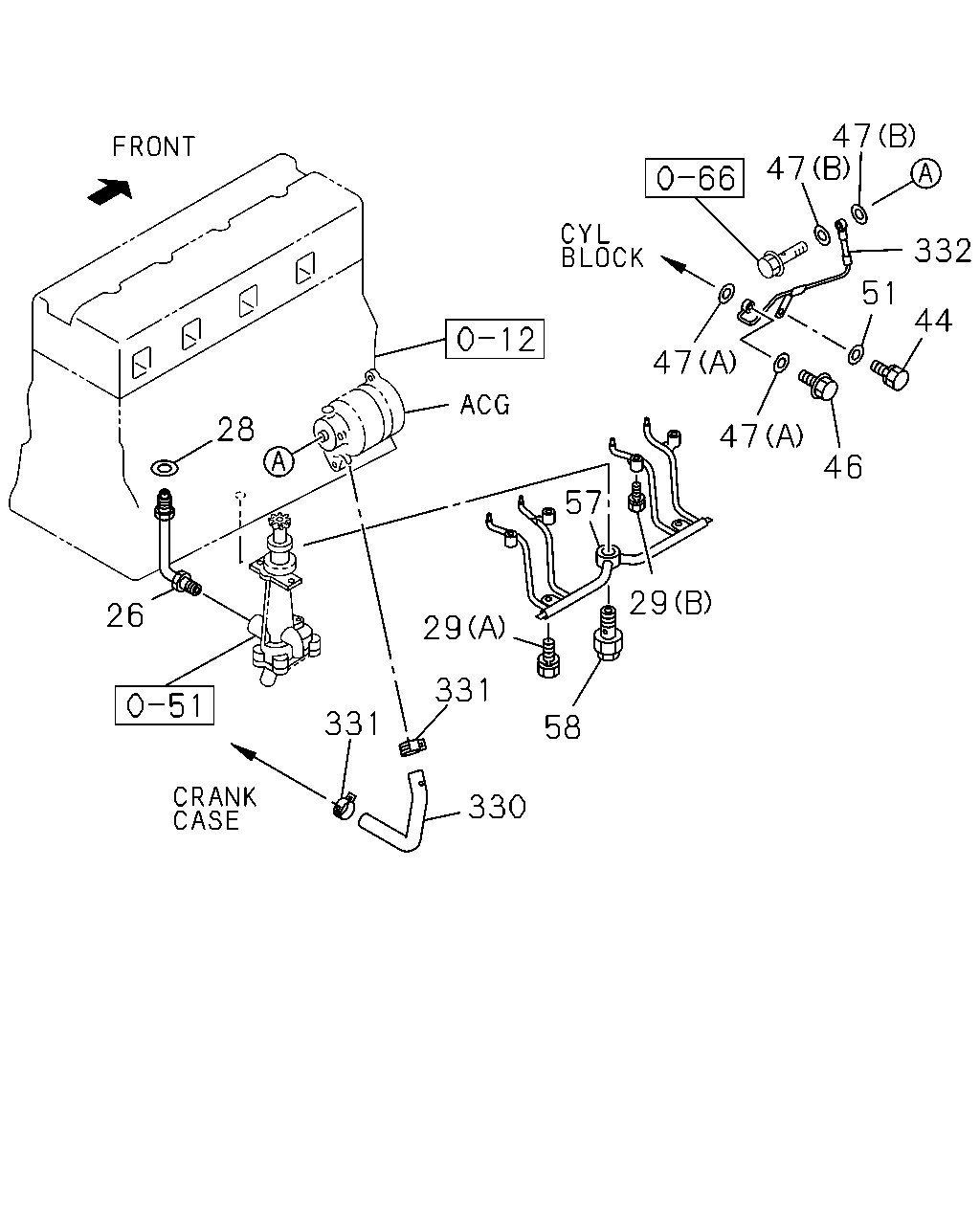

47 47 332 51 44 47 28 47 46 57 29 26 29 331 331 58 330

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94434-828-2	01	1	9804-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	01	1	9804-	●	●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	02	1	9804-9812	●
29	01.531 BOLT; OIL PIPE,OIL JET EXC. CHINA CHONGQING EQUIPMENT(R5B) 00.206 (A) M8X10 FLANGE	0-28080-810-0	02	1	9804-9812		●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	02	1	9901-0202	●	●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 M8X10 FLANGE	0-28080-810-0	01	1	0203-	●	●
29	01.531 BOLT; OIL PIPE,OIL JET 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9804-9812	●
29	01.531 BOLT; OIL PIPE,OIL JET EXC. CHINA CHONGQING EQUIPMENT(R5B) 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9804-9812		●
29	01.531 BOLT; OIL PIPE,OIL JET 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9901-	●	●
44	01.531 BOLT; CLIP,OIL PIPE 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9804-	●	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 EYE-BOLT	5-09675-018-1	01	1	9804-	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9804-	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9804-	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) W/PLATE ID=18.2	8-94329-964-0	02	1	9804-			●
51	01.531 WASHER; PL,OIL PIPE,VAC PUMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9804-	●	●
57	01.519 PIPE; OIL,OIL JET	8-94469-992-2	01	1	9804-0308	●
57	01.519 PIPE; OIL,OIL JET	8-97912-536-2	01	1	0309-	●
57	01.519 PIPE; OIL,OIL JET EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-94469-709-1	01	1	9804-9812		●
57	01.519 PIPE; OIL,OIL JET	8-94469-709-3	01	1	9901-		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97145-612-0	01	1	9804-9812	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97145-612-0	01	1	9804-9812		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97145-612-0	01	1	9901-0104	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO 01.639	8-97311-976-0	01	1	0105-	●	●
330	03.278 HOSE; VAC PUMP,RETURN	8-97063-052-0	01	1	9804-	●	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	9804-	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-94468-522-1	01	1	9804-	●	●

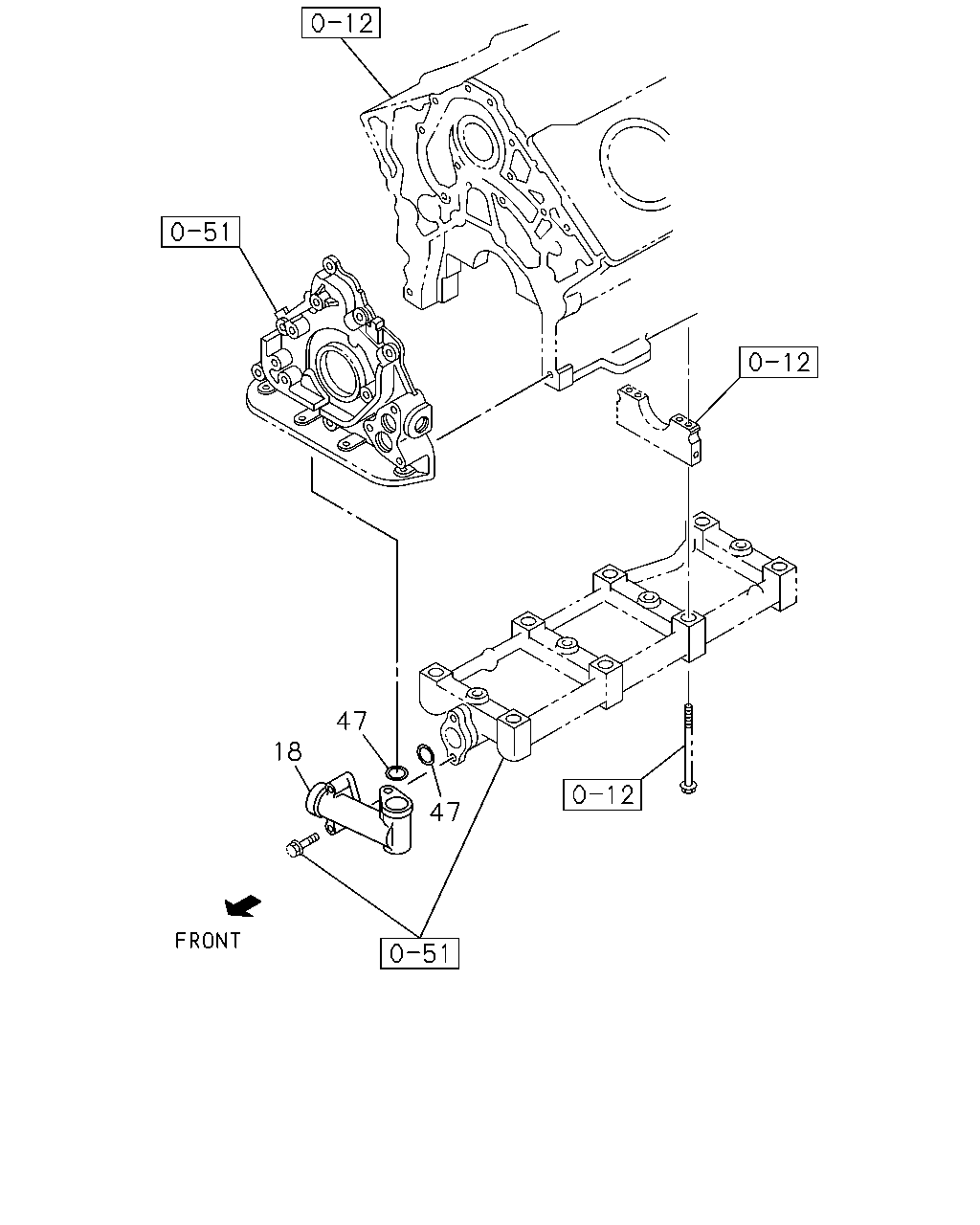

47 18 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D
18	01.519 PIPE; OIL,OIL PUMP	8-94381-146-3	01	1	9804-0009			●
18	01.519 PIPE; OIL,OIL PUMP	8-97226-640-0	01	1	0010-			●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9804-	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9804-	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) W/PLATE ID=18.2	8-94329-964-0	02	1	9804-			●

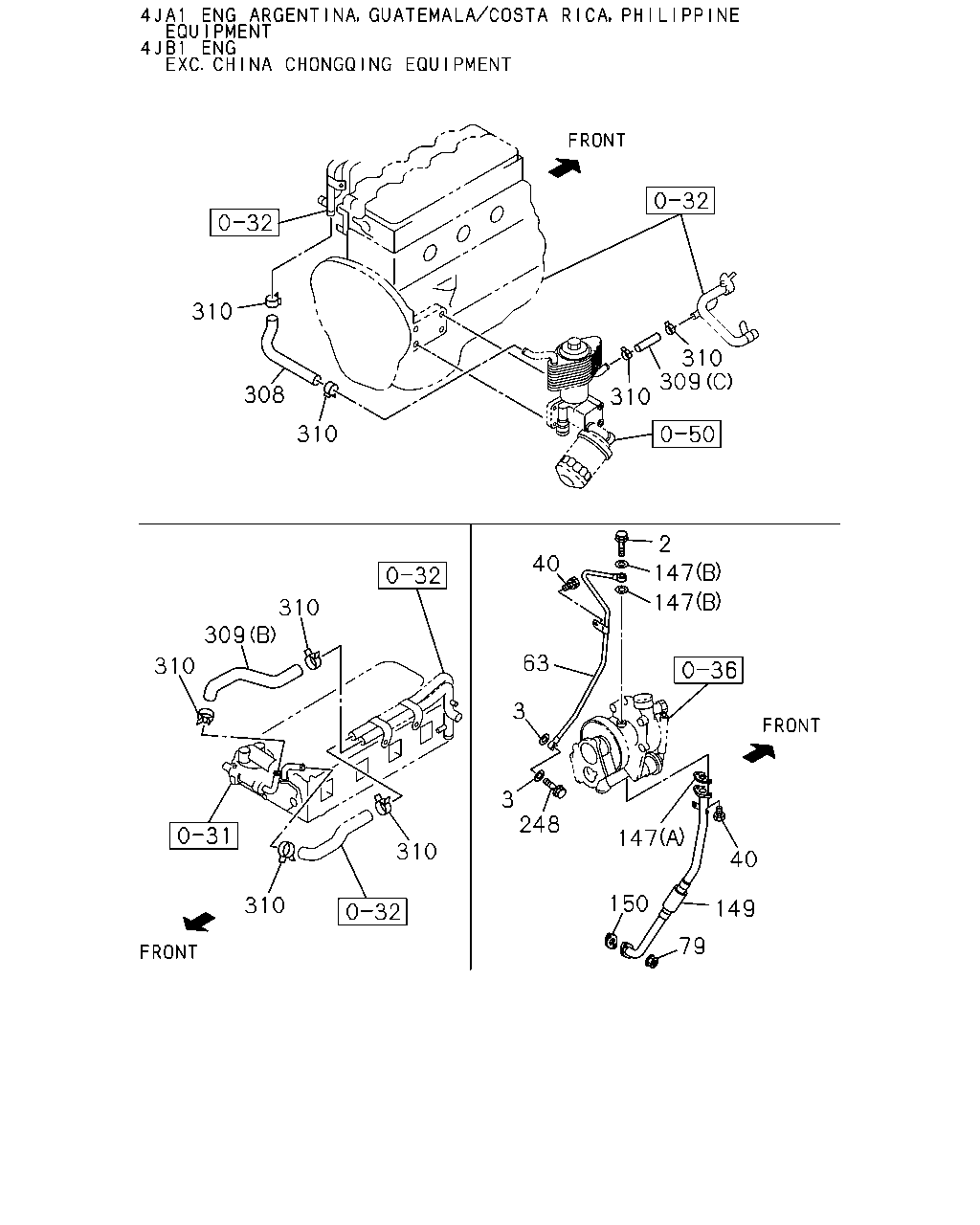

310 310 309 310 308 310 2 40 147 147 310 309 63 310 3 3 248 147 310 40 150 310 149 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	01.531 BOLT; EYE,OIL PIPE TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) M10X27 FLANGE	8-94443-535-0	01	1	9804-9812	●
2	01.531 BOLT; EYE,OIL PIPE EXC. CHINA CHONGQING EQUIPMENT(R5B) M10X27 FLANGE	8-94443-535-0	01	1	9804-9812		●
2	01.531 BOLT; EYE,OIL PIPE TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) M10X27 FLANGE	8-94443-535-0	01	1	9901-9901	●
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	9901-9901		●
2	01.531 BOLT; EYE,OIL PIPE TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) M10X27 FLANGE	8-94443-535-0	01	1	9902-0009	●
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	9902-0009		●
2	01.531 BOLT; EYE,OIL PIPE TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) M10X27 FLANGE	8-94443-535-0	01	1	0010-0204	●
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	0010-0204		●
2	01.531 BOLT; EYE,OIL PIPE TURBOCHARGER<K51> M10X27 FLANGE	8-94443-535-0	01	1	0205-	●
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	0205-		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9804-9812	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHINA CHONGQING EQUIPMENT(R5B) 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9804-9812		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9901-9901	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9901-9901		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9902-0009	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9902-0009		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0010-0204	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0010-0204		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0205-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0205-		●
40	01.531 BOLT; OIL PIPE TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9804-9812	●
40	01.531 BOLT; OIL PIPE EXC. CHINA CHONGQING EQUIPMENT(R5B) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9804-9812		●
40	01.531 BOLT; OIL PIPE TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9901-9901	●
40	01.531 BOLT; OIL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9901-9901		●
40	01.531 BOLT; OIL PIPE TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9902-0009	●
40	01.531 BOLT; OIL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9902-0009		●
40	01.531 BOLT; OIL PIPE TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0010-0204	●
40	01.531 BOLT; OIL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0010-0204		●
40	01.531 BOLT; OIL PIPE TURBOCHARGER<K51> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0205-	●
40	01.531 BOLT; OIL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0205-		●
40	01.531 BOLT; OIL PIPE TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9804-9812	●
40	01.531 BOLT; OIL PIPE EXC. CHINA CHONGQING EQUIPMENT(R5B) 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9804-9812		●
40	01.531 BOLT; OIL PIPE TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9901-9901	●
40	01.531 BOLT; OIL PIPE 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9901-9901		●
40	01.531 BOLT; OIL PIPE TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9902-0009	●
40	01.531 BOLT; OIL PIPE 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9902-0009		●
40	01.531 BOLT; OIL PIPE TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	0010-0204	●
40	01.531 BOLT; OIL PIPE 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	0010-0204		●
40	01.531 BOLT; OIL PIPE TURBOCHARGER<K51> 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	0205-	●
40	01.531 BOLT; OIL PIPE 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	0205-		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-97161-201-0	01	1	9804-9812	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97161-201-0	01	1	9804-9812		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-97161-201-0	01	1	9901-9901	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97161-201-0	01	1	9901-9901		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ)	8-97161-201-0	01	1	9902-0009	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97161-201-0	01	1	9902-0009		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ)	8-97161-201-0	01	1	0010-0204	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97161-201-0	01	1	0010-0204		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED TURBOCHARGER<K51>	8-97161-201-0	01	1	0205-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97161-201-0	01	1	0205-		●
79	01.531 NUT; OIL DRAIN PIPE TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 00.854 M8 FLANGE	5-09440-005-0	02	1	9804-9812	●
79	01.531 NUT; OIL DRAIN PIPE EXC. CHINA CHONGQING EQUIPMENT(R5B) 00.854 M8 FLANGE	5-09440-005-0	02	1	9804-9812		●
79	01.531 NUT; OIL DRAIN PIPE TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 00.854 M8 FLANGE	5-09440-005-0	02	1	9901-9901	●
79	01.531 NUT; OIL DRAIN PIPE 00.854 M8 FLANGE	5-09440-005-0	02	1	9901-9901		●
79	01.531 NUT; OIL DRAIN PIPE TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 00.854 M8 FLANGE	5-09440-005-0	02	1	9902-0009	●
79	01.531 NUT; OIL DRAIN PIPE 00.854 M8 FLANGE	5-09440-005-0	02	1	9902-0009		●
79	01.531 NUT; OIL DRAIN PIPE TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 00.854 M8 FLANGE	5-09440-005-0	02	1	0010-0204	●
79	01.531 NUT; OIL DRAIN PIPE 00.854 M8 FLANGE	5-09440-005-0	02	1	0010-0204		●
79	01.531 NUT; OIL DRAIN PIPE TURBOCHARGER<K51> 00.854 M8 FLANGE	5-09440-005-0	02	1	0205-	●
79	01.531 NUT; OIL DRAIN PIPE 00.854 M8 FLANGE	5-09440-005-0	02	1	0205-		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 03.358 (A)	8-94362-672-0	01	1	9804-9812	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHINA CHONGQING EQUIPMENT(R5B) 03.358 (A)	8-94362-672-0	01	1	9804-9812		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ). 03.358 (A)	8-94362-672-0	01	1	9901-9901	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (A)	8-94362-672-0	01	1	9901-9901		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ). 03.358 (A)	8-94362-672-0	01	1	9902-0009	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (A)	8-94362-672-0	01	1	9902-0009		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ). 03.358 (A)	8-94362-672-0	01	1	0010-0204	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (A)	8-94362-672-0	01	1	0010-0204		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. 03.358	8-94362-672-0	01	1	0205-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358	8-94362-672-0	01	1	0205-		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9804-9812	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHINA CHONGQING EQUIPMENT(R5B) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9804-9812		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9901-9901	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9901-9901		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9902-0009	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9902-0009		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0010-0204	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0010-0204		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. 08.955 ID=10.2 OD=16.0	9-09571-410-0	02	1	0205-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	02	1	0205-		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-97162-108-0	01	1	9804-9812	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97162-108-0	01	1	9804-9812		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-97162-108-0	01	1	9901-9901	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97162-108-0	01	1	9901-9901		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ)	8-97162-108-0	01	1	9902-0009	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97162-108-0	01	1	9902-0009		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ)	8-97162-108-0	01	1	0010-0204	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97162-108-0	01	1	0010-0204		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER TURBOCHARGER<K51>	8-97162-108-0	01	1	0205-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97162-108-0	01	1	0205-		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-97045-326-0	01	1	9804-9812	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97045-326-0	01	1	9804-9812		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ).	8-97045-326-0	01	1	9901-9901	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-0	01	1	9901-9901		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ).	8-97045-326-0	01	1	9902-0009	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-0	01	1	9902-0009		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ).	8-97045-326-0	01	1	0010-0204	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-0	01	1	0010-0204		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>.	8-97045-326-1	01	1	0205-	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-1	01	1	0205-		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) M14X25	8-94315-336-1	01	1	9804-9812	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED EXC. CHINA CHONGQING EQUIPMENT(R5B) M14X25	8-94315-336-1	01	1	9804-9812		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) M14X25	8-94315-336-1	01	1	9901-9901	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	9901-9901		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) M14X25	8-94315-336-1	01	1	9902-0009	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	9902-0009		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) M14X25	8-94315-336-1	01	1	0010-0204	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	0010-0204		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED TURBOCHARGER<K51> M14X25	8-94315-336-1	01	1	0205-	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	0205-		●
308	01.540 HOSE; OIL COOLER FEED TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-97039-414-0	01	1	9804-9812	●
308	01.540 HOSE; OIL COOLER FEED EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97039-414-0	01	1	9804-9812		●
308	01.540 HOSE; OIL COOLER FEED TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-97039-414-0	01	1	9901-9901	●
308	01.540 HOSE; OIL COOLER FEED	8-97039-414-0	01	1	9901-9901		●
308	01.540 HOSE; OIL COOLER FEED TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ)	8-97039-414-0	01	1	9902-0009	●
308	01.540 HOSE; OIL COOLER FEED	8-97039-414-0	01	1	9902-0009		●
308	01.540 HOSE; OIL COOLER FEED TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ)	8-97039-414-0	01	1	0010-0204	●
308	01.540 HOSE; OIL COOLER FEED	8-97039-414-0	01	1	0010-0204		●
308	01.540 HOSE; OIL COOLER FEED TURBOCHARGER<K51>	8-97039-414-0	01	1	0205-	●
308	01.540 HOSE; OIL COOLER FEED	8-97039-414-0	01	1	0205-		●
308	01.540 HOSE; OIL COOLER FEED EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) L=220	8-97119-575-0	01	1	9804-9812	●
308	01.540 HOSE; OIL COOLER FEED CHINA CHONGQING EQUIPMENT(R5B) L=220	8-97119-575-0	01	1	9804-9812		●
308	01.540 HOSE; OIL COOLER FEED EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) L=220	8-97119-575-0	01	1	9901-9901	●
308	01.540 HOSE; OIL COOLER FEED EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) L=220	8-97119-575-1	01	1	9902-0205	●
308	01.540 HOSE; OIL COOLER FEED EXC. TURBOCHARGER<K51> L=220	8-97119-575-1	01	1	0206-0209	●
308	01.540 HOSE; OIL COOLER FEED EXC. TURBOCHARGER<K51> L=220 SERVICED BY L=3000	0-03566-300-0	01	1	0210-	●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) (B)	8-97049-285-0	01	1	9804-9812	●
309	01.540 HOSE; OIL COOLER RETURN EXC. CHINA CHONGQING EQUIPMENT(R5B) (B)	8-97049-285-0	01	1	9804-9812		●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) (B)	8-97049-285-0	01	1	9901-9901	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97049-285-0	01	1	9901-9901		●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (B)	8-97049-285-0	01	1	9902-0009	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97049-285-0	01	1	9902-0009		●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (B)	8-97049-285-0	01	1	0010-0204	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97049-285-0	01	1	0010-0204		●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51>	8-97049-285-0	01	1	0205-	●
309	01.540 HOSE; OIL COOLER RETURN	8-97049-285-0	01	1	0205-		●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) (C)	8-97168-220-0	01	1	9804-9812	●
309	01.540 HOSE; OIL COOLER RETURN EXC. CHINA CHONGQING EQUIPMENT(R5B) (C)	8-97168-220-0	01	1	9804-9812		●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) (C)	8-97168-220-0	01	1	9901-9901	●
309	01.540 HOSE; OIL COOLER RETURN (C)	8-97168-220-0	01	1	9901-9901		●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (C)	8-97168-220-0	01	1	9902-0009	●
309	01.540 HOSE; OIL COOLER RETURN (C)	8-97168-220-0	01	1	9902-0009		●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (C)	8-97168-220-0	01	1	0010-0204	●
309	01.540 HOSE; OIL COOLER RETURN (C)	8-97168-220-0	01	1	0010-0204		●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51>	8-97168-220-0	01	1	0205-	●
309	01.540 HOSE; OIL COOLER RETURN	8-97168-220-0	01	1	0205-		●
309	01.540 HOSE; OIL COOLER RETURN EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (A)	8-94442-162-1	01	1	9804-9812	●
309	01.540 HOSE; OIL COOLER RETURN CHINA CHONGQING EQUIPMENT(R5B) (A)	8-94442-162-1	01	1	9804-9812		●
309	01.540 HOSE; OIL COOLER RETURN EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (A)	8-94442-162-1	01	1	9901-9901	●
309	01.540 HOSE; OIL COOLER RETURN EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (A)	8-94442-162-1	01	1	9902-0205	●
309	01.540 HOSE; OIL COOLER RETURN EXC. TURBOCHARGER<K51>	8-94442-162-1	01	1	0206-	●
310	01.540 CLIP; WATER HOSE FIX ARGENTINA EQUIPMENT(7SZ) 01.150 ID=24	8-97010-605-0	02	1	9804-9812	●
310	01.540 CLIP; WATER HOSE FIX 01.150 ID=24	8-97010-605-0	02	1	9804-9812		●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 01.150 ID=24	8-97010-605-0	02	1	9901-9901	●
310	01.540 CLIP; WATER HOSE FIX 01.150 ID=24	8-97010-605-0	02	1	9901-9901		●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 01.150 ID=24	8-97010-605-0	02	1	9902-0009	●
310	01.540 CLIP; WATER HOSE FIX 01.150 ID=24	8-97010-605-0	02	1	9902-0009		●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 01.150 ID=24	8-97010-605-0	02	1	0010-0204	●
310	01.540 CLIP; WATER HOSE FIX 01.150 ID=24	8-97010-605-0	02	1	0010-0204		●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER<K51> 01.150 ID=24	8-97010-605-0	02	1	0205-	●
310	01.540 CLIP; WATER HOSE FIX 01.150 ID=24	8-97010-605-0	02	1	0205-		●
310	01.540 CLIP; WATER HOSE FIX ARGENTINA EQUIPMENT(7SZ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COLD START D EVICE<7LY> 08.846 ID=22	8-94382-401-0	02	1	9804-9901	●
310	01.540 CLIP; WATER HOSE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COLD START DEVICE<7LY> 08.846 ID=22	8-94382-401-0	02	1	9804-9901		●
310	01.540 CLIP; WATER HOSE FIX GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COLD START D EVICE<7LY> 08.846 ID=22	8-94382-401-0	02	1	9902-0009	●
310	01.540 CLIP; WATER HOSE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COLD START DEVICE<7LY> 08.846 ID=22	8-94382-401-0	02	1	9902-0009		●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COLD START D EVICE<7LY> 08.846 ID=22	8-94382-401-0	02	1	0010-0204	●
310	01.540 CLIP; WATER HOSE FIX A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COLD START D EVICE<7LY> 08.846 ID=22	8-94382-401-0	02	1	0010-0204		●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER<K51> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	0205-	●
310	01.540 CLIP; WATER HOSE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	0205-		●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 01.166 ID=20.8	8-94125-862-0	06	1	9804-9812	●
310	01.540 CLIP; WATER HOSE FIX EXC. CHINA CHONGQING EQUIPMENT(R5B) 01.166 ID=20.8	8-94125-862-0	06	1	9804-9812		●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 01.166 ID=20.8	8-94125-862-0	06	1	9901-9901	●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-0	06	1	9901-9901		●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 01.166 ID=20.8	8-94125-862-0	06	1	9902-0009	●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-0	06	1	9902-0009		●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 01.166 ID=20.8	8-94125-862-1	06	1	0010-0204	●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-1	06	1	0010-0204		●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER<K51> 01.166 ID=20.8	8-94125-862-1	06	1	0205-	●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-1	06	1	0205-		●
310	01.540 CLIP; WATER HOSE FIX EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 01.166 ID=20.8	8-94125-862-0	08	1	9804-9812	●
310	01.540 CLIP; WATER HOSE FIX CHINA CHONGQING EQUIPMENT(R5B) 01.166 ID=20.8	8-94125-862-0	08	1	9804-9812		●
310	01.540 CLIP; WATER HOSE FIX EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 01.166 ID=20.8	8-94125-862-0	08	1	9901-9901	●
310	01.540 CLIP; WATER HOSE FIX EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 01.166 ID=20.8	8-94125-862-1	08	1	9902-0205	●
310	01.540 CLIP; WATER HOSE FIX EXC. TURBOCHARGER<K51> 01.166 ID=20.8	8-94125-862-1	08	1	0206-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
