0-51 — OIL PUMP AND OIL STRAINER (#41741) — 161 parça

1 18 23 20 19 17 21 1 13 57 57 54 54 53 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.652 PUMP ASM; OIL	8-97069-738-3	01	1	9804-	●	●
1	01.652 PUMP ASM; OIL	8-94459-730-1	01	1	9804-9812			●
1	01.652 PUMP ASM; OIL	8-97136-464-0	01	1	9804-0109				●
1	01.652 PUMP ASM; OIL	8-97136-463-0	01	1	0110-				●
1	01.652 PUMP ASM; OIL	8-90570-925-0	01	1	9804-0108					●
1	01.652 PUMP ASM; OIL	8-90570-925-0	01	1	0109-					●	●
13	01.652 BOLT; OIL PUMP TO C/BL M8X22 HEX-HOLE-HEAD	8-94225-552-0	04	1	9804-9812			●
17	01.657 SEAL; OIL,OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-94369-516-0	01	1	9804-9812			●
17	01.657 SEAL; OIL,OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-90183-572-0	01	1	9804-0108					●
17	01.657 SEAL; OIL,OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-90183-572-0	01	1	0109-					●	●
17	01.657 SEAL; OIL,OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-92061-013-0	01	1	9804-9805					●
17	01.657 SEAL; OIL,OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-11070-961-0	01	1	9806-0108					●
17	01.657 SEAL; OIL,OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-11070-961-0	01	1	0109-					●	●
18	01.639 KEY; OIL PUMP 08.960	9-08055-313-0	01	1	9804-9812			●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	9806-	●	●
19	01.639 GEAR SET; OIL PUMP	8-94225-801-0	01	1	9804-9812			●
20	01.639 GEAR; DRIVE,OIL PUMP	8-94310-892-0	01	1	9804-9812			●
21	01.655 GASKET; OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-94363-446-0	01	1	9804-9812			●
23	01.652 PIN; BODY,OIL PUMP 01.639	8-94227-142-0	02	1	9804-9812			●
51	01.519 STRAINER & PIPE ASM; OIL	8-94174-225-4	01	1	9804-9812			●
51	01.519 STRAINER & PIPE ASM; OIL	8-97149-340-0	01	1	9804-				●
51	01.519 STRAINER & PIPE ASM; OIL 4X2(TFB***)	8-92063-358-0	01	1	9804-0108					●
51	01.519 STRAINER & PIPE ASM; OIL 4X2(TFB***)	8-92063-358-0	01	1	0109-					●
51	01.519 STRAINER & PIPE ASM; OIL	8-92063-358-0	01	1	0109-						●
51	01.519 STRAINER & PIPE ASM; OIL 4X4(TFS***)	8-92063-844-0	01	1	9804-					●
53	01.657 HOSE; RUBBER,OIL PIPE ID=16.9 OD=23.5 L=9	8-94200-789-1	01	1	9804-9812			●
54	01.656 WASHER; PL,OIL PIPE 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9804-9812			●
57	01.531 BOLT; OIL PIPE 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9804-9812			●
57	01.531 BOLT; OIL PIPE (A) M6X35 FLANGE	0-28680-635-0	02	1	9804-				●
57	01.531 BOLT; OIL PIPE (B) M6X55 FLANGE	8-97027-257-0	01	1	9804-				●
57	01.531 BOLT; OIL PIPE (C)	8-11073-041-0	02	1	9804-9804					●
57	01.531 BOLT; OIL PIPE (C)	8-11073-043-0	02	1	9805-					●
57	01.531 BOLT; OIL PIPE (D)	8-11097-411-0	02	1	9804-0108					●
57	01.531 BOLT; OIL PIPE (D)	8-11097-411-0	02	1	0109-					●	●
57	01.531 BOLT; OIL PIPE (C)	8-92064-465-0	02	1	0109-						●

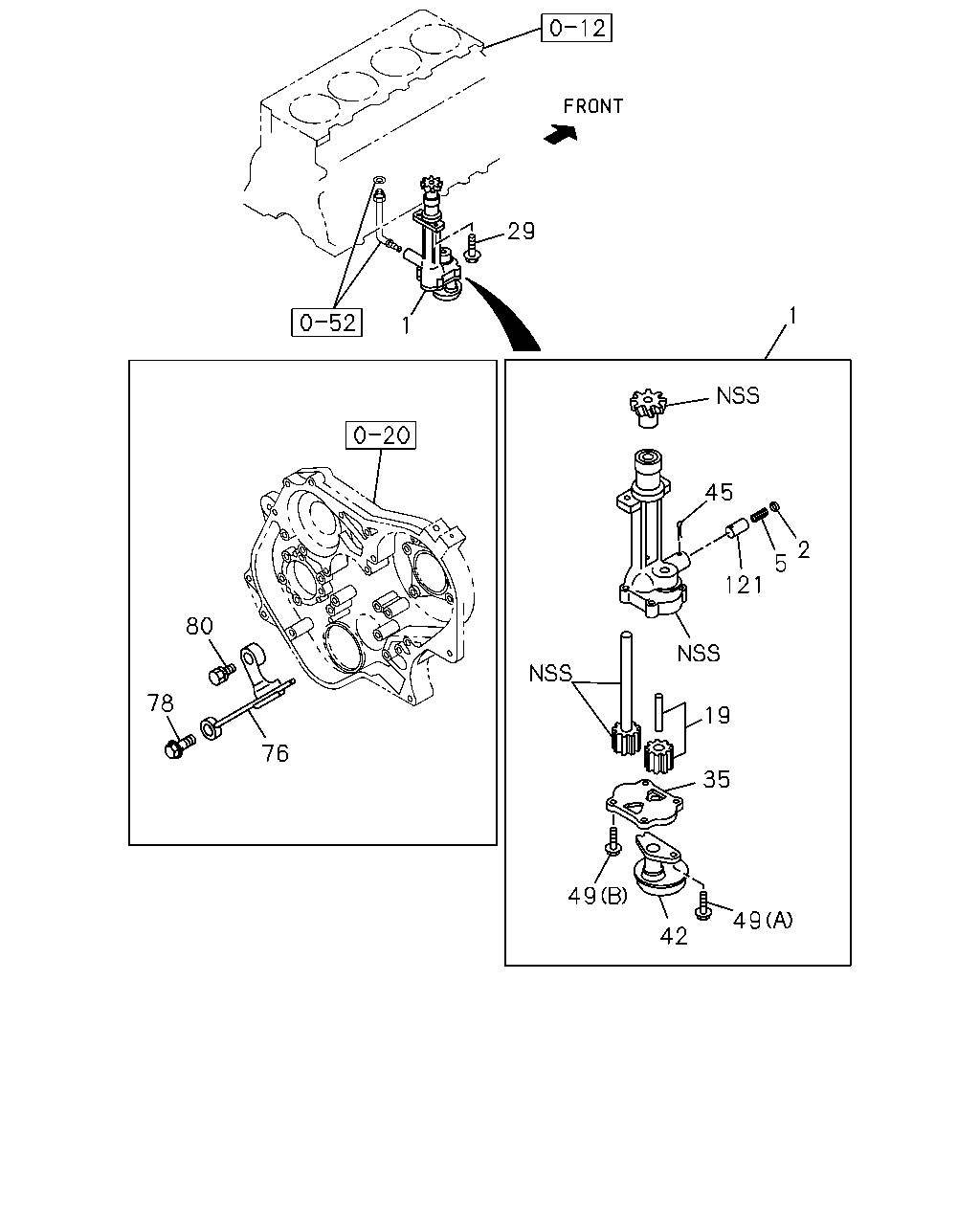

29 1 1 45 2 5 121 80 78 19 76 35 49 49 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.652 PUMP ASM; OIL	8-97069-738-3	01	1	9804-	●	●
1	01.652 PUMP ASM; OIL	8-94459-730-1	01	1	9804-9812			●
1	01.652 PUMP ASM; OIL	8-97136-464-0	01	1	9804-0109				●
1	01.652 PUMP ASM; OIL	8-97136-463-0	01	1	0110-				●
1	01.652 PUMP ASM; OIL	8-90570-925-0	01	1	9804-0108					●
1	01.652 PUMP ASM; OIL	8-90570-925-0	01	1	0109-					●	●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	9806-	●	●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	9806-	●	●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	9806-	●	●
19	01.639 GEAR SET; OIL PUMP	8-94225-801-0	01	1	9804-9812			●
29	01.652 BOLT; OIL PUMP 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9804-	●	●
29	01.652 BOLT; OIL PUMP 02.559 (A) M8X25 FLANGE	0-28680-825-0	05	1	9804-				●
29	01.652 BOLT; OIL PUMP 04.686 (B) M8X30 FLANGE	0-28680-830-0	01	1	9804-				●
29	01.652 BOLT; OIL PUMP	8-11084-961-0	06	1	9804-					●
29	01.652 BOLT; OIL PUMP	8-11084-962-0	06	1	0109-						●
35	01.657 COVER; OIL PUMP	8-97036-830-0	01	1	9806-0211	●	●
35	01.657 COVER; OIL PUMP	8-97203-876-0	01	1	0212-	●	●
42	01.656 STRAINER; OIL,OIL PUMP 01.657	8-97036-837-0	01	1	9806-0211	●	●
42	01.656 STRAINER; OIL,OIL PUMP 01.657	8-97089-824-0	01	1	0212-	●	●
45	01.609 PIN; SPLIT,RELIEF VLV 06.022 L=30	9-08104-030-0	01	1	9806-	●	●
49	01.531 BOLT; STRAINER,OIL PUMP (B) M8X25 FLANGE	0-28080-825-0	02	1	9806-	●	●
49	01.531 BOLT; STRAINER,OIL PUMP 03.275 (A) M8X30 FLANGE	0-28080-830-0	02	1	9806-0211	●	●
49	01.531 BOLT; STRAINER,OIL PUMP 03.415 (A) M8X35 FLANGE	0-28080-835-0	02	1	0212-	●	●
76	01.519 PIPE ASM; OIL	8-97160-706-0	01	1	9804-0212	●	●
76	01.519 PIPE ASM; OIL	8-97913-292-0	01	1	0301-0301	●	●
76	01.519 PIPE ASM; OIL	8-97160-706-0	01	1	0301-	●	●
78	01.531 BOLT; EYE JOINT,OIL PIPE M8X23 FLANGE	8-94454-199-0	01	1	9804-	●	●
80	01.531 BOLT; OIL PIPE FIX 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9804-	●	●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837	8-94235-567-1	01	1	9806-	●	●

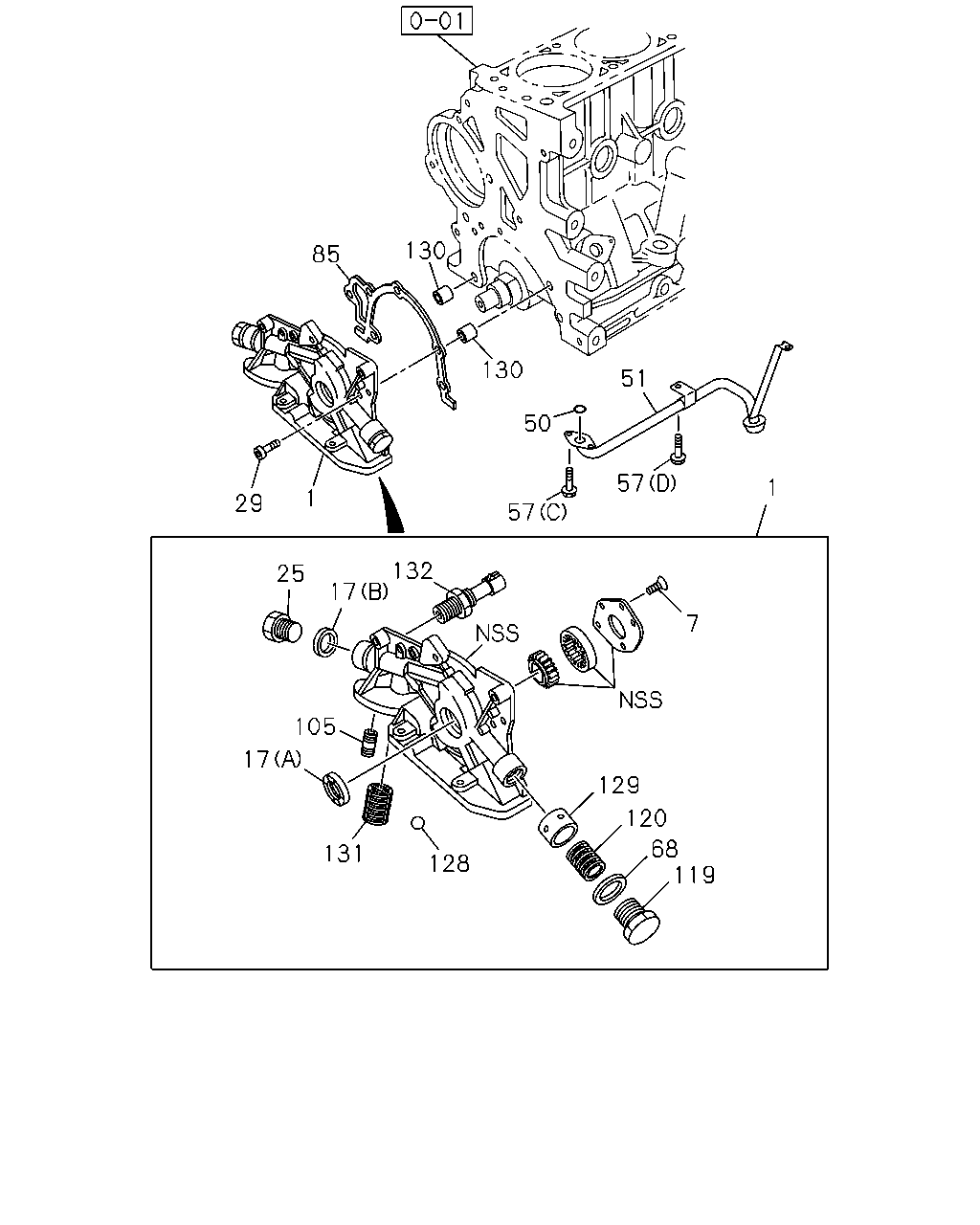

130 85 130 51 50 57 1 1 29 57 132 17 25 7 105 17 129 120 68 119 131 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.652 PUMP ASM; OIL	8-97069-738-3	01	1	9804-	●	●
1	01.652 PUMP ASM; OIL	8-94459-730-1	01	1	9804-9812			●
1	01.652 PUMP ASM; OIL	8-97136-464-0	01	1	9804-0109				●
1	01.652 PUMP ASM; OIL	8-97136-463-0	01	1	0110-				●
1	01.652 PUMP ASM; OIL	8-90570-925-0	01	1	9804-0108					●
1	01.652 PUMP ASM; OIL	8-90570-925-0	01	1	0109-					●	●
7	01.657 BOLT; COVER,OIL PUMP	8-11085-861-0	05	1	9804-0108					●
7	01.657 BOLT; COVER,OIL PUMP	8-11085-861-0	05	1	0109-					●	●
17	01.657 SEAL; OIL,OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-94369-516-0	01	1	9804-9812			●
17	01.657 SEAL; OIL,OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-90183-572-0	01	1	9804-0108					●
17	01.657 SEAL; OIL,OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-90183-572-0	01	1	0109-					●	●
17	01.657 SEAL; OIL,OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-92061-013-0	01	1	9804-9805					●
17	01.657 SEAL; OIL,OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-11070-961-0	01	1	9806-0108					●
17	01.657 SEAL; OIL,OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-11070-961-0	01	1	0109-					●	●
25	01.609 PLUG; OIL PUMP	8-97063-612-0	01	1	9804-0305				●
25	01.609 PLUG; OIL PUMP	8-97063-612-0	02	1	0306-				●
25	01.609 PLUG; OIL PUMP	8-11039-122-0	01	1	9804-0108					●
25	01.609 PLUG; OIL PUMP	8-11039-122-0	01	1	0109-					●	●
29	01.652 BOLT; OIL PUMP 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9804-	●	●
29	01.652 BOLT; OIL PUMP 02.559 (A) M8X25 FLANGE	0-28680-825-0	05	1	9804-				●
29	01.652 BOLT; OIL PUMP 04.686 (B) M8X30 FLANGE	0-28680-830-0	01	1	9804-				●
29	01.652 BOLT; OIL PUMP	8-11084-961-0	06	1	9804-					●
29	01.652 BOLT; OIL PUMP	8-11084-962-0	06	1	0109-						●
50	01.531 GASKET; OIL PIPE,STRAINER TO PUM ALSO INCLUDED IN GASKET SET(ENGINE). W/PLATE ID=18.2	8-94329-964-0	01	1	9804-				●
50	01.531 GASKET; OIL PIPE,STRAINER TO PUM ALSO INCLUDED IN GASKET SET(ENGINE).	8-90190-637-0	01	1	9804-0108					●
50	01.531 GASKET; OIL PIPE,STRAINER TO PUM ALSO INCLUDED IN GASKET SET(ENGINE).	8-90190-637-0	01	1	0109-					●	●
51	01.519 STRAINER & PIPE ASM; OIL	8-94174-225-4	01	1	9804-9812			●
51	01.519 STRAINER & PIPE ASM; OIL	8-97149-340-0	01	1	9804-				●
51	01.519 STRAINER & PIPE ASM; OIL 4X2(TFB***)	8-92063-358-0	01	1	9804-0108					●
51	01.519 STRAINER & PIPE ASM; OIL 4X2(TFB***)	8-92063-358-0	01	1	0109-					●
51	01.519 STRAINER & PIPE ASM; OIL	8-92063-358-0	01	1	0109-						●
51	01.519 STRAINER & PIPE ASM; OIL 4X4(TFS***)	8-92063-844-0	01	1	9804-					●
57	01.531 BOLT; OIL PIPE 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9804-9812			●
57	01.531 BOLT; OIL PIPE (A) M6X35 FLANGE	0-28680-635-0	02	1	9804-				●
57	01.531 BOLT; OIL PIPE (B) M6X55 FLANGE	8-97027-257-0	01	1	9804-				●
57	01.531 BOLT; OIL PIPE (C)	8-11073-041-0	02	1	9804-9804					●
57	01.531 BOLT; OIL PIPE (C)	8-11073-043-0	02	1	9805-					●
57	01.531 BOLT; OIL PIPE (D)	8-11097-411-0	02	1	9804-0108					●
57	01.531 BOLT; OIL PIPE (D)	8-11097-411-0	02	1	0109-					●	●
57	01.531 BOLT; OIL PIPE (C)	8-92064-465-0	02	1	0109-						●
68	01.609 WASHER; RELIEF VLV	8-11093-042-0	01	1	9804-0108					●
68	01.609 WASHER; RELIEF VLV	8-11093-042-0	01	1	0109-					●	●
85	01.655 GASKET; OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-92060-519-0	01	1	9804-0108					●
85	01.655 GASKET; OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-92060-519-0	01	1	0109-					●	●
105	01.855 CONNECTOR; OIL FILTER	8-90144-360-0	01	1	9804-0108					●
105	01.855 CONNECTOR; OIL FILTER	8-90144-360-0	01	1	0109-					●	●
119	01.639 PLUG; RELIEF VLV	8-03448-834-0	01	1	9804-0108					●
119	01.639 PLUG; RELIEF VLV	8-03448-834-0	01	1	0109-					●	●
120	01.639 SPRING; RELIEF VLV	8-03448-847-0	01	1	9804-0108					●
120	01.639 SPRING; RELIEF VLV	8-03448-847-0	01	1	0109-					●	●
128	01.609 BALL; BYPASS VLV,OIL PUMP	8-11055-689-0	01	1	9804-0108					●
128	01.609 BALL; BYPASS VLV,OIL PUMP	8-11055-689-0	01	1	0109-					●	●
129	01.609 PLUNGER; RELIEF VLV	8-90530-592-0	01	1	9804-0108					●
129	01.609 PLUNGER; RELIEF VLV	8-90530-592-0	01	1	0109-					●	●
130	01.609 SLEEVE; OIL PUMP	8-90351-709-0	02	1	9804-0108					●
130	01.609 SLEEVE; OIL PUMP	8-90351-709-0	02	1	0109-					●	●
131	01.609 SPRING; BYPASS VLV,OIL PUMP 00.293	8-90136-113-0	01	1	9804-0108					●
131	01.609 SPRING; BYPASS VLV,OIL PUMP 00.293	8-90136-113-0	01	1	0109-					●	●
132	01.800 SWITCH; OIL PRESSURE	8-90336-039-0	01	1	9804-0108					●
132	01.800 SWITCH; OIL PRESSURE	8-90336-039-0	01	1	0109-					●	●

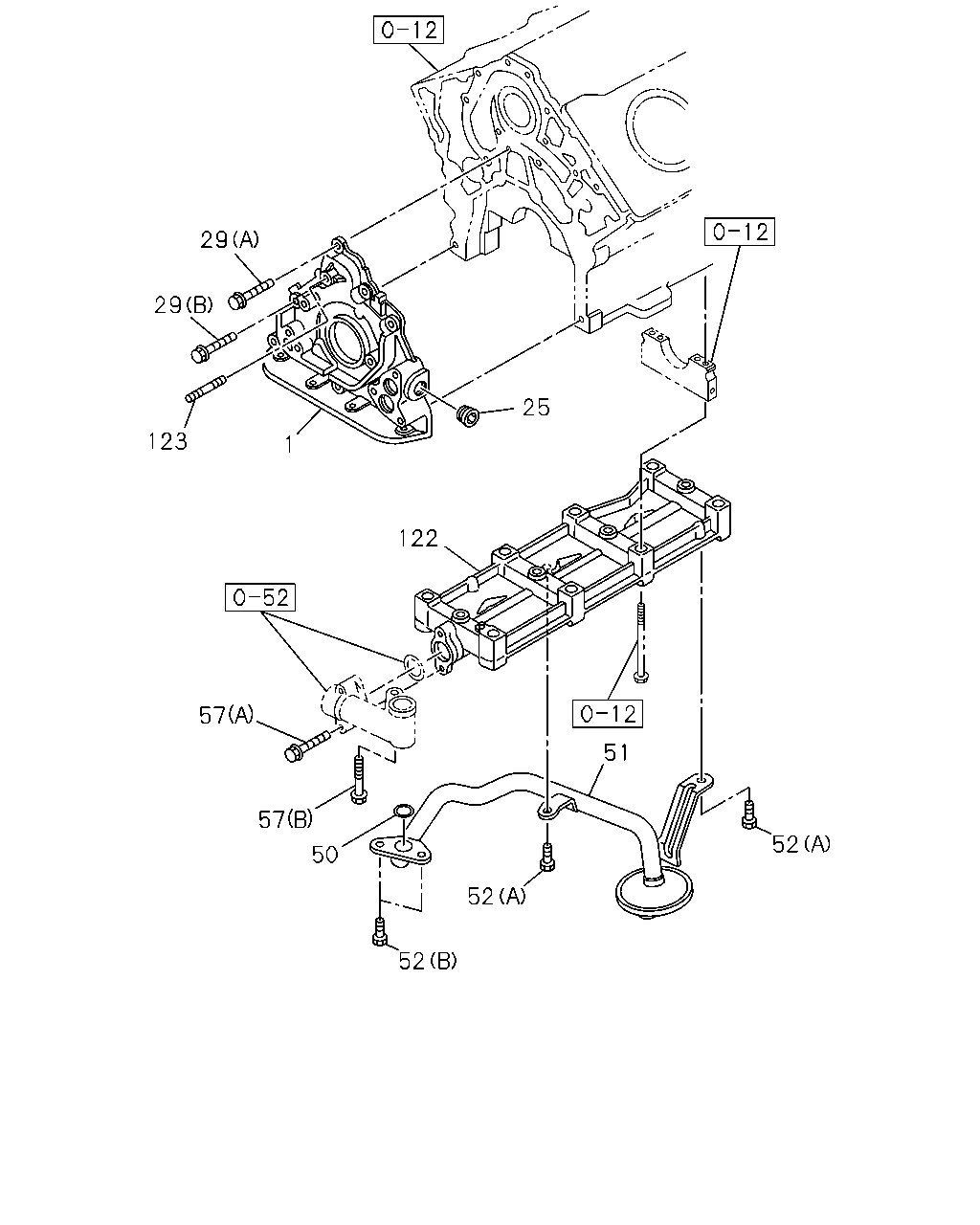

29 29 25 123 1 122 57 51 57 52 50 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.652 PUMP ASM; OIL	8-97069-738-3	01	1	9804-	●	●
1	01.652 PUMP ASM; OIL	8-94459-730-1	01	1	9804-9812			●
1	01.652 PUMP ASM; OIL	8-97136-464-0	01	1	9804-0109				●
1	01.652 PUMP ASM; OIL	8-97136-463-0	01	1	0110-				●
1	01.652 PUMP ASM; OIL	8-90570-925-0	01	1	9804-0108					●
1	01.652 PUMP ASM; OIL	8-90570-925-0	01	1	0109-					●	●
25	01.609 PLUG; OIL PUMP	8-97063-612-0	01	1	9804-0305				●
25	01.609 PLUG; OIL PUMP	8-97063-612-0	02	1	0306-				●
25	01.609 PLUG; OIL PUMP	8-11039-122-0	01	1	9804-0108					●
25	01.609 PLUG; OIL PUMP	8-11039-122-0	01	1	0109-					●	●
29	01.652 BOLT; OIL PUMP 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9804-	●	●
29	01.652 BOLT; OIL PUMP 02.559 (A) M8X25 FLANGE	0-28680-825-0	05	1	9804-				●
29	01.652 BOLT; OIL PUMP 04.686 (B) M8X30 FLANGE	0-28680-830-0	01	1	9804-				●
29	01.652 BOLT; OIL PUMP	8-11084-961-0	06	1	9804-					●
29	01.652 BOLT; OIL PUMP	8-11084-962-0	06	1	0109-						●
50	01.531 GASKET; OIL PIPE,STRAINER TO PUM ALSO INCLUDED IN GASKET SET(ENGINE). W/PLATE ID=18.2	8-94329-964-0	01	1	9804-				●
50	01.531 GASKET; OIL PIPE,STRAINER TO PUM ALSO INCLUDED IN GASKET SET(ENGINE).	8-90190-637-0	01	1	9804-0108					●
50	01.531 GASKET; OIL PIPE,STRAINER TO PUM ALSO INCLUDED IN GASKET SET(ENGINE).	8-90190-637-0	01	1	0109-					●	●
51	01.519 STRAINER & PIPE ASM; OIL	8-94174-225-4	01	1	9804-9812			●
51	01.519 STRAINER & PIPE ASM; OIL	8-97149-340-0	01	1	9804-				●
51	01.519 STRAINER & PIPE ASM; OIL 4X2(TFB***)	8-92063-358-0	01	1	9804-0108					●
51	01.519 STRAINER & PIPE ASM; OIL 4X2(TFB***)	8-92063-358-0	01	1	0109-					●
51	01.519 STRAINER & PIPE ASM; OIL	8-92063-358-0	01	1	0109-						●
51	01.519 STRAINER & PIPE ASM; OIL 4X4(TFS***)	8-92063-844-0	01	1	9804-					●
52	01.656 BOLT; OIL PIPE 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	9804-				●
52	01.656 BOLT; OIL PIPE 07.010 (B) M8X20 FLANGE	0-28080-820-0	02	1	9804-				●
57	01.531 BOLT; OIL PIPE 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9804-9812			●
57	01.531 BOLT; OIL PIPE (A) M6X35 FLANGE	0-28680-635-0	02	1	9804-				●
57	01.531 BOLT; OIL PIPE (B) M6X55 FLANGE	8-97027-257-0	01	1	9804-				●
57	01.531 BOLT; OIL PIPE (C)	8-11073-041-0	02	1	9804-9804					●
57	01.531 BOLT; OIL PIPE (C)	8-11073-043-0	02	1	9805-					●
57	01.531 BOLT; OIL PIPE (D)	8-11097-411-0	02	1	9804-0108					●
57	01.531 BOLT; OIL PIPE (D)	8-11097-411-0	02	1	0109-					●	●
57	01.531 BOLT; OIL PIPE (C)	8-92064-465-0	02	1	0109-						●
122	01.519 GALLERY; OIL	8-97131-865-0	01	1	9804-0008				●
122	01.519 GALLERY; OIL	8-97226-641-0	01	1	0009-				●
123	01.060 STUD; FAN BRKT 00.349 M8X65 L=81	9-04020-865-0	01	1	9804-				●
