2 |

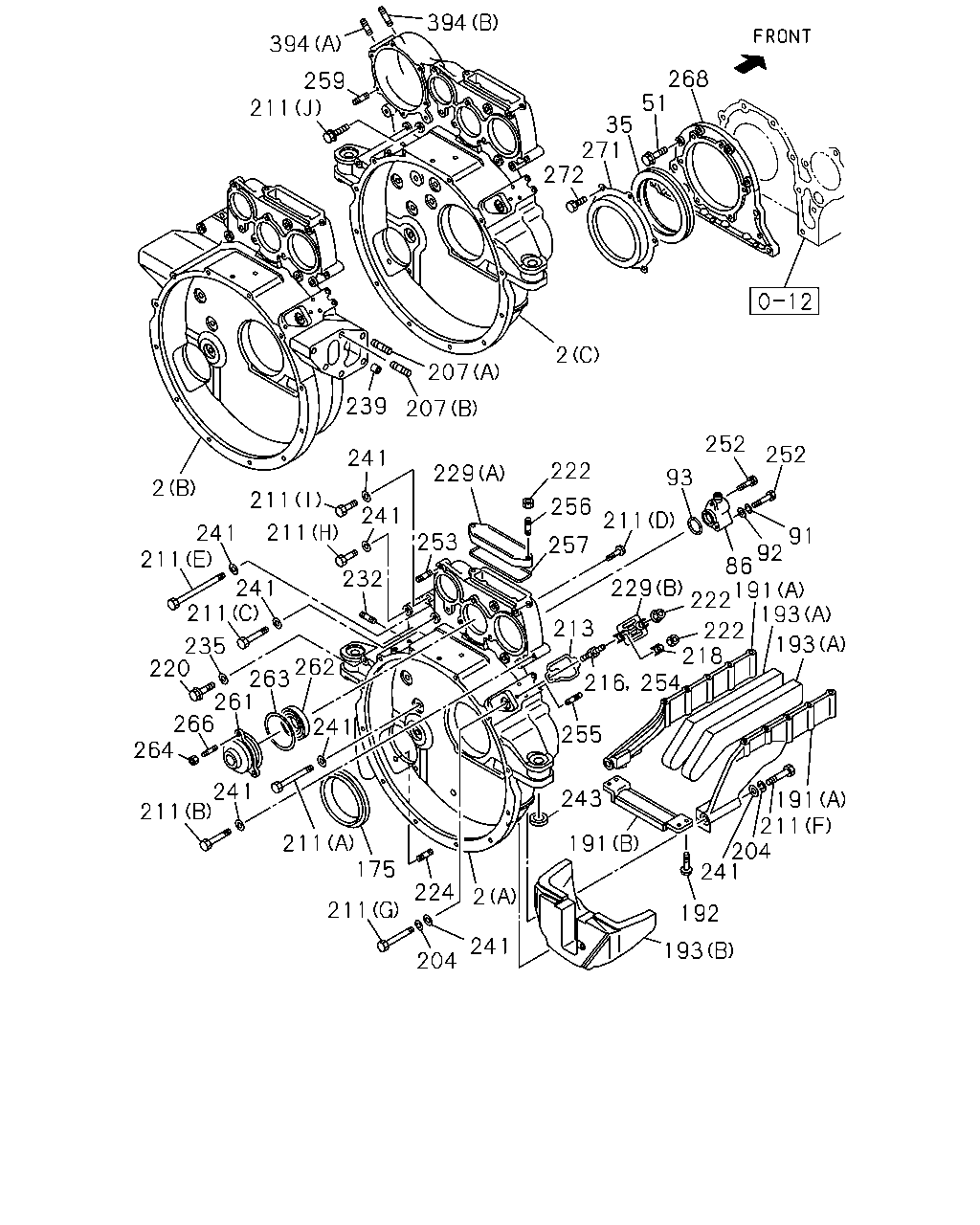

HOUSING; FLYWHEEL
FRAME ENG MTG SEPARATE TYPE<SGM>
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE REAR
PTO(SV1)
(B)
|
1-11341-452-4 |
01 |
1 |
9905-0008 |
● |
|
|
|
| |
2 |
HOUSING; FLYWHEEL
FRAME ENG MTG SEPARATE TYPE<SGM>
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE REAR
PTO(SV1)
(B)
|
1-11341-599-0 |
01 |
1 |
0009- |
● |
|
|
|
| |
2 |
HOUSING; FLYWHEEL
FRAME ENG MTG SEPARATE TYPE<SGM>
EXC. ENGINE REAR PTO(SV1)
(B)
|
1-11341-452-4 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
2 |
HOUSING; FLYWHEEL
EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,ENGINE
REAR PTO(SV1)
(A)
|
1-11341-450-4 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
2 |
HOUSING; FLYWHEEL
SHORT CHASSIS(CX***C)
ENGINE REAR PTO(SV1)
EXC. FRAME ENG MTG SEPARATE TYPE<SGM>
(C)
|
1-11341-453-3 |
01 |
1 |
9603-9705 |
● |
● |
|
|
| |
2 |
HOUSING; FLYWHEEL
SHORT CHASSIS(CX***C)
ENGINE REAR PTO(SV1)
(C)
|
1-11341-453-4 |
01 |
1 |
9706-9901 |
● |
● |
|
|
| |
2 |
HOUSING; FLYWHEEL
SHORT CHASSIS(CX***C)
ENGINE REAR PTO(SV1)
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),FRAME ENG
MTG SEPARATE TYPE<SGM>
(C)
|
1-11341-453-5 |
01 |
1 |
9905-0004 |
● |
● |
● |
|
| |
2 |
HOUSING; FLYWHEEL
SHORT CHASSIS(CX***C)
ENGINE REAR PTO(SV1)
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),FRAME ENG
MTG SEPARATE TYPE<SGM>
(C)
|
1-11341-619-0 |
01 |
1 |
0005-0007 |
● |
● |
● |
|
| |
2 |
HOUSING; FLYWHEEL
SHORT CHASSIS(CX***C)
ENGINE REAR PTO(SV1)
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),FRAME ENG
MTG SEPARATE TYPE<SGM>
(C)
|
1-11341-630-0 |
01 |
1 |
0008- |
● |
● |
● |
|
| |
2 |
HOUSING; FLYWHEEL
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),FRAME ENG
MTG SEPARATE TYPE<SGM>,ENGINE REAR PTO(SV1)
(A)
|
1-11341-450-4 |
01 |
1 |
9905-0005 |
● |
● |
● |
● |
| |
2 |
HOUSING; FLYWHEEL
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),FRAME ENG
MTG SEPARATE TYPE<SGM>,ENGINE REAR PTO(SV1)
(A)
|
1-11341-597-0 |
01 |
1 |
0006- |
● |
● |
● |
● |
| |
2 |
HOUSING; FLYWHEEL
AIR COMPRESSOR HEAVY DUTY(E1Q)
EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,ENGINE
REAR PTO(SV1)
(C)
|
1-11341-502-1 |
01 |
1 |
9905-0005 |
|
● |
● |
|
| |
2 |
HOUSING; FLYWHEEL
AIR COMPRESSOR HEAVY DUTY(E1Q)
EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,ENGINE
REAR PTO(SV1)
(A)
|
1-11341-603-0 |
01 |
1 |
0006- |
|
● |
● |
|
| |
35 |
SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-09625-524-2 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
35 |
SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-09625-524-2 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
51 |
BOLT; GEAR CASE COVER
M8X28 FLANGE
|
0-28080-828-0 |
08 |
1 |
9603-9901 |
● |
● |
|
|
| |
51 |
BOLT; GEAR CASE COVER
M8X28 FLANGE
|
0-28080-828-0 |
08 |
1 |
9905- |
● |
● |
● |
● |
| |
86 |
ELBOW; TACHOMETER DRIVE
|
1-85860-033-2 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
86 |
ELBOW; TACHOMETER DRIVE
|
1-85860-033-2 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
91 |
WASHER; LK,ELBOW
ID=8.2
|
9-09150-508-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
91 |
WASHER; LK,ELBOW
ID=8.2
|
9-09150-508-0 |
01 |
1 |
9905-9905 |
● |
● |
● |
● |
| |
92 |
WASHER; PL,ELBOW
ID=8.4
|
9-09160-508-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
92 |
WASHER; PL,ELBOW
ID=8.4
|
9-09160-508-0 |
01 |
1 |
9905-9905 |
● |
● |
● |
● |
| |
93 |
GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=35.7
|
1-09623-416-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
93 |
GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=35.7
|
1-09623-416-0 |
01 |
1 |
9905-9909 |
● |
● |
● |
● |
| |
93 |
GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=35.7
|
1-09623-416-0 |
01 |
1 |
9910- |
● |
● |
● |
● |
| |
175 |
SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE).
OD=153 ID=111 T=15
|
1-09625-525-2 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
175 |
SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE).
OD=153 ID=111 T=15
|
1-09625-525-2 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
191 |
STAY; FLYWHEEL HSG
(A)
|
1-11349-167-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
191 |
STAY; FLYWHEEL HSG
(A)
|
1-11349-168-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
191 |
STAY; FLYWHEEL HSG
ENGINE REAR PTO(SV1)
(B)
|
1-11349-169-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
191 |
STAY; FLYWHEEL HSG
ENGINE REAR PTO(SV1)
(B)
|
1-11349-169-0 |
01 |
1 |
9905- |
● |
● |
● |
|
| |
191 |
STAY; FLYWHEEL HSG
(A)
|
1-11349-167-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
191 |
STAY; FLYWHEEL HSG
(A)
|
1-11349-168-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
192 |
BOLT; STAY TO HSG
ENGINE REAR PTO(SV1)
M10X30 FLANGE
|
0-28181-030-0 |
04 |
1 |
9603-9901 |
● |
● |
|
|
| |
192 |
BOLT; STAY TO HSG
ENGINE REAR PTO(SV1)
M10X30 FLANGE
|
0-28181-030-0 |
04 |
1 |
9905- |
● |
● |
● |
|
| |
193 |
SPACER; STAY TO OIL,PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)
(B)
|
1-19389-172-0 |
01 |
1 |
9603-9702 |
● |
● |
|
|
| |
193 |
SPACER; STAY TO OIL,PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA
EQUIPMENT(YT2)
(B)
|
1-19389-172-0 |
01 |
1 |
9703-9901 |
● |
● |
|
|
| |
193 |
SPACER; STAY TO OIL,PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)
(A)
|
1-19389-178-0 |
02 |
1 |
9603-9702 |
● |
● |
|
|
| |
193 |
SPACER; STAY TO OIL,PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA
EQUIPMENT(YT2)
(A)
|
1-19389-178-0 |
02 |
1 |
9703-9901 |
● |
● |
|
|
| |
193 |
SPACER; STAY TO OIL,PAN
(B)
|
1-19389-172-0 |
01 |
1 |
9905-0001 |
● |
● |
● |
● |
| |
193 |
SPACER; STAY TO OIL,PAN
ANTI NOISE EQUIPMENT<SV9>
(B)
|
1-19389-172-0 |
01 |
1 |
0002- |
● |
● |
● |
● |
| |
193 |
SPACER; STAY TO OIL,PAN
(A)
|
1-19389-178-0 |
02 |
1 |
9905-0001 |
● |
● |
● |
● |
| |
193 |
SPACER; STAY TO OIL,PAN
ANTI NOISE EQUIPMENT<SV9>
(A)
|
1-19389-178-0 |
02 |
1 |
0002- |
● |
● |
● |
● |
| |
204 |
WASHER; LK,HSG
ID=10.2
|
9-09150-510-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
204 |
WASHER; LK,HSG
ID=14.2
|
9-09150-514-0 |
02 |
1 |
9603-9901 |
● |
● |
|
|
| |
204 |
WASHER; LK,HSG
ID=10.2
|
9-09150-510-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
204 |
WASHER; LK,HSG
ID=14.2
|
9-09150-514-0 |
02 |
1 |
9905- |
● |
● |
● |
● |
| |
207 |
STUD; ENG FOOT
FRAME ENG MTG SEPARATE TYPE<SGM>
EXC. ENGINE REAR PTO(SV1)
(B)
M18X60 L=96
|
9-04321-860-0 |
04 |
1 |
9603-9901 |
● |
● |
|
|
| |
207 |
STUD; ENG FOOT
ENGINE REAR PTO(SV1)
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)
(B)
M18X60 L=96
|
9-04321-860-0 |
04 |
1 |
9905-9909 |
● |
|
|
|
| |
207 |
STUD; ENG FOOT
ENGINE REAR PTO(SV1)
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)
(B)
M18X60 L=96
|
9-04321-860-0 |
04 |
1 |
9910- |
● |
|
|
|
| |
207 |
STUD; ENG FOOT
FRAME ENG MTG SEPARATE TYPE<SGM>
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE REAR
PTO(SV1)
(A)
M18X80 L=116
|
9-04321-880-0 |
02 |
1 |
9905- |
● |
|
|
|
| |
207 |
STUD; ENG FOOT
FRAME ENG MTG SEPARATE TYPE<SGM>
EXC. ENGINE REAR PTO(SV1)
(A)
M18X80 L=116
|
9-04321-880-0 |
02 |
1 |
9603-9901 |
● |
● |
|
|
| |
211 |
BOLT; HSG
(B)
M14X75
|
0-16806-475-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
211 |
BOLT; HSG
(C)
M14X95
|
0-16806-495-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
211 |
BOLT; HSG
(D)
M10X25 FLANGE
|
0-28181-025-0 |
02 |
1 |
9603-9901 |
● |
● |
|
|
| |
211 |
BOLT; HSG
(E)
M14X230
|
1-09020-003-1 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
211 |
BOLT; HSG
(F)
M14X155
|
1-09020-008-1 |
02 |
1 |
9603-9901 |
● |
● |
|
|
| |
211 |
BOLT; HSG
(G)
M10X115
|
9-09804-203-1 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
211 |
BOLT; HSG
ENGINE REAR PTO(SV1)
(J)
M10X22 FLANGE
|
0-28181-022-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
211 |
BOLT; HSG
ENGINE REAR PTO(SV1)
(A)
M14X125
|
9-09804-234-0 |
11 |
1 |
9603-9901 |
● |
● |
|
|
| |
211 |
BOLT; HSG
EXC. ENGINE REAR PTO(SV1)
(H)
M14X55
|
0-16806-455-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
211 |
BOLT; HSG
EXC. ENGINE REAR PTO(SV1)
(I)
M10X28 FLANGE
|
0-28181-028-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
211 |
BOLT; HSG
EXC. ENGINE REAR PTO(SV1)
(A)
M14X125
|
9-09804-234-0 |
09 |
1 |
9603-9901 |
● |
● |
|
|
| |
211 |
BOLT; HSG
ENGINE REAR PTO(SV1)
(J)
M10X22 FLANGE
|
0-28181-022-0 |
01 |
1 |
9905- |
● |
● |
● |
|
| |
211 |
BOLT; HSG
ENGINE REAR PTO(SV1)
(A)
M14X125
|
9-09804-234-0 |
11 |
1 |
9905- |
● |
● |
● |
|
| |
211 |
BOLT; HSG
(B)
M14X75
|
0-16806-475-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
211 |
BOLT; HSG
(C)
M14X95
|
0-16806-495-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
211 |
BOLT; HSG
(D)
M10X25 FLANGE
|
0-28181-025-0 |
02 |
1 |
9905- |
● |
● |
● |
● |
| |
211 |
BOLT; HSG
(E)
M14X230
|
1-09020-003-1 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
211 |
BOLT; HSG
(F)
M14X155
|
1-09020-008-1 |
02 |
1 |
9905- |
● |
● |
● |
● |
| |
211 |
BOLT; HSG
(G)
M10X115
|
9-09804-203-1 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
211 |
BOLT; HSG
EXC. ENGINE REAR PTO(SV1)
(H)
M14X55
|
0-16806-455-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
211 |
BOLT; HSG
EXC. ENGINE REAR PTO(SV1)
(I)
M10X28 FLANGE
|
0-28181-028-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
211 |
BOLT; HSG
EXC. ENGINE REAR PTO(SV1)
(A)
M14X125
|
9-09804-234-0 |
09 |
1 |
9905- |
● |
● |
● |
● |
| |
213 |
POINTER; FLYWHEEL HSG
FRAME ENG MTG SEPARATE TYPE<SGM>
|
1-11342-019-0 |
01 |
1 |
9905- |
● |
|
|
|
| |
213 |
POINTER; FLYWHEEL HSG
FRAME ENG MTG SEPARATE TYPE<SGM>
|
1-11342-019-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
213 |
POINTER; FLYWHEEL HSG
EXC. FRAME ENG MTG SEPARATE TYPE<SGM>
|
1-11342-010-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
213 |
POINTER; FLYWHEEL HSG
EXC. FRAME ENG MTG SEPARATE TYPE<SGM>
|
1-11342-010-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
216 |
STUD; COVER,TIMING CHECK HOLE
FRAME ENG MTG SEPARATE TYPE<SGM>
M8X14,M8X14 L=33
|
1-09300-058-1 |
02 |
1 |
9905- |
● |
|
|
|
| |
216 |
STUD; COVER,TIMING CHECK HOLE
FRAME ENG MTG SEPARATE TYPE<SGM>
M8X14,M8X14 L=33
|
1-09300-058-1 |
02 |
1 |
9603-9901 |
● |
● |
|
|
| |
218 |
WASHER; PL,COVER
|
1-11349-127-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
218 |
WASHER; PL,COVER
|
1-11349-127-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
220 |
PLUG; GEAR CHECK HOLE
EXC. FRAME ENG MTG SEPARATE TYPE<SGM>
|
1-09604-066-1 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
220 |
PLUG; GEAR CHECK HOLE
EXC. FRAME ENG MTG SEPARATE TYPE<SGM>
|
1-09604-066-1 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
222 |
NUT; COVER,TIMING CHECK HOLE
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9603-9901 |
● |
● |
|
|
| |
222 |
NUT; COVER,TIMING CHECK HOLE
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9905- |
● |
● |
● |
● |
| |
224 |
STUD; STARTER
M14X35 L=56
|
9-04411-435-0 |
03 |
1 |
9603-9901 |
● |
● |
|
|
| |
224 |
STUD; STARTER
M14X35 L=56
|
9-04411-435-0 |
03 |
1 |
9905-9909 |
● |
● |
● |
● |
| |
224 |
STUD; STARTER
M14X35 L=56
|
9-04411-435-0 |
03 |
1 |
9910- |
● |
● |
● |
● |
| |
229 |
COVER; TIMING CHECK HOLE
FRAME ENG MTG SEPARATE TYPE<SGM>
(B)
|
1-11349-143-0 |
01 |
1 |
9905- |
● |
|
|
|
| |
229 |
COVER; TIMING CHECK HOLE
(A)
|
1-11349-118-2 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
229 |
COVER; TIMING CHECK HOLE
FRAME ENG MTG SEPARATE TYPE<SGM>
(B)
|
1-11349-143-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
229 |
COVER; TIMING CHECK HOLE
EXC. FRAME ENG MTG SEPARATE TYPE<SGM>
(B)
|
1-11349-126-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
229 |
COVER; TIMING CHECK HOLE
(A)
|
1-11349-118-2 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
229 |
COVER; TIMING CHECK HOLE
EXC. FRAME ENG MTG SEPARATE TYPE<SGM>
(B)
|
1-11349-126-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
232 |
STUD; OIL FILTER
FRAME ENG MTG SEPARATE TYPE<SGM>
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE REAR
PTO(SV1)
M10X25 L=40
|
9-04411-025-0 |
01 |
1 |
9905- |
● |
|
|
|
| |
232 |
STUD; OIL FILTER
FRAME ENG MTG SEPARATE TYPE<SGM>
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE REAR
PTO(SV1)
M10X60 L=75
|
9-04411-060-0 |
01 |
1 |
9905- |
● |
|
|
|
| |
232 |
STUD; OIL FILTER
FRAME ENG MTG SEPARATE TYPE<SGM>
EXC. ENGINE REAR PTO(SV1)
M10X25 L=40
|
9-04411-025-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
232 |
STUD; OIL FILTER
FRAME ENG MTG SEPARATE TYPE<SGM>
EXC. ENGINE REAR PTO(SV1)
M10X60 L=75
|
9-04411-060-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
232 |
STUD; OIL FILTER
EXC. FRAME ENG MTG SEPARATE TYPE<SGM>
M10X25 L=40
|
9-04411-025-0 |
02 |
1 |
9603-9901 |
● |
● |
|
|
| |
232 |
STUD; OIL FILTER
EXC. FRAME ENG MTG SEPARATE TYPE<SGM>
M10X25 L=40
|
9-04411-025-0 |
02 |
1 |
9905- |
● |
● |
● |
● |
| |
235 |
GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE).
EXC. FRAME ENG MTG SEPARATE TYPE<SGM>
ID=12.2
|
1-09630-084-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
235 |
GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE).
EXC. FRAME ENG MTG SEPARATE TYPE<SGM>
ID=12.2
|
1-09630-084-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
239 |
PIN; KNOCK,HSG TO FOOT
FRAME ENG MTG SEPARATE TYPE<SGM>
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE REAR
PTO(SV1)
|
1-43249-001-0 |
04 |
1 |
9905- |
● |
|
|
|
| |
239 |
PIN; KNOCK,HSG TO FOOT
FRAME ENG MTG SEPARATE TYPE<SGM>
EXC. ENGINE REAR PTO(SV1)
|
1-43249-001-0 |
04 |
1 |
9603-9901 |
● |
● |
|
|
| |
241 |
WASHER; PL,HSG
ID=14 OD=30 T=6.0
|
1-09503-057-0 |
13 |
1 |
9603-9901 |
● |
● |
|
|
| |
241 |
WASHER; PL,HSG
ID=15
|
9-09160-514-0 |
02 |
1 |
9603-9901 |
● |
● |
|
|
| |
241 |
WASHER; PL,HSG
ENGINE REAR PTO(SV1)
ID=10.5 OD=18
|
9-09160-510-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
241 |
WASHER; PL,HSG
EXC. ENGINE REAR PTO(SV1)
ID=10.5 OD=18
|
9-09160-510-0 |
02 |
1 |
9603-9901 |
● |
● |
|
|
| |
241 |
WASHER; PL,HSG
ENGINE REAR PTO(SV1)
ID=10.5 OD=18
|
9-09160-510-0 |
01 |
1 |
9905- |
● |
● |
● |
|
| |
241 |
WASHER; PL,HSG
ID=14 OD=30 T=6.0
|
1-09503-057-0 |
13 |
1 |
9905- |
● |
● |
● |
● |
| |
241 |
WASHER; PL,HSG
ID=15
|
9-09160-514-0 |
02 |
1 |
9905- |
● |
● |
● |
● |
| |
241 |
WASHER; PL,HSG
EXC. ENGINE REAR PTO(SV1)
ID=10.5 OD=18
|
9-09160-510-0 |
02 |
1 |
9905- |
● |
● |
● |
● |
| |
243 |
SEAT; ENG FOOT
EXC. FRAME ENG MTG SEPARATE TYPE<SGM>
|
1-11349-016-1 |
02 |
1 |
9603-9901 |
● |
● |
|
|
| |
243 |
SEAT; ENG FOOT
EXC. FRAME ENG MTG SEPARATE TYPE<SGM>
|
1-11349-016-1 |
02 |
1 |
9905- |
● |
● |
● |
● |
| |
252 |
BOLT; GEAR BOX
M8X70
|
0-10805-870-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
252 |
BOLT; GEAR BOX
M8X22 W/LK&PL WASHER L=102
|
1-09009-129-1 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
252 |
BOLT; GEAR BOX
M8X70
|
0-10805-870-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
252 |
BOLT; GEAR BOX
M8X22 W/LK&PL WASHER L=102
|
1-09009-129-1 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
253 |
STUD; POWER STRG PUMP
M10X25 L=45
|
9-04311-025-0 |
02 |
1 |
9603-9901 |
● |
● |
|
|
| |
253 |
STUD; POWER STRG PUMP
M10X25 L=45
|
9-04311-025-0 |
02 |
1 |
9905- |
● |
● |
● |
● |
| |
254 |
STUD; POINTER & COVER
M8X14,M8X14 L=33
|
1-09300-058-1 |
02 |
1 |
9603-9901 |
● |
● |
|
|
| |
254 |
STUD; POINTER & COVER
M8X14,M8X14 L=33
|
1-09300-058-1 |
02 |
1 |
9905-9909 |
● |
● |
● |
● |
| |
254 |
STUD; POINTER & COVER
M8X14,M8X14 L=33
|
1-09300-058-1 |
02 |
1 |
9910- |
● |
● |
● |
● |
| |
255 |
STUD; RELAY LEVER BRKT
M8X16 L=28
|
9-04110-816-0 |
04 |
1 |
9603-9901 |
● |
● |
|
|
| |
255 |
STUD; RELAY LEVER BRKT
M8X16 L=28
|
9-04110-816-0 |
04 |
1 |
9905- |
● |
● |
● |
● |
| |
256 |
STUD; COVER
M8X35 L=47
|
9-04110-835-0 |
02 |
1 |
9603-9901 |
● |
● |
|
|
| |
256 |
STUD; COVER
M8X35 L=47
|
9-04110-835-0 |
02 |
1 |
9905- |
● |
● |
● |
● |
| |
257 |
GASKET; TIMING CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-11349-142-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
257 |
GASKET; TIMING CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-11349-142-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
259 |
STUD; PTO
SHORT CHASSIS(CX***C)
ENGINE REAR PTO(SV1)
M10X35 L=55
|
9-04311-035-0 |
06 |
1 |
9603-9901 |
● |
● |
|
|
| |
259 |
STUD; PTO
SHORT CHASSIS(CX***C)
ENGINE REAR PTO(SV1)
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),FRAME ENG
MTG SEPARATE TYPE<SGM>
M10X35 L=55
|
9-04311-035-0 |
06 |
1 |
9905- |
● |
● |
● |
|
| |
261 |
COVER; INJ PUMP COUPLING
|
1-11349-117-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
261 |
COVER; INJ PUMP COUPLING
|
1-11349-117-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
262 |
BEARING
|
1-09810-126-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
262 |
BEARING
|
1-09810-126-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
263 |
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-09623-422-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
263 |
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-09623-422-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
264 |
NUT; COVER
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
9603-9901 |
● |
● |
|
|
| |
264 |
NUT; COVER
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
9905- |
● |
● |
● |
● |
| |
266 |
STUD; COVER & TACHO BOX
M8X20 L=32
|
1-09305-005-0 |
03 |
1 |
9603-9901 |
● |
● |
|
|
| |
266 |
STUD; COVER & TACHO BOX
M8X20 L=32
|
1-09305-005-0 |
03 |
1 |
9905- |
● |
● |
● |
● |
| |
268 |
COVER; FRT
|
1-11320-056-1 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
268 |
COVER; FRT
|
1-11320-056-1 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
271 |
COVER; DUST
|
1-11329-004-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
271 |
COVER; DUST
|
1-11329-004-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
272 |
BOLT; DUST COVER
M8X10 FLANGE
|
0-28080-810-0 |
06 |
1 |
9603-9901 |
● |
● |
|
|
| |
272 |
BOLT; DUST COVER
M8X10 FLANGE
|
0-28080-810-0 |
06 |
1 |
9905- |
● |
● |
● |
● |
| |
394 |
STUD; SOLENOID VLV
SHORT CHASSIS(CX***C)
ENGINE REAR PTO(SV1)
(A)
M10X25 L=40
|
9-04411-025-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
394 |
STUD; SOLENOID VLV
SHORT CHASSIS(CX***C)
ENGINE REAR PTO(SV1)
(B)
M10X35 L=50
|
9-04411-035-0 |
01 |
1 |
9603-9901 |
● |
● |
|
|
| |
394 |
STUD; SOLENOID VLV
SHORT CHASSIS(CX***C)
ENGINE REAR PTO(SV1)
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),FRAME ENG
MTG SEPARATE TYPE<SGM>
(A)
M10X25 L=40
|
9-04411-025-0 |
01 |
1 |
9905- |
● |
● |
● |
|
| |
394 |
STUD; SOLENOID VLV
SHORT CHASSIS(CX***C)
ENGINE REAR PTO(SV1)
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),FRAME ENG
MTG SEPARATE TYPE<SGM>
(B)
M10X35 L=50
|
9-04411-035-0 |
01 |
1 |
9905- |
● |
● |
● |
|
