Sayfa 0-45 - Isuzu EPC

0-45 — EVAPORATOR SYSTEM; ENGINE (#41739) — 120 parça

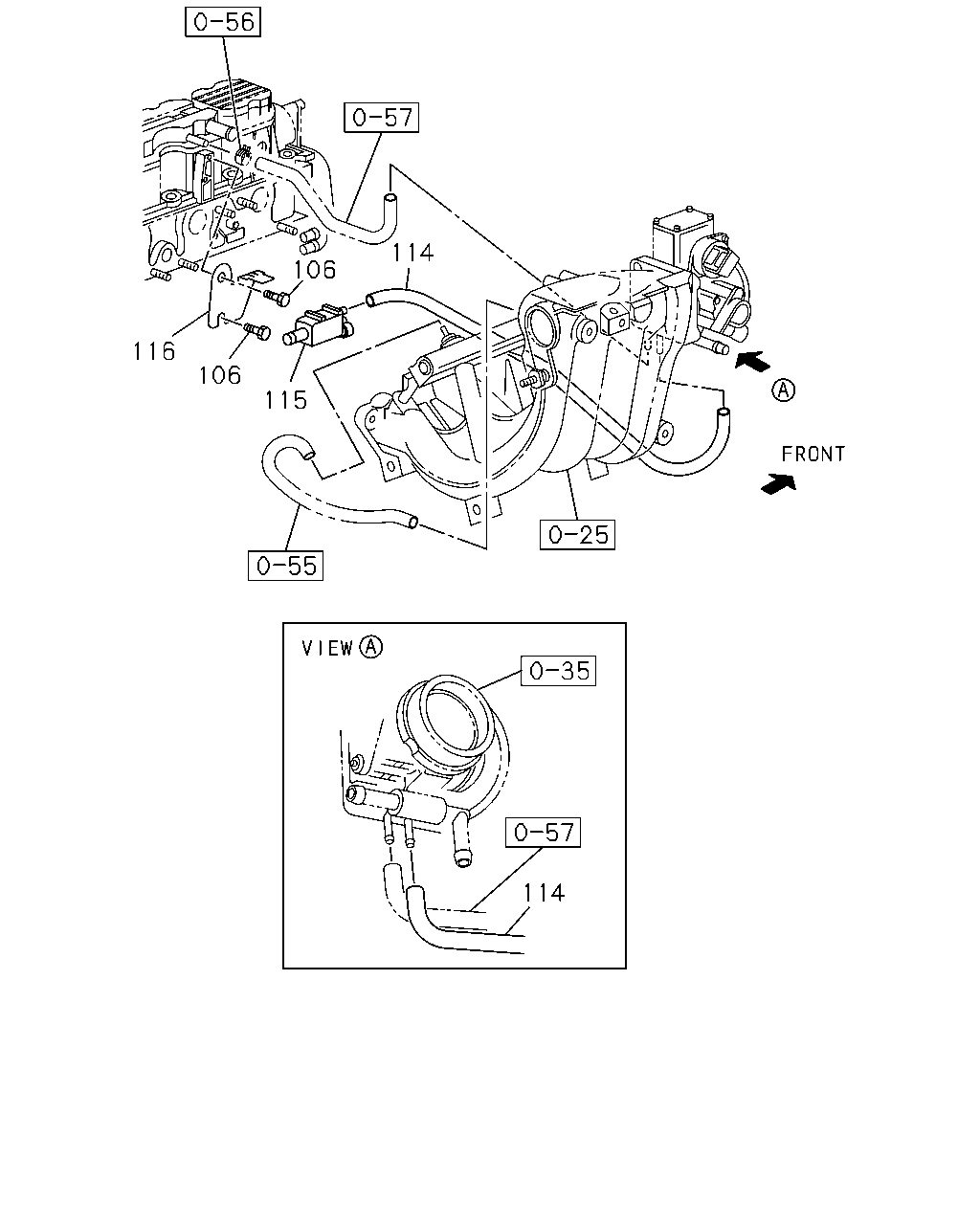

114 106 116 106 115 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
106	03.130 BOLT; BRKT 02.510	8-11093-971-0	02	1	9804-0108	●
106	03.130 BOLT; BRKT 02.510	8-11093-971-0	02	1	0109-	●	●
114	03.163 HOSE; VAPOUR VALVE	8-90467-459-0	01	1	9804-0108	●
114	03.163 HOSE; VAPOUR VALVE	8-90467-459-0	01	1	0109-	●	●
115	03.164 VALVE; VAPOUR	8-01997-210-0	01	1	9804-0108	●
115	03.164 VALVE; VAPOUR	8-01997-210-0	01	1	0109-	●	●
116	03.164 BRACKET; VAPOUR VLV	8-90466-271-0	01	1	9804-	●
116	03.164 BRACKET; VAPOUR VLV	8-92064-233-0	01	1	0109-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D
24	03.163 HOSE; RUBBER,SEDIMENTER TO FUEL EXC. ARGENTINA EQUIPMENT(7SZ)	8-94327-065-0	01	1	9804-9901	●	●
24	03.163 HOSE; RUBBER,SEDIMENTER TO FUEL EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ)	8-94327-065-0	01	1	9902-9908	●	●
24	03.163 HOSE; RUBBER,SEDIMENTER TO FUEL EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ)	8-97232-860-0	01	1	9909-	●	●

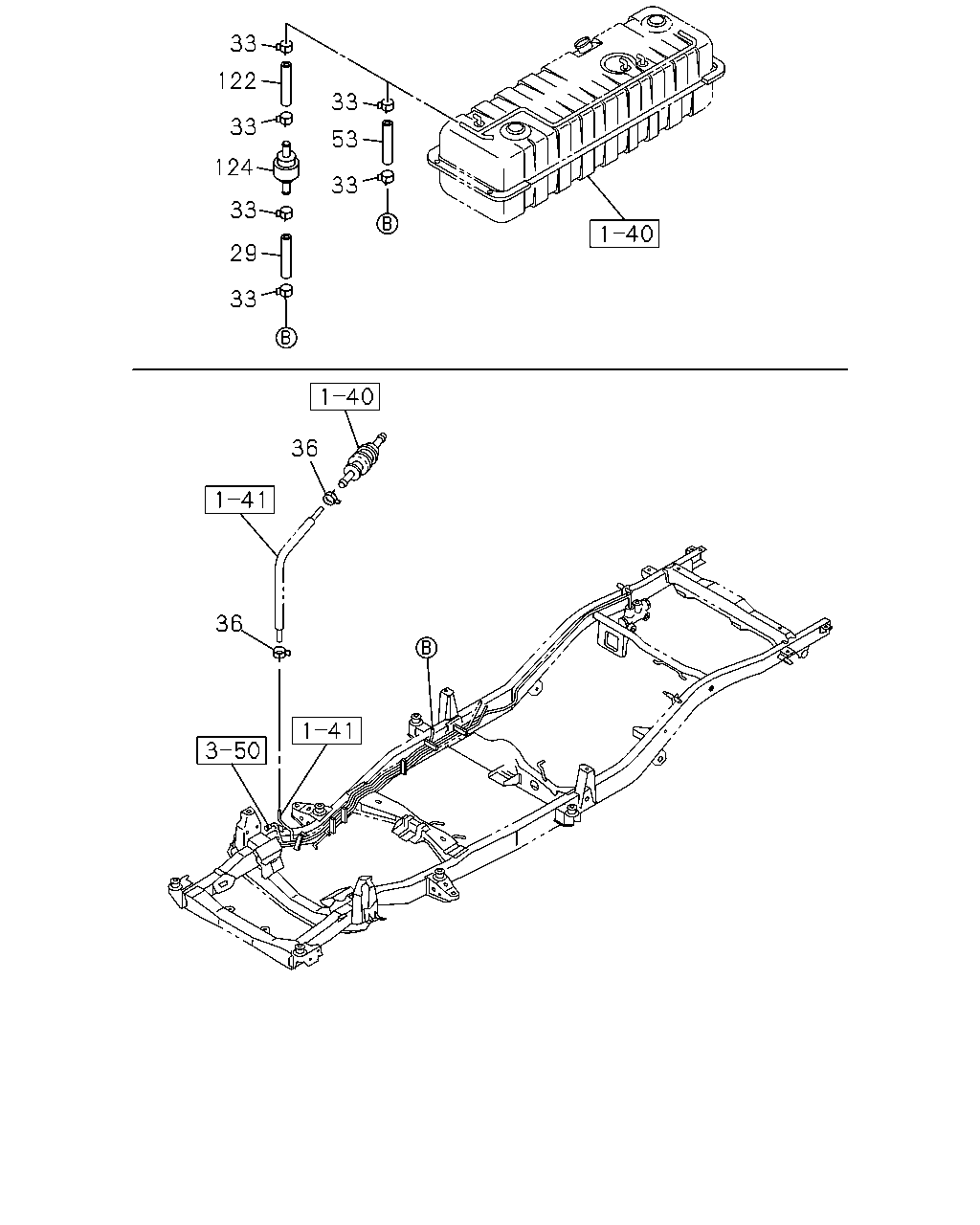

33 122 33 33 53 124 33 33 29 33 36 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	E	F
29	03.163 HOSE; EVAP,VLV TO PIPE SINGLE CAB LONG(TF**SF) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB) 08.962 L=170 SERVICED BY L=3000	0-04750-300-0	01	1	0212-			●
29	03.163 HOSE; EVAP,VLV TO PIPE CREW CAB(TF*W) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB) 08.962 L=80 SERVICED BY L=3000	0-04750-300-0	01	1	0212-			●
33	03.162 CLIP; EVAP HOSE 4X2 SINGLE CAB LONG(TFB*SF) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 03.163 ID=11	8-97173-219-0	04	1	0212-			●
33	03.162 CLIP; EVAP HOSE 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB) 03.163 ID=11	8-97173-219-0	04	1	0212-			●
33	03.162 CLIP; EVAP HOSE 03.163 ID=11	8-97173-219-0	02	1	9804-9812			●	●
33	03.162 CLIP; EVAP HOSE SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 03.163 ID=11	8-97173-219-0	02	1	9804-9812	●
33	03.162 CLIP; EVAP HOSE 03.163 ID=11	8-97173-219-0	02	1	9901-9904			●
33	03.162 CLIP; EVAP HOSE SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 03.163 ID=11	8-97173-219-0	02	1	9901-9904	●
33	03.162 CLIP; EVAP HOSE 03.163 ID=11	8-97173-219-0	02	1	9905-0012			●
33	03.162 CLIP; EVAP HOSE SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 ID=11	8-97173-219-0	02	1	9905-0012	●
33	03.162 CLIP; EVAP HOSE 03.163 ID=11	8-97173-219-0	02	1	0101-0108			●
33	03.162 CLIP; EVAP HOSE SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 ID=11	8-97173-219-0	02	1	0101-0108	●
33	03.162 CLIP; EVAP HOSE 03.163 ID=11	8-97173-219-0	02	1	0109-0211			●
33	03.162 CLIP; EVAP HOSE SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 ID=11	8-97173-219-0	02	1	0109-0211	●	●
33	03.162 CLIP; EVAP HOSE SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 ID=11	8-97173-219-0	02	1	0212-	●	●
36	03.162 CLIP; HOSE,CANISTER SINGLE CAB LONG(TF**SF) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 03.163 ID=11	8-97173-219-0	01	1	0212-			●
36	03.162 CLIP; HOSE,CANISTER CREW CAB(TF*W) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 ID=11	8-97173-219-0	01	1	0212-			●
36	03.162 CLIP; HOSE,CANISTER 03.163 ID=11	8-97173-219-0	02	1	9804-9812			●	●
36	03.162 CLIP; HOSE,CANISTER SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 03.163 ID=11	8-97173-219-0	02	1	9804-9812	●
36	03.162 CLIP; HOSE,CANISTER 03.163 ID=11	8-97173-219-0	02	1	9901-9904			●
36	03.162 CLIP; HOSE,CANISTER SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 03.163 ID=11	8-97173-219-0	02	1	9901-9904	●
36	03.162 CLIP; HOSE,CANISTER 03.163 ID=11	8-97173-219-0	02	1	9905-0012			●
36	03.162 CLIP; HOSE,CANISTER SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 ID=11	8-97173-219-0	02	1	9905-0012	●
36	03.162 CLIP; HOSE,CANISTER 03.163 ID=11	8-97173-219-0	02	1	0101-0108			●
36	03.162 CLIP; HOSE,CANISTER SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 ID=11	8-97173-219-0	02	1	0101-0108	●
36	03.162 CLIP; HOSE,CANISTER 03.163 ID=11	8-97173-219-0	02	1	0109-0211			●
36	03.162 CLIP; HOSE,CANISTER SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 ID=11	8-97173-219-0	02	1	0109-0211	●	●
36	03.162 CLIP; HOSE,CANISTER SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 ID=11	8-97173-219-0	02	1	0212-	●	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT 4X2 SINGLE CAB LONG(TFB*SF) 08.962 L=220 SERVICED BY L=3000	0-04750-300-0	01	1	9804-9812				●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.962 L=220 SERVICED BY L=3000	0-04750-300-0	01	1	9804-9812	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT 4X2 SINGLE CAB LONG(TFB*SF) 08.962 L=220 SERVICED BY L=3000	0-04750-300-0	01	1	9901-9904				●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.962 L=220 SERVICED BY L=3000	0-04750-300-0	01	1	9901-9904	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT SINGLE CAB LONG(TF**SF) 08.962 L=220 SERVICED BY L=3000	0-04750-300-0	01	1	9905-0108			●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA R ICA EQUIPMENT(7LD) 08.962 L=220 SERVICED BY L=3000	0-04750-300-0	01	1	9905-0108	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT SINGLE CAB LONG(TF**SF) 08.962 L=220 SERVICED BY L=3000	0-04750-300-0	01	1	0109-0212			●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA R ICA EQUIPMENT(7LD) 08.962 L=220 SERVICED BY L=3000	0-04750-300-0	01	1	0109-0212	●	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.962 L=220 SERVICED BY L=3000	0-04750-300-0	01	1	0301-	●	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT CREW CAB(TF*W) 08.962 L=330 SERVICED BY L=3000	0-04750-300-0	01	1	9804-9812			●	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT CREW CAB(TF*W) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 08.962 L=330 SERVICED BY L=3000	0-04750-300-0	01	1	9804-9812	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT CREW CAB(TF*W) 08.962 L=330 SERVICED BY L=3000	0-04750-300-0	01	1	9901-9904			●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT CREW CAB(TF*W) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 08.962 L=330 SERVICED BY L=3000	0-04750-300-0	01	1	9901-9904	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT CREW CAB(TF*W) 08.962 L=330 SERVICED BY L=3000	0-04750-300-0	01	1	9905-9909			●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT CREW CAB(TF*W) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.962 L=330 SERVICED BY L=3000	0-04750-300-0	01	1	9905-9909	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT CREW CAB(TF*W) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.962 L=330 SERVICED BY L=3000	0-04750-300-0	01	1	9910-0012	●		●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT CREW CAB(TF*W) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.962 L=330 SERVICED BY L=3000	0-04750-300-0	01	1	0101-0108	●		●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT CREW CAB(TF*W) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.962 L=330 SERVICED BY L=3000	0-04750-300-0	01	1	0109-0212	●	●	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT CREW CAB(TF*W) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.962 L=330 SERVICED BY L=3000	0-04750-300-0	01	1	0301-	●	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT SHORT(TF***C) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),GUATEMALA/COSTA RICA EQUIPM ENT(7LD) 08.962 L=350 SERVICED BY L=3000	0-04750-300-0	01	1	9804-9901	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT SHORT(TF***C) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) 08.962 L=350 SERVICED BY L=3000	0-04750-300-0	01	1	9902-	●
122	03.164 HOSE; EVAPO,TANK TO 2 WAY VLV SINGLE CAB LONG(TF**SF) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB) 08.962 L=60 SERVICED BY L=3000	0-04750-300-0	01	1	0212-			●
122	03.164 HOSE; EVAPO,TANK TO 2 WAY VLV CREW CAB(TF*W) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB) 08.962 L=250 SERVICED BY L=3000	0-04750-300-0	01	1	0212-			●
124	03.164 VALVE; 2 WAY,EVAP 4X2 SINGLE CAB LONG(TFB*SF) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 03.162	8-97178-373-0	01	1	0212-			●
124	03.164 VALVE; 2 WAY,EVAP 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB) 03.162	8-97178-373-0	01	1	0212-			●

33 53 33 64 17 64 64 36 44 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	E	F
17	03.163 HOSE; EVAP 08.962 L=290 SERVICED BY L=3000	0-04790-300-0	01	1	9804-9812				●
33	03.162 CLIP; EVAP HOSE 4X2 SINGLE CAB LONG(TFB*SF) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 03.163 ID=11	8-97173-219-0	04	1	0212-			●
33	03.162 CLIP; EVAP HOSE 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB) 03.163 ID=11	8-97173-219-0	04	1	0212-			●
33	03.162 CLIP; EVAP HOSE 03.163 ID=11	8-97173-219-0	02	1	9804-9812			●	●
33	03.162 CLIP; EVAP HOSE SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 03.163 ID=11	8-97173-219-0	02	1	9804-9812	●
33	03.162 CLIP; EVAP HOSE 03.163 ID=11	8-97173-219-0	02	1	9901-9904			●
33	03.162 CLIP; EVAP HOSE SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 03.163 ID=11	8-97173-219-0	02	1	9901-9904	●
33	03.162 CLIP; EVAP HOSE 03.163 ID=11	8-97173-219-0	02	1	9905-0012			●
33	03.162 CLIP; EVAP HOSE SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 ID=11	8-97173-219-0	02	1	9905-0012	●
33	03.162 CLIP; EVAP HOSE 03.163 ID=11	8-97173-219-0	02	1	0101-0108			●
33	03.162 CLIP; EVAP HOSE SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 ID=11	8-97173-219-0	02	1	0101-0108	●
33	03.162 CLIP; EVAP HOSE 03.163 ID=11	8-97173-219-0	02	1	0109-0211			●
33	03.162 CLIP; EVAP HOSE SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 ID=11	8-97173-219-0	02	1	0109-0211	●	●
33	03.162 CLIP; EVAP HOSE SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 ID=11	8-97173-219-0	02	1	0212-	●	●
36	03.162 CLIP; HOSE,CANISTER SINGLE CAB LONG(TF**SF) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 03.163 ID=11	8-97173-219-0	01	1	0212-			●
36	03.162 CLIP; HOSE,CANISTER CREW CAB(TF*W) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 ID=11	8-97173-219-0	01	1	0212-			●
36	03.162 CLIP; HOSE,CANISTER 03.163 ID=11	8-97173-219-0	02	1	9804-9812			●	●
36	03.162 CLIP; HOSE,CANISTER SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 03.163 ID=11	8-97173-219-0	02	1	9804-9812	●
36	03.162 CLIP; HOSE,CANISTER 03.163 ID=11	8-97173-219-0	02	1	9901-9904			●
36	03.162 CLIP; HOSE,CANISTER SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 03.163 ID=11	8-97173-219-0	02	1	9901-9904	●
36	03.162 CLIP; HOSE,CANISTER 03.163 ID=11	8-97173-219-0	02	1	9905-0012			●
36	03.162 CLIP; HOSE,CANISTER SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 ID=11	8-97173-219-0	02	1	9905-0012	●
36	03.162 CLIP; HOSE,CANISTER 03.163 ID=11	8-97173-219-0	02	1	0101-0108			●
36	03.162 CLIP; HOSE,CANISTER SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 ID=11	8-97173-219-0	02	1	0101-0108	●
36	03.162 CLIP; HOSE,CANISTER 03.163 ID=11	8-97173-219-0	02	1	0109-0211			●
36	03.162 CLIP; HOSE,CANISTER SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 ID=11	8-97173-219-0	02	1	0109-0211	●	●
36	03.162 CLIP; HOSE,CANISTER SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.163 ID=11	8-97173-219-0	02	1	0212-	●	●
44	03.163 HOSE; CANISTER L=240	8-97087-679-0	01	1	9804-9812				●
44	03.163 HOSE; CANISTER SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) L=240	8-97087-679-0	01	1	9804-9812	●
44	03.163 HOSE; CANISTER SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) L=240	8-97087-679-0	01	1	9901-9904	●
44	03.163 HOSE; CANISTER SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) L=240	8-97087-679-0	01	1	9905-0012	●
44	03.163 HOSE; CANISTER SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) L=240	8-97087-679-0	01	1	0101-0108	●
44	03.163 HOSE; CANISTER SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) L=240	8-97087-679-0	01	1	0109-	●	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT 4X2 SINGLE CAB LONG(TFB*SF) 08.962 L=220 SERVICED BY L=3000	0-04750-300-0	01	1	9804-9812				●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.962 L=220 SERVICED BY L=3000	0-04750-300-0	01	1	9804-9812	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT 4X2 SINGLE CAB LONG(TFB*SF) 08.962 L=220 SERVICED BY L=3000	0-04750-300-0	01	1	9901-9904				●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.962 L=220 SERVICED BY L=3000	0-04750-300-0	01	1	9901-9904	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT SINGLE CAB LONG(TF**SF) 08.962 L=220 SERVICED BY L=3000	0-04750-300-0	01	1	9905-0108			●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA R ICA EQUIPMENT(7LD) 08.962 L=220 SERVICED BY L=3000	0-04750-300-0	01	1	9905-0108	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT SINGLE CAB LONG(TF**SF) 08.962 L=220 SERVICED BY L=3000	0-04750-300-0	01	1	0109-0212			●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA R ICA EQUIPMENT(7LD) 08.962 L=220 SERVICED BY L=3000	0-04750-300-0	01	1	0109-0212	●	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.962 L=220 SERVICED BY L=3000	0-04750-300-0	01	1	0301-	●	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT CREW CAB(TF*W) 08.962 L=330 SERVICED BY L=3000	0-04750-300-0	01	1	9804-9812			●	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT CREW CAB(TF*W) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 08.962 L=330 SERVICED BY L=3000	0-04750-300-0	01	1	9804-9812	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT CREW CAB(TF*W) 08.962 L=330 SERVICED BY L=3000	0-04750-300-0	01	1	9901-9904			●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT CREW CAB(TF*W) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,CHILE EQUIPMENT(6KB), GUATEMALA/COSTARICA EQUIPMENT(7LD) 08.962 L=330 SERVICED BY L=3000	0-04750-300-0	01	1	9901-9904	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT CREW CAB(TF*W) 08.962 L=330 SERVICED BY L=3000	0-04750-300-0	01	1	9905-9909			●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT CREW CAB(TF*W) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.962 L=330 SERVICED BY L=3000	0-04750-300-0	01	1	9905-9909	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT CREW CAB(TF*W) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.962 L=330 SERVICED BY L=3000	0-04750-300-0	01	1	9910-0012	●		●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT CREW CAB(TF*W) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.962 L=330 SERVICED BY L=3000	0-04750-300-0	01	1	0101-0108	●		●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT CREW CAB(TF*W) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.962 L=330 SERVICED BY L=3000	0-04750-300-0	01	1	0109-0212	●	●	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT CREW CAB(TF*W) SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ,EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.962 L=330 SERVICED BY L=3000	0-04750-300-0	01	1	0301-	●	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT SHORT(TF***C) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),GUATEMALA/COSTA RICA EQUIPM ENT(7LD) 08.962 L=350 SERVICED BY L=3000	0-04750-300-0	01	1	9804-9901	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT SHORT(TF***C) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) 08.962 L=350 SERVICED BY L=3000	0-04750-300-0	01	1	9902-	●
64	03.120 CLIP; EVAP HOSE 03.162 (B) ID=13.2 & 7.5	8-94315-426-0	01	1	9804-9812				●
64	03.120 CLIP; EVAP HOSE 03.162 (A) ID=14	8-97173-221-0	02	1	9804-9812				●
