◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50801 - TFR/TFS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-42 - FUEL PUMP AND PIPE ▶
0-42 — FUEL PUMP AND PIPE (#41738) — 14 parça

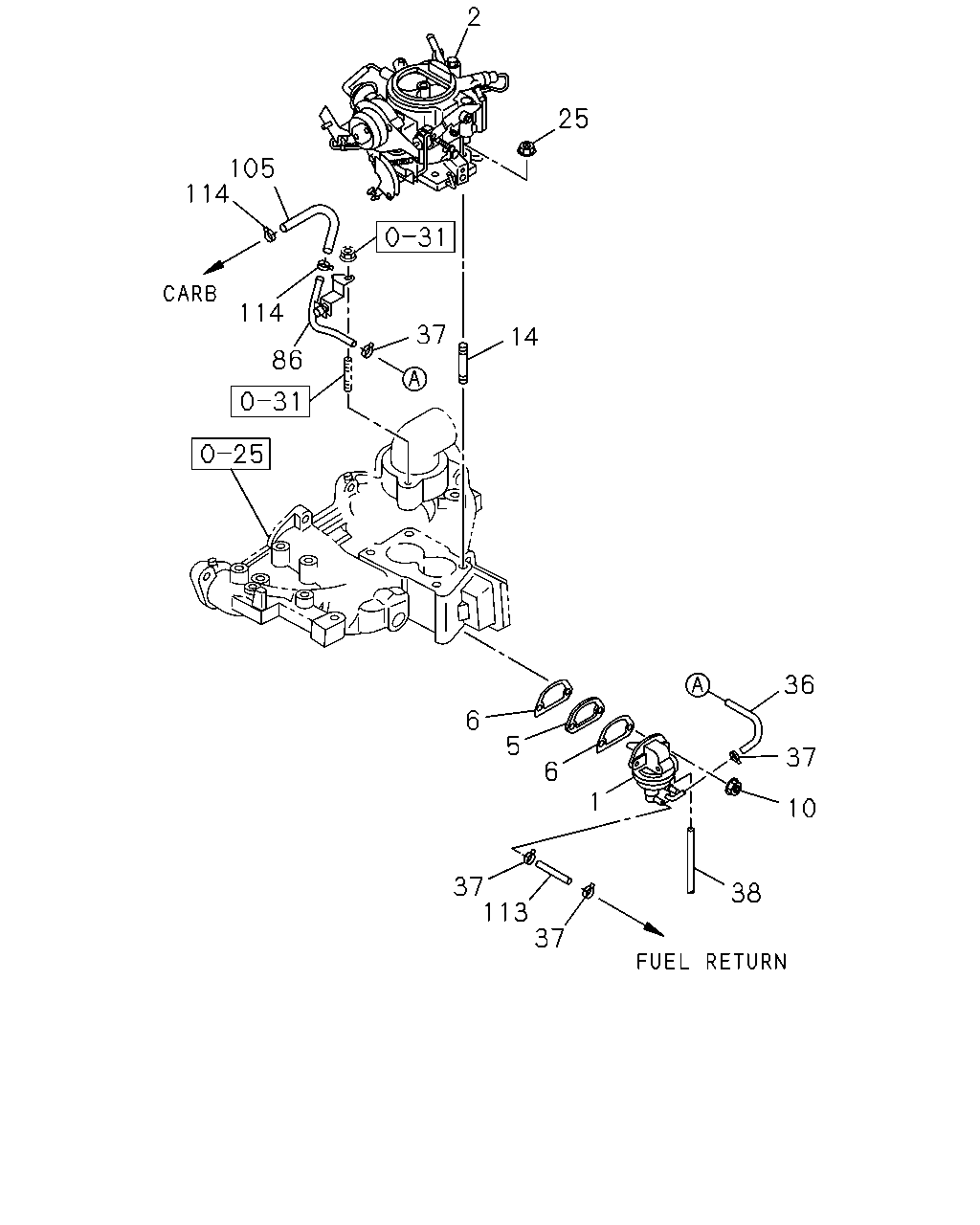

çizim 73717
2 25 105 14 114 37 14 86 36 6 5 37 6 1 10 37 113 37 38
BalonParca AdiParca NoAdetTipApplied Date
1 03.900 PUMP ASM; FUEL 8-94438-533-0 01 1 9804-9812
2 03.725 CARBURETOR ASM
SEE FIG-NO 0-70 FOR COMPONENT. 		8-97171-296-0 01 1 9804-9812
5 03.901 INSULATOR; HEAT,FUEL PUMP
03.843 		8-94146-258-0 01 1 9804-9812
6 03.904 GASKET; FUEL PUMP 8-94324-196-0 02 1 9804-9812
10 03.901 NUT; FUEL PUMP
00.854 M8 FLANGE 		5-09440-005-0 02 1 9804-9812
14 03.278 STUD; CARB TO INL MANIF
03.275 M8X27 L=39 		8-94202-304-0 04 1 9804-9812
25 03.275 NUT; CARB TO INL MANIF
00.777 M8 W/LK WASHER 		8-94279-050-0 04 1 9804-9812
36 03.163 HOSE; FUEL PUMP TO CARB
08.962 L=110 SERVICED BY L=3000 		0-01258-300-0 01 1 9804-9812
37 03.162 CLIP; FUEL HOSE
01.166 ID=14 		8-94238-572-0 04 1 9804-9812
38 03.163 HOSE; RUBBER,FUEL DRAIN,FUEL PUM
08.962 L=180 SERVICED BY L=3000 		0-04750-300-0 01 1 9804-9812
86 03.163 PIPE; FUEL,PUMP TO CARBURETOR 8-94328-844-0 01 1 9804-9812
105 03.726 HOSE; RUBBER,FUEL PIPE TO CARBUR
L=160 		8-94362-089-0 01 1 9804-9812
113 03.163 HOSE; FUEL,FUEL PUMP TO DAMPER
08.962 L=60 SERVICED BY L=3000 		0-01258-300-0 01 1 9804-9812
114 01.166 CLIP; FUEL HOSE,DAMPER
ID=14 		8-94238-572-0 02 1 9804-9812
