◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50801 - TFR/TFS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#41737) — 39 parça

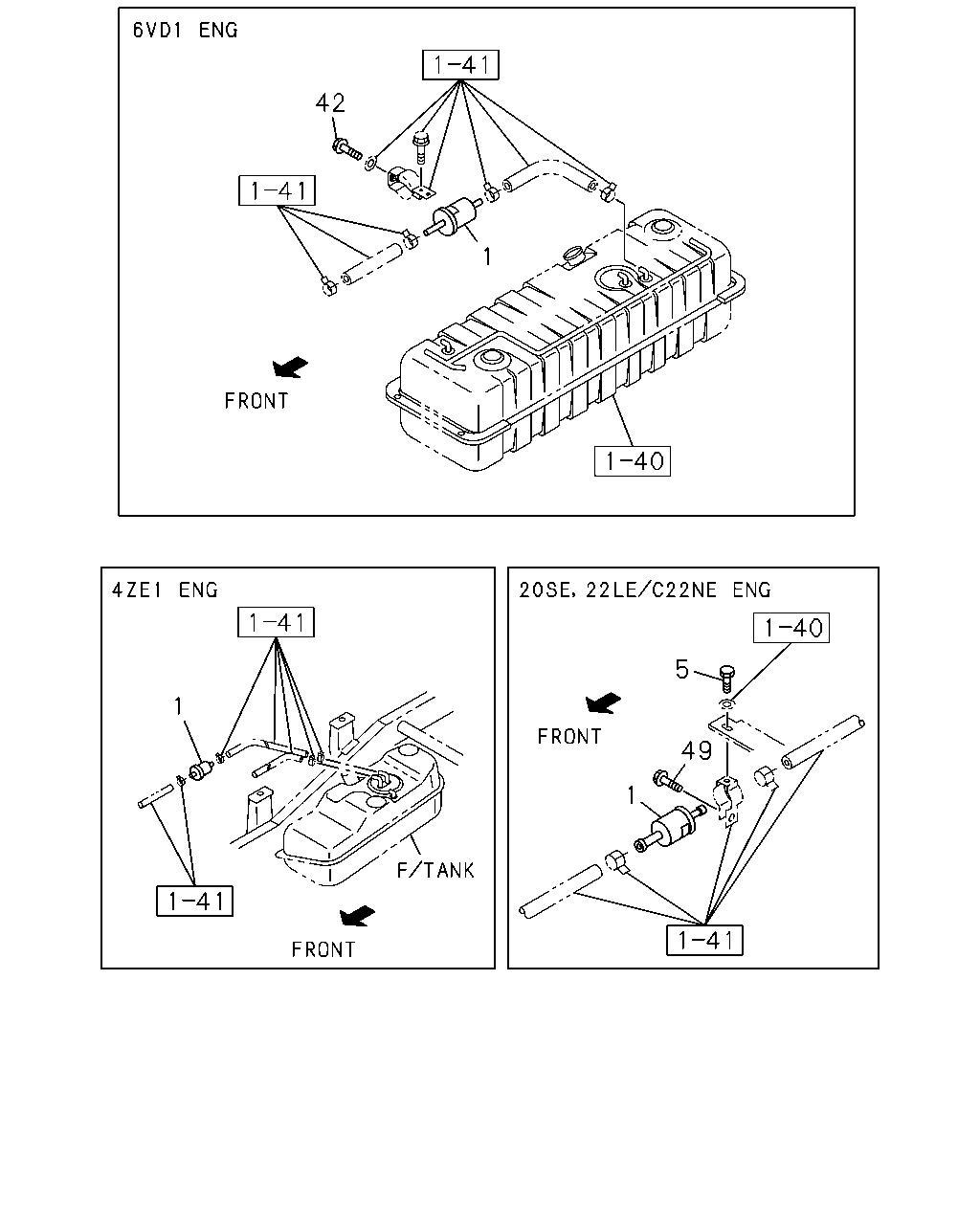

çizim 17805
42 1 5 1 49 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.890 FILTER ASM; FUEL
ARGENTINA EQUIPMENT(7SZ) 		8-97038-184-1 01 1 9804-9901 ● ●
1 03.890 FILTER ASM; FUEL
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-97038-184-1 01 1 9902- ● ●
1 03.890 FILTER ASM; FUEL
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-94420-201-0 01 1 9804-9901 ● ●
1 03.890 FILTER ASM; FUEL
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94420-201-0 01 1 9902- ● ●
1 03.890 FILTER ASM; FUEL 5-13200-066-1 01 1 9804-9812 ●
1 03.890 FILTER ASM; FUEL 8-25055-364-0 01 1 9804-0108 ● ●
1 03.890 FILTER ASM; FUEL 8-25055-364-0 01 1 0109- ● ● ●
5 03.890 BOLT; FUEL FILTER
ARGENTINA EQUIPMENT(7SZ) 		8-94132-674-0 01 1 9804-9901 ● ●
5 03.890 BOLT; FUEL FILTER
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-94132-674-0 01 1 9902- ● ●
5 03.890 BOLT; FUEL FILTER
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 9804-0108 ●
5 03.890 BOLT; FUEL FILTER
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0109- ● ●
42 03.890 BOLT; FUEL FILTER
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 9804- ●
49 03.890 BOLT; CLIP
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 9804-0108 ●
49 03.890 BOLT; CLIP
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0109- ● ●
çizim 73563
1 2 1 2 1 8 5 6 1 3 66 7 66 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.890 FILTER ASM; FUEL
ARGENTINA EQUIPMENT(7SZ) 		8-97038-184-1 01 1 9804-9901 ● ●
1 03.890 FILTER ASM; FUEL
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-97038-184-1 01 1 9902- ● ●
1 03.890 FILTER ASM; FUEL
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-94420-201-0 01 1 9804-9901 ● ●
1 03.890 FILTER ASM; FUEL
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94420-201-0 01 1 9902- ● ●
1 03.890 FILTER ASM; FUEL 5-13200-066-1 01 1 9804-9812 ●
1 03.890 FILTER ASM; FUEL 8-25055-364-0 01 1 9804-0108 ● ●
1 03.890 FILTER ASM; FUEL 8-25055-364-0 01 1 0109- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
ARGENTINA EQUIPMENT(7SZ) 		8-94369-299-3 01 1 9804-9901 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-94369-299-3 01 1 9902- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. ARGENTINA EQUIPMENT(7SZ) 01.836 		8-94144-613-0 01 1 9804-9901 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 01.836 		8-94144-613-0 01 1 9902- ● ●
3 03.890 SENSOR ASM; FUEL FILTER
ARGENTINA EQUIPMENT(7SZ) 		8-97064-712-1 01 1 9804-9901 ● ●
3 03.890 SENSOR ASM; FUEL FILTER
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-97064-712-1 01 1 9902- ● ●
5 03.890 BOLT; FUEL FILTER
ARGENTINA EQUIPMENT(7SZ) 		8-94132-674-0 01 1 9804-9901 ● ●
5 03.890 BOLT; FUEL FILTER
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-94132-674-0 01 1 9902- ● ●
5 03.890 BOLT; FUEL FILTER
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 9804-0108 ●
5 03.890 BOLT; FUEL FILTER
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0109- ● ●
6 03.890 GASKET; FUEL FILTER
ARGENTINA EQUIPMENT(7SZ) 		8-94132-675-0 01 1 9804-9901 ● ●
6 03.890 GASKET; FUEL FILTER
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-94132-675-0 01 1 9902- ● ●
7 03.890 PLUG; SENSOR,FUEL FILTER
ARGENTINA EQUIPMENT(7SZ) 		8-97123-549-0 01 1 9804-9901 ● ●
7 03.890 PLUG; SENSOR,FUEL FILTER
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-97123-549-0 01 1 9902- ● ●
8 03.890 COVER; FUEL FILTER
ARGENTINA EQUIPMENT(7SZ) 		8-94450-135-2 01 1 9804-9901 ● ●
8 03.890 COVER; FUEL FILTER
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-94450-135-2 01 1 9902- ● ●
66 03.890 GASKET; PLUG,FUEL FILTER
ARGENTINA EQUIPMENT(7SZ) 01.844 ID=6.8 		8-94167-886-0 01 1 9804-9901 ● ●
66 03.890 GASKET; PLUG,FUEL FILTER
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 01.844 ID=6.8 		8-94167-886-0 01 1 9902- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
