Isuzu WW
▶
PICKUP
▶
TFR
▶
50801 - TFR/TFS-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-35 - ENGINE CONTROL VALVE AND LEVER
▶
0-35 — ENGINE CONTROL VALVE AND LEVER
(#41733) — 26 parça
Tümü
A - 6VD1 ENG
B - 22LE/C22NE ENG
C - 20SE ENG
◀

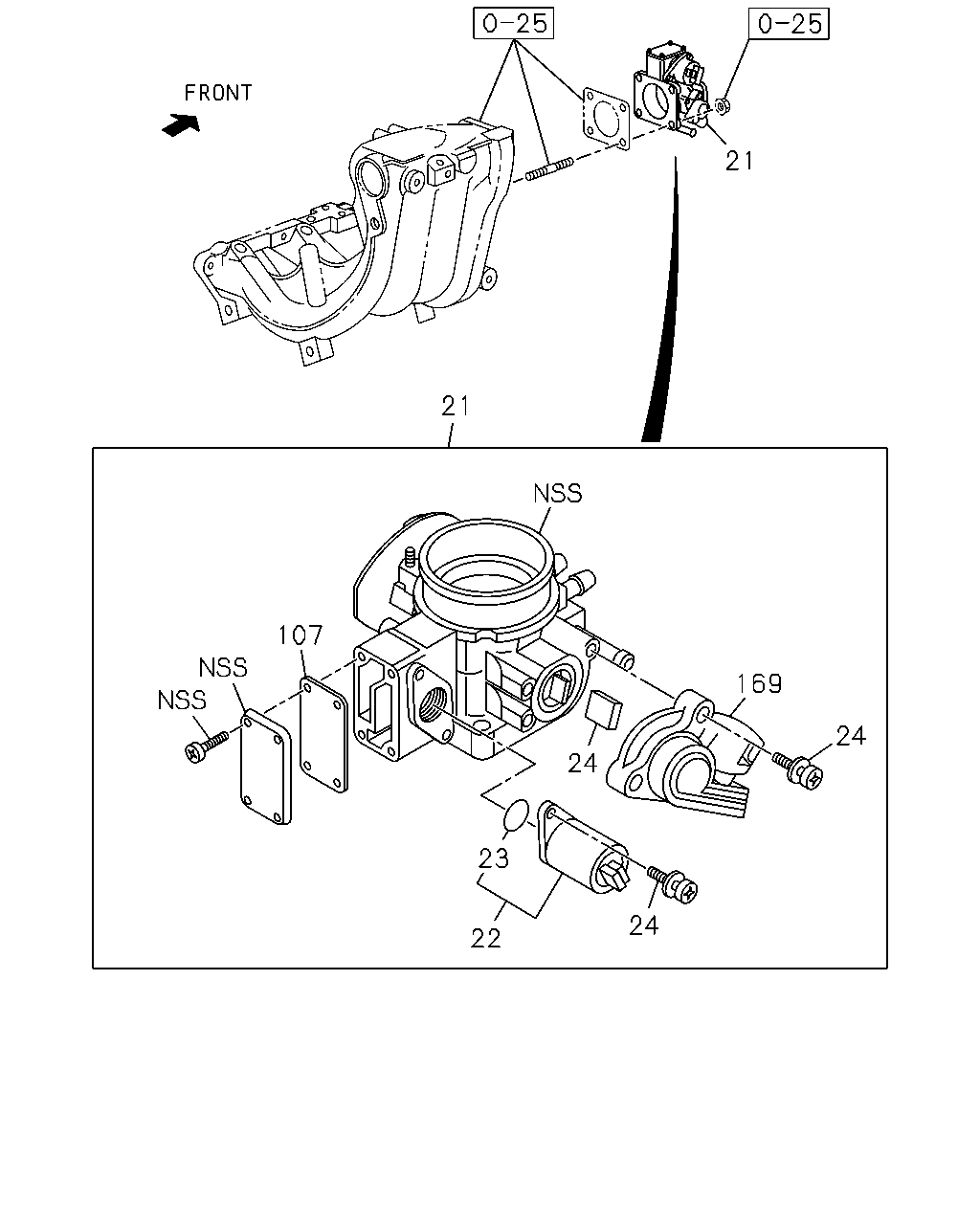

[035A] 6VD1 ENG (11 parça)

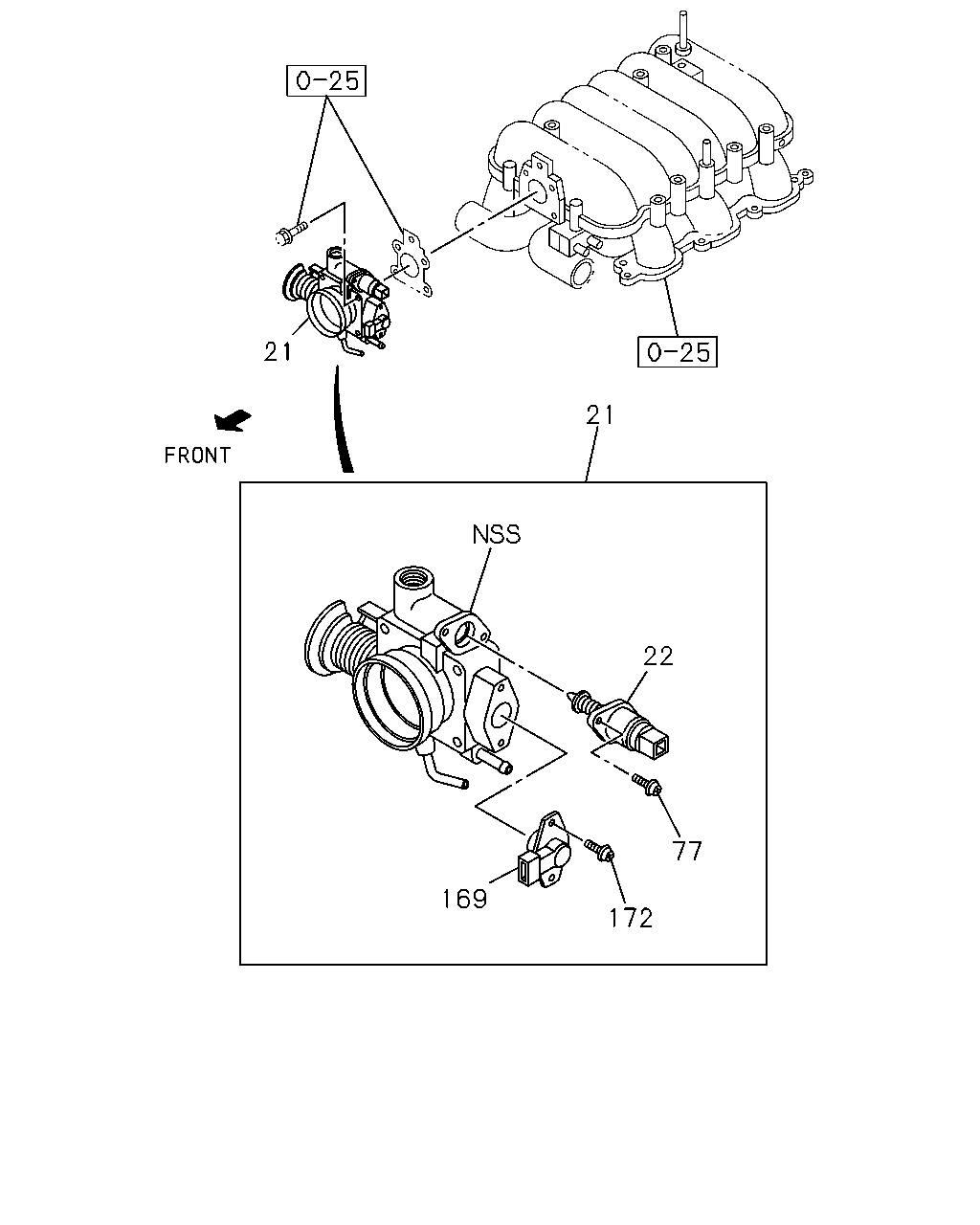

[035A] 20SE,22LE/C22NE ENG (15 parça)
▶
21
21
22
77
169
172
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
21
03.440 VALVE ASM; THROTTLE
8-97180-040-0
01
1
9804-
●
21
03.440 VALVE ASM; THROTTLE
8-92063-669-0
01
1
9804-0108
●
21
03.440 VALVE ASM; THROTTLE
8-92063-669-0
01
1
0109-
●
●
22
03.440 VALVE ASM; CONT,TB
8-97181-718-0
01
1
9804-
●
22
03.440 VALVE ASM; CONT,TB
8-92061-898-0
01
1
9804-0108
●
22
03.440 VALVE ASM; CONT,TB
8-92061-898-0
01
1
0109-
●
●
77
03.440 SCREW; TB
8-97181-716-0
02
1
9804-
●
169
03.440 SENSOR
8-97181-717-0
01
1
9804-
●
169
03.440 SENSOR
8-17106-681-0
01
1
9804-0108
●
169
03.440 SENSOR
8-17106-681-0
01
1
0109-
●
●
172
03.440 SCREW; SENSOR
8-97181-715-0
02
1
9804-
●
21
21
107
169
24
24
23
24
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
21
03.440 VALVE ASM; THROTTLE
8-97180-040-0
01
1
9804-
●
21
03.440 VALVE ASM; THROTTLE
8-92063-669-0
01
1
9804-0108
●
21
03.440 VALVE ASM; THROTTLE
8-92063-669-0
01
1
0109-
●
●
22
03.440 VALVE ASM; CONT,TB
8-97181-718-0
01
1
9804-
●
22
03.440 VALVE ASM; CONT,TB
8-92061-898-0
01
1
9804-0108
●
22
03.440 VALVE ASM; CONT,TB
8-92061-898-0
01
1
0109-
●
●
23
03.440 GASKET; AIR CONT VLV
8-17082-049-0
01
1
9804-0108
●
23
03.440 GASKET; AIR CONT VLV
8-17082-049-0
01
1
0109-
●
●
24
03.440 SCREW SET; TB
8-92140-474-0
01
1
9804-0108
●
24
03.440 SCREW SET; TB
8-92140-474-0
01
1
0109-
●
●
107
03.440 GASKET; COVER TO THROTTLE BODY
8-97208-387-0
01
1
9804-0108
●
107
03.440 GASKET; COVER TO THROTTLE BODY
8-97208-387-0
01
1
0109-
●
●
169
03.440 SENSOR
8-97181-717-0
01
1
9804-
●
169
03.440 SENSOR
8-17106-681-0
01
1
9804-0108
●
169
03.440 SENSOR
8-17106-681-0
01
1
0109-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
