0-33 — FAN AND FAN BELT (#41732) — 234 parça
çizim 69940
80 96 73 77 1 110 36 8 18 14 230
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.064 FAN; COOLING
OD=390 		8-94175-331-0 01 1 9804- ●
1 01.064 FAN; COOLING
TURBOCHARGER<K51> OD=410 		8-94103-469-0 01 1 9804-9810 ●
1 01.064 FAN; COOLING
TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2) OD=410 		8-94103-469-0 01 1 9811- ●
1 01.064 FAN; COOLING
EXC. TURBOCHARGER<K51> OD=390 		8-94239-651-0 01 1 9804-9812 ●
1 01.064 FAN; COOLING
AIR CONDITIONER MANUAL CONT(C60) OD=410 		8-94454-187-0 01 1 9804-9812 ●
1 01.064 FAN; COOLING
OD=410 		8-94454-187-0 01 1 9804-9812 ●
1 01.064 FAN; COOLING
OD=410 		8-94454-187-0 01 1 9901-0108 ●
1 01.064 FAN; COOLING
OD=410 		8-94454-187-0 01 1 0109- ● ●
1 01.064 FAN; COOLING
EXC. AIR CONDITIONER MANUAL CONT(C60) OD=410 		8-94436-150-0 01 1 9804-9812 ●
8 01.064 CLUTCH; COOLING FAN 8-94311-257-0 01 1 9804- ●
8 01.064 CLUTCH; COOLING FAN 8-94244-409-0 01 1 9804-9810 ●
8 01.064 CLUTCH; COOLING FAN
TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94244-409-0 01 1 9811-9812 ●
8 01.064 CLUTCH; COOLING FAN
CHINA CHONGQING EQUIPMENT(R5B) 		8-94244-409-0 01 1 9811-9812 ●
8 01.064 CLUTCH; COOLING FAN
TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94244-409-0 01 1 9901- ●
8 01.064 CLUTCH; COOLING FAN
SAUDI ARABIA EQUIPMENT(EU2) 		8-97069-783-0 01 1 9811- ●
8 01.064 CLUTCH; COOLING FAN
AIR CONDITIONER MANUAL CONT(C60) 01.066 		8-94412-030-0 01 1 9804-9812 ●
8 01.064 CLUTCH; COOLING FAN
01.066 		8-94412-030-0 01 1 9804-9812 ●
8 01.064 CLUTCH; COOLING FAN
01.066 		8-94412-030-0 01 1 9901-0108 ●
8 01.064 CLUTCH; COOLING FAN
01.066 		8-94412-030-0 01 1 0109- ● ●
8 01.064 CLUTCH; COOLING FAN
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94311-252-0 01 1 9804-9812 ●
8 01.064 CLUTCH; COOLING FAN 8-97130-362-1 01 1 9804- ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 9804-9810 ● ●
14 01.062 NUT; FAN TO CLU
AIR CONDITIONER MANUAL CONT(C60) 00.413 M6 		9-09110-506-0 04 1 9804-9810 ●
14 01.062 NUT; FAN TO CLU
TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2) 00.413 M6 		9-09110-506-0 04 1 9811-9812 ●
14 01.062 NUT; FAN TO CLU
CHINA CHONGQING EQUIPMENT(R5B) 00.413 M6 		9-09110-506-0 04 1 9811-9812 ●
14 01.062 NUT; FAN TO CLU
AIR CONDITIONER MANUAL CONT(C60) 00.413 M6 		9-09110-506-0 04 1 9811-9812 ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 9811-9812 ●
14 01.062 NUT; FAN TO CLU
EXC. SAUDI ARABIA EQUIPMENT(EU2) 00.413 M6 		9-09110-506-0 04 1 9901-0108 ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 9901-0108 ●
14 01.062 NUT; FAN TO CLU
EXC. SAUDI ARABIA EQUIPMENT(EU2) 00.413 M6 		9-09110-506-0 04 1 0109- ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 0109- ● ●
14 01.062 NUT; FAN TO CLU
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94311-253-0 04 1 9804-9812 ●
18 01.062 WASHER; FAN TO CLU
00.206 ID=6.1 		9-09150-506-0 04 1 9804-9810 ● ●
18 01.062 WASHER; FAN TO CLU
AIR CONDITIONER MANUAL CONT(C60) 00.206 ID=6.1 		9-09150-506-0 04 1 9804-9810 ●
18 01.062 WASHER; FAN TO CLU
TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2) 00.206 ID=6.1 		9-09150-506-0 04 1 9811-9812 ●
18 01.062 WASHER; FAN TO CLU
CHINA CHONGQING EQUIPMENT(R5B) 00.206 ID=6.1 		9-09150-506-0 04 1 9811-9812 ●
18 01.062 WASHER; FAN TO CLU
AIR CONDITIONER MANUAL CONT(C60) 00.206 ID=6.1 		9-09150-506-0 04 1 9811-9812 ●
18 01.062 WASHER; FAN TO CLU
00.206 ID=6.1 		9-09150-506-0 04 1 9811-9812 ●
18 01.062 WASHER; FAN TO CLU
EXC. SAUDI ARABIA EQUIPMENT(EU2) 00.206 ID=6.1 		9-09150-506-0 04 1 9901-0108 ●
18 01.062 WASHER; FAN TO CLU
00.206 ID=6.1 		9-09150-506-0 04 1 9901-0108 ●
18 01.062 WASHER; FAN TO CLU
EXC. SAUDI ARABIA EQUIPMENT(EU2) 00.206 ID=6.1 		9-09150-506-0 04 1 0109- ●
18 01.062 WASHER; FAN TO CLU
00.206 ID=6.1 		9-09150-506-0 04 1 0109- ● ●
18 01.062 WASHER; FAN TO CLU
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94311-254-0 04 1 9804-9812 ●
36 01.066 BELT; COOLING FAN
L=1051 		8-94161-841-0 01 1 9804- ● ●
36 01.066 BELT; COOLING FAN
L=875 		8-97100-606-0 01 1 9804-9812 ●
36 01.066 BELT; COOLING FAN
L=1059 		8-92063-694-0 01 1 9804-0108 ●
36 01.066 BELT; COOLING FAN
L=1059 		8-92063-694-0 01 1 0109- ● ●
73 02.277 BOLT; GEN TO ADJ PLATE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9804-9812 ●
77 02.277 WASHER; PL,GEN TO ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9804-9812 ●
80 02.317 PLATE; ADJ
(B) 		8-97132-049-0 01 1 9804- ● ●
80 02.317 PLATE; ADJ
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) 		8-97132-048-0 01 1 9804- ● ●
80 02.317 PLATE; ADJ 8-97123-738-1 01 1 9804-9812 ●
96 02.317 BOLT; ADJ PLATE
01.540 M8X45 FLANGE 		0-28080-845-0 01 1 0202- ● ●
96 02.317 BOLT; ADJ PLATE
01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 9804-0201 ● ●
96 02.317 BOLT; ADJ PLATE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 9804-0201 ● ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 0202- ● ●
96 02.317 BOLT; ADJ PLATE
EXC. AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(YL1) 01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9804- ● ●
96 02.317 BOLT; ADJ PLATE
00.780 M8X30 W/LK WASHER 		0-50040-830-0 01 1 9804-9812 ●
110 01.064 SCREW; PULLEY
01.428 M8X20 L=32 		9-04110-820-0 04 1 9804-9812 ●
230 01.055 FAN; COOLING
01.604 		8-94311-258-0 01 1 9804- ●
230 01.055 FAN; COOLING
SAUDI ARABIA EQUIPMENT(EU2) 01.604 OD=450 8-BLADE 		8-97049-499-1 01 1 9811- ●
230 01.055 FAN; COOLING
TURBOCHARGER<K51> 01.064 OD=410 7-BLADE 		8-94117-866-0 01 1 9804-9810 ●
230 01.055 FAN; COOLING
TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.064 OD=410 7-BLADE 		8-94117-866-0 01 1 9811- ●
230 01.055 FAN; COOLING
EXC. TURBOCHARGER<K51> 01.064 		5-13660-300-0 01 1 9804-9812 ●
230 01.055 FAN; COOLING
AIR CONDITIONER MANUAL CONT(C60) 01.604 		8-94310-517-0 01 1 9804-9812 ●
230 01.055 FAN; COOLING
01.604 		8-94310-517-0 01 1 9804-9812 ●
230 01.055 FAN; COOLING
01.604 		8-94310-517-0 01 1 9901-0108 ●
230 01.055 FAN; COOLING
01.604 		8-94310-517-0 01 1 0109- ● ●
230 01.055 FAN; COOLING
EXC. AIR CONDITIONER MANUAL CONT(C60) 01.604 		8-94311-255-0 01 1 9804-9812 ●

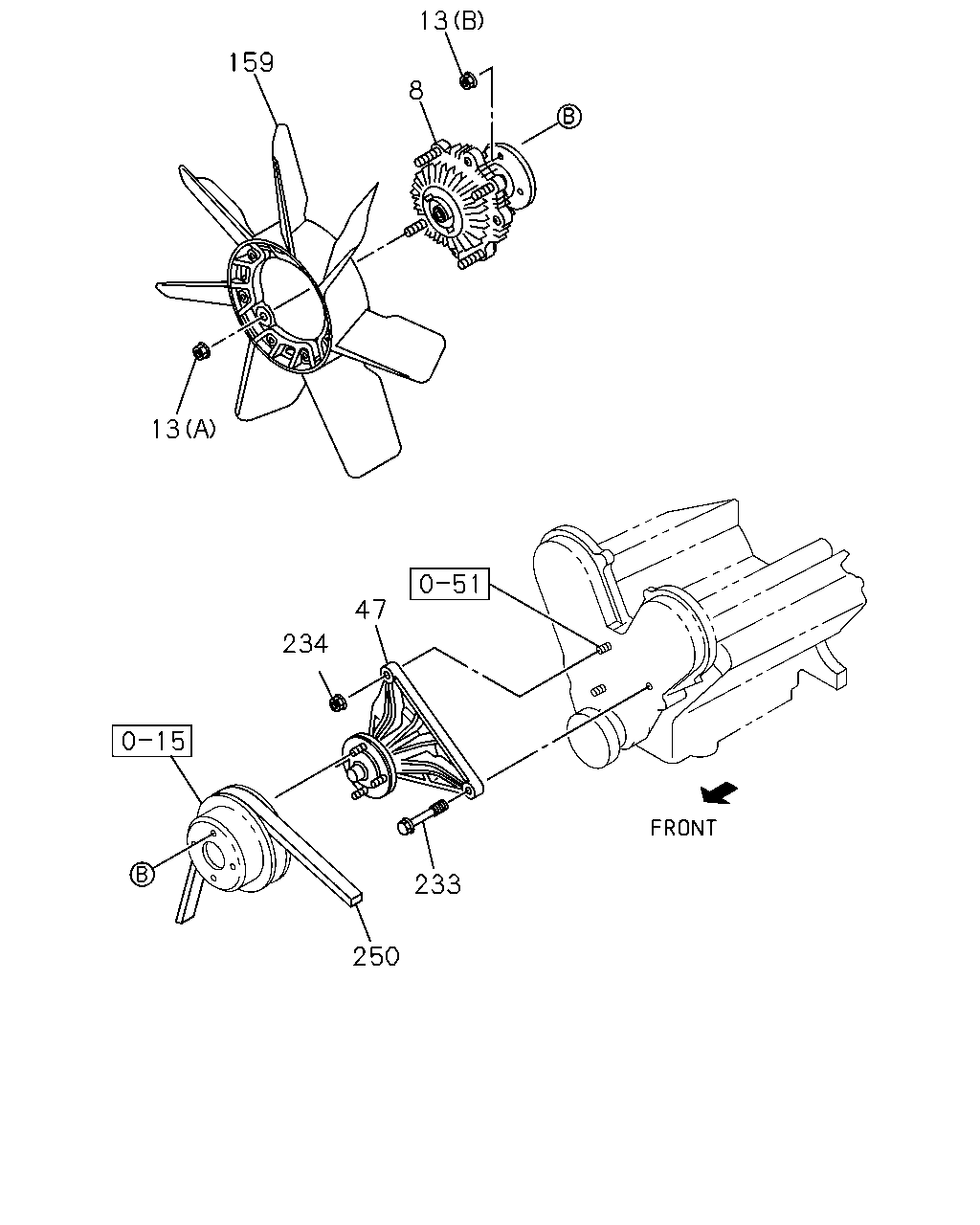

çizim 69941
13 159 8 13 47 234 233 250
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 01.064 CLUTCH; COOLING FAN 8-94311-257-0 01 1 9804- ●
8 01.064 CLUTCH; COOLING FAN 8-94244-409-0 01 1 9804-9810 ●
8 01.064 CLUTCH; COOLING FAN
TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94244-409-0 01 1 9811-9812 ●
8 01.064 CLUTCH; COOLING FAN
CHINA CHONGQING EQUIPMENT(R5B) 		8-94244-409-0 01 1 9811-9812 ●
8 01.064 CLUTCH; COOLING FAN
TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94244-409-0 01 1 9901- ●
8 01.064 CLUTCH; COOLING FAN
SAUDI ARABIA EQUIPMENT(EU2) 		8-97069-783-0 01 1 9811- ●
8 01.064 CLUTCH; COOLING FAN
AIR CONDITIONER MANUAL CONT(C60) 01.066 		8-94412-030-0 01 1 9804-9812 ●
8 01.064 CLUTCH; COOLING FAN
01.066 		8-94412-030-0 01 1 9804-9812 ●
8 01.064 CLUTCH; COOLING FAN
01.066 		8-94412-030-0 01 1 9901-0108 ●
8 01.064 CLUTCH; COOLING FAN
01.066 		8-94412-030-0 01 1 0109- ● ●
8 01.064 CLUTCH; COOLING FAN
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94311-252-0 01 1 9804-9812 ●
8 01.064 CLUTCH; COOLING FAN 8-97130-362-1 01 1 9804- ●
13 01.062 NUT; COOLING FAN
SAUDI ARABIA EQUIPMENT(EU2) 07.829 M6 FLANGE 		5-09440-004-0 04 1 9811- ●
13 01.062 NUT; COOLING FAN
04.594 (A) M6 FLANGE 		0-91150-106-0 04 1 9804- ●
13 01.062 NUT; COOLING FAN
07.633 (B) M8 FLANGE 		0-91150-108-0 04 1 9804- ●
47 01.060 BRACKET; FAN 8-97148-675-1 01 1 9804-9906 ●
47 01.060 BRACKET; FAN 8-97231-718-0 01 1 9907- ●
47 01.060 BRACKET; FAN 8-92064-194-0 01 1 9804-0108 ●
47 01.060 BRACKET; FAN 8-92064-194-0 01 1 0109- ● ●
159 01.064 BLADE; COOLING FAN 8-97130-757-1 01 1 9804- ●
233 01.060 BOLT; FAN BRKT
M8X98 FLANGE 		8-97182-861-0 02 1 9804- ●
233 01.060 BOLT; FAN BRKT 8-11082-931-0 03 1 9804- ●
233 01.060 BOLT; FAN BRKT 8-11082-931-0 03 1 0109- ●
234 01.060 NUT; FAN BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9804- ●
250 01.066 BELT; SERPENTINE DRIVE
AIR CONDITIONER MANUAL CONT(C60) L=2288 		8-97130-560-0 01 1 9804-9911 ●
250 01.066 BELT; SERPENTINE DRIVE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) L=2288 		8-97130-560-0 01 1 9912- ●
250 01.066 BELT; SERPENTINE DRIVE
EXC. AIR CONDITIONER MANUAL CONT(C60) L=2038 		8-97130-561-0 01 1 9804-9911 ●
250 01.066 BELT; SERPENTINE DRIVE
EXC. AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(YL1) L=2038 		8-97130-561-0 01 1 9912- ●

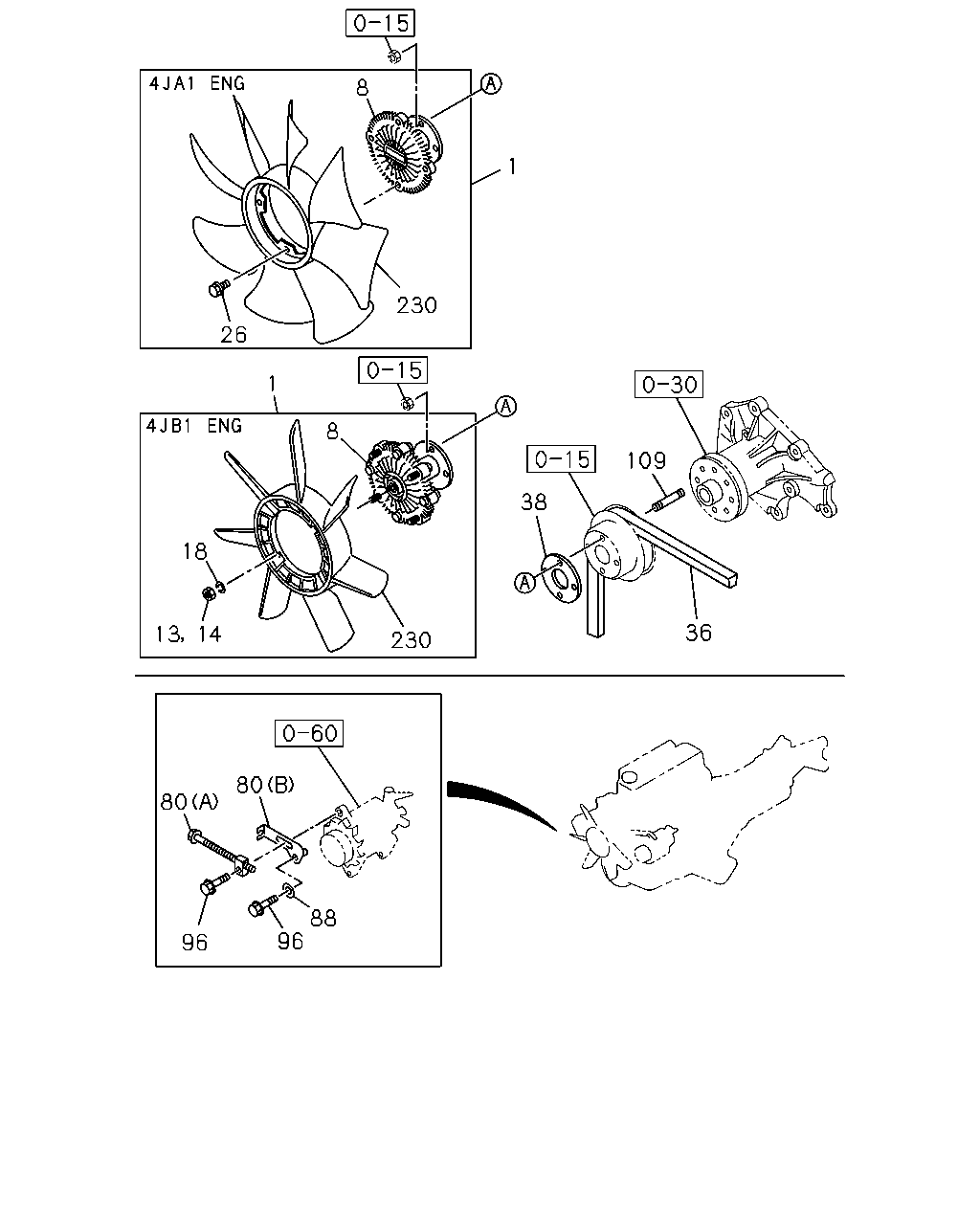

çizim 71824
8 1 230 26 1 8 109 38 18 36 13 14 230 80 80 88 96 96
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.064 FAN; COOLING
OD=390 		8-94175-331-0 01 1 9804- ●
1 01.064 FAN; COOLING
TURBOCHARGER<K51> OD=410 		8-94103-469-0 01 1 9804-9810 ●
1 01.064 FAN; COOLING
TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2) OD=410 		8-94103-469-0 01 1 9811- ●
1 01.064 FAN; COOLING
EXC. TURBOCHARGER<K51> OD=390 		8-94239-651-0 01 1 9804-9812 ●
1 01.064 FAN; COOLING
AIR CONDITIONER MANUAL CONT(C60) OD=410 		8-94454-187-0 01 1 9804-9812 ●
1 01.064 FAN; COOLING
OD=410 		8-94454-187-0 01 1 9804-9812 ●
1 01.064 FAN; COOLING
OD=410 		8-94454-187-0 01 1 9901-0108 ●
1 01.064 FAN; COOLING
OD=410 		8-94454-187-0 01 1 0109- ● ●
1 01.064 FAN; COOLING
EXC. AIR CONDITIONER MANUAL CONT(C60) OD=410 		8-94436-150-0 01 1 9804-9812 ●
8 01.064 CLUTCH; COOLING FAN 8-94311-257-0 01 1 9804- ●
8 01.064 CLUTCH; COOLING FAN 8-94244-409-0 01 1 9804-9810 ●
8 01.064 CLUTCH; COOLING FAN
TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94244-409-0 01 1 9811-9812 ●
8 01.064 CLUTCH; COOLING FAN
CHINA CHONGQING EQUIPMENT(R5B) 		8-94244-409-0 01 1 9811-9812 ●
8 01.064 CLUTCH; COOLING FAN
TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94244-409-0 01 1 9901- ●
8 01.064 CLUTCH; COOLING FAN
SAUDI ARABIA EQUIPMENT(EU2) 		8-97069-783-0 01 1 9811- ●
8 01.064 CLUTCH; COOLING FAN
AIR CONDITIONER MANUAL CONT(C60) 01.066 		8-94412-030-0 01 1 9804-9812 ●
8 01.064 CLUTCH; COOLING FAN
01.066 		8-94412-030-0 01 1 9804-9812 ●
8 01.064 CLUTCH; COOLING FAN
01.066 		8-94412-030-0 01 1 9901-0108 ●
8 01.064 CLUTCH; COOLING FAN
01.066 		8-94412-030-0 01 1 0109- ● ●
8 01.064 CLUTCH; COOLING FAN
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94311-252-0 01 1 9804-9812 ●
8 01.064 CLUTCH; COOLING FAN 8-97130-362-1 01 1 9804- ●
13 01.062 NUT; COOLING FAN
SAUDI ARABIA EQUIPMENT(EU2) 07.829 M6 FLANGE 		5-09440-004-0 04 1 9811- ●
13 01.062 NUT; COOLING FAN
04.594 (A) M6 FLANGE 		0-91150-106-0 04 1 9804- ●
13 01.062 NUT; COOLING FAN
07.633 (B) M8 FLANGE 		0-91150-108-0 04 1 9804- ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 9804-9810 ● ●
14 01.062 NUT; FAN TO CLU
AIR CONDITIONER MANUAL CONT(C60) 00.413 M6 		9-09110-506-0 04 1 9804-9810 ●
14 01.062 NUT; FAN TO CLU
TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2) 00.413 M6 		9-09110-506-0 04 1 9811-9812 ●
14 01.062 NUT; FAN TO CLU
CHINA CHONGQING EQUIPMENT(R5B) 00.413 M6 		9-09110-506-0 04 1 9811-9812 ●
14 01.062 NUT; FAN TO CLU
AIR CONDITIONER MANUAL CONT(C60) 00.413 M6 		9-09110-506-0 04 1 9811-9812 ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 9811-9812 ●
14 01.062 NUT; FAN TO CLU
EXC. SAUDI ARABIA EQUIPMENT(EU2) 00.413 M6 		9-09110-506-0 04 1 9901-0108 ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 9901-0108 ●
14 01.062 NUT; FAN TO CLU
EXC. SAUDI ARABIA EQUIPMENT(EU2) 00.413 M6 		9-09110-506-0 04 1 0109- ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 0109- ● ●
14 01.062 NUT; FAN TO CLU
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94311-253-0 04 1 9804-9812 ●
18 01.062 WASHER; FAN TO CLU
00.206 ID=6.1 		9-09150-506-0 04 1 9804-9810 ● ●
18 01.062 WASHER; FAN TO CLU
AIR CONDITIONER MANUAL CONT(C60) 00.206 ID=6.1 		9-09150-506-0 04 1 9804-9810 ●
18 01.062 WASHER; FAN TO CLU
TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2) 00.206 ID=6.1 		9-09150-506-0 04 1 9811-9812 ●
18 01.062 WASHER; FAN TO CLU
CHINA CHONGQING EQUIPMENT(R5B) 00.206 ID=6.1 		9-09150-506-0 04 1 9811-9812 ●
18 01.062 WASHER; FAN TO CLU
AIR CONDITIONER MANUAL CONT(C60) 00.206 ID=6.1 		9-09150-506-0 04 1 9811-9812 ●
18 01.062 WASHER; FAN TO CLU
00.206 ID=6.1 		9-09150-506-0 04 1 9811-9812 ●
18 01.062 WASHER; FAN TO CLU
EXC. SAUDI ARABIA EQUIPMENT(EU2) 00.206 ID=6.1 		9-09150-506-0 04 1 9901-0108 ●
18 01.062 WASHER; FAN TO CLU
00.206 ID=6.1 		9-09150-506-0 04 1 9901-0108 ●
18 01.062 WASHER; FAN TO CLU
EXC. SAUDI ARABIA EQUIPMENT(EU2) 00.206 ID=6.1 		9-09150-506-0 04 1 0109- ●
18 01.062 WASHER; FAN TO CLU
00.206 ID=6.1 		9-09150-506-0 04 1 0109- ● ●
18 01.062 WASHER; FAN TO CLU
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94311-254-0 04 1 9804-9812 ●
26 01.062 BOLT; FAN TO CLU
03.671 M6X20 		0-28020-620-0 04 1 9804- ●
36 01.066 BELT; COOLING FAN
L=1051 		8-94161-841-0 01 1 9804- ● ●
36 01.066 BELT; COOLING FAN
L=875 		8-97100-606-0 01 1 9804-9812 ●
36 01.066 BELT; COOLING FAN
L=1059 		8-92063-694-0 01 1 9804-0108 ●
36 01.066 BELT; COOLING FAN
L=1059 		8-92063-694-0 01 1 0109- ● ●
38 01.062 SPACER; FAN 8-94441-848-0 01 1 9804- ● ●
80 02.317 PLATE; ADJ
(B) 		8-97132-049-0 01 1 9804- ● ●
80 02.317 PLATE; ADJ
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) 		8-97132-048-0 01 1 9804- ● ●
80 02.317 PLATE; ADJ 8-97123-738-1 01 1 9804-9812 ●
88 02.317 WASHER; PL,ADJ PLATE
EXC. AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(YL1) 07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9804- ● ●
96 02.317 BOLT; ADJ PLATE
01.540 M8X45 FLANGE 		0-28080-845-0 01 1 0202- ● ●
96 02.317 BOLT; ADJ PLATE
01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 9804-0201 ● ●
96 02.317 BOLT; ADJ PLATE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 9804-0201 ● ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 0202- ● ●
96 02.317 BOLT; ADJ PLATE
EXC. AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(YL1) 01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9804- ● ●
96 02.317 BOLT; ADJ PLATE
00.780 M8X30 W/LK WASHER 		0-50040-830-0 01 1 9804-9812 ●
109 01.062 STUD; FAN CLU
M6X25 L=33 		8-94340-628-0 04 1 9804- ● ●
230 01.055 FAN; COOLING
01.604 		8-94311-258-0 01 1 9804- ●
230 01.055 FAN; COOLING
SAUDI ARABIA EQUIPMENT(EU2) 01.604 OD=450 8-BLADE 		8-97049-499-1 01 1 9811- ●
230 01.055 FAN; COOLING
TURBOCHARGER<K51> 01.064 OD=410 7-BLADE 		8-94117-866-0 01 1 9804-9810 ●
230 01.055 FAN; COOLING
TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.064 OD=410 7-BLADE 		8-94117-866-0 01 1 9811- ●
230 01.055 FAN; COOLING
EXC. TURBOCHARGER<K51> 01.064 		5-13660-300-0 01 1 9804-9812 ●
230 01.055 FAN; COOLING
AIR CONDITIONER MANUAL CONT(C60) 01.604 		8-94310-517-0 01 1 9804-9812 ●
230 01.055 FAN; COOLING
01.604 		8-94310-517-0 01 1 9804-9812 ●
230 01.055 FAN; COOLING
01.604 		8-94310-517-0 01 1 9901-0108 ●
230 01.055 FAN; COOLING
01.604 		8-94310-517-0 01 1 0109- ● ●
230 01.055 FAN; COOLING
EXC. AIR CONDITIONER MANUAL CONT(C60) 01.604 		8-94311-255-0 01 1 9804-9812 ●

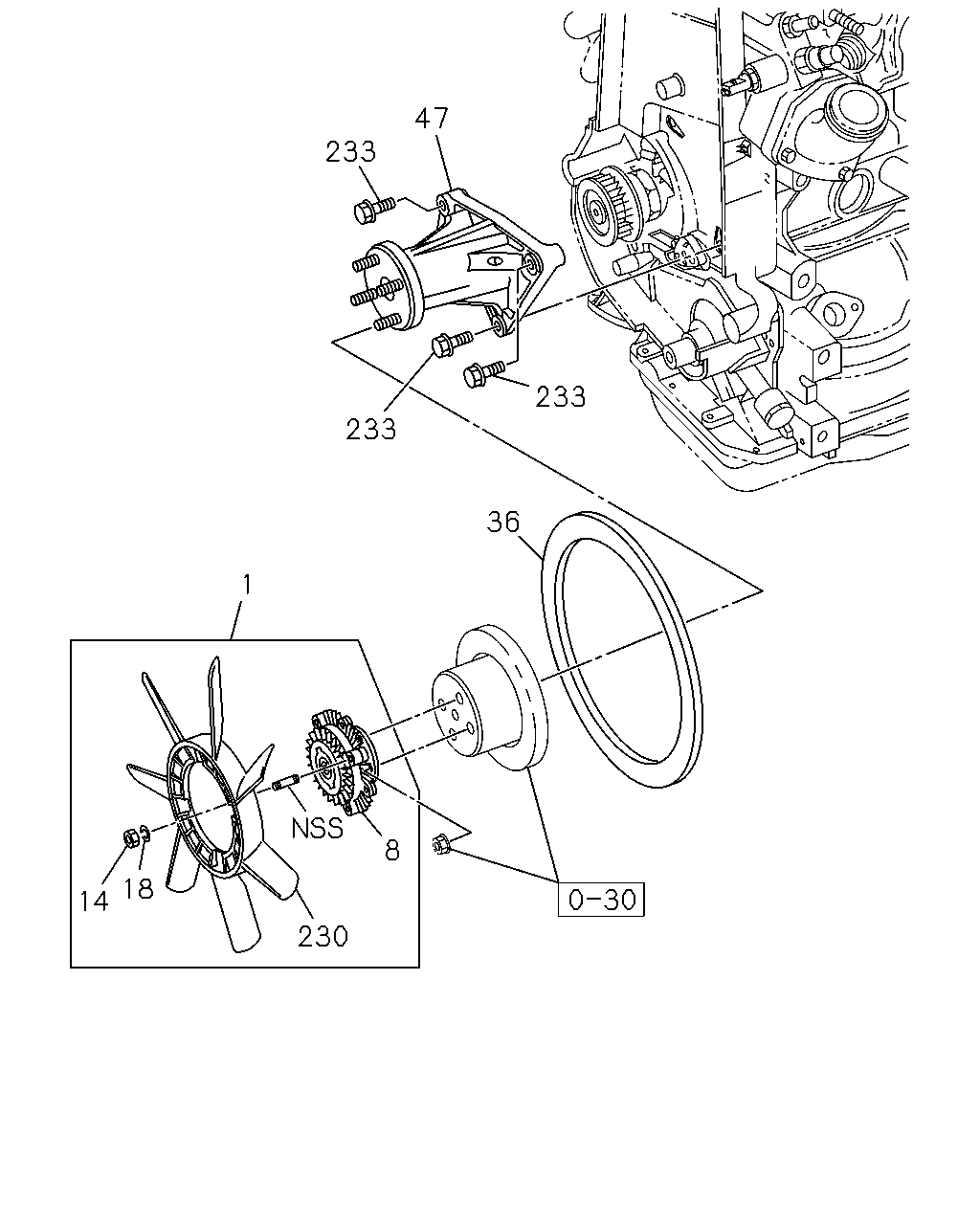

çizim 71940
47 233 233 233 36 1 8 18 14 230
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.064 FAN; COOLING
OD=390 		8-94175-331-0 01 1 9804- ●
1 01.064 FAN; COOLING
TURBOCHARGER<K51> OD=410 		8-94103-469-0 01 1 9804-9810 ●
1 01.064 FAN; COOLING
TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2) OD=410 		8-94103-469-0 01 1 9811- ●
1 01.064 FAN; COOLING
EXC. TURBOCHARGER<K51> OD=390 		8-94239-651-0 01 1 9804-9812 ●
1 01.064 FAN; COOLING
AIR CONDITIONER MANUAL CONT(C60) OD=410 		8-94454-187-0 01 1 9804-9812 ●
1 01.064 FAN; COOLING
OD=410 		8-94454-187-0 01 1 9804-9812 ●
1 01.064 FAN; COOLING
OD=410 		8-94454-187-0 01 1 9901-0108 ●
1 01.064 FAN; COOLING
OD=410 		8-94454-187-0 01 1 0109- ● ●
1 01.064 FAN; COOLING
EXC. AIR CONDITIONER MANUAL CONT(C60) OD=410 		8-94436-150-0 01 1 9804-9812 ●
8 01.064 CLUTCH; COOLING FAN 8-94311-257-0 01 1 9804- ●
8 01.064 CLUTCH; COOLING FAN 8-94244-409-0 01 1 9804-9810 ●
8 01.064 CLUTCH; COOLING FAN
TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94244-409-0 01 1 9811-9812 ●
8 01.064 CLUTCH; COOLING FAN
CHINA CHONGQING EQUIPMENT(R5B) 		8-94244-409-0 01 1 9811-9812 ●
8 01.064 CLUTCH; COOLING FAN
TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94244-409-0 01 1 9901- ●
8 01.064 CLUTCH; COOLING FAN
SAUDI ARABIA EQUIPMENT(EU2) 		8-97069-783-0 01 1 9811- ●
8 01.064 CLUTCH; COOLING FAN
AIR CONDITIONER MANUAL CONT(C60) 01.066 		8-94412-030-0 01 1 9804-9812 ●
8 01.064 CLUTCH; COOLING FAN
01.066 		8-94412-030-0 01 1 9804-9812 ●
8 01.064 CLUTCH; COOLING FAN
01.066 		8-94412-030-0 01 1 9901-0108 ●
8 01.064 CLUTCH; COOLING FAN
01.066 		8-94412-030-0 01 1 0109- ● ●
8 01.064 CLUTCH; COOLING FAN
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94311-252-0 01 1 9804-9812 ●
8 01.064 CLUTCH; COOLING FAN 8-97130-362-1 01 1 9804- ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 9804-9810 ● ●
14 01.062 NUT; FAN TO CLU
AIR CONDITIONER MANUAL CONT(C60) 00.413 M6 		9-09110-506-0 04 1 9804-9810 ●
14 01.062 NUT; FAN TO CLU
TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2) 00.413 M6 		9-09110-506-0 04 1 9811-9812 ●
14 01.062 NUT; FAN TO CLU
CHINA CHONGQING EQUIPMENT(R5B) 00.413 M6 		9-09110-506-0 04 1 9811-9812 ●
14 01.062 NUT; FAN TO CLU
AIR CONDITIONER MANUAL CONT(C60) 00.413 M6 		9-09110-506-0 04 1 9811-9812 ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 9811-9812 ●
14 01.062 NUT; FAN TO CLU
EXC. SAUDI ARABIA EQUIPMENT(EU2) 00.413 M6 		9-09110-506-0 04 1 9901-0108 ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 9901-0108 ●
14 01.062 NUT; FAN TO CLU
EXC. SAUDI ARABIA EQUIPMENT(EU2) 00.413 M6 		9-09110-506-0 04 1 0109- ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 0109- ● ●
14 01.062 NUT; FAN TO CLU
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94311-253-0 04 1 9804-9812 ●
18 01.062 WASHER; FAN TO CLU
00.206 ID=6.1 		9-09150-506-0 04 1 9804-9810 ● ●
18 01.062 WASHER; FAN TO CLU
AIR CONDITIONER MANUAL CONT(C60) 00.206 ID=6.1 		9-09150-506-0 04 1 9804-9810 ●
18 01.062 WASHER; FAN TO CLU
TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2) 00.206 ID=6.1 		9-09150-506-0 04 1 9811-9812 ●
18 01.062 WASHER; FAN TO CLU
CHINA CHONGQING EQUIPMENT(R5B) 00.206 ID=6.1 		9-09150-506-0 04 1 9811-9812 ●
18 01.062 WASHER; FAN TO CLU
AIR CONDITIONER MANUAL CONT(C60) 00.206 ID=6.1 		9-09150-506-0 04 1 9811-9812 ●
18 01.062 WASHER; FAN TO CLU
00.206 ID=6.1 		9-09150-506-0 04 1 9811-9812 ●
18 01.062 WASHER; FAN TO CLU
EXC. SAUDI ARABIA EQUIPMENT(EU2) 00.206 ID=6.1 		9-09150-506-0 04 1 9901-0108 ●
18 01.062 WASHER; FAN TO CLU
00.206 ID=6.1 		9-09150-506-0 04 1 9901-0108 ●
18 01.062 WASHER; FAN TO CLU
EXC. SAUDI ARABIA EQUIPMENT(EU2) 00.206 ID=6.1 		9-09150-506-0 04 1 0109- ●
18 01.062 WASHER; FAN TO CLU
00.206 ID=6.1 		9-09150-506-0 04 1 0109- ● ●
18 01.062 WASHER; FAN TO CLU
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94311-254-0 04 1 9804-9812 ●
36 01.066 BELT; COOLING FAN
L=1051 		8-94161-841-0 01 1 9804- ● ●
36 01.066 BELT; COOLING FAN
L=875 		8-97100-606-0 01 1 9804-9812 ●
36 01.066 BELT; COOLING FAN
L=1059 		8-92063-694-0 01 1 9804-0108 ●
36 01.066 BELT; COOLING FAN
L=1059 		8-92063-694-0 01 1 0109- ● ●
47 01.060 BRACKET; FAN 8-97148-675-1 01 1 9804-9906 ●
47 01.060 BRACKET; FAN 8-97231-718-0 01 1 9907- ●
47 01.060 BRACKET; FAN 8-92064-194-0 01 1 9804-0108 ●
47 01.060 BRACKET; FAN 8-92064-194-0 01 1 0109- ● ●
230 01.055 FAN; COOLING
01.604 		8-94311-258-0 01 1 9804- ●
230 01.055 FAN; COOLING
SAUDI ARABIA EQUIPMENT(EU2) 01.604 OD=450 8-BLADE 		8-97049-499-1 01 1 9811- ●
230 01.055 FAN; COOLING
TURBOCHARGER<K51> 01.064 OD=410 7-BLADE 		8-94117-866-0 01 1 9804-9810 ●
230 01.055 FAN; COOLING
TURBOCHARGER<K51> EXC. SAUDI ARABIA EQUIPMENT(EU2) 01.064 OD=410 7-BLADE 		8-94117-866-0 01 1 9811- ●
230 01.055 FAN; COOLING
EXC. TURBOCHARGER<K51> 01.064 		5-13660-300-0 01 1 9804-9812 ●
230 01.055 FAN; COOLING
AIR CONDITIONER MANUAL CONT(C60) 01.604 		8-94310-517-0 01 1 9804-9812 ●
230 01.055 FAN; COOLING
01.604 		8-94310-517-0 01 1 9804-9812 ●
230 01.055 FAN; COOLING
01.604 		8-94310-517-0 01 1 9901-0108 ●
230 01.055 FAN; COOLING
01.604 		8-94310-517-0 01 1 0109- ● ●
230 01.055 FAN; COOLING
EXC. AIR CONDITIONER MANUAL CONT(C60) 01.604 		8-94311-255-0 01 1 9804-9812 ●
233 01.060 BOLT; FAN BRKT
M8X98 FLANGE 		8-97182-861-0 02 1 9804- ●
233 01.060 BOLT; FAN BRKT 8-11082-931-0 03 1 9804- ●
233 01.060 BOLT; FAN BRKT 8-11082-931-0 03 1 0109- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
