◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50801 - TFR/TFS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#41730) — 169 parça
çizim 71496
53 50 62 49 64 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.246 THERMOSTAT
82 CELSIUS 		8-97089-891-0 01 1 9804-0301 ● ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-97361-770-0 01 1 0302- ● ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94336-069-0 01 1 9804-9812 ●
1 01.246 THERMOSTAT
76.5 CELSIUS 		8-97123-161-4 01 1 9804-0301 ●
1 01.246 THERMOSTAT
76.5 CELSIUS 		8-97362-894-0 01 1 0302- ●
1 01.246 THERMOSTAT
92 CELSIUS 		8-92063-651-0 01 1 9804-0108 ●
1 01.246 THERMOSTAT
92 CELSIUS 		8-92063-651-0 01 1 0109- ● ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97139-712-0 01 1 9804-9812 ●
49 01.153 PIPE; WATER OUTLET
CHINA CHONGQING EQUIPMENT(R5B) (A) 		8-97139-712-0 01 1 9804-9812 ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97139-712-0 01 1 9901- ●
49 01.153 PIPE; WATER OUTLET
EXC. CHINA CHONGQING EQUIPMENT(R5B) (B) 		8-97183-181-0 01 1 9804-9812 ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-97183-181-0 01 1 9901- ●
49 01.153 PIPE; WATER OUTLET 8-94172-420-1 01 1 9804-9812 ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9804- ● ●
50 01.252 BOLT; OUTLET PIPE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9804-9812 ●
53 01.153 NUT; OUTLET PIPE
00.854 M8 FLANGE 		5-09440-005-0 01 1 9804-9812 ●
62 01.153 STUD; OUTLET PIPE TO INL MANIF
09.173 M8X22 L=34 		9-04110-822-0 01 1 9804-9812 ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 01.252 		8-94365-674-2 01 1 9804- ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94324-197-0 01 1 9804-9812 ●

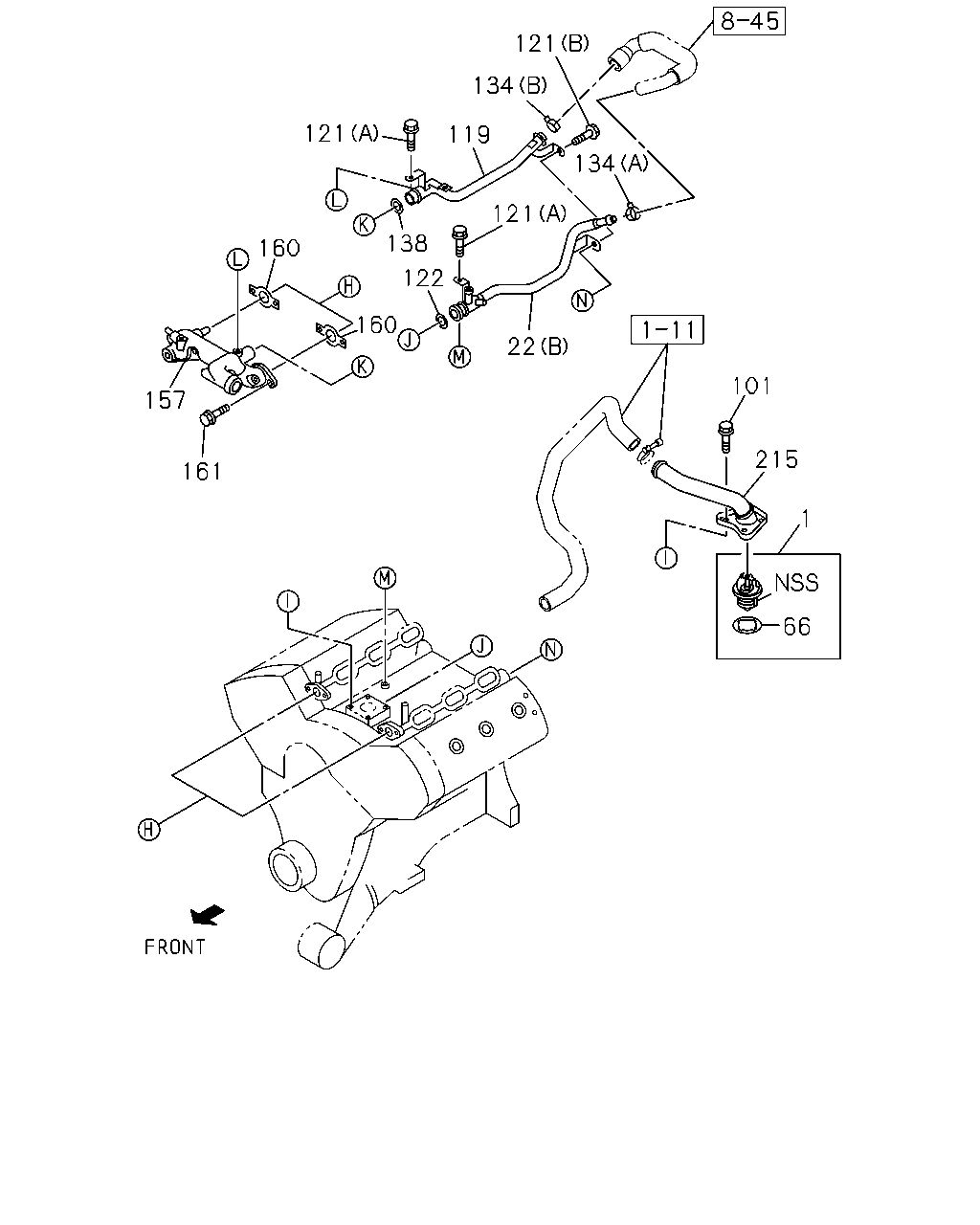

çizim 71670
121 134 121 119 134 121 138 160 122 160 22 101 157 215 161 1 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.246 THERMOSTAT
82 CELSIUS 		8-97089-891-0 01 1 9804-0301 ● ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-97361-770-0 01 1 0302- ● ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94336-069-0 01 1 9804-9812 ●
1 01.246 THERMOSTAT
76.5 CELSIUS 		8-97123-161-4 01 1 9804-0301 ●
1 01.246 THERMOSTAT
76.5 CELSIUS 		8-97362-894-0 01 1 0302- ●
1 01.246 THERMOSTAT
92 CELSIUS 		8-92063-651-0 01 1 9804-0108 ●
1 01.246 THERMOSTAT
92 CELSIUS 		8-92063-651-0 01 1 0109- ● ●
22 03.278 PIPE; HTR,RETURN
(C) 		8-94478-869-2 01 1 9804- ● ●
22 03.278 PIPE; HTR,RETURN
(A) 		8-97131-890-2 01 1 9804-9906 ●
22 03.278 PIPE; HTR,RETURN
(A) 		8-97231-679-0 01 1 9907-9911 ●
22 03.278 PIPE; HTR,RETURN
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) (A) 		8-97231-679-1 01 1 9912- ●
22 03.278 PIPE; HTR,RETURN
SAUDI ARABIA EQUIPMENT(EU2) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97231-679-1 01 1 9912- ●
22 03.278 PIPE; HTR,RETURN
SAUDI ARABIA EQUIPMENT(EU2) COOLER WO/HEATER(YL1) (B) 		8-97224-807-1 01 1 9912- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94365-675-1 01 1 9804-9902 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97216-156-0 01 1 9903- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97123-162-0 01 1 9804-0301 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-90220-436-0 01 1 9804-0108 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-90220-436-0 01 1 0109- ● ●
101 01.251 BOLT; PIPE
08.900 M8X12 FLANGE 		0-28080-812-0 04 1 9804- ●
119 08.846 PIPE; HTR
SAUDI ARABIA EQUIPMENT(EU2) COOLER WO/HEATER(YL1) 		8-97136-133-1 01 1 9912- ●
121 08.900 BOLT; HTR PIPE
(A) M8X12 FLANGE 		0-28080-812-0 04 1 9804-9911 ●
121 08.900 BOLT; HTR PIPE
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) (A) M8X12 FLANGE 		0-28080-812-0 04 1 9912- ●
121 08.900 BOLT; HTR PIPE
SAUDI ARABIA EQUIPMENT(EU2) AIR CONDITIONER MANUAL CONT(C60) (A) M8X12 FLANGE 		0-28080-812-0 04 1 9912- ●
121 08.900 BOLT; HTR PIPE
01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 9804- ●
121 08.900 BOLT; HTR PIPE
SAUDI ARABIA EQUIPMENT(EU2) COOLER WO/HEATER(YL1) (A) M8X12 FLANGE 		0-28080-812-0 02 1 9912- ●
122 03.602 GASKET; HSG TO PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.154 		9-09561-220-0 01 1 9804- ●
134 04.930 CLIP; RUBBER HOSE
SAUDI ARABIA EQUIPMENT(EU2) COOLER WO/HEATER(YL1) 01.166 (A) ID=20.8 		8-94125-862-1 01 1 9912- ●
134 04.930 CLIP; RUBBER HOSE
SAUDI ARABIA EQUIPMENT(EU2) COOLER WO/HEATER(YL1) 08.846 (B) ID=23 		8-94382-402-0 01 1 9912- ●
138 01.252 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 06.021 		9-09561-225-0 01 1 9804- ●
157 01.251 MANIFOLD; WATER 8-97136-345-3 01 1 9804- ●
160 01.252 GASKET; WATER MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97136-346-0 02 1 9804- ●
161 01.251 BOLT; MANIF TO HD
16.545 M8X40 FLANGE 		0-28690-840-0 04 1 9804- ●
215 01.159 PIPE; WATER,INL 8-97131-884-2 01 1 9804- ●

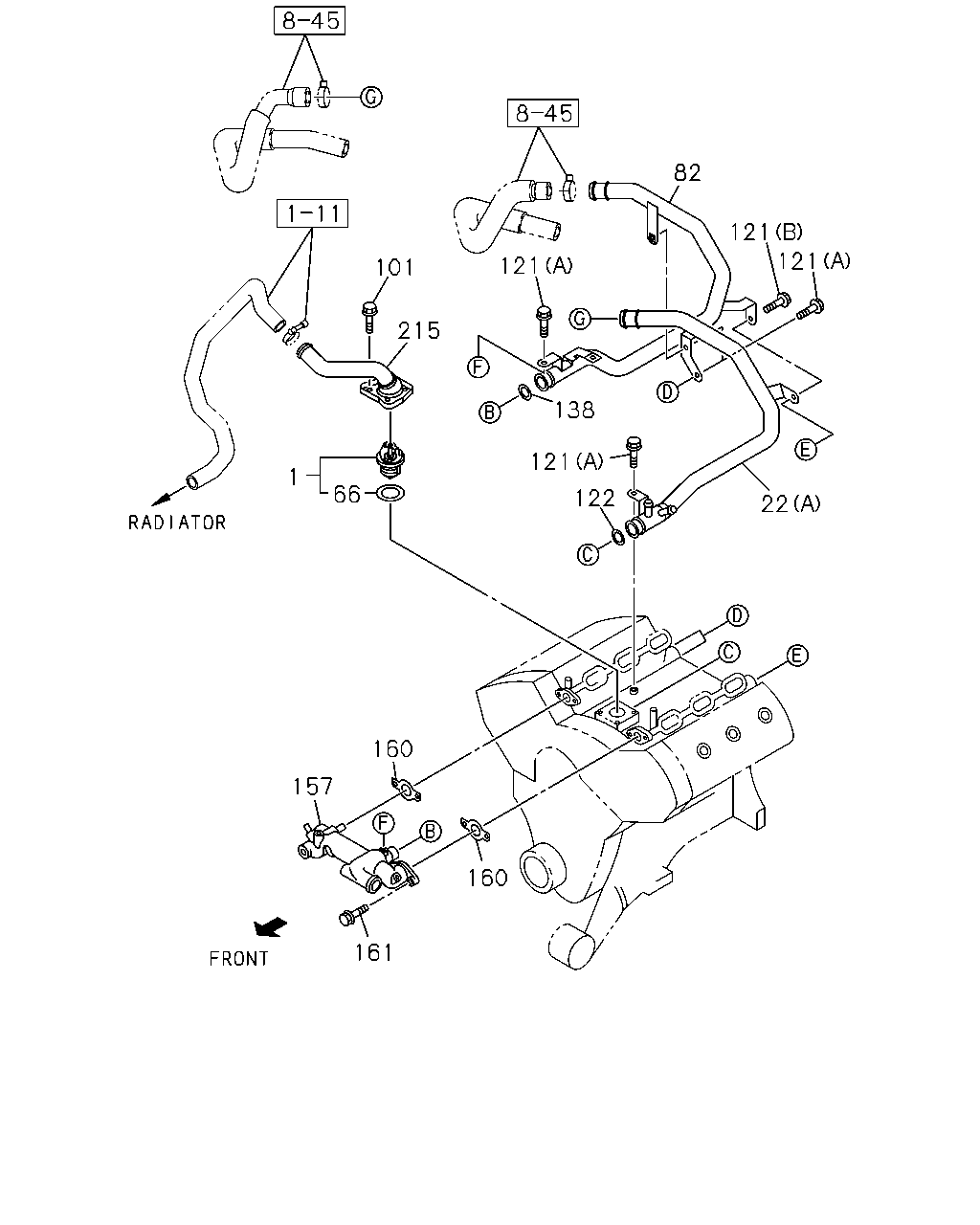

çizim 71924
82 121 121 121 101 215 138 121 1 66 122 22 160 157 160 161
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.246 THERMOSTAT
82 CELSIUS 		8-97089-891-0 01 1 9804-0301 ● ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-97361-770-0 01 1 0302- ● ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94336-069-0 01 1 9804-9812 ●
1 01.246 THERMOSTAT
76.5 CELSIUS 		8-97123-161-4 01 1 9804-0301 ●
1 01.246 THERMOSTAT
76.5 CELSIUS 		8-97362-894-0 01 1 0302- ●
1 01.246 THERMOSTAT
92 CELSIUS 		8-92063-651-0 01 1 9804-0108 ●
1 01.246 THERMOSTAT
92 CELSIUS 		8-92063-651-0 01 1 0109- ● ●
22 03.278 PIPE; HTR,RETURN
(C) 		8-94478-869-2 01 1 9804- ● ●
22 03.278 PIPE; HTR,RETURN
(A) 		8-97131-890-2 01 1 9804-9906 ●
22 03.278 PIPE; HTR,RETURN
(A) 		8-97231-679-0 01 1 9907-9911 ●
22 03.278 PIPE; HTR,RETURN
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) (A) 		8-97231-679-1 01 1 9912- ●
22 03.278 PIPE; HTR,RETURN
SAUDI ARABIA EQUIPMENT(EU2) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97231-679-1 01 1 9912- ●
22 03.278 PIPE; HTR,RETURN
SAUDI ARABIA EQUIPMENT(EU2) COOLER WO/HEATER(YL1) (B) 		8-97224-807-1 01 1 9912- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94365-675-1 01 1 9804-9902 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97216-156-0 01 1 9903- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97123-162-0 01 1 9804-0301 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-90220-436-0 01 1 9804-0108 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-90220-436-0 01 1 0109- ● ●
82 08.845 PIPE; WATER,HTR 8-97131-889-2 01 1 9804-9906 ●
82 08.845 PIPE; WATER,HTR 8-97222-133-0 01 1 9907-9911 ●
82 08.845 PIPE; WATER,HTR
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-97222-133-0 01 1 9912- ●
82 08.845 PIPE; WATER,HTR
SAUDI ARABIA EQUIPMENT(EU2) AIR CONDITIONER MANUAL CONT(C60) 		8-97222-133-0 01 1 9912- ●
101 01.251 BOLT; PIPE
08.900 M8X12 FLANGE 		0-28080-812-0 04 1 9804- ●
121 08.900 BOLT; HTR PIPE
(A) M8X12 FLANGE 		0-28080-812-0 04 1 9804-9911 ●
121 08.900 BOLT; HTR PIPE
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) (A) M8X12 FLANGE 		0-28080-812-0 04 1 9912- ●
121 08.900 BOLT; HTR PIPE
SAUDI ARABIA EQUIPMENT(EU2) AIR CONDITIONER MANUAL CONT(C60) (A) M8X12 FLANGE 		0-28080-812-0 04 1 9912- ●
121 08.900 BOLT; HTR PIPE
01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 9804- ●
121 08.900 BOLT; HTR PIPE
SAUDI ARABIA EQUIPMENT(EU2) COOLER WO/HEATER(YL1) (A) M8X12 FLANGE 		0-28080-812-0 02 1 9912- ●
122 03.602 GASKET; HSG TO PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.154 		9-09561-220-0 01 1 9804- ●
138 01.252 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 06.021 		9-09561-225-0 01 1 9804- ●
157 01.251 MANIFOLD; WATER 8-97136-345-3 01 1 9804- ●
160 01.252 GASKET; WATER MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97136-346-0 02 1 9804- ●
161 01.251 BOLT; MANIF TO HD
16.545 M8X40 FLANGE 		0-28690-840-0 04 1 9804- ●
215 01.159 PIPE; WATER,INL 8-97131-884-2 01 1 9804- ●

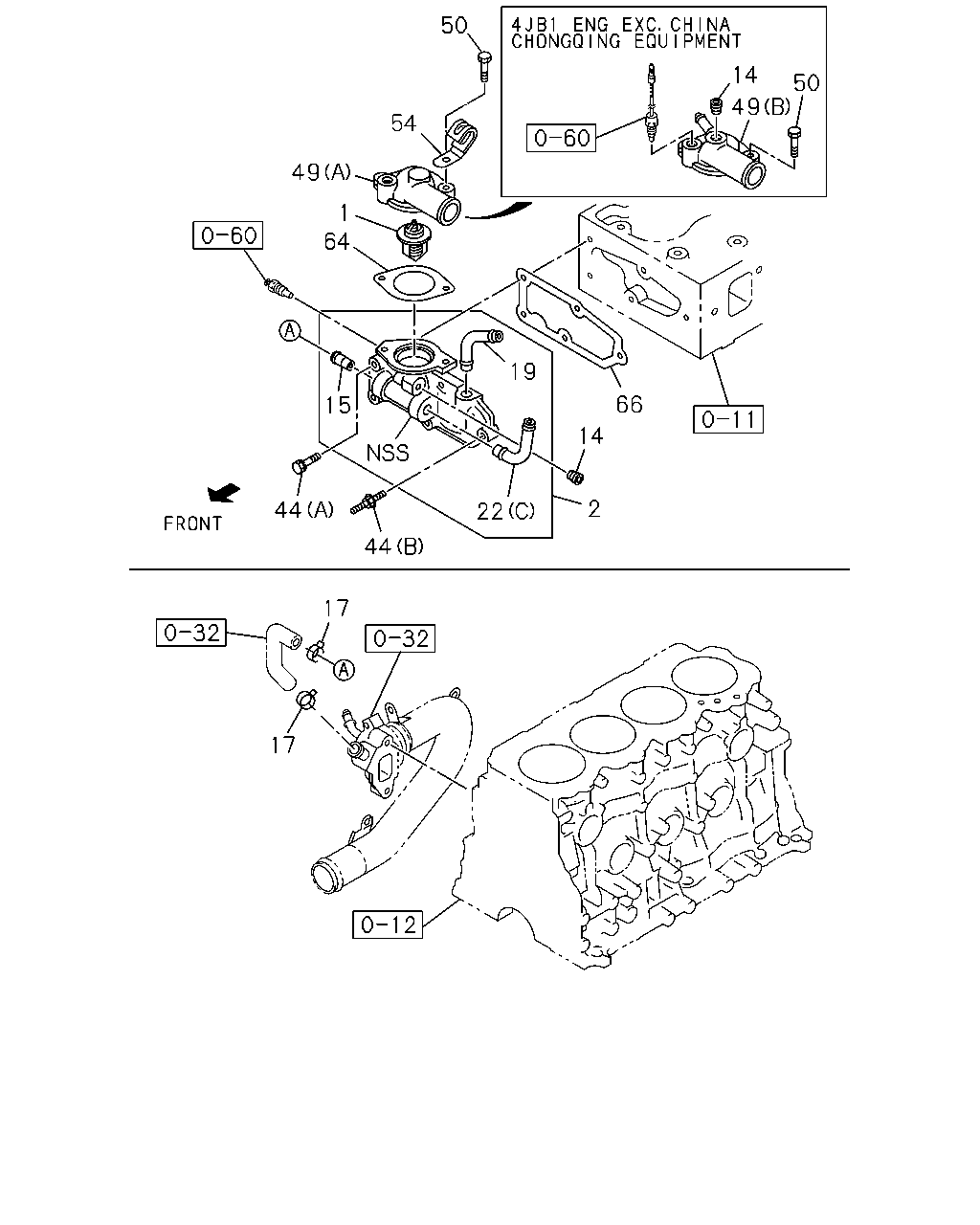

çizim 73863
50 14 50 49 54 49 1 64 19 66 15 14 2 44 22 44 17 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.246 THERMOSTAT
82 CELSIUS 		8-97089-891-0 01 1 9804-0301 ● ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-97361-770-0 01 1 0302- ● ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94336-069-0 01 1 9804-9812 ●
1 01.246 THERMOSTAT
76.5 CELSIUS 		8-97123-161-4 01 1 9804-0301 ●
1 01.246 THERMOSTAT
76.5 CELSIUS 		8-97362-894-0 01 1 0302- ●
1 01.246 THERMOSTAT
92 CELSIUS 		8-92063-651-0 01 1 9804-0108 ●
1 01.246 THERMOSTAT
92 CELSIUS 		8-92063-651-0 01 1 0109- ● ●
2 01.251 HOUSING; THERMOSTAT 8-97117-243-0 01 1 9804- ● ●
2 01.251 HOUSING; THERMOSTAT 8-92060-793-0 01 1 9804-0108 ●
2 01.251 HOUSING; THERMOSTAT 8-92060-793-0 01 1 0109- ● ●
14 01.252 PLUG; SW
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 01.073 PT3/8 		5-09605-005-0 01 1 9804-9812 ●
14 01.252 PLUG; SW
ARGENTINA EQUIPMENT(7SZ) 01.073 PT3/8 		5-09605-005-0 01 1 9804-9812 ●
14 01.252 PLUG; SW
CHINA CHONGQING EQUIPMENT(R5B) 01.073 PT3/8 		5-09605-005-0 01 1 9804-9812 ●
14 01.252 PLUG; SW
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 01.073 PT3/8 		5-09605-005-0 01 1 9901-9901 ●
14 01.252 PLUG; SW
ARGENTINA EQUIPMENT(7SZ) 01.073 PT3/8 		5-09605-005-0 01 1 9901-9901 ●
14 01.252 PLUG; SW
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 01.073 PT3/8 		5-09605-005-0 01 1 9902-0205 ●
14 01.252 PLUG; SW
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 01.073 PT3/8 		5-09605-005-0 01 1 9902-0205 ●
14 01.252 PLUG; SW
EXC. TURBOCHARGER<K51> 01.073 PT3/8 		5-09605-005-0 01 1 0206- ●
14 01.252 PLUG; SW
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 01.073 PT3/8 		5-09605-005-0 01 1 0206- ●
14 01.252 PLUG; SW
A/T AISIN(RMD) PHILIPPINE EQUIPMENT(S2U) 01.073 PT3/8 		5-09605-005-0 03 1 0104- ●
14 01.252 PLUG; SW
EXC. CHINA CHONGQING EQUIPMENT(R5B), ARGENTINA EQUIPMENT(7SZ) 01.073 PT3/8 		5-09605-005-0 02 1 9804-9812 ●
14 01.252 PLUG; SW
EXC. ARGENTINA EQUIPMENT(7SZ) 01.073 PT3/8 		5-09605-005-0 02 1 9901-9901 ●
14 01.252 PLUG; SW
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 01.073 PT3/8 		5-09605-005-0 02 1 9902-0009 ●
14 01.252 PLUG; SW
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U) 01.073 PT3/8 		5-09605-005-0 02 1 0010-0204 ●
14 01.252 PLUG; SW
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 01.073 PT3/8 		5-09605-005-0 02 1 0010-0204 ●
14 01.252 PLUG; SW
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 01.073 PT3/8 		5-09605-005-0 02 1 0205- ●
15 01.251 PIPE; BYPASS 8-94343-211-1 01 1 9804- ● ●
17 01.166 CLIP; WATER HOSE
ID=20.8 		8-94125-862-1 02 1 9804- ● ●
19 01.252 PIPE; HSG TO HTR 8-94478-870-1 01 1 9804- ● ●
22 03.278 PIPE; HTR,RETURN
(C) 		8-94478-869-2 01 1 9804- ● ●
22 03.278 PIPE; HTR,RETURN
(A) 		8-97131-890-2 01 1 9804-9906 ●
22 03.278 PIPE; HTR,RETURN
(A) 		8-97231-679-0 01 1 9907-9911 ●
22 03.278 PIPE; HTR,RETURN
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) (A) 		8-97231-679-1 01 1 9912- ●
22 03.278 PIPE; HTR,RETURN
SAUDI ARABIA EQUIPMENT(EU2) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97231-679-1 01 1 9912- ●
22 03.278 PIPE; HTR,RETURN
SAUDI ARABIA EQUIPMENT(EU2) COOLER WO/HEATER(YL1) (B) 		8-97224-807-1 01 1 9912- ●
44 01.252 BOLT; HSG TO HD
POWER STEERING<N40> 00.780 (A) M8X30 W/LK WASHER 		0-50040-830-0 04 1 9804- ● ●
44 01.252 BOLT; HSG TO HD
POWER STEERING<N40> (B) M8X28,M8X34 L=69 		8-94479-011-1 01 1 9804- ● ●
44 01.252 BOLT; HSG TO HD
EXC. POWER STEERING<N40> 00.780 (A) M8X30 W/LK WASHER 		0-50040-830-0 05 1 9804- ● ●
44 01.252 BOLT; HSG TO HD 8-11042-896-0 02 1 9804- ●
44 01.252 BOLT; HSG TO HD 8-11042-897-0 02 1 0109- ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97139-712-0 01 1 9804-9812 ●
49 01.153 PIPE; WATER OUTLET
CHINA CHONGQING EQUIPMENT(R5B) (A) 		8-97139-712-0 01 1 9804-9812 ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97139-712-0 01 1 9901- ●
49 01.153 PIPE; WATER OUTLET
EXC. CHINA CHONGQING EQUIPMENT(R5B) (B) 		8-97183-181-0 01 1 9804-9812 ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-97183-181-0 01 1 9901- ●
49 01.153 PIPE; WATER OUTLET 8-94172-420-1 01 1 9804-9812 ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9804- ● ●
50 01.252 BOLT; OUTLET PIPE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9804-9812 ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
02.559 ID=12 		5-09700-331-0 01 1 9804-0302 ● ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
01.150 ID=12 		8-97367-983-0 01 1 0303- ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 01.252 		8-94365-674-2 01 1 9804- ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94324-197-0 01 1 9804-9812 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94365-675-1 01 1 9804-9902 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97216-156-0 01 1 9903- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97123-162-0 01 1 9804-0301 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-90220-436-0 01 1 9804-0108 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-90220-436-0 01 1 0109- ● ●

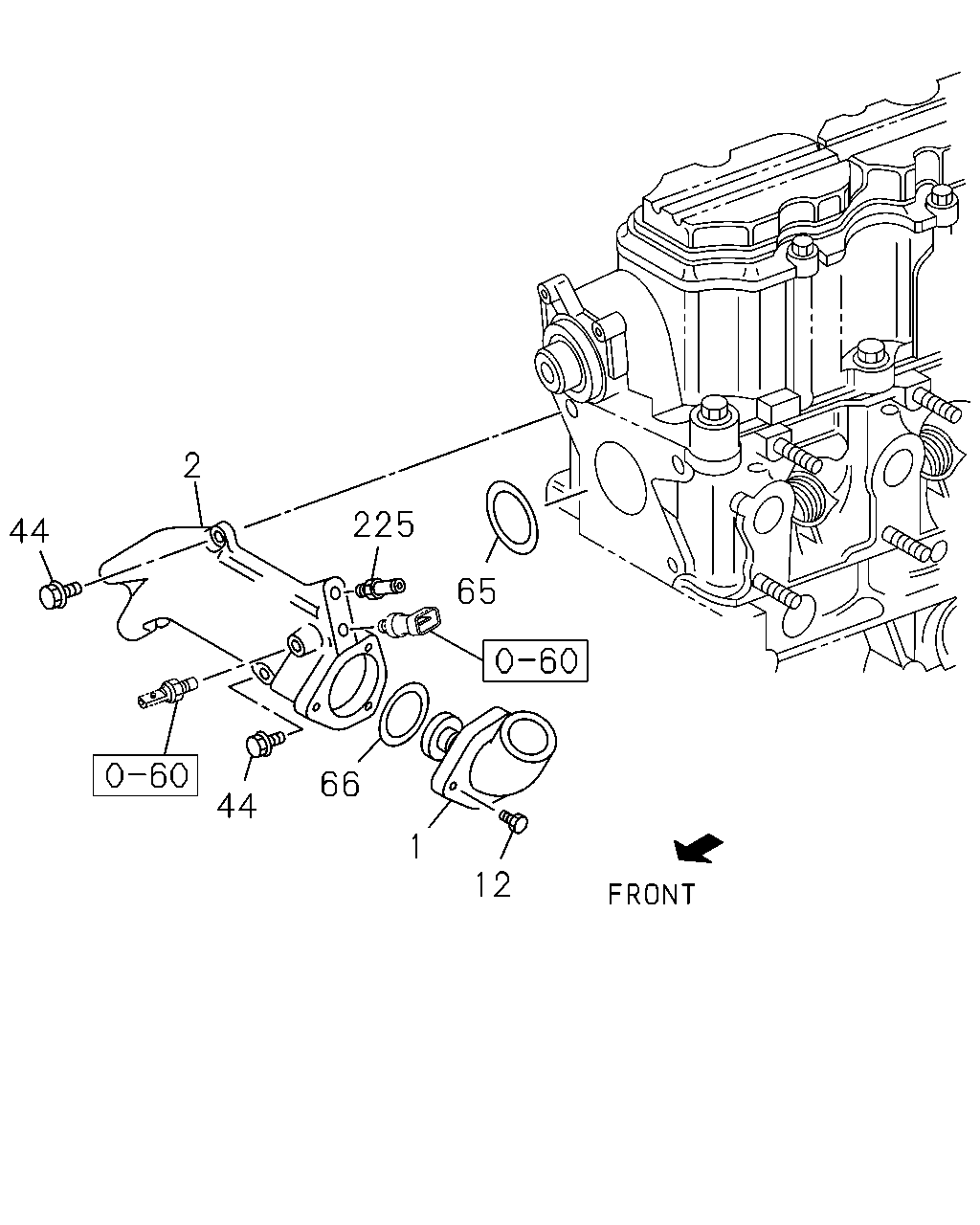

çizim 74064
2 225 44 65 66 44 1 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.246 THERMOSTAT
82 CELSIUS 		8-97089-891-0 01 1 9804-0301 ● ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-97361-770-0 01 1 0302- ● ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94336-069-0 01 1 9804-9812 ●
1 01.246 THERMOSTAT
76.5 CELSIUS 		8-97123-161-4 01 1 9804-0301 ●
1 01.246 THERMOSTAT
76.5 CELSIUS 		8-97362-894-0 01 1 0302- ●
1 01.246 THERMOSTAT
92 CELSIUS 		8-92063-651-0 01 1 9804-0108 ●
1 01.246 THERMOSTAT
92 CELSIUS 		8-92063-651-0 01 1 0109- ● ●
2 01.251 HOUSING; THERMOSTAT 8-97117-243-0 01 1 9804- ● ●
2 01.251 HOUSING; THERMOSTAT 8-92060-793-0 01 1 9804-0108 ●
2 01.251 HOUSING; THERMOSTAT 8-92060-793-0 01 1 0109- ● ●
12 01.252 BOLT; HSG 8-11013-351-0 03 1 9804-0108 ●
12 01.252 BOLT; HSG 8-11013-351-0 03 1 0109- ● ●
44 01.252 BOLT; HSG TO HD
POWER STEERING<N40> 00.780 (A) M8X30 W/LK WASHER 		0-50040-830-0 04 1 9804- ● ●
44 01.252 BOLT; HSG TO HD
POWER STEERING<N40> (B) M8X28,M8X34 L=69 		8-94479-011-1 01 1 9804- ● ●
44 01.252 BOLT; HSG TO HD
EXC. POWER STEERING<N40> 00.780 (A) M8X30 W/LK WASHER 		0-50040-830-0 05 1 9804- ● ●
44 01.252 BOLT; HSG TO HD 8-11042-896-0 02 1 9804- ●
44 01.252 BOLT; HSG TO HD 8-11042-897-0 02 1 0109- ●
65 01.252 GASKET; HSG TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-90118-437-0 01 1 9804-0108 ●
65 01.252 GASKET; HSG TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-90118-437-0 01 1 0109- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94365-675-1 01 1 9804-9902 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97216-156-0 01 1 9903- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97123-162-0 01 1 9804-0301 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-90220-436-0 01 1 9804-0108 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-90220-436-0 01 1 0109- ● ●
225 01.153 CONNECTOR; BYPASS HSG 8-90284-423-0 01 1 9804-0108 ●
225 01.153 CONNECTOR; BYPASS HSG 8-90284-423-0 01 1 0109- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
