0-28 — VENTILATION SYSTEM (#41728) — 86 parça

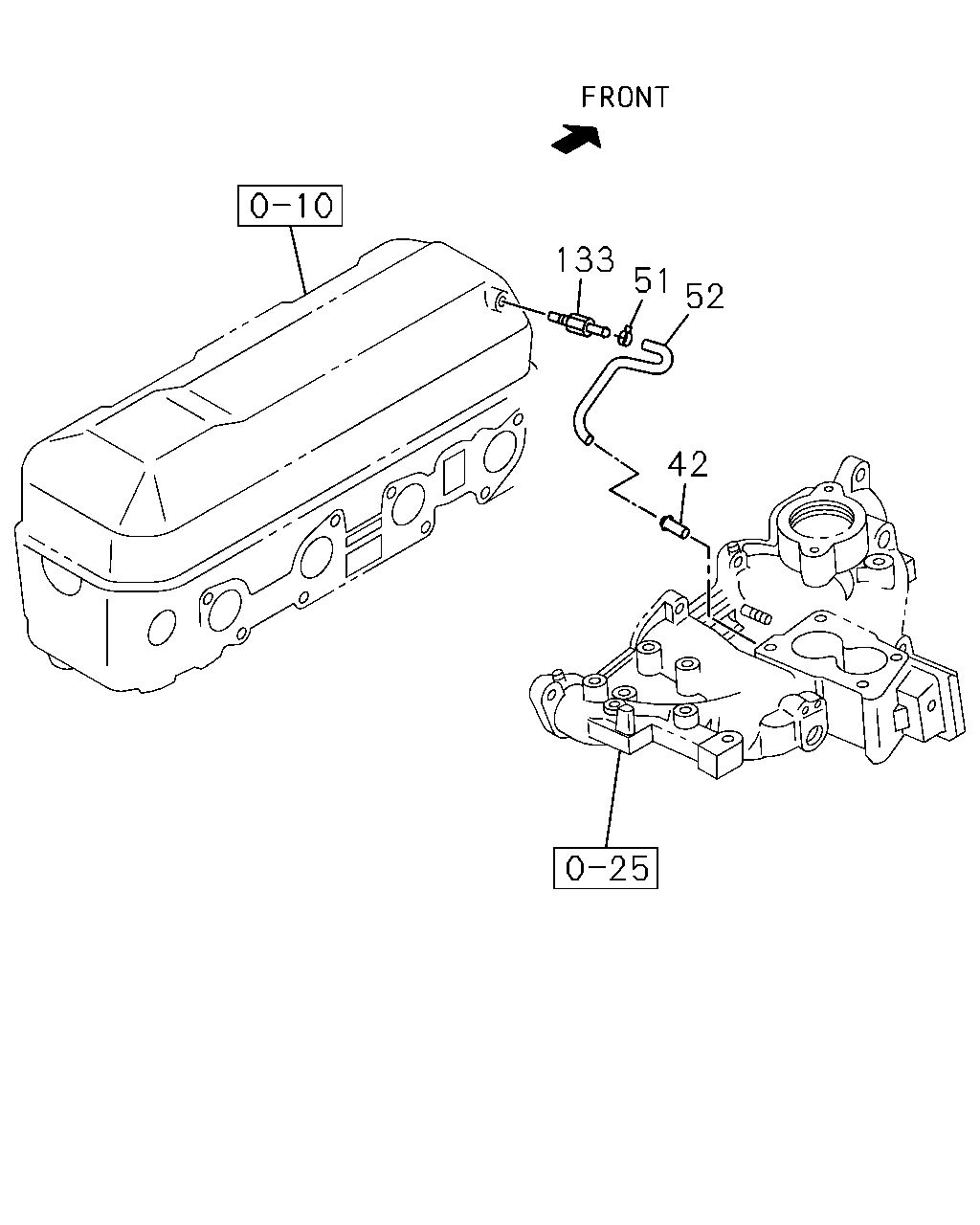

133 51 52 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
42	03.278 PIPE; PCV,INL MANIF 01.745	8-94153-176-0	01	1	9804-9812	●
51	03.265 CLIP; PCV HOSE 06.672 ID=21	8-94242-034-0	01	1	9804-9812	●
52	03.278 HOSE; PCV TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 03.417	8-94437-494-3	01	1	9804-9812		●
52	03.278 HOSE; PCV EXC. CHINA CHONGQING EQUIPMENT(R5B) 03.417	8-94437-494-3	01	1	9804-9812			●
52	03.278 HOSE; PCV TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 03.417	8-94437-494-3	01	1	9901-9901		●
52	03.278 HOSE; PCV 03.417	8-94437-494-3	01	1	9901-9901			●
52	03.278 HOSE; PCV TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 03.417	8-94437-494-3	01	1	9902-0009		●
52	03.278 HOSE; PCV 03.417	8-94437-494-3	01	1	9902-0009			●
52	03.278 HOSE; PCV TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 03.417	8-94437-494-3	01	1	0010-0204		●
52	03.278 HOSE; PCV 03.417	8-94437-494-3	01	1	0010-0204			●
52	03.278 HOSE; PCV TURBOCHARGER<K51> 03.417	8-94437-494-3	01	1	0205-		●
52	03.278 HOSE; PCV 03.417	8-94437-494-3	01	1	0205-			●
52	03.278 HOSE; PCV	8-97069-260-0	01	1	9804-9812	●
133	01.750 VALVE; PCV L=58.5	8-94331-209-0	01	1	9804-9812	●
133	01.750 VALVE; PCV	8-97118-860-0	01	1	9804-				●

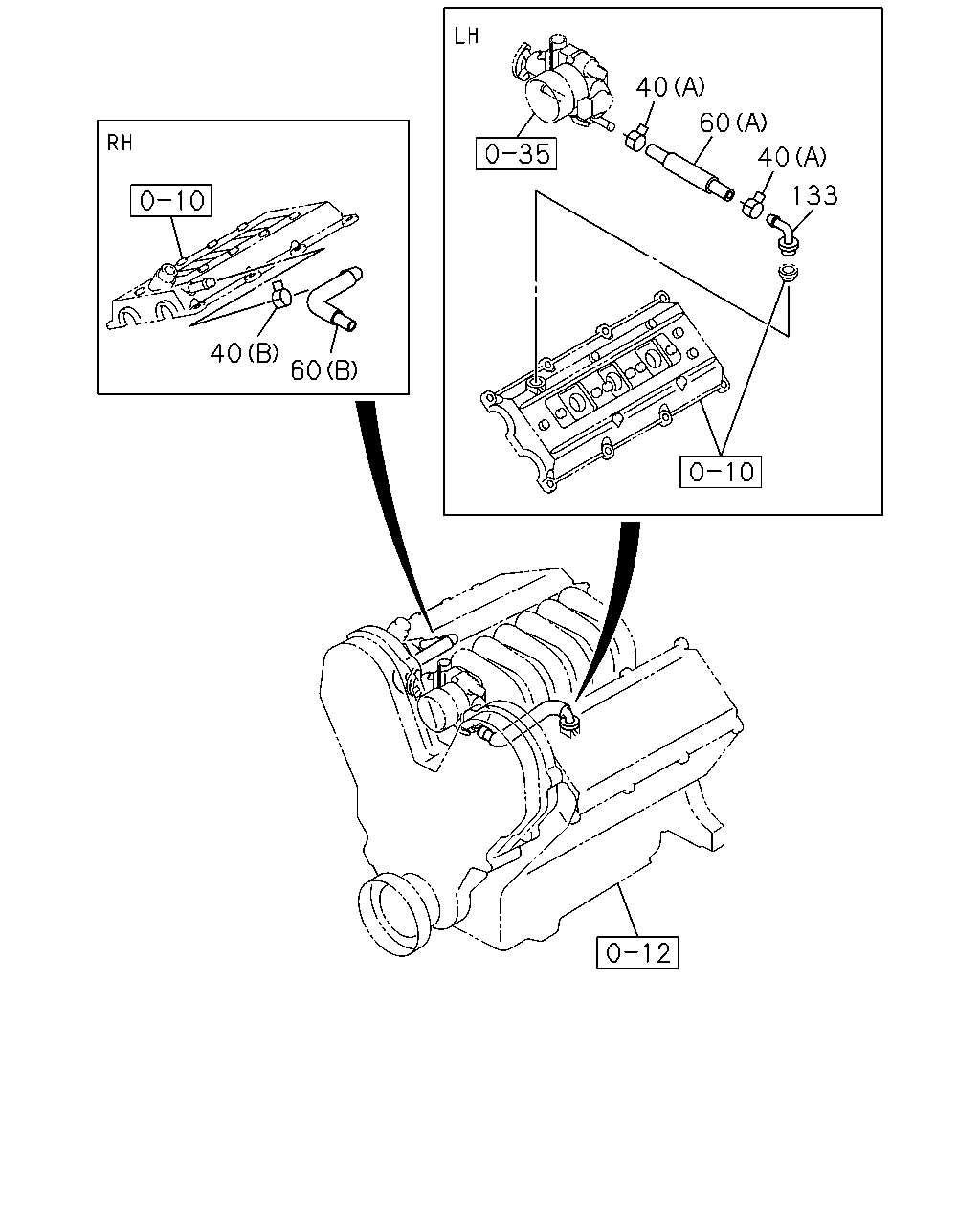

40 60 40 133 40 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
40	03.680 CLIP; PCV HOSE EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (C) ID=20 L=25	9-09916-078-0	01	1	9804-9812		●
40	03.680 CLIP; PCV HOSE CHINA CHONGQING EQUIPMENT(R5B) (C) ID=20 L=25	9-09916-078-0	01	1	9804-9812			●
40	03.680 CLIP; PCV HOSE EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (C) ID=20 L=25	9-09916-078-0	01	1	9901-9901		●
40	03.680 CLIP; PCV HOSE EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (C) ID=20 L=25	9-09916-078-0	01	1	9902-0205		●
40	03.680 CLIP; PCV HOSE EXC. TURBOCHARGER<K51> (C) ID=20 L=25	9-09916-078-0	01	1	0206-		●
40	03.680 CLIP; PCV HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	9804-0104				●
40	03.680 CLIP; PCV HOSE 04.128 (A) ID=15	8-94140-431-0	02	1	0105-				●
40	03.680 CLIP; PCV HOSE 01.762 (B) ID=19	8-94238-569-0	01	1	9804-				●
60	03.278 HOSE; RUBBER,PCV (A)	8-97136-216-1	01	1	9804-0308				●
60	03.278 HOSE; RUBBER,PCV (A)	8-97302-459-0	01	1	0309-				●
60	03.278 HOSE; RUBBER,PCV (B)	8-97136-217-0	01	1	9804-				●
133	01.750 VALVE; PCV L=58.5	8-94331-209-0	01	1	9804-9812	●
133	01.750 VALVE; PCV	8-97118-860-0	01	1	9804-				●

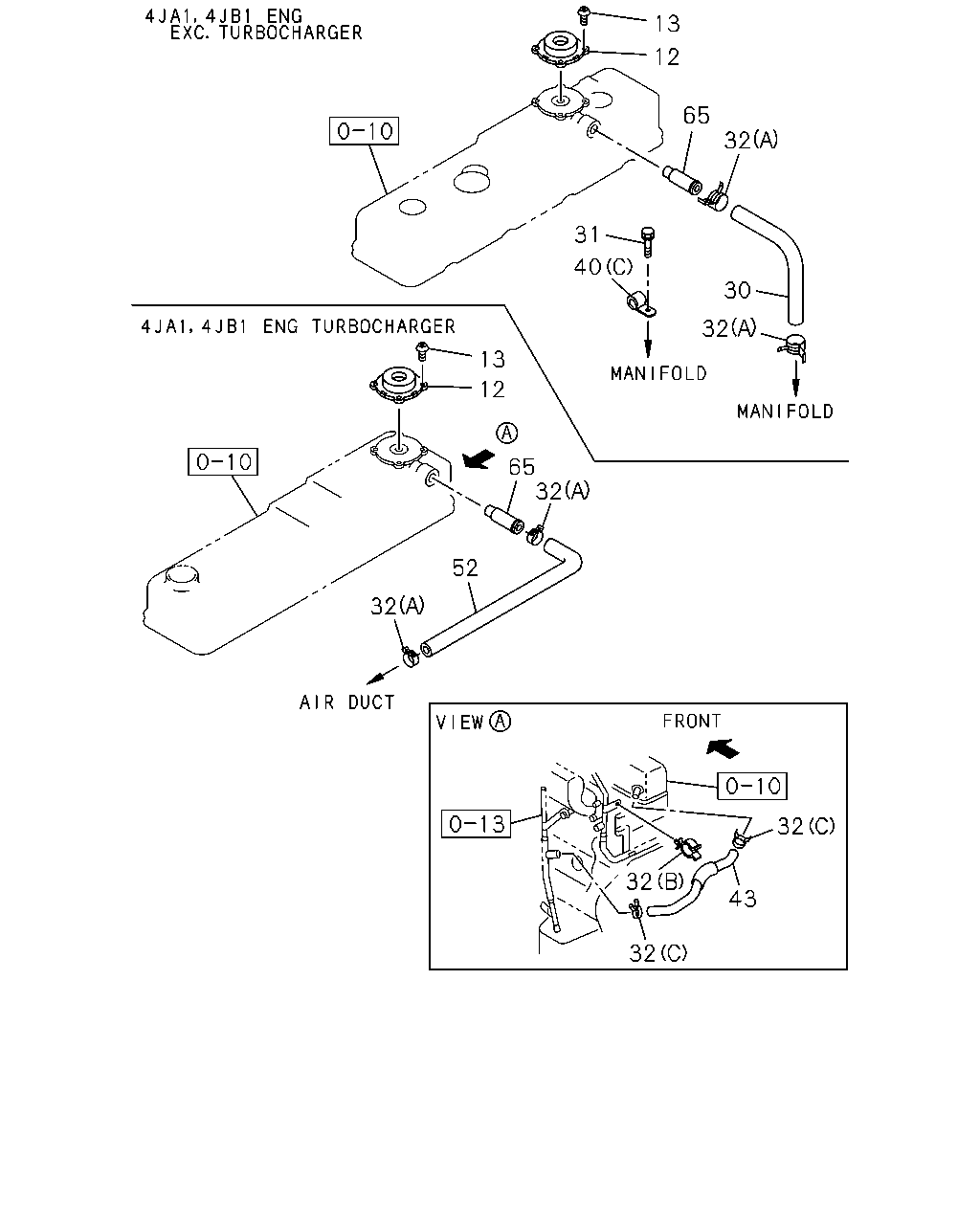

13 12 65 32 31 40 30 32 13 12 65 32 52 32 32 32 43 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	01.745 VENTILATOR; AIR	8-94250-172-0	01	1	9804-0212		●	●
12	01.745 VENTILATOR; AIR 03.415	8-97119-887-0	01	1	0301-		●	●
13	00.386 SCREW; VENTILATOR TO HD COVER 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9804-		●	●
30	03.417 HOSE; VENTILATOR,CYL HD COVER EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ)	8-94475-222-1	01	1	9804-9812		●
30	03.417 HOSE; VENTILATOR,CYL HD COVER CHINA CHONGQING EQUIPMENT(R5B)	8-94475-222-1	01	1	9804-9812			●
30	03.417 HOSE; VENTILATOR,CYL HD COVER EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ)	8-94475-222-1	01	1	9901-9901		●
30	03.417 HOSE; VENTILATOR,CYL HD COVER EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ)	8-94475-222-1	01	1	9902-0205		●
30	03.417 HOSE; VENTILATOR,CYL HD COVER EXC. TURBOCHARGER<K51>	8-94475-222-1	01	1	0206-		●
31	03.417 BOLT; HOSE CLIP EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9804-9812		●
31	03.417 BOLT; HOSE CLIP CHINA CHONGQING EQUIPMENT(R5B) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9804-9812			●
31	03.417 BOLT; HOSE CLIP EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9901-9901		●
31	03.417 BOLT; HOSE CLIP EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9902-0205		●
31	03.417 BOLT; HOSE CLIP EXC. TURBOCHARGER<K51> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0206-		●
32	03.417 CLIP; VENT HOSE TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 01.166 (B) ID=21 BLACK	8-94422-733-0	01	1	9804-9812		●
32	03.417 CLIP; VENT HOSE EXC. CHINA CHONGQING EQUIPMENT(R5B) 01.166 (B) ID=21 BLACK	8-94422-733-0	01	1	9804-9812			●
32	03.417 CLIP; VENT HOSE TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 01.166 (B) ID=21 BLACK	8-94422-733-0	01	1	9901-9901		●
32	03.417 CLIP; VENT HOSE 01.166 (B) ID=21 BLACK	8-94422-733-0	01	1	9901-9901			●
32	03.417 CLIP; VENT HOSE TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 01.166 (B) ID=21 BLACK	8-94422-733-0	01	1	9902-0009		●
32	03.417 CLIP; VENT HOSE 01.166 (B) ID=21 BLACK	8-94422-733-0	01	1	9902-0009			●
32	03.417 CLIP; VENT HOSE TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 01.166 (B) ID=21 BLACK	8-94422-733-0	01	1	0010-0204		●
32	03.417 CLIP; VENT HOSE 01.166 (B) ID=21 BLACK	8-94422-733-0	01	1	0010-0204			●
32	03.417 CLIP; VENT HOSE TURBOCHARGER<K51> 01.166 (B) ID=21 BLACK	8-94422-733-0	01	1	0205-		●
32	03.417 CLIP; VENT HOSE 01.166 (B) ID=21 BLACK	8-94422-733-0	01	1	0205-			●
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-0	02	1	9804-		●	●
32	03.417 CLIP; VENT HOSE EXC. CHINA CHONGQING EQUIPMENT(R5B) 01.097 (C) ID=14.8	8-94448-727-0	02	1	9804-9812			●
32	03.417 CLIP; VENT HOSE 01.097 (C) ID=14.8	8-94448-727-0	02	1	9901-			●
40	03.680 CLIP; PCV HOSE EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (C) ID=20 L=25	9-09916-078-0	01	1	9804-9812		●
40	03.680 CLIP; PCV HOSE CHINA CHONGQING EQUIPMENT(R5B) (C) ID=20 L=25	9-09916-078-0	01	1	9804-9812			●
40	03.680 CLIP; PCV HOSE EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (C) ID=20 L=25	9-09916-078-0	01	1	9901-9901		●
40	03.680 CLIP; PCV HOSE EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (C) ID=20 L=25	9-09916-078-0	01	1	9902-0205		●
40	03.680 CLIP; PCV HOSE EXC. TURBOCHARGER<K51> (C) ID=20 L=25	9-09916-078-0	01	1	0206-		●
40	03.680 CLIP; PCV HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	9804-0104				●
40	03.680 CLIP; PCV HOSE 04.128 (A) ID=15	8-94140-431-0	02	1	0105-				●
40	03.680 CLIP; PCV HOSE 01.762 (B) ID=19	8-94238-569-0	01	1	9804-				●
43	03.278 HOSE; PCV EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97113-159-0	01	1	9804-9812			●
43	03.278 HOSE; PCV	8-97113-159-1	01	1	9901-			●
52	03.278 HOSE; PCV TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 03.417	8-94437-494-3	01	1	9804-9812		●
52	03.278 HOSE; PCV EXC. CHINA CHONGQING EQUIPMENT(R5B) 03.417	8-94437-494-3	01	1	9804-9812			●
52	03.278 HOSE; PCV TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 03.417	8-94437-494-3	01	1	9901-9901		●
52	03.278 HOSE; PCV 03.417	8-94437-494-3	01	1	9901-9901			●
52	03.278 HOSE; PCV TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 03.417	8-94437-494-3	01	1	9902-0009		●
52	03.278 HOSE; PCV 03.417	8-94437-494-3	01	1	9902-0009			●
52	03.278 HOSE; PCV TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 03.417	8-94437-494-3	01	1	0010-0204		●
52	03.278 HOSE; PCV 03.417	8-94437-494-3	01	1	0010-0204			●
52	03.278 HOSE; PCV TURBOCHARGER<K51> 03.417	8-94437-494-3	01	1	0205-		●
52	03.278 HOSE; PCV 03.417	8-94437-494-3	01	1	0205-			●
52	03.278 HOSE; PCV	8-97069-260-0	01	1	9804-9812	●
65	01.762 PIPE; BREATHER	8-94250-615-1	01	1	9804-		●	●

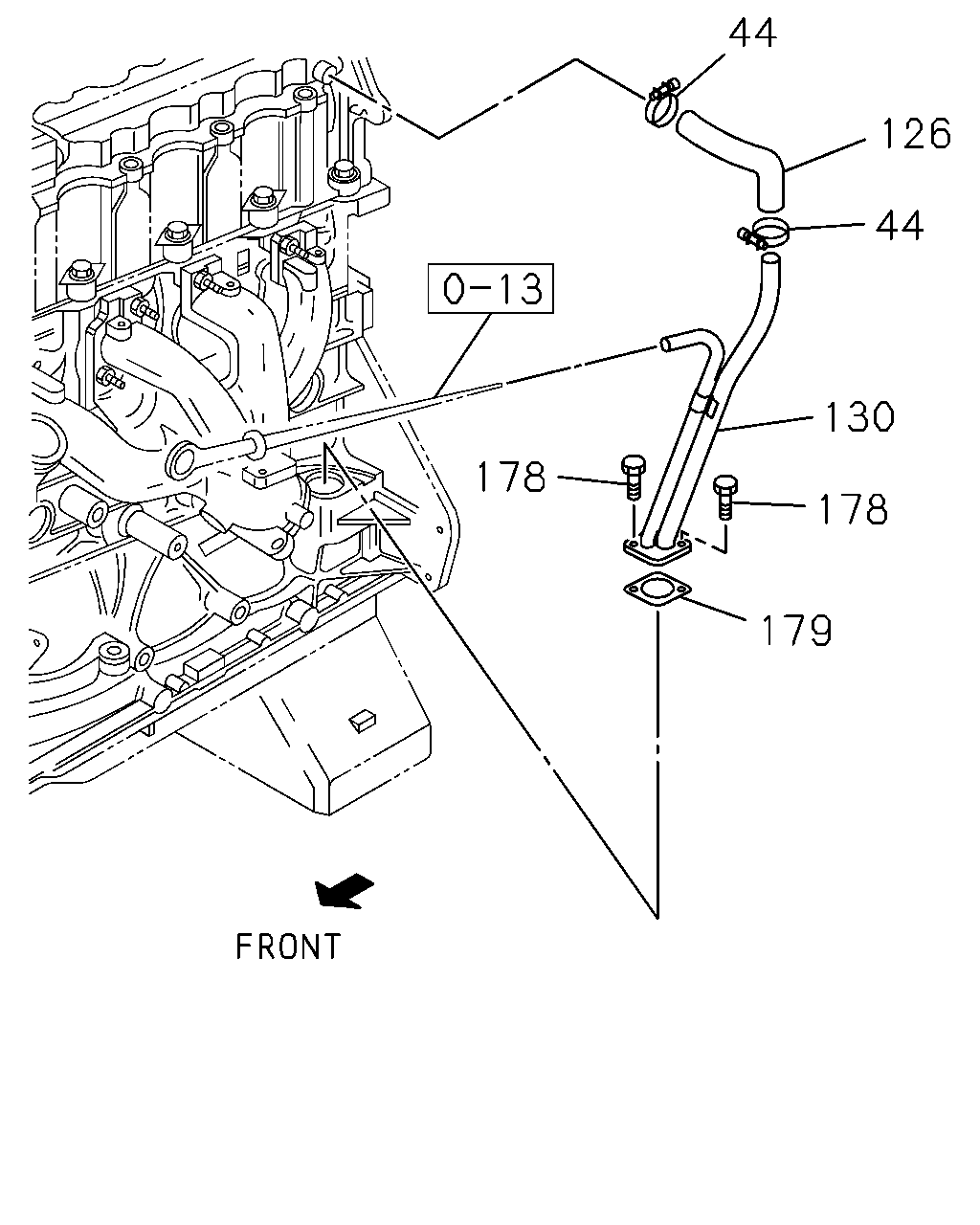

44 126 44 130 178 178 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	E	F
44	03.278 CLIP; HOSE,PCV	8-90467-971-0	02	1	9804-0108	●
44	03.278 CLIP; HOSE,PCV	8-90467-971-0	02	1	0109-	●	●
126	01.762 HOSE; RUBBER,PCV	8-90409-617-0	01	1	9804-0108	●
126	01.762 HOSE; RUBBER,PCV	8-90409-617-0	01	1	0109-	●	●
130	03.278 PIPE; PCV	8-92062-793-0	01	1	9804-0108	●
130	03.278 PIPE; PCV	8-92062-793-0	01	1	0109-	●	●
178	03.278 BOLT; PIPE	8-11052-951-0	02	1	9804-	●
178	03.278 BOLT; PIPE	8-11052-954-0	02	1	0109-		●
179	03.278 GASKET; PIPE	8-90500-571-0	01	1	9804-0108	●
179	03.278 GASKET; PIPE	8-90500-571-0	01	1	0109-	●	●
