0-27 — EXHAUST MANIFOLD (#41727) — 470 parça

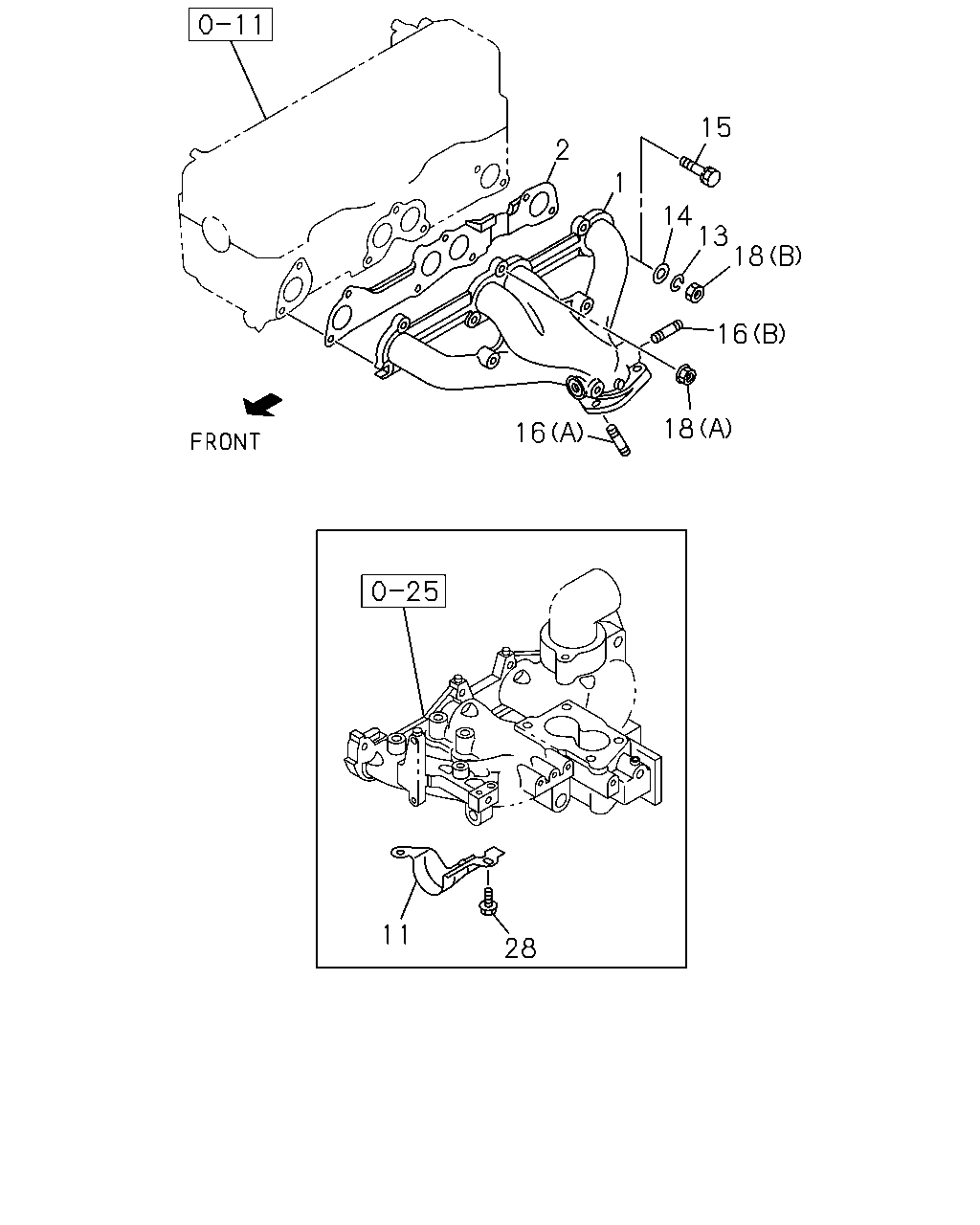

çizim 69754
15 2 1 14 13 18 16 18 16 11 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.601 MANIFOLD; EXHAUST
ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (A) 		8-97188-177-0 01 1 9804-9901 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97188-177-0 01 1 9902-0009 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (A) 		8-97188-177-0 01 1 0010-0103 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97188-177-0 01 1 0104- ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U) (A) 		8-97183-453-0 01 1 0104-0204 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (B) 		8-97065-960-1 01 1 9804-9812 ●
1 03.601 MANIFOLD; EXHAUST
CHINA CHONGQING EQUIPMENT(R5B) (B) 		8-97065-960-1 01 1 9804-9812 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (B) 		8-97065-960-1 01 1 9901-9901 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (B) 		8-97065-960-1 01 1 9902-0205 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51> (B) 		8-97065-960-1 01 1 0206- ●
1 03.601 MANIFOLD; EXHAUST
ARGENTINA EQUIPMENT(7SZ) (A) 		8-97140-087-0 01 1 9804-9901 ●
1 03.601 MANIFOLD; EXHAUST
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97140-087-0 01 1 9902- ●
1 03.601 MANIFOLD; EXHAUST
EXC. CHINA CHONGQING EQUIPMENT(R5B), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97139-723-0 01 1 9804-9812 ●
1 03.601 MANIFOLD; EXHAUST
EXC. ARGENTINA EQUIPMENT(7SZ) (A) 		8-97139-723-0 01 1 9901-9901 ●
1 03.601 MANIFOLD; EXHAUST
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (A) 		8-97139-723-0 01 1 9902- ●
1 03.601 MANIFOLD; EXHAUST 8-97127-546-0 01 1 9804-9812 ●
1 03.601 MANIFOLD; EXHAUST 8-97167-063-1 01 1 9804- ●
1 03.601 MANIFOLD; EXHAUST 8-97170-146-0 01 1 9804- ●
1 03.601 MANIFOLD; EXHAUST 8-92063-670-0 01 1 9804-0108 ●
1 03.601 MANIFOLD; EXHAUST 8-92063-670-0 01 1 0109- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97109-216-2 01 1 9804-0210 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97350-317-0 01 1 0211- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94324-054-0 01 1 9804-9812 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97148-717-0 02 1 9804- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-92060-515-0 01 1 9804-0108 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-92060-515-0 01 1 0109- ● ●
11 03.901 PROTECTOR; HEAT,FUEL PUMP 8-97136-056-0 01 1 9804-9812 ●
13 03.613 WASHER; LK,EXH MANIF
00.002 ID=8.2 		9-09150-508-0 07 1 9804-9812 ●
14 03.604 WASHER; PL,EXH MANIF
03.332 ID=8.5 OD=15 T=4 		1-09503-219-0 02 1 9804-0006 ● ●
14 03.604 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4 		8-97257-914-0 02 1 0007- ● ●
14 03.604 WASHER; PL,EXH MANIF
01.276 ID=8.4 OD=18 		9-09164-608-0 02 1 9804-9812 ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 9804- ● ●
15 03.604 BOLT; EXH MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 9804-9812 ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9804-9812 ●
16 03.604 STUD; EXH PIPE TO MANIF
CHINA CHONGQING EQUIPMENT(R5B) 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9804-9812 ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9901-9901 ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9902-0205 ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. TURBOCHARGER<K51> 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 0206- ●
16 03.604 STUD; EXH PIPE TO MANIF
(B) M8X18 L=29 		8-97061-377-1 02 1 9804-9812 ●
16 03.604 STUD; EXH PIPE TO MANIF
03.275 (A) M10X25 L=40 		9-04411-025-0 02 1 9804-9812 ●
16 03.604 STUD; EXH PIPE TO MANIF
M12X15 L=46.6 		8-97115-132-0 06 1 9804- ●
16 03.604 STUD; EXH PIPE TO MANIF 8-11077-512-0 04 1 9804-0108 ●
16 03.604 STUD; EXH PIPE TO MANIF 8-11077-512-0 04 1 0109- ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 9804- ● ●
18 03.604 NUT; EXH MANIF
00.854 (A) M8 FLANGE 		5-09440-005-0 04 1 9804-9812 ●
18 03.604 NUT; EXH MANIF
02.559 (B) M8 		9-09110-408-0 07 1 9804-9812 ●
18 03.604 NUT; EXH MANIF
08.917 M10 FLANGE 		0-91150-210-0 16 1 9804- ●
18 03.604 NUT; EXH MANIF 8-11082-413-0 08 1 9804-0108 ●
18 03.604 NUT; EXH MANIF 8-11082-413-0 08 1 0109- ● ●
28 03.907 BOLT; HEAT PROTECTOR,FUEL PUMP
07.010 M8X20 FLANGE 		0-28080-820-0 02 1 9804-9812 ●

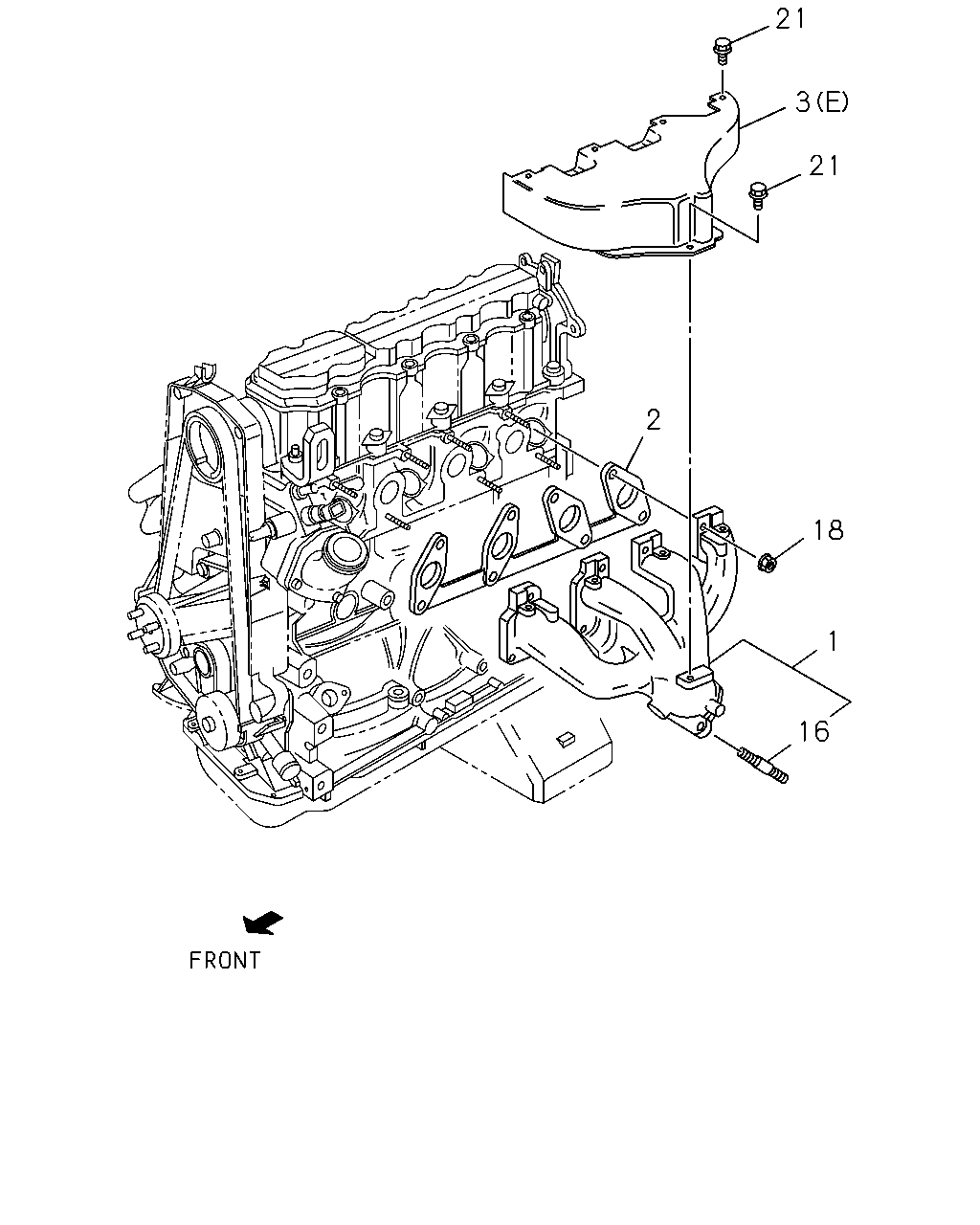

çizim 71514
21 3 21 2 18 1 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.601 MANIFOLD; EXHAUST
ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (A) 		8-97188-177-0 01 1 9804-9901 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97188-177-0 01 1 9902-0009 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (A) 		8-97188-177-0 01 1 0010-0103 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97188-177-0 01 1 0104- ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U) (A) 		8-97183-453-0 01 1 0104-0204 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (B) 		8-97065-960-1 01 1 9804-9812 ●
1 03.601 MANIFOLD; EXHAUST
CHINA CHONGQING EQUIPMENT(R5B) (B) 		8-97065-960-1 01 1 9804-9812 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (B) 		8-97065-960-1 01 1 9901-9901 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (B) 		8-97065-960-1 01 1 9902-0205 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51> (B) 		8-97065-960-1 01 1 0206- ●
1 03.601 MANIFOLD; EXHAUST
ARGENTINA EQUIPMENT(7SZ) (A) 		8-97140-087-0 01 1 9804-9901 ●
1 03.601 MANIFOLD; EXHAUST
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97140-087-0 01 1 9902- ●
1 03.601 MANIFOLD; EXHAUST
EXC. CHINA CHONGQING EQUIPMENT(R5B), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97139-723-0 01 1 9804-9812 ●
1 03.601 MANIFOLD; EXHAUST
EXC. ARGENTINA EQUIPMENT(7SZ) (A) 		8-97139-723-0 01 1 9901-9901 ●
1 03.601 MANIFOLD; EXHAUST
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (A) 		8-97139-723-0 01 1 9902- ●
1 03.601 MANIFOLD; EXHAUST 8-97127-546-0 01 1 9804-9812 ●
1 03.601 MANIFOLD; EXHAUST 8-97167-063-1 01 1 9804- ●
1 03.601 MANIFOLD; EXHAUST 8-97170-146-0 01 1 9804- ●
1 03.601 MANIFOLD; EXHAUST 8-92063-670-0 01 1 9804-0108 ●
1 03.601 MANIFOLD; EXHAUST 8-92063-670-0 01 1 0109- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97109-216-2 01 1 9804-0210 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97350-317-0 01 1 0211- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94324-054-0 01 1 9804-9812 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97148-717-0 02 1 9804- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-92060-515-0 01 1 9804-0108 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-92060-515-0 01 1 0109- ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) (A) 		8-97038-107-1 01 1 9804-9812 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. CHINA CHONGQING EQUIPMENT(R5B) (A) 		8-97038-107-1 01 1 9804-9812 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) (A) 		8-97038-107-1 01 1 9901-9901 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97038-107-1 01 1 9901-9901 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97038-107-1 01 1 9902-0009 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97038-107-1 01 1 9902-0009 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (A) 		8-97038-107-2 01 1 0010-0204 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97038-107-2 01 1 0010-0204 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (A) 		8-97038-107-2 01 1 0205- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97038-107-2 01 1 0205- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) (B) 		8-97133-936-0 01 1 9804-9812 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. CHINA CHONGQING EQUIPMENT(R5B) (B) 		8-97133-936-0 01 1 9804-9812 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) (B) 		8-97133-936-0 01 1 9901-9901 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97133-936-0 01 1 9901-9901 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (B) 		8-97133-936-0 01 1 9902-0009 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97133-936-0 01 1 9902-0009 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (B) 		8-97133-936-1 01 1 0010-0204 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97133-936-1 01 1 0010-0204 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (B) 		8-97133-936-1 01 1 0205-0306 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97133-936-1 01 1 0205-0306 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (B) 		8-97912-766-0 01 1 0307- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97912-766-0 01 1 0307- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (C) 		8-97131-704-0 01 1 9804-9812 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
CHINA CHONGQING EQUIPMENT(R5B) (C) 		8-97131-704-0 01 1 9804-9812 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (C) 		8-97131-704-0 01 1 9901-9901 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (C) 		8-97131-704-0 01 1 9902-0205 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. TURBOCHARGER<K51> (C) 		8-97131-704-0 01 1 0206- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-97164-276-1 01 1 9804- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-97164-278-1 01 1 9804- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(E) 		8-90500-963-0 01 1 9804-0108 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(E) 		8-90500-963-0 01 1 0109- ● ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9804-9812 ●
16 03.604 STUD; EXH PIPE TO MANIF
CHINA CHONGQING EQUIPMENT(R5B) 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9804-9812 ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9901-9901 ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9902-0205 ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. TURBOCHARGER<K51> 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 0206- ●
16 03.604 STUD; EXH PIPE TO MANIF
(B) M8X18 L=29 		8-97061-377-1 02 1 9804-9812 ●
16 03.604 STUD; EXH PIPE TO MANIF
03.275 (A) M10X25 L=40 		9-04411-025-0 02 1 9804-9812 ●
16 03.604 STUD; EXH PIPE TO MANIF
M12X15 L=46.6 		8-97115-132-0 06 1 9804- ●
16 03.604 STUD; EXH PIPE TO MANIF 8-11077-512-0 04 1 9804-0108 ●
16 03.604 STUD; EXH PIPE TO MANIF 8-11077-512-0 04 1 0109- ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 9804- ● ●
18 03.604 NUT; EXH MANIF
00.854 (A) M8 FLANGE 		5-09440-005-0 04 1 9804-9812 ●
18 03.604 NUT; EXH MANIF
02.559 (B) M8 		9-09110-408-0 07 1 9804-9812 ●
18 03.604 NUT; EXH MANIF
08.917 M10 FLANGE 		0-91150-210-0 16 1 9804- ●
18 03.604 NUT; EXH MANIF 8-11082-413-0 08 1 9804-0108 ●
18 03.604 NUT; EXH MANIF 8-11082-413-0 08 1 0109- ● ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9804-9812 ●
21 03.604 BOLT; HEAT PROTECTOR
EXC. CHINA CHONGQING EQUIPMENT(R5B) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9804-9812 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9901-9901 ●
21 03.604 BOLT; HEAT PROTECTOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9901-9901 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9902-0009 ●
21 03.604 BOLT; HEAT PROTECTOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9902-0009 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0010-0204 ●
21 03.604 BOLT; HEAT PROTECTOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0010-0204 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0205- ●
21 03.604 BOLT; HEAT PROTECTOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0205- ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9804-9812 ●
21 03.604 BOLT; HEAT PROTECTOR
EXC. CHINA CHONGQING EQUIPMENT(R5B) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9804-9812 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9901-9901 ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9901-9901 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9902-0009 ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9902-0009 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0010-0204 ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0010-0204 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0205- ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0205- ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9804- ● ●
21 03.604 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		8-97012-320-1 04 1 9804- ●
21 03.604 BOLT; HEAT PROTECTOR 8-11073-032-0 05 1 9804-0108 ●
21 03.604 BOLT; HEAT PROTECTOR 8-11073-032-0 05 1 0109- ● ●

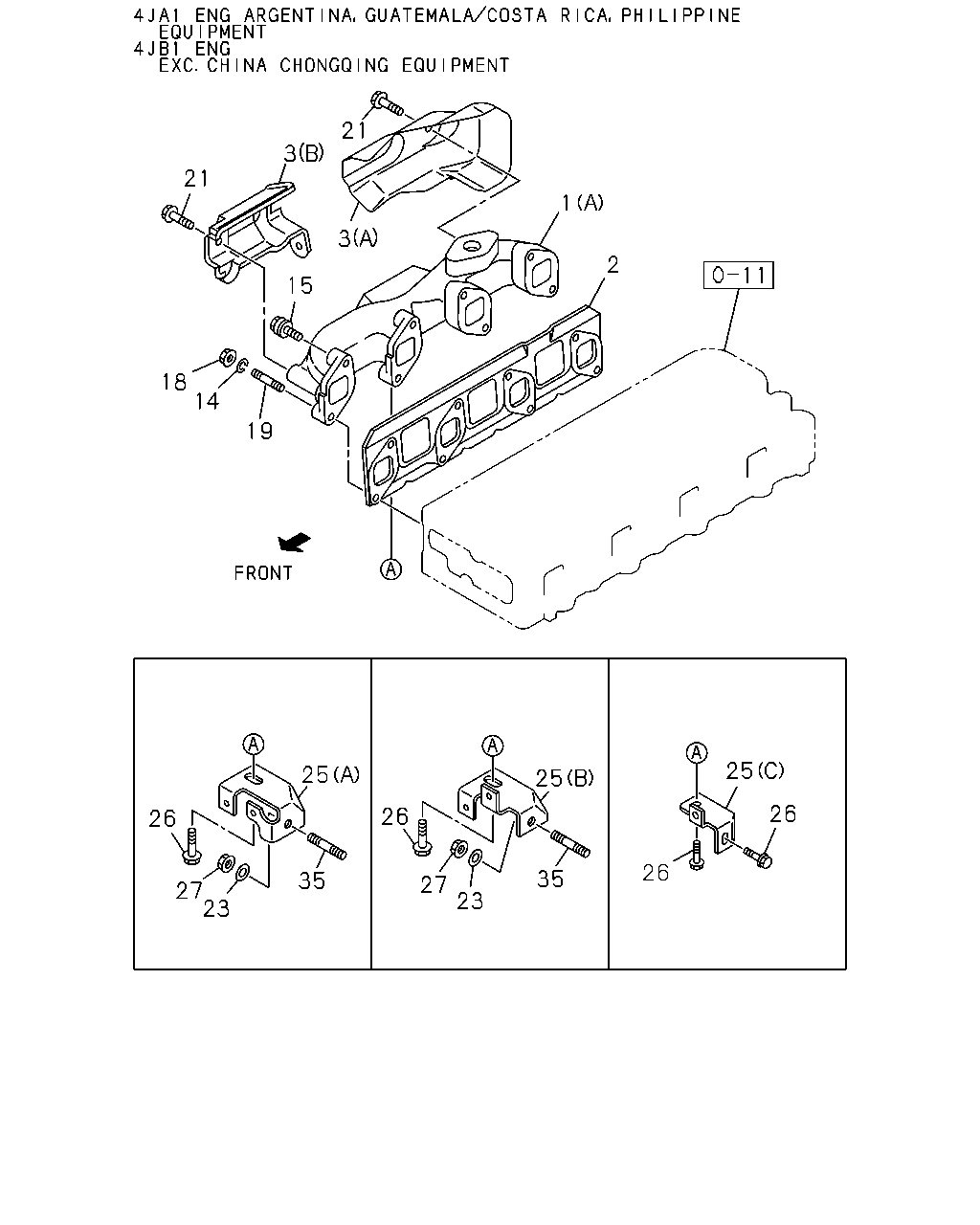

çizim 71679
21 3 21 1 3 2 15 18 14 19 25 25 25 26 26 26 26 35 35 27 23 27 23
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.601 MANIFOLD; EXHAUST
ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (A) 		8-97188-177-0 01 1 9804-9901 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97188-177-0 01 1 9902-0009 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (A) 		8-97188-177-0 01 1 0010-0103 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97188-177-0 01 1 0104- ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U) (A) 		8-97183-453-0 01 1 0104-0204 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (B) 		8-97065-960-1 01 1 9804-9812 ●
1 03.601 MANIFOLD; EXHAUST
CHINA CHONGQING EQUIPMENT(R5B) (B) 		8-97065-960-1 01 1 9804-9812 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (B) 		8-97065-960-1 01 1 9901-9901 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (B) 		8-97065-960-1 01 1 9902-0205 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51> (B) 		8-97065-960-1 01 1 0206- ●
1 03.601 MANIFOLD; EXHAUST
ARGENTINA EQUIPMENT(7SZ) (A) 		8-97140-087-0 01 1 9804-9901 ●
1 03.601 MANIFOLD; EXHAUST
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97140-087-0 01 1 9902- ●
1 03.601 MANIFOLD; EXHAUST
EXC. CHINA CHONGQING EQUIPMENT(R5B), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97139-723-0 01 1 9804-9812 ●
1 03.601 MANIFOLD; EXHAUST
EXC. ARGENTINA EQUIPMENT(7SZ) (A) 		8-97139-723-0 01 1 9901-9901 ●
1 03.601 MANIFOLD; EXHAUST
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (A) 		8-97139-723-0 01 1 9902- ●
1 03.601 MANIFOLD; EXHAUST 8-97127-546-0 01 1 9804-9812 ●
1 03.601 MANIFOLD; EXHAUST 8-97167-063-1 01 1 9804- ●
1 03.601 MANIFOLD; EXHAUST 8-97170-146-0 01 1 9804- ●
1 03.601 MANIFOLD; EXHAUST 8-92063-670-0 01 1 9804-0108 ●
1 03.601 MANIFOLD; EXHAUST 8-92063-670-0 01 1 0109- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97109-216-2 01 1 9804-0210 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97350-317-0 01 1 0211- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94324-054-0 01 1 9804-9812 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97148-717-0 02 1 9804- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-92060-515-0 01 1 9804-0108 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-92060-515-0 01 1 0109- ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) (A) 		8-97038-107-1 01 1 9804-9812 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. CHINA CHONGQING EQUIPMENT(R5B) (A) 		8-97038-107-1 01 1 9804-9812 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) (A) 		8-97038-107-1 01 1 9901-9901 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97038-107-1 01 1 9901-9901 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97038-107-1 01 1 9902-0009 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97038-107-1 01 1 9902-0009 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (A) 		8-97038-107-2 01 1 0010-0204 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97038-107-2 01 1 0010-0204 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (A) 		8-97038-107-2 01 1 0205- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97038-107-2 01 1 0205- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) (B) 		8-97133-936-0 01 1 9804-9812 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. CHINA CHONGQING EQUIPMENT(R5B) (B) 		8-97133-936-0 01 1 9804-9812 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) (B) 		8-97133-936-0 01 1 9901-9901 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97133-936-0 01 1 9901-9901 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (B) 		8-97133-936-0 01 1 9902-0009 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97133-936-0 01 1 9902-0009 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (B) 		8-97133-936-1 01 1 0010-0204 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97133-936-1 01 1 0010-0204 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (B) 		8-97133-936-1 01 1 0205-0306 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97133-936-1 01 1 0205-0306 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (B) 		8-97912-766-0 01 1 0307- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97912-766-0 01 1 0307- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (C) 		8-97131-704-0 01 1 9804-9812 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
CHINA CHONGQING EQUIPMENT(R5B) (C) 		8-97131-704-0 01 1 9804-9812 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (C) 		8-97131-704-0 01 1 9901-9901 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (C) 		8-97131-704-0 01 1 9902-0205 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. TURBOCHARGER<K51> (C) 		8-97131-704-0 01 1 0206- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-97164-276-1 01 1 9804- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-97164-278-1 01 1 9804- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(E) 		8-90500-963-0 01 1 9804-0108 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(E) 		8-90500-963-0 01 1 0109- ● ●
14 03.604 WASHER; PL,EXH MANIF
03.332 ID=8.5 OD=15 T=4 		1-09503-219-0 02 1 9804-0006 ● ●
14 03.604 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4 		8-97257-914-0 02 1 0007- ● ●
14 03.604 WASHER; PL,EXH MANIF
01.276 ID=8.4 OD=18 		9-09164-608-0 02 1 9804-9812 ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 9804- ● ●
15 03.604 BOLT; EXH MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 9804-9812 ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 9804- ● ●
18 03.604 NUT; EXH MANIF
00.854 (A) M8 FLANGE 		5-09440-005-0 04 1 9804-9812 ●
18 03.604 NUT; EXH MANIF
02.559 (B) M8 		9-09110-408-0 07 1 9804-9812 ●
18 03.604 NUT; EXH MANIF
08.917 M10 FLANGE 		0-91150-210-0 16 1 9804- ●
18 03.604 NUT; EXH MANIF 8-11082-413-0 08 1 9804-0108 ●
18 03.604 NUT; EXH MANIF 8-11082-413-0 08 1 0109- ● ●
19 03.604 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97048-055-1 02 1 9804- ● ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9804-9812 ●
21 03.604 BOLT; HEAT PROTECTOR
EXC. CHINA CHONGQING EQUIPMENT(R5B) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9804-9812 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9901-9901 ●
21 03.604 BOLT; HEAT PROTECTOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9901-9901 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9902-0009 ●
21 03.604 BOLT; HEAT PROTECTOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9902-0009 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0010-0204 ●
21 03.604 BOLT; HEAT PROTECTOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0010-0204 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0205- ●
21 03.604 BOLT; HEAT PROTECTOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0205- ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9804-9812 ●
21 03.604 BOLT; HEAT PROTECTOR
EXC. CHINA CHONGQING EQUIPMENT(R5B) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9804-9812 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9901-9901 ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9901-9901 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9902-0009 ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9902-0009 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0010-0204 ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0010-0204 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0205- ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0205- ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9804- ● ●
21 03.604 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		8-97012-320-1 04 1 9804- ●
21 03.604 BOLT; HEAT PROTECTOR 8-11073-032-0 05 1 9804-0108 ●
21 03.604 BOLT; HEAT PROTECTOR 8-11073-032-0 05 1 0109- ● ●
23 03.613 WASHER; PL EXH MANIF BRKT
ARGENTINA EQUIPMENT(7SZ) 02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9804-9904 ● ●
23 03.613 WASHER; PL EXH MANIF BRKT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9905- ● ●
25 03.602 BRACKET; EXH MANIF
ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (A) 		8-97188-185-0 01 1 9804-9901 ●
25 03.602 BRACKET; EXH MANIF
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97188-185-0 01 1 9902- ●
25 03.602 BRACKET; EXH MANIF
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U) (A) 		8-97188-069-0 01 1 0104-0204 ●
25 03.602 BRACKET; EXH MANIF
ARGENTINA EQUIPMENT(7SZ) EXC. CHINA CHONGQING EQUIPMENT(R5B) (B) 		8-97188-186-0 01 1 9804-9901 ●
25 03.602 BRACKET; EXH MANIF
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (B) 		8-97188-186-0 01 1 9902- ●
25 03.602 BRACKET; EXH MANIF
EXC. CHINA CHONGQING EQUIPMENT(R5B), ARGENTINA EQUIPMENT(7SZ) (C) 		8-97161-202-0 01 1 9804-9812 ●
25 03.602 BRACKET; EXH MANIF
EXC. ARGENTINA EQUIPMENT(7SZ) (C) 		8-97161-202-0 01 1 9901-9901 ●
25 03.602 BRACKET; EXH MANIF
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (C) 		8-97161-202-0 01 1 9902- ●
26 03.602 BOLT; BRKT TO EXH MANIF
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 03.604 M8X14 FLANGE 		8-94312-699-1 01 1 9804-9812 ●
26 03.602 BOLT; BRKT TO EXH MANIF
EXC. CHINA CHONGQING EQUIPMENT(R5B) 03.604 M8X14 FLANGE 		8-94312-699-1 01 1 9804-9812 ●
26 03.602 BOLT; BRKT TO EXH MANIF
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 03.604 M8X14 FLANGE 		8-94312-699-1 01 1 9901-9901 ●
26 03.602 BOLT; BRKT TO EXH MANIF
03.604 M8X14 FLANGE 		8-94312-699-1 01 1 9901-9901 ●
26 03.602 BOLT; BRKT TO EXH MANIF
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 03.604 M8X14 FLANGE 		8-94312-699-1 01 1 9902-0009 ●
26 03.602 BOLT; BRKT TO EXH MANIF
03.604 M8X14 FLANGE 		8-94312-699-1 01 1 9902-0009 ●
26 03.602 BOLT; BRKT TO EXH MANIF
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 03.604 M8X14 FLANGE 		8-94312-699-1 01 1 0010-0204 ●
26 03.602 BOLT; BRKT TO EXH MANIF
03.604 M8X14 FLANGE 		8-94312-699-1 01 1 0010-0204 ●
26 03.602 BOLT; BRKT TO EXH MANIF
TURBOCHARGER<K51> 03.604 M8X14 FLANGE 		8-94312-699-1 01 1 0205- ●
26 03.602 BOLT; BRKT TO EXH MANIF
03.604 M8X14 FLANGE 		8-94312-699-1 01 1 0205- ●
26 03.602 BOLT; BRKT TO EXH MANIF
EXC. CHINA CHONGQING EQUIPMENT(R5B), ARGENTINA EQUIPMENT(7SZ) 03.275 M8X30 FLANGE 		0-28080-830-0 01 1 9804-9812 ●
26 03.602 BOLT; BRKT TO EXH MANIF
EXC. ARGENTINA EQUIPMENT(7SZ) 03.275 M8X30 FLANGE 		0-28080-830-0 01 1 9901-9901 ●
26 03.602 BOLT; BRKT TO EXH MANIF
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 03.275 M8X30 FLANGE 		0-28080-830-0 01 1 9902-0009 ●
26 03.602 BOLT; BRKT TO EXH MANIF
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U) 03.275 M8X30 FLANGE 		0-28080-830-0 01 1 0010-0204 ●
26 03.602 BOLT; BRKT TO EXH MANIF
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 03.275 M8X30 FLANGE 		0-28080-830-0 01 1 0010-0204 ●
26 03.602 BOLT; BRKT TO EXH MANIF
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 03.275 M8X30 FLANGE 		0-28080-830-0 01 1 0205- ●
27 03.602 NUT; BRKT,EXH MANIF
ARGENTINA EQUIPMENT(7SZ) 01.540 M8 FLANGE 		0-91150-208-0 01 1 9804-9904 ● ●
27 03.602 NUT; BRKT,EXH MANIF
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 01.540 M8 FLANGE 		0-91150-208-0 01 1 9905- ● ●
35 03.604 STUD; BRKT
ARGENTINA EQUIPMENT(7SZ) 05.387 M8X30 L=41 		9-04110-830-0 01 1 9804-9904 ● ●
35 03.604 STUD; BRKT
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 05.387 M8X30 L=41 		9-04110-830-0 01 1 9905- ● ●

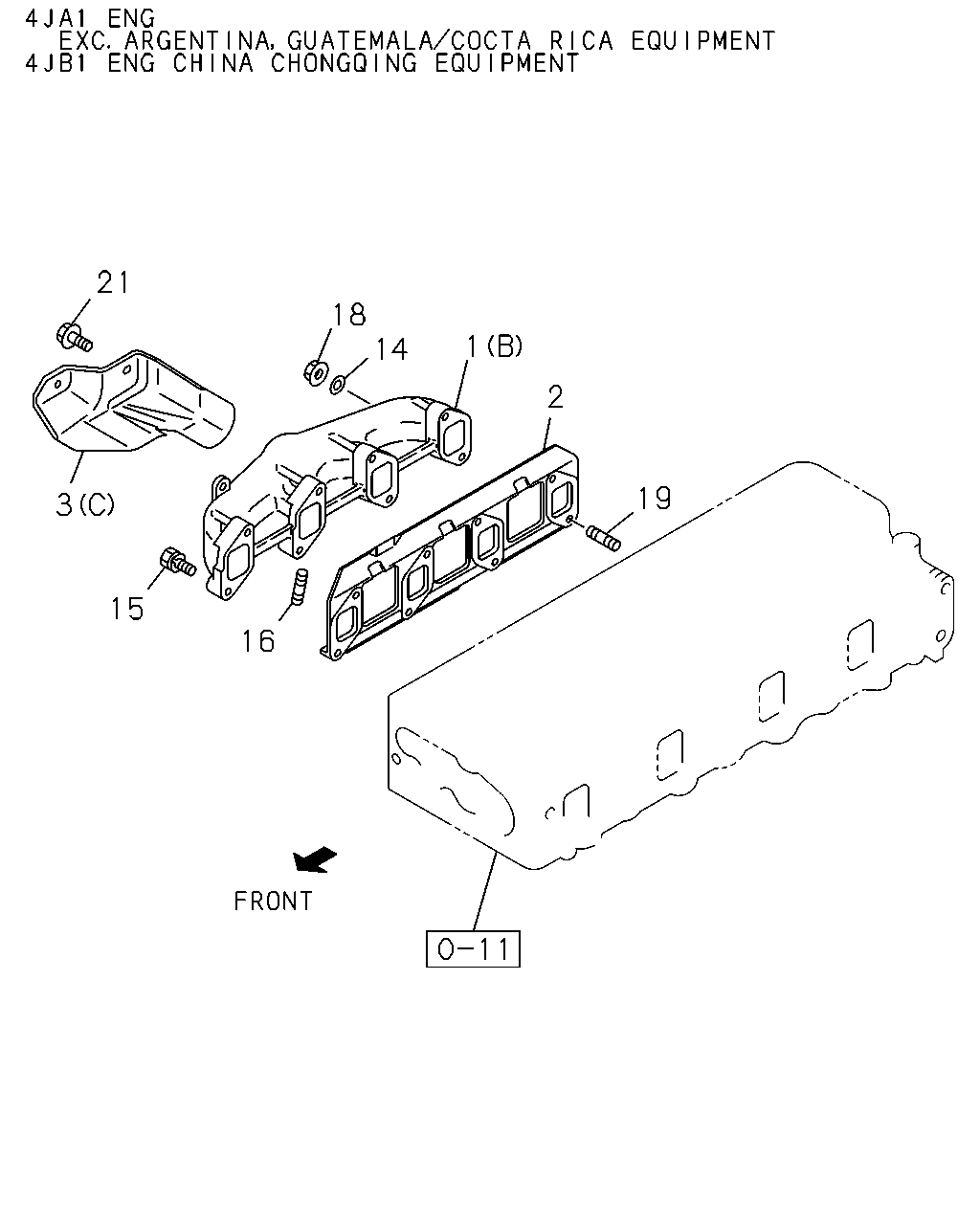

çizim 71705
21 18 14 1 2 19 3 15 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.601 MANIFOLD; EXHAUST
ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (A) 		8-97188-177-0 01 1 9804-9901 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97188-177-0 01 1 9902-0009 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (A) 		8-97188-177-0 01 1 0010-0103 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97188-177-0 01 1 0104- ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U) (A) 		8-97183-453-0 01 1 0104-0204 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (B) 		8-97065-960-1 01 1 9804-9812 ●
1 03.601 MANIFOLD; EXHAUST
CHINA CHONGQING EQUIPMENT(R5B) (B) 		8-97065-960-1 01 1 9804-9812 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (B) 		8-97065-960-1 01 1 9901-9901 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (B) 		8-97065-960-1 01 1 9902-0205 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51> (B) 		8-97065-960-1 01 1 0206- ●
1 03.601 MANIFOLD; EXHAUST
ARGENTINA EQUIPMENT(7SZ) (A) 		8-97140-087-0 01 1 9804-9901 ●
1 03.601 MANIFOLD; EXHAUST
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97140-087-0 01 1 9902- ●
1 03.601 MANIFOLD; EXHAUST
EXC. CHINA CHONGQING EQUIPMENT(R5B), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97139-723-0 01 1 9804-9812 ●
1 03.601 MANIFOLD; EXHAUST
EXC. ARGENTINA EQUIPMENT(7SZ) (A) 		8-97139-723-0 01 1 9901-9901 ●
1 03.601 MANIFOLD; EXHAUST
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (A) 		8-97139-723-0 01 1 9902- ●
1 03.601 MANIFOLD; EXHAUST 8-97127-546-0 01 1 9804-9812 ●
1 03.601 MANIFOLD; EXHAUST 8-97167-063-1 01 1 9804- ●
1 03.601 MANIFOLD; EXHAUST 8-97170-146-0 01 1 9804- ●
1 03.601 MANIFOLD; EXHAUST 8-92063-670-0 01 1 9804-0108 ●
1 03.601 MANIFOLD; EXHAUST 8-92063-670-0 01 1 0109- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97109-216-2 01 1 9804-0210 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97350-317-0 01 1 0211- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94324-054-0 01 1 9804-9812 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97148-717-0 02 1 9804- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-92060-515-0 01 1 9804-0108 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-92060-515-0 01 1 0109- ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) (A) 		8-97038-107-1 01 1 9804-9812 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. CHINA CHONGQING EQUIPMENT(R5B) (A) 		8-97038-107-1 01 1 9804-9812 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) (A) 		8-97038-107-1 01 1 9901-9901 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97038-107-1 01 1 9901-9901 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97038-107-1 01 1 9902-0009 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97038-107-1 01 1 9902-0009 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (A) 		8-97038-107-2 01 1 0010-0204 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97038-107-2 01 1 0010-0204 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (A) 		8-97038-107-2 01 1 0205- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97038-107-2 01 1 0205- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) (B) 		8-97133-936-0 01 1 9804-9812 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. CHINA CHONGQING EQUIPMENT(R5B) (B) 		8-97133-936-0 01 1 9804-9812 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) (B) 		8-97133-936-0 01 1 9901-9901 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97133-936-0 01 1 9901-9901 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (B) 		8-97133-936-0 01 1 9902-0009 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97133-936-0 01 1 9902-0009 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (B) 		8-97133-936-1 01 1 0010-0204 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97133-936-1 01 1 0010-0204 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (B) 		8-97133-936-1 01 1 0205-0306 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97133-936-1 01 1 0205-0306 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (B) 		8-97912-766-0 01 1 0307- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97912-766-0 01 1 0307- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (C) 		8-97131-704-0 01 1 9804-9812 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
CHINA CHONGQING EQUIPMENT(R5B) (C) 		8-97131-704-0 01 1 9804-9812 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (C) 		8-97131-704-0 01 1 9901-9901 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (C) 		8-97131-704-0 01 1 9902-0205 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. TURBOCHARGER<K51> (C) 		8-97131-704-0 01 1 0206- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-97164-276-1 01 1 9804- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-97164-278-1 01 1 9804- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(E) 		8-90500-963-0 01 1 9804-0108 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(E) 		8-90500-963-0 01 1 0109- ● ●
14 03.604 WASHER; PL,EXH MANIF
03.332 ID=8.5 OD=15 T=4 		1-09503-219-0 02 1 9804-0006 ● ●
14 03.604 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4 		8-97257-914-0 02 1 0007- ● ●
14 03.604 WASHER; PL,EXH MANIF
01.276 ID=8.4 OD=18 		9-09164-608-0 02 1 9804-9812 ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 9804- ● ●
15 03.604 BOLT; EXH MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 9804-9812 ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9804-9812 ●
16 03.604 STUD; EXH PIPE TO MANIF
CHINA CHONGQING EQUIPMENT(R5B) 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9804-9812 ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9901-9901 ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9902-0205 ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. TURBOCHARGER<K51> 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 0206- ●
16 03.604 STUD; EXH PIPE TO MANIF
(B) M8X18 L=29 		8-97061-377-1 02 1 9804-9812 ●
16 03.604 STUD; EXH PIPE TO MANIF
03.275 (A) M10X25 L=40 		9-04411-025-0 02 1 9804-9812 ●
16 03.604 STUD; EXH PIPE TO MANIF
M12X15 L=46.6 		8-97115-132-0 06 1 9804- ●
16 03.604 STUD; EXH PIPE TO MANIF 8-11077-512-0 04 1 9804-0108 ●
16 03.604 STUD; EXH PIPE TO MANIF 8-11077-512-0 04 1 0109- ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 9804- ● ●
18 03.604 NUT; EXH MANIF
00.854 (A) M8 FLANGE 		5-09440-005-0 04 1 9804-9812 ●
18 03.604 NUT; EXH MANIF
02.559 (B) M8 		9-09110-408-0 07 1 9804-9812 ●
18 03.604 NUT; EXH MANIF
08.917 M10 FLANGE 		0-91150-210-0 16 1 9804- ●
18 03.604 NUT; EXH MANIF 8-11082-413-0 08 1 9804-0108 ●
18 03.604 NUT; EXH MANIF 8-11082-413-0 08 1 0109- ● ●
19 03.604 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97048-055-1 02 1 9804- ● ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9804-9812 ●
21 03.604 BOLT; HEAT PROTECTOR
EXC. CHINA CHONGQING EQUIPMENT(R5B) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9804-9812 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9901-9901 ●
21 03.604 BOLT; HEAT PROTECTOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9901-9901 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9902-0009 ●
21 03.604 BOLT; HEAT PROTECTOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9902-0009 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0010-0204 ●
21 03.604 BOLT; HEAT PROTECTOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0010-0204 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0205- ●
21 03.604 BOLT; HEAT PROTECTOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0205- ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9804-9812 ●
21 03.604 BOLT; HEAT PROTECTOR
EXC. CHINA CHONGQING EQUIPMENT(R5B) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9804-9812 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9901-9901 ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9901-9901 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9902-0009 ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9902-0009 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0010-0204 ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0010-0204 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0205- ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0205- ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9804- ● ●
21 03.604 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		8-97012-320-1 04 1 9804- ●
21 03.604 BOLT; HEAT PROTECTOR 8-11073-032-0 05 1 9804-0108 ●
21 03.604 BOLT; HEAT PROTECTOR 8-11073-032-0 05 1 0109- ● ●

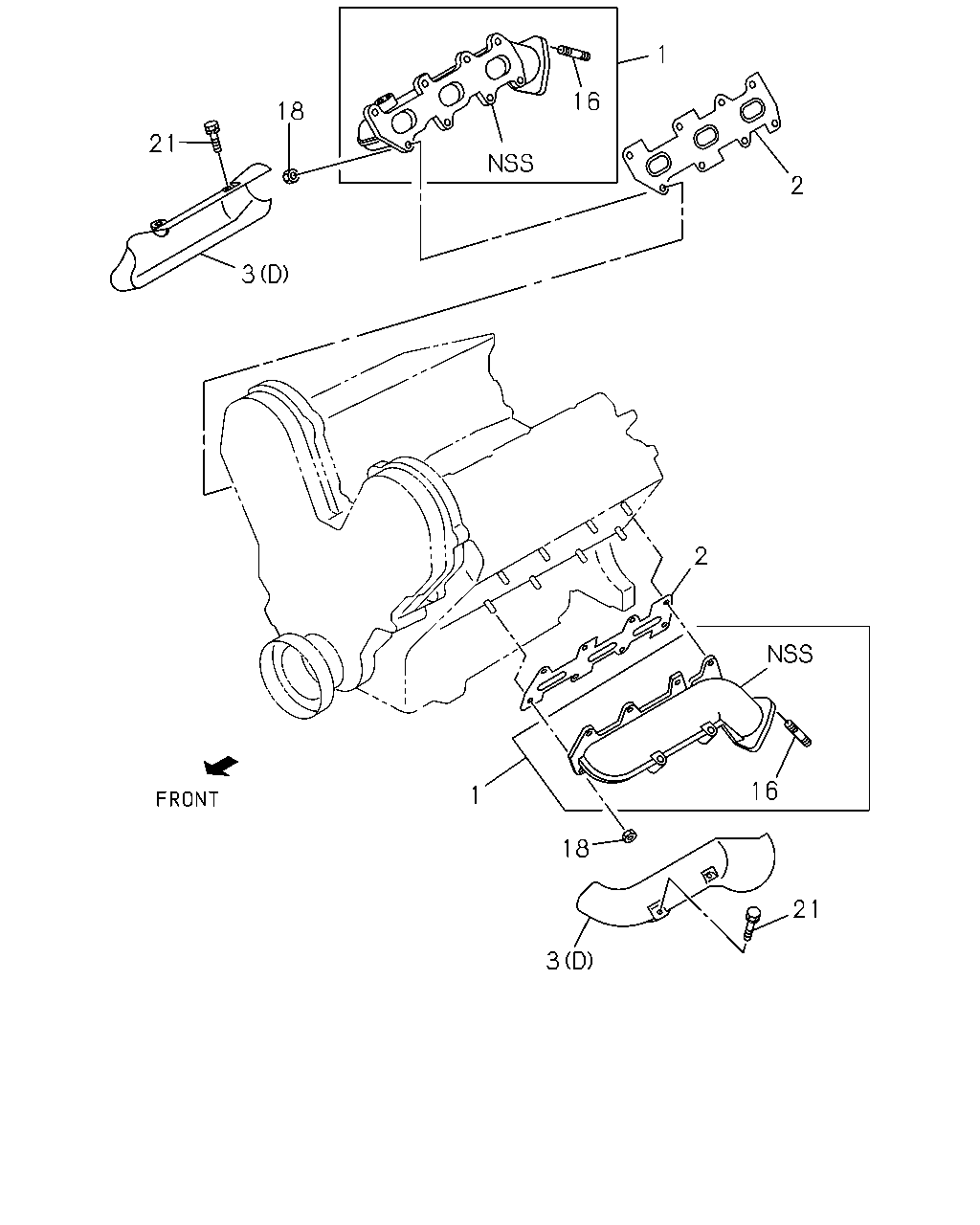

çizim 73658
1 16 18 21 2 3 2 16 1 18 21 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.601 MANIFOLD; EXHAUST
ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51> (A) 		8-97188-177-0 01 1 9804-9901 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97188-177-0 01 1 9902-0009 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (A) 		8-97188-177-0 01 1 0010-0103 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97188-177-0 01 1 0104- ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U) (A) 		8-97183-453-0 01 1 0104-0204 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (B) 		8-97065-960-1 01 1 9804-9812 ●
1 03.601 MANIFOLD; EXHAUST
CHINA CHONGQING EQUIPMENT(R5B) (B) 		8-97065-960-1 01 1 9804-9812 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (B) 		8-97065-960-1 01 1 9901-9901 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (B) 		8-97065-960-1 01 1 9902-0205 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51> (B) 		8-97065-960-1 01 1 0206- ●
1 03.601 MANIFOLD; EXHAUST
ARGENTINA EQUIPMENT(7SZ) (A) 		8-97140-087-0 01 1 9804-9901 ●
1 03.601 MANIFOLD; EXHAUST
GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97140-087-0 01 1 9902- ●
1 03.601 MANIFOLD; EXHAUST
EXC. CHINA CHONGQING EQUIPMENT(R5B), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97139-723-0 01 1 9804-9812 ●
1 03.601 MANIFOLD; EXHAUST
EXC. ARGENTINA EQUIPMENT(7SZ) (A) 		8-97139-723-0 01 1 9901-9901 ●
1 03.601 MANIFOLD; EXHAUST
EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (A) 		8-97139-723-0 01 1 9902- ●
1 03.601 MANIFOLD; EXHAUST 8-97127-546-0 01 1 9804-9812 ●
1 03.601 MANIFOLD; EXHAUST 8-97167-063-1 01 1 9804- ●
1 03.601 MANIFOLD; EXHAUST 8-97170-146-0 01 1 9804- ●
1 03.601 MANIFOLD; EXHAUST 8-92063-670-0 01 1 9804-0108 ●
1 03.601 MANIFOLD; EXHAUST 8-92063-670-0 01 1 0109- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97109-216-2 01 1 9804-0210 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97350-317-0 01 1 0211- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94324-054-0 01 1 9804-9812 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97148-717-0 02 1 9804- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-92060-515-0 01 1 9804-0108 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-92060-515-0 01 1 0109- ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) (A) 		8-97038-107-1 01 1 9804-9812 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. CHINA CHONGQING EQUIPMENT(R5B) (A) 		8-97038-107-1 01 1 9804-9812 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) (A) 		8-97038-107-1 01 1 9901-9901 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97038-107-1 01 1 9901-9901 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) 		8-97038-107-1 01 1 9902-0009 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97038-107-1 01 1 9902-0009 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (A) 		8-97038-107-2 01 1 0010-0204 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97038-107-2 01 1 0010-0204 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (A) 		8-97038-107-2 01 1 0205- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97038-107-2 01 1 0205- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) (B) 		8-97133-936-0 01 1 9804-9812 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. CHINA CHONGQING EQUIPMENT(R5B) (B) 		8-97133-936-0 01 1 9804-9812 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) (B) 		8-97133-936-0 01 1 9901-9901 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97133-936-0 01 1 9901-9901 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (B) 		8-97133-936-0 01 1 9902-0009 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97133-936-0 01 1 9902-0009 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (B) 		8-97133-936-1 01 1 0010-0204 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97133-936-1 01 1 0010-0204 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (B) 		8-97133-936-1 01 1 0205-0306 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97133-936-1 01 1 0205-0306 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (B) 		8-97912-766-0 01 1 0307- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97912-766-0 01 1 0307- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (C) 		8-97131-704-0 01 1 9804-9812 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
CHINA CHONGQING EQUIPMENT(R5B) (C) 		8-97131-704-0 01 1 9804-9812 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (C) 		8-97131-704-0 01 1 9901-9901 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (C) 		8-97131-704-0 01 1 9902-0205 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. TURBOCHARGER<K51> (C) 		8-97131-704-0 01 1 0206- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-97164-276-1 01 1 9804- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-97164-278-1 01 1 9804- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(E) 		8-90500-963-0 01 1 9804-0108 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(E) 		8-90500-963-0 01 1 0109- ● ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9804-9812 ●
16 03.604 STUD; EXH PIPE TO MANIF
CHINA CHONGQING EQUIPMENT(R5B) 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9804-9812 ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9901-9901 ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9902-0205 ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. TURBOCHARGER<K51> 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 0206- ●
16 03.604 STUD; EXH PIPE TO MANIF
(B) M8X18 L=29 		8-97061-377-1 02 1 9804-9812 ●
16 03.604 STUD; EXH PIPE TO MANIF
03.275 (A) M10X25 L=40 		9-04411-025-0 02 1 9804-9812 ●
16 03.604 STUD; EXH PIPE TO MANIF
M12X15 L=46.6 		8-97115-132-0 06 1 9804- ●
16 03.604 STUD; EXH PIPE TO MANIF 8-11077-512-0 04 1 9804-0108 ●
16 03.604 STUD; EXH PIPE TO MANIF 8-11077-512-0 04 1 0109- ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 9804- ● ●
18 03.604 NUT; EXH MANIF
00.854 (A) M8 FLANGE 		5-09440-005-0 04 1 9804-9812 ●
18 03.604 NUT; EXH MANIF
02.559 (B) M8 		9-09110-408-0 07 1 9804-9812 ●
18 03.604 NUT; EXH MANIF
08.917 M10 FLANGE 		0-91150-210-0 16 1 9804- ●
18 03.604 NUT; EXH MANIF 8-11082-413-0 08 1 9804-0108 ●
18 03.604 NUT; EXH MANIF 8-11082-413-0 08 1 0109- ● ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9804-9812 ●
21 03.604 BOLT; HEAT PROTECTOR
EXC. CHINA CHONGQING EQUIPMENT(R5B) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9804-9812 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9901-9901 ●
21 03.604 BOLT; HEAT PROTECTOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9901-9901 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9902-0009 ●
21 03.604 BOLT; HEAT PROTECTOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9902-0009 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0010-0204 ●
21 03.604 BOLT; HEAT PROTECTOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0010-0204 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0205- ●
21 03.604 BOLT; HEAT PROTECTOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0205- ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9804-9812 ●
21 03.604 BOLT; HEAT PROTECTOR
EXC. CHINA CHONGQING EQUIPMENT(R5B) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9804-9812 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9901-9901 ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9901-9901 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9902-0009 ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9902-0009 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0010-0204 ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0010-0204 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0205- ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0205- ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9804- ● ●
21 03.604 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		8-97012-320-1 04 1 9804- ●
21 03.604 BOLT; HEAT PROTECTOR 8-11073-032-0 05 1 9804-0108 ●
21 03.604 BOLT; HEAT PROTECTOR 8-11073-032-0 05 1 0109- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
