0-22 — ENGINE MOUNTING (#41725) — 567 parça

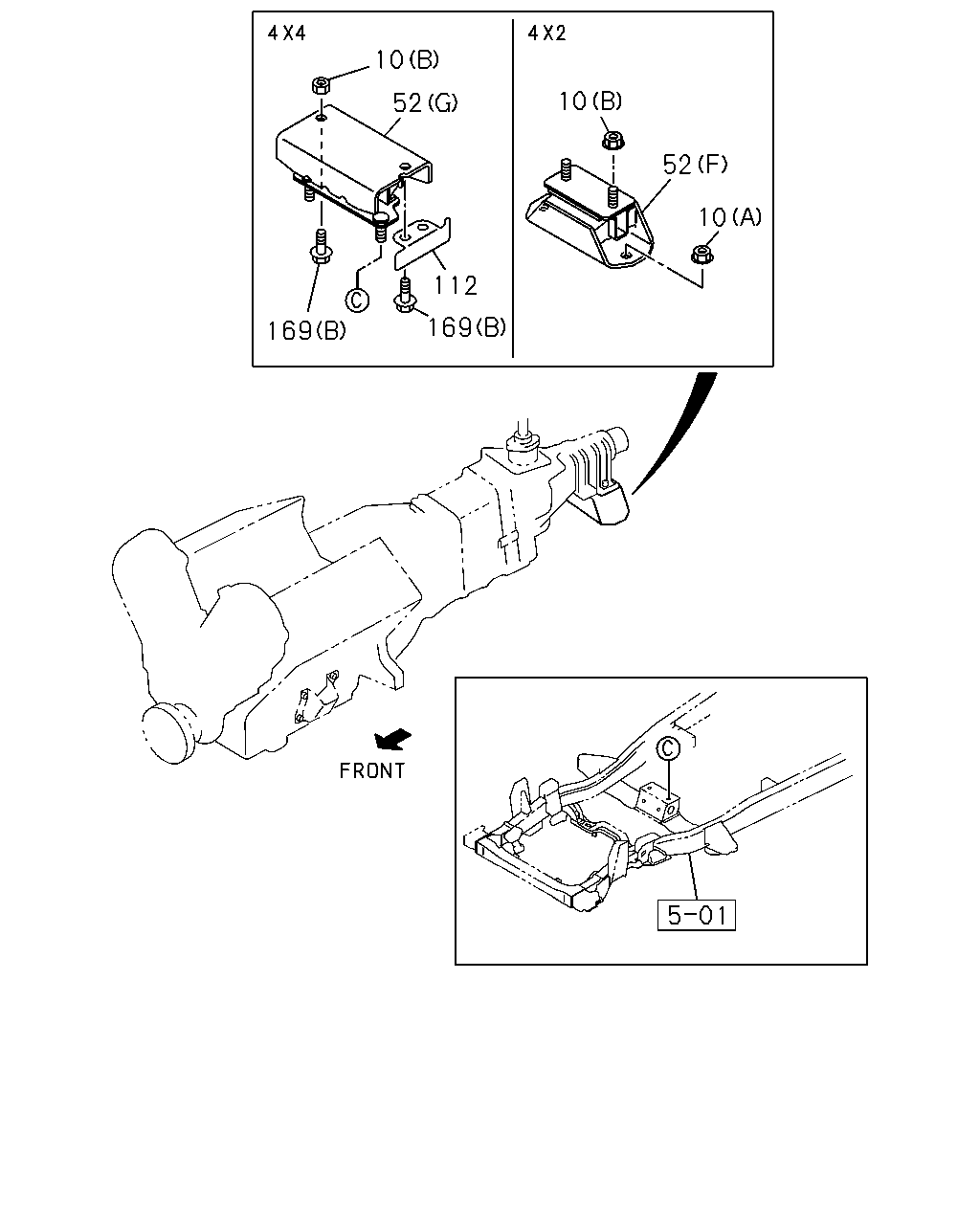

10 10 52 52 10 112 169 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
10	04.085 NUT; MTG RUBBER (B) M10 FLANGE	8-94126-973-0	02	1	9804-9909	●	●	●	●	●
10	04.085 NUT; MTG RUBBER (B) M10 FLANGE	8-94126-973-0	02	1	9910-0109	●	●	●		●
10	04.085 NUT; MTG RUBBER (B) M10 FLANGE	8-94126-973-0	02	1	0110-	●	●	●		●	●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9804-9909	●	●	●	●	●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9910-0109	●	●	●		●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0110-	●	●	●		●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN) (C)	8-94458-384-3	01	1	9804-		●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) (B)	8-94434-208-1	01	1	9804-9812	●	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) (B)	8-94434-208-1	01	1	9901-9909	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 LONG(TFB**F) (B)	8-94434-208-1	01	1	9901-9909			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 LONG(TFB**F) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (B)	8-94434-208-1	01	1	9910-0012	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 SHORT(TFB**C) (B)	8-94434-208-1	01	1	9910-0012	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B)	8-94434-208-1	01	1	0101-0108	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B)	8-94434-208-1	01	1	0109-	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR (B)	8-94434-208-1	01	1	0109-						●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 LONG(TFB**F) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 4X2 HIGH RIDE SUSPENSION(7YC) (B)	8-97258-650-0	01	1	0101-	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MSG 5 SPEED(M75) (A)	8-94472-973-0	01	1	9804-	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (E)	8-97132-065-1	01	1	0010-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (D)	8-97229-171-0	01	1	0010-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4 CREW CAB(TFSW) A/T AISIN(RMD) (H)	8-97039-195-6	01	1	0010-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MUA 5 SPEED(RMN) (F)	8-97015-103-2	01	1	9804-0011					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MUA 5 SPEED(RMN) (F)	8-97211-978-1	01	1	0012-					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN) (G)	8-97123-260-0	01	1	9804-					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN) (C)	8-94458-383-3	01	1	9804-	●
112	00.029 PROTECTOR; HEAT 4X4(TFS***) M/T MUA 5 SPEED(RMN)	8-97022-766-0	01	1	9804-					●
112	00.029 PROTECTOR; HEAT (B)	8-97185-843-1	01	1	9804-9909	●
112	00.029 PROTECTOR; HEAT 4X4(TFS***) M/T MUA 5 SPEED(RMN) (A)	8-94441-573-0	01	1	9804-	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	9804-9909	●	●	●	●	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	9910-0011	●	●	●		●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0012-0012	●	●	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0101-0109	●	●	●		●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0110-	●	●	●			●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	9804-0009	●	●	●	●	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	0010-	●	●	●		●
169	00.029 BOLT; SUPPORT 4X2(TFB***) A/T AISIN(RMD) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	0010-			●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-97035-564-0	04	1	9804-9909		●	●		●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-97035-564-0	04	1	9910-0109	●	●	●		●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-97035-564-0	04	1	0110-	●	●	●		●	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MSG 5 SPEED(M75) 00.002 (D) M12X50 W/LK&PL WASHER	0-50141-250-0	02	1	9804-	●	●
169	00.029 BOLT; SUPPORT 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (C) M10X22	8-97229-172-0	02	1	0010-			●
169	00.029 BOLT; SUPPORT 4X4(TFS***) A/T AISIN(RMD) 03.162 (B) M10X35 FLANGE	0-28681-035-0	02	1	0010-			●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-94325-415-1	04	1	9804-9812	●			●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-94325-415-1	04	1	9901-9909	●

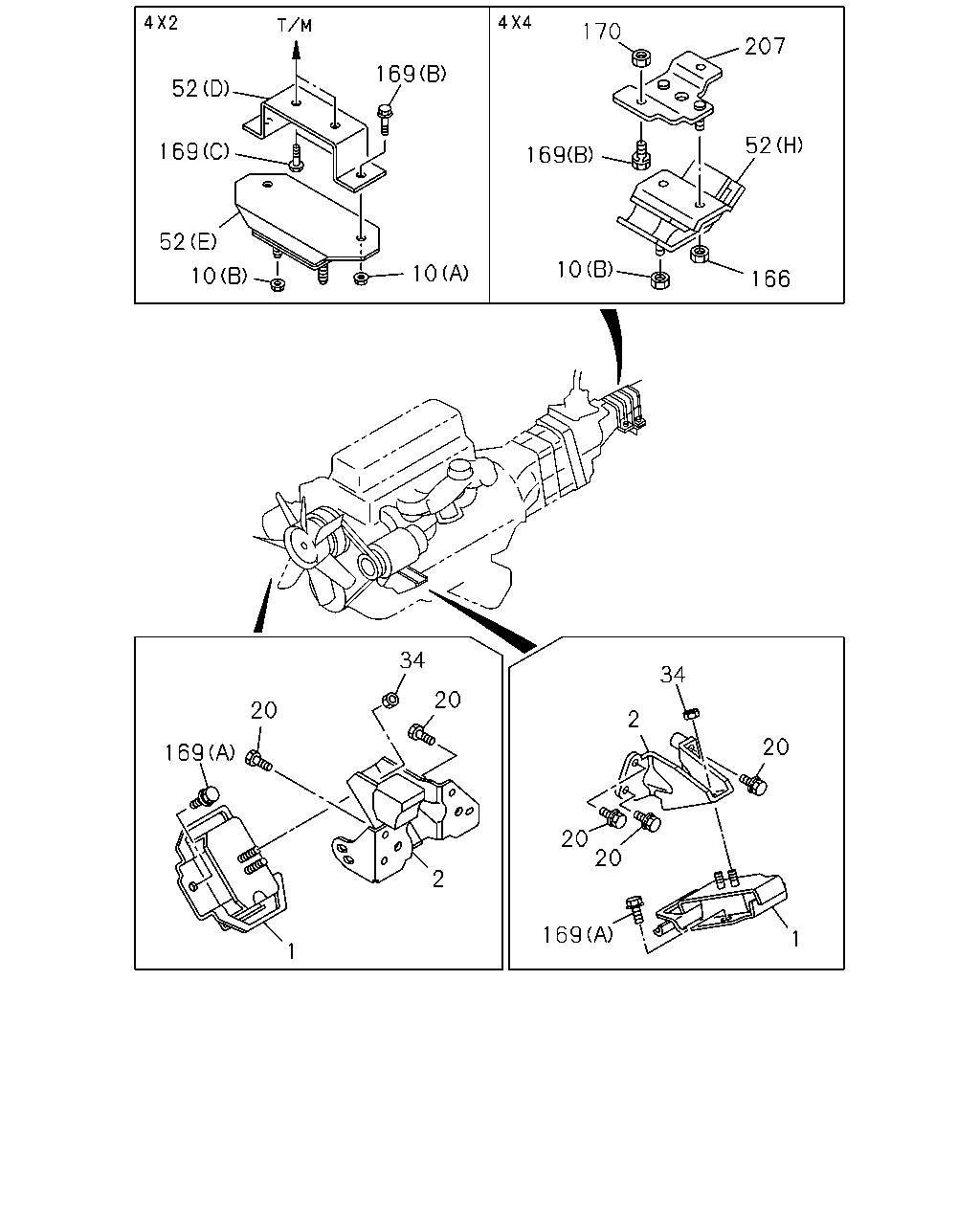

170 207 169 52 52 169 169 52 10 10 10 166 34 34 20 20 2 20 169 20 20 2 169 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.027 RUBBER; ENG FOOT,FRT	8-97086-076-1	01	1	9804-		●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97039-189-3	01	1	9804-		●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97066-799-0	01	1	9804-9812				●
1	00.027 RUBBER; ENG FOOT,FRT	8-97066-800-0	01	1	9804-9812				●
1	00.027 RUBBER; ENG FOOT,FRT	8-97104-158-1	01	1	9804-					●
1	00.027 RUBBER; ENG FOOT,FRT	8-97104-157-1	01	1	9804-					●
1	00.027 RUBBER; ENG FOOT,FRT	8-94422-868-2	01	1	9804-9909	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-97216-755-1	01	1	9910-0108	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-97216-755-1	01	1	0109-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97216-755-1	01	1	0109-						●
1	00.027 RUBBER; ENG FOOT,FRT	8-94422-867-2	01	1	9804-9909	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-97216-754-1	01	1	9910-0108	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-97216-754-1	01	1	0109-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97216-754-1	01	1	0109-						●
1	00.027 RUBBER; ENG FOOT,FRT 4X4(TFS***)	8-97225-552-0	01	1	9910-	●
1	00.027 RUBBER; ENG FOOT,FRT 4X4(TFS***)	8-97225-551-0	01	1	9910-	●
2	00.029 FOOT; ENG	8-97038-196-1	01	1	9804-		●	●
2	00.029 FOOT; ENG	8-97038-195-1	01	1	9804-		●	●
2	00.029 FOOT; ENG	8-94449-473-3	01	1	9804-9812				●
2	00.029 FOOT; ENG	8-94449-474-3	01	1	9804-9812				●
2	00.029 FOOT; ENG	8-97110-078-0	01	1	9804-					●
2	00.029 FOOT; ENG	8-97146-073-0	01	1	9804-					●
2	00.029 FOOT; ENG	8-97168-098-0	01	1	9804-9909	●
2	00.029 FOOT; ENG	8-97216-541-1	01	1	9910-0108	●
2	00.029 FOOT; ENG	8-97216-541-1	01	1	0109-	●					●
2	00.029 FOOT; ENG	8-97168-097-0	01	1	9804-9909	●
2	00.029 FOOT; ENG	8-97216-540-1	01	1	9910-0108	●
2	00.029 FOOT; ENG	8-97216-540-1	01	1	0109-	●					●
10	04.085 NUT; MTG RUBBER (B) M10 FLANGE	8-94126-973-0	02	1	9804-9909	●	●	●	●	●
10	04.085 NUT; MTG RUBBER (B) M10 FLANGE	8-94126-973-0	02	1	9910-0109	●	●	●		●
10	04.085 NUT; MTG RUBBER (B) M10 FLANGE	8-94126-973-0	02	1	0110-	●	●	●		●	●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9804-9909	●	●	●	●	●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9910-0109	●	●	●		●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0110-	●	●	●		●	●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	06	1	9804-		●	●
20	00.029 BOLT; ENG FOOT 09.171 M10X35 W/LK WASHER	0-50041-035-0	01	1	9804-		●	●
20	00.029 BOLT; ENG FOOT 00.002 M14X25 W/LK WASHER	0-50041-425-0	01	1	9804-		●	●
20	00.029 BOLT; ENG FOOT 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9804-9812				●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	01	1	9804-9812				●
20	00.029 BOLT; ENG FOOT 00.002 M12X25 W/LK WASHER	0-50041-225-0	05	1	9804-9812				●
20	00.029 BOLT; ENG FOOT M14X25 W/LK&PL WASHER	0-50141-425-0	01	1	9804-9812				●
20	00.029 BOLT; ENG FOOT 04.510 (A) M10X40 FLANGE	0-28181-040-0	01	1	9804-					●
20	00.029 BOLT; ENG FOOT 09.181 (B) M10X25 FLANGE	0-28781-025-0	07	1	9804-					●
20	00.029 BOLT; ENG FOOT 09.181 M10X25 FLANGE	0-28781-025-0	05	1	9804-0108	●
20	00.029 BOLT; ENG FOOT 09.181 M10X25 FLANGE	0-28781-025-0	05	1	0109-	●					●
20	00.029 BOLT; ENG FOOT 00.669 M10X40 FLANGE	0-28781-040-0	01	1	9804-0108	●
20	00.029 BOLT; ENG FOOT 00.669 M10X40 FLANGE	0-28781-040-0	01	1	0109-	●					●
34	00.002 NUT; RUBBER TO ENG 08.917 M10 FLANGE	0-91150-210-0	04	1	9804-		●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN) (C)	8-94458-384-3	01	1	9804-		●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) (B)	8-94434-208-1	01	1	9804-9812	●	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) (B)	8-94434-208-1	01	1	9901-9909	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 LONG(TFB**F) (B)	8-94434-208-1	01	1	9901-9909			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 LONG(TFB**F) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (B)	8-94434-208-1	01	1	9910-0012	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 SHORT(TFB**C) (B)	8-94434-208-1	01	1	9910-0012	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B)	8-94434-208-1	01	1	0101-0108	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B)	8-94434-208-1	01	1	0109-	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR (B)	8-94434-208-1	01	1	0109-						●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 LONG(TFB**F) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 4X2 HIGH RIDE SUSPENSION(7YC) (B)	8-97258-650-0	01	1	0101-	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MSG 5 SPEED(M75) (A)	8-94472-973-0	01	1	9804-	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (E)	8-97132-065-1	01	1	0010-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (D)	8-97229-171-0	01	1	0010-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4 CREW CAB(TFSW) A/T AISIN(RMD) (H)	8-97039-195-6	01	1	0010-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MUA 5 SPEED(RMN) (F)	8-97015-103-2	01	1	9804-0011					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MUA 5 SPEED(RMN) (F)	8-97211-978-1	01	1	0012-					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN) (G)	8-97123-260-0	01	1	9804-					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN) (C)	8-94458-383-3	01	1	9804-	●
166	00.002 NUT; SUPPORT RUBBER 4X4 CREW CAB(TFSW) A/T AISIN(RMD) 04.785 M10 FLANGE	0-91150-110-0	02	1	0010-0012			●
166	00.002 NUT; SUPPORT RUBBER 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	9804-9812	●			●	●
166	00.002 NUT; SUPPORT RUBBER 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	9901-9909	●				●
166	00.002 NUT; SUPPORT RUBBER 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	9910-					●
166	00.002 NUT; SUPPORT RUBBER 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	9804-9812	●			●
166	00.002 NUT; SUPPORT RUBBER 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	9901-0108	●
166	00.002 NUT; SUPPORT RUBBER 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	0109-	●					●
169	00.029 BOLT; SUPPORT 4X2(TFB***) 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	9804-9909	●	●	●	●	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	9910-0011	●	●	●		●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0012-0012	●	●	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0101-0109	●	●	●		●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0110-	●	●	●			●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	9804-0009	●	●	●	●	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	0010-	●	●	●		●
169	00.029 BOLT; SUPPORT 4X2(TFB***) A/T AISIN(RMD) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	0010-			●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-97035-564-0	04	1	9804-9909		●	●		●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-97035-564-0	04	1	9910-0109	●	●	●		●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-97035-564-0	04	1	0110-	●	●	●		●	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MSG 5 SPEED(M75) 00.002 (D) M12X50 W/LK&PL WASHER	0-50141-250-0	02	1	9804-	●	●
169	00.029 BOLT; SUPPORT 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (C) M10X22	8-97229-172-0	02	1	0010-			●
169	00.029 BOLT; SUPPORT 4X4(TFS***) A/T AISIN(RMD) 03.162 (B) M10X35 FLANGE	0-28681-035-0	02	1	0010-			●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-94325-415-1	04	1	9804-9812	●			●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-94325-415-1	04	1	9901-9909	●
170	00.029 NUT; SUPPORT 4X4(TFS***) A/T AISIN(RMD) 04.785 M10 FLANGE	0-91150-110-0	02	1	0010-			●
207	00.029 BRACKET; SUPPORT,FRAME 4X4 CREW CAB(TFSW) A/T AISIN(RMD)	8-97063-020-3	01	1	0010-			●

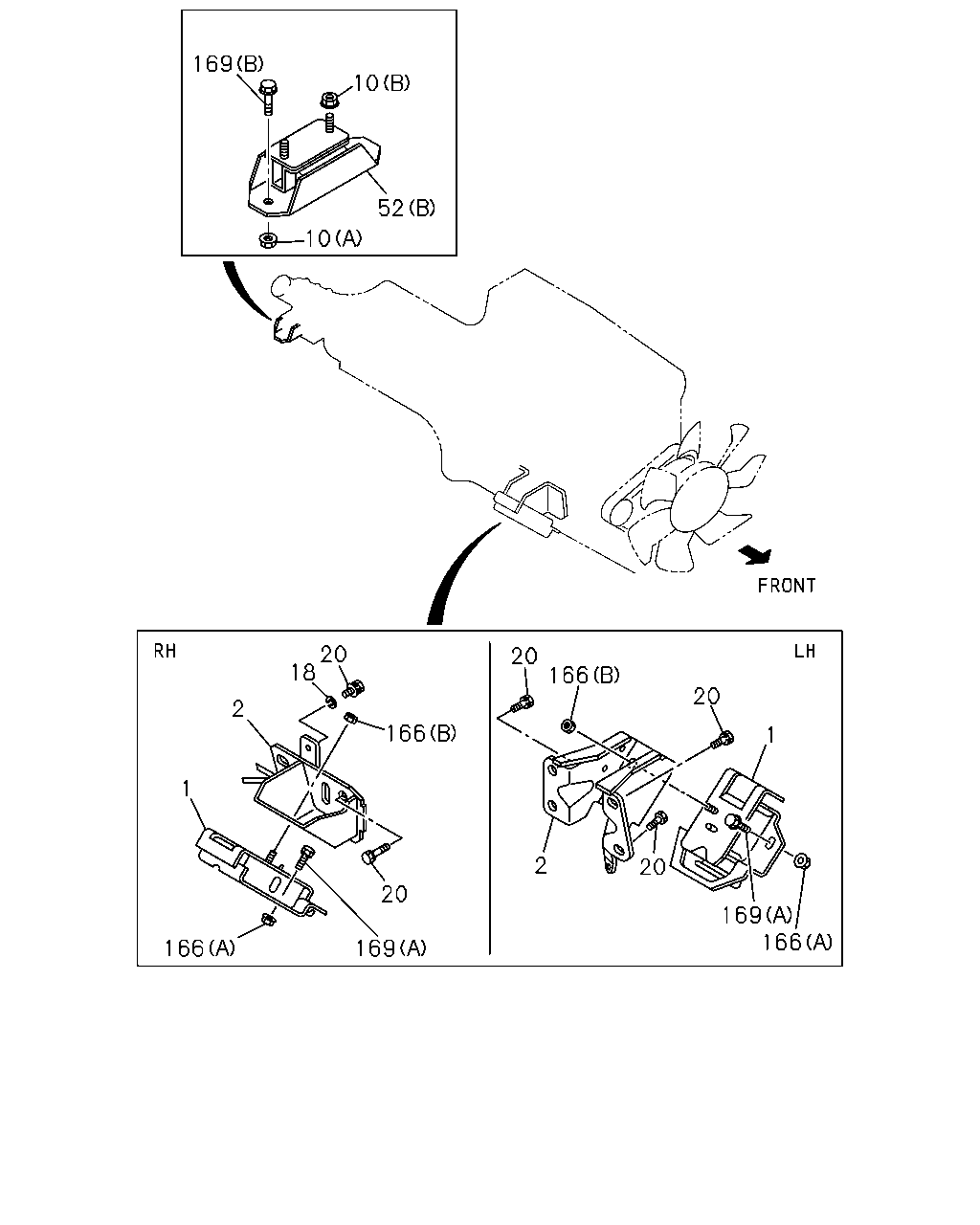

52 169 52 169 10 112 52 10 10 10 169 166 166 112 1 2 1 20 20 2 169 166 169 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.027 RUBBER; ENG FOOT,FRT	8-97086-076-1	01	1	9804-		●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97039-189-3	01	1	9804-		●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97066-799-0	01	1	9804-9812				●
1	00.027 RUBBER; ENG FOOT,FRT	8-97066-800-0	01	1	9804-9812				●
1	00.027 RUBBER; ENG FOOT,FRT	8-97104-158-1	01	1	9804-					●
1	00.027 RUBBER; ENG FOOT,FRT	8-97104-157-1	01	1	9804-					●
1	00.027 RUBBER; ENG FOOT,FRT	8-94422-868-2	01	1	9804-9909	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-97216-755-1	01	1	9910-0108	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-97216-755-1	01	1	0109-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97216-755-1	01	1	0109-						●
1	00.027 RUBBER; ENG FOOT,FRT	8-94422-867-2	01	1	9804-9909	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-97216-754-1	01	1	9910-0108	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-97216-754-1	01	1	0109-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97216-754-1	01	1	0109-						●
1	00.027 RUBBER; ENG FOOT,FRT 4X4(TFS***)	8-97225-552-0	01	1	9910-	●
1	00.027 RUBBER; ENG FOOT,FRT 4X4(TFS***)	8-97225-551-0	01	1	9910-	●
2	00.029 FOOT; ENG	8-97038-196-1	01	1	9804-		●	●
2	00.029 FOOT; ENG	8-97038-195-1	01	1	9804-		●	●
2	00.029 FOOT; ENG	8-94449-473-3	01	1	9804-9812				●
2	00.029 FOOT; ENG	8-94449-474-3	01	1	9804-9812				●
2	00.029 FOOT; ENG	8-97110-078-0	01	1	9804-					●
2	00.029 FOOT; ENG	8-97146-073-0	01	1	9804-					●
2	00.029 FOOT; ENG	8-97168-098-0	01	1	9804-9909	●
2	00.029 FOOT; ENG	8-97216-541-1	01	1	9910-0108	●
2	00.029 FOOT; ENG	8-97216-541-1	01	1	0109-	●					●
2	00.029 FOOT; ENG	8-97168-097-0	01	1	9804-9909	●
2	00.029 FOOT; ENG	8-97216-540-1	01	1	9910-0108	●
2	00.029 FOOT; ENG	8-97216-540-1	01	1	0109-	●					●
10	04.085 NUT; MTG RUBBER (B) M10 FLANGE	8-94126-973-0	02	1	9804-9909	●	●	●	●	●
10	04.085 NUT; MTG RUBBER (B) M10 FLANGE	8-94126-973-0	02	1	9910-0109	●	●	●		●
10	04.085 NUT; MTG RUBBER (B) M10 FLANGE	8-94126-973-0	02	1	0110-	●	●	●		●	●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9804-9909	●	●	●	●	●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9910-0109	●	●	●		●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0110-	●	●	●		●	●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	06	1	9804-		●	●
20	00.029 BOLT; ENG FOOT 09.171 M10X35 W/LK WASHER	0-50041-035-0	01	1	9804-		●	●
20	00.029 BOLT; ENG FOOT 00.002 M14X25 W/LK WASHER	0-50041-425-0	01	1	9804-		●	●
20	00.029 BOLT; ENG FOOT 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9804-9812				●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	01	1	9804-9812				●
20	00.029 BOLT; ENG FOOT 00.002 M12X25 W/LK WASHER	0-50041-225-0	05	1	9804-9812				●
20	00.029 BOLT; ENG FOOT M14X25 W/LK&PL WASHER	0-50141-425-0	01	1	9804-9812				●
20	00.029 BOLT; ENG FOOT 04.510 (A) M10X40 FLANGE	0-28181-040-0	01	1	9804-					●
20	00.029 BOLT; ENG FOOT 09.181 (B) M10X25 FLANGE	0-28781-025-0	07	1	9804-					●
20	00.029 BOLT; ENG FOOT 09.181 M10X25 FLANGE	0-28781-025-0	05	1	9804-0108	●
20	00.029 BOLT; ENG FOOT 09.181 M10X25 FLANGE	0-28781-025-0	05	1	0109-	●					●
20	00.029 BOLT; ENG FOOT 00.669 M10X40 FLANGE	0-28781-040-0	01	1	9804-0108	●
20	00.029 BOLT; ENG FOOT 00.669 M10X40 FLANGE	0-28781-040-0	01	1	0109-	●					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN) (C)	8-94458-384-3	01	1	9804-		●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) (B)	8-94434-208-1	01	1	9804-9812	●	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) (B)	8-94434-208-1	01	1	9901-9909	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 LONG(TFB**F) (B)	8-94434-208-1	01	1	9901-9909			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 LONG(TFB**F) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (B)	8-94434-208-1	01	1	9910-0012	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 SHORT(TFB**C) (B)	8-94434-208-1	01	1	9910-0012	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B)	8-94434-208-1	01	1	0101-0108	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B)	8-94434-208-1	01	1	0109-	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR (B)	8-94434-208-1	01	1	0109-						●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 LONG(TFB**F) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 4X2 HIGH RIDE SUSPENSION(7YC) (B)	8-97258-650-0	01	1	0101-	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MSG 5 SPEED(M75) (A)	8-94472-973-0	01	1	9804-	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (E)	8-97132-065-1	01	1	0010-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (D)	8-97229-171-0	01	1	0010-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4 CREW CAB(TFSW) A/T AISIN(RMD) (H)	8-97039-195-6	01	1	0010-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MUA 5 SPEED(RMN) (F)	8-97015-103-2	01	1	9804-0011					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MUA 5 SPEED(RMN) (F)	8-97211-978-1	01	1	0012-					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN) (G)	8-97123-260-0	01	1	9804-					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN) (C)	8-94458-383-3	01	1	9804-	●
112	00.029 PROTECTOR; HEAT 4X4(TFS***) M/T MUA 5 SPEED(RMN)	8-97022-766-0	01	1	9804-					●
112	00.029 PROTECTOR; HEAT (B)	8-97185-843-1	01	1	9804-9909	●
112	00.029 PROTECTOR; HEAT 4X4(TFS***) M/T MUA 5 SPEED(RMN) (A)	8-94441-573-0	01	1	9804-	●
166	00.002 NUT; SUPPORT RUBBER 4X4 CREW CAB(TFSW) A/T AISIN(RMD) 04.785 M10 FLANGE	0-91150-110-0	02	1	0010-0012			●
166	00.002 NUT; SUPPORT RUBBER 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	9804-9812	●			●	●
166	00.002 NUT; SUPPORT RUBBER 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	9901-9909	●				●
166	00.002 NUT; SUPPORT RUBBER 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	9910-					●
166	00.002 NUT; SUPPORT RUBBER 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	9804-9812	●			●
166	00.002 NUT; SUPPORT RUBBER 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	9901-0108	●
166	00.002 NUT; SUPPORT RUBBER 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	0109-	●					●
169	00.029 BOLT; SUPPORT 4X2(TFB***) 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	9804-9909	●	●	●	●	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	9910-0011	●	●	●		●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0012-0012	●	●	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0101-0109	●	●	●		●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0110-	●	●	●			●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	9804-0009	●	●	●	●	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	0010-	●	●	●		●
169	00.029 BOLT; SUPPORT 4X2(TFB***) A/T AISIN(RMD) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	0010-			●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-97035-564-0	04	1	9804-9909		●	●		●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-97035-564-0	04	1	9910-0109	●	●	●		●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-97035-564-0	04	1	0110-	●	●	●		●	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MSG 5 SPEED(M75) 00.002 (D) M12X50 W/LK&PL WASHER	0-50141-250-0	02	1	9804-	●	●
169	00.029 BOLT; SUPPORT 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (C) M10X22	8-97229-172-0	02	1	0010-			●
169	00.029 BOLT; SUPPORT 4X4(TFS***) A/T AISIN(RMD) 03.162 (B) M10X35 FLANGE	0-28681-035-0	02	1	0010-			●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-94325-415-1	04	1	9804-9812	●			●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-94325-415-1	04	1	9901-9909	●

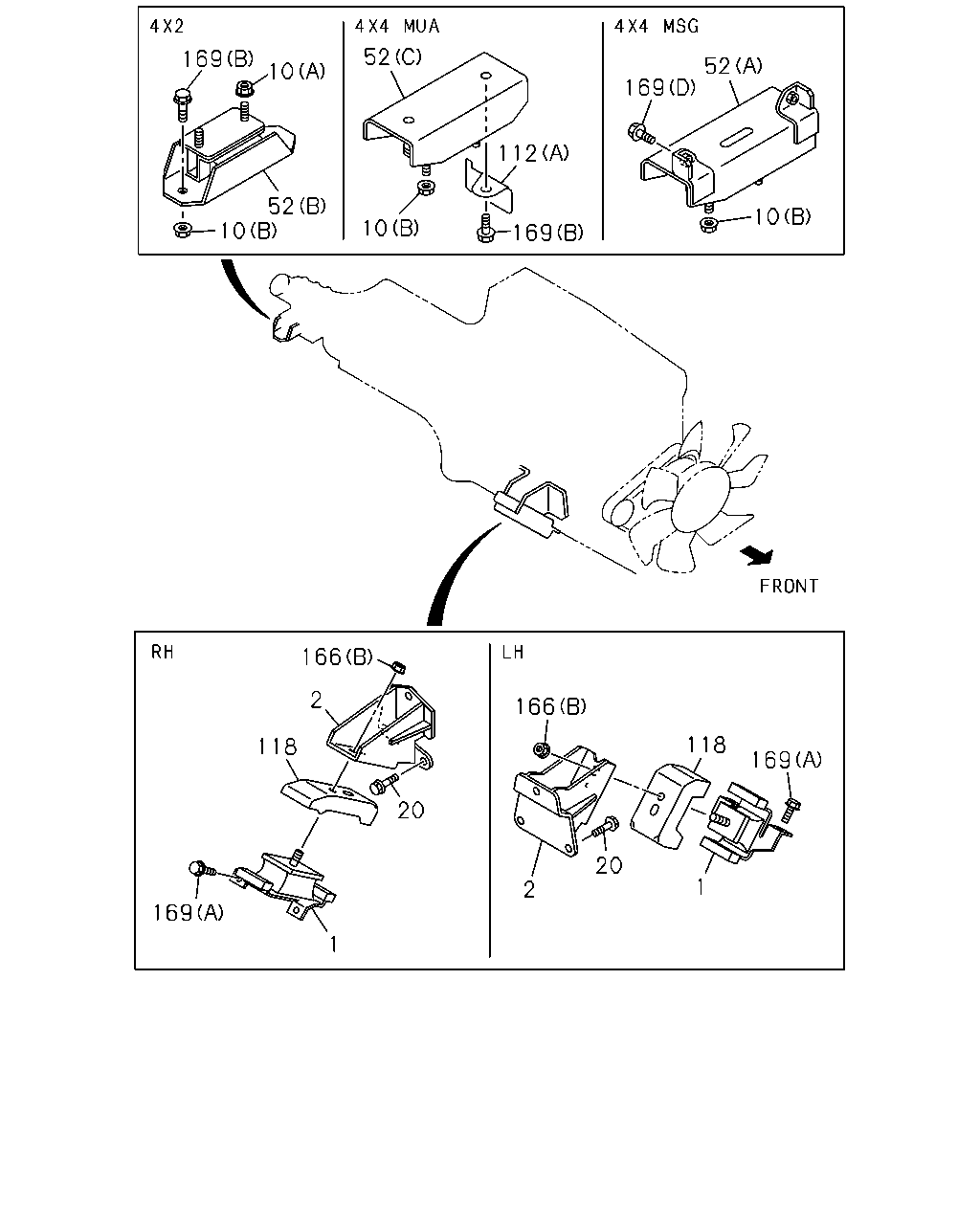

52 169 52 169 10 112 52 10 10 10 169 166 2 166 118 118 169 20 20 1 2 169 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.027 RUBBER; ENG FOOT,FRT	8-97086-076-1	01	1	9804-		●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97039-189-3	01	1	9804-		●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97066-799-0	01	1	9804-9812				●
1	00.027 RUBBER; ENG FOOT,FRT	8-97066-800-0	01	1	9804-9812				●
1	00.027 RUBBER; ENG FOOT,FRT	8-97104-158-1	01	1	9804-					●
1	00.027 RUBBER; ENG FOOT,FRT	8-97104-157-1	01	1	9804-					●
1	00.027 RUBBER; ENG FOOT,FRT	8-94422-868-2	01	1	9804-9909	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-97216-755-1	01	1	9910-0108	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-97216-755-1	01	1	0109-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97216-755-1	01	1	0109-						●
1	00.027 RUBBER; ENG FOOT,FRT	8-94422-867-2	01	1	9804-9909	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-97216-754-1	01	1	9910-0108	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-97216-754-1	01	1	0109-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97216-754-1	01	1	0109-						●
1	00.027 RUBBER; ENG FOOT,FRT 4X4(TFS***)	8-97225-552-0	01	1	9910-	●
1	00.027 RUBBER; ENG FOOT,FRT 4X4(TFS***)	8-97225-551-0	01	1	9910-	●
2	00.029 FOOT; ENG	8-97038-196-1	01	1	9804-		●	●
2	00.029 FOOT; ENG	8-97038-195-1	01	1	9804-		●	●
2	00.029 FOOT; ENG	8-94449-473-3	01	1	9804-9812				●
2	00.029 FOOT; ENG	8-94449-474-3	01	1	9804-9812				●
2	00.029 FOOT; ENG	8-97110-078-0	01	1	9804-					●
2	00.029 FOOT; ENG	8-97146-073-0	01	1	9804-					●
2	00.029 FOOT; ENG	8-97168-098-0	01	1	9804-9909	●
2	00.029 FOOT; ENG	8-97216-541-1	01	1	9910-0108	●
2	00.029 FOOT; ENG	8-97216-541-1	01	1	0109-	●					●
2	00.029 FOOT; ENG	8-97168-097-0	01	1	9804-9909	●
2	00.029 FOOT; ENG	8-97216-540-1	01	1	9910-0108	●
2	00.029 FOOT; ENG	8-97216-540-1	01	1	0109-	●					●
10	04.085 NUT; MTG RUBBER (B) M10 FLANGE	8-94126-973-0	02	1	9804-9909	●	●	●	●	●
10	04.085 NUT; MTG RUBBER (B) M10 FLANGE	8-94126-973-0	02	1	9910-0109	●	●	●		●
10	04.085 NUT; MTG RUBBER (B) M10 FLANGE	8-94126-973-0	02	1	0110-	●	●	●		●	●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9804-9909	●	●	●	●	●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9910-0109	●	●	●		●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0110-	●	●	●		●	●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	06	1	9804-		●	●
20	00.029 BOLT; ENG FOOT 09.171 M10X35 W/LK WASHER	0-50041-035-0	01	1	9804-		●	●
20	00.029 BOLT; ENG FOOT 00.002 M14X25 W/LK WASHER	0-50041-425-0	01	1	9804-		●	●
20	00.029 BOLT; ENG FOOT 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9804-9812				●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	01	1	9804-9812				●
20	00.029 BOLT; ENG FOOT 00.002 M12X25 W/LK WASHER	0-50041-225-0	05	1	9804-9812				●
20	00.029 BOLT; ENG FOOT M14X25 W/LK&PL WASHER	0-50141-425-0	01	1	9804-9812				●
20	00.029 BOLT; ENG FOOT 04.510 (A) M10X40 FLANGE	0-28181-040-0	01	1	9804-					●
20	00.029 BOLT; ENG FOOT 09.181 (B) M10X25 FLANGE	0-28781-025-0	07	1	9804-					●
20	00.029 BOLT; ENG FOOT 09.181 M10X25 FLANGE	0-28781-025-0	05	1	9804-0108	●
20	00.029 BOLT; ENG FOOT 09.181 M10X25 FLANGE	0-28781-025-0	05	1	0109-	●					●
20	00.029 BOLT; ENG FOOT 00.669 M10X40 FLANGE	0-28781-040-0	01	1	9804-0108	●
20	00.029 BOLT; ENG FOOT 00.669 M10X40 FLANGE	0-28781-040-0	01	1	0109-	●					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN) (C)	8-94458-384-3	01	1	9804-		●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) (B)	8-94434-208-1	01	1	9804-9812	●	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) (B)	8-94434-208-1	01	1	9901-9909	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 LONG(TFB**F) (B)	8-94434-208-1	01	1	9901-9909			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 LONG(TFB**F) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (B)	8-94434-208-1	01	1	9910-0012	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 SHORT(TFB**C) (B)	8-94434-208-1	01	1	9910-0012	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B)	8-94434-208-1	01	1	0101-0108	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B)	8-94434-208-1	01	1	0109-	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR (B)	8-94434-208-1	01	1	0109-						●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 LONG(TFB**F) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 4X2 HIGH RIDE SUSPENSION(7YC) (B)	8-97258-650-0	01	1	0101-	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MSG 5 SPEED(M75) (A)	8-94472-973-0	01	1	9804-	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (E)	8-97132-065-1	01	1	0010-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (D)	8-97229-171-0	01	1	0010-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4 CREW CAB(TFSW) A/T AISIN(RMD) (H)	8-97039-195-6	01	1	0010-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MUA 5 SPEED(RMN) (F)	8-97015-103-2	01	1	9804-0011					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MUA 5 SPEED(RMN) (F)	8-97211-978-1	01	1	0012-					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN) (G)	8-97123-260-0	01	1	9804-					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN) (C)	8-94458-383-3	01	1	9804-	●
112	00.029 PROTECTOR; HEAT 4X4(TFS***) M/T MUA 5 SPEED(RMN)	8-97022-766-0	01	1	9804-					●
112	00.029 PROTECTOR; HEAT (B)	8-97185-843-1	01	1	9804-9909	●
112	00.029 PROTECTOR; HEAT 4X4(TFS***) M/T MUA 5 SPEED(RMN) (A)	8-94441-573-0	01	1	9804-	●
118	00.029 COVER; SUPPORT RUBBER,ENG FOOT 00.027	8-97137-834-0	01	1	9804-9804					●
118	00.029 COVER; SUPPORT RUBBER,ENG FOOT	8-97203-189-0	01	1	9805-					●
118	00.029 COVER; SUPPORT RUBBER,ENG FOOT 00.027	8-97137-833-0	01	1	9804-					●
118	00.029 COVER; SUPPORT RUBBER,ENG FOOT	8-97225-554-0	01	1	9910-0108	●
118	00.029 COVER; SUPPORT RUBBER,ENG FOOT	8-97225-554-0	01	1	0109-	●					●
118	00.029 COVER; SUPPORT RUBBER,ENG FOOT	8-97225-553-0	01	1	9910-0108	●
118	00.029 COVER; SUPPORT RUBBER,ENG FOOT	8-97225-553-0	01	1	0109-	●					●
166	00.002 NUT; SUPPORT RUBBER 4X4 CREW CAB(TFSW) A/T AISIN(RMD) 04.785 M10 FLANGE	0-91150-110-0	02	1	0010-0012			●
166	00.002 NUT; SUPPORT RUBBER 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	9804-9812	●			●	●
166	00.002 NUT; SUPPORT RUBBER 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	9901-9909	●				●
166	00.002 NUT; SUPPORT RUBBER 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	9910-					●
166	00.002 NUT; SUPPORT RUBBER 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	9804-9812	●			●
166	00.002 NUT; SUPPORT RUBBER 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	9901-0108	●
166	00.002 NUT; SUPPORT RUBBER 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	0109-	●					●
169	00.029 BOLT; SUPPORT 4X2(TFB***) 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	9804-9909	●	●	●	●	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	9910-0011	●	●	●		●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0012-0012	●	●	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0101-0109	●	●	●		●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0110-	●	●	●			●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	9804-0009	●	●	●	●	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	0010-	●	●	●		●
169	00.029 BOLT; SUPPORT 4X2(TFB***) A/T AISIN(RMD) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	0010-			●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-97035-564-0	04	1	9804-9909		●	●		●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-97035-564-0	04	1	9910-0109	●	●	●		●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-97035-564-0	04	1	0110-	●	●	●		●	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MSG 5 SPEED(M75) 00.002 (D) M12X50 W/LK&PL WASHER	0-50141-250-0	02	1	9804-	●	●
169	00.029 BOLT; SUPPORT 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (C) M10X22	8-97229-172-0	02	1	0010-			●
169	00.029 BOLT; SUPPORT 4X4(TFS***) A/T AISIN(RMD) 03.162 (B) M10X35 FLANGE	0-28681-035-0	02	1	0010-			●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-94325-415-1	04	1	9804-9812	●			●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-94325-415-1	04	1	9901-9909	●

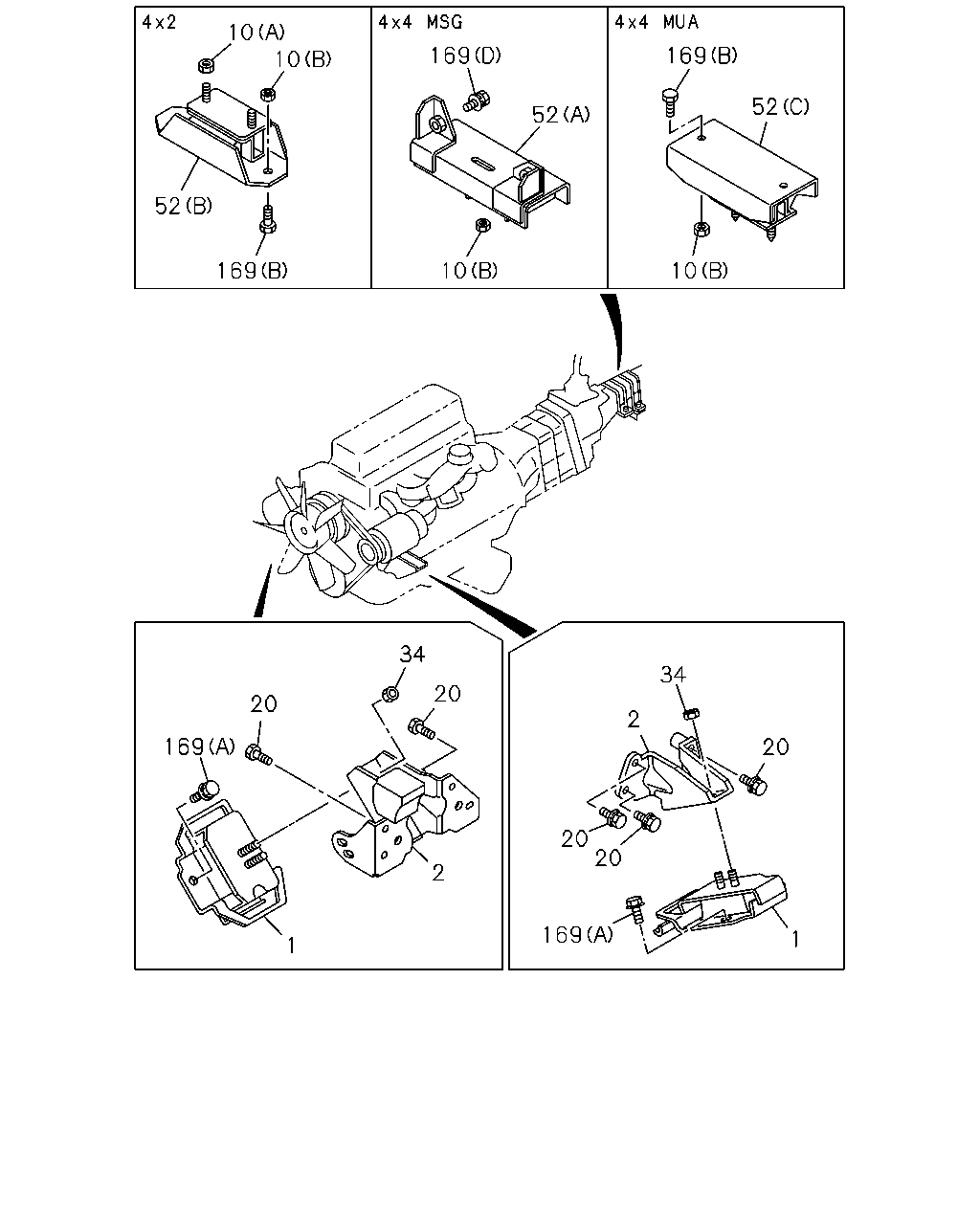

10 10 169 169 52 52 52 169 10 10 34 34 20 20 2 169 20 20 20 2 169 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.027 RUBBER; ENG FOOT,FRT	8-97086-076-1	01	1	9804-		●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97039-189-3	01	1	9804-		●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97066-799-0	01	1	9804-9812				●
1	00.027 RUBBER; ENG FOOT,FRT	8-97066-800-0	01	1	9804-9812				●
1	00.027 RUBBER; ENG FOOT,FRT	8-97104-158-1	01	1	9804-					●
1	00.027 RUBBER; ENG FOOT,FRT	8-97104-157-1	01	1	9804-					●
1	00.027 RUBBER; ENG FOOT,FRT	8-94422-868-2	01	1	9804-9909	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-97216-755-1	01	1	9910-0108	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-97216-755-1	01	1	0109-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97216-755-1	01	1	0109-						●
1	00.027 RUBBER; ENG FOOT,FRT	8-94422-867-2	01	1	9804-9909	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-97216-754-1	01	1	9910-0108	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-97216-754-1	01	1	0109-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97216-754-1	01	1	0109-						●
1	00.027 RUBBER; ENG FOOT,FRT 4X4(TFS***)	8-97225-552-0	01	1	9910-	●
1	00.027 RUBBER; ENG FOOT,FRT 4X4(TFS***)	8-97225-551-0	01	1	9910-	●
2	00.029 FOOT; ENG	8-97038-196-1	01	1	9804-		●	●
2	00.029 FOOT; ENG	8-97038-195-1	01	1	9804-		●	●
2	00.029 FOOT; ENG	8-94449-473-3	01	1	9804-9812				●
2	00.029 FOOT; ENG	8-94449-474-3	01	1	9804-9812				●
2	00.029 FOOT; ENG	8-97110-078-0	01	1	9804-					●
2	00.029 FOOT; ENG	8-97146-073-0	01	1	9804-					●
2	00.029 FOOT; ENG	8-97168-098-0	01	1	9804-9909	●
2	00.029 FOOT; ENG	8-97216-541-1	01	1	9910-0108	●
2	00.029 FOOT; ENG	8-97216-541-1	01	1	0109-	●					●
2	00.029 FOOT; ENG	8-97168-097-0	01	1	9804-9909	●
2	00.029 FOOT; ENG	8-97216-540-1	01	1	9910-0108	●
2	00.029 FOOT; ENG	8-97216-540-1	01	1	0109-	●					●
10	04.085 NUT; MTG RUBBER (B) M10 FLANGE	8-94126-973-0	02	1	9804-9909	●	●	●	●	●
10	04.085 NUT; MTG RUBBER (B) M10 FLANGE	8-94126-973-0	02	1	9910-0109	●	●	●		●
10	04.085 NUT; MTG RUBBER (B) M10 FLANGE	8-94126-973-0	02	1	0110-	●	●	●		●	●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9804-9909	●	●	●	●	●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9910-0109	●	●	●		●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0110-	●	●	●		●	●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	06	1	9804-		●	●
20	00.029 BOLT; ENG FOOT 09.171 M10X35 W/LK WASHER	0-50041-035-0	01	1	9804-		●	●
20	00.029 BOLT; ENG FOOT 00.002 M14X25 W/LK WASHER	0-50041-425-0	01	1	9804-		●	●
20	00.029 BOLT; ENG FOOT 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9804-9812				●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	01	1	9804-9812				●
20	00.029 BOLT; ENG FOOT 00.002 M12X25 W/LK WASHER	0-50041-225-0	05	1	9804-9812				●
20	00.029 BOLT; ENG FOOT M14X25 W/LK&PL WASHER	0-50141-425-0	01	1	9804-9812				●
20	00.029 BOLT; ENG FOOT 04.510 (A) M10X40 FLANGE	0-28181-040-0	01	1	9804-					●
20	00.029 BOLT; ENG FOOT 09.181 (B) M10X25 FLANGE	0-28781-025-0	07	1	9804-					●
20	00.029 BOLT; ENG FOOT 09.181 M10X25 FLANGE	0-28781-025-0	05	1	9804-0108	●
20	00.029 BOLT; ENG FOOT 09.181 M10X25 FLANGE	0-28781-025-0	05	1	0109-	●					●
20	00.029 BOLT; ENG FOOT 00.669 M10X40 FLANGE	0-28781-040-0	01	1	9804-0108	●
20	00.029 BOLT; ENG FOOT 00.669 M10X40 FLANGE	0-28781-040-0	01	1	0109-	●					●
34	00.002 NUT; RUBBER TO ENG 08.917 M10 FLANGE	0-91150-210-0	04	1	9804-		●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN) (C)	8-94458-384-3	01	1	9804-		●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) (B)	8-94434-208-1	01	1	9804-9812	●	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) (B)	8-94434-208-1	01	1	9901-9909	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 LONG(TFB**F) (B)	8-94434-208-1	01	1	9901-9909			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 LONG(TFB**F) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (B)	8-94434-208-1	01	1	9910-0012	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 SHORT(TFB**C) (B)	8-94434-208-1	01	1	9910-0012	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B)	8-94434-208-1	01	1	0101-0108	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B)	8-94434-208-1	01	1	0109-	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR (B)	8-94434-208-1	01	1	0109-						●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 LONG(TFB**F) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 4X2 HIGH RIDE SUSPENSION(7YC) (B)	8-97258-650-0	01	1	0101-	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MSG 5 SPEED(M75) (A)	8-94472-973-0	01	1	9804-	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (E)	8-97132-065-1	01	1	0010-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (D)	8-97229-171-0	01	1	0010-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4 CREW CAB(TFSW) A/T AISIN(RMD) (H)	8-97039-195-6	01	1	0010-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MUA 5 SPEED(RMN) (F)	8-97015-103-2	01	1	9804-0011					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MUA 5 SPEED(RMN) (F)	8-97211-978-1	01	1	0012-					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN) (G)	8-97123-260-0	01	1	9804-					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN) (C)	8-94458-383-3	01	1	9804-	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	9804-9909	●	●	●	●	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	9910-0011	●	●	●		●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0012-0012	●	●	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0101-0109	●	●	●		●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0110-	●	●	●			●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	9804-0009	●	●	●	●	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	0010-	●	●	●		●
169	00.029 BOLT; SUPPORT 4X2(TFB***) A/T AISIN(RMD) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	0010-			●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-97035-564-0	04	1	9804-9909		●	●		●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-97035-564-0	04	1	9910-0109	●	●	●		●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-97035-564-0	04	1	0110-	●	●	●		●	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MSG 5 SPEED(M75) 00.002 (D) M12X50 W/LK&PL WASHER	0-50141-250-0	02	1	9804-	●	●
169	00.029 BOLT; SUPPORT 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (C) M10X22	8-97229-172-0	02	1	0010-			●
169	00.029 BOLT; SUPPORT 4X4(TFS***) A/T AISIN(RMD) 03.162 (B) M10X35 FLANGE	0-28681-035-0	02	1	0010-			●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-94325-415-1	04	1	9804-9812	●			●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-94325-415-1	04	1	9901-9909	●

20 166 169 155 118 2 2 166 20 169 20 118 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.027 RUBBER; ENG FOOT,FRT	8-97086-076-1	01	1	9804-		●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97039-189-3	01	1	9804-		●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97066-799-0	01	1	9804-9812				●
1	00.027 RUBBER; ENG FOOT,FRT	8-97066-800-0	01	1	9804-9812				●
1	00.027 RUBBER; ENG FOOT,FRT	8-97104-158-1	01	1	9804-					●
1	00.027 RUBBER; ENG FOOT,FRT	8-97104-157-1	01	1	9804-					●
1	00.027 RUBBER; ENG FOOT,FRT	8-94422-868-2	01	1	9804-9909	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-97216-755-1	01	1	9910-0108	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-97216-755-1	01	1	0109-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97216-755-1	01	1	0109-						●
1	00.027 RUBBER; ENG FOOT,FRT	8-94422-867-2	01	1	9804-9909	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-97216-754-1	01	1	9910-0108	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-97216-754-1	01	1	0109-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97216-754-1	01	1	0109-						●
1	00.027 RUBBER; ENG FOOT,FRT 4X4(TFS***)	8-97225-552-0	01	1	9910-	●
1	00.027 RUBBER; ENG FOOT,FRT 4X4(TFS***)	8-97225-551-0	01	1	9910-	●
2	00.029 FOOT; ENG	8-97038-196-1	01	1	9804-		●	●
2	00.029 FOOT; ENG	8-97038-195-1	01	1	9804-		●	●
2	00.029 FOOT; ENG	8-94449-473-3	01	1	9804-9812				●
2	00.029 FOOT; ENG	8-94449-474-3	01	1	9804-9812				●
2	00.029 FOOT; ENG	8-97110-078-0	01	1	9804-					●
2	00.029 FOOT; ENG	8-97146-073-0	01	1	9804-					●
2	00.029 FOOT; ENG	8-97168-098-0	01	1	9804-9909	●
2	00.029 FOOT; ENG	8-97216-541-1	01	1	9910-0108	●
2	00.029 FOOT; ENG	8-97216-541-1	01	1	0109-	●					●
2	00.029 FOOT; ENG	8-97168-097-0	01	1	9804-9909	●
2	00.029 FOOT; ENG	8-97216-540-1	01	1	9910-0108	●
2	00.029 FOOT; ENG	8-97216-540-1	01	1	0109-	●					●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	06	1	9804-		●	●
20	00.029 BOLT; ENG FOOT 09.171 M10X35 W/LK WASHER	0-50041-035-0	01	1	9804-		●	●
20	00.029 BOLT; ENG FOOT 00.002 M14X25 W/LK WASHER	0-50041-425-0	01	1	9804-		●	●
20	00.029 BOLT; ENG FOOT 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9804-9812				●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	01	1	9804-9812				●
20	00.029 BOLT; ENG FOOT 00.002 M12X25 W/LK WASHER	0-50041-225-0	05	1	9804-9812				●
20	00.029 BOLT; ENG FOOT M14X25 W/LK&PL WASHER	0-50141-425-0	01	1	9804-9812				●
20	00.029 BOLT; ENG FOOT 04.510 (A) M10X40 FLANGE	0-28181-040-0	01	1	9804-					●
20	00.029 BOLT; ENG FOOT 09.181 (B) M10X25 FLANGE	0-28781-025-0	07	1	9804-					●
20	00.029 BOLT; ENG FOOT 09.181 M10X25 FLANGE	0-28781-025-0	05	1	9804-0108	●
20	00.029 BOLT; ENG FOOT 09.181 M10X25 FLANGE	0-28781-025-0	05	1	0109-	●					●
20	00.029 BOLT; ENG FOOT 00.669 M10X40 FLANGE	0-28781-040-0	01	1	9804-0108	●
20	00.029 BOLT; ENG FOOT 00.669 M10X40 FLANGE	0-28781-040-0	01	1	0109-	●					●
118	00.029 COVER; SUPPORT RUBBER,ENG FOOT 00.027	8-97137-834-0	01	1	9804-9804					●
118	00.029 COVER; SUPPORT RUBBER,ENG FOOT	8-97203-189-0	01	1	9805-					●
118	00.029 COVER; SUPPORT RUBBER,ENG FOOT 00.027	8-97137-833-0	01	1	9804-					●
118	00.029 COVER; SUPPORT RUBBER,ENG FOOT	8-97225-554-0	01	1	9910-0108	●
118	00.029 COVER; SUPPORT RUBBER,ENG FOOT	8-97225-554-0	01	1	0109-	●					●
118	00.029 COVER; SUPPORT RUBBER,ENG FOOT	8-97225-553-0	01	1	9910-0108	●
118	00.029 COVER; SUPPORT RUBBER,ENG FOOT	8-97225-553-0	01	1	0109-	●					●
155	00.029 PLATE; SUPPORT 00.002	8-97139-639-0	02	1	9804-9804					●
155	00.029 PLATE; SUPPORT 00.002	8-97139-639-0	01	1	9805-					●
166	00.002 NUT; SUPPORT RUBBER 4X4 CREW CAB(TFSW) A/T AISIN(RMD) 04.785 M10 FLANGE	0-91150-110-0	02	1	0010-0012			●
166	00.002 NUT; SUPPORT RUBBER 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	9804-9812	●			●	●
166	00.002 NUT; SUPPORT RUBBER 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	9901-9909	●				●
166	00.002 NUT; SUPPORT RUBBER 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	9910-					●
166	00.002 NUT; SUPPORT RUBBER 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	9804-9812	●			●
166	00.002 NUT; SUPPORT RUBBER 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	9901-0108	●
166	00.002 NUT; SUPPORT RUBBER 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	0109-	●					●
169	00.029 BOLT; SUPPORT 4X2(TFB***) 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	9804-9909	●	●	●	●	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	9910-0011	●	●	●		●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0012-0012	●	●	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0101-0109	●	●	●		●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0110-	●	●	●			●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	9804-0009	●	●	●	●	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	0010-	●	●	●		●
169	00.029 BOLT; SUPPORT 4X2(TFB***) A/T AISIN(RMD) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	0010-			●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-97035-564-0	04	1	9804-9909		●	●		●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-97035-564-0	04	1	9910-0109	●	●	●		●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-97035-564-0	04	1	0110-	●	●	●		●	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MSG 5 SPEED(M75) 00.002 (D) M12X50 W/LK&PL WASHER	0-50141-250-0	02	1	9804-	●	●
169	00.029 BOLT; SUPPORT 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (C) M10X22	8-97229-172-0	02	1	0010-			●
169	00.029 BOLT; SUPPORT 4X4(TFS***) A/T AISIN(RMD) 03.162 (B) M10X35 FLANGE	0-28681-035-0	02	1	0010-			●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-94325-415-1	04	1	9804-9812	●			●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-94325-415-1	04	1	9901-9909	●

169 10 52 10 20 18 20 166 20 2 166 1 1 20 2 20 169 166 166 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.027 RUBBER; ENG FOOT,FRT	8-97086-076-1	01	1	9804-		●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97039-189-3	01	1	9804-		●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97066-799-0	01	1	9804-9812				●
1	00.027 RUBBER; ENG FOOT,FRT	8-97066-800-0	01	1	9804-9812				●
1	00.027 RUBBER; ENG FOOT,FRT	8-97104-158-1	01	1	9804-					●
1	00.027 RUBBER; ENG FOOT,FRT	8-97104-157-1	01	1	9804-					●
1	00.027 RUBBER; ENG FOOT,FRT	8-94422-868-2	01	1	9804-9909	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-97216-755-1	01	1	9910-0108	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-97216-755-1	01	1	0109-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97216-755-1	01	1	0109-						●
1	00.027 RUBBER; ENG FOOT,FRT	8-94422-867-2	01	1	9804-9909	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-97216-754-1	01	1	9910-0108	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-97216-754-1	01	1	0109-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97216-754-1	01	1	0109-						●
1	00.027 RUBBER; ENG FOOT,FRT 4X4(TFS***)	8-97225-552-0	01	1	9910-	●
1	00.027 RUBBER; ENG FOOT,FRT 4X4(TFS***)	8-97225-551-0	01	1	9910-	●
2	00.029 FOOT; ENG	8-97038-196-1	01	1	9804-		●	●
2	00.029 FOOT; ENG	8-97038-195-1	01	1	9804-		●	●
2	00.029 FOOT; ENG	8-94449-473-3	01	1	9804-9812				●
2	00.029 FOOT; ENG	8-94449-474-3	01	1	9804-9812				●
2	00.029 FOOT; ENG	8-97110-078-0	01	1	9804-					●
2	00.029 FOOT; ENG	8-97146-073-0	01	1	9804-					●
2	00.029 FOOT; ENG	8-97168-098-0	01	1	9804-9909	●
2	00.029 FOOT; ENG	8-97216-541-1	01	1	9910-0108	●
2	00.029 FOOT; ENG	8-97216-541-1	01	1	0109-	●					●
2	00.029 FOOT; ENG	8-97168-097-0	01	1	9804-9909	●
2	00.029 FOOT; ENG	8-97216-540-1	01	1	9910-0108	●
2	00.029 FOOT; ENG	8-97216-540-1	01	1	0109-	●					●
10	04.085 NUT; MTG RUBBER (B) M10 FLANGE	8-94126-973-0	02	1	9804-9909	●	●	●	●	●
10	04.085 NUT; MTG RUBBER (B) M10 FLANGE	8-94126-973-0	02	1	9910-0109	●	●	●		●
10	04.085 NUT; MTG RUBBER (B) M10 FLANGE	8-94126-973-0	02	1	0110-	●	●	●		●	●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9804-9909	●	●	●	●	●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9910-0109	●	●	●		●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0110-	●	●	●		●	●
18	00.002 WASHER; PL,ENG FOOT 00.206 ID=8.4	9-09164-508-0	01	1	9804-9812				●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	06	1	9804-		●	●
20	00.029 BOLT; ENG FOOT 09.171 M10X35 W/LK WASHER	0-50041-035-0	01	1	9804-		●	●
20	00.029 BOLT; ENG FOOT 00.002 M14X25 W/LK WASHER	0-50041-425-0	01	1	9804-		●	●
20	00.029 BOLT; ENG FOOT 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9804-9812				●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	01	1	9804-9812				●
20	00.029 BOLT; ENG FOOT 00.002 M12X25 W/LK WASHER	0-50041-225-0	05	1	9804-9812				●
20	00.029 BOLT; ENG FOOT M14X25 W/LK&PL WASHER	0-50141-425-0	01	1	9804-9812				●
20	00.029 BOLT; ENG FOOT 04.510 (A) M10X40 FLANGE	0-28181-040-0	01	1	9804-					●
20	00.029 BOLT; ENG FOOT 09.181 (B) M10X25 FLANGE	0-28781-025-0	07	1	9804-					●
20	00.029 BOLT; ENG FOOT 09.181 M10X25 FLANGE	0-28781-025-0	05	1	9804-0108	●
20	00.029 BOLT; ENG FOOT 09.181 M10X25 FLANGE	0-28781-025-0	05	1	0109-	●					●
20	00.029 BOLT; ENG FOOT 00.669 M10X40 FLANGE	0-28781-040-0	01	1	9804-0108	●
20	00.029 BOLT; ENG FOOT 00.669 M10X40 FLANGE	0-28781-040-0	01	1	0109-	●					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN) (C)	8-94458-384-3	01	1	9804-		●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) (B)	8-94434-208-1	01	1	9804-9812	●	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) (B)	8-94434-208-1	01	1	9901-9909	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 LONG(TFB**F) (B)	8-94434-208-1	01	1	9901-9909			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 LONG(TFB**F) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (B)	8-94434-208-1	01	1	9910-0012	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 SHORT(TFB**C) (B)	8-94434-208-1	01	1	9910-0012	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B)	8-94434-208-1	01	1	0101-0108	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B)	8-94434-208-1	01	1	0109-	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR (B)	8-94434-208-1	01	1	0109-						●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 LONG(TFB**F) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 4X2 HIGH RIDE SUSPENSION(7YC) (B)	8-97258-650-0	01	1	0101-	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MSG 5 SPEED(M75) (A)	8-94472-973-0	01	1	9804-	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (E)	8-97132-065-1	01	1	0010-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (D)	8-97229-171-0	01	1	0010-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4 CREW CAB(TFSW) A/T AISIN(RMD) (H)	8-97039-195-6	01	1	0010-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MUA 5 SPEED(RMN) (F)	8-97015-103-2	01	1	9804-0011					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MUA 5 SPEED(RMN) (F)	8-97211-978-1	01	1	0012-					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN) (G)	8-97123-260-0	01	1	9804-					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN) (C)	8-94458-383-3	01	1	9804-	●
166	00.002 NUT; SUPPORT RUBBER 4X4 CREW CAB(TFSW) A/T AISIN(RMD) 04.785 M10 FLANGE	0-91150-110-0	02	1	0010-0012			●
166	00.002 NUT; SUPPORT RUBBER 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	9804-9812	●			●	●
166	00.002 NUT; SUPPORT RUBBER 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	9901-9909	●				●
166	00.002 NUT; SUPPORT RUBBER 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	9910-					●
166	00.002 NUT; SUPPORT RUBBER 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	9804-9812	●			●
166	00.002 NUT; SUPPORT RUBBER 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	9901-0108	●
166	00.002 NUT; SUPPORT RUBBER 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	0109-	●					●
169	00.029 BOLT; SUPPORT 4X2(TFB***) 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	9804-9909	●	●	●	●	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	9910-0011	●	●	●		●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0012-0012	●	●	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0101-0109	●	●	●		●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0110-	●	●	●			●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	9804-0009	●	●	●	●	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	0010-	●	●	●		●
169	00.029 BOLT; SUPPORT 4X2(TFB***) A/T AISIN(RMD) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	0010-			●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-97035-564-0	04	1	9804-9909		●	●		●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-97035-564-0	04	1	9910-0109	●	●	●		●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-97035-564-0	04	1	0110-	●	●	●		●	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MSG 5 SPEED(M75) 00.002 (D) M12X50 W/LK&PL WASHER	0-50141-250-0	02	1	9804-	●	●
169	00.029 BOLT; SUPPORT 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (C) M10X22	8-97229-172-0	02	1	0010-			●
169	00.029 BOLT; SUPPORT 4X4(TFS***) A/T AISIN(RMD) 03.162 (B) M10X35 FLANGE	0-28681-035-0	02	1	0010-			●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-94325-415-1	04	1	9804-9812	●			●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-94325-415-1	04	1	9901-9909	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
