0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#41724) — 137 parça

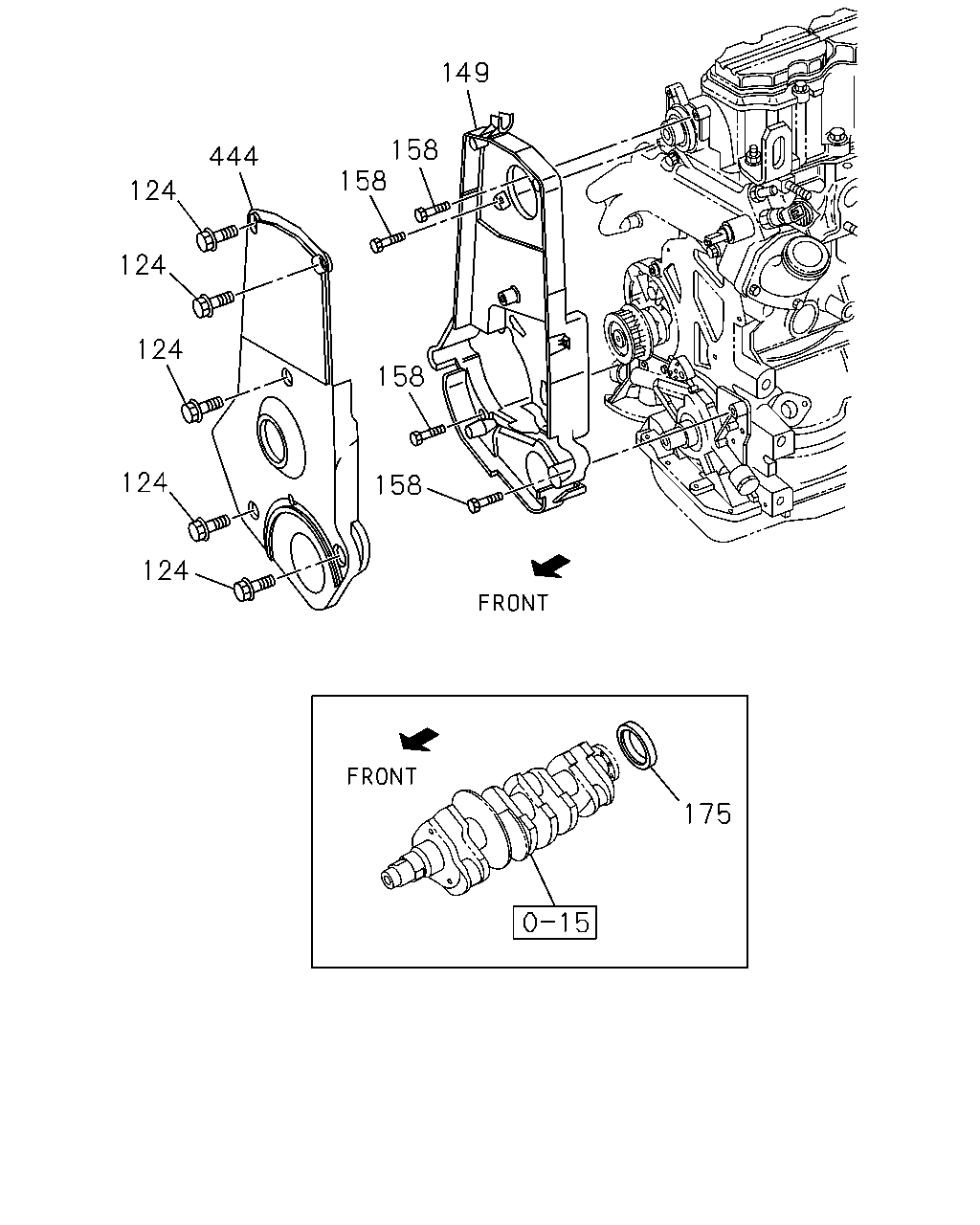

149 158 158 444 124 124 124 158 124 158 124 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
124	00.206 BOLT; TIMING COVER 01.153 (A) M6X50 FLANGE	0-28080-650-0	01	1	9804-9812	●
124	00.206 BOLT; TIMING COVER 04.686 (B) M6X16 W/LK WASHER	0-50040-616-0	06	1	9804-9812	●
124	00.206 BOLT; TIMING COVER 04.054 (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	9804-9812	●
124	00.206 BOLT; TIMING COVER 03.275 M8X30 FLANGE	0-28080-830-0	09	1	9804-		●
124	00.206 BOLT; TIMING COVER	8-11087-874-0	05	1	9804-0108			●
124	00.206 BOLT; TIMING COVER	8-11087-874-0	05	1	0109-			●	●
149	00.206 PLATE; FRT,C/BL	8-94405-609-3	01	1	9804-9812	●
149	00.206 PLATE; FRT,C/BL	8-92063-474-0	01	1	9804-			●
149	00.206 PLATE; FRT,C/BL	8-90411-303-0	01	1	0109-				●
158	00.206 BOLT; FRT PLATE 01.428 (A) M6X12 FLANGE	0-28080-612-0	03	1	9804-9812	●
158	00.206 BOLT; FRT PLATE 01.540 (B) M8X18 W/LK&PL WASHER	0-50140-818-0	01	1	9804-9812	●
158	00.206 BOLT; FRT PLATE	8-90265-761-0	04	1	9804-0108			●
158	00.206 BOLT; FRT PLATE	8-90265-761-0	04	1	0109-			●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	9804-					●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97025-206-0	01	1	9804-9812	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94381-233-0	01	1	9804-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-90298-408-0	01	1	9804-0108			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-90298-408-0	01	1	0109-			●	●
444	00.206 COVER; TIMING CASE	8-92063-648-0	01	1	9804-			●
444	00.206 COVER; TIMING CASE	8-92063-649-0	01	1	0109-				●

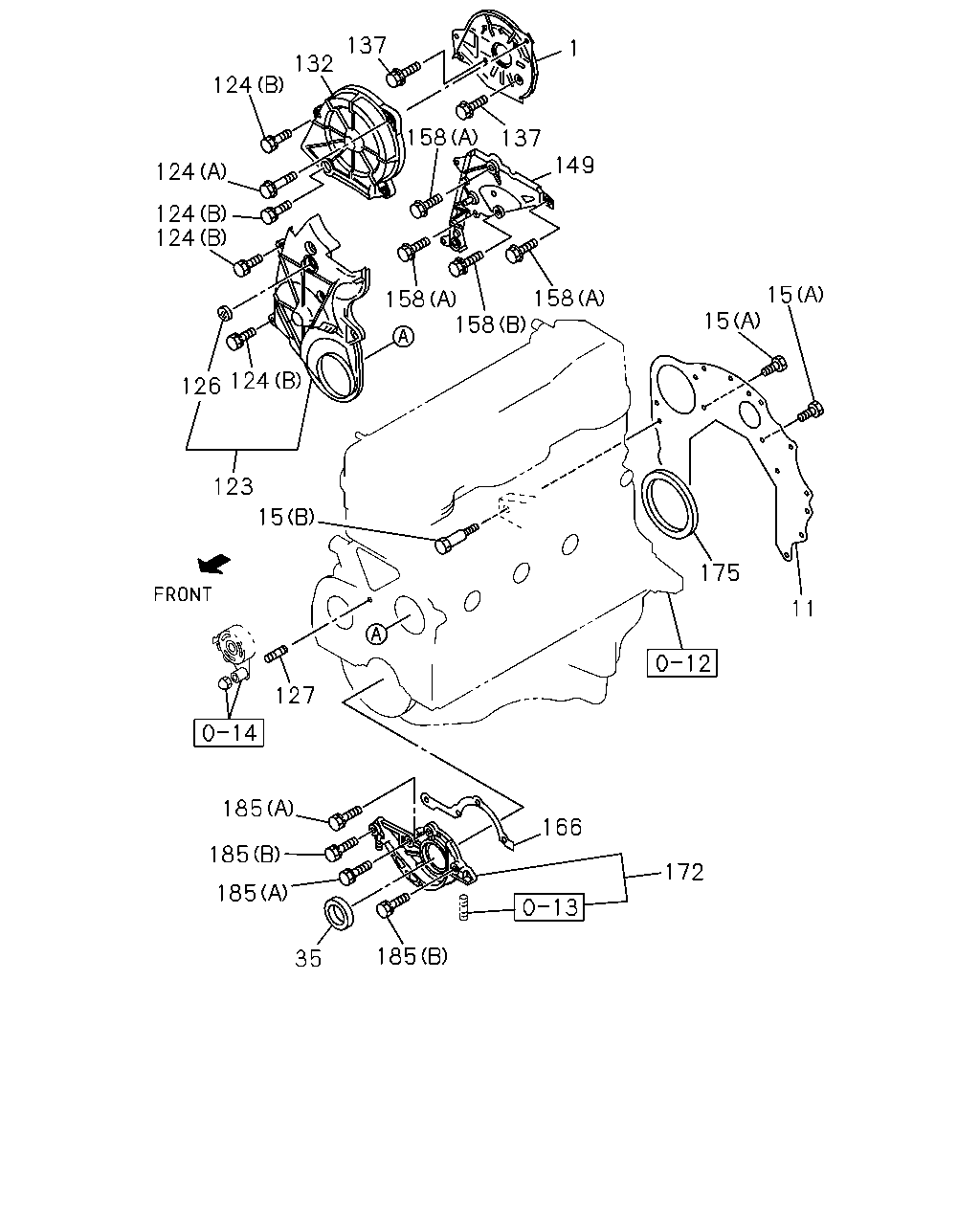

137 132 124 1 158 137 149 124 124 124 15 15 158 158 158 126 124 123 15 175 11 127 185 166 185 172 185 185 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.206 CASE; TIMING GEAR	8-97129-982-3	01	1	9804-					●	●
1	00.206 CASE; TIMING GEAR	8-94405-608-3	01	1	9804-9812	●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9804-					●	●
11	00.683 PLATE; RR,C/BL	8-94443-574-2	01	1	9804-9812	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9804-					●	●
15	00.683 BOLT; RR PLATE TO C/BL (A) M10X18	8-94214-903-1	02	1	9804-9812	●
15	00.683 BOLT; RR PLATE TO C/BL (B) M10X50 REAMER	8-94215-044-1	01	1	9804-9812	●
35	00.213 SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=56 T=6.5	8-94339-997-0	01	1	9804-9812	●
35	00.213 SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=55 T=6.0	8-97023-373-0	01	1	9804-		●
123	00.206 COVER; TIMING,LWR	8-94449-471-4	01	1	9804-9812	●
123	00.206 COVER; TIMING,LWR	8-97131-872-3	01	1	9804-		●
124	00.206 BOLT; TIMING COVER 01.153 (A) M6X50 FLANGE	0-28080-650-0	01	1	9804-9812	●
124	00.206 BOLT; TIMING COVER 04.686 (B) M6X16 W/LK WASHER	0-50040-616-0	06	1	9804-9812	●
124	00.206 BOLT; TIMING COVER 04.054 (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	9804-9812	●
124	00.206 BOLT; TIMING COVER 03.275 M8X30 FLANGE	0-28080-830-0	09	1	9804-		●
124	00.206 BOLT; TIMING COVER	8-11087-874-0	05	1	9804-0108			●
124	00.206 BOLT; TIMING COVER	8-11087-874-0	05	1	0109-			●	●
126	00.206 GROMMET; TIMING COVER,LWR	8-94150-996-0	01	1	9804-9812	●
127	00.206 STUD; TENSIONER 03.613 M8X50 L=62	9-04110-850-0	01	1	9804-9812	●
132	00.206 COVER; TIMING,UPR	8-94452-421-1	01	1	9804-9812	●
132	00.206 COVER; TIMING,UPR	8-97131-882-3	01	1	9804-		●
132	00.206 COVER; TIMING,UPR	8-97131-883-2	01	1	9804-		●
137	00.206 BOLT; FRT PLATE 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	02	1	9804-9812	●
149	00.206 PLATE; FRT,C/BL	8-94405-609-3	01	1	9804-9812	●
149	00.206 PLATE; FRT,C/BL	8-92063-474-0	01	1	9804-			●
149	00.206 PLATE; FRT,C/BL	8-90411-303-0	01	1	0109-				●
158	00.206 BOLT; FRT PLATE 01.428 (A) M6X12 FLANGE	0-28080-612-0	03	1	9804-9812	●
158	00.206 BOLT; FRT PLATE 01.540 (B) M8X18 W/LK&PL WASHER	0-50140-818-0	01	1	9804-9812	●
158	00.206 BOLT; FRT PLATE	8-90265-761-0	04	1	9804-0108			●
158	00.206 BOLT; FRT PLATE	8-90265-761-0	04	1	0109-			●	●
166	00.207 GASKET; RET TO C/BL	8-97143-478-0	01	1	9804-9812	●
172	00.137 RETAINER; CR/SHF	8-94174-212-3	01	1	9804-9812	●
172	00.137 RETAINER; CR/SHF	8-97149-390-1	01	1	9804-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	9804-					●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97025-206-0	01	1	9804-9812	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94381-233-0	01	1	9804-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-90298-408-0	01	1	9804-0108			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-90298-408-0	01	1	0109-			●	●
185	00.727 BOLT; RET TO C/BL 01.073 (A) M8X25 W/LK WASHER	0-50040-825-0	02	1	9804-9812	●
185	00.727 BOLT; RET TO C/BL (B) M8X32 W/LK WASHER	0-50040-832-0	02	1	9804-9812	●
185	00.727 BOLT; RET TO C/BL 01.062 M8X16 FLANGE	0-28080-816-0	06	1	9804-		●
185	00.727 BOLT; RET TO C/BL 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9804-		●

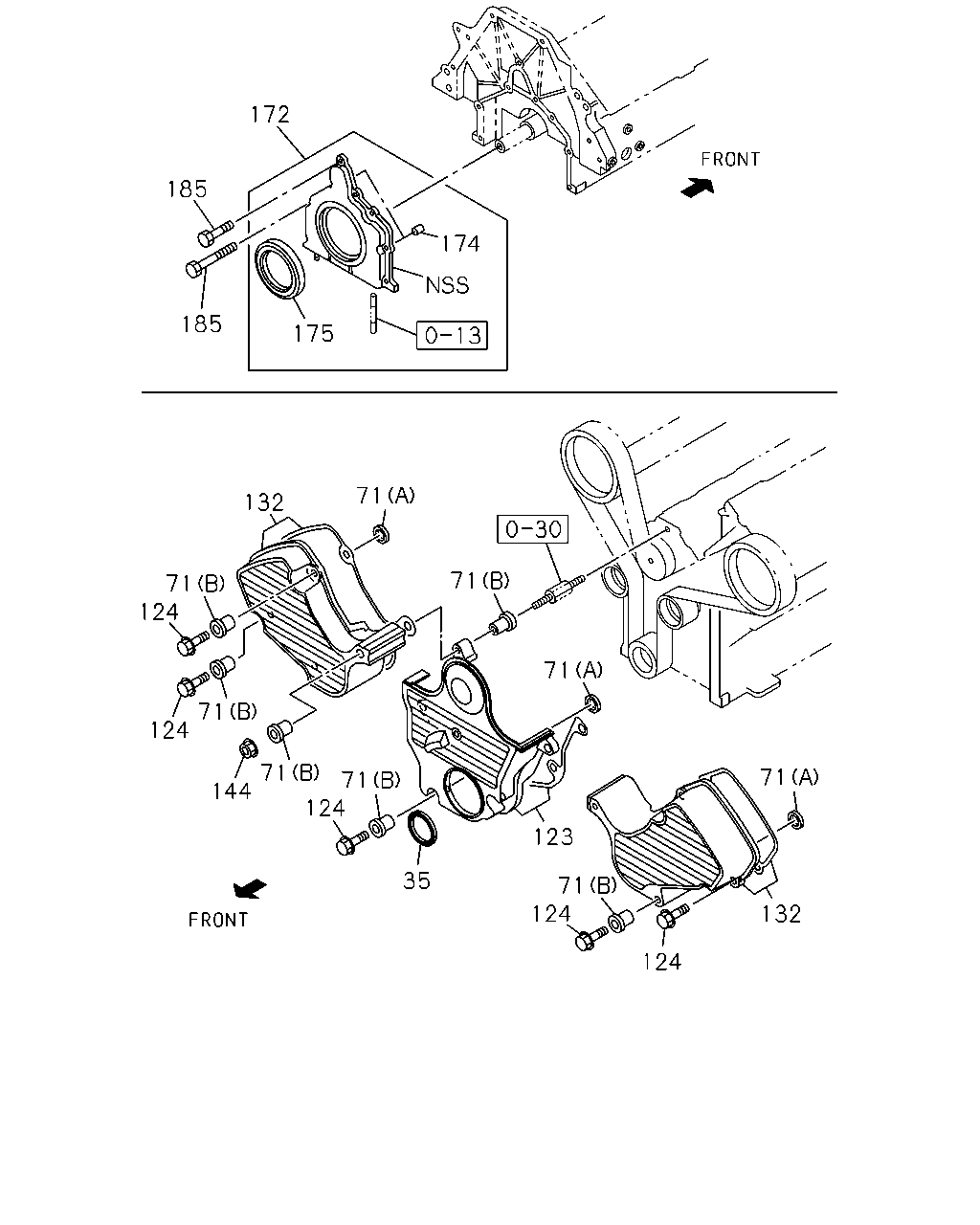

172 185 174 185 175 71 132 71 71 124 71 71 124 71 144 71 71 124 123 35 71 124 132 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
35	00.213 SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=56 T=6.5	8-94339-997-0	01	1	9804-9812	●
35	00.213 SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=55 T=6.0	8-97023-373-0	01	1	9804-		●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	04	1	9804-					●	●
71	00.206 RUBBER; MTG,COVER (A)	8-97149-003-0	10	1	9804-		●
71	00.206 RUBBER; MTG,COVER (B)	8-97149-253-0	11	1	9804-		●
123	00.206 COVER; TIMING,LWR	8-94449-471-4	01	1	9804-9812	●
123	00.206 COVER; TIMING,LWR	8-97131-872-3	01	1	9804-		●
124	00.206 BOLT; TIMING COVER 01.153 (A) M6X50 FLANGE	0-28080-650-0	01	1	9804-9812	●
124	00.206 BOLT; TIMING COVER 04.686 (B) M6X16 W/LK WASHER	0-50040-616-0	06	1	9804-9812	●
124	00.206 BOLT; TIMING COVER 04.054 (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	9804-9812	●
124	00.206 BOLT; TIMING COVER 03.275 M8X30 FLANGE	0-28080-830-0	09	1	9804-		●
124	00.206 BOLT; TIMING COVER	8-11087-874-0	05	1	9804-0108			●
124	00.206 BOLT; TIMING COVER	8-11087-874-0	05	1	0109-			●	●
132	00.206 COVER; TIMING,UPR	8-94452-421-1	01	1	9804-9812	●
132	00.206 COVER; TIMING,UPR	8-97131-882-3	01	1	9804-		●
132	00.206 COVER; TIMING,UPR	8-97131-883-2	01	1	9804-		●
144	00.206 NUT; COVER 07.633 M8 FLANGE	0-91150-108-0	01	1	9804-		●
172	00.137 RETAINER; CR/SHF	8-94174-212-3	01	1	9804-9812	●
172	00.137 RETAINER; CR/SHF	8-97149-390-1	01	1	9804-		●
174	00.683 DOWEL; RET TO C/BL	8-97103-336-0	02	1	9804-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	9804-					●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97025-206-0	01	1	9804-9812	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94381-233-0	01	1	9804-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-90298-408-0	01	1	9804-0108			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-90298-408-0	01	1	0109-			●	●
185	00.727 BOLT; RET TO C/BL 01.073 (A) M8X25 W/LK WASHER	0-50040-825-0	02	1	9804-9812	●
185	00.727 BOLT; RET TO C/BL (B) M8X32 W/LK WASHER	0-50040-832-0	02	1	9804-9812	●
185	00.727 BOLT; RET TO C/BL 01.062 M8X16 FLANGE	0-28080-816-0	06	1	9804-		●
185	00.727 BOLT; RET TO C/BL 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9804-		●

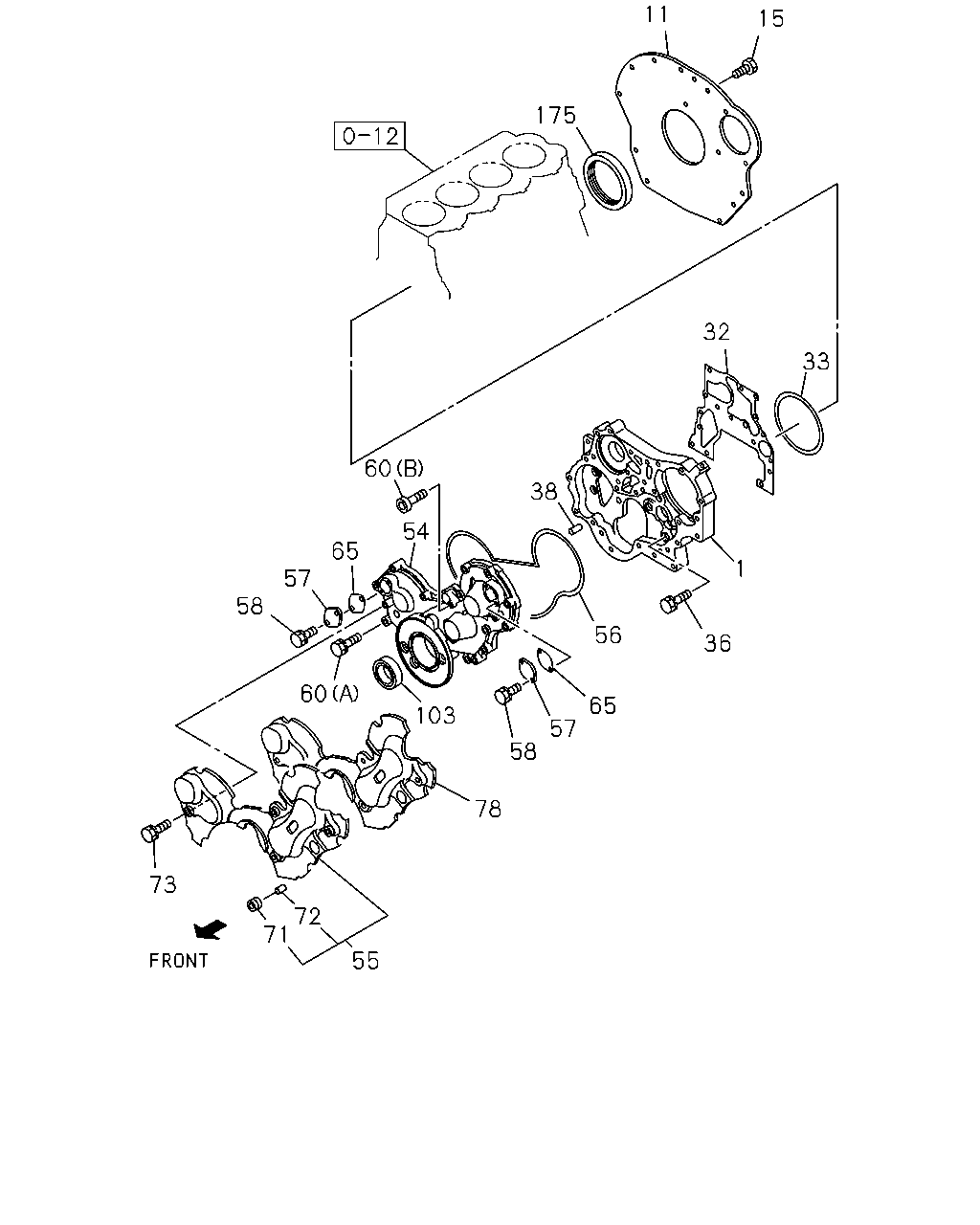

11 15 175 32 33 60 38 54 65 1 57 58 56 36 60 65 103 57 58 78 73 72 71 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.206 CASE; TIMING GEAR	8-97129-982-3	01	1	9804-					●	●
1	00.206 CASE; TIMING GEAR	8-94405-608-3	01	1	9804-9812	●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9804-					●	●
11	00.683 PLATE; RR,C/BL	8-94443-574-2	01	1	9804-9812	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9804-					●	●
15	00.683 BOLT; RR PLATE TO C/BL (A) M10X18	8-94214-903-1	02	1	9804-9812	●
15	00.683 BOLT; RR PLATE TO C/BL (B) M10X50 REAMER	8-94215-044-1	01	1	9804-9812	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-426-0	01	1	9804-					●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-0	01	1	9804-						●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94109-707-0	01	1	9804-					●	●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	9804-					●	●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9804-					●	●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20	9-08151-020-0	02	1	9804-0201					●	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0202-					●	●
54	00.206 COVER; GEAR CASE	8-94155-360-2	01	1	9804-9903					●	●
54	00.206 COVER; GEAR CASE	8-97219-278-0	01	1	9904-9912					●	●
54	00.206 COVER; GEAR CASE	8-97231-214-1	01	1	0001-					●	●
55	00.206 COVER; NOISE SHIELD	8-94155-721-1	01	1	9804-					●	●
56	00.207 GASKET; GEAR CASE TO COVER	8-94140-117-1	01	1	9804-9910					●	●
56	00.207 GASKET; GEAR CASE TO COVER	8-97238-631-0	01	1	9911-0106					●	●
56	00.207 GASKET; GEAR CASE TO COVER	8-97287-694-0	01	1	0107-					●	●
57	00.206 COVER; TIMING CHECK HOLE	5-11321-009-0	02	1	9804-					●	●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	9804-					●	●
60	00.206 BOLT; COVER TO CASE 00.727 (A) M8X32 W/LK WASHER	0-50040-832-0	08	1	9804-9906					●	●
60	00.206 BOLT; COVER TO CASE 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	9907-					●	●
60	00.206 BOLT; COVER TO CASE 01.252 (A) M8X60 W/LK WASHER	0-50040-860-0	01	1	9804-9906					●	●
60	00.206 BOLT; COVER TO CASE 01.252 (A) M8X58 FLANGE	8-94130-055-1	01	1	9907-					●	●
60	00.206 BOLT; COVER TO CASE (A) M8X65 W/LK WASHER	8-94205-986-1	06	1	9804-9903					●	●
60	00.206 BOLT; COVER TO CASE 01.251 (A) M8X60 FLANGE	0-28080-860-0	06	1	9904-0105					●	●
60	00.206 BOLT; COVER TO CASE 01.840 (A) M8X70 W/LK WASHER	0-50040-870-0	06	1	0106-					●	●
60	00.206 BOLT; COVER TO CASE (B) M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9804-0107					●	●
60	00.206 BOLT; COVER TO CASE (B) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0108-					●	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97118-698-1	02	1	9804-					●	●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	04	1	9804-					●	●
71	00.206 RUBBER; MTG,COVER (A)	8-97149-003-0	10	1	9804-		●
71	00.206 RUBBER; MTG,COVER (B)	8-97149-253-0	11	1	9804-		●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	9804-					●	●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9804-					●	●
78	00.206 SPACER; MTG RUBBER,NOISE COVER	8-94155-722-3	01	1	9804-					●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9804-0206					●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0207-					●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	9804-					●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97025-206-0	01	1	9804-9812	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94381-233-0	01	1	9804-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-90298-408-0	01	1	9804-0108			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-90298-408-0	01	1	0109-			●	●
