◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50801 - TFR/TFS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-14 - CAMSHAFT AND VALVE ▶
0-14 — CAMSHAFT AND VALVE (#41722) — 622 parça
çizim 18285
85 87 86 78 84 78 78 56 55 78 78 78 85 86 95 86 83 53 54 81 88 54 78 84 78 55 56 89 65 65 71 68 72 71 5 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 00.296 VALVE; INL
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-94464-921-0 04 1 9804-9812 ●
4 00.296 VALVE; INL
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94464-921-0 04 1 9804-9812 ●
4 00.296 VALVE; INL
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-94464-921-0 04 1 9901-9901 ●
4 00.296 VALVE; INL 8-94464-921-0 04 1 9901-9901 ●
4 00.296 VALVE; INL
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-94464-921-0 04 1 9902-0009 ●
4 00.296 VALVE; INL 8-94464-921-0 04 1 9902-0009 ●
4 00.296 VALVE; INL
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94464-921-0 04 1 0010-0204 ●
4 00.296 VALVE; INL 8-94464-921-0 04 1 0010-0204 ●
4 00.296 VALVE; INL
TURBOCHARGER<K51> 		8-94464-921-0 04 1 0205- ●
4 00.296 VALVE; INL 8-94464-921-0 04 1 0205- ●
4 00.296 VALVE; INL
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 		8-94133-275-1 04 1 9804-9812 ●
4 00.296 VALVE; INL
CHINA CHONGQING EQUIPMENT(R5B) 		8-94133-275-1 04 1 9804-9812 ●
4 00.296 VALVE; INL
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 		8-94133-275-1 04 1 9901-9901 ●
4 00.296 VALVE; INL
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94133-275-1 04 1 9902-0205 ●
4 00.296 VALVE; INL
EXC. TURBOCHARGER<K51> 		8-94133-275-1 04 1 0206- ●
4 00.296 VALVE; INL 8-94174-222-1 04 1 9804-9812 ●
4 00.296 VALVE; INL 8-97169-807-0 12 1 9804- ●
4 00.296 VALVE; INL
STD 		8-90220-121-0 04 1 9804-0108 ●
4 00.296 VALVE; INL
STD 		8-90220-121-0 04 1 0109- ● ●
4 00.296 VALVE; INL
OVSI=0.15 		8-90220-123-0 04 1 9804-0108 ●
4 00.296 VALVE; INL
OVSI=0.15 		8-90220-123-0 04 1 0109- ● ●
4 00.296 VALVE; INL
OVSI=0.25 		8-90220-124-0 04 1 9804-0108 ●
4 00.296 VALVE; INL
OVSI=0.25 		8-90220-124-0 04 1 0109- ● ●
5 00.297 VALVE; EXH
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-94433-245-0 04 1 9804-9812 ●
5 00.297 VALVE; EXH
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94433-245-0 04 1 9804-9812 ●
5 00.297 VALVE; EXH
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-94433-245-0 04 1 9901-9901 ●
5 00.297 VALVE; EXH 8-94433-245-0 04 1 9901-9901 ●
5 00.297 VALVE; EXH
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-94433-245-0 04 1 9902-0009 ●
5 00.297 VALVE; EXH 8-94433-245-0 04 1 9902-0009 ●
5 00.297 VALVE; EXH
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94433-245-0 04 1 0010-0204 ●
5 00.297 VALVE; EXH 8-94433-245-0 04 1 0010-0204 ●
5 00.297 VALVE; EXH
TURBOCHARGER<K51> 		8-94433-245-0 04 1 0205- ●
5 00.297 VALVE; EXH 8-94433-245-0 04 1 0205- ●
5 00.297 VALVE; EXH
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 		8-94247-875-1 04 1 9804-9812 ●
5 00.297 VALVE; EXH
CHINA CHONGQING EQUIPMENT(R5B) 		8-94247-875-1 04 1 9804-9812 ●
5 00.297 VALVE; EXH
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 		8-94247-875-1 04 1 9901-9901 ●
5 00.297 VALVE; EXH
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94247-875-1 04 1 9902-0205 ●
5 00.297 VALVE; EXH
EXC. TURBOCHARGER<K51> 		8-94247-875-1 04 1 0206- ●
5 00.297 VALVE; EXH 8-97110-256-0 04 1 9804-9812 ●
5 00.297 VALVE; EXH 8-97169-808-0 12 1 9804- ●
5 00.297 VALVE; EXH
STD 		8-90323-757-0 04 1 9804-0108 ●
5 00.297 VALVE; EXH
STD 		8-90323-757-0 04 1 0109- ● ●
5 00.297 VALVE; EXH
OVSI=0.15 		8-90323-759-0 04 1 9804-0108 ●
5 00.297 VALVE; EXH
OVSI=0.15 		8-90323-759-0 04 1 0109- ● ●
5 00.297 VALVE; EXH
OVSI=0.25 		8-90323-760-0 04 1 9804-0108 ●
5 00.297 VALVE; EXH
OVSI=0.25 		8-90323-760-0 04 1 0109- ● ●
53 00.353 SHAFT; ROCKER ARM 8-94343-205-0 01 1 9804-0012 ● ●
53 00.353 SHAFT; ROCKER ARM 8-97036-197-0 01 1 0101- ● ●
53 00.353 SHAFT; ROCKER ARM
(A) INLET 		8-94110-646-1 01 1 9804-9812 ●
53 00.353 SHAFT; ROCKER ARM
(B) EXHAUST 		8-94129-227-0 01 1 9804-9812 ●
54 00.349 WASHER; ROCKER SPR
ID=19.1 OD=23 		8-94341-906-0 06 1 9804- ● ●
55 00.356 PLUG; ROCKER SHAFT END 9-12626-005-0 02 1 9804- ● ●
55 00.356 PLUG; ROCKER SHAFT END
(A) INLET 		8-94116-940-0 02 1 9804-9812 ●
55 00.356 PLUG; ROCKER SHAFT END
(B) EXHAUST 		8-94116-941-0 02 1 9804-9812 ●
56 00.349 RING; SNAP,ROCKER ARM
ID=17.5 		9-09180-019-0 02 1 9804- ● ●
65 00.310 COLLAR; SPLIT 5-12565-004-0 16 1 9804- ● ●
65 00.310 COLLAR; SPLIT 8-94200-714-0 16 1 9804-9812 ●
65 00.310 COLLAR; SPLIT 8-94429-487-0 48 1 9804- ●
65 00.310 COLLAR; SPLIT 8-90076-745-0 08 1 9804-0108 ●
65 00.310 COLLAR; SPLIT 8-90076-745-0 08 1 0109- ● ●
68 00.303 SPRING; VLV
NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51> (B) 		8-97131-668-1 01 1 0206- ●
68 00.303 SPRING; VLV
(A) H=48 NATURAL 		8-94433-247-0 08 1 9804- ● ●
68 00.303 SPRING; VLV 8-94259-483-0 08 1 9804-9812 ●
68 00.303 SPRING; VLV 8-97136-328-0 24 1 9804-0108 ●
68 00.303 SPRING; VLV 8-97314-228-0 24 1 0109- ●
68 00.303 SPRING; VLV 8-90501-491-0 08 1 9804-0108 ●
68 00.303 SPRING; VLV 8-90501-491-0 08 1 0109- ● ●
71 00.309 SEAT; SPR
(B) LOWER OD=34 		5-12563-001-0 08 1 9804- ● ●
71 00.309 SEAT; SPR
(A) UPPER OD=32.8 		8-94133-731-2 08 1 9804- ● ●
71 00.309 SEAT; SPR
(B) LOWER OD=34 		8-94200-749-0 08 1 9804-9812 ●
71 00.309 SEAT; SPR
(A) UPPER OD=32 		8-94233-232-1 08 1 9804-9812 ●
71 00.309 SEAT; SPR
(A) UPPER OD=24.2 		8-97136-329-1 24 1 9804- ●
71 00.309 SEAT; SPR
(B) LOWER OD=27 		8-97149-155-0 24 1 9804- ●
71 00.309 SEAT; SPR
(A) 		8-90128-720-0 04 1 9804-0108 ●
71 00.309 SEAT; SPR
(A) 		8-90128-720-0 04 1 0109- ● ●
71 00.309 SEAT; SPR
00.283 (B) 		8-90499-099-0 04 1 9804-0108 ●
71 00.309 SEAT; SPR
00.283 (B) 		8-90499-099-0 04 1 0109- ● ●
72 00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97120-307-0 08 1 9804- ● ●
78 00.333 ARM; ROCKER 8-94152-344-0 08 1 9804- ● ●
78 00.333 ARM; ROCKER
NPR 		8-94102-413-0 08 1 9804-9812 ●
78 00.333 ARM; ROCKER
JBK 		8-94102-416-0 08 1 9804-9812 ●
81 00.429 SCREW; ADJ,ROCKER ARM
M8 L=30 		8-94152-283-1 08 1 9804- ● ●
81 00.429 SCREW; ADJ,ROCKER ARM
M8X27 		8-94200-786-0 16 1 9804-9812 ●
83 00.787 NUT; ADJ SCREW,LK
08.915 M8 		9-09111-508-0 08 1 9804- ● ●
83 00.787 NUT; ADJ SCREW,LK
00.429 M8 FLANGE 		9-09844-574-0 16 1 9804-9812 ●
84 00.349 BRACKET; ROCKER SHAFT,INTER 8-94152-345-1 04 1 9804- ● ●
85 00.349 BOLT; BRKT
(A) M8X15,M10X60 L=82 		8-94433-304-0 02 1 9804- ● ●
85 00.349 BOLT; BRKT
(B) M8X37 & M10X60 L=104 		8-94437-493-1 01 1 9804- ● ●
86 00.349 WASHER; ROCKER ARM FIX
ID=10.5 		9-09164-010-0 04 1 9804- ● ●
87 00.349 BOLT; ROCKER SHAFT
M10X60 		8-94433-302-0 01 1 9804- ● ●
88 00.426 ROD; PUSH 8-94143-203-0 08 1 9804- ●
88 00.426 ROD; PUSH 8-97071-673-0 08 1 9804- ●
89 00.459 TAPPET; VLV 8-94438-305-1 08 1 9804- ● ●
89 00.459 TAPPET; VLV 8-97148-296-1 24 1 9804- ●
89 00.459 TAPPET; VLV 8-90409-194-0 08 1 9804-0108 ●
89 00.459 TAPPET; VLV 8-90409-194-0 08 1 0109- ● ●
95 00.376 SPRING; ROCKER SHAFT 8-94341-905-0 03 1 9804- ● ●
95 00.376 SPRING; ROCKER SHAFT
(A) L=57.0 		8-94200-814-1 04 1 9804-9812 ●
95 00.376 SPRING; ROCKER SHAFT
(B) L=38.0 		8-94200-815-1 04 1 9804-9812 ●

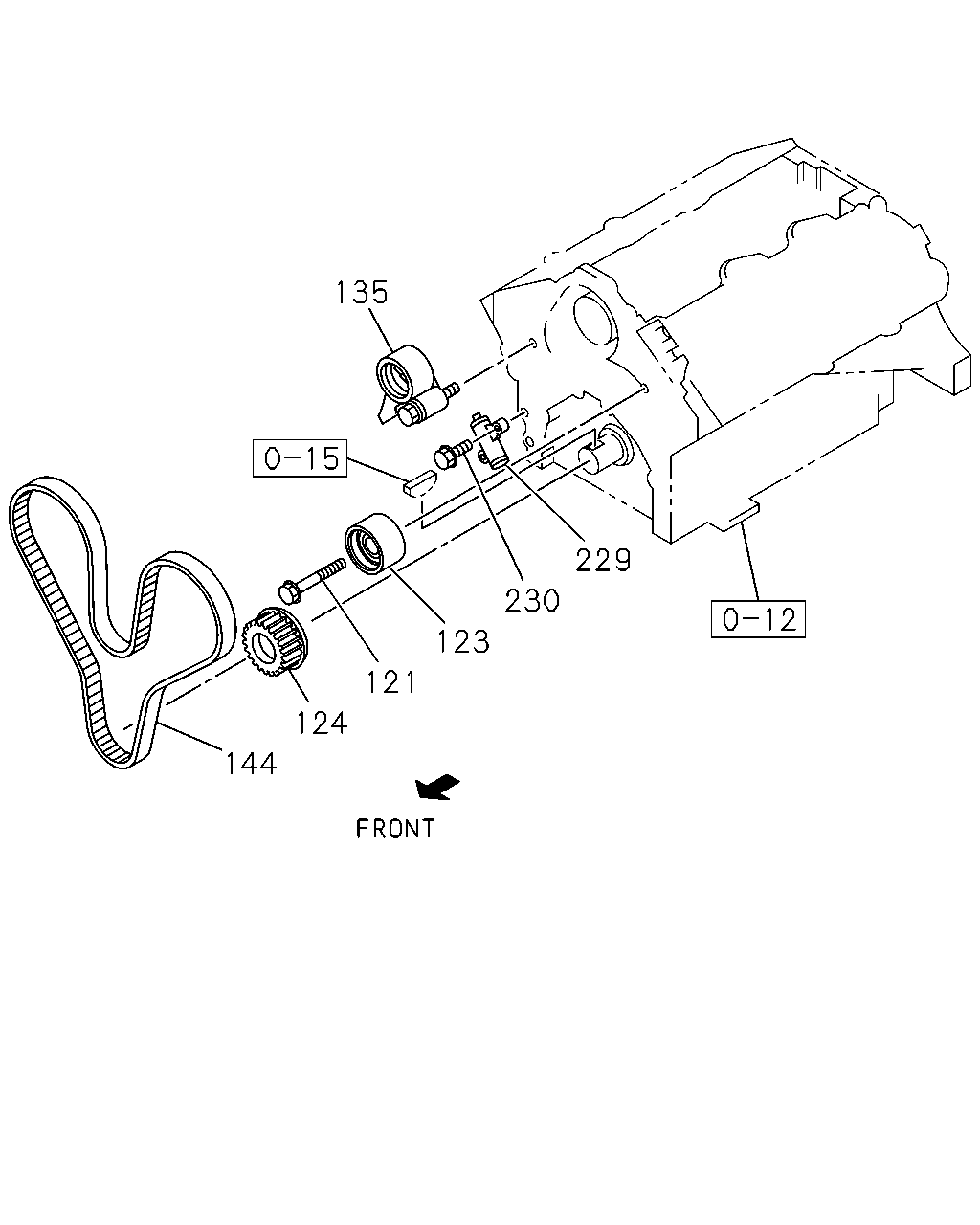

çizim 19134
135 229 230 123 121 124 144
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
121 00.724 BOLT; IDLE PULLEY
03.613 M10X40 FLANGE 		0-28681-040-0 01 1 9804- ●
123 00.724 PULLEY; IDLE,TIMING 8-97146-877-0 01 1 9804- ●
124 00.659 PULLEY; TIMING,CR/SHF
Z=26 		8-94457-889-0 01 1 9804-9812 ●
124 00.659 PULLEY; TIMING,CR/SHF
Z=26 		8-97136-326-0 01 1 9804- ●
135 00.724 PULLEY; TENSIONER 8-94472-349-0 01 1 9804-9812 ●
135 00.724 PULLEY; TENSIONER 8-97136-256-0 01 1 9804- ●
135 00.724 PULLEY; TENSIONER 8-90530-124-0 01 1 9804-0005 ●
135 00.724 PULLEY; TENSIONER 8-09158-003-0 01 1 0006-0108 ●
135 00.724 PULLEY; TENSIONER 8-09158-003-0 01 1 0109- ● ●
144 00.724 BELT; TIMING 8-97042-268-0 01 1 9804-9812 ●
144 00.724 BELT; TIMING 8-97136-321-0 01 1 9804-0204 ●
144 00.724 BELT; TIMING 8-97191-036-1 01 1 0205- ●
144 00.724 BELT; TIMING 8-92062-521-0 01 1 9804-0009 ●
144 00.724 BELT; TIMING 8-92065-303-0 01 1 0010- ●
144 00.724 BELT; TIMING 8-09128-725-0 01 1 0109- ●
229 00.724 ROD ASM; PUSH,TENSIONER 8-97136-257-0 01 1 9804-0308 ●
229 00.724 ROD ASM; PUSH,TENSIONER 8-97328-512-0 01 1 0309- ●
230 00.724 BOLT; PUSH ROD
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 9804- ●

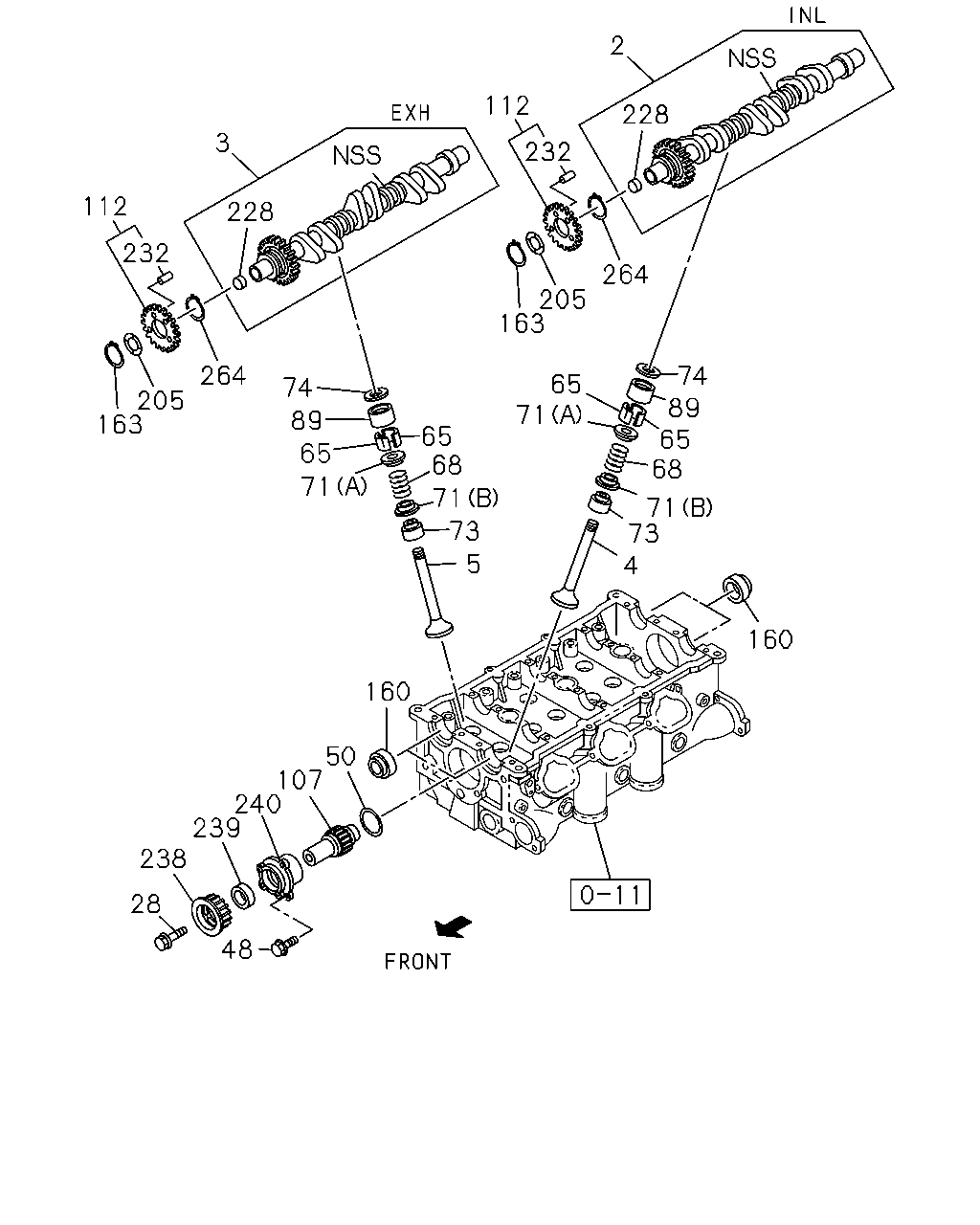

çizim 19174
2 112 228 3 232 112 228 232 264 205 163 264 74 89 65 68 65 71 74 205 163 89 65 68 65 71 71 71 73 4 73 5 160 160 50 107 240 239 238 28 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 00.519 CAMSHAFT; INL 8-97131-946-1 01 1 9804- ●
2 00.519 CAMSHAFT; INL 8-97131-944-1 01 1 9804- ●
3 00.519 CAMSHAFT; EXH 8-97136-139-1 02 1 9804- ●
4 00.296 VALVE; INL
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-94464-921-0 04 1 9804-9812 ●
4 00.296 VALVE; INL
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94464-921-0 04 1 9804-9812 ●
4 00.296 VALVE; INL
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-94464-921-0 04 1 9901-9901 ●
4 00.296 VALVE; INL 8-94464-921-0 04 1 9901-9901 ●
4 00.296 VALVE; INL
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-94464-921-0 04 1 9902-0009 ●
4 00.296 VALVE; INL 8-94464-921-0 04 1 9902-0009 ●
4 00.296 VALVE; INL
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94464-921-0 04 1 0010-0204 ●
4 00.296 VALVE; INL 8-94464-921-0 04 1 0010-0204 ●
4 00.296 VALVE; INL
TURBOCHARGER<K51> 		8-94464-921-0 04 1 0205- ●
4 00.296 VALVE; INL 8-94464-921-0 04 1 0205- ●
4 00.296 VALVE; INL
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 		8-94133-275-1 04 1 9804-9812 ●
4 00.296 VALVE; INL
CHINA CHONGQING EQUIPMENT(R5B) 		8-94133-275-1 04 1 9804-9812 ●
4 00.296 VALVE; INL
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 		8-94133-275-1 04 1 9901-9901 ●
4 00.296 VALVE; INL
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94133-275-1 04 1 9902-0205 ●
4 00.296 VALVE; INL
EXC. TURBOCHARGER<K51> 		8-94133-275-1 04 1 0206- ●
4 00.296 VALVE; INL 8-94174-222-1 04 1 9804-9812 ●
4 00.296 VALVE; INL 8-97169-807-0 12 1 9804- ●
4 00.296 VALVE; INL
STD 		8-90220-121-0 04 1 9804-0108 ●
4 00.296 VALVE; INL
STD 		8-90220-121-0 04 1 0109- ● ●
4 00.296 VALVE; INL
OVSI=0.15 		8-90220-123-0 04 1 9804-0108 ●
4 00.296 VALVE; INL
OVSI=0.15 		8-90220-123-0 04 1 0109- ● ●
4 00.296 VALVE; INL
OVSI=0.25 		8-90220-124-0 04 1 9804-0108 ●
4 00.296 VALVE; INL
OVSI=0.25 		8-90220-124-0 04 1 0109- ● ●
5 00.297 VALVE; EXH
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-94433-245-0 04 1 9804-9812 ●
5 00.297 VALVE; EXH
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94433-245-0 04 1 9804-9812 ●
5 00.297 VALVE; EXH
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-94433-245-0 04 1 9901-9901 ●
5 00.297 VALVE; EXH 8-94433-245-0 04 1 9901-9901 ●
5 00.297 VALVE; EXH
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-94433-245-0 04 1 9902-0009 ●
5 00.297 VALVE; EXH 8-94433-245-0 04 1 9902-0009 ●
5 00.297 VALVE; EXH
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94433-245-0 04 1 0010-0204 ●
5 00.297 VALVE; EXH 8-94433-245-0 04 1 0010-0204 ●
5 00.297 VALVE; EXH
TURBOCHARGER<K51> 		8-94433-245-0 04 1 0205- ●
5 00.297 VALVE; EXH 8-94433-245-0 04 1 0205- ●
5 00.297 VALVE; EXH
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 		8-94247-875-1 04 1 9804-9812 ●
5 00.297 VALVE; EXH
CHINA CHONGQING EQUIPMENT(R5B) 		8-94247-875-1 04 1 9804-9812 ●
5 00.297 VALVE; EXH
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 		8-94247-875-1 04 1 9901-9901 ●
5 00.297 VALVE; EXH
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94247-875-1 04 1 9902-0205 ●
5 00.297 VALVE; EXH
EXC. TURBOCHARGER<K51> 		8-94247-875-1 04 1 0206- ●
5 00.297 VALVE; EXH 8-97110-256-0 04 1 9804-9812 ●
5 00.297 VALVE; EXH 8-97169-808-0 12 1 9804- ●
5 00.297 VALVE; EXH
STD 		8-90323-757-0 04 1 9804-0108 ●
5 00.297 VALVE; EXH
STD 		8-90323-757-0 04 1 0109- ● ●
5 00.297 VALVE; EXH
OVSI=0.15 		8-90323-759-0 04 1 9804-0108 ●
5 00.297 VALVE; EXH
OVSI=0.15 		8-90323-759-0 04 1 0109- ● ●
5 00.297 VALVE; EXH
OVSI=0.25 		8-90323-760-0 04 1 9804-0108 ●
5 00.297 VALVE; EXH
OVSI=0.25 		8-90323-760-0 04 1 0109- ● ●
28 00.738 BOLT; CAM PULLEY
08.900 M10X35 		9-02061-035-0 01 1 9804-9812 ●
28 00.738 BOLT; CAM PULLEY 8-97149-393-0 02 1 9804-0204 ●
28 00.738 BOLT; CAM PULLEY 8-97330-881-0 02 1 0205- ●
28 00.738 BOLT; CAM PULLEY 8-11073-823-0 01 1 9804- ●
28 00.738 BOLT; CAM PULLEY 8-11073-824-0 01 1 0109- ●
48 00.724 BOLT; RET
M6X20 FLANGE 		0-28690-620-0 03 1 9804- ●
48 00.724 BOLT; RET
M6X30 FLANGE 		0-28690-630-0 03 1 9804- ●
48 00.724 BOLT; RET 8-90264-407-0 02 1 9804-0108 ●
48 00.724 BOLT; RET 8-90264-407-0 02 1 0109- ● ●
50 00.724 GASKET; RET
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97149-238-0 02 1 9804- ●
65 00.310 COLLAR; SPLIT 5-12565-004-0 16 1 9804- ● ●
65 00.310 COLLAR; SPLIT 8-94200-714-0 16 1 9804-9812 ●
65 00.310 COLLAR; SPLIT 8-94429-487-0 48 1 9804- ●
65 00.310 COLLAR; SPLIT 8-90076-745-0 08 1 9804-0108 ●
65 00.310 COLLAR; SPLIT 8-90076-745-0 08 1 0109- ● ●
68 00.303 SPRING; VLV
NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51> (B) 		8-97131-668-1 01 1 0206- ●
68 00.303 SPRING; VLV
(A) H=48 NATURAL 		8-94433-247-0 08 1 9804- ● ●
68 00.303 SPRING; VLV 8-94259-483-0 08 1 9804-9812 ●
68 00.303 SPRING; VLV 8-97136-328-0 24 1 9804-0108 ●
68 00.303 SPRING; VLV 8-97314-228-0 24 1 0109- ●
68 00.303 SPRING; VLV 8-90501-491-0 08 1 9804-0108 ●
68 00.303 SPRING; VLV 8-90501-491-0 08 1 0109- ● ●
71 00.309 SEAT; SPR
(B) LOWER OD=34 		5-12563-001-0 08 1 9804- ● ●
71 00.309 SEAT; SPR
(A) UPPER OD=32.8 		8-94133-731-2 08 1 9804- ● ●
71 00.309 SEAT; SPR
(B) LOWER OD=34 		8-94200-749-0 08 1 9804-9812 ●
71 00.309 SEAT; SPR
(A) UPPER OD=32 		8-94233-232-1 08 1 9804-9812 ●
71 00.309 SEAT; SPR
(A) UPPER OD=24.2 		8-97136-329-1 24 1 9804- ●
71 00.309 SEAT; SPR
(B) LOWER OD=27 		8-97149-155-0 24 1 9804- ●
71 00.309 SEAT; SPR
(A) 		8-90128-720-0 04 1 9804-0108 ●
71 00.309 SEAT; SPR
(A) 		8-90128-720-0 04 1 0109- ● ●
71 00.309 SEAT; SPR
00.283 (B) 		8-90499-099-0 04 1 9804-0108 ●
71 00.309 SEAT; SPR
00.283 (B) 		8-90499-099-0 04 1 0109- ● ●
73 00.309 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97033-673-0 08 1 9804-9812 ●
73 00.309 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) INLET 		8-94324-158-1 12 1 9804-0207 ●
73 00.309 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) INLET 		8-97332-359-0 12 1 0208- ●
73 00.309 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXHAUST 		8-97146-733-0 12 1 9804- ●
73 00.309 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-90215-296-0 08 1 9804-0108 ●
73 00.309 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-90215-296-0 08 1 0109- ● ●
74 00.459 ADJUSTER; VLV GAP
T=2.40 		8-97149-262-0 AR 1 9804-9906 ●
74 00.459 ADJUSTER; VLV GAP
T=2.42 		8-97149-263-0 AR 1 9804-9906 ●
74 00.459 ADJUSTER; VLV GAP
T=2.44 		8-97149-264-0 AR 1 9804-9906 ●
74 00.459 ADJUSTER; VLV GAP
T=2.46 		8-97149-265-0 AR 1 9804-9906 ●
74 00.459 ADJUSTER; VLV GAP
T=2.48 		8-97149-266-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=2.50 		8-97149-267-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=2.52 		8-97149-268-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=2.54 		8-97149-269-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=2.56 		8-97149-270-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=2.58 		8-97149-271-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=2.60 		8-97149-272-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=2.62 		8-97149-273-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=2.64 		8-97149-274-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=2.66 		8-97149-275-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=2.68 		8-97149-276-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=2.70 		8-97149-277-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=2.72 		8-97149-278-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=2.74 		8-97149-279-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=2.76 		8-97149-280-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=2.78 		8-97149-281-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=2.80 		8-97149-282-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=2.82 		8-97149-283-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=2.84 		8-97149-284-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=2.86 		8-97149-285-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=2.88 		8-97149-286-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=2.90 		8-97149-287-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=2.92 		8-97149-288-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=2.94 		8-97149-289-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=2.96 		8-97149-290-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=2.98 		8-97149-291-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=3.00 		8-97149-292-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=3.02 		8-97149-293-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=3.04 		8-97149-294-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=3.06 		8-97149-295-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=3.08 		8-97149-296-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=3.10 		8-97149-297-0 AR 1 9804- ●
74 00.459 ADJUSTER; VLV GAP
T=3.12 		8-97149-298-0 AR 1 9804-9906 ●
74 00.459 ADJUSTER; VLV GAP
T=3.14 		8-97149-299-0 AR 1 9804-9906 ●
74 00.459 ADJUSTER; VLV GAP
T=3.16 		8-97149-300-0 AR 1 9804-9906 ●
74 00.459 ADJUSTER; VLV GAP
T=3.18 		8-97149-301-0 AR 1 9804-9906 ●
74 00.459 ADJUSTER; VLV GAP
T=3.20 		8-97149-302-0 AR 1 9804-9906 ●
89 00.459 TAPPET; VLV 8-94438-305-1 08 1 9804- ● ●
89 00.459 TAPPET; VLV 8-97148-296-1 24 1 9804- ●
89 00.459 TAPPET; VLV 8-90409-194-0 08 1 9804-0108 ●
89 00.459 TAPPET; VLV 8-90409-194-0 08 1 0109- ● ●
107 00.724 SHAFT; IDLE GEAR
WARNER TEC 		8-97322-870-0 01 1 0110- ●
107 00.724 SHAFT; IDLE GEAR
WARNER TEC 		8-97322-871-0 01 1 0110- ●
107 00.724 SHAFT; IDLE GEAR 8-94139-758-1 01 1 9804- ● ●
107 00.724 SHAFT; IDLE GEAR
AIKOR 		8-97131-966-1 01 1 9804- ●
107 00.724 SHAFT; IDLE GEAR
AIKOR 		8-97131-965-1 01 1 9804- ●
112 00.724 GEAR; IDLE
NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51> 		8-97957-110-0 01 1 0206- ●
112 00.724 GEAR; IDLE
SUMITOMO ELECTRIC INDUSTRIES Z=40 		8-97322-153-0 04 1 0201- ●
112 00.724 GEAR; IDLE
Z=31 		8-97164-773-0 01 1 9804-0205 ● ●
112 00.724 GEAR; IDLE
EXC. NOISE PACK FOR REGULATION<6VD> Z=31 		8-97164-773-0 01 1 0206- ●
112 00.724 GEAR; IDLE
Z=31 		8-97164-773-0 01 1 0206- ●
112 00.724 GEAR; IDLE
TOKYO BUHIN KOGYO CO.LTD Z=40 		8-97136-655-1 04 1 9804- ●
160 00.533 PLUG; CM/SHF END 8-97149-338-0 08 1 9804- ●
163 00.724 RING; SNAP,IDLE
NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51> (A) 		8-97132-030-1 01 1 0206- ●
163 00.724 RING; SNAP,IDLE
NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51> 04.012 (B) OD=48.5 		9-09180-145-0 02 1 0206- ●
163 00.724 RING; SNAP,IDLE 8-97149-334-0 04 1 9804- ●
205 00.724 WASHER; LK,IDLE 8-97136-589-0 04 1 9804- ●
228 00.738 CUP; SEALING,CAMSHAFT
OD=8 		8-97039-526-0 04 1 9804- ●
232 00.662 PIN; GEAR SET
NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51> (A) OD=8 L=14 		9-08160-814-0 03 1 0206- ●
232 00.662 PIN; GEAR SET
NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51> 08.939 (B) OD=8 L=20 		9-08160-820-0 03 1 0206- ●
232 00.662 PIN; GEAR SET
SUMITOMO ELECTRIC INDUSTRIES OD=5 L=7 		8-97173-670-0 04 1 0201- ●
232 00.662 PIN; GEAR SET
00.738 TOKYO BUHIN KOGYO CO.LTD OD=5 L=6 		9-09878-626-0 04 1 9804- ●
232 00.662 PIN; GEAR SET 8-11055-129-0 01 1 9804-0108 ●
232 00.662 PIN; GEAR SET 8-11055-129-0 01 1 0109- ● ●
238 00.659 PULLEY; TIMING,CAM 8-97136-327-0 02 1 9804- ●
239 00.533 SEAL; OIL,IDLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94389-593-1 02 1 9804- ●
240 00.724 RETAINER; IDLE 8-97132-365-1 01 1 9804- ●
240 00.724 RETAINER; IDLE 8-97132-364-1 01 1 9804- ●
264 00.349 SPRING; GEAR
00.659 		8-97136-343-0 04 1 9804- ●

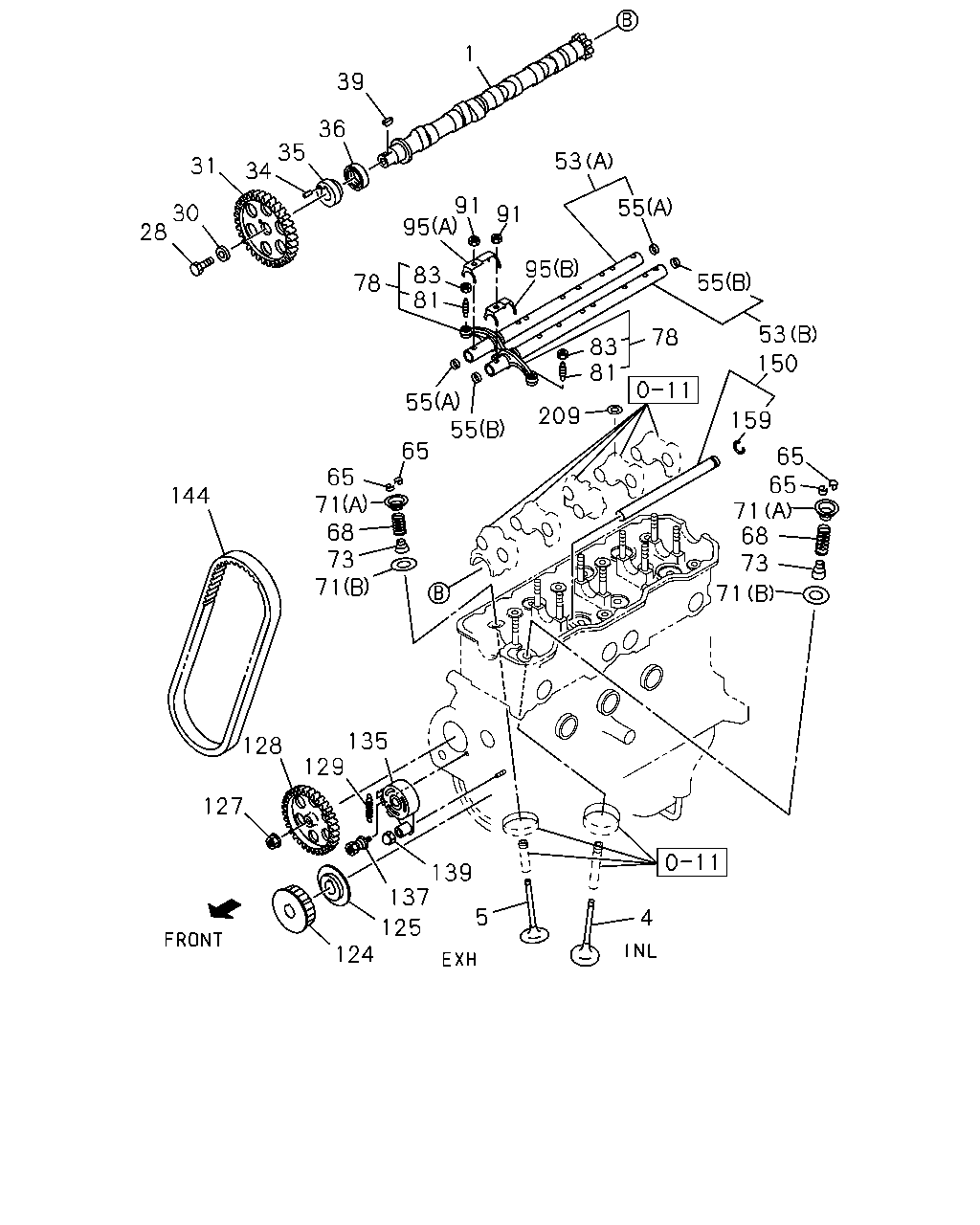

çizim 19634
1 39 36 35 34 53 31 91 91 95 55 30 28 95 83 81 55 78 53 150 78 83 81 55 55 209 159 65 65 65 71 68 73 71 65 71 68 73 71 144 135 129 128 127 139 137 125 124 5 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.519 CAMSHAFT 8-94127-797-4 01 1 9804-0012 ● ●
1 00.519 CAMSHAFT 8-97287-657-0 01 1 0101- ● ●
1 00.519 CAMSHAFT 8-94136-784-1 01 1 9804-9812 ●
1 00.519 CAMSHAFT 8-90232-446-0 01 1 9804-0108 ●
1 00.519 CAMSHAFT 8-90232-446-0 01 1 0109- ● ●
4 00.296 VALVE; INL
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-94464-921-0 04 1 9804-9812 ●
4 00.296 VALVE; INL
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94464-921-0 04 1 9804-9812 ●
4 00.296 VALVE; INL
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-94464-921-0 04 1 9901-9901 ●
4 00.296 VALVE; INL 8-94464-921-0 04 1 9901-9901 ●
4 00.296 VALVE; INL
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-94464-921-0 04 1 9902-0009 ●
4 00.296 VALVE; INL 8-94464-921-0 04 1 9902-0009 ●
4 00.296 VALVE; INL
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94464-921-0 04 1 0010-0204 ●
4 00.296 VALVE; INL 8-94464-921-0 04 1 0010-0204 ●
4 00.296 VALVE; INL
TURBOCHARGER<K51> 		8-94464-921-0 04 1 0205- ●
4 00.296 VALVE; INL 8-94464-921-0 04 1 0205- ●
4 00.296 VALVE; INL
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 		8-94133-275-1 04 1 9804-9812 ●
4 00.296 VALVE; INL
CHINA CHONGQING EQUIPMENT(R5B) 		8-94133-275-1 04 1 9804-9812 ●
4 00.296 VALVE; INL
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 		8-94133-275-1 04 1 9901-9901 ●
4 00.296 VALVE; INL
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94133-275-1 04 1 9902-0205 ●
4 00.296 VALVE; INL
EXC. TURBOCHARGER<K51> 		8-94133-275-1 04 1 0206- ●
4 00.296 VALVE; INL 8-94174-222-1 04 1 9804-9812 ●
4 00.296 VALVE; INL 8-97169-807-0 12 1 9804- ●
4 00.296 VALVE; INL
STD 		8-90220-121-0 04 1 9804-0108 ●
4 00.296 VALVE; INL
STD 		8-90220-121-0 04 1 0109- ● ●
4 00.296 VALVE; INL
OVSI=0.15 		8-90220-123-0 04 1 9804-0108 ●
4 00.296 VALVE; INL
OVSI=0.15 		8-90220-123-0 04 1 0109- ● ●
4 00.296 VALVE; INL
OVSI=0.25 		8-90220-124-0 04 1 9804-0108 ●
4 00.296 VALVE; INL
OVSI=0.25 		8-90220-124-0 04 1 0109- ● ●
5 00.297 VALVE; EXH
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-94433-245-0 04 1 9804-9812 ●
5 00.297 VALVE; EXH
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94433-245-0 04 1 9804-9812 ●
5 00.297 VALVE; EXH
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-94433-245-0 04 1 9901-9901 ●
5 00.297 VALVE; EXH 8-94433-245-0 04 1 9901-9901 ●
5 00.297 VALVE; EXH
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-94433-245-0 04 1 9902-0009 ●
5 00.297 VALVE; EXH 8-94433-245-0 04 1 9902-0009 ●
5 00.297 VALVE; EXH
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94433-245-0 04 1 0010-0204 ●
5 00.297 VALVE; EXH 8-94433-245-0 04 1 0010-0204 ●
5 00.297 VALVE; EXH
TURBOCHARGER<K51> 		8-94433-245-0 04 1 0205- ●
5 00.297 VALVE; EXH 8-94433-245-0 04 1 0205- ●
5 00.297 VALVE; EXH
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 		8-94247-875-1 04 1 9804-9812 ●
5 00.297 VALVE; EXH
CHINA CHONGQING EQUIPMENT(R5B) 		8-94247-875-1 04 1 9804-9812 ●
5 00.297 VALVE; EXH
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 		8-94247-875-1 04 1 9901-9901 ●
5 00.297 VALVE; EXH
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94247-875-1 04 1 9902-0205 ●
5 00.297 VALVE; EXH
EXC. TURBOCHARGER<K51> 		8-94247-875-1 04 1 0206- ●
5 00.297 VALVE; EXH 8-97110-256-0 04 1 9804-9812 ●
5 00.297 VALVE; EXH 8-97169-808-0 12 1 9804- ●
5 00.297 VALVE; EXH
STD 		8-90323-757-0 04 1 9804-0108 ●
5 00.297 VALVE; EXH
STD 		8-90323-757-0 04 1 0109- ● ●
5 00.297 VALVE; EXH
OVSI=0.15 		8-90323-759-0 04 1 9804-0108 ●
5 00.297 VALVE; EXH
OVSI=0.15 		8-90323-759-0 04 1 0109- ● ●
5 00.297 VALVE; EXH
OVSI=0.25 		8-90323-760-0 04 1 9804-0108 ●
5 00.297 VALVE; EXH
OVSI=0.25 		8-90323-760-0 04 1 0109- ● ●

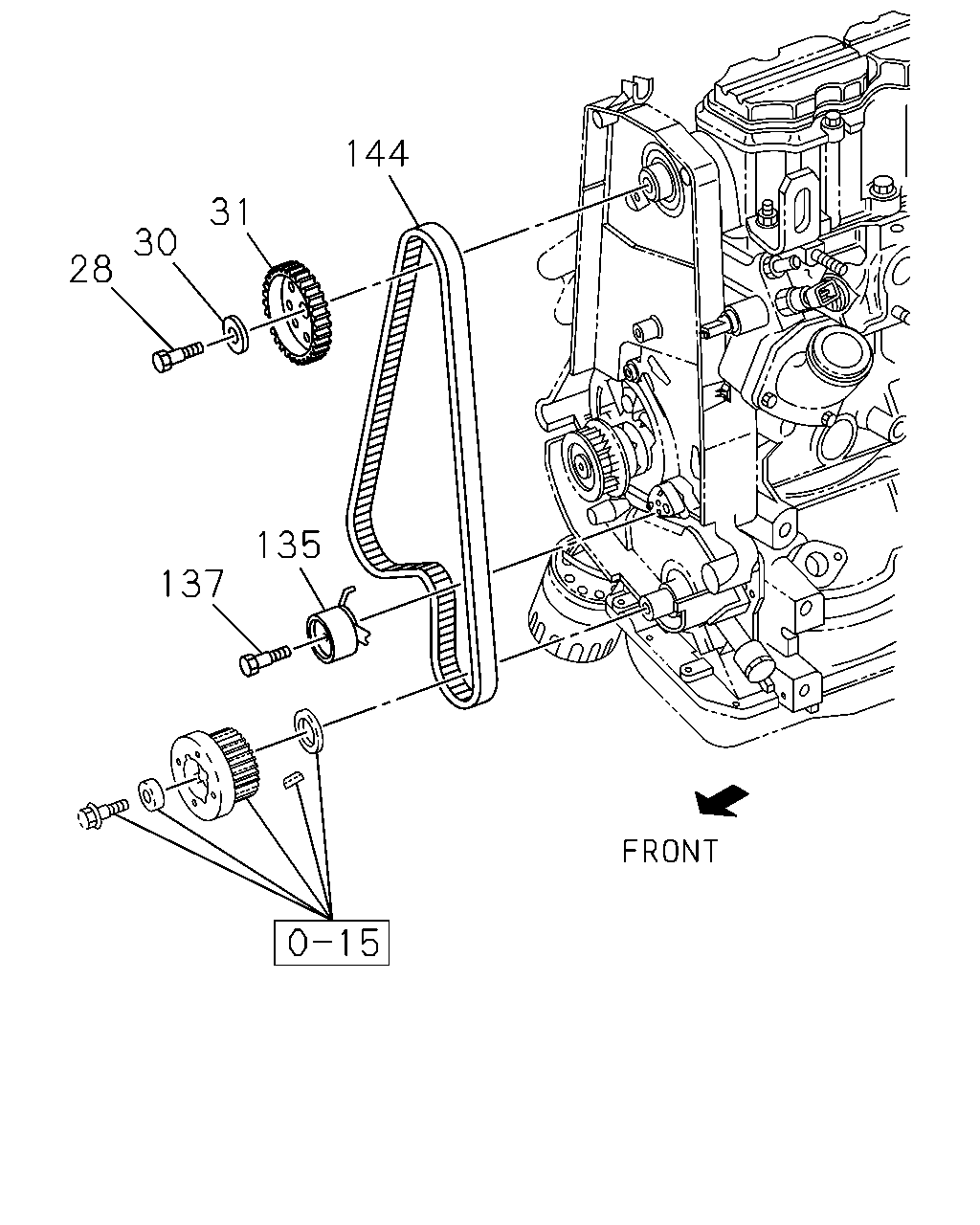

28 00.738 BOLT; CAM PULLEY
08.900 M10X35 		9-02061-035-0 01 1 9804-9812 ●
28 00.738 BOLT; CAM PULLEY 8-97149-393-0 02 1 9804-0204 ●
28 00.738 BOLT; CAM PULLEY 8-97330-881-0 02 1 0205- ●
28 00.738 BOLT; CAM PULLEY 8-11073-823-0 01 1 9804- ●
28 00.738 BOLT; CAM PULLEY 8-11073-824-0 01 1 0109- ●
30 00.662 WASHER; PULLEY
ID=10.5 		8-94174-283-1 01 1 9804-9812 ●
30 00.662 WASHER; PULLEY 8-90067-443-0 01 1 9804-0108 ●
30 00.662 WASHER; PULLEY 8-90067-443-0 01 1 0109- ● ●
31 00.736 SPROCKET; CM/SHF 8-94174-282-2 01 1 9804-9812 ●
31 00.736 SPROCKET; CM/SHF 8-90466-039-0 01 1 9804-0006 ●
31 00.736 SPROCKET; CM/SHF
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-90466-039-0 01 1 0007-0012 ●
31 00.736 SPROCKET; CM/SHF
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-90466-039-0 01 1 0101- ●
31 00.736 SPROCKET; CM/SHF
M/T MSG 5 SPEED(M75) EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA R ICA EQUIPMENT(7LD) 		8-93262-588-0 01 1 0007-0012 ●
31 00.736 SPROCKET; CM/SHF
M/T MSG 5 SPEED(M75) EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-93262-588-0 01 1 0101- ●
31 00.736 SPROCKET; CM/SHF 8-90411-765-0 01 1 0109- ●
34 00.533 PIN; CM/SHF
00.662 		9-08160-512-0 01 1 9804-9812 ●
35 00.533 BOSS; CM/SHF 8-94251-272-1 01 1 9804-9812 ●
36 00.533 SEAL; OIL,CM/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) OD=45 		8-94334-845-0 01 1 9804-9812 ●
36 00.533 SEAL; OIL,CM/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-90280-463-0 01 1 9804-0108 ●
36 00.533 SEAL; OIL,CM/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-90280-463-0 01 1 0109- ● ●
39 00.529 KEY; WOODRUFF,BOSS
08.960 		9-08055-516-0 01 1 9804-9812 ●
53 00.353 SHAFT; ROCKER ARM 8-94343-205-0 01 1 9804-0012 ● ●
53 00.353 SHAFT; ROCKER ARM 8-97036-197-0 01 1 0101- ● ●
53 00.353 SHAFT; ROCKER ARM
(A) INLET 		8-94110-646-1 01 1 9804-9812 ●
53 00.353 SHAFT; ROCKER ARM
(B) EXHAUST 		8-94129-227-0 01 1 9804-9812 ●
55 00.356 PLUG; ROCKER SHAFT END 9-12626-005-0 02 1 9804- ● ●
55 00.356 PLUG; ROCKER SHAFT END
(A) INLET 		8-94116-940-0 02 1 9804-9812 ●
55 00.356 PLUG; ROCKER SHAFT END
(B) EXHAUST 		8-94116-941-0 02 1 9804-9812 ●
65 00.310 COLLAR; SPLIT 5-12565-004-0 16 1 9804- ● ●
65 00.310 COLLAR; SPLIT 8-94200-714-0 16 1 9804-9812 ●
65 00.310 COLLAR; SPLIT 8-94429-487-0 48 1 9804- ●
65 00.310 COLLAR; SPLIT 8-90076-745-0 08 1 9804-0108 ●
65 00.310 COLLAR; SPLIT 8-90076-745-0 08 1 0109- ● ●
68 00.303 SPRING; VLV
NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51> (B) 		8-97131-668-1 01 1 0206- ●
68 00.303 SPRING; VLV
(A) H=48 NATURAL 		8-94433-247-0 08 1 9804- ● ●
68 00.303 SPRING; VLV 8-94259-483-0 08 1 9804-9812 ●
68 00.303 SPRING; VLV 8-97136-328-0 24 1 9804-0108 ●
68 00.303 SPRING; VLV 8-97314-228-0 24 1 0109- ●
68 00.303 SPRING; VLV 8-90501-491-0 08 1 9804-0108 ●
68 00.303 SPRING; VLV 8-90501-491-0 08 1 0109- ● ●
71 00.309 SEAT; SPR
(B) LOWER OD=34 		5-12563-001-0 08 1 9804- ● ●
71 00.309 SEAT; SPR
(A) UPPER OD=32.8 		8-94133-731-2 08 1 9804- ● ●
71 00.309 SEAT; SPR
(B) LOWER OD=34 		8-94200-749-0 08 1 9804-9812 ●
71 00.309 SEAT; SPR
(A) UPPER OD=32 		8-94233-232-1 08 1 9804-9812 ●
71 00.309 SEAT; SPR
(A) UPPER OD=24.2 		8-97136-329-1 24 1 9804- ●
71 00.309 SEAT; SPR
(B) LOWER OD=27 		8-97149-155-0 24 1 9804- ●
71 00.309 SEAT; SPR
(A) 		8-90128-720-0 04 1 9804-0108 ●
71 00.309 SEAT; SPR
(A) 		8-90128-720-0 04 1 0109- ● ●
71 00.309 SEAT; SPR
00.283 (B) 		8-90499-099-0 04 1 9804-0108 ●
71 00.309 SEAT; SPR
00.283 (B) 		8-90499-099-0 04 1 0109- ● ●
73 00.309 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97033-673-0 08 1 9804-9812 ●
73 00.309 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) INLET 		8-94324-158-1 12 1 9804-0207 ●
73 00.309 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) INLET 		8-97332-359-0 12 1 0208- ●
73 00.309 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXHAUST 		8-97146-733-0 12 1 9804- ●
73 00.309 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-90215-296-0 08 1 9804-0108 ●
73 00.309 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-90215-296-0 08 1 0109- ● ●
78 00.333 ARM; ROCKER 8-94152-344-0 08 1 9804- ● ●
78 00.333 ARM; ROCKER
NPR 		8-94102-413-0 08 1 9804-9812 ●
78 00.333 ARM; ROCKER
JBK 		8-94102-416-0 08 1 9804-9812 ●
81 00.429 SCREW; ADJ,ROCKER ARM
M8 L=30 		8-94152-283-1 08 1 9804- ● ●
81 00.429 SCREW; ADJ,ROCKER ARM
M8X27 		8-94200-786-0 16 1 9804-9812 ●
83 00.787 NUT; ADJ SCREW,LK
08.915 M8 		9-09111-508-0 08 1 9804- ● ●
83 00.787 NUT; ADJ SCREW,LK
00.429 M8 FLANGE 		9-09844-574-0 16 1 9804-9812 ●
91 00.349 NUT; ROCKER SHAFT
00.002 M8 		9-09110-508-0 10 1 9804-9812 ●
95 00.376 SPRING; ROCKER SHAFT 8-94341-905-0 03 1 9804- ● ●
95 00.376 SPRING; ROCKER SHAFT
(A) L=57.0 		8-94200-814-1 04 1 9804-9812 ●
95 00.376 SPRING; ROCKER SHAFT
(B) L=38.0 		8-94200-815-1 04 1 9804-9812 ●
124 00.659 PULLEY; TIMING,CR/SHF
Z=26 		8-94457-889-0 01 1 9804-9812 ●
124 00.659 PULLEY; TIMING,CR/SHF
Z=26 		8-97136-326-0 01 1 9804- ●
125 00.662 PLATE; GUIDE,TIMING BELT
00.724 		8-94215-184-0 01 1 9804-9812 ●
127 00.724 NUT; PULLEY
M12 		8-94221-051-0 01 1 9804-9812 ●
128 00.724 PULLEY; TIMING,OIL PUMP
Z=45 		8-94174-224-1 01 1 9804-9812 ●
129 00.724 SPRING; TENSIONER
L=65 		8-94472-329-0 01 1 9804-9812 ●
135 00.724 PULLEY; TENSIONER 8-94472-349-0 01 1 9804-9812 ●
135 00.724 PULLEY; TENSIONER 8-97136-256-0 01 1 9804- ●
135 00.724 PULLEY; TENSIONER 8-90530-124-0 01 1 9804-0005 ●
135 00.724 PULLEY; TENSIONER 8-09158-003-0 01 1 0006-0108 ●
135 00.724 PULLEY; TENSIONER 8-09158-003-0 01 1 0109- ● ●
137 00.724 BOLT; TENSIONER
M8 L=46 		8-94214-934-2 01 1 9804-9812 ●
137 00.724 BOLT; TENSIONER 8-11084-141-0 01 1 9804-0108 ●
137 00.724 BOLT; TENSIONER 8-11084-141-0 01 1 0109- ● ●
139 00.724 NUT; TENSIONER
00.002 M8 		9-09110-508-0 01 1 9804-9812 ●
144 00.724 BELT; TIMING 8-97042-268-0 01 1 9804-9812 ●
144 00.724 BELT; TIMING 8-97136-321-0 01 1 9804-0204 ●
144 00.724 BELT; TIMING 8-97191-036-1 01 1 0205- ●
144 00.724 BELT; TIMING 8-92062-521-0 01 1 9804-0009 ●
144 00.724 BELT; TIMING 8-92065-303-0 01 1 0010- ●
144 00.724 BELT; TIMING 8-09128-725-0 01 1 0109- ●
150 00.426 ROD ASM; PUSH,FUEL PUMP
W/RING 		8-94159-290-1 01 1 9804-9812 ●
159 00.426 RING; SNAP,PUSH ROD,FUEL PUMP 8-94159-292-0 01 1 9804-9812 ●
209 00.349 WASHER; LK,ROCKER ARM BRKT
16.674 ID=8.4 		9-09160-508-0 02 1 9804-9812 ●

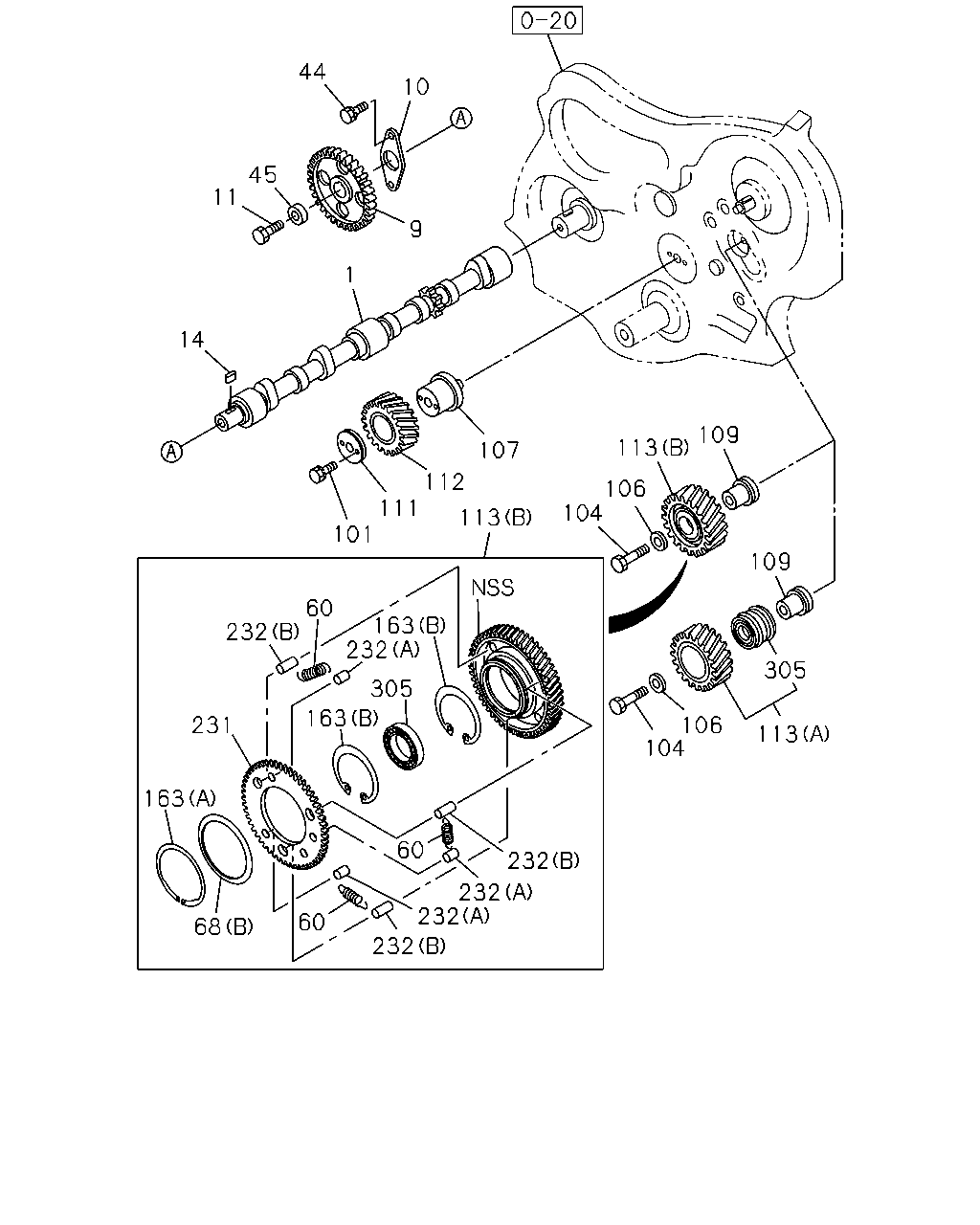

çizim 19735
44 10 45 11 9 1 14 109 113 107 112 106 104 111 113 101 109 60 232 163 232 305 305 163 231 106 104 113 163 60 232 232 232 60 68 232
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.519 CAMSHAFT 8-94127-797-4 01 1 9804-0012 ● ●
1 00.519 CAMSHAFT 8-97287-657-0 01 1 0101- ● ●
1 00.519 CAMSHAFT 8-94136-784-1 01 1 9804-9812 ●
1 00.519 CAMSHAFT 8-90232-446-0 01 1 9804-0108 ●
1 00.519 CAMSHAFT 8-90232-446-0 01 1 0109- ● ●
9 00.736 GEAR; CM/SHF
NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51> Z=60 		8-97959-101-0 01 1 0206- ●
9 00.736 GEAR; CM/SHF
Z=42 		8-97079-212-1 01 1 9804-0205 ● ●
9 00.736 GEAR; CM/SHF
EXC. NOISE PACK FOR REGULATION<6VD> Z=42 		8-97079-212-1 01 1 0206- ●
9 00.736 GEAR; CM/SHF
Z=42 		8-97079-212-1 01 1 0206- ●
10 00.533 PLATE; THRUST 8-94110-480-1 01 1 9804- ● ●
11 00.533 BOLT; THRUST PLATE TO C/BL
M12X47 		8-94433-407-0 01 1 9804- ● ●
14 00.738 KEY; CM/SHF
08.960 		9-08000-718-0 01 1 9804- ● ●
44 00.738 BOLT
03.704 M8X16 W/LK WASHER 		0-50040-816-0 02 1 9804-0102 ● ●
44 00.738 BOLT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0103- ● ●
45 00.738 WASHER; GEAR CAM
NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51> 00.724 ID=13 OD=33 		8-97178-186-0 01 1 0206- ●
45 00.738 WASHER; GEAR CAM
ID=13 OD=36 		5-12519-002-1 01 1 9804-0205 ● ●
45 00.738 WASHER; GEAR CAM
EXC. NOISE PACK FOR REGULATION<6VD> ID=13 OD=36 		5-12519-002-1 01 1 0206- ●
45 00.738 WASHER; GEAR CAM
ID=13 OD=36 		5-12519-002-1 01 1 0206- ●
60 00.349 SPRING; BRKT
NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51> 		8-97131-666-1 03 1 0206- ●
68 00.303 SPRING; VLV
NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51> (B) 		8-97131-668-1 01 1 0206- ●
68 00.303 SPRING; VLV
(A) H=48 NATURAL 		8-94433-247-0 08 1 9804- ● ●
68 00.303 SPRING; VLV 8-94259-483-0 08 1 9804-9812 ●
68 00.303 SPRING; VLV 8-97136-328-0 24 1 9804-0108 ●
68 00.303 SPRING; VLV 8-97314-228-0 24 1 0109- ●
68 00.303 SPRING; VLV 8-90501-491-0 08 1 9804-0108 ●
68 00.303 SPRING; VLV 8-90501-491-0 08 1 0109- ● ●
101 00.724 BOLT; THRUST COLLAR
03.330 M8X55 W/LK WASHER 		5-09000-084-1 02 1 9804-9904 ● ●
101 00.724 BOLT; THRUST COLLAR
M8X53 FLANGE 		8-97223-999-0 02 1 9905- ● ●
104 00.724 BOLT; SHAFT IDLE
NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51> M12X57 		1-09040-044-0 01 1 0206- ●
104 00.724 BOLT; SHAFT IDLE 8-94109-706-1 01 1 9804-0205 ● ●
104 00.724 BOLT; SHAFT IDLE
EXC. NOISE PACK FOR REGULATION<6VD> 		8-94109-706-1 01 1 0206- ●
104 00.724 BOLT; SHAFT IDLE 8-94109-706-1 01 1 0206- ●
106 00.724 WASHER; IDLE GEAR SHAFT
NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51> ID=13 OD=33 		8-97178-186-0 01 1 0206- ●
106 00.724 WASHER; IDLE GEAR SHAFT
00.738 ID=13 OD=36 		5-12519-002-1 01 1 9804-0205 ● ●
106 00.724 WASHER; IDLE GEAR SHAFT
EXC. NOISE PACK FOR REGULATION<6VD> 00.738 ID=13 OD=36 		5-12519-002-1 01 1 0206- ●
106 00.724 WASHER; IDLE GEAR SHAFT
00.738 ID=13 OD=36 		5-12519-002-1 01 1 0206- ●
107 00.724 SHAFT; IDLE GEAR
WARNER TEC 		8-97322-870-0 01 1 0110- ●
107 00.724 SHAFT; IDLE GEAR
WARNER TEC 		8-97322-871-0 01 1 0110- ●
107 00.724 SHAFT; IDLE GEAR 8-94139-758-1 01 1 9804- ● ●
107 00.724 SHAFT; IDLE GEAR
AIKOR 		8-97131-966-1 01 1 9804- ●
107 00.724 SHAFT; IDLE GEAR
AIKOR 		8-97131-965-1 01 1 9804- ●
109 00.724 SHAFT; IDLE GEAR
NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51> 		8-97131-632-0 01 1 0206- ●
109 00.724 SHAFT; IDLE GEAR 8-94109-913-1 01 1 9804-0205 ● ●
109 00.724 SHAFT; IDLE GEAR
EXC. NOISE PACK FOR REGULATION<6VD> 		8-94109-913-1 01 1 0206- ●
109 00.724 SHAFT; IDLE GEAR 8-94109-913-1 01 1 0206- ●
111 00.724 COLLAR; THRUST,IDLE GEAR 8-94141-937-1 01 1 9804- ● ●
112 00.724 GEAR; IDLE
NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51> 		8-97957-110-0 01 1 0206- ●
112 00.724 GEAR; IDLE
SUMITOMO ELECTRIC INDUSTRIES Z=40 		8-97322-153-0 04 1 0201- ●
112 00.724 GEAR; IDLE
Z=31 		8-97164-773-0 01 1 9804-0205 ● ●
112 00.724 GEAR; IDLE
EXC. NOISE PACK FOR REGULATION<6VD> Z=31 		8-97164-773-0 01 1 0206- ●
112 00.724 GEAR; IDLE
Z=31 		8-97164-773-0 01 1 0206- ●
112 00.724 GEAR; IDLE
TOKYO BUHIN KOGYO CO.LTD Z=40 		8-97136-655-1 04 1 9804- ●
113 00.724 GEAR; IDLE
NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51> (B) 		8-97138-717-1 01 1 0206- ●
113 00.724 GEAR; IDLE
(A) Z=37 		8-94139-761-0 01 1 9804-0205 ● ●
113 00.724 GEAR; IDLE
EXC. NOISE PACK FOR REGULATION<6VD> (A) Z=37 		8-94139-761-0 01 1 0206- ●
113 00.724 GEAR; IDLE
(A) Z=37 		8-94139-761-0 01 1 0206- ●
163 00.724 RING; SNAP,IDLE
NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51> (A) 		8-97132-030-1 01 1 0206- ●
163 00.724 RING; SNAP,IDLE
NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51> 04.012 (B) OD=48.5 		9-09180-145-0 02 1 0206- ●
163 00.724 RING; SNAP,IDLE 8-97149-334-0 04 1 9804- ●
231 00.662 PLATE; CAP
NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51> 		8-97138-719-0 01 1 0206- ●
232 00.662 PIN; GEAR SET
NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51> (A) OD=8 L=14 		9-08160-814-0 03 1 0206- ●
232 00.662 PIN; GEAR SET
NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51> 08.939 (B) OD=8 L=20 		9-08160-820-0 03 1 0206- ●
232 00.662 PIN; GEAR SET
SUMITOMO ELECTRIC INDUSTRIES OD=5 L=7 		8-97173-670-0 04 1 0201- ●
232 00.662 PIN; GEAR SET
00.738 TOKYO BUHIN KOGYO CO.LTD OD=5 L=6 		9-09878-626-0 04 1 9804- ●
232 00.662 PIN; GEAR SET 8-11055-129-0 01 1 9804-0108 ●
232 00.662 PIN; GEAR SET 8-11055-129-0 01 1 0109- ● ●
305 00.724 BEARING; IDLE GEAR
NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51> 		8-97241-493-0 01 1 0206- ●
305 00.724 BEARING; IDLE GEAR 8-94110-271-0 01 1 9804-0205 ● ●
305 00.724 BEARING; IDLE GEAR
EXC. NOISE PACK FOR REGULATION<6VD> 		8-94110-271-0 01 1 0206- ●
305 00.724 BEARING; IDLE GEAR 8-94110-271-0 01 1 0206- ●

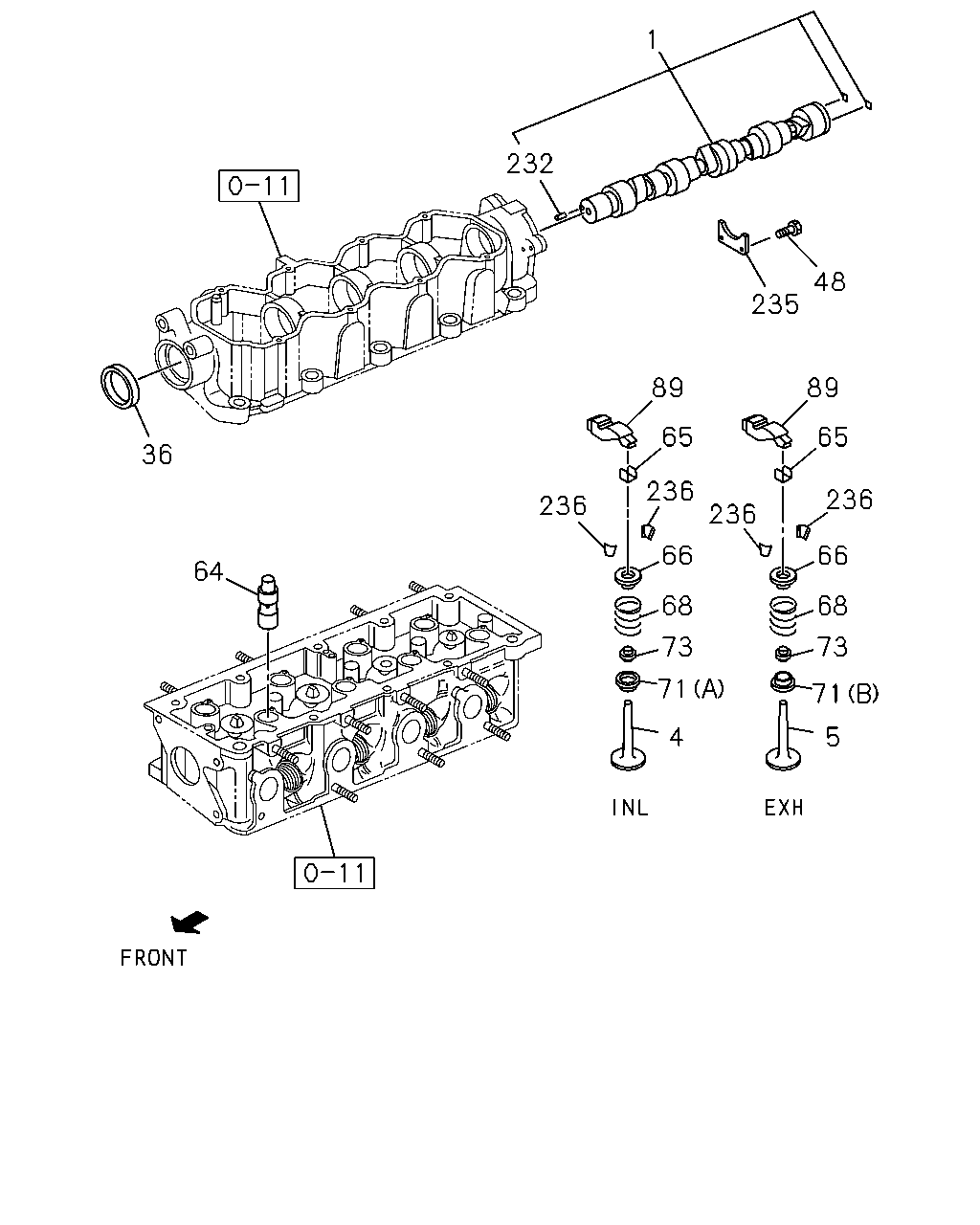

çizim 69924
1 232 48 235 89 89 65 65 36 236 236 236 236 66 66 64 68 68 73 73 71 71 5 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.519 CAMSHAFT 8-94127-797-4 01 1 9804-0012 ● ●
1 00.519 CAMSHAFT 8-97287-657-0 01 1 0101- ● ●
1 00.519 CAMSHAFT 8-94136-784-1 01 1 9804-9812 ●
1 00.519 CAMSHAFT 8-90232-446-0 01 1 9804-0108 ●
1 00.519 CAMSHAFT 8-90232-446-0 01 1 0109- ● ●
4 00.296 VALVE; INL
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-94464-921-0 04 1 9804-9812 ●
4 00.296 VALVE; INL
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94464-921-0 04 1 9804-9812 ●
4 00.296 VALVE; INL
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-94464-921-0 04 1 9901-9901 ●
4 00.296 VALVE; INL 8-94464-921-0 04 1 9901-9901 ●
4 00.296 VALVE; INL
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-94464-921-0 04 1 9902-0009 ●
4 00.296 VALVE; INL 8-94464-921-0 04 1 9902-0009 ●
4 00.296 VALVE; INL
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94464-921-0 04 1 0010-0204 ●
4 00.296 VALVE; INL 8-94464-921-0 04 1 0010-0204 ●
4 00.296 VALVE; INL
TURBOCHARGER<K51> 		8-94464-921-0 04 1 0205- ●
4 00.296 VALVE; INL 8-94464-921-0 04 1 0205- ●
4 00.296 VALVE; INL
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 		8-94133-275-1 04 1 9804-9812 ●
4 00.296 VALVE; INL
CHINA CHONGQING EQUIPMENT(R5B) 		8-94133-275-1 04 1 9804-9812 ●
4 00.296 VALVE; INL
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 		8-94133-275-1 04 1 9901-9901 ●
4 00.296 VALVE; INL
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94133-275-1 04 1 9902-0205 ●
4 00.296 VALVE; INL
EXC. TURBOCHARGER<K51> 		8-94133-275-1 04 1 0206- ●
4 00.296 VALVE; INL 8-94174-222-1 04 1 9804-9812 ●
4 00.296 VALVE; INL 8-97169-807-0 12 1 9804- ●
4 00.296 VALVE; INL
STD 		8-90220-121-0 04 1 9804-0108 ●
4 00.296 VALVE; INL
STD 		8-90220-121-0 04 1 0109- ● ●
4 00.296 VALVE; INL
OVSI=0.15 		8-90220-123-0 04 1 9804-0108 ●
4 00.296 VALVE; INL
OVSI=0.15 		8-90220-123-0 04 1 0109- ● ●
4 00.296 VALVE; INL
OVSI=0.25 		8-90220-124-0 04 1 9804-0108 ●
4 00.296 VALVE; INL
OVSI=0.25 		8-90220-124-0 04 1 0109- ● ●
5 00.297 VALVE; EXH
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-94433-245-0 04 1 9804-9812 ●
5 00.297 VALVE; EXH
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94433-245-0 04 1 9804-9812 ●
5 00.297 VALVE; EXH
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-94433-245-0 04 1 9901-9901 ●
5 00.297 VALVE; EXH 8-94433-245-0 04 1 9901-9901 ●
5 00.297 VALVE; EXH
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-94433-245-0 04 1 9902-0009 ●
5 00.297 VALVE; EXH 8-94433-245-0 04 1 9902-0009 ●
5 00.297 VALVE; EXH
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94433-245-0 04 1 0010-0204 ●
5 00.297 VALVE; EXH 8-94433-245-0 04 1 0010-0204 ●
5 00.297 VALVE; EXH
TURBOCHARGER<K51> 		8-94433-245-0 04 1 0205- ●
5 00.297 VALVE; EXH 8-94433-245-0 04 1 0205- ●
5 00.297 VALVE; EXH
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 		8-94247-875-1 04 1 9804-9812 ●
5 00.297 VALVE; EXH
CHINA CHONGQING EQUIPMENT(R5B) 		8-94247-875-1 04 1 9804-9812 ●
5 00.297 VALVE; EXH
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 		8-94247-875-1 04 1 9901-9901 ●
5 00.297 VALVE; EXH
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94247-875-1 04 1 9902-0205 ●
5 00.297 VALVE; EXH
EXC. TURBOCHARGER<K51> 		8-94247-875-1 04 1 0206- ●
5 00.297 VALVE; EXH 8-97110-256-0 04 1 9804-9812 ●
5 00.297 VALVE; EXH 8-97169-808-0 12 1 9804- ●
5 00.297 VALVE; EXH
STD 		8-90323-757-0 04 1 9804-0108 ●
5 00.297 VALVE; EXH
STD 		8-90323-757-0 04 1 0109- ● ●
5 00.297 VALVE; EXH
OVSI=0.15 		8-90323-759-0 04 1 9804-0108 ●
5 00.297 VALVE; EXH
OVSI=0.15 		8-90323-759-0 04 1 0109- ● ●
5 00.297 VALVE; EXH
OVSI=0.25 		8-90323-760-0 04 1 9804-0108 ●
5 00.297 VALVE; EXH
OVSI=0.25 		8-90323-760-0 04 1 0109- ● ●
36 00.533 SEAL; OIL,CM/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) OD=45 		8-94334-845-0 01 1 9804-9812 ●
36 00.533 SEAL; OIL,CM/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-90280-463-0 01 1 9804-0108 ●
36 00.533 SEAL; OIL,CM/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-90280-463-0 01 1 0109- ● ●
48 00.724 BOLT; RET
M6X20 FLANGE 		0-28690-620-0 03 1 9804- ●
48 00.724 BOLT; RET
M6X30 FLANGE 		0-28690-630-0 03 1 9804- ●
48 00.724 BOLT; RET 8-90264-407-0 02 1 9804-0108 ●
48 00.724 BOLT; RET 8-90264-407-0 02 1 0109- ● ●
64 00.459 ADJUSTER; VLV LASH 8-05233-315-0 08 1 9804-0108 ●
64 00.459 ADJUSTER; VLV LASH 8-05233-315-0 08 1 0109- ● ●
65 00.310 COLLAR; SPLIT 5-12565-004-0 16 1 9804- ● ●
65 00.310 COLLAR; SPLIT 8-94200-714-0 16 1 9804-9812 ●
65 00.310 COLLAR; SPLIT 8-94429-487-0 48 1 9804- ●
65 00.310 COLLAR; SPLIT 8-90076-745-0 08 1 9804-0108 ●
65 00.310 COLLAR; SPLIT 8-90076-745-0 08 1 0109- ● ●
66 00.303 CAP; VLV STEM END 8-90169-987-0 08 1 9804-0108 ●
66 00.303 CAP; VLV STEM END 8-90169-987-0 08 1 0109- ● ●
68 00.303 SPRING; VLV
NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51> (B) 		8-97131-668-1 01 1 0206- ●
68 00.303 SPRING; VLV
(A) H=48 NATURAL 		8-94433-247-0 08 1 9804- ● ●
68 00.303 SPRING; VLV 8-94259-483-0 08 1 9804-9812 ●
68 00.303 SPRING; VLV 8-97136-328-0 24 1 9804-0108 ●
68 00.303 SPRING; VLV 8-97314-228-0 24 1 0109- ●
68 00.303 SPRING; VLV 8-90501-491-0 08 1 9804-0108 ●
68 00.303 SPRING; VLV 8-90501-491-0 08 1 0109- ● ●
71 00.309 SEAT; SPR
(B) LOWER OD=34 		5-12563-001-0 08 1 9804- ● ●
71 00.309 SEAT; SPR
(A) UPPER OD=32.8 		8-94133-731-2 08 1 9804- ● ●
71 00.309 SEAT; SPR
(B) LOWER OD=34 		8-94200-749-0 08 1 9804-9812 ●
71 00.309 SEAT; SPR
(A) UPPER OD=32 		8-94233-232-1 08 1 9804-9812 ●
71 00.309 SEAT; SPR
(A) UPPER OD=24.2 		8-97136-329-1 24 1 9804- ●
71 00.309 SEAT; SPR
(B) LOWER OD=27 		8-97149-155-0 24 1 9804- ●
71 00.309 SEAT; SPR
(A) 		8-90128-720-0 04 1 9804-0108 ●
71 00.309 SEAT; SPR
(A) 		8-90128-720-0 04 1 0109- ● ●
71 00.309 SEAT; SPR
00.283 (B) 		8-90499-099-0 04 1 9804-0108 ●
71 00.309 SEAT; SPR
00.283 (B) 		8-90499-099-0 04 1 0109- ● ●
73 00.309 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97033-673-0 08 1 9804-9812 ●
73 00.309 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) INLET 		8-94324-158-1 12 1 9804-0207 ●
73 00.309 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) INLET 		8-97332-359-0 12 1 0208- ●
73 00.309 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXHAUST 		8-97146-733-0 12 1 9804- ●
73 00.309 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-90215-296-0 08 1 9804-0108 ●
73 00.309 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-90215-296-0 08 1 0109- ● ●
89 00.459 TAPPET; VLV 8-94438-305-1 08 1 9804- ● ●
89 00.459 TAPPET; VLV 8-97148-296-1 24 1 9804- ●
89 00.459 TAPPET; VLV 8-90409-194-0 08 1 9804-0108 ●
89 00.459 TAPPET; VLV 8-90409-194-0 08 1 0109- ● ●
232 00.662 PIN; GEAR SET
NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51> (A) OD=8 L=14 		9-08160-814-0 03 1 0206- ●
232 00.662 PIN; GEAR SET
NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51> 08.939 (B) OD=8 L=20 		9-08160-820-0 03 1 0206- ●
232 00.662 PIN; GEAR SET
SUMITOMO ELECTRIC INDUSTRIES OD=5 L=7 		8-97173-670-0 04 1 0201- ●
232 00.662 PIN; GEAR SET
00.738 TOKYO BUHIN KOGYO CO.LTD OD=5 L=6 		9-09878-626-0 04 1 9804- ●
232 00.662 PIN; GEAR SET 8-11055-129-0 01 1 9804-0108 ●
232 00.662 PIN; GEAR SET 8-11055-129-0 01 1 0109- ● ●
235 00.724 RETAINER; CM/SHF 8-90233-647-0 01 1 9804-0108 ●
235 00.724 RETAINER; CM/SHF 8-90233-647-0 01 1 0109- ● ●
236 00.426 RETAINER; VLV LIFTER GUIDE 8-90076-732-0 16 1 9804-0108 ●
236 00.426 RETAINER; VLV LIFTER GUIDE 8-90076-732-0 16 1 0109- ● ●
çizim 71539
144 31 30 28 135 137
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
28 00.738 BOLT; CAM PULLEY
08.900 M10X35 		9-02061-035-0 01 1 9804-9812 ●
28 00.738 BOLT; CAM PULLEY 8-97149-393-0 02 1 9804-0204 ●
28 00.738 BOLT; CAM PULLEY 8-97330-881-0 02 1 0205- ●
28 00.738 BOLT; CAM PULLEY 8-11073-823-0 01 1 9804- ●
28 00.738 BOLT; CAM PULLEY 8-11073-824-0 01 1 0109- ●
30 00.662 WASHER; PULLEY
ID=10.5 		8-94174-283-1 01 1 9804-9812 ●
30 00.662 WASHER; PULLEY 8-90067-443-0 01 1 9804-0108 ●
30 00.662 WASHER; PULLEY 8-90067-443-0 01 1 0109- ● ●
31 00.736 SPROCKET; CM/SHF 8-94174-282-2 01 1 9804-9812 ●
31 00.736 SPROCKET; CM/SHF 8-90466-039-0 01 1 9804-0006 ●
31 00.736 SPROCKET; CM/SHF
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-90466-039-0 01 1 0007-0012 ●
31 00.736 SPROCKET; CM/SHF
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-90466-039-0 01 1 0101- ●
31 00.736 SPROCKET; CM/SHF
M/T MSG 5 SPEED(M75) EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4), CHILE EQUIPMENT(6KB),GUATEMALA/COSTA R ICA EQUIPMENT(7LD) 		8-93262-588-0 01 1 0007-0012 ●
31 00.736 SPROCKET; CM/SHF
M/T MSG 5 SPEED(M75) EXC. ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-93262-588-0 01 1 0101- ●
31 00.736 SPROCKET; CM/SHF 8-90411-765-0 01 1 0109- ●
135 00.724 PULLEY; TENSIONER 8-94472-349-0 01 1 9804-9812 ●
135 00.724 PULLEY; TENSIONER 8-97136-256-0 01 1 9804- ●
135 00.724 PULLEY; TENSIONER 8-90530-124-0 01 1 9804-0005 ●
135 00.724 PULLEY; TENSIONER 8-09158-003-0 01 1 0006-0108 ●
135 00.724 PULLEY; TENSIONER 8-09158-003-0 01 1 0109- ● ●
137 00.724 BOLT; TENSIONER
M8 L=46 		8-94214-934-2 01 1 9804-9812 ●
137 00.724 BOLT; TENSIONER 8-11084-141-0 01 1 9804-0108 ●
137 00.724 BOLT; TENSIONER 8-11084-141-0 01 1 0109- ● ●
144 00.724 BELT; TIMING 8-97042-268-0 01 1 9804-9812 ●
144 00.724 BELT; TIMING 8-97136-321-0 01 1 9804-0204 ●
144 00.724 BELT; TIMING 8-97191-036-1 01 1 0205- ●
144 00.724 BELT; TIMING 8-92062-521-0 01 1 9804-0009 ●
144 00.724 BELT; TIMING 8-92065-303-0 01 1 0010- ●
144 00.724 BELT; TIMING 8-09128-725-0 01 1 0109- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
