Sayfa 0-13 - Isuzu EPC

0-13 — OIL PAN AND LEVEL GAUGE (#41721) — 423 parça

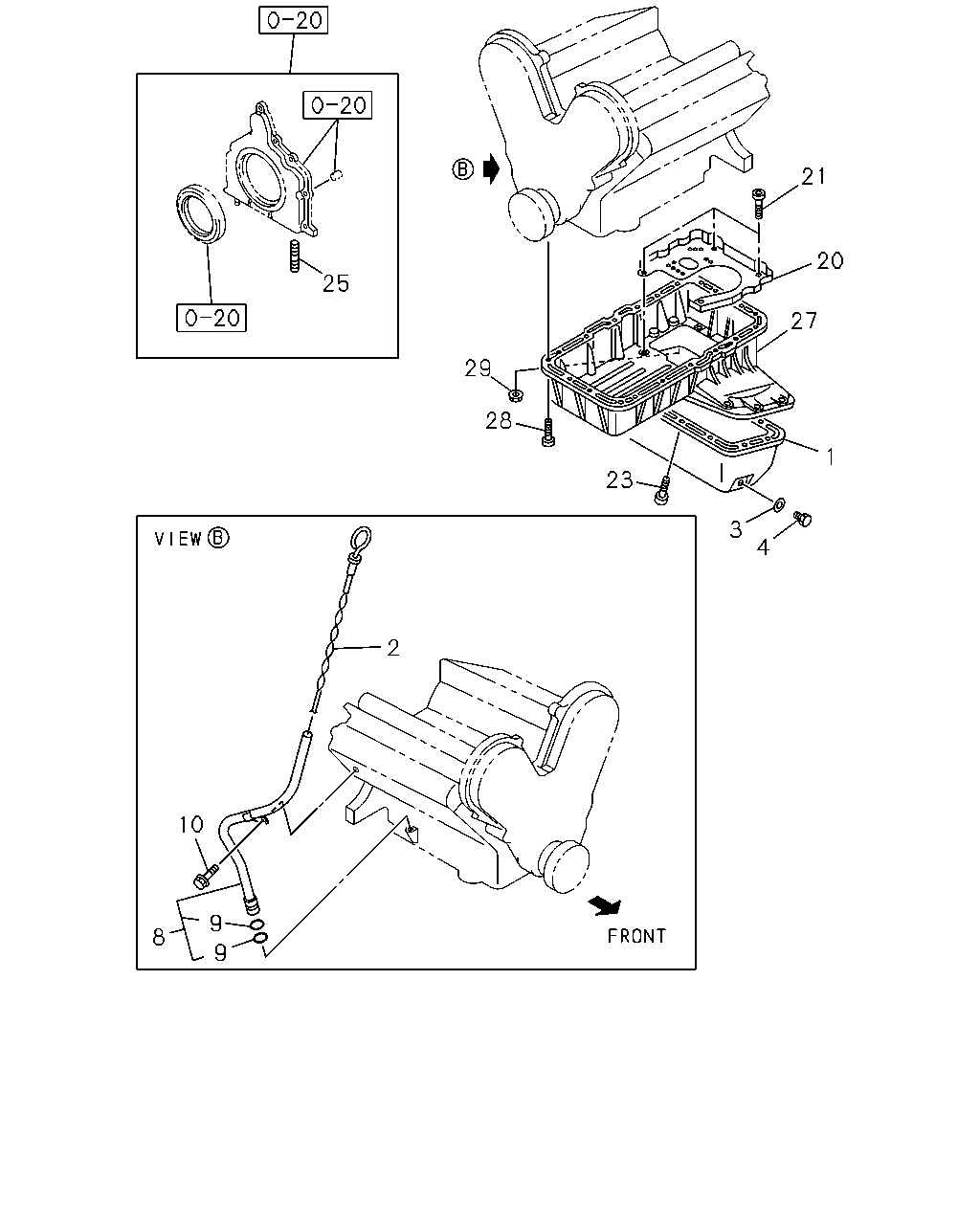

2 2 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-97085-167-0	01	1	9804-9812	●
2	01.516 GAUGE; OIL LEVEL EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97085-167-0	01	1	9804-9812		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-97085-167-0	01	1	9901-9901	●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	9901-9901		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ)	8-97085-167-0	01	1	9902-0009	●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	9902-0009		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ)	8-97085-167-0	01	1	0010-0204	●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	0010-0204		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51>	8-97085-167-0	01	1	0205-	●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	0205-		●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ)	8-94362-305-0	01	1	9804-9812	●
2	01.516 GAUGE; OIL LEVEL CHINA CHONGQING EQUIPMENT(R5B)	8-94362-305-0	01	1	9804-9812		●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ)	8-94362-305-0	01	1	9901-9901	●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ)	8-94362-305-0	01	1	9902-0205	●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-94362-305-0	01	1	0206-	●
2	01.516 GAUGE; OIL LEVEL	8-94318-740-0	01	1	9804-9812			●
2	01.516 GAUGE; OIL LEVEL	8-97148-697-2	01	1	9804-0308				●
2	01.516 GAUGE; OIL LEVEL	8-97326-997-0	01	1	0309-				●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-92063-647-0	01	1	9804-0108					●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-92063-647-0	01	1	0109-					●
2	01.516 GAUGE; OIL LEVEL	8-92063-647-0	01	1	0109-						●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-92063-162-0	01	1	9804-					●
28	01.780 BOLT; CRANKCASE TO C/BL M8X120 FLANGE	0-28085-812-0	01	1	9804-	●	●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	19	1	9804-	●	●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	10	1	9804-9812			●
28	01.780 BOLT; CRANKCASE TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	06	1	9804-9812			●
28	01.780 BOLT; CRANKCASE TO C/BL M6X25	9-05820-625-0	18	1	9804-0008				●
28	01.780 BOLT; CRANKCASE TO C/BL M6X25 HEX SOCKET	0-58310-625-0	18	1	0009-				●

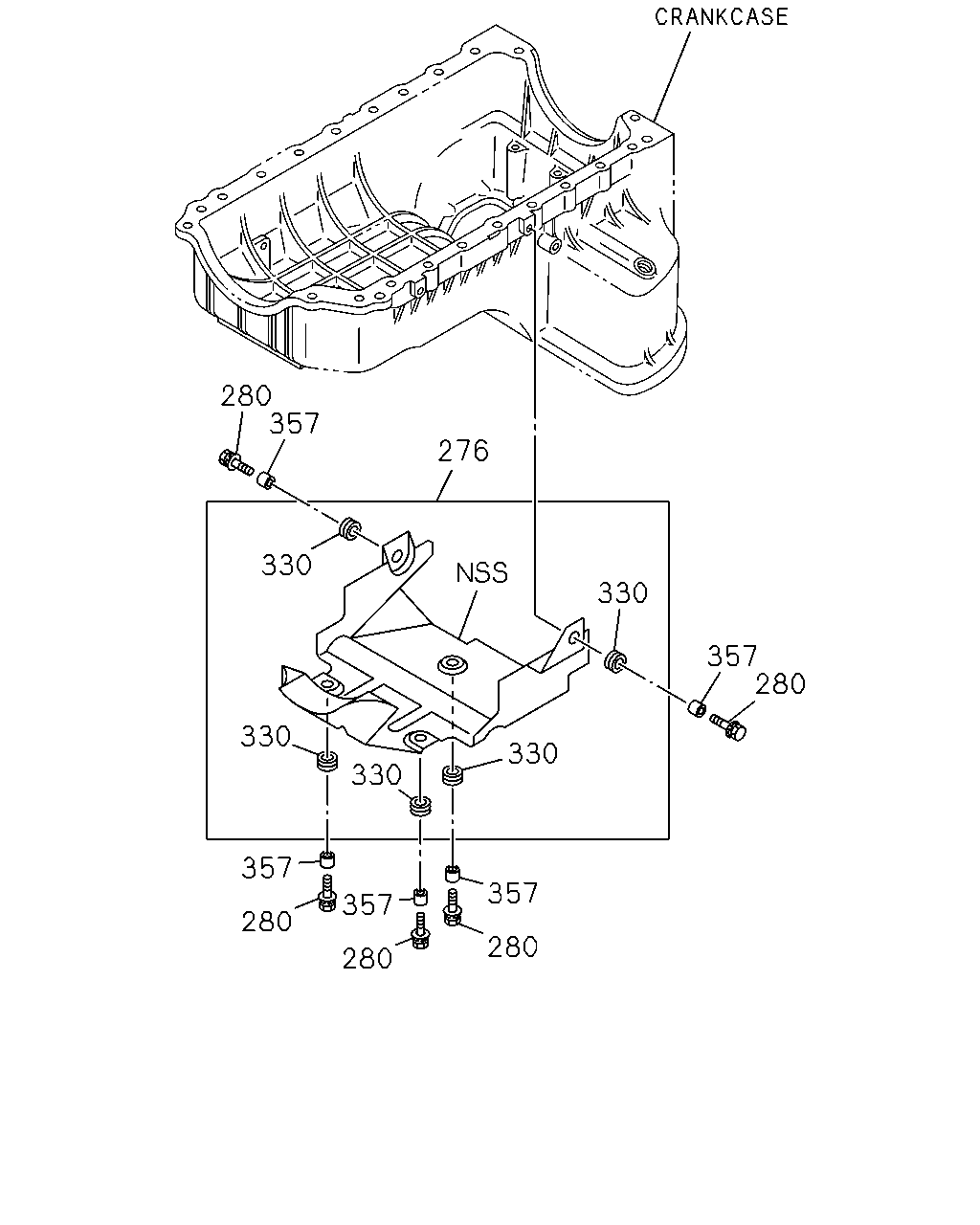

280 357 276 330 330 357 280 330 330 330 357 357 357 280 280 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
276	01.516 COVER; CRANKCASE NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51>	8-97310-792-1	01	1	0206-	●
280	01.430 BOLT; COVER NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51> 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	0206-	●
330	01.516 RUBBER; MTG,CRANKCASE COVER NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51> 00.034 OD=22	8-94140-428-1	05	1	0206-	●
357	01.516 BUSHING; COVER NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51>	8-97311-623-0	05	1	0206-0211	●
357	01.516 BUSHING; COVER NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51>	8-97361-926-0	05	1	0212-0308	●
357	01.516 BUSHING; COVER NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51>	8-97371-498-0	05	1	0309-	●

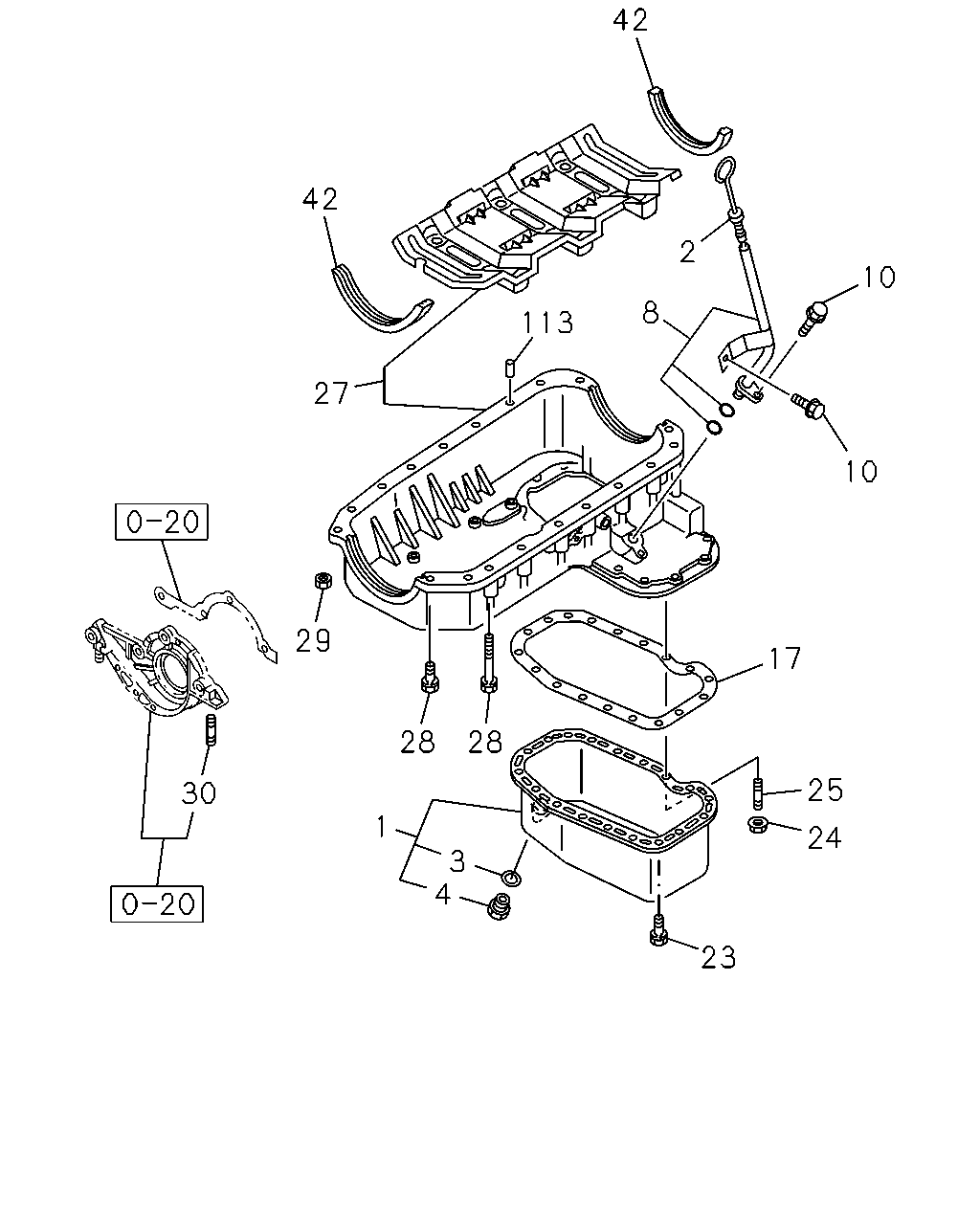

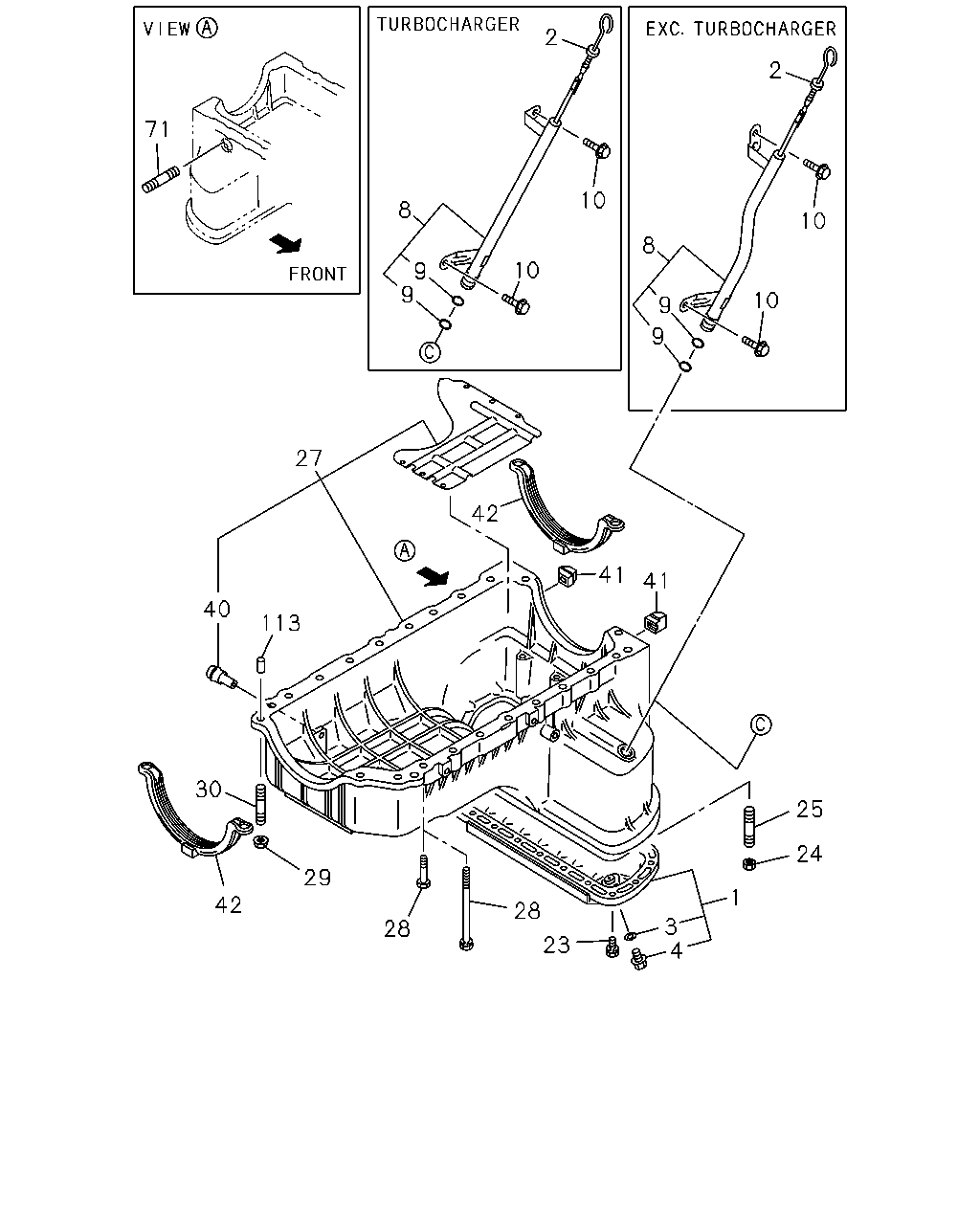

2 2 71 10 8 10 8 10 9 9 10 9 9 27 42 41 41 40 113 30 25 24 29 1 42 28 3 4 28 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.426 PAN ASM; OIL	8-97137-921-0	01	1	9804-9911	●	●
1	01.426 PAN ASM; OIL	8-97248-860-1	01	1	9912-	●	●
1	01.426 PAN ASM; OIL	8-97113-545-0	01	1	9804-9812			●
1	01.426 PAN ASM; OIL	8-97149-083-2	01	1	9804-0104				●
1	01.426 PAN ASM; OIL	8-97264-032-0	01	1	0105-				●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-92063-356-0	01	1	9804-0108					●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-92063-356-0	01	1	0109-					●
1	01.426 PAN ASM; OIL	8-92063-356-0	01	1	0109-						●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-92063-843-0	01	1	9804-					●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-97085-167-0	01	1	9804-9812	●
2	01.516 GAUGE; OIL LEVEL EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97085-167-0	01	1	9804-9812		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-97085-167-0	01	1	9901-9901	●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	9901-9901		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ)	8-97085-167-0	01	1	9902-0009	●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	9902-0009		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ)	8-97085-167-0	01	1	0010-0204	●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	0010-0204		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51>	8-97085-167-0	01	1	0205-	●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	0205-		●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ)	8-94362-305-0	01	1	9804-9812	●
2	01.516 GAUGE; OIL LEVEL CHINA CHONGQING EQUIPMENT(R5B)	8-94362-305-0	01	1	9804-9812		●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ)	8-94362-305-0	01	1	9901-9901	●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ)	8-94362-305-0	01	1	9902-0205	●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-94362-305-0	01	1	0206-	●
2	01.516 GAUGE; OIL LEVEL	8-94318-740-0	01	1	9804-9812			●
2	01.516 GAUGE; OIL LEVEL	8-97148-697-2	01	1	9804-0308				●
2	01.516 GAUGE; OIL LEVEL	8-97326-997-0	01	1	0309-				●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-92063-647-0	01	1	9804-0108					●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-92063-647-0	01	1	0109-					●
2	01.516 GAUGE; OIL LEVEL	8-92063-647-0	01	1	0109-						●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-92063-162-0	01	1	9804-					●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9804-9812	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9901-	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9804-				●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-11023-589-0	01	1	9804-0108					●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-11023-589-0	01	1	0109-					●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9804-9812	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9901-	●	●
4	01.453 PLUG; DRAIN,OIL M14X14	9-09862-156-0	01	1	9804-				●
4	01.453 PLUG; DRAIN,OIL	8-90409-376-0	01	1	9804-0108					●
4	01.453 PLUG; DRAIN,OIL	8-90409-376-0	01	1	0109-					●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51>	8-97109-027-0	01	1	9804-9901	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ)	8-97109-027-0	01	1	9902-0009	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ)	8-97109-027-0	01	1	0010-0204	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51>	8-97109-027-0	01	1	0205-0301	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51>	8-97328-532-0	01	1	0302-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ)	8-97143-693-0	01	1	9804-9812	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHINA CHONGQING EQUIPMENT(R5B)	8-97143-693-0	01	1	9804-9812		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ)	8-97143-693-0	01	1	9901-9901	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ)	8-97143-693-0	01	1	9902-0205	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER<K51>	8-97143-693-0	01	1	0206-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97113-145-0	01	1	9804-9812		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97113-145-0	01	1	9901-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97088-479-0	01	1	9804-9812			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97132-302-2	01	1	9804-0308				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97310-969-0	01	1	0309-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9804-	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9804-				●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9804-	●	●
10	01.516 BOLT; GUIDE TUBE 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9804-9812			●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9804-				●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	15	1	9804-	●	●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	16	1	9804-9812			●
23	01.428 BOLT; OIL PAN 08.900 M8X16	9-05820-816-0	12	1	9804-0103				●
23	01.428 BOLT; OIL PAN 03.330 M8X16 HEX SOCKET	0-58310-816-0	12	1	0104-				●
23	01.428 BOLT; OIL PAN M8X45	8-11093-791-0	11	1	9804-0108					●
23	01.428 BOLT; OIL PAN M8X45	8-11093-791-0	11	1	0109-					●	●
23	01.428 BOLT; OIL PAN M8X132	8-11093-981-0	03	1	9804-0108					●
23	01.428 BOLT; OIL PAN M8X132	8-11093-981-0	03	1	0109-					●	●
24	01.453 NUT; OIL PAN M6 W/LK WASHER	8-97137-836-0	02	1	9804-	●	●
24	01.453 NUT; OIL PAN 04.594 M6 FLANGE	0-91150-106-0	02	1	9804-9812			●
25	01.453 STUD; OIL PAN 01.428 M6X12 L=21	9-04110-612-0	02	1	9804-	●	●
25	01.453 STUD; OIL PAN 01.062 M6X28 L=36	8-94473-319-0	02	1	9804-9812			●
25	01.453 STUD; OIL PAN M6X30 L=41	0-49740-630-0	01	1	9804-				●
27	01.426 CRANKCASE NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51>	8-97191-839-0	01	1	0206-0210	●
27	01.426 CRANKCASE NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51>	8-97358-794-0	01	1	0211-	●
27	01.426 CRANKCASE TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9804-9812	●
27	01.426 CRANKCASE EXC. CHINA CHONGQING EQUIPMENT(R5B) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9804-9812		●
27	01.426 CRANKCASE TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9901-9901	●
27	01.426 CRANKCASE W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9901-9901		●
27	01.426 CRANKCASE TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9902-0009	●
27	01.426 CRANKCASE W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9902-0009		●
27	01.426 CRANKCASE TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	0010-0204	●
27	01.426 CRANKCASE W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	0010-0204		●
27	01.426 CRANKCASE TURBOCHARGER<K51> W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	0205-0210	●
27	01.426 CRANKCASE W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	0205-0210		●
27	01.426 CRANKCASE TURBOCHARGER<K51>	8-97359-517-0	01	1	0211-	●
27	01.426 CRANKCASE	8-97359-517-0	01	1	0211-		●
27	01.426 CRANKCASE EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ)	8-97122-059-1	01	1	9804-9812	●
27	01.426 CRANKCASE CHINA CHONGQING EQUIPMENT(R5B)	8-97122-059-1	01	1	9804-9812		●
27	01.426 CRANKCASE EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ)	8-97122-059-1	01	1	9901-9901	●
27	01.426 CRANKCASE EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ)	8-97122-059-1	01	1	9902-0205	●
27	01.426 CRANKCASE EXC. TURBOCHARGER<K51>,NOISE PACK FORREGULATION<6VD>	8-97122-059-1	01	1	0206-0210	●
27	01.426 CRANKCASE EXC. TURBOCHARGER<K51>,NOISE PACK FORREGULATION<6VD>	8-97359-514-0	01	1	0211-	●
27	01.426 CRANKCASE	8-97135-442-0	01	1	9804-9812			●
27	01.426 CRANKCASE	8-97149-081-3	01	1	9804-0012				●
27	01.426 CRANKCASE	8-97306-569-0	01	1	0101-				●
28	01.780 BOLT; CRANKCASE TO C/BL M8X120 FLANGE	0-28085-812-0	01	1	9804-	●	●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	19	1	9804-	●	●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	10	1	9804-9812			●
28	01.780 BOLT; CRANKCASE TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	06	1	9804-9812			●
28	01.780 BOLT; CRANKCASE TO C/BL M6X25	9-05820-625-0	18	1	9804-0008				●
28	01.780 BOLT; CRANKCASE TO C/BL M6X25 HEX SOCKET	0-58310-625-0	18	1	0009-				●
29	01.426 NUT; CRANKCASE 07.633 M8 FLANGE	0-91150-108-0	02	1	9804-9812	●	●	●
29	01.426 NUT; CRANKCASE 07.633 M8 FLANGE	0-91150-108-0	02	1	9901-	●	●
29	01.426 NUT; CRANKCASE 04.594 M6 FLANGE	0-91150-106-0	02	1	9804-				●
30	01.780 STUD; CRANKCASE 08.981 M8X35 L=47	9-04110-835-0	02	1	9804-9812	●	●	●
30	01.780 STUD; CRANKCASE 08.981 M8X35 L=47	9-04110-835-0	02	1	9901-	●	●
40	01.426 NIPPLE; OIL RETURN HOSE VAC PUMP 01.531	5-11369-038-0	01	1	9804-	●	●
41	00.137 RUBBER; SPACE NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51>	8-97123-362-0	01	1	0206-	●
41	00.137 RUBBER; SPACE NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51>	8-97123-363-0	01	1	0206-	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). FRONT	8-97120-933-0	01	1	9804-	●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). REAR	8-97123-342-0	01	1	9804-	●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). FRONT	8-94152-790-2	01	1	9804-9812			●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). REAR	8-94152-791-2	01	1	9804-9812			●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-92062-934-0	01	1	9804-0108					●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-92062-934-0	01	1	0109-					●	●
71	01.428 STUD; OIL DRAIN PIPE TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) M8X18 L=30	9-04110-818-0	02	1	9804-9812	●
71	01.428 STUD; OIL DRAIN PIPE EXC. CHINA CHONGQING EQUIPMENT(R5B) M8X18 L=30	9-04110-818-0	02	1	9804-9812		●
71	01.428 STUD; OIL DRAIN PIPE TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) M8X18 L=30	9-04110-818-0	02	1	9901-9901	●
71	01.428 STUD; OIL DRAIN PIPE M8X18 L=30	9-04110-818-0	02	1	9901-9901		●
71	01.428 STUD; OIL DRAIN PIPE TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) M8X18 L=30	9-04110-818-0	02	1	9902-0009	●
71	01.428 STUD; OIL DRAIN PIPE M8X18 L=30	9-04110-818-0	02	1	9902-0009		●
71	01.428 STUD; OIL DRAIN PIPE TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) M8X18 L=30	9-04110-818-0	02	1	0010-0204	●
71	01.428 STUD; OIL DRAIN PIPE M8X18 L=30	9-04110-818-0	02	1	0010-0204		●
71	01.428 STUD; OIL DRAIN PIPE TURBOCHARGER<K51> M8X18 L=30	9-04110-818-0	02	1	0205-	●
71	01.428 STUD; OIL DRAIN PIPE M8X18 L=30	9-04110-818-0	02	1	0205-		●
113	01.453 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	9804-9812	●	●	●
113	01.453 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	9901-	●	●

20 20 21 20 25 20 27 29 28 1 23 3 4 2 10 9 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.426 PAN ASM; OIL	8-97137-921-0	01	1	9804-9911	●	●
1	01.426 PAN ASM; OIL	8-97248-860-1	01	1	9912-	●	●
1	01.426 PAN ASM; OIL	8-97113-545-0	01	1	9804-9812			●
1	01.426 PAN ASM; OIL	8-97149-083-2	01	1	9804-0104				●
1	01.426 PAN ASM; OIL	8-97264-032-0	01	1	0105-				●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-92063-356-0	01	1	9804-0108					●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-92063-356-0	01	1	0109-					●
1	01.426 PAN ASM; OIL	8-92063-356-0	01	1	0109-						●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-92063-843-0	01	1	9804-					●

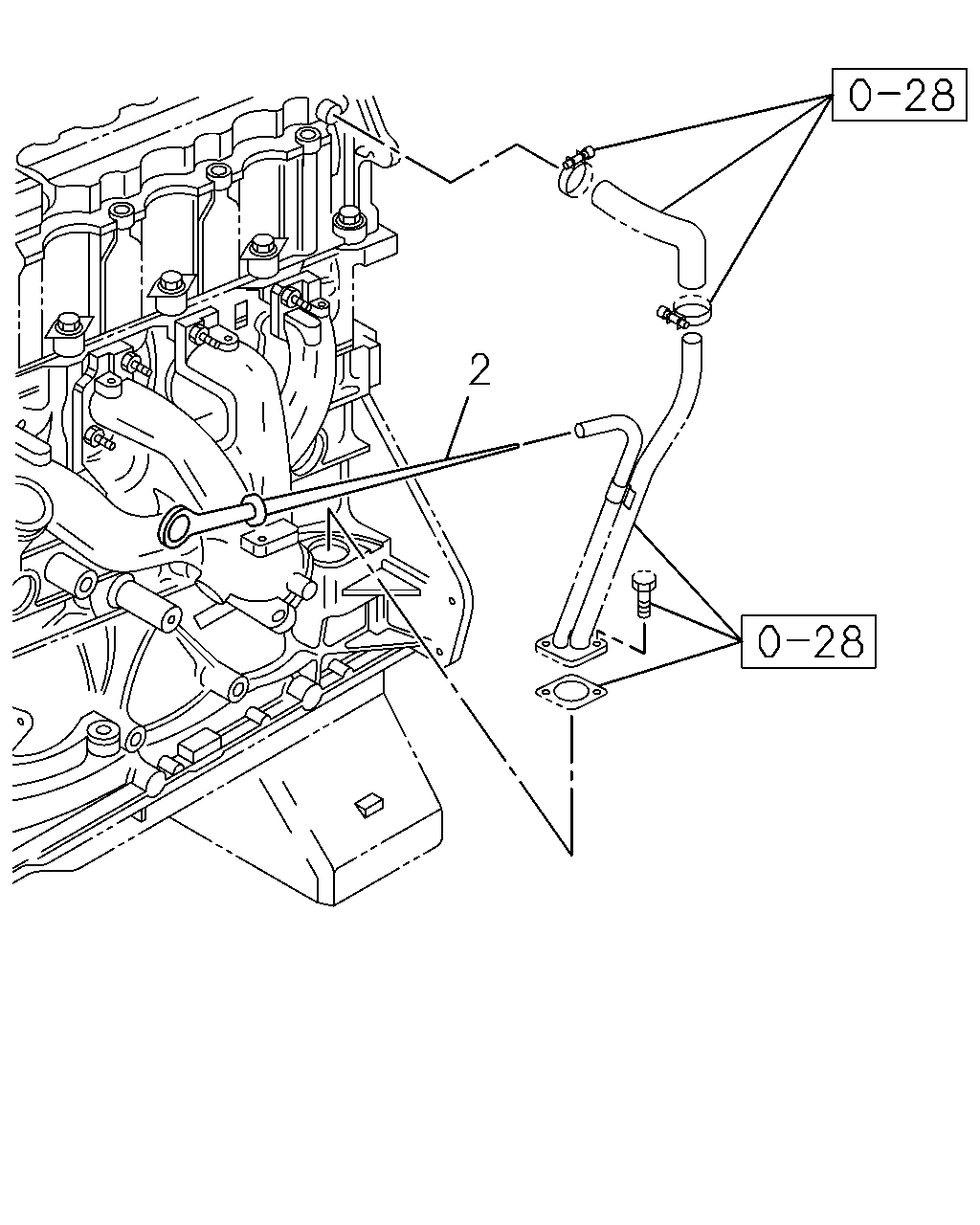

2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-97085-167-0	01	1	9804-9812	●
2	01.516 GAUGE; OIL LEVEL EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97085-167-0	01	1	9804-9812		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-97085-167-0	01	1	9901-9901	●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	9901-9901		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ)	8-97085-167-0	01	1	9902-0009	●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	9902-0009		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ)	8-97085-167-0	01	1	0010-0204	●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	0010-0204		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51>	8-97085-167-0	01	1	0205-	●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	0205-		●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ)	8-94362-305-0	01	1	9804-9812	●
2	01.516 GAUGE; OIL LEVEL CHINA CHONGQING EQUIPMENT(R5B)	8-94362-305-0	01	1	9804-9812		●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ)	8-94362-305-0	01	1	9901-9901	●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ)	8-94362-305-0	01	1	9902-0205	●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-94362-305-0	01	1	0206-	●
2	01.516 GAUGE; OIL LEVEL	8-94318-740-0	01	1	9804-9812			●
2	01.516 GAUGE; OIL LEVEL	8-97148-697-2	01	1	9804-0308				●
2	01.516 GAUGE; OIL LEVEL	8-97326-997-0	01	1	0309-				●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-92063-647-0	01	1	9804-0108					●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-92063-647-0	01	1	0109-					●
2	01.516 GAUGE; OIL LEVEL	8-92063-647-0	01	1	0109-						●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-92063-162-0	01	1	9804-					●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9804-9812	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9901-	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9804-				●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-11023-589-0	01	1	9804-0108					●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-11023-589-0	01	1	0109-					●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9804-9812	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9901-	●	●
4	01.453 PLUG; DRAIN,OIL M14X14	9-09862-156-0	01	1	9804-				●
4	01.453 PLUG; DRAIN,OIL	8-90409-376-0	01	1	9804-0108					●
4	01.453 PLUG; DRAIN,OIL	8-90409-376-0	01	1	0109-					●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51>	8-97109-027-0	01	1	9804-9901	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ)	8-97109-027-0	01	1	9902-0009	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ)	8-97109-027-0	01	1	0010-0204	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51>	8-97109-027-0	01	1	0205-0301	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51>	8-97328-532-0	01	1	0302-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ)	8-97143-693-0	01	1	9804-9812	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHINA CHONGQING EQUIPMENT(R5B)	8-97143-693-0	01	1	9804-9812		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ)	8-97143-693-0	01	1	9901-9901	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ)	8-97143-693-0	01	1	9902-0205	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER<K51>	8-97143-693-0	01	1	0206-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97113-145-0	01	1	9804-9812		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97113-145-0	01	1	9901-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97088-479-0	01	1	9804-9812			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97132-302-2	01	1	9804-0308				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97310-969-0	01	1	0309-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9804-	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9804-				●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9804-	●	●
10	01.516 BOLT; GUIDE TUBE 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9804-9812			●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9804-				●
20	01.430 PLATE; BAFFLE,CRANKCASE	8-97149-082-1	01	1	9804-				●
21	01.430 BOLT; BAFFLE PLATE,CRANKCASE 08.900 M6X12 HEX SOCKET	9-05820-612-0	04	1	9804-0008				●
21	01.430 BOLT; BAFFLE PLATE,CRANKCASE M6X12 HEX SOCKET	0-58310-612-0	04	1	0009-				●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	15	1	9804-	●	●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	16	1	9804-9812			●
23	01.428 BOLT; OIL PAN 08.900 M8X16	9-05820-816-0	12	1	9804-0103				●
23	01.428 BOLT; OIL PAN 03.330 M8X16 HEX SOCKET	0-58310-816-0	12	1	0104-				●
23	01.428 BOLT; OIL PAN M8X45	8-11093-791-0	11	1	9804-0108					●
23	01.428 BOLT; OIL PAN M8X45	8-11093-791-0	11	1	0109-					●	●
23	01.428 BOLT; OIL PAN M8X132	8-11093-981-0	03	1	9804-0108					●
23	01.428 BOLT; OIL PAN M8X132	8-11093-981-0	03	1	0109-					●	●
25	01.453 STUD; OIL PAN 01.428 M6X12 L=21	9-04110-612-0	02	1	9804-	●	●
25	01.453 STUD; OIL PAN 01.062 M6X28 L=36	8-94473-319-0	02	1	9804-9812			●
25	01.453 STUD; OIL PAN M6X30 L=41	0-49740-630-0	01	1	9804-				●
27	01.426 CRANKCASE NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51>	8-97191-839-0	01	1	0206-0210	●
27	01.426 CRANKCASE NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51>	8-97358-794-0	01	1	0211-	●
27	01.426 CRANKCASE TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9804-9812	●
27	01.426 CRANKCASE EXC. CHINA CHONGQING EQUIPMENT(R5B) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9804-9812		●
27	01.426 CRANKCASE TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9901-9901	●
27	01.426 CRANKCASE W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9901-9901		●
27	01.426 CRANKCASE TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9902-0009	●
27	01.426 CRANKCASE W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9902-0009		●
27	01.426 CRANKCASE TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	0010-0204	●
27	01.426 CRANKCASE W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	0010-0204		●
27	01.426 CRANKCASE TURBOCHARGER<K51> W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	0205-0210	●
27	01.426 CRANKCASE W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	0205-0210		●
27	01.426 CRANKCASE TURBOCHARGER<K51>	8-97359-517-0	01	1	0211-	●
27	01.426 CRANKCASE	8-97359-517-0	01	1	0211-		●
27	01.426 CRANKCASE EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ)	8-97122-059-1	01	1	9804-9812	●
27	01.426 CRANKCASE CHINA CHONGQING EQUIPMENT(R5B)	8-97122-059-1	01	1	9804-9812		●
27	01.426 CRANKCASE EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ)	8-97122-059-1	01	1	9901-9901	●
27	01.426 CRANKCASE EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ)	8-97122-059-1	01	1	9902-0205	●
27	01.426 CRANKCASE EXC. TURBOCHARGER<K51>,NOISE PACK FORREGULATION<6VD>	8-97122-059-1	01	1	0206-0210	●
27	01.426 CRANKCASE EXC. TURBOCHARGER<K51>,NOISE PACK FORREGULATION<6VD>	8-97359-514-0	01	1	0211-	●
27	01.426 CRANKCASE	8-97135-442-0	01	1	9804-9812			●
27	01.426 CRANKCASE	8-97149-081-3	01	1	9804-0012				●
27	01.426 CRANKCASE	8-97306-569-0	01	1	0101-				●
28	01.780 BOLT; CRANKCASE TO C/BL M8X120 FLANGE	0-28085-812-0	01	1	9804-	●	●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	19	1	9804-	●	●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	10	1	9804-9812			●
28	01.780 BOLT; CRANKCASE TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	06	1	9804-9812			●
28	01.780 BOLT; CRANKCASE TO C/BL M6X25	9-05820-625-0	18	1	9804-0008				●
28	01.780 BOLT; CRANKCASE TO C/BL M6X25 HEX SOCKET	0-58310-625-0	18	1	0009-				●
29	01.426 NUT; CRANKCASE 07.633 M8 FLANGE	0-91150-108-0	02	1	9804-9812	●	●	●
29	01.426 NUT; CRANKCASE 07.633 M8 FLANGE	0-91150-108-0	02	1	9901-	●	●
29	01.426 NUT; CRANKCASE 04.594 M6 FLANGE	0-91150-106-0	02	1	9804-				●

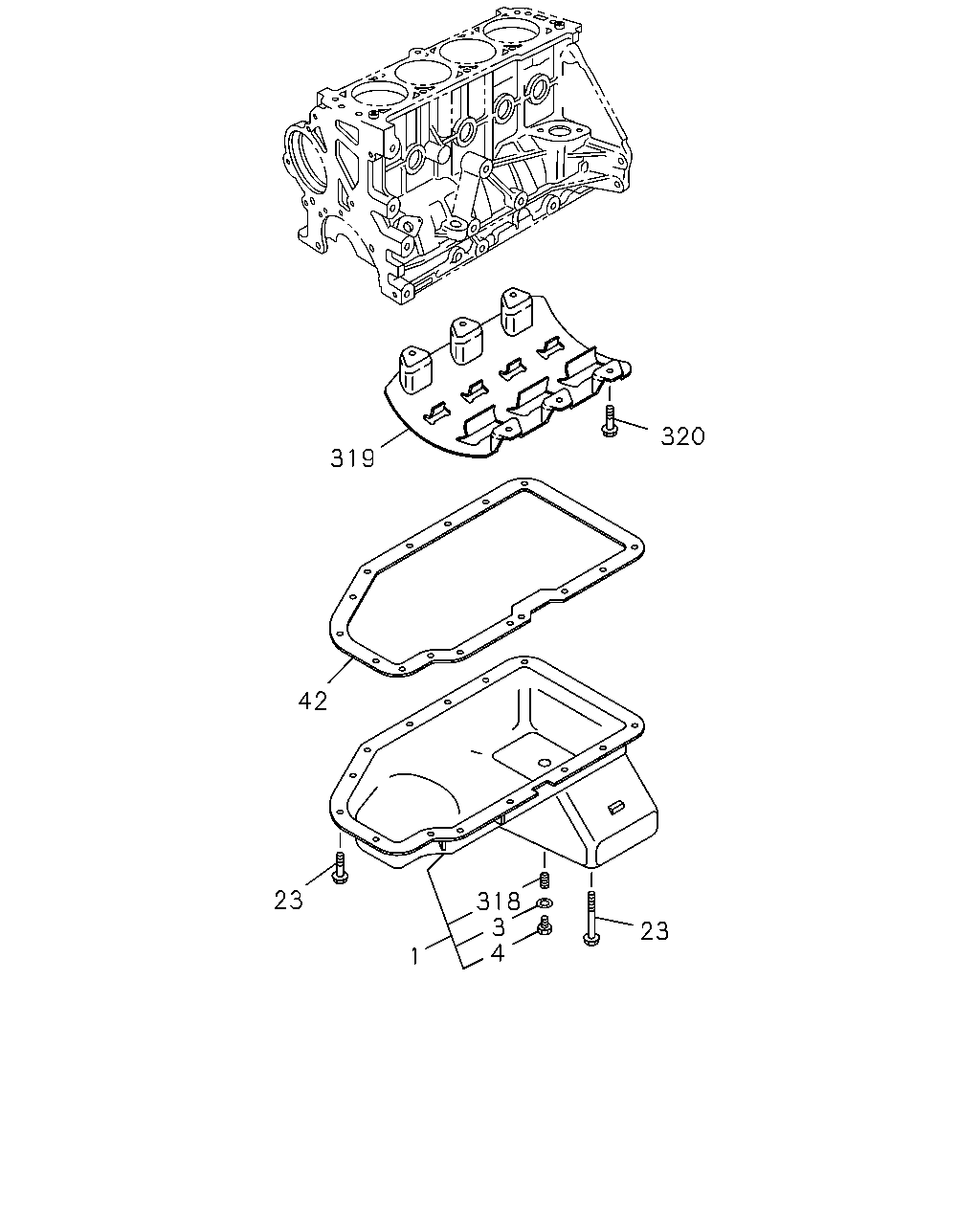

320 319 42 23 318 3 4 23 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.426 PAN ASM; OIL	8-97137-921-0	01	1	9804-9911	●	●
1	01.426 PAN ASM; OIL	8-97248-860-1	01	1	9912-	●	●
1	01.426 PAN ASM; OIL	8-97113-545-0	01	1	9804-9812			●
1	01.426 PAN ASM; OIL	8-97149-083-2	01	1	9804-0104				●
1	01.426 PAN ASM; OIL	8-97264-032-0	01	1	0105-				●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-92063-356-0	01	1	9804-0108					●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-92063-356-0	01	1	0109-					●
1	01.426 PAN ASM; OIL	8-92063-356-0	01	1	0109-						●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-92063-843-0	01	1	9804-					●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9804-9812	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9901-	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9804-				●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-11023-589-0	01	1	9804-0108					●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-11023-589-0	01	1	0109-					●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9804-9812	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9901-	●	●
4	01.453 PLUG; DRAIN,OIL M14X14	9-09862-156-0	01	1	9804-				●
4	01.453 PLUG; DRAIN,OIL	8-90409-376-0	01	1	9804-0108					●
4	01.453 PLUG; DRAIN,OIL	8-90409-376-0	01	1	0109-					●	●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	15	1	9804-	●	●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	16	1	9804-9812			●
23	01.428 BOLT; OIL PAN 08.900 M8X16	9-05820-816-0	12	1	9804-0103				●
23	01.428 BOLT; OIL PAN 03.330 M8X16 HEX SOCKET	0-58310-816-0	12	1	0104-				●
23	01.428 BOLT; OIL PAN M8X45	8-11093-791-0	11	1	9804-0108					●
23	01.428 BOLT; OIL PAN M8X45	8-11093-791-0	11	1	0109-					●	●
23	01.428 BOLT; OIL PAN M8X132	8-11093-981-0	03	1	9804-0108					●
23	01.428 BOLT; OIL PAN M8X132	8-11093-981-0	03	1	0109-					●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). FRONT	8-97120-933-0	01	1	9804-	●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). REAR	8-97123-342-0	01	1	9804-	●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). FRONT	8-94152-790-2	01	1	9804-9812			●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). REAR	8-94152-791-2	01	1	9804-9812			●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-92062-934-0	01	1	9804-0108					●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-92062-934-0	01	1	0109-					●	●
318	01.428 INSERT; OIL PAN	8-11065-809-0	01	1	9804-0108					●
318	01.428 INSERT; OIL PAN	8-11065-809-0	01	1	0109-					●	●
319	01.430 SCRAPER; OIL PAN	8-92063-357-0	01	1	9804-0108					●
319	01.430 SCRAPER; OIL PAN	8-92063-357-0	01	1	0109-					●	●
320	01.430 BOLT; SCRAPER 01.531	8-11097-411-0	05	1	9804-0108					●
320	01.430 BOLT; SCRAPER 01.531	8-11097-411-0	05	1	0109-					●	●

42 42 2 10 8 113 27 10 20 29 17 28 28 25 1 24 3 4 20 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.426 PAN ASM; OIL	8-97137-921-0	01	1	9804-9911	●	●
1	01.426 PAN ASM; OIL	8-97248-860-1	01	1	9912-	●	●
1	01.426 PAN ASM; OIL	8-97113-545-0	01	1	9804-9812			●
1	01.426 PAN ASM; OIL	8-97149-083-2	01	1	9804-0104				●
1	01.426 PAN ASM; OIL	8-97264-032-0	01	1	0105-				●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-92063-356-0	01	1	9804-0108					●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-92063-356-0	01	1	0109-					●
1	01.426 PAN ASM; OIL	8-92063-356-0	01	1	0109-						●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-92063-843-0	01	1	9804-					●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-97085-167-0	01	1	9804-9812	●
2	01.516 GAUGE; OIL LEVEL EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97085-167-0	01	1	9804-9812		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-97085-167-0	01	1	9901-9901	●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	9901-9901		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ)	8-97085-167-0	01	1	9902-0009	●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	9902-0009		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ)	8-97085-167-0	01	1	0010-0204	●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	0010-0204		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51>	8-97085-167-0	01	1	0205-	●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	0205-		●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ)	8-94362-305-0	01	1	9804-9812	●
2	01.516 GAUGE; OIL LEVEL CHINA CHONGQING EQUIPMENT(R5B)	8-94362-305-0	01	1	9804-9812		●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ)	8-94362-305-0	01	1	9901-9901	●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ)	8-94362-305-0	01	1	9902-0205	●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-94362-305-0	01	1	0206-	●
2	01.516 GAUGE; OIL LEVEL	8-94318-740-0	01	1	9804-9812			●
2	01.516 GAUGE; OIL LEVEL	8-97148-697-2	01	1	9804-0308				●
2	01.516 GAUGE; OIL LEVEL	8-97326-997-0	01	1	0309-				●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-92063-647-0	01	1	9804-0108					●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-92063-647-0	01	1	0109-					●
2	01.516 GAUGE; OIL LEVEL	8-92063-647-0	01	1	0109-						●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-92063-162-0	01	1	9804-					●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9804-9812	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9901-	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9804-				●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-11023-589-0	01	1	9804-0108					●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-11023-589-0	01	1	0109-					●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9804-9812	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9901-	●	●
4	01.453 PLUG; DRAIN,OIL M14X14	9-09862-156-0	01	1	9804-				●
4	01.453 PLUG; DRAIN,OIL	8-90409-376-0	01	1	9804-0108					●
4	01.453 PLUG; DRAIN,OIL	8-90409-376-0	01	1	0109-					●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE ARGENTINA EQUIPMENT(7SZ) TURBOCHARGER<K51>	8-97109-027-0	01	1	9804-9901	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ)	8-97109-027-0	01	1	9902-0009	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ)	8-97109-027-0	01	1	0010-0204	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51>	8-97109-027-0	01	1	0205-0301	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51>	8-97328-532-0	01	1	0302-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ)	8-97143-693-0	01	1	9804-9812	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHINA CHONGQING EQUIPMENT(R5B)	8-97143-693-0	01	1	9804-9812		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ)	8-97143-693-0	01	1	9901-9901	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ)	8-97143-693-0	01	1	9902-0205	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER<K51>	8-97143-693-0	01	1	0206-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-97113-145-0	01	1	9804-9812		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97113-145-0	01	1	9901-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97088-479-0	01	1	9804-9812			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97132-302-2	01	1	9804-0308				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97310-969-0	01	1	0309-				●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9804-	●	●
10	01.516 BOLT; GUIDE TUBE 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9804-9812			●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9804-				●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-94324-200-0	01	1	9804-9812			●
20	01.430 PLATE; BAFFLE,CRANKCASE	8-97149-082-1	01	1	9804-				●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	15	1	9804-	●	●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	16	1	9804-9812			●
23	01.428 BOLT; OIL PAN 08.900 M8X16	9-05820-816-0	12	1	9804-0103				●
23	01.428 BOLT; OIL PAN 03.330 M8X16 HEX SOCKET	0-58310-816-0	12	1	0104-				●
23	01.428 BOLT; OIL PAN M8X45	8-11093-791-0	11	1	9804-0108					●
23	01.428 BOLT; OIL PAN M8X45	8-11093-791-0	11	1	0109-					●	●
23	01.428 BOLT; OIL PAN M8X132	8-11093-981-0	03	1	9804-0108					●
23	01.428 BOLT; OIL PAN M8X132	8-11093-981-0	03	1	0109-					●	●
24	01.453 NUT; OIL PAN M6 W/LK WASHER	8-97137-836-0	02	1	9804-	●	●
24	01.453 NUT; OIL PAN 04.594 M6 FLANGE	0-91150-106-0	02	1	9804-9812			●
25	01.453 STUD; OIL PAN 01.428 M6X12 L=21	9-04110-612-0	02	1	9804-	●	●
25	01.453 STUD; OIL PAN 01.062 M6X28 L=36	8-94473-319-0	02	1	9804-9812			●
25	01.453 STUD; OIL PAN M6X30 L=41	0-49740-630-0	01	1	9804-				●
27	01.426 CRANKCASE NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51>	8-97191-839-0	01	1	0206-0210	●
27	01.426 CRANKCASE NOISE PACK FOR REGULATION<6VD> EXC. TURBOCHARGER<K51>	8-97358-794-0	01	1	0211-	●
27	01.426 CRANKCASE TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9804-9812	●
27	01.426 CRANKCASE EXC. CHINA CHONGQING EQUIPMENT(R5B) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9804-9812		●
27	01.426 CRANKCASE TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9901-9901	●
27	01.426 CRANKCASE W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9901-9901		●
27	01.426 CRANKCASE TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9902-0009	●
27	01.426 CRANKCASE W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9902-0009		●
27	01.426 CRANKCASE TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	0010-0204	●
27	01.426 CRANKCASE W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	0010-0204		●
27	01.426 CRANKCASE TURBOCHARGER<K51> W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	0205-0210	●
27	01.426 CRANKCASE W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	0205-0210		●
27	01.426 CRANKCASE TURBOCHARGER<K51>	8-97359-517-0	01	1	0211-	●
27	01.426 CRANKCASE	8-97359-517-0	01	1	0211-		●
27	01.426 CRANKCASE EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ)	8-97122-059-1	01	1	9804-9812	●
27	01.426 CRANKCASE CHINA CHONGQING EQUIPMENT(R5B)	8-97122-059-1	01	1	9804-9812		●
27	01.426 CRANKCASE EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ)	8-97122-059-1	01	1	9901-9901	●
27	01.426 CRANKCASE EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ)	8-97122-059-1	01	1	9902-0205	●
27	01.426 CRANKCASE EXC. TURBOCHARGER<K51>,NOISE PACK FORREGULATION<6VD>	8-97122-059-1	01	1	0206-0210	●
27	01.426 CRANKCASE EXC. TURBOCHARGER<K51>,NOISE PACK FORREGULATION<6VD>	8-97359-514-0	01	1	0211-	●
27	01.426 CRANKCASE	8-97135-442-0	01	1	9804-9812			●
27	01.426 CRANKCASE	8-97149-081-3	01	1	9804-0012				●
27	01.426 CRANKCASE	8-97306-569-0	01	1	0101-				●
28	01.780 BOLT; CRANKCASE TO C/BL M8X120 FLANGE	0-28085-812-0	01	1	9804-	●	●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	19	1	9804-	●	●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	10	1	9804-9812			●
28	01.780 BOLT; CRANKCASE TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	06	1	9804-9812			●
28	01.780 BOLT; CRANKCASE TO C/BL M6X25	9-05820-625-0	18	1	9804-0008				●
28	01.780 BOLT; CRANKCASE TO C/BL M6X25 HEX SOCKET	0-58310-625-0	18	1	0009-				●
29	01.426 NUT; CRANKCASE 07.633 M8 FLANGE	0-91150-108-0	02	1	9804-9812	●	●	●
29	01.426 NUT; CRANKCASE 07.633 M8 FLANGE	0-91150-108-0	02	1	9901-	●	●
29	01.426 NUT; CRANKCASE 04.594 M6 FLANGE	0-91150-106-0	02	1	9804-				●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). FRONT	8-97120-933-0	01	1	9804-	●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). REAR	8-97123-342-0	01	1	9804-	●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). FRONT	8-94152-790-2	01	1	9804-9812			●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). REAR	8-94152-791-2	01	1	9804-9812			●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-92062-934-0	01	1	9804-0108					●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-92062-934-0	01	1	0109-					●	●
113	01.453 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	9804-9812	●	●	●
113	01.453 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	9901-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
