Sayfa 0-12 - Isuzu EPC

0-12 — CYLINDER BLOCK (#41720) — 289 parça

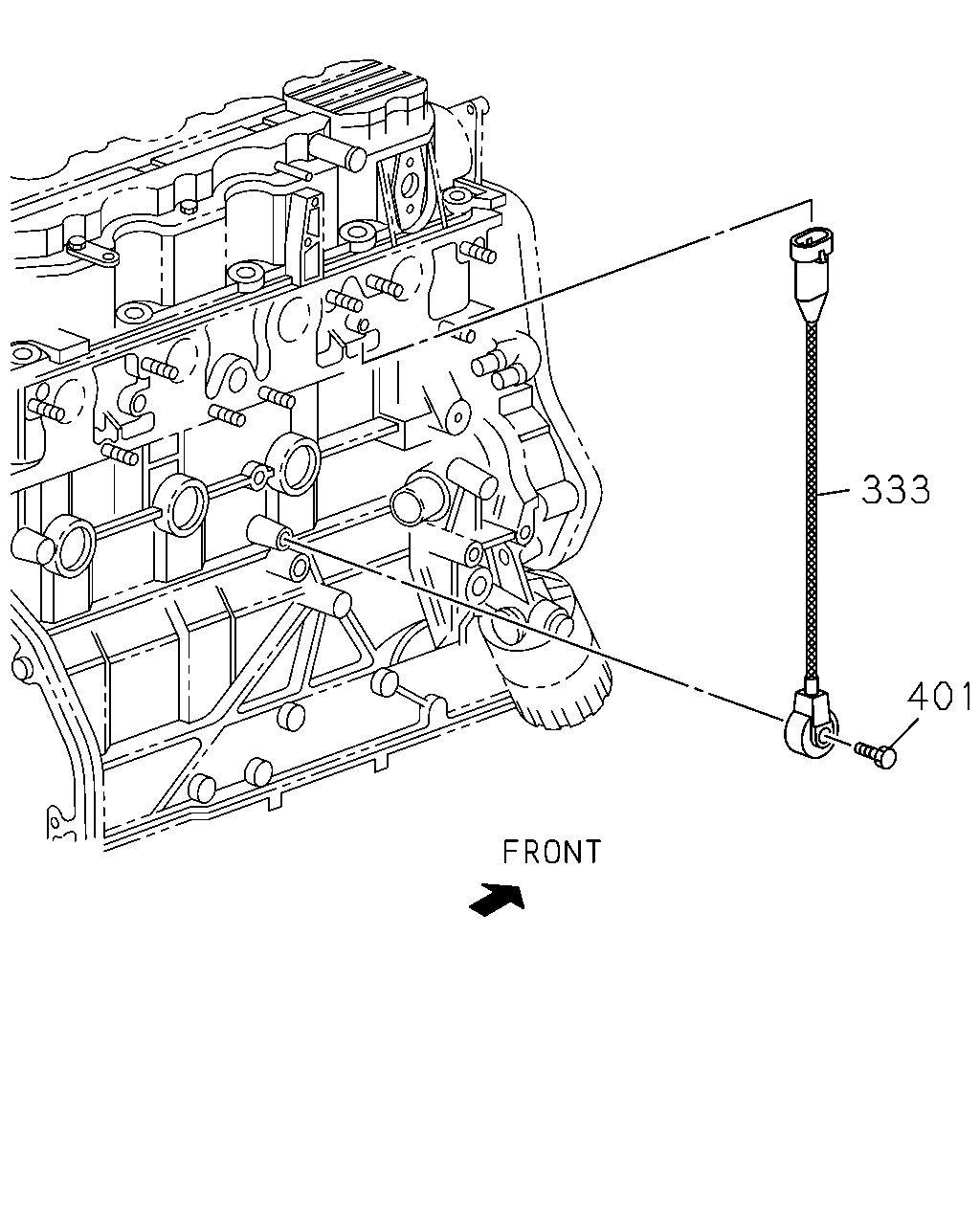

333 401

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
333	03.682 SENSOR; KNOCK	8-10456-240-0	01	1	9804-0108	●
333	03.682 SENSOR; KNOCK	8-10456-240-0	01	1	0109-	●	●
401	00.724 BOLT; SENSOR 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9804-			●
401	00.724 BOLT; SENSOR	8-92063-265-0	01	1	9804-0108	●
401	00.724 BOLT; SENSOR	8-92063-265-0	01	1	0109-	●	●

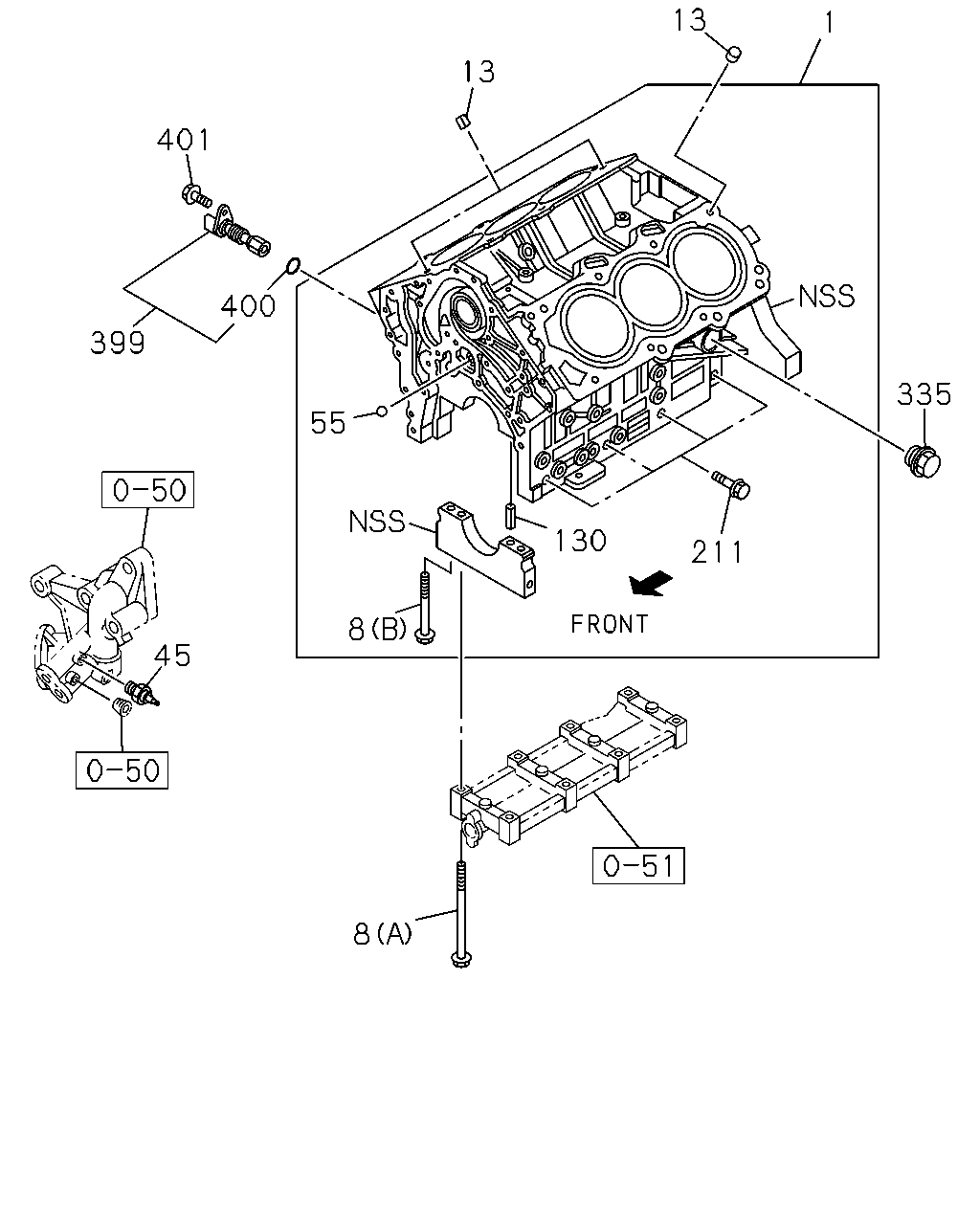

13 1 13 401 400 399 335 55 130 211 8 45 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.033 BLOCK ASM; CYL	8-94438-404-4	01	1	9804-0205				●
1	00.033 BLOCK ASM; CYL	8-97249-021-1	01	1	0206-				●
1	00.033 BLOCK ASM; CYL	8-94437-397-7	01	1	9804-0209					●
1	00.033 BLOCK ASM; CYL	8-97352-707-1	01	1	0210-					●
1	00.033 BLOCK ASM; CYL	8-94341-824-2	01	1	9804-9812						●
1	00.033 BLOCK ASM; CYL	8-97149-360-1	01	1	9804-0212			●
1	00.033 BLOCK ASM; CYL	8-97193-222-1	01	1	0301-			●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9804-				●	●
8	00.056 BOLT; BRG CAP M12X77	8-94220-076-1	10	1	9804-9812						●
8	00.056 BOLT; BRG CAP (A) M11X143 FLANGE	8-94363-095-1	08	1	9804-			●
8	00.056 BOLT; BRG CAP (B) M9X85 FLANGE	8-94363-224-1	08	1	9804-			●
8	00.056 BOLT; BRG CAP	8-90502-412-0	10	1	9804-0108	●
8	00.056 BOLT; BRG CAP	8-90502-412-0	10	1	0109-	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9804-				●	●
13	00.293 DOWEL; C/BL TO HD	8-94217-002-0	02	1	9804-9812						●
13	00.293 DOWEL; C/BL TO HD OD=15.25	8-94200-819-0	04	1	9804-			●
13	00.293 DOWEL; C/BL TO HD	8-90353-654-0	02	1	9804-0108	●
13	00.293 DOWEL; C/BL TO HD	8-90353-654-0	02	1	0109-	●	●
45	01.800 SWITCH; OIL PRESSURE	8-94312-940-0	01	1	9804-			●
55	01.531 PLUG; OIL GALLERY 01.837 3/8" BALL	9-00097-011-0	01	1	9804-			●
130	00.056 DOWEL; BRG CAP	8-94382-070-0	08	1	9804-			●
211	01.428 BOLT; CRANKCASE M10X31 FLANGE	8-94363-094-1	08	1	9804-			●
335	01.531 PLUG; C/BL,SIDE M28X16 FLANGE	8-97028-246-2	01	1	9804-			●
399	00.724 SENSOR; CRANKSHAFT POSITION	8-97136-125-1	01	1	9804-			●
400	00.724 GASKET; CRANKSHAFT POSITION SENS	8-97131-356-0	01	1	9804-			●
401	00.724 BOLT; SENSOR 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9804-			●
401	00.724 BOLT; SENSOR	8-92063-265-0	01	1	9804-0108	●
401	00.724 BOLT; SENSOR	8-92063-265-0	01	1	0109-	●	●

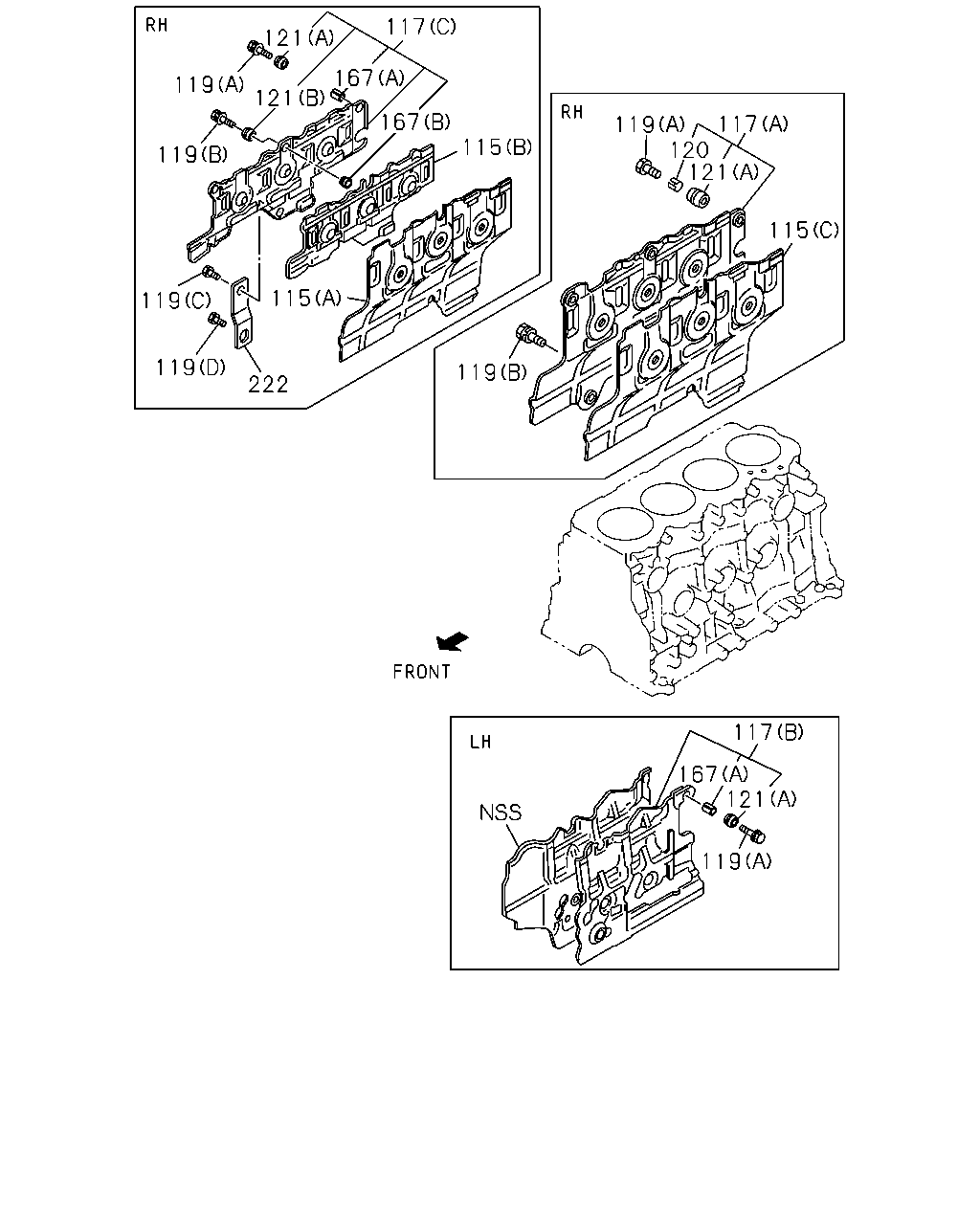

117 121 167 119 121 167 117 119 120 121 115 119 115 119 115 119 119 222 117 167 121 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D	E
115	00.034 RUBBER; SPACE EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (C)	8-97106-521-1	01	1	9804-9812	●
115	00.034 RUBBER; SPACE CHINA CHONGQING EQUIPMENT(R5B) (C)	8-97106-521-1	01	1	9804-9812		●
115	00.034 RUBBER; SPACE EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (C)	8-97106-521-1	01	1	9901-9901	●
115	00.034 RUBBER; SPACE ARGENTINA EQUIPMENT(7SZ) (A)	8-97141-687-0	01	1	9804-9901	●	●
115	00.034 RUBBER; SPACE (A)	8-97141-687-0	01	1	9902-0203	●
115	00.034 RUBBER; SPACE GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A)	8-97141-687-0	01	1	9902-0203		●
115	00.034 RUBBER; SPACE (A)	8-97264-913-1	01	1	0204-	●
115	00.034 RUBBER; SPACE GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A)	8-97264-913-1	01	1	0204-		●
115	00.034 RUBBER; SPACE ARGENTINA EQUIPMENT(7SZ) (B)	8-97166-575-0	01	1	9804-9805	●	●
115	00.034 RUBBER; SPACE ARGENTINA EQUIPMENT(7SZ) (B)	8-97204-194-0	01	1	9806-9904	●	●
115	00.034 RUBBER; SPACE GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (B)	8-97204-194-0	01	1	9905-	●	●
117	00.030 COVER ASM; C/BL GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (B)	8-97188-107-3	01	1	0209-	●	●
117	00.030 COVER ASM; C/BL EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (A)	8-97106-516-1	01	1	9804-9812	●
117	00.030 COVER ASM; C/BL CHINA CHONGQING EQUIPMENT(R5B) (A)	8-97106-516-1	01	1	9804-9812		●
117	00.030 COVER ASM; C/BL EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (A)	8-97106-516-1	01	1	9901-9901	●
117	00.030 COVER ASM; C/BL EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (A)	8-97106-516-1	01	1	9902-0205	●
117	00.030 COVER ASM; C/BL EXC. TURBOCHARGER<K51> (A)	8-97106-516-1	01	1	0206-	●
117	00.030 COVER ASM; C/BL ARGENTINA EQUIPMENT(7SZ) (B)	8-97188-107-2	01	1	9804-9904	●	●
117	00.030 COVER ASM; C/BL GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (B)	8-97188-107-3	01	1	9905-0208	●	●
117	00.030 COVER ASM; C/BL ARGENTINA EQUIPMENT(7SZ) (C)	8-97188-108-0	01	1	9804-9904	●	●
117	00.030 COVER ASM; C/BL GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (C)	8-97188-108-1	01	1	9905-	●	●
119	00.034 BOLT; COVER FIX EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (B) M10X28	8-94329-952-1	02	1	9804-9812	●
119	00.034 BOLT; COVER FIX CHINA CHONGQING EQUIPMENT(R5B) (B) M10X28	8-94329-952-1	02	1	9804-9812		●
119	00.034 BOLT; COVER FIX EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (B) M10X28	8-94329-952-1	02	1	9901-9901	●
119	00.034 BOLT; COVER FIX EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (B) M10X28	8-94329-952-1	02	1	9902-0205	●
119	00.034 BOLT; COVER FIX EXC. TURBOCHARGER<K51> (B) M10X28	8-94329-952-1	02	1	0206-	●
119	00.034 BOLT; COVER FIX EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (A) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	9804-9812	●
119	00.034 BOLT; COVER FIX CHINA CHONGQING EQUIPMENT(R5B) (A) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	9804-9812		●
119	00.034 BOLT; COVER FIX EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) (A) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	9901-9901	●
119	00.034 BOLT; COVER FIX EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (A) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	9902-0205	●
119	00.034 BOLT; COVER FIX EXC. TURBOCHARGER<K51> (A) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	0206-	●
119	00.034 BOLT; COVER FIX ARGENTINA EQUIPMENT(7SZ) 00.206 (C) M8X10 FLANGE	0-28080-810-0	01	1	9804-9904	●	●
119	00.034 BOLT; COVER FIX GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 00.206 (C) M8X10 FLANGE	0-28080-810-0	01	1	9905-	●	●
119	00.034 BOLT; COVER FIX ARGENTINA EQUIPMENT(7SZ) 11.377 (D) M10X20 W/LK WASHER	0-50041-020-0	01	1	9804-9904	●	●
119	00.034 BOLT; COVER FIX GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 11.377 (D) M10X20 W/LK WASHER	0-50041-020-0	01	1	9905-	●	●
119	00.034 BOLT; COVER FIX ARGENTINA EQUIPMENT(7SZ) (B) M10X28	8-94329-952-1	01	1	9804-9904	●	●
119	00.034 BOLT; COVER FIX GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (B) M10X28	8-94329-952-1	01	1	9905-	●	●
119	00.034 BOLT; COVER FIX ARGENTINA EQUIPMENT(7SZ) (A) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9804-9804	●	●
119	00.034 BOLT; COVER FIX ARGENTINA EQUIPMENT(7SZ) (A) M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	9805-9904	●	●
119	00.034 BOLT; COVER FIX GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	9905-	●	●
120	00.034 BUSHING; MTG RUBBER EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) OD=13 T=9.5	8-94140-427-1	05	1	9804-9812	●
120	00.034 BUSHING; MTG RUBBER CHINA CHONGQING EQUIPMENT(R5B) OD=13 T=9.5	8-94140-427-1	05	1	9804-9812		●
120	00.034 BUSHING; MTG RUBBER EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) OD=13 T=9.5	8-94140-427-1	05	1	9901-9901	●
120	00.034 BUSHING; MTG RUBBER EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) OD=13 T=9.5	8-94140-427-1	05	1	9902-0205	●
120	00.034 BUSHING; MTG RUBBER EXC. TURBOCHARGER<K51> OD=13 T=9.5	8-94140-427-1	05	1	0206-	●
121	00.034 RUBBER; MTG,COVER EXC. TURBOCHARGER<K51> (A) OD=22	8-94140-428-1	05	1	0209-0210	●
121	00.034 RUBBER; MTG,COVER EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (A) OD=22	8-94140-428-1	05	1	0206-0206	●
121	00.034 RUBBER; MTG,COVER EXC. TURBOCHARGER<K51> (A) OD=22	8-94140-428-1	05	1	0206-0208	●
121	00.034 RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	05	1	9804-9812	●
121	00.034 RUBBER; MTG,COVER ARGENTINA EQUIPMENT(7SZ) (A) OD=22	8-94140-428-1	05	1	9804-9812		●
121	00.034 RUBBER; MTG,COVER CHINA CHONGQING EQUIPMENT(R5B) (A) OD=22	8-94140-428-1	05	1	9804-9812		●
121	00.034 RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	05	1	9901-9901	●
121	00.034 RUBBER; MTG,COVER ARGENTINA EQUIPMENT(7SZ) (A) OD=22	8-94140-428-1	05	1	9901-9901		●
121	00.034 RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	05	1	9902-0205	●
121	00.034 RUBBER; MTG,COVER GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) OD=22	8-94140-428-1	05	1	9902-0205		●
121	00.034 RUBBER; MTG,COVER GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) OD=22	8-94140-428-1	02	1	0206-0208	●	●
121	00.034 RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	05	1	0209-0209	●
121	00.034 RUBBER; MTG,COVER GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) OD=22	8-94140-428-1	05	1	0209-0209		●
121	00.034 RUBBER; MTG,COVER GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) OD=22	8-94140-428-1	02	1	0209-0210	●	●
121	00.034 RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	05	1	0211-	●
121	00.034 RUBBER; MTG,COVER GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) OD=22	8-94140-428-1	05	1	0211-		●
121	00.034 RUBBER; MTG,COVER ARGENTINA EQUIPMENT(7SZ) (B) OD=16	8-97188-507-0	01	1	9804-9904	●	●
121	00.034 RUBBER; MTG,COVER GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (B) OD=16	8-97188-507-0	01	1	9905-	●	●
167	00.034 TUBE; DIST,SIDE COVER ARGENTINA EQUIPMENT(7SZ) (A) OD=13 T=9.5	8-94140-427-1	05	1	9804-9904	●	●
167	00.034 TUBE; DIST,SIDE COVER GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) OD=13 T=9.5	8-94140-427-1	05	1	9905-0205	●	●
167	00.034 TUBE; DIST,SIDE COVER GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) OD=13 T=9.5	8-94140-427-1	02	1	0206-0208	●	●
167	00.034 TUBE; DIST,SIDE COVER GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) OD=13 T=9.5	8-94140-427-1	05	1	0209-0209	●	●
167	00.034 TUBE; DIST,SIDE COVER GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) OD=13 T=9.5	8-94140-427-1	02	1	0209-0210	●	●
167	00.034 TUBE; DIST,SIDE COVER GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (A) OD=13 T=9.5	8-94140-427-1	05	1	0211-	●	●
167	00.034 TUBE; DIST,SIDE COVER ARGENTINA EQUIPMENT(7SZ) (B) OD=18 T=4.5	8-97188-506-0	01	1	9804-9904	●	●
167	00.034 TUBE; DIST,SIDE COVER GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (B) OD=18 T=4.5	8-97188-506-0	01	1	9905-	●	●
222	00.340 BRACKET; COVER,C/BL ARGENTINA EQUIPMENT(7SZ)	8-97209-129-0	01	1	9804-9904	●	●
222	00.340 BRACKET; COVER,C/BL GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ)	8-97209-129-0	01	1	9905-	●	●

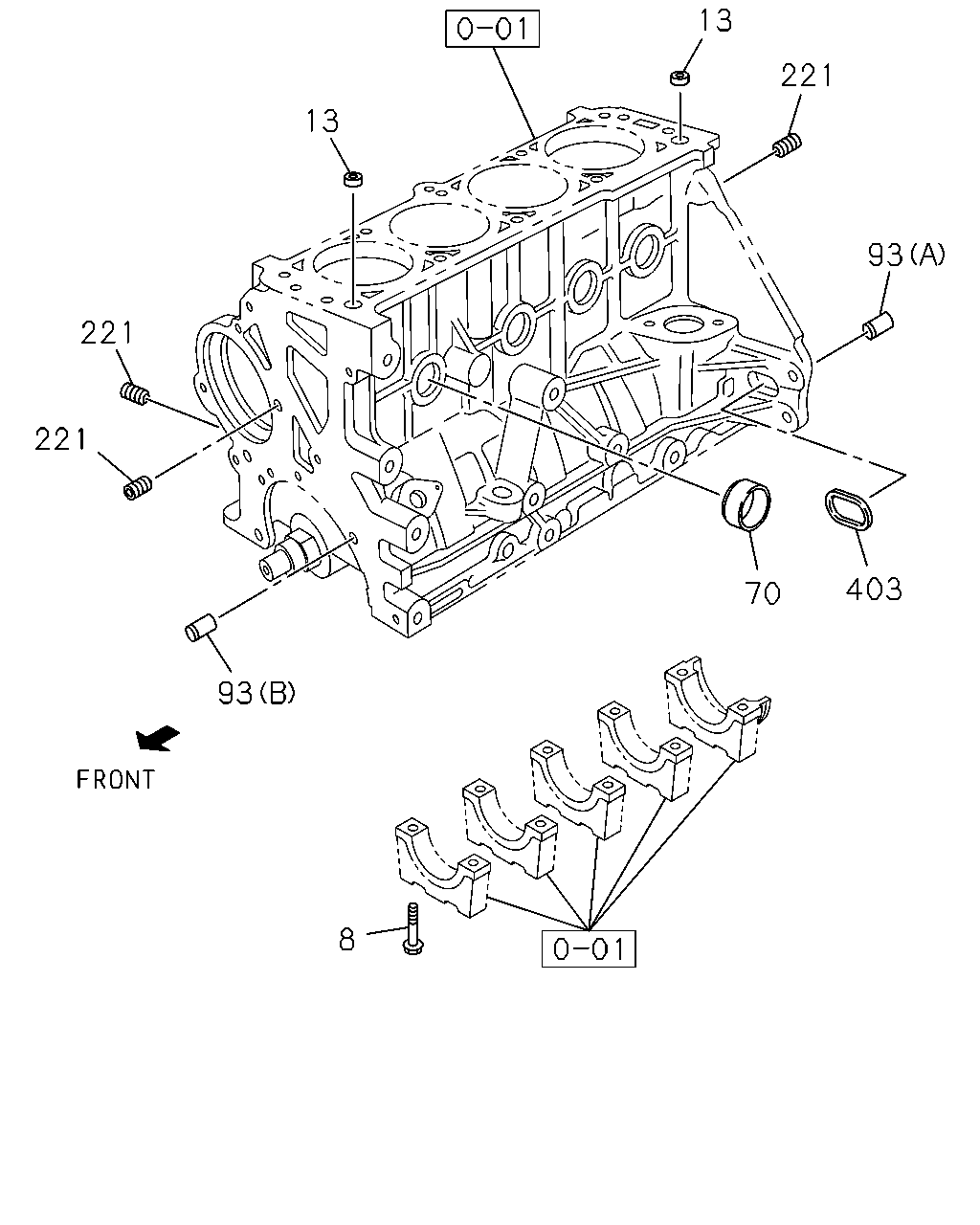

13 221 13 93 221 221 403 70 93 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9804-				●	●
8	00.056 BOLT; BRG CAP M12X77	8-94220-076-1	10	1	9804-9812						●
8	00.056 BOLT; BRG CAP (A) M11X143 FLANGE	8-94363-095-1	08	1	9804-			●
8	00.056 BOLT; BRG CAP (B) M9X85 FLANGE	8-94363-224-1	08	1	9804-			●
8	00.056 BOLT; BRG CAP	8-90502-412-0	10	1	9804-0108	●
8	00.056 BOLT; BRG CAP	8-90502-412-0	10	1	0109-	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9804-				●	●
13	00.293 DOWEL; C/BL TO HD	8-94217-002-0	02	1	9804-9812						●
13	00.293 DOWEL; C/BL TO HD OD=15.25	8-94200-819-0	04	1	9804-			●
13	00.293 DOWEL; C/BL TO HD	8-90353-654-0	02	1	9804-0108	●
13	00.293 DOWEL; C/BL TO HD	8-90353-654-0	02	1	0109-	●	●
70	00.034 CUP; SEALING,FRT & RR (B) OD=14	5-11219-011-0	01	1	0212-0305				●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	02	1	9804-0211				●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	02	1	0212-0305				●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	02	1	0212-0305				●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	0306-				●	●
70	00.034 CUP; SEALING,FRT & RR OD=35	8-94200-768-0	06	1	9804-9812						●
70	00.034 CUP; SEALING,FRT & RR OD=34	8-11056-093-0	07	1	9804-0108	●
70	00.034 CUP; SEALING,FRT & RR OD=34	8-11056-093-0	07	1	0109-	●	●
70	00.034 CUP; SEALING,FRT & RR OD=36	8-11070-803-0	07	1	9804-0108	●
70	00.034 CUP; SEALING,FRT & RR OD=36	8-11070-803-0	07	1	0109-	●	●
93	00.206 DOWEL; RET TO C/BL OD=11 L=8	9-11229-058-1	02	1	9804-9812						●
93	00.206 DOWEL; RET TO C/BL (A)	8-90351-708-0	02	1	9804-0108	●
93	00.206 DOWEL; RET TO C/BL (A)	8-90351-708-0	02	1	0109-	●	●
93	00.206 DOWEL; RET TO C/BL 01.609 (B)	8-90351-709-0	02	1	9804-0108	●
93	00.206 DOWEL; RET TO C/BL 01.609 (B)	8-90351-709-0	02	1	0109-	●	●
221	01.531 PLUG; OIL GALLERY	8-11056-321-0	03	1	9804-0108	●
221	01.531 PLUG; OIL GALLERY	8-11056-321-0	03	1	0109-	●	●
403	01.519 GUIDE; GALLERY	8-90501-712-0	01	1	9804-0108	●
403	01.519 GUIDE; GALLERY	8-90501-712-0	01	1	0109-	●	●

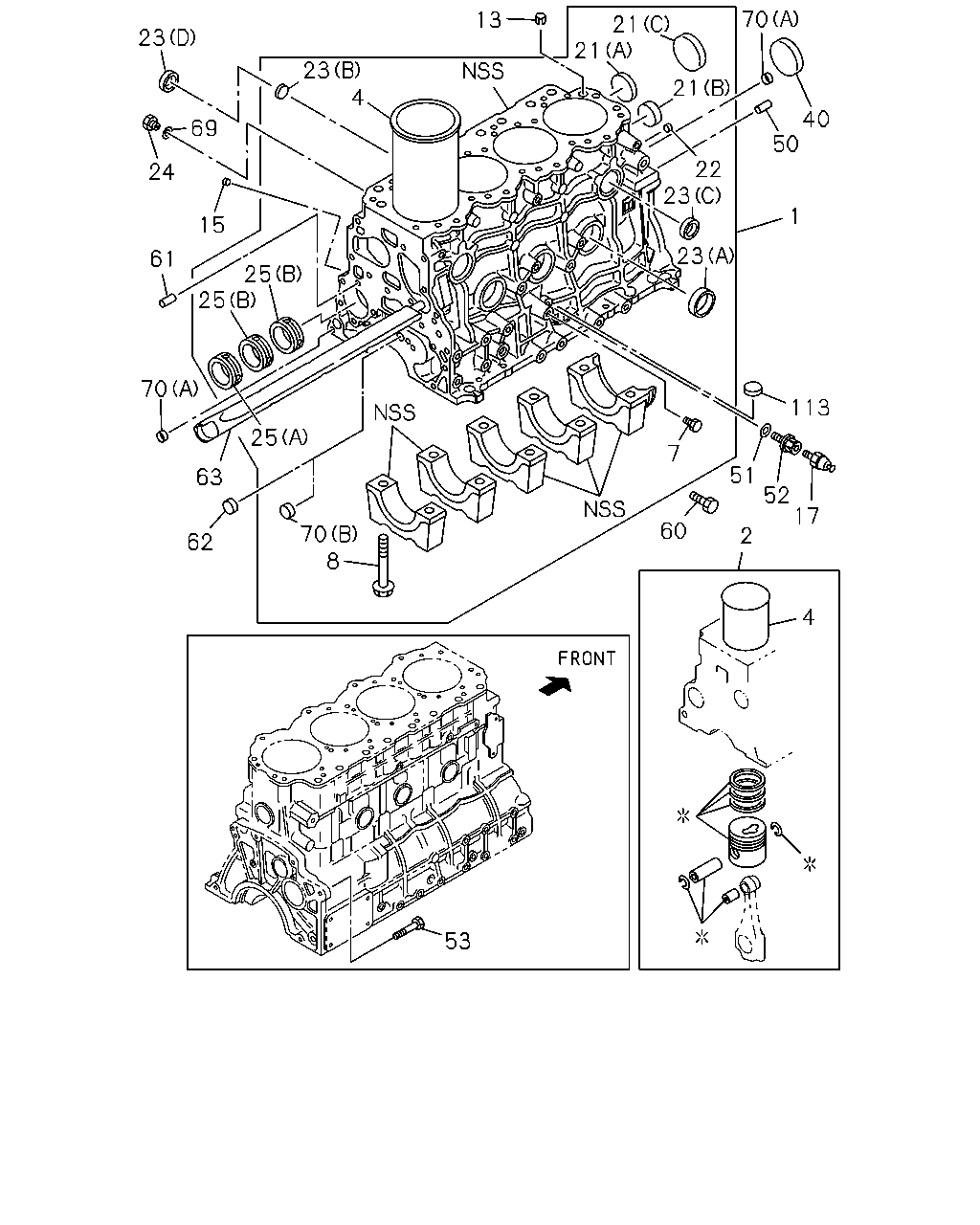

70 13 21 21 23 23 4 21 40 50 69 23 22 23 24 1 15 61 25 25 70 113 25 7 51 63 52 17 60 70 8 2 62 4 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.033 BLOCK ASM; CYL	8-94438-404-4	01	1	9804-0205				●
1	00.033 BLOCK ASM; CYL	8-97249-021-1	01	1	0206-				●
1	00.033 BLOCK ASM; CYL	8-94437-397-7	01	1	9804-0209					●
1	00.033 BLOCK ASM; CYL	8-97352-707-1	01	1	0210-					●
1	00.033 BLOCK ASM; CYL	8-94341-824-2	01	1	9804-9812						●
1	00.033 BLOCK ASM; CYL	8-97149-360-1	01	1	9804-0212			●
1	00.033 BLOCK ASM; CYL	8-97193-222-1	01	1	0301-			●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87813-173-0	04	1	9804-				●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87813-174-0	04	1	9804-				●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87813-175-0	04	1	9804-				●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87813-176-0	04	1	9804-				●
2	00.030 LINER SET; ENG CYL CHINA CHONGQING EQUIPMENT(R5B) 00.094 GRADE=1	5-87813-181-0	04	1	9804-9812					●
2	00.030 LINER SET; ENG CYL CHINA CHONGQING EQUIPMENT(R5B) 00.094 GRADE=2	5-87813-182-0	04	1	9804-9812					●
2	00.030 LINER SET; ENG CYL CHINA CHONGQING EQUIPMENT(R5B) 00.094 GRADE=3	5-87813-183-0	04	1	9804-9812					●
2	00.030 LINER SET; ENG CYL CHINA CHONGQING EQUIPMENT(R5B) 00.094 GRADE=4	5-87813-184-0	04	1	9804-9812					●
2	00.030 LINER SET; ENG CYL EXC. CHINA CHONGQING EQUIPMENT(R5B) GRADE=1	5-87813-193-0	04	1	9804-9812					●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87813-193-0	04	1	9901-					●
2	00.030 LINER SET; ENG CYL EXC. CHINA CHONGQING EQUIPMENT(R5B) GRADE=2	5-87813-194-0	04	1	9804-9812					●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87813-194-0	04	1	9901-					●
2	00.030 LINER SET; ENG CYL EXC. CHINA CHONGQING EQUIPMENT(R5B) GRADE=3	5-87813-195-0	04	1	9804-9812					●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87813-195-0	04	1	9901-					●
2	00.030 LINER SET; ENG CYL EXC. CHINA CHONGQING EQUIPMENT(R5B) GRADE=4	5-87813-196-0	04	1	9804-9812					●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87813-196-0	04	1	9901-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-691-0	04	1	9804-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-692-0	04	1	9804-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-693-0	04	1	9804-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-694-0	04	1	9804-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-695-0	04	1	9804-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-696-0	04	1	9804-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-697-0	04	1	9804-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-698-0	04	1	9804-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-683-0	04	1	9804-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-684-0	04	1	9804-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-685-0	04	1	9804-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-686-0	04	1	9804-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-687-0	04	1	9804-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-688-0	04	1	9804-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-689-0	04	1	9804-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-690-0	04	1	9804-					●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9804-9812				●	●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9901-				●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9804-				●	●
8	00.056 BOLT; BRG CAP M12X77	8-94220-076-1	10	1	9804-9812						●
8	00.056 BOLT; BRG CAP (A) M11X143 FLANGE	8-94363-095-1	08	1	9804-			●
8	00.056 BOLT; BRG CAP (B) M9X85 FLANGE	8-94363-224-1	08	1	9804-			●
8	00.056 BOLT; BRG CAP	8-90502-412-0	10	1	9804-0108	●
8	00.056 BOLT; BRG CAP	8-90502-412-0	10	1	0109-	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9804-				●	●
13	00.293 DOWEL; C/BL TO HD	8-94217-002-0	02	1	9804-9812						●
13	00.293 DOWEL; C/BL TO HD OD=15.25	8-94200-819-0	04	1	9804-			●
13	00.293 DOWEL; C/BL TO HD	8-90353-654-0	02	1	9804-0108	●
13	00.293 DOWEL; C/BL TO HD	8-90353-654-0	02	1	0109-	●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	9804-				●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	9804-9812						●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-2	01	1	9804-9812				●	●	●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-2	01	1	9901-				●	●
21	00.034 CUP; SEALING,RR 00.253 OD=56	8-94250-514-0	01	1	0212-0305				●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	9804-				●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	9804-				●	●
21	00.034 CUP; SEALING,RR OD=38	9-11219-005-0	01	1	9804-9812						●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	9804-				●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0210-0211					●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	03	1	0212-0305				●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	03	1	0212-0305				●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=36	5-11219-018-0	03	1	0306-				●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=45	1-09600-005-1	03	1	9804-0209				●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=45	1-09600-005-1	03	1	0210-0211				●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	9804-				●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	03	1	9804-0211				●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0212-				●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	02	1	9804-					●
24	01.531 NIPPLE; OIL FEED,VAC PUMP EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ)	8-94419-728-0	01	1	9804-9812				●
24	01.531 NIPPLE; OIL FEED,VAC PUMP CHINA CHONGQING EQUIPMENT(R5B)	8-94419-728-0	01	1	9804-9812					●
24	01.531 NIPPLE; OIL FEED,VAC PUMP EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ)	8-94419-728-0	01	1	9901-9901				●
24	01.531 NIPPLE; OIL FEED,VAC PUMP EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ)	8-94419-728-0	01	1	9902-0205				●
24	01.531 NIPPLE; OIL FEED,VAC PUMP EXC. TURBOCHARGER<K51>	8-94419-728-0	01	1	0206-				●
25	00.539 METAL; CM/SHF (B)	8-94427-201-2	02	1	9804-				●	●
25	00.539 METAL; CM/SHF (A)	8-94427-206-2	01	1	9804-				●	●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-0	01	1	9804-				●	●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	9804-				●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	9804-				●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	9804-9812				●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. CHINA CHONGQING EQUIPMENT(R5B)	8-94167-750-2	01	1	9804-9812					●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	9901-				●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B CHINA CHONGQING EQUIPMENT(R5B)	8-94167-749-2	01	1	9804-9812					●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	9804-				●	●
60	01.531 BOLT; OIL JET CHINA CHONGQING EQUIPMENT(R5B) 04.105 M16X12	9-99202-316-0	01	1	9804-9812					●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	02	1	9804-0201				●	●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0202-				●	●
62	00.034 CUP; SEALING,C/BL FRT PHILIPPINE EQUIPMENT(S2U) OD=14	5-11219-011-0	01	1	0010-0103				●
63	01.153 DUCT; WATER,C/BL	8-94419-436-2	01	1	9804-				●	●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9804-9812				●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). CHINA CHONGQING EQUIPMENT(R5B) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9804-9812					●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9901-9901				●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9902-0205				●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER<K51> 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0206-				●
70	00.034 CUP; SEALING,FRT & RR (B) OD=14	5-11219-011-0	01	1	0212-0305				●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	02	1	9804-0211				●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	02	1	0212-0305				●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	02	1	0212-0305				●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	0306-				●	●
70	00.034 CUP; SEALING,FRT & RR OD=35	8-94200-768-0	06	1	9804-9812						●
70	00.034 CUP; SEALING,FRT & RR OD=34	8-11056-093-0	07	1	9804-0108	●
70	00.034 CUP; SEALING,FRT & RR OD=34	8-11056-093-0	07	1	0109-	●	●
70	00.034 CUP; SEALING,FRT & RR OD=36	8-11070-803-0	07	1	9804-0108	●
70	00.034 CUP; SEALING,FRT & RR OD=36	8-11070-803-0	07	1	0109-	●	●
113	00.034 CUP; SEALING OD=15.6	5-11129-003-0	01	1	9804-				●	●

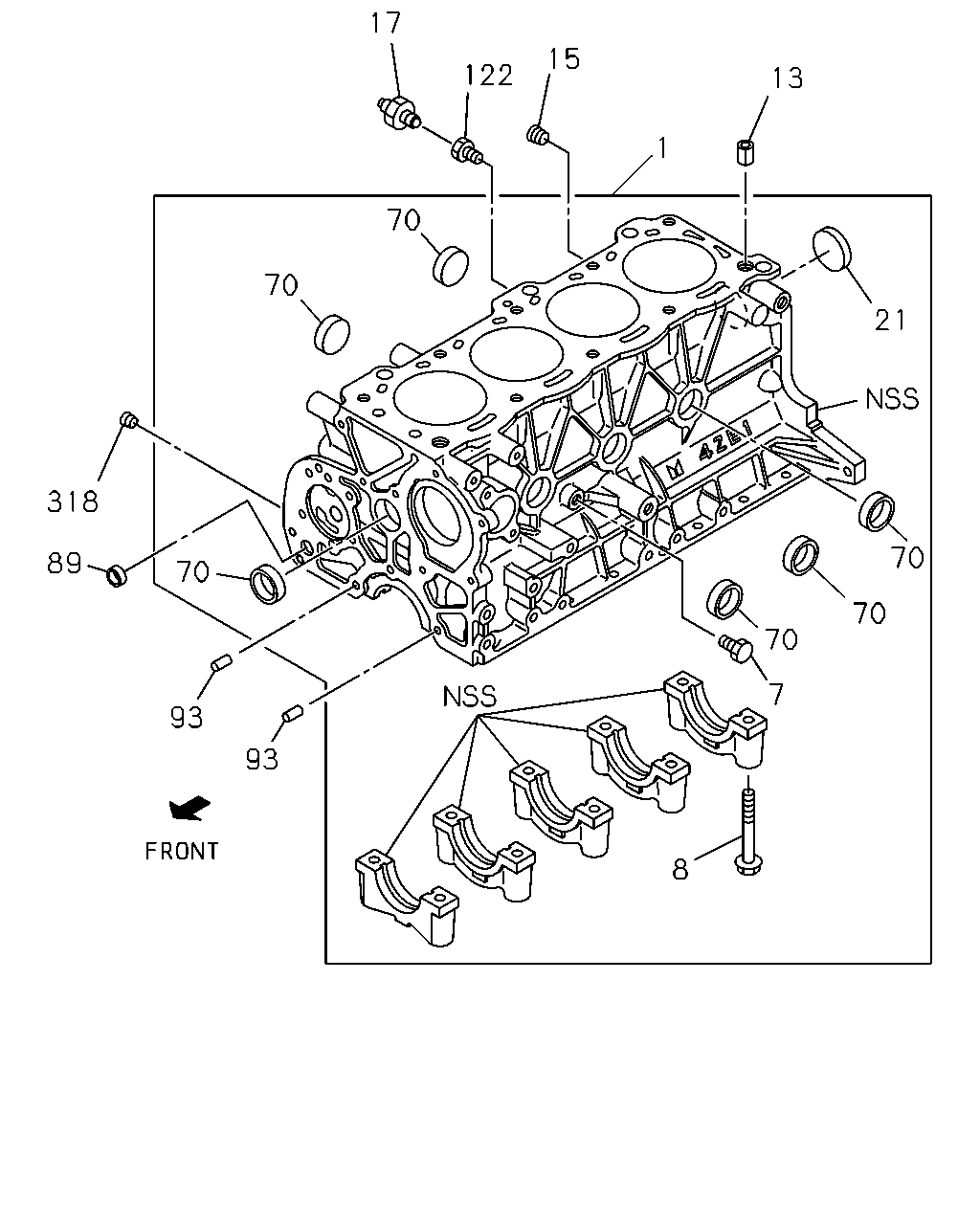

17 15 122 13 1 70 70 21 318 70 70 89 70 70 7 93 93 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.033 BLOCK ASM; CYL	8-94438-404-4	01	1	9804-0205				●
1	00.033 BLOCK ASM; CYL	8-97249-021-1	01	1	0206-				●
1	00.033 BLOCK ASM; CYL	8-94437-397-7	01	1	9804-0209					●
1	00.033 BLOCK ASM; CYL	8-97352-707-1	01	1	0210-					●
1	00.033 BLOCK ASM; CYL	8-94341-824-2	01	1	9804-9812						●
1	00.033 BLOCK ASM; CYL	8-97149-360-1	01	1	9804-0212			●
1	00.033 BLOCK ASM; CYL	8-97193-222-1	01	1	0301-			●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9804-9812				●	●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9901-				●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9804-				●	●
8	00.056 BOLT; BRG CAP M12X77	8-94220-076-1	10	1	9804-9812						●
8	00.056 BOLT; BRG CAP (A) M11X143 FLANGE	8-94363-095-1	08	1	9804-			●
8	00.056 BOLT; BRG CAP (B) M9X85 FLANGE	8-94363-224-1	08	1	9804-			●
8	00.056 BOLT; BRG CAP	8-90502-412-0	10	1	9804-0108	●
8	00.056 BOLT; BRG CAP	8-90502-412-0	10	1	0109-	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9804-				●	●
13	00.293 DOWEL; C/BL TO HD	8-94217-002-0	02	1	9804-9812						●
13	00.293 DOWEL; C/BL TO HD OD=15.25	8-94200-819-0	04	1	9804-			●
13	00.293 DOWEL; C/BL TO HD	8-90353-654-0	02	1	9804-0108	●
13	00.293 DOWEL; C/BL TO HD	8-90353-654-0	02	1	0109-	●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	9804-				●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	9804-9812						●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-2	01	1	9804-9812				●	●	●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-2	01	1	9901-				●	●
21	00.034 CUP; SEALING,RR 00.253 OD=56	8-94250-514-0	01	1	0212-0305				●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	9804-				●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	9804-				●	●
21	00.034 CUP; SEALING,RR OD=38	9-11219-005-0	01	1	9804-9812						●
70	00.034 CUP; SEALING,FRT & RR (B) OD=14	5-11219-011-0	01	1	0212-0305				●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	02	1	9804-0211				●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	02	1	0212-0305				●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	02	1	0212-0305				●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	0306-				●	●
70	00.034 CUP; SEALING,FRT & RR OD=35	8-94200-768-0	06	1	9804-9812						●
70	00.034 CUP; SEALING,FRT & RR OD=34	8-11056-093-0	07	1	9804-0108	●
70	00.034 CUP; SEALING,FRT & RR OD=34	8-11056-093-0	07	1	0109-	●	●
70	00.034 CUP; SEALING,FRT & RR OD=36	8-11070-803-0	07	1	9804-0108	●
70	00.034 CUP; SEALING,FRT & RR OD=36	8-11070-803-0	07	1	0109-	●	●
89	00.034 CUP; SEALING,OIL GALLERY 00.253 OD=18	5-11219-008-0	02	1	9804-9812						●
93	00.206 DOWEL; RET TO C/BL OD=11 L=8	9-11229-058-1	02	1	9804-9812						●
93	00.206 DOWEL; RET TO C/BL (A)	8-90351-708-0	02	1	9804-0108	●
93	00.206 DOWEL; RET TO C/BL (A)	8-90351-708-0	02	1	0109-	●	●
93	00.206 DOWEL; RET TO C/BL 01.609 (B)	8-90351-709-0	02	1	9804-0108	●
93	00.206 DOWEL; RET TO C/BL 01.609 (B)	8-90351-709-0	02	1	0109-	●	●
122	01.800 ADAPTER; OIL PRESSURE SWITCH PT1/8 STRAIGHT	9-09902-238-0	01	1	9804-9812						●
318	01.531 PLUG; OIL FILTER	9-09864-007-1	01	1	9804-9812						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
